Tearing properties of Jacquard warp knitted spacer fabric

SUN Wan, MIAO Xuhong(), WANG Xiaolei

  1. Engineering Research Center for Knitting Technology, Ministry of Education, Jiangnan University, Wuxi, Jiangsu 214122, China
  • Received:2018-07-13 Revised:2019-02-26 Online:2019-06-15 Published:2019-06-25
  • Contact: MIAO Xuhong E-mail:miaoxuhong@163.com

RichHTML

8

PDF (PC)

77

Abstract:

In order to improve the mechanical properties of the vamp by rationally configuring the Jacquard structure, eight kinds of Jacquard structure commonly used in vamp materials were adopted to study the tearing properties weftwise and warpwise of the Jacquard warp knitted spacer fabric and some single-layer fabrics. The weftwise and warpwise tearing mechanism, destruction of fabric and the tearing curve characteristics of the Jacquard warp knitted spacer fabric were summarized. The influence of Jacquard structure on the tearing strength of weftwise and warpwise was also researched. When the fabric is transversely torn, the fabric is first broken along the weft direction and then along the warp direction. When the fabric is longitudinally torn, the fabric is destroyed completely in the warp direction. The curve of the weftwise tearing fluctuates greatly, while the warpwise tearing curve is relatively regular. The tearing curve and characteristics are mainly determined by the Jacquard side, and the length of the tearing weftwise is mainly determined by the side with the smaller tear length. The tear strength of Jacquard spacer fabric with a thin structure is minimum either in weft direction or warp direction, which should not be used when the tearing strength of the upper material is insufficient.

Key words: warp knitting, spacer fabric, Jacquard, tearing property, vamp material

CLC Number:

  • TS186.1

Tab.1

Technical parameters of samples"

梳栉
编号		 垫纱组织 原料规格 穿纱 送经量/
(mm·腊克-1)
GB1 1-0-0-0/2-
3-3-3//		 166.67 dtex(48 f)
涤纶FDY		 满穿 2 360
GB2 1-0-0-0/0-
1-1-1//		 166.67 dtex(48 f)
涤纶FDY		 满穿 1 480
GB3 1-0-2-1/2-
3-1-2//		 33.33 d tex
涤纶单丝		 满穿 7 600
JB4 1-1-1-0/1-
1-1-2//		 166.67 dtex(48 f)
涤纶FDY		 满穿 -
GB5 1-1-1-0/1-
1-0-1//		 166.67 dtex(48 f)
涤纶FDY		 满穿 1 480

Tab. 2

Specifications of sample"

试样
编号		 成品横密/
(纵行·cm-1)		 成品纵密/
(横列·cm-1)		 贾卡梳送
经量/
(mm·腊克-1)		 面密度/
(g·m-2)
1# 25 36.0 2 220 479.9
2# 25 41.0 2 360 519.9
3# 25 40.0 2 290 500.1
4# 25 38.0 2 240 482.8
5# 24 38.0 2 170 477.8
6# 24 39.5 2 270 489.7
7# 25 38.0 2 250 496.9
8# 25 39.0 2 270 506.6

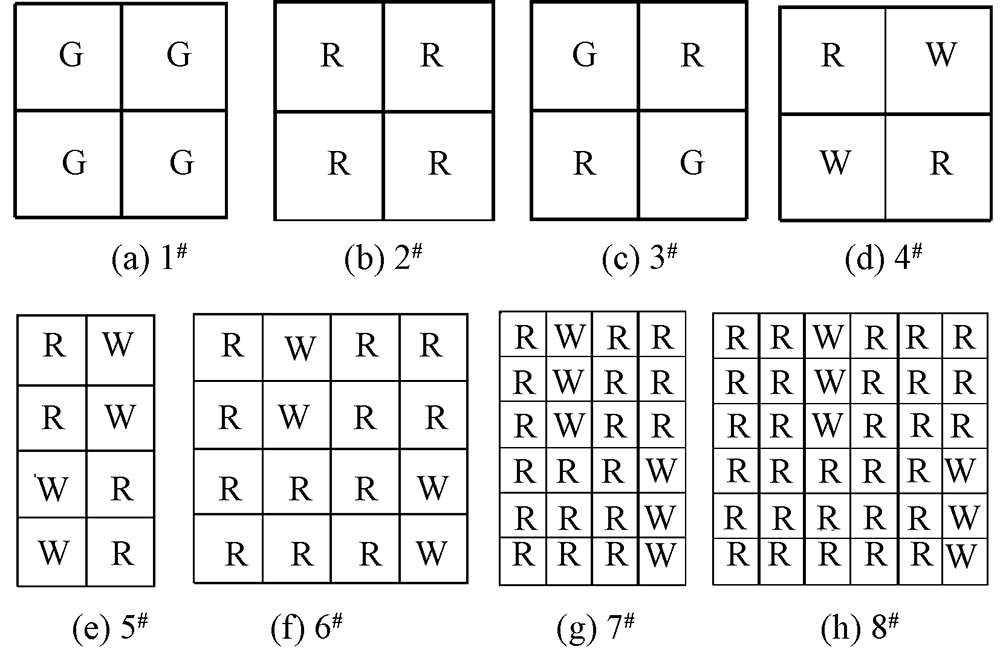

Fig.1

Jacquard drafted pattern"

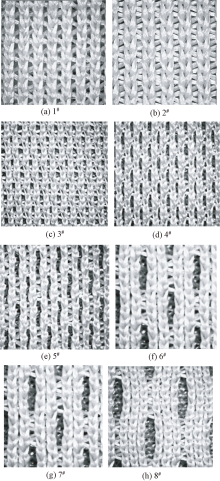

Fig.2

Photo of samples"

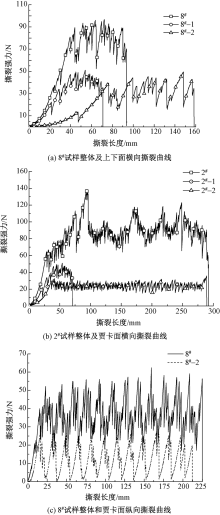

Fig.3

Tearing curve of spacer fabric and single layer fabric. (a) Tearing curve of weft tearing of 8# and single layer fabric; (b) Tearing curve of weft tearing of 2# and Jacquard; (c) Tearing curve of warp tearing of 8# and Jacquard"

Fig.4

Tearing destruction of samples in weft and warp. (a) Tearing destruction of spacer fabric in warp; (b) Tearing destruction of single layer fabric in warp; (c) Tearing destruction of spacer fabric in weft; (d) Tearing destruction of single layer fabric in weft"

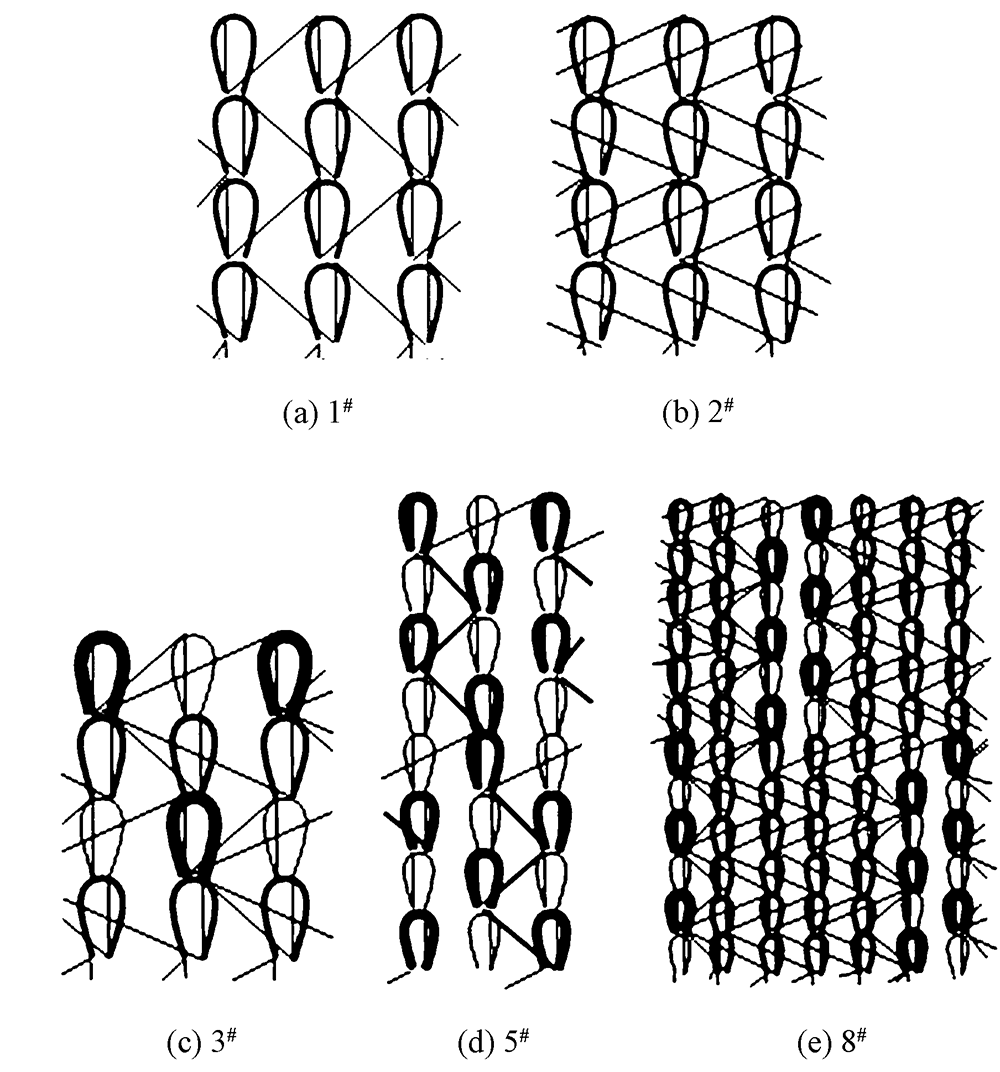

Fig.5

Coil structure diagram of Jacquard"

Tab.3

Tear strength and tear length of spacer fabric and single layer in weft"

试样
编号		 横向撕裂
强力/N		 横向撕裂
长度/mm		 纵向撕裂
强力/N		 纵向撕裂
长度/mm
1# 89.88 52.25 55.59 179.18
1#-1 50.93 54.07 32.90 164.50
1#-2 34.43 157.07 14.82 190.24
2# 137.38 94.02 65.01 158.04
2#-2 35.83 289.33 23.27 146.92
3# 110.81 71.97 60.04 188.42
4# 91.89 62.96 68.56 193.81
5# 95.14 72.65 75.21 122.66
5#-2 32.89 169.43 31.05 160.40
6# 90.11 70.52 61.41 77.73
7# 92.97 63.91 61.00 168.50
8# 96.67 72.29 62.39 159.38
8#-2 49.57 148.03 28.10 170.17
[1] 魏赛男, 姚继明, 彭志远. 鞋材用经编间隔织物的服用性能[J]. 上海纺织科技, 2012,40(11):16-19.
WEI Sainan, YAO Jiming, PENG Zhiyuan. Wearing propertiesof warp-knitted spacer fabric for shoe-making[J]. Shanghai Textile Science Technology, 2012,40(11):16-19.
[2] 钟君, 丛洪莲, 张燕婷, 等. 经编单层立体提花鞋面织物的花型设计与生产工艺[J]. 纺织学报, 2017,38(2):111-116.
ZHONG Jun, CONG Honglian, ZHANG Yanting, et al. Pattern design and production process of warp-knitted single-layer stereo jacquard shoe-upper[J]. Journal of Textile Research, 2017,38(2):111-116.
[3] 简晚霞, 张琦, 万爱兰, 等. 针织成形鞋材生产技术现状[J]. 纺织导报, 2017(10):70-72.
JIAN Wanxia, ZHANG Qi, WAN Ailan, et al. Development of the manufacturing technology for fully-fashioned knitted vamp[J]. China Textile Leader, 2017(10):70-72.
[4] 李金茗. 织物撕裂和纰裂性能测试相关性研究[D]. 西安:西安工程大学, 2012: 6-10.
LI Jinming. Research on relation between fabric tearing and cracking performance[D].Xi'an: Xi'an Polytechnic University, 2012: 6-10.
[5] 寿钱英. 纬编针织物抗撕裂、顶破和穿刺性能研究[D]. 上海:东华大学, 2012: 18-20.
SHOU Qianying. Study of weft-knitting fabric's tear resistance, bursting properties and quasi-static stab resistance[D]. Shanghai: Donghua University, 2012: 18-20.
[6] MENG J, LI P, MA G, et al. Tearing behaviors of flexible fiber-reinforced composites for the stratospheric airship envelope[J]. Applied Composite Materials, 2017,24(3):735-749.
doi: 10.1007/s10443-016-9539-7
[7] 姚渊锋. 经编间隔织物与海绵作为汽车用坐垫性能方面的研究[D]. 上海:东华大学, 2005: 30-33.
YAO Yuanfeng. Study on the properities of warp knitted spacer fabric and used as auto cushion[D]. Shanghai:Donghua University, 2005: 30-33.
[8] 杨大伟, 缪旭红, 赵帅权. 经编成形鞋面的结构与设计[J].针织工业, 2015(7):60-63.
YANG Dawei, MIAO Xuhong, ZHAO Shuaiquan. Structure and design of warp knitted fully-fashioned vamp[J]. Knitting Industries, 2015(7):60-63.
[9] 李筱一, 缪旭红, 杨大伟, 等. 经编间隔双色成形鞋面的工艺设计[J]. 针织工业, 2016(2):21-23.
LI Xiaoyi, MIAO Xuhong, YANG Dawei, et al. Technology design of double colored fully-fashioned vamp by warp knitted spacer fabric[J]. Knitting Industries, 2016(2):21-23.
[10] 杨大伟, 缪旭红, 孙婉, 等. 经编贾卡提花间隔织物的顶破性能[J]. 纺织学报, 2016,37(9):48-52.
YANG Dawei, MIAO Xuhong, SUN Wan, ect. Bursting properties of warp knitted jacquard spacer fabrics[J]. Journal of Textile Research, 2016,37(9):48-52.
