Journal of Textile Research ›› 2019, Vol. 40 ›› Issue (06): 117-124.doi: 10.13475/j.fzxb.20180704708

• Management & Information • Previous Articles     Next Articles

Defect detection algorithm for multiple texture hierarchical fusion fabric

ZHU Hao1, DING Hui1,2,3, SHANG Yuanyuan1,2,3, SHAO Zhuhong1,2,4

  1. 1. College of Information Engineering, Capital Normal University, Beijing 100048, China
    2. Beijing Engineering Research Center of High Reliable Embedded System, Beijing 100048, China
    3. Beijing Advanced Innovation Center for Imaging Theory and Technology, Beijing 100048, China
    4. Collaborative Innovation Center for Mathematics and Information of Beijing, Beijing 100048, China
  • Received:2018-07-19 Revised:2019-02-26 Online:2019-06-15 Published:2019-06-25
  • Contact: DING Hui

RichHTML

13

PDF (PC)

158

Abstract: Aim

ing at the false detection and missing detection caused by complexity and diversity of texture distribution in fabric defect detection, considering the periodicity of fabric texture, an algorithm of multi-texture gradation fusion for fabric defect detection was proposed. In the process of testing, firstly, the defect region was subjected to primary positioning and self-adaptive growth by using the Tamura roughness graph of the fabric defect image, then the primary positioned region was mapped to the original fabric image. The primary positioned region was blocked and the local phase quantization (LPQ) texture feature and Tamura texture feature of each image block were extracted, and the two different texture features were fused. The similarity between the fusion feature and the normal block feature was calculated to obtain the similarity image. Finally, the longitude and latitude feature map and the similarity feature map were fused to find the region of the defects in fabric images. The experimental results on TILDA dataset show that the new approach can reduce the redundancy of defect detection and improve the detection efficiency, and can avoid errors and omissions in the process of defect detection.

Key words: defect detection, fabric texture, feature fusion, Tamura feature, local phase quantization feature

CLC Number:

  • TP399

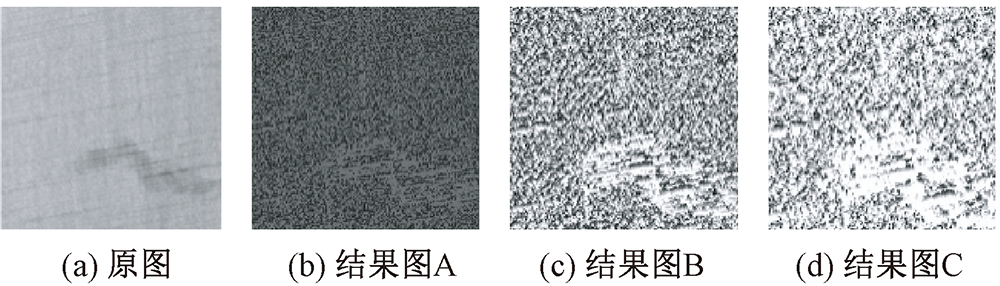

Fig.1

Roughness image of different window sizes. (a) Original image; (b) A results;(c)B results; (d) C results"

Fig.2

Fabric images with different textures and cycles"

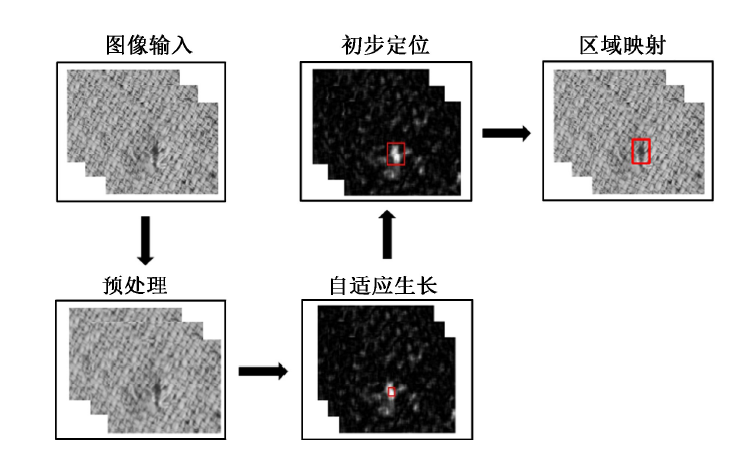

Fig.3

Fabric defect area coarse positioning and adaptive growth"

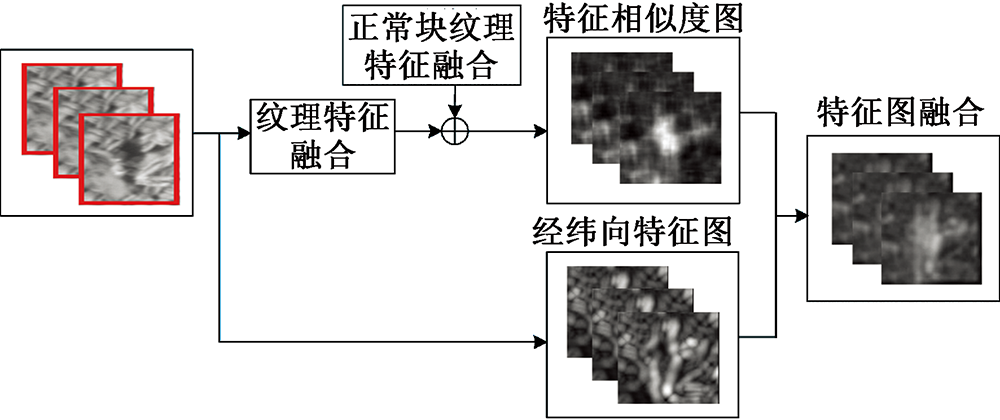

Fig.4

Defect identification structure image"

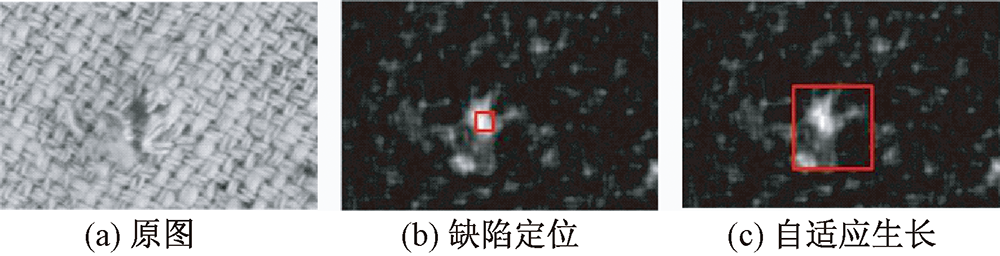

Fig.5

Coarse positioning and adaptive growth of defect result. (a) Original image; (b) Defect location image; (c) Adaptive growth image"

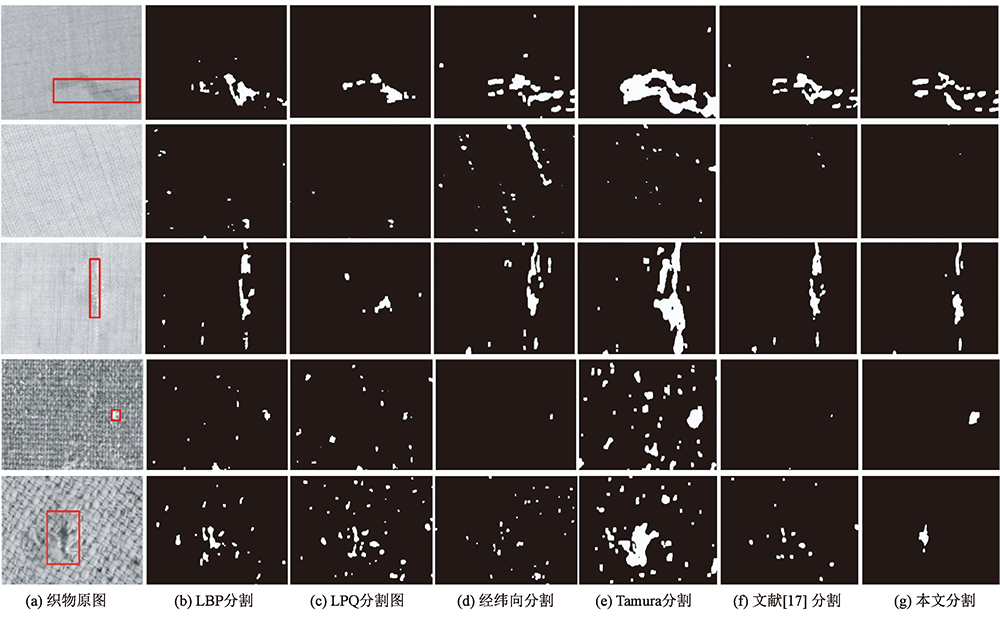

Fig.6

Testing results of fabric defect map. (a) Original image; (b) LBP segmentation results; (c) LPQ segmentation results; (d)Longitude and latitude segmentation results; (e) Tamura segmentation results; (f) Literature [17] segmentation results; (g) Paper segmentation results"

Fig.7

Experimental comparison image. (a) Sample 1# original image; (b) LTJ segmentation of sample 1#; (c) Paper segmentation of sample 1#; (d) Sample 2# original image; (e) LTJ segmentation of sample 2#; (f) Paper segmentation of sample 2#; (g) Sample 3# original image; (h) LTJ segmentation of sample 3#; (i) Paper segmentation of sample 3#; (j) Sample 4# original image; (k) LTJ segmentation of sample 4#; (l) Paper segmentation of sample 4#"

Tab.2

Average time of different texture defect detectionss"

织物编号 LBP LPQ 经纬向 Tamura LBP+经纬向 本文
试样1# 14.96 30.97 6.69 7.91 19.81 13.65
试样2# 14.73 31.12 6.72 7.89 19.93 13.15
试样3# 14.60 31.04 6.71 7.92 19.94 12.95
试样4# 15.10 31.26 6.72 7.90 19.74 13.28

Tab.2

Different texture defect detection probability $\ \ \ \ \ \ \ \%$"

织物
编号		 LBP算法 LPQ算法 经纬向算法 LBP+经纬向算法 本文算法
检出率 误检率 检出率 误检率 检出率 误检率 检出率 误检率 检出率 误检率
试样1# 84.72 15.27 85.64 14.35 81.94 18.05 91.66 8.33 93.05 6.94
试样2# 83.33 16.66 83.79 16.20 80.55 19.44 94.44 5.55 93.05 6.94
试样3# 61.11 38.88 63.88 36.11 43.05 56.94 58.33 41.66 65.27 34.72
试样4# 54.16 45.83 56.01 43.98 41.66 58.33 69.44 30.55 72.77 27.77
[1] SRINIVASAN K, DASTOOR P H, RADHAKRISHNAIAH P, et al. FDAS: A knowledge-based framework for analysis of defects in woven textile structures[J]. Journal of the Textile Institute, 1992,83(3):431-448.
doi: 10.1080/00405009208631217
[2] LIU Bing, ZHANG Hong. Image retrieval algorithm based on convolutional neural network and manifold ranking[J]. Journal of Computer Applications, 2016,36(2):531-534.
[3] CHAN C H, PANG G K H. Fabric defect detection by Fourier analysis[J]. IEEE Transactions on Industry Applications, 2000,36(5):1267-1276.
doi: 10.1109/28.871274
[4] MAK K L, PENG P, YIU K F C. Fabric defect detection using morphological filters[J]. Image & Vision Computing, 2009,27(10):1585-1592.
[5] CHETVERIKOV D, HANBURY A. Finding defects in texture using regularity and local orientation[J]. Pattern Recognition, 2002,35(10):2165-2180.
doi: 10.1016/S0031-3203(01)00188-1
[6] ALATA O, RAMANANJARASOA C. Unsupervised textured image segmentation using 2-D quarter plane autoregressive model with four prediction supports[J]. Pattern Recognition Letters, 2005,26(8):1069-1081.
doi: 10.1016/j.patrec.2004.10.002
[7] 杜磊, 李立轻, 汪军, 等. 几种基于图像自适应阈值分割的织物疵点检测方法比较[J]. 纺织学报, 2014,35(6):56-60.
DU Lei, LI Liqing, WANG Jun, et al. Comparison of several fabric defect detection methods based on image adaptive threshold segmentation[J]. Journal of Textile Research, 2014,35(6):56-60.
[8] NGNA H Y T, PANG G K H, YUNG S P, et al. Wavelet based methods on patterned fabric defect detection[J]. Pattern Recognition, 2005,38(4):559-576.
doi: 10.1016/j.patcog.2004.07.009
[9] VERMAAK H, NSENGIYUMVAL P, LUWES N. Using the dual-tree complex wavelet transform for improved fabric defect detection[J]. Journal of Sensors, 2016,2016(7):1-8.
[10] BISSI L, BARUFF G, PLACIDIP , et al. Automated defect detection in uniform and structured fabrics using Gabor filters and PCA[J]. Journal of Visual Communication and Image Representation, 2013,24(7):838-845.
doi: 10.1016/j.jvcir.2013.05.011
[11] JING J, FAN X, LI P. Automated fabric defect detection based on multiple gabor filters and KPCA[J]. International Journal of Multimedia & Ubiquitous Engineering, 2016,11(6):93-106.
[12] JING J, LIU S, LI P, et al. The fabric defect detection based on CIE L*a*b* color space using 2-D Gabor filter[J]. Journal of the Textile Institute Proceedings & Abstracts, 2016,107(10):1305-1313.
[13] 杨晓波. 基于GMRF模型的统计特征畸变织物疵点识别[J]. 纺织学报, 2013,34(4):137-142.
YANG Xiaobo. Fabric defect detection of statistic aberration feature based on GMRF model[J]. Journal of Textile Research, 2013,34(4):137-142.
[14] TAMURA H, MORI S, YAMAWAKI T. Textural features corresponding to visual perception[J]. IEEE Transactions on Systems Man and Cybernetics, 1978,8(6):460-473.
doi: 10.1109/TSMC.1978.4309999
[15] SACHS J, GAO L. Item-level and subscale-level factoring of Biggs' learning process questionnaire (LPQ) in a mainland Chinese sample[J]. British Journal of Educational Psychology, 2011,70(3):405-418.
doi: 10.1348/000709900158209
[16] CHIKKERUR S, GOVINDARAJU V, CARTWRIG A N. Fingerprint image enhancement using STFT analy-sis[J]. Pattern Recognition, 2007,40(1):198-211.
doi: 10.1016/j.patcog.2006.05.036
[17] 周建, 王静安, 高卫东. 应用局部纹理特征的无监督织物瑕疵检测算法[J]. 纺织学报, 2016,37(12):43-48.
ZHOU Jian, WANG Jingan, GAO Weidong. An unsupervised fabric defect Detection algorithm based on Local texture feature[J]. Journal of Textile Research, 2016,37(12):43-48.
[18] 王钢, 周建, 汪军, 等. 基于奇异值分解的机织物瑕疵检测算法[J]. 纺织学报, 2014,35(7):61-66.
WANG Gang, ZHOU Jian, WANG Jun, et al. Flaw detection algorithm for woven fabrics based on singular value decomposition[J]. Journal of Textile Research, 2014,35(7):61-66.
