Journal of Textile Research ›› 2019, Vol. 40 ›› Issue (8): 146-150.doi: 10.13475/j.fzxb.20180903005

• Machinery & Accessories • Previous Articles     Next Articles

Structure optimization for work roll of carding machine

LI Zhiqiang(), NI Li, ZHAO Zexiang, ZHANG Hong, LIANG Ying

  1. School of Mechatronics Engineering, Zhongyuan University of Technology, Zhengzhou, Henan 450007, China
  • Received:2018-09-13 Revised:2019-05-09 Online:2019-08-15 Published:2019-08-16

Abstract:

In order to improve the straightness of domestic carding machine work roll subjected to the card clothing weight and with self-weight, the structure analysis and study were carried out for a certain type domestic work roll with ANSYS. On the basis of the analysis and study, the optimum design of carding machine work roll was carried out. Firstly, the mathematical model of topological optimization and size optimization was established, and the sensitivity of the objective function to design variables was deduced in the topology optimization mathematical model. Then, the two-step optimization scheme was proposed based on analysis and study of the work roll, and the structure of work roll was optimized by topology optimization and size optimization successively based on ANSYS APDL and the own optimizer. The results show that the materials are distributed to it's right place, and the maximum of deflection reduce from 0.33 mm to 0.11 mm with the constrained stress, the maximum of deflection obtained by optimization reduces by 67% compared with the non-optimized one, the straightness of the work roll is improved, and the performance of the work roll is also improved.

Key words: work roll of carding machine, topology optimization, size optimization, deflection

CLC Number:

  • TS941.562

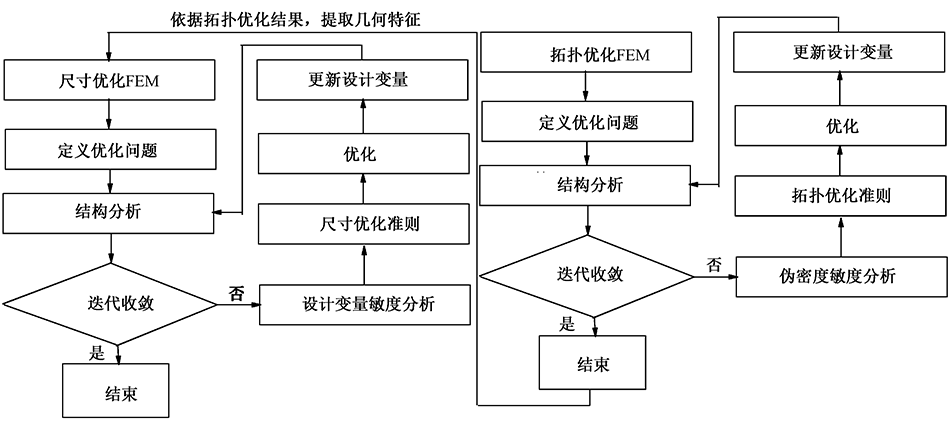

Fig.1

Basic procedure of work roll optimization"

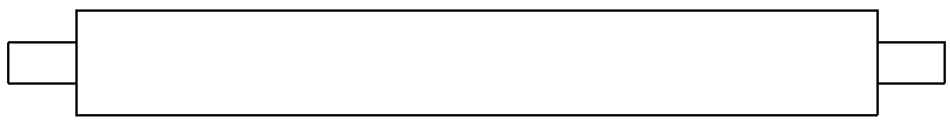

Fig.2

Sketch of work roll"

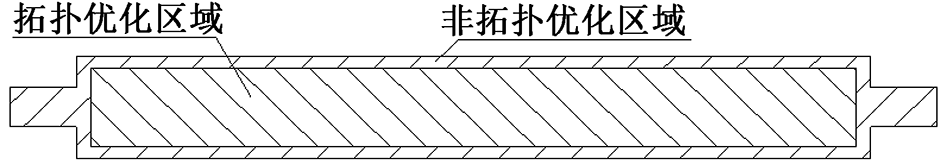

Fig.3

Section view of work-roll simplified model"

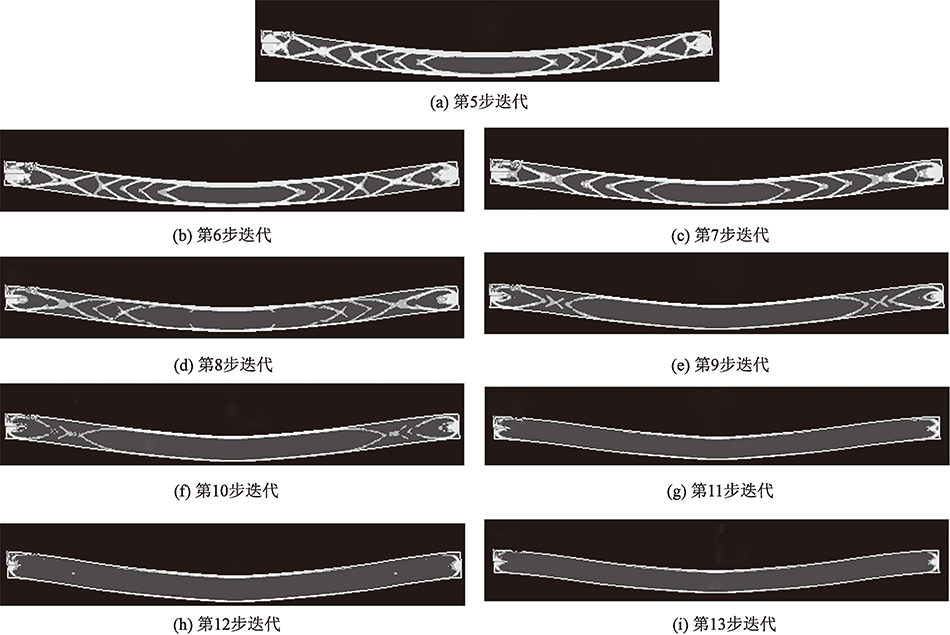

Fig.4

Evolution of work roll rertical section structure in iterative process. (a) Iteration 5; (b) Iteration 6; (c) Iteration 7; (d) Iteration 8; (e) Iteration 9; (f) Iteration 10; (g) Iteration 11; (h) Iteration 12; (i) Iteration 13"

Fig.5

Work-roll geometric model with parameters"

Fig.6

Vertical section of work-roll geometric model"

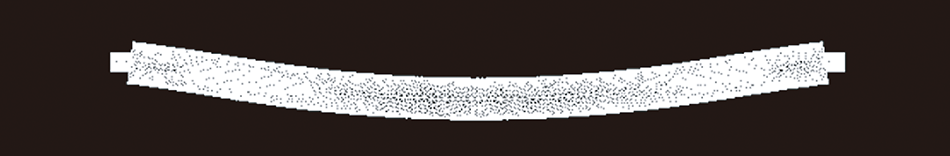

Fig.7

Displacement of work-roll after optimization"

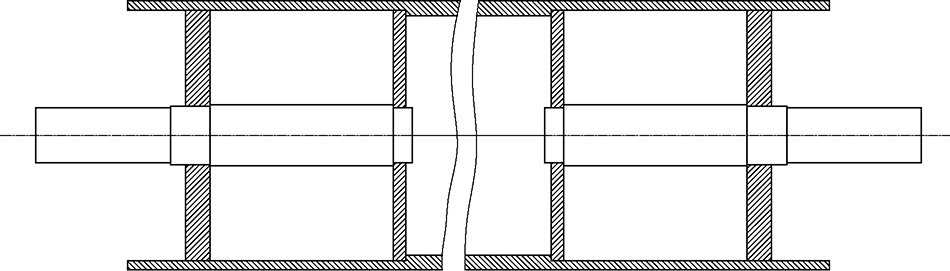

Fig.8

Structure chart of original work-roll"

[1] BENDSOE M P, SIGMUND O . Topology Optimization: Theory Methods and Applications[M]. Berlin: Springer, 2003: 9.
[2] MLEJNEK H P . Some aspects of the genesis of structures[J]. Structural and Multidisciplinary Optimization, 1992,5(1):64-69.
[3] GUILIAN Y I, KIM N H . Identifying boundaries of topology optimization results using basic parametric features[J]. Structural Multidisciplinary Optimization, 2017(55):1641-1654.
[4] 郭鹏, 肖守讷, 朱涛 , 等. 底架承载式机车变截面中梁优化设计[J]. 机械设计与制造, 2015(6):98-101.
GUO Peng, XIAO Shoune, ZHU Tao , et al. Structural optimal design for variable cross-section longitudinal beam of the underframe bearing type locomotive[J]. Machinery Design & Manufacture, 2015(6):98-101.
[5] 王琴, 熊万里, 吕浪 , 等. 基于加载状态下动态特性预测的高速电主轴结构参数优化方法[J]. 机械设计, 2015,11(32):19-25.
WANG Qin, XIONG Wanli, LÜ Lang , et al. Parametric optimization study of high-speed motorized spindle structures based on dynamic characteristics prediction under loading condition[J]. Journal of Machine Design, 2015,11(32):19-25.
[6] 陈兰, 曾梁彬, 张新洲 , 等. 大型船用卷板机上辊挠度分析及支承结构优化[J]. 机械设计与制造, 2012(1):221-223.
CHEN Lan, ZENG Liangbin, ZHANG Xinzhou , et al. Deflection analysis and structural support optimization for upper roller of large marine bending machine[J]. Machinery Design & Manufacture, 2012(1):221-223.
[7] 夏建芳, 刘哲明 . 桁架起重机主梁强度分析与结构优化[J]. 机械工程师, 2007(3):24-26.
XIA Jianfang, LIU Zheming . Optimization design of joist gantry crane grider[J]. Mechanical Engineer, 2007(3):24-26.
[8] 李兆凯, 方耀楚, 郝鹏 , 等. 失效模式约束层级褶皱结构的多目标优化[J]. 工程力学, 2017,34(5):226-234.
LI Zhaokai, FANG Yaochu, HAO Peng , et al. Multi-objective optimization of hierarchical corrugated structure under failure modes constraints[J]. Engineering Mechanics, 2017,34(5):226-234.
[9] YOSHIHIRO Kannol, HIROMICHI Yamada . A note on truss topology optimization under self-weight load: mixed-integer second-order cone programming app-roach[J]. Structural Multidisciplinary Optimization, 2017,56:221-226.
doi: 10.1007/s00158-017-1657-9
[10] 李志强, 张运章, 宋艳丽 . 应力和位移约束下连续结构的有效拓扑优化方法[J]. 应用力学学报, 2013,30(1):70-75.
LI Zhiqiang, ZHANG Yunzhang, SONG Yanli . An efficient structural topological optimization method for continuum structures with stress and displacement constraints[J]. Chinese Journal of Applied Mechanics, 2013,30(1):70-75.
[11] ZHU Jihong, ZHANG Weihong, LIANG Xia . Topology optimization in aircraft and aerospace structures de-sign[J]. Arch Computat Methods Eng, 2016,23:595-622.
doi: 10.1007/s11831-015-9151-2
