Journal of Textile Research ›› 2019, Vol. 40 ›› Issue (10): 26-32.doi: 10.13475/j.fzxb.20180903507

• Fiber Materials • Previous Articles     Next Articles

Preparation of poly(meth)acrylate hollow fiber with internal coating of manganese oxide and its capability to decolorize dyes of methylene blue

GUO Dongyan1,2, XU Naiku1,2(), XIAO Changfa1,2

  1. 1. School of Material Science and Engineering, Tiangong University, Tianjin 300387, China
    2. State Key Laboratory of Separation Membranes and Membrane Processes, Tiangong University, Tianjin 300387, China
  • Received:2018-09-13 Revised:2018-12-26 Online:2019-10-15 Published:2019-10-23
  • Contact: XU Naiku E-mail:xunaiku@tjpu.edu.cn

RichHTML

1

PDF (PC)

122

Abstract:

In order to enhance the decolorization efficiency of methylene blue (MB) when it flows in the poly(meth)acrylate hollow fiber, the blend solution of poly (butyl methacrylate-co-hydroxyethyl methacrylate) and poly (butyl acrylate-co-hydroxyethyl methacrylate) synthesized via solution polymerization was used as spinning dope to prepare the above hollow fiber through wet spinning. The process of internal coating was then designed to immobilize in-situ generated manganese oxide onto the inside of hollow fiber through complexation. Meanwhile, the changes of morphology and surface element of hollow fibers before and after functionalization were analyzed by using field emission scanning electron microscopy and X-ray electron spectroscopy, and the composition of manganese oxide was then determined. Additionally, total organic carbon analyzer and inductively coupled plasma atomic emission spectrometer were used to investigate the decolorization of MB. The results show that as far as the hollow fiber prepared after coating is considered, when the aqueous solution of MB flowed into its inside decolorization efficiency is increased from original 10% to 78.7%, and the decolorization efficiency is much higher than 10% even though the manganese oxide-coated hollow fiber is used for several times. It is clear that the strong oxidation of manganese oxide is responsible for the improvement of decolorization efficiency.

Key words: decolorization of waste water, hollow fiber, internal coating, manganese oxide, methylene blue

CLC Number:

  • TQ342.8

Tab.1

Effect of sulphuric acid hydrolysis time on MB decolorization efficiency%"

样品 1 h 2 h 3 h
HF1 73.3 66.6 60.4
HF2 78.6 69.7 63.9
HF3 76.3 67.7 62.1

Tab.2

Effect of potassium permanganate oxidation time on MB decolorization efficiency%"

样品 0.5 h 1 h 2 h
HF1 70.6 73.3 76.2
HF2 67.7 78.6 79.8
HF3 61.9 70.6 75.1

Fig.1

FESEM images of hollow fibers HF2 and HF2-b. (a) Cross surface of HF2; (b) Outer surface of HF2; (c) Inner surface of HF2; (d) Cross surface of HF2-b; (e) Outer surface of HF2-b; (f) Inner surface of HF2-b"

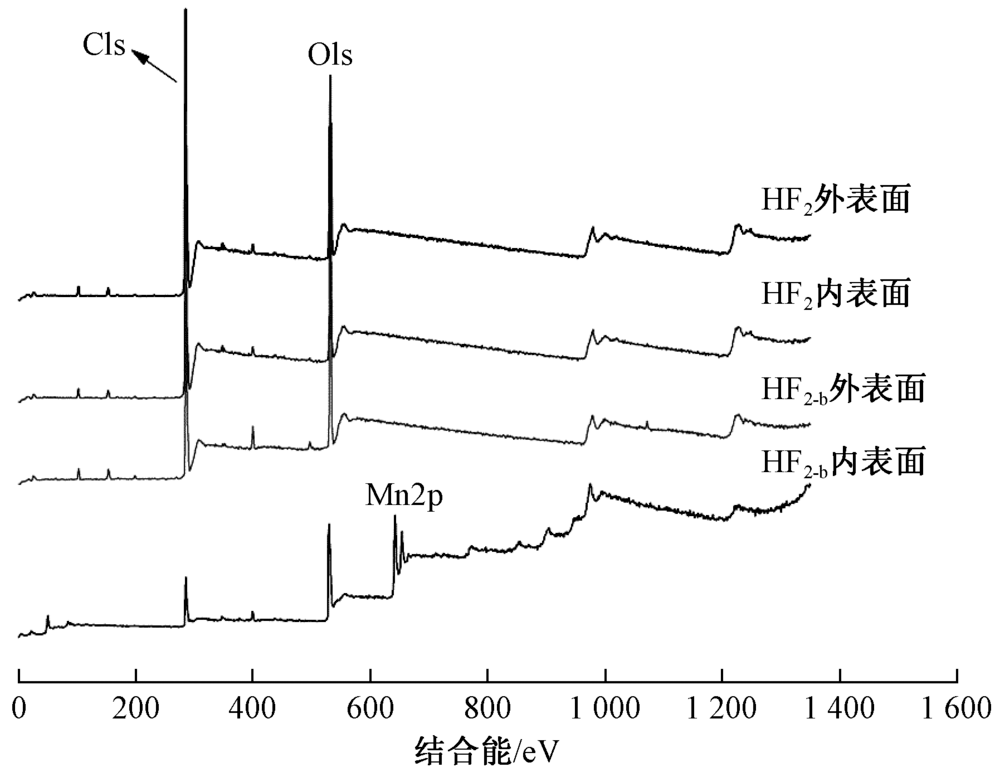

Fig.2

Total XPS patterns of hollow fibers HF2 and HF2-b"

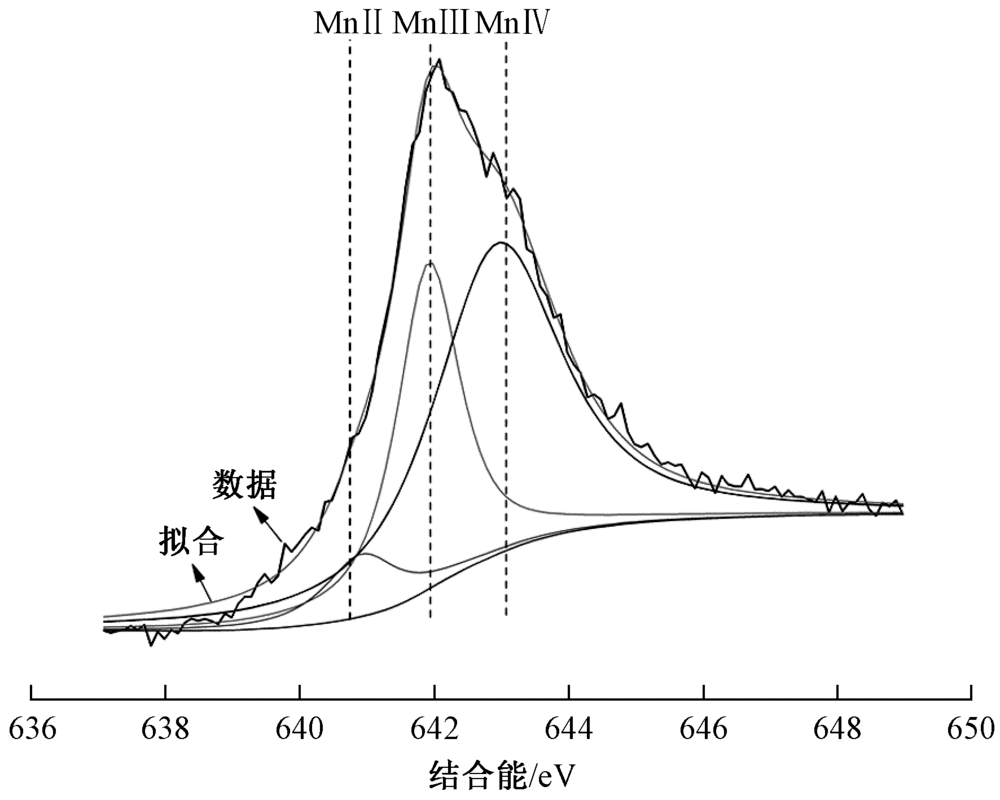

Fig.3

Local XPS spectra of Mn2p3/2 electrons of HF2-b"

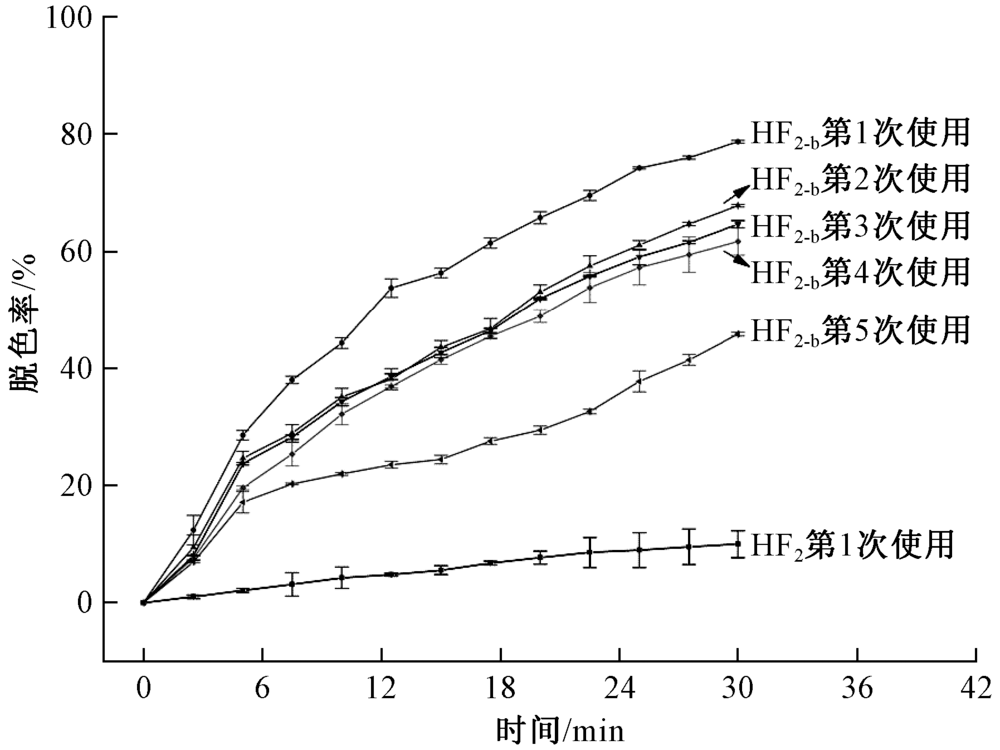

Fig.4

Decolorization efficiency of MB during repeated use of HF2-b"

Tab.3

Mass concentration of total organic carbon and manganese ion in MB solutions before and after decolorization mg/L"

样品编号 总有机碳质量浓度 锰离子质量浓度
L1 2.24 0.40
L2 2.41 0.98
L3 2.92 1.02
L4 2.98 1.52
L5 4.05 1.84
20 mg/L MB 8.62

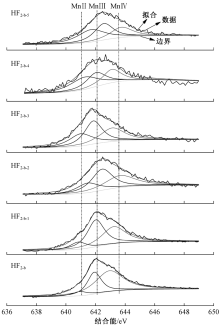

Fig.5

Local XPS spectra of Mn2p3/2 electrons"

Tab.4

Relative content of Mn(Ⅱ), Mn(Ⅲ) and Mn(Ⅳ) in manganese oxide%"

样品 Mn(Ⅱ) Mn(Ⅲ) Mn(Ⅳ)
HF2-b 3.9 42.5 53.6
HF2-b-1 11.7 46.4 41.9
HF2-b-2 21.2 42.7 36.1
HF2-b-3 27.7 39.9 32.4
HF2-b-4 39.4 31.5 29.1
HF2-b-5 40.5 33.8 25.7
[1] MA X J, ZHOU M H. A comparative study of azo dye decolorization by electro-Fenton in two common electrolytes[J]. Journal of Chemical Technology & Biotechnology, 2010,84(10):1544-1549.
[2] GALAI S, KORRI Y H, MARZOUKI M N. Characterization of yellow bacterial laccase SmLac/role of redox mediators in azo dye decolorization[J]. Journal of Chemical Technology & Biotechnology, 2015,89(11):1741-1750.
[3] VANITHA K, JIBRAIL K, YON L S. Efficiency of various recent wastewater dye removal methods: a review[J]. Journal of Environmental Chemical Engineering, 2018,6(4):4676-4697.
doi: 10.1016/j.jece.2018.06.060
[4] ROCHER V, BEE A, SIAUGUE J M. Dye removal from aqueous solution by magnetic alginate beads crosslinked with epichlorohydrin[J]. Journal of Hazardous Materials, 2010,178(1):434-439.
[5] XIE Y B, LI X Z. Interactive oxidation of photoelectrocatalysis and electro-fenton for azo dye degradation using TiO2-Ti mesh and reticulated vitreous carbon electrodes[J]. Materials Chemistry & Physics, 2006,95(1):39-50.
[6] NARAYANAN P A, ISHWARYA V, GOEL M, et al. Decolorization of disperse red 354 azo dye in water by several oxidation processes-a comparative study[J]. Dyes & Pigments, 2018,17(1):117-121.
[7] 封严, 肖长发. 聚甲基丙烯酸酯吸油纤维的研究[J]. 合成纤维工业, 2004,27(1):1-4.
FENG Yan, XIAO Changfa. Polymethacrylate oil-absorbing fiber research[J]. Synthetic Fiber Industry, 2004,27(1):1-4.
[8] 陈艺章, 贾明印, 郭朝霞, 等. 聚酯胺改善聚甲基丙烯酸甲酯电纺纤维均匀性研究[J]. 高分子学报, 2010,1(4):474-478.
CHEN Yizhang, JIA Mingyin, GUO Zhaoxia. Study on improvement of uniformity of polymethyl methacrylate electrospun fiber by polyester amine[J]. Acta Polymerica Sinica, 2010,1(4):474-478.
[9] 刘明, 薛袁, 蔡银莲, 等. β-环糊精/聚丙烯酸酯纳米纤维膜的耐水性及其对重金属离子的捕集[J]. 纺织学报, 2016,37(9):1-5.
LIU Ming, XUE Yuan, CAI Yinlian, et al. Water resistance of β-cyclodextrin/polyacrylate nanofiber membrane and its trapping of heavy metal ions[J]. Journal of Textile Research, 2016,37(9):1-5.
doi: 10.1177/004051756703700101
[10] JIANG X, HUANG J. Adsorption of rhodamine B on two novel polar-modified post-cross-linked resins: equilibrium and kinetics[J]. Journal of Colloid & Interface Science, 2016,467(1):230-238.
[11] FERREIRA B F, CIUFFI K J, NASSAR E J, et al. Kaolinite-polymer compounds by grafting of 2-hydroxyethyl methacrylate and 3-(trimethoxysilyl)propyl methacrylate[J]. Applied Clay Science, 2017,146(15):526-534.
[12] ZHANG X B, DONG J X, HAO Z C, et al. Fe-Mn/MCM-41: preparation, characterization, and catalytic activity for methyl orange in the process of heterogeneous fenton reaction[J]. Transactions of Tianjin University, 2018,24(4):361-369.
[13] CHEN Z W, JIAO Z, PAN D Y, et al. Recent advances in manganese oxide nanocrystals: fabrication, characterization, and microstructure[J]. Chemical Reviews, 2012,112(7):3833-3855.
doi: 10.1021/cr2004508 pmid: 22462582
[14] XU N K, ZHANG X Q, XIAO C F. The combination of amorphous manganese oxide and hollow fiber with enhanced activity and stable reusability as heterogeneous catalyst for dye oxidation[J]. Journal of Inorganic & Organometallic Polymers & Materials, 2018,28(6):2505-2517.
[15] DAS S, SAMANTA A, JANA S. Light-assisted synjournal of hierarchical flower-like MnO2 nanocomposites with solar light induced enhanced photocatalytic activity[J]. ACS Sustainable Chemistry & Engineering, 2017,5(10):9086-9094.
[16] CAO G S, SU L, ZHANG X J, et al. Hydrothermal synjournal and catalytic properties of α-MnO2 and β-MnO2 nanorods[J]. Materials Research Bulletin, 2010,45(4):425-428.
[17] 朱卡克. 介孔分子筛中过渡金属氧化物的可控制备及催化性能研究[D]. 上海: 复旦大学, 2003: 60-74.
ZHU Kake. Controllable preparation and catalytic performance of transition metal oxides in mesoporous molecular sieves[D]. Shanghai: Fudan University, 2003: 60-74.
[18] SONG H Y, YOU J A, CHEN C X, et al. Manganese functionalized mesoporous molecular sieves Ti-HMS as a fenton-like catalyst for dyes wastewater purification by advanced oxidation processes[J]. Journal of Environmental Chemical Engineering, 2016,4(4):4653-4660.
doi: 10.1016/j.jece.2016.09.039
[19] PRABUNATHAN P, SETHURAMAN K, ALAGAR M. MnO2-doped, polyaniline-grafted rice husk ash nanocomposites and their electrochemical capacitor applications[J]. Rsc Advances, 2014,88(4):47726-47734.
[20] WANG N H, LO S L. Preparation, characterization and adsorption performance of cetyltrimethylammonium modified birnessite[J]. Applied Surface Science, 2014,299(1):123-130.
[21] TANG Q W, JIANG L H, LIU J, et al. Effect of surface manganese valence of manganese oxides on the activity of the oxygen reduction reaction in alkaline media[J]. ACS Catalysis, 2014,4(2):457-463.
[22] GOPI T, SWETHA G, SHEKAR S C, et al. Catalytic decomposition of ozone on nanostructured potassium and proton containing δ-MnO2 catalysts[J]. Catalysis Communications, 2017,92(1):51-55.
[23] SUN M, LAN B, LIN T, et al. Controlled synjournal of nanostructured manganese oxide: crystalline evolution and catalytic activities[J]. Crystengcomm, 2013,15(35):7010-7018.
