Journal of Textile Research ›› 2020, Vol. 41 ›› Issue (04): 78-83.doi: 10.13475/j.fzxb.20180904606

• Dyeing and Finishing & Chemicals • Previous Articles     Next Articles

Optimization of decolorization conditions of Direct Scarlet 4BS by Cerrena unicolor

XU Hongyun1, YU Cun2(), SU Bang1

  1. 1. College of Eco-Environment Engineering, Guizhou Minzu University, Guiyang, Guizhou 550025, China
    2. College of Forestry, Guizhou University, Guiyang, Guizhou 550025, China
  • Received:2018-09-18 Revised:2020-01-19 Online:2020-04-15 Published:2020-04-27
  • Contact: YU Cun E-mail:chifengyucun@163.com

RichHTML

9

PDF (PC)

196

Abstract:

Aiming to avoid secondary pollution in treating dyeing wastewater and to clarify the decolorization ability of Cerrena unicolor to direct dyes, the decolorization effect of 5 direct dyes under solid condition was detected by Cerrena unicolor. Meanwhile, the decolorization conditions of Direct Scarlet 4BS by Cerrena unicolor were optimized. The results show that 5 direct dyes can be decolorized by Cerrena unicolor, among which, the decolorization performance of Direct Scarlet 4BS is the most obvious. The optimized decolorization conditions of Direct Scarlet 4BS dye by Cerrena unicolor are found as follows: glucose 20 g/L, ammonium nitrate 1 g/L, MgSO4 1.5 mmol/L, and inoculation amount is 2 pieces (diameter 1 cm)/50 mL reaction system. Under optimized conditions, the decolorization rate of Direct Scarlet 4BS by Cerrena unicolor is 92.00% at 13 d. Compared with the decolorization rate before optimization, the decolorization rate is increased by 50.82%.

Key words: Cerrena unicolor, direct dye, Direct Scarlet 4BS, decolorization, dyeing wastewater

CLC Number:

  • X791

Tab.1

Factors and levels of orthogonal test"

水平 A
葡萄糖质
量浓度/
(g·L-1)		 B
硫酸铵质
量浓度/
(g·L-1)		 C
硫酸镁浓度/
(mmol·L-1)		 D
接菌量
(直径为1 cm)/
片
1 15 0.5 0.5 2
2 20 1.0 1.0 4
3 25 1.5 1.5 6

Fig.1

Decolorization of 5 kinds of direct dyes by Cerrena unicolor"

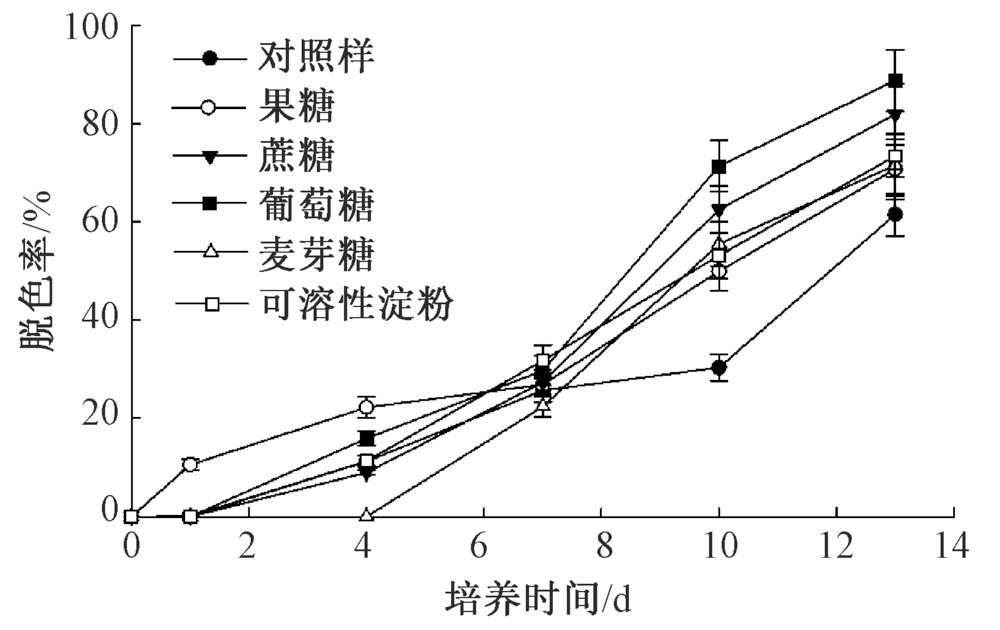

Fig.2

Decolorization of Direct Scarlet 4BS under different carbon sources by Cerrena unicolor"

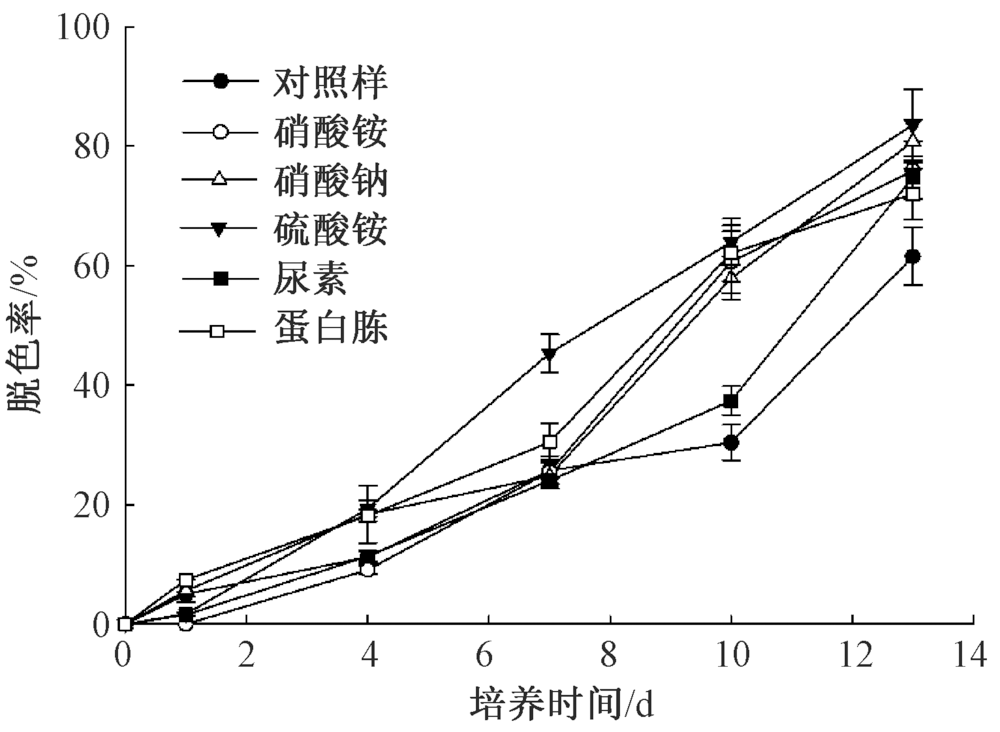

Fig.3

Decolorization of Direct Scarlet 4BS under different nitrogen sources by Cerrena unicolor"

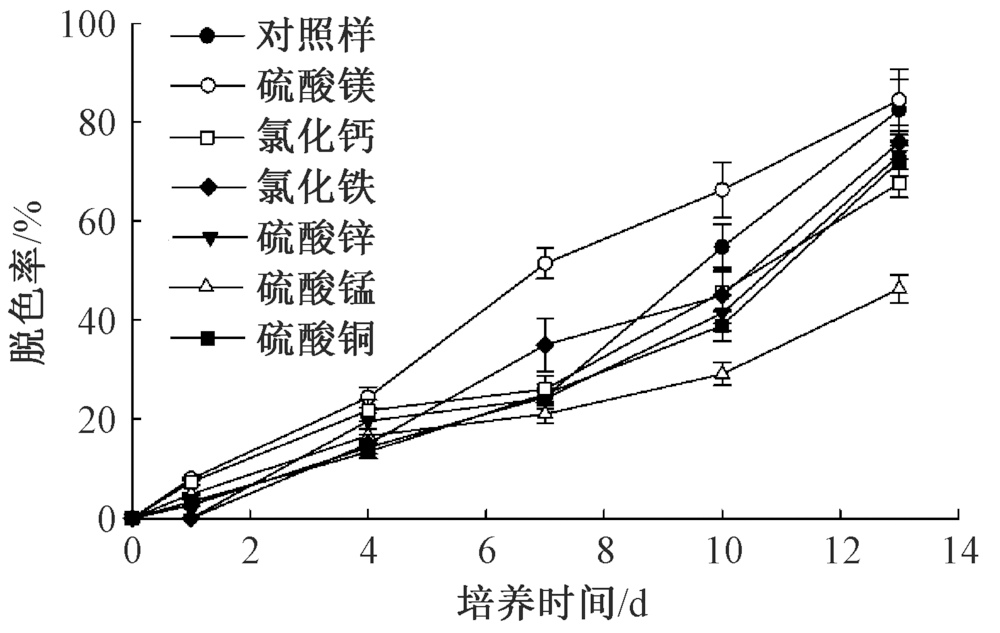

Fig.4

Decolorization of Direct Scarlet 4BS under different metal ions by Cerrena unicolor"

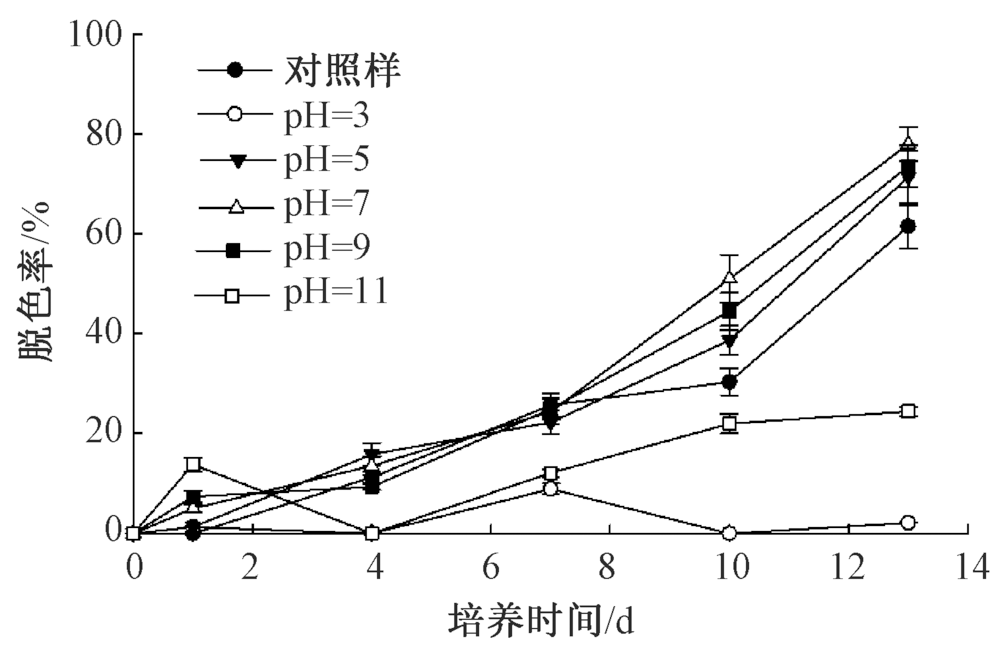

Fig.5

Decolorization of Direct Scarlet 4BS under different pH values by Cerrena unicolor"

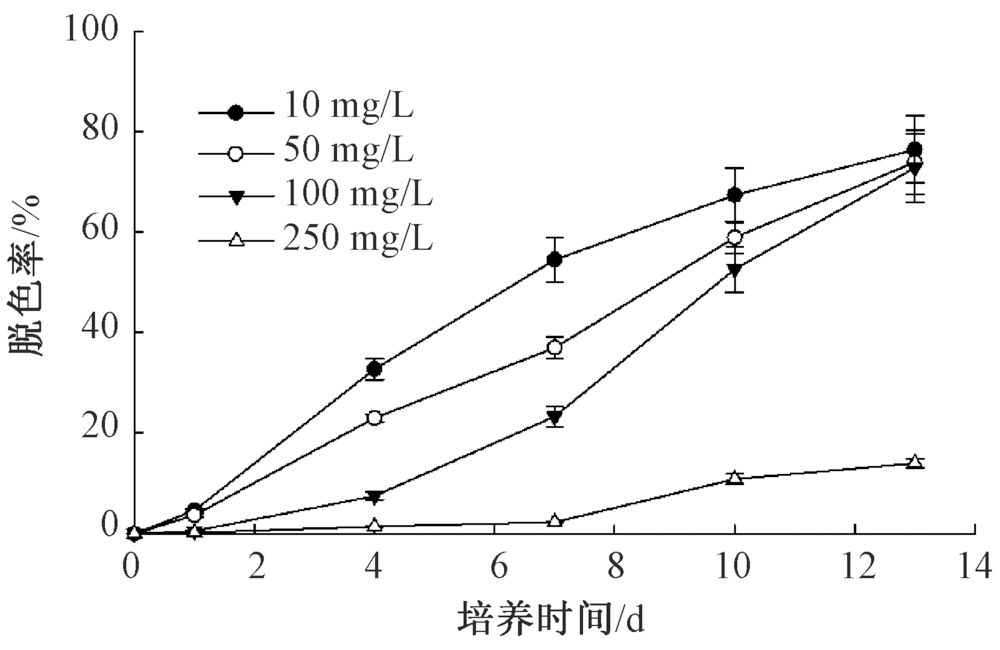

Fig.6

Decolorization of Direct Scarlet 4BS under different dye concentration conditions by Cerrena unicolor"

Tab.2

Optimization of decolorizing condition of Direct Scarlet 4BS by Cerrena unicolor by orthogonal test"

试验
编号		 葡萄糖质
量浓度/
(g·L-1)		 硫酸铵质
量浓度/
(g·L-1)		 硫酸镁
浓度/
(mmo·L-1)		 接菌量
(直径为
1 cm)/片		 脱色
率/%
1 15 0.5 0.5 2 88.25
2 15 1.0 1.0 4 77.67
3 15 1.5 1.5 6 85.54
4 20 0.5 1.0 6 74.37
5 20 1.0 1.5 2 89.12
6 20 1.5 0.5 4 75.98
7 25 0.5 1.5 4 78.28
8 25 1.0 0.5 6 82.40
9 25 1.5 1.0 2 79.89
K1 79.82 80.07 82.21 85.75
K2 83.83 86.59 77.31 77.31
K3 80.19 80.47 85.68 81.31
R 4.01 6.12 7.37 8.44
最优水平 20 1.0 1.5 2

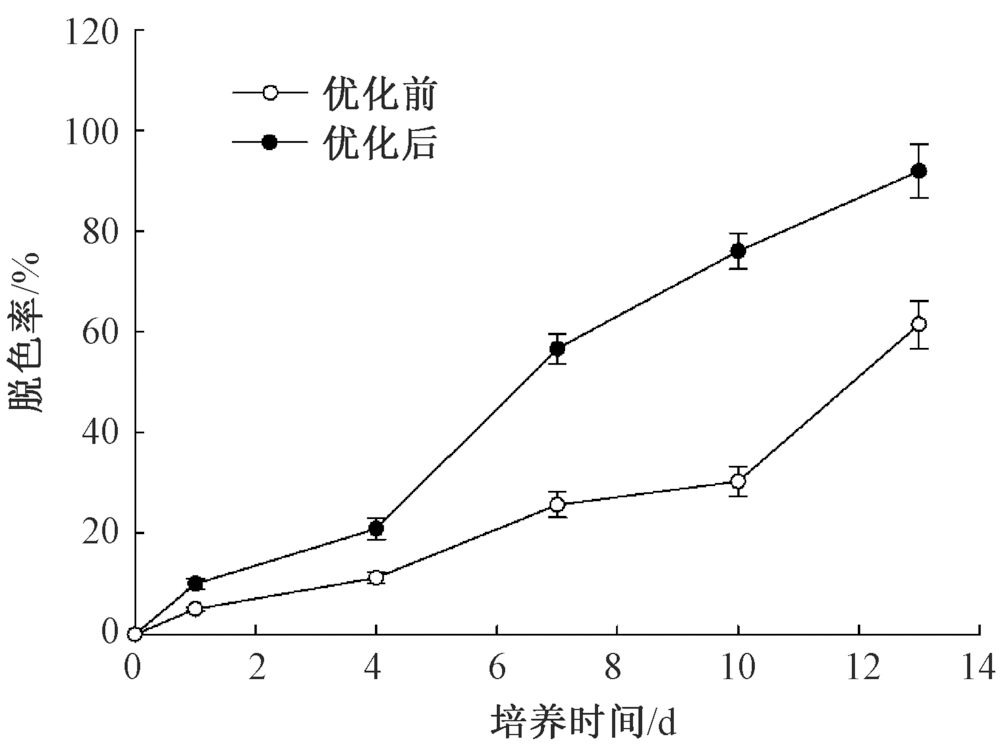

Fig.7

Decolorization rate of Direct Scarlet 4BS by Cerrena unicolor before and after decolorization"

[1] 邢黎明, 侯红敏. 纺织印染废水脱色方法研究[J]. 黑龙江环境通报, 2002,26(1):52-53.
XING Liming, HOU Hongmin. Study on decolorization of textile printing and dyeing wastewater[J]. Heilongjiang Environmental Journal, 2002,26(1):52-53.
[2] 王趁红. 纺织废水脱色、COD值降低的生物处理技术的改进:I[J]. 染整技术, 2001,23(1):46.
WANG Chenhong. Improvement of biological treatment technology for decolorization of textile wastewater and reduction of COD value:I[J]. Textile Dyeing and Finishing Journal, 2001,23(1):46.
[3] 陶金, 张德锁, 林红, 等. 介孔氧化硅/棉复合纤维对染料的吸附性能[J]. 纺织学报, 2018,39(10):93-97.
TAO Jin, ZHANG Desuo, LIN Hong, et al. Adsorption properties of cotton fiber functionalized by mesoporous nanoparticle for dyes[J]. Journal of Textile Research, 2018,39(10):93-97.
[4] 吴海培, 高晓红, 方婧, 等. 二氧化钛/还原氧化石墨烯复合材料的制备及其光催化降解脱色性能[J]. 纺织学报, 2018,39(12):78-83.
WU Haipei, GAO Xiaohong, FANG Jing, et al. Preparation and photocatalytic degradation decoloring of TiO2/reduced graphene oxide composites[J]. Journal of Textile Research, 2018,39(12):78-83.
[5] 郑苗苗, 邵淑丽, 张东向, 等. 红平菇漆酶基因异源表达及对染料脱色的研究[J]. 纺织学报, 2014,35(12):84-90.
ZHENG Miaomiao, SHAO Shuli, ZHANG Dongxiang, et al. Heterologous expression of pleurotus djamor laccase gene in pichia pastoris and decolorization on dyes by recombinant laccase[J]. Journal of Textile Research, 2014,35(12):84-90.
[6] 陈文华, 李刚, 许方程, 等. 染料废水污染现状及处理方法研究进展[J]. 浙江农业科学, 2014,1(2):264-269.
CHEN Wenhua, LI Gang, XU Fangcheng, et al. Research progress on pollution and treatment of dye wastewater[J]. Journal of Zhejiang Agricultural Sciences, 2014,1(2):264-269.
[7] FU Y, VIRARAGHAVAN T. Fungal decolorization of dye wastewaters: a review[J]. Bioresour Technol, 2001,79(3):251-262.
[8] 司静, 崔宝凯, 李牧洁. 东方栓孔菌菌丝体生物吸附剂对染料的脱色作用及其吸附机制研究[J]. 菌物学报, 2012,31(6):890-899.
SI Jing, CUI Baokai, LI Mujie. Dye decolorization by adsorbents obtained from trametes orientalis mycelia and investigation of the adsorptive mechanism[J]. Mycosystema, 2012,31(6):890-899.
[9] SEN S K, RAUT S, BANDYOPADHYAY P, et al. Fungal decolouration and degradation of azo dyes: a review[J]. Fungal Biology Reviews, 2016,30(3):112-133.
[10] 于存, 池玉杰. 一色齿毛菌产MnP的条件优化及对染料的脱色[J]. 林业科学, 2014,50(7):121-127.
YU Cun, CHI Yujie. Optimization of culture conditions of MnP produced by Cerrena unicolor and its decolorization to 5 kinds of dyes[J]. Scientia Silvae Sinicae, 2014,50(7):121-127.
[11] 刘桂萍, 王鲁萍, 王瑾, 等. 开放体系下霉菌7对偶氮染料的吸附降解[J]. 纺织学报, 2012,33(3):67-73.
LIU Guiping, WANG Luping, WANG Jin, et al. Adsorption and degradation of azo-dye by mold 7 under open system[J]. Journal of Textile Research, 2012,33(3):67-73.
[12] 于存, 池玉杰. 一色齿毛菌对活性染料的脱色研究[J]. 北京林业大学学报, 2014,36(4):126-132.
YU Cun, CHI Yujie. Decolorization to two reactive dyes of Cerrena unicolor CB1[J]. Journal of Beijing Forestey University, 2014,36(4):126-132.
[13] 袁海生, 戴玉成, 曹云, 等. 白腐真菌染料脱色菌株的筛选及一色齿毛菌脱色条件的研究[J]. 菌物学报, 2010,29(3):429-436.
YUAN Haisheng, DAI Yucheng, CAO Yun, et al. Screening of white rot fungi for decolorizing synthetic dyes and investigation on factors affecting decolorizing capacity of Cerrena unicolor[J]. Mycosystema, 2010,29(3):429-436.
[14] 王慧, 郑小伟, 王宾香, 等. 真菌对染料的脱色研究进展[J]. 应用与环境生物学报, 2009,15(1):147-151.
WANG Hui, ZHENG Xiaowei, WANG Binxiang, et al. Advance in decolorization of dye by fungi[J]. Journal of Applied and Environmental Biology, 2009,15(1):147-151.
[15] 程勇前, 黄民生, 张国营. 白腐真菌对染料脱色及降解过程机理和影响因素[J]. 环境污染治理技术与设备, 2000,1(6):25-33.
CHENG Yongqian, HUANG Minsheng, ZHANG Guoying. Decoloration and degradation of dyes by white rot fungi[J]. Techniques and Equipment for Environmental Pollution Control, 2000,1(6):25-33.
