Journal of Textile Research ›› 2019, Vol. 40 ›› Issue (8): 89-94.doi: 10.13475/j.fzxb.20181106606

• Dyeing and Finishing & Chemicals • Previous Articles     Next Articles

Preparation and properties of linear polyether-blocked amino silicone

XU Chengshu1(), WU Mengting1, REN Yan1, XING Jianwei1, CAI Zaisheng2, OUYANG Lei1

  1. 1. School of Textile Science and Engineering, Xi'an Polytechnic University, Xi'an, Shaanxi 710048, China
    2. College of Chemistry, Chemical Engineering and Biotechnology, Donghua University, Shanghai 201620, China
  • Received:2018-11-26 Revised:2019-05-09 Online:2019-08-15 Published:2019-08-16

RichHTML

13

PDF (PC)

156

Abstract:

In order to simplify the synthesis process of linear polyether-blocked amino silicone oil, the linear polyether-blocked amino silicone oil (LEPS) was prepared by ring opening polymerization using diterminal aminoether and diterminal epoxy polyether silicone as monomers and isopropyl alcohol as a solvent, and the LEPS was applied to the soft finishing of knitted cashmere fabric. The physicochemical properties of LEPS and fabrics finished with LEPS were characterized by means of Fourier transform infrared spectrometer, thermogravimetric analysis, multi-functional surface analysis electron spectrometer and scanning electron microscopy. The results show that when the mole ratio of two monomers is 1:1, the ammonia value of LEPS is 0.14 mmol/g, and the molar mass is 7.39×10 4 g/mol, and the emulsion has excellent stability. The fabric finished with LEPS has outstanding soft and fluffy properties, hand feeling to grade 5 and good hydrophilicity, moisture permeability and static resistance as well as low degree of yellowing. LEPS has the advantages of excellent comprehensive properties and simple preparation process.

Key words: diterminal amino polyther, diterminal epoxy polyether silicone, linear polyether-blocked amino silicone, knitted cashmere fabric, soft finishing of fabric

CLC Number:

  • TS06

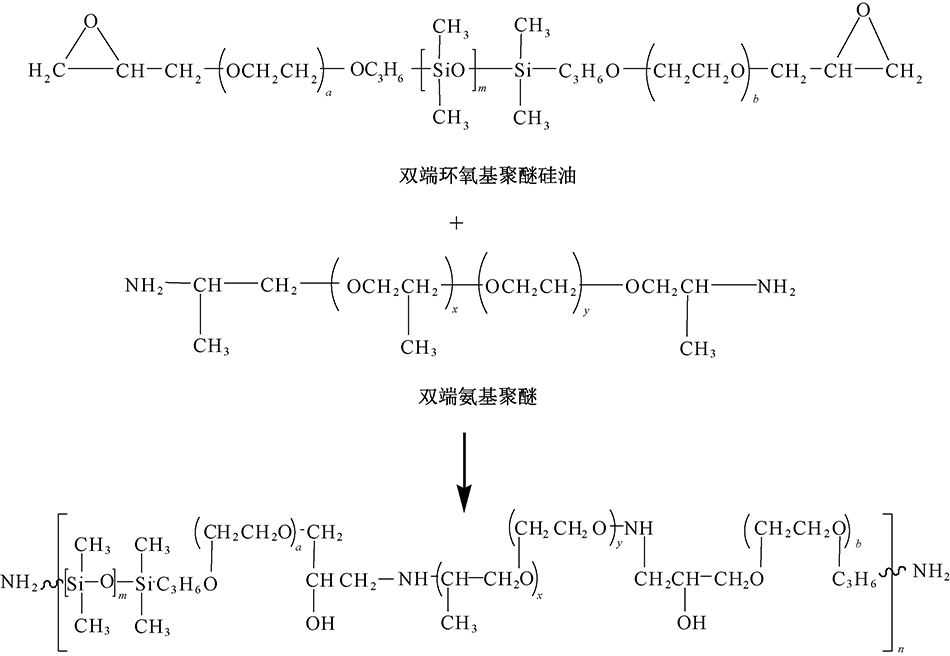

Fig.1

Synthesis scheme of LEPS"

Tab.1

Composition for preparation of LEPS"

样品
编号		 双端氨基
聚醚质量/g		 双端环氧基聚
醚硅油质量/g		 物质的
量比
LEPS-1 4.0 60.0 1.0:1.4
LEPS-2 8.0 84.0 1.0:1.0
LEPS-3 8.0 64.0 1.3:1.0
LEPS-4 8.0 52.0 1.6:1.0

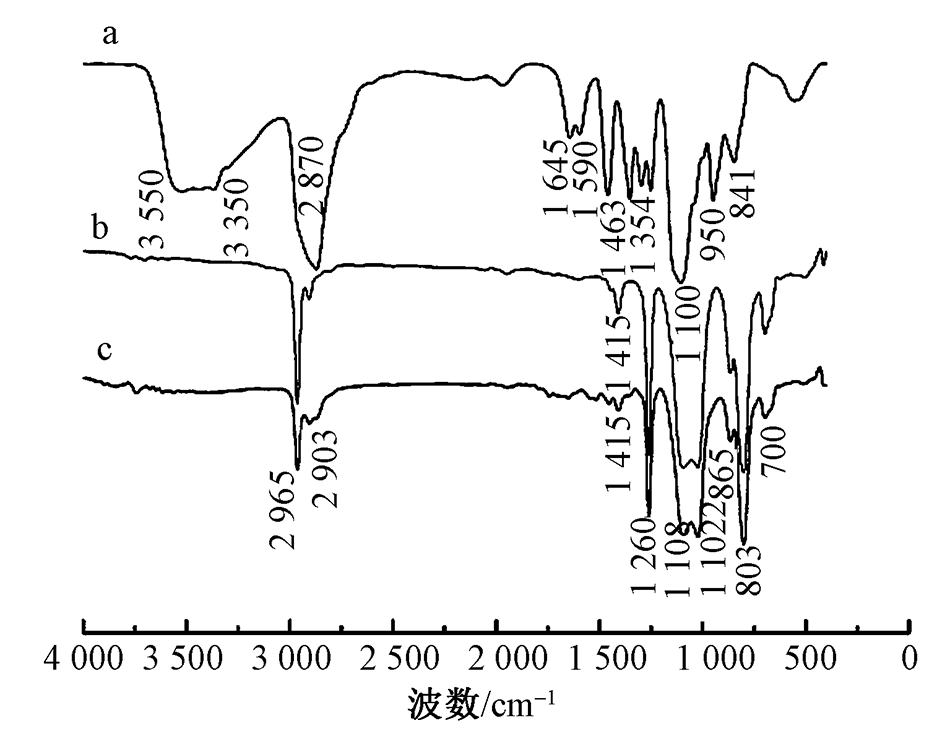

Fig.2

FT-IR spectra of raw materials and LEPS-2"

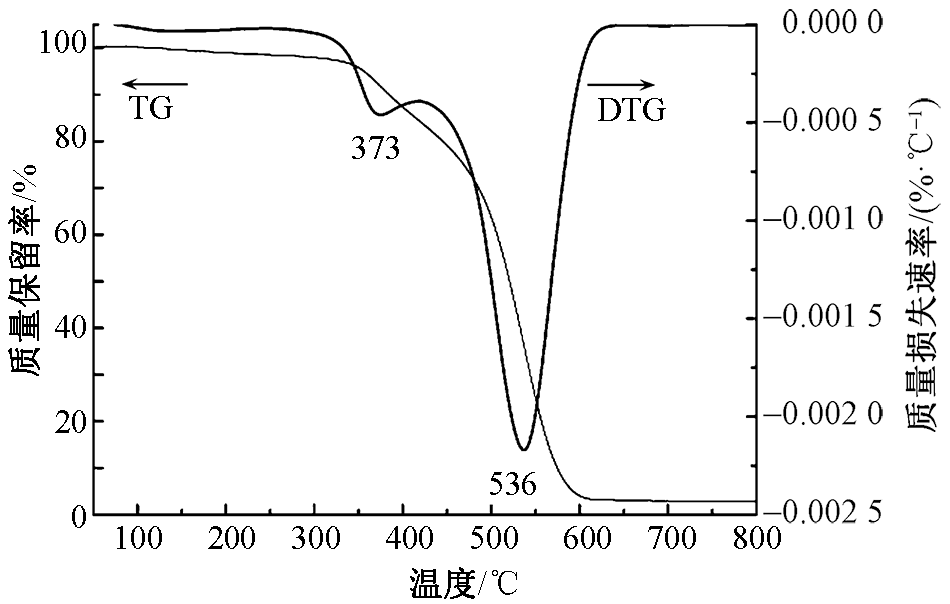

Fig.3

TG and DTG curves of LEPS-2"

Fig.4

XPS spectra of LEPS-2"

Tab.2

Amino value and molecular weight of LEPS"

样品编号 氨值/(mmol·g-1) 摩尔质量/(g·mol-1)
LEPS-1 0.10 3.19×104
LEPS-2 0.14 7.39×104
LEPS-3 0.18 4.45×104
LEPS-4 0.22 3.16×104

Tab.3

Stability of LEPS emulsion"

样品编号 离心稳定性 耐酸稳定性 耐碱稳定性 耐盐稳定性
LEPS-1 稳定 稳定 浑浊 稳定
LEPS-2 稳定 稳定 稳定 稳定
LEPS-3 稳定 稳定 稳定 稳定
LEPS-4 稳定 稳定 稳定 稳定

Tab.4

Comprehensive properties of finished fabrics"

样品
类别		 手感/
级		 色差 润湿时
间/s		 透湿量/
(g·(m2·d)-1)		 感应静
电压/V		 静电衰
减时间/s
原样 1 >300 6 559 10 467 8.5
LEPS-1 4~5 0.28 26.1 6 338 9 847 2.2
LEPS-2 5 0.31 15.7 6 116 9 753 1.5
LEPS-3 4~5 0.26 10.6 6 498 9 822 1.2
LEPS-4 3~4 0.34 9.8 6 081 9 651 1.1
AEAPS 5 0.61 129.4 5 027 10 576 6.4
SRS 5 0.30 13.6 6 042 9 958 3.3

Fig.5

SEM images of cashmere fiber(×5 000). (a) Untreated fiber; (b) LEPS-2 treated fiber"

[1] ZUBER M, ZIA K M, TABASSUM S , et al. Preparation of rich handles soft cellulosic fabric using amino silicone based softener, part II: colorfastness properties[J]. International Journal of Biological Macromolecules, 2011,49(1):1-6.
doi: 10.1016/j.ijbiomac.2011.01.025 pmid: 21300085
[2] 何雨虹, 朱建华, 权衡 . 聚醚/氨基硅油柔软剂的制备及应用[J]. 有机硅材料, 2010,24(1):40-44.
HE Yuhong, ZHU Jianhua, QUAN Heng . Preparation and application of polyether-modified amino polysiloxane softener[J]. Silicone Material, 2010,24(1):40-44.
[3] CZECH A M . Silicone aminopolyalkyleneoxide block copolymerssilicone: US, 5981681[P]. 1999-11-09.
[4] 朱清峰 . 线性聚醚氨基嵌段有机硅柔软剂的应用特点[J]. 有机硅材料, 2014,28(3):186-190.
ZHU Qingfeng . Application characteristics of linear polyether amino blocked silicone softener[J]. Silicone Material, 2014,28(3):186-190.
[5] 刘彦杰, 吴明华, 陈权胜 , 等. 聚硅氧烷链段相对分子质量对改性聚硅氧烷的影响[J]. 纺织学报, 2014,35(10):60-66.
LIU Yanjie, WU Minghua, CHEN Quansheng , et al. Influence of relative molecular weight of polysiloxane- segment on modified polysiloxane[J]. Journal of Textile Research, 2014,35(10):60-66.
[6] 王前进, 张存社, 习娟 , 等. 第四代有机硅整理剂的研究进展[J]. 应用化工, 2015,44(11):2107-2110.
WANG Qianjin, ZHANG Cunshe, XI Juan , et al. Progress in the fourth generation of organosilicon finishing agent[J]. Applied Chemical Industry, 2015,44(11):2107-2110.
[7] 朱艳红, 钱程, 周大鹏 , 等. 嵌段型聚醚/氨基硅油的结构表征及应用性能[J]. 纺织学报, 2011,32(4):71-74.
ZHU Yanhong, QIAN Cheng, ZHOU Dapeng , et al. Characterization and performance of silicone aminopoly- alkykeneoxide block copolymer[J]. Journal of Textile Research, 2011,32(4):71-74.
[8] 陈鹏 . 三元嵌段聚醚改性氨基硅油的制备与应用性能研究[D]. 广州: 广州大学, 2016: 15-18.
CHEN Peng . Research on preparation and application properties of polyether block copolymerized amino silicone oil[D]. Guangzhou: Guangzhou University, 2016: 15-18.
[9] 樊武厚, 吴晋川, 梁娟 , 等. 季铵化聚醚嵌段氨基硅油柔软剂的制备及应用[J]. 纺织科技进展, 2018(3):1-5.
FAN Wuhou, WU Jinchuan, LIANG Juan , et al. Preparation and application of quaternary polyether block aminosilicone oil softener[J]. Progress in Textile Science & Technology, 2018(3):1-5.
[10] 袁洁, 贺江平, 颜怀谦 , 等. 三元嵌段共聚硅油合成工艺的研究[J]. 有机硅材料, 2016,30(5):393-399.
YUAN Jie, HE Jiangping, YAN Huaiqian , et al. Research on synjournal process of ternary block copolymerized silicone oil[J]. Silicone Material, 2016,30(5):393-399.
[11] XU Chengshu, CAI Zaisheng, XING Jianwei , et al. Synjournal of polypropylene carbonate polyol-based waterborne polyurethane modified with polysiloxane and its film properties[J]. Fibers and Polymers, 2014,15(4):665-671.
doi: 10.1007/s12221-014-0665-2
[12] 申屠鲜艳, 胡振羽 . 氨基硅油的结构分析[J]. 有机硅材料, 2006,20(5):256-257.
SHENTU Xianyan, HU Zhenyu . Structure analysis of amino-modified silicone oil[J]. Silicone Material, 2006,20(5):256-257.
[13] 张建安, 吴元明, 吴庆元 , 等. 含侧氨基聚二甲基硅氧烷MHS方程的订正[J]. 弹性体, 2005,15(1):25-27.
ZHANG Jian'an, WU Yuanming, WU Qingyuan , et al. Relationship between intrinsic viscosity and number- average molecular weight for polydimethylsilo-xane (PDMS) with pendant amino groups[J]. China Elastomerics, 2005,15(1):25-27.
[14] 贺妍娜, 陈志荣, 尹红 . 氨基硅油分子质量的测定[J]. 印染助剂, 2008,25(7):45-47.
HE Yanna, CHEN Zhirong, YIN Hong . The molecular weight measurement of amino silicone[J]. Textile Auxiliaries, 2008,25(7):45-47.
[15] 李成文, 周国良 . 新型不黄变有机硅柔软剂的合成及其应用[J]. 染整技术, 2009,31(7):35-37.
LI Chengwen , ZHOU guoliang. A novel non-yellowing silicone softener[J]. Dyeing and Finishing Technology, 2009,31(7):35-37.
[16] CAMINO G . Thermal polydimethylsiloxane degradation: part 2: the degradation mechanisms[J]. Polymer, 2002,43(7):2011-2015.
doi: 10.1016/S0032-3861(01)00785-6
