Deodorizing effect of polyester fabric treated by citric acid/β-cyclodextrin

DAI Yue1, ZHANG Ruiping1(), WANG Qiuping1, HU Ya'nan1, ZHANG Xianguo2

  1. 1. College of Textile and Clothing, Nantong University, Nantong, Jiangsu 226019, China
    2. Jiangsu Shunyuan New Materials Technology Co., Ltd., Nantong, Jiangsu 226500, China
  • Received:2018-12-12 Revised:2019-08-16 Online:2019-12-15 Published:2019-12-18
  • Contact: ZHANG Ruiping E-mail:zhang.rp@ntu.edu.cn

RichHTML

7

PDF (PC)

234

Abstract:

In order to develop polyester fabrics with deodorizing function, β-cyclodextrin (β-CD) was used as the deodorant, and the anchored polyester fabric was studied with the ammonia elimination value as an indicator. The deodorizing effect of β-CD, citric acid (CA) and deodorizing time on the deodorizing effect of finishing fabrics were analyzed. The water wash resistance of the deodorized fabric was tested. The scanning electron microscopy and infrared spectrometer were adopted to characterize the polyester fabric before and after finishing. The results show that the maximum anchorage of β-CD in the experimental range is 57.36 mg/g. The β-CD (mass concentration is 60 g/L) anchoring fabric has the combined ammonia elimination time of 14 h and the ammonia elimination value of 4.442 5 mg/g. After 15 cycles of washing, the ammonia elimination value of the fabric is 64 times of the unfinished fabric, and the washing resistance is good. The polyester fiber surface has the obvious loading of β-CD, and the oxygen element content increases significantly. The infrared spectra indicates an increase in the hydroxy content of the fiber after finishing.

Key words: β-cyclodextrin, citric acid, polyester fabric, deodorization finishing

CLC Number:

  • TS195

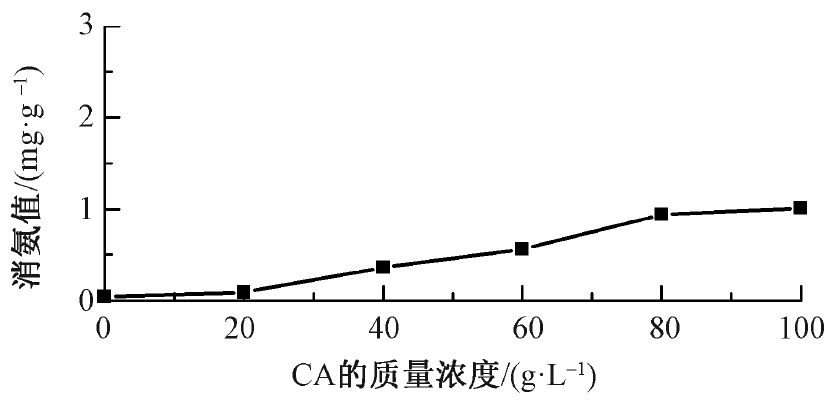

Fig.1

Effect of CA dosage on ammonia elimination"

Tab.1

Effect of β-CD dosage on fabric anchorage"

β-CD质量浓度/
(g·L-1)		 锚固量/
(mg·g-1)
20 10.89
40 22.51
60 39.70
80 48.53
100 57.36

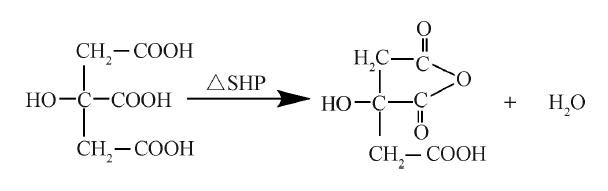

Fig.2

Reaction formula on dehydration of citric acid to form acid anhydride"

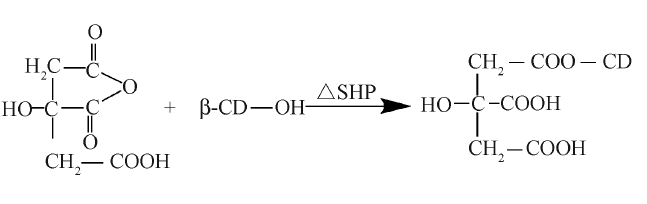

Fig.3

Esterification of acid anhydride and β-CD"

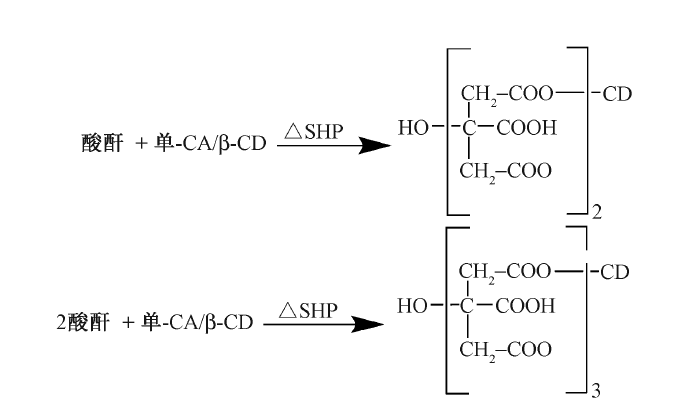

Fig.4

Formation reaction of citric acid/β-CD polymer"

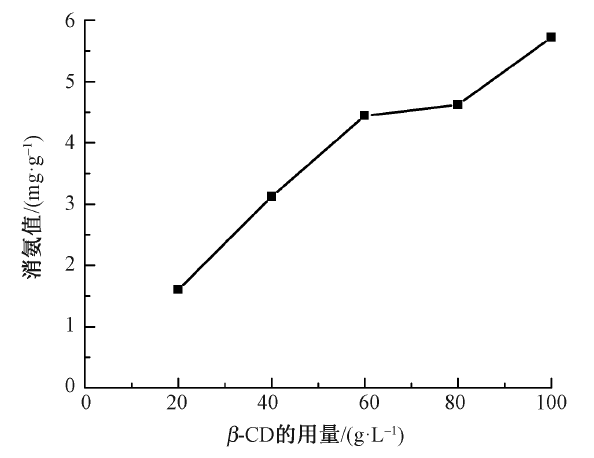

Fig.5

Effect of β-CD dosage on ammonia elimination value of finished fabric"

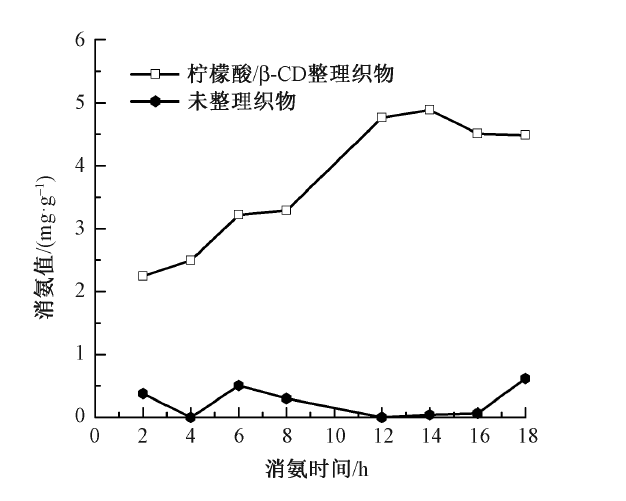

Fig.6

Change of relationship between time and ammonia elimination value before and after finishing fabric"

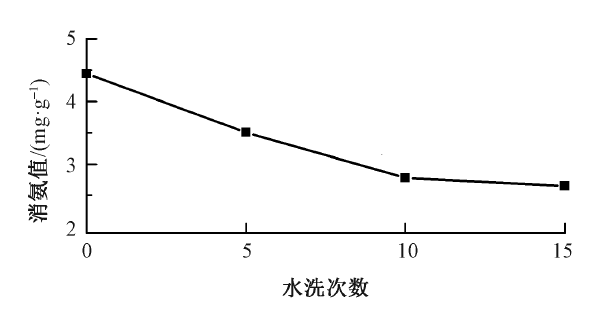

Fig.7

Washable effect of β-CD finished fabric"

Fig.8

SEM images of before (a)and after (b) fabric finishing(×5 000)"

Tab.2

Elements content of fibers surface before and after finishing%"

元素 质量分数 原子分数
整理前 整理后 整理前 整理后
C 56.53 58.69 76.88 71.49
O 20.81 30.28 21.24 27.69
Au 22.67 11.04 1.88 0.82
总量 100.00 100.00 100.00 100.00

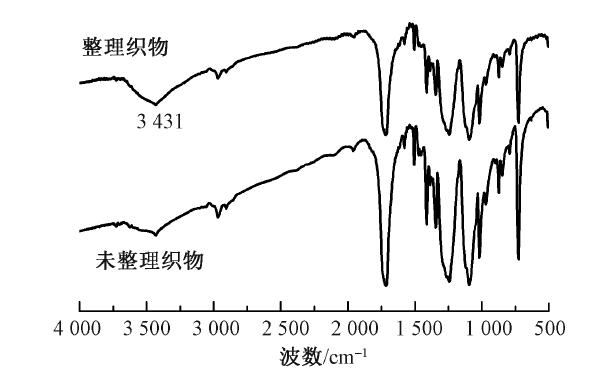

Fig.9

Infrared spectra of polyester fabric before and after finishing"

[1] 张瑞萍, 张葛成, 孟令阔. 茶多酚对棉织物的吸附及其抗菌消臭效果[J]. 纺织学报, 2017,38(1):100-104.
ZHANG Ruiping, ZHANG Gecheng, MENG Lingkuo. Adsorption of cotton fabric by tea polyphenols and its antibacterial and deodorizing effect[J]. Journal of Textile Research, 2017,38(1):100-104.
[2] 张艺于, 王璐, CAMPAGNE C, 等. 基于β-环糊精包合技术的棉织物熏衣草芳香整理[J]. 纺织学报, 2008,29(9):94-97.
ZHANG Yiyu, WANG Lu, CAMPAGNE C, et al. The lavender aroma finishing of cotton fabric based on β-cyclodextrin inclusion technology[J]. Journal of Textile Research, 2008,29(9):94-97.
[3] 张瑞萍, 戴悦, 王陈蓉, 等. MCT-β-CD对棉织物的接枝消臭整理[J]. 印染助剂, 2017,24(5):30-34.
ZHANG Ruiping, DAI Yue, WANG Chenrong, et al. Grafting and deodorization of cotton fabrics by MCT-β-CD[J]. Textile Auxiliaries, 2017,24(5):30-34.
[4] 杨玉芳. β-环糊精用于羊毛织物防臭整理研究[D]. 上海:东华大学, 2010: 6-13.
YANG Yufang. Study on deodorization of wool fabrics with β-cyclodextrin[D]. Shanghai: Donghua University, 2010: 6-13.
[5] 陈永邦, 黄成, 阎克路, 等. 导湿排汗涤纶针织物的抗菌亲水整理[J]. 纺织学报, 2018,39(5):79-84.
CHEN Yongbang, HUANG Cheng, YAN Kelu, et al. Antibacterial and hydrophilic finishing of moisture-wicking polyester knitted fabrics[J]. Journal of Textile Research, 2018,39(5):79-84.
[6] 张维. 柠檬酸与纤维素反应程度的研究[D]. 石家庄:河北科技大学, 2009: 9-10.
ZHANG Wei. Study on the degree of reaction between citric acid and cellulose[D]. Shijiazhuang: Hebei University of Science and Technology, 2009: 9-10.
[7] MARTEL B, MORCELLET M, RUFFIN D, et al. Finishing of polyester fabrics with cyclodextrins and polycarboxylic acids as crosslinking agents[J]. Journal of Inclusion Phenomena & Macrocyclic Chemistry, 2002,44(12):443-446.
[8] 刘夺奎. β-环糊精接枝棉织物及其除臭功能的研究[D]. 天津:天津工业大学, 2006: 9-20.
LIU Duokui. Study on β-cyclodextrin grafted cotton fabric and its deodorizing function[D]. Tianjin: Tianjin Polytechnic University, 2006: 9-20.
[9] VONCINA B, VIVOD V, CHEN W T. Surface modification of PET fibers with the use of β-cyclodex-trin[J]. Journal of Applied Polymer Science, 2010,113(6):3891-3895.
doi: 10.1002/app.v113:6
[10] 翟海群. 涤纶离子交换织物的制备及其吸附理论与性能的研究[D]. 青岛:青岛大学, 2011: 14-15.
ZHAI Haiqun. Preparation of polyester ion exchange fabric and its adsorption theory and properties[D]. Qingdao: Qingdao University, 2011: 14-15.
[11] 李晶. β-环糊精与织物接枝方法的研究[D]. 上海:东华大学, 2008: 7-9.
LI Jing. Study on β-cyclodextrin and fabric grafting method[D]. Shanghai: Donghua University, 2008: 7-9.
[12] 邓芹英, 刘岚, 邓慧敏. 波谱分析教程[M]. 2版. 北京: 科学出版社, 2007: 54-57.
DENG Qinying, LIU Lan, DENG Huimin. Spectrum Analysis Course [M]. 2nd ed. Beijing: Science Press, 2007: 54-57.
