Research on design and practice of integral woven fabrics with square lining structure

MA Yanxue1,2, WANG Shina1, LI Yuling1,2, WEN Run1,2()

  1. 1. College of Textiles, Donghua University, Shanghai 201620, China
    2. Key Laboratory of Textile Science & Technology, Ministry of Education, Donghua University, Shanghai 201620, China;
  • Received:2019-04-01 Revised:2020-03-05 Online:2020-06-15 Published:2020-06-28
  • Contact: WEN Run E-mail:rain@dhu.edu.cn

RichHTML

3

PDF (PC)

146

Abstract:

In view of the shortage of traditional quilted down products, a square lining structure fabric was designed. With proper structure design and weaving parameter settings, this special square lining structure fabric had been integrally woven on the machine, shortening the production process and reducing cost and material waste. Height of the square lining structure was variable according to the down product requirements. Weaving practice indicates that size of the square lining structure after weaving is the same as the designed structure, and the actual height is 1.5 cm, satisfying demands of down products in the market. Results also present that the heat retention of down with the square lining structure doubled that with sewing structures, and the weft floats in down filling areas could prevent filled down feather moving.

Key words: square lining structure, woven fabric, integral design, down product, heat retention property

CLC Number:

  • TS105.1

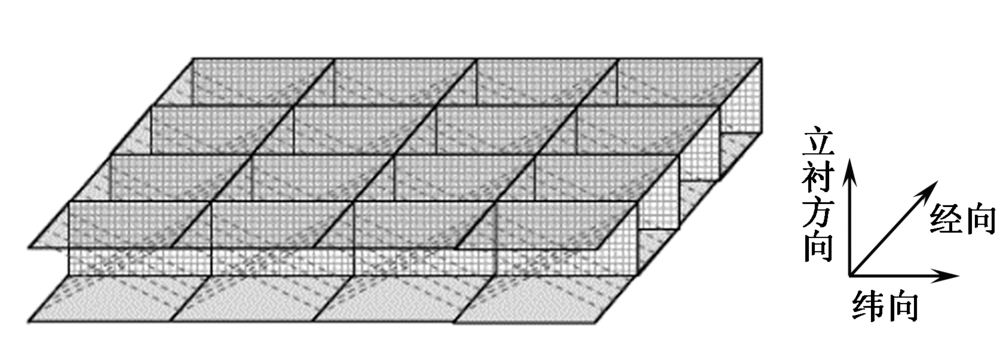

Fig.1

Diagram of unit square lining structure"

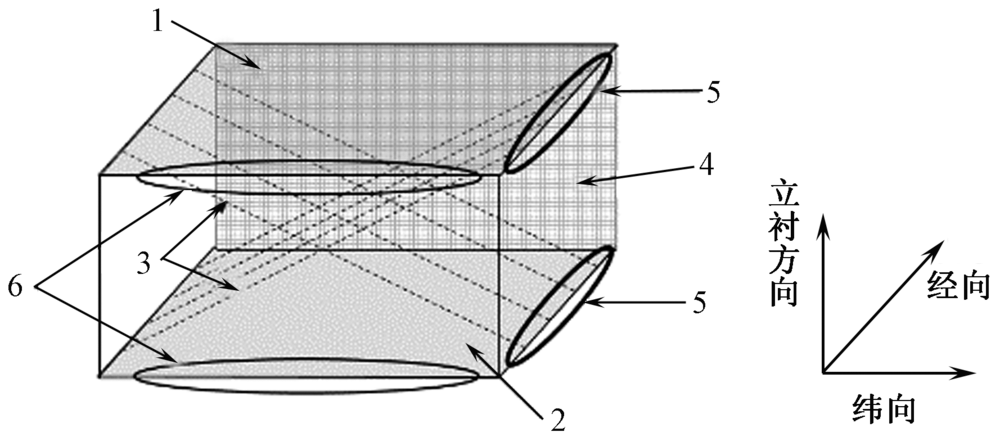

Fig.2

Longitudinal section. (a) and cross section (b) of square lining structure"

Fig.3

Structure diagram of square lining fabric"

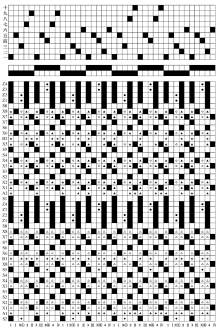

Fig.4

Looming drafts of square lining fabric"

Tab.1

Fabric specification parameters of square lining structure fabric"

总经
根数		 密度/(根·(10 cm)-1) 幅宽/
cm		 钢筘/
(齿·(10 cm)-1)
经向 纬向
1 496 170 200 38 79

Tab.2

Specification size parameter of square lining structure fabric"

方格立衬结
构边长/cm		 纬向立衬密度/
(个·cm-1)		 纬向立衬
个数		 经向立衬
高度/cm
8 5 4 1.5

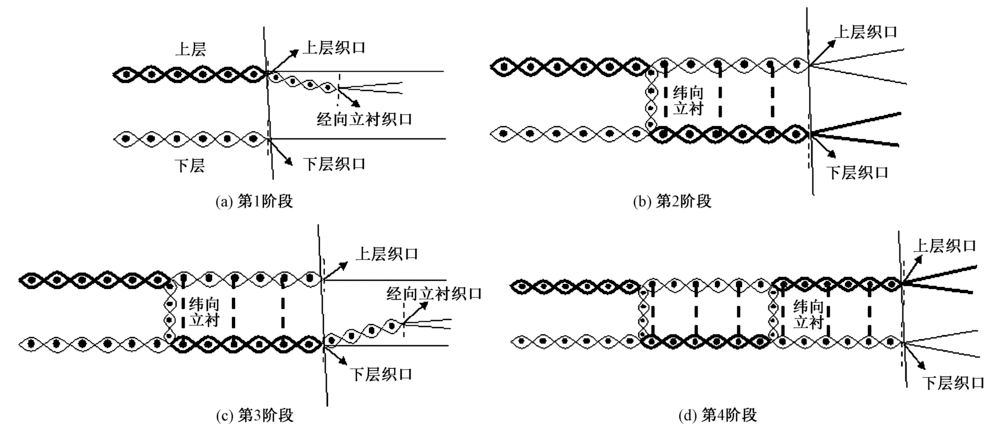

Fig.5

Weaving process of square lining fabric. (a) Phase 1; (b) Phase 2; (c) Phase 3; (d) Phase 4"

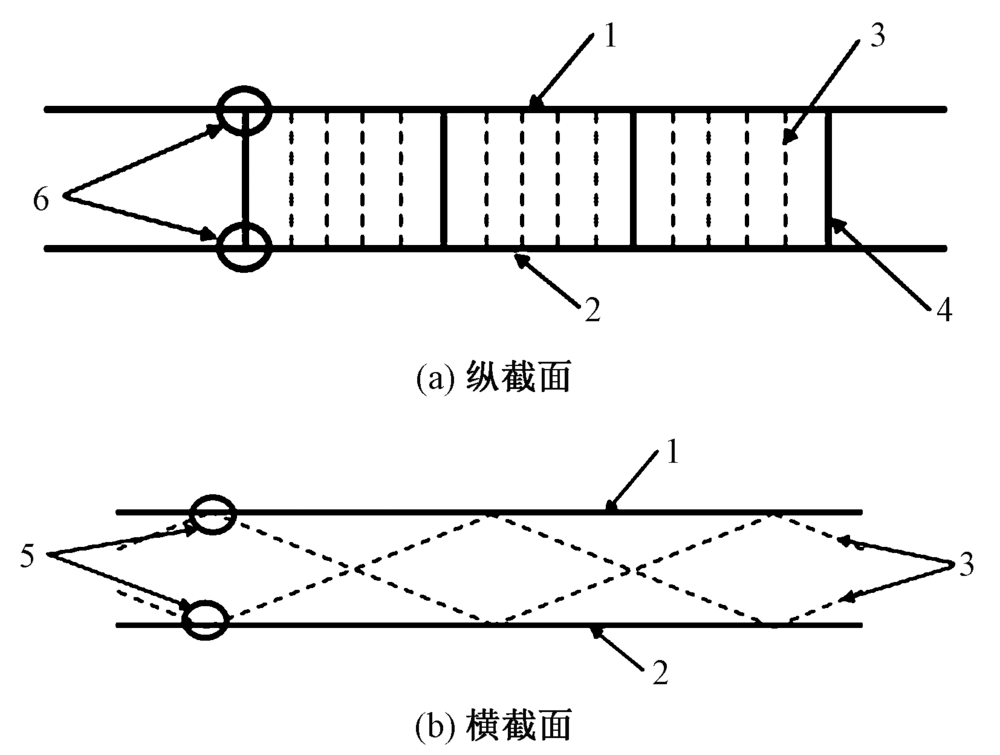

Fig.6

Physical map of square lining structure fabric. (a) Cross section of fabric; (b) Longitudinalsection of fabric"

Tab.3

Basic parameters of machine of square lining structure fabric"

密度/(根·(10 cm)-1) 方格
边长/
cm		 纬向立
衬密度/
(根·cm-1)		 纬向
立衬
个数		 经向立
衬高
度/cm
经向 纬向
172 232 7.9 5 4 1.4

Tab.4

Basic parameters of samples"

经向密度/
(根·(10 cm)-1)		 纬向密度/
(根·(10 cm)-1)		 试样规
格/cm2		 充绒
量/g		 羽绒种类
172 232 35×35 25 90%白鹅绒

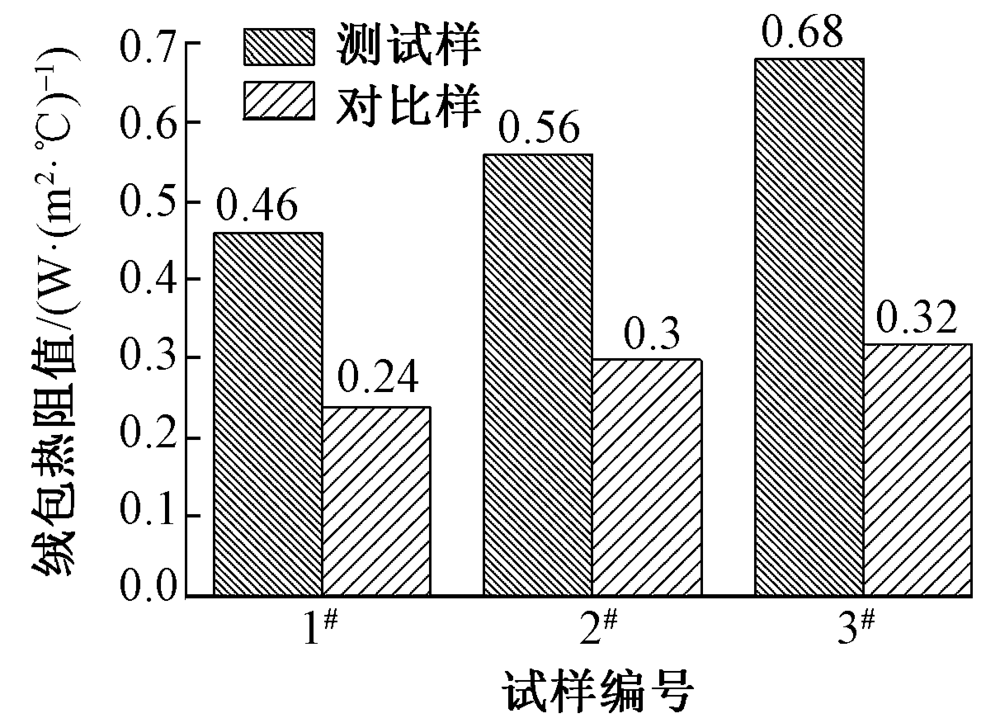

Fig.7

Thermal resistance of velvet bags"

[1] 王春燕. 羽绒服缝制及充绒工艺对造型的影响[J]. 轻工科技, 2017,33(9):102-103,120.
WANG Chunyan. The effect of the sewing and filling process of down jacket on the shape[J]. Light Industry Science and Technology, 2017,33(9):102-103,120.
[2] 吕瑞玲. 羽绒服装防钻绒性问题的研究[J]. 中国纤检, 2018(6):85-88.
LÜ Ruiling. Research on the problem of velvet resistance in down garment[J]. China Fiber Inspection, 2018 (6):85-88.
[3] 胡峰, 黄卫, 魏锋. 一种无缝接且表里交织的羽绒服面料结构: 201520186701.9[P]. 2015-08-05.
HU Feng, HUANG Wei, WEI Feng. A seamlessly connected and intertwined down jacket fabric structure: 201520186701.9[P]. 2015-08-05.
[4] 巫峻维. 一种多边形立衬羽绒被:2009202-10053.0 [P]. 2010-06-16.
WU Junwei. Polygonal lining duvet: 2009202-10053.0[P]. 2010-06-16.
[5] 张国辉. 接结经接结的双层织物分析[J]. 上海纺织科技, 2012,40(10):37-38.
ZHANG Guohui. The analysis of double-fabric jointed with junction warp[J]. Shanghai Textile Science & Technology, 2012,40(10):37-38.
[6] 裘愉发. 纺织新产品的开发(七):绒类织物[J]. 上海纺织科技, 2006 (7):30-32.
QIU Yufa. Development of new textiles(Ⅶ): fleece fabric[J]. Shanghai Textile Science & Technology, 2006 (7):30-32.
[7] 周香琴, 刘宜胜. 织机开口引起的经纱张力变化规律[J]. 纺织学报, 2014,35(5):132-136.
ZHOU Xiangqin, LIU Yisheng. Warp tension change caused by shedding on loom[J]. Journal of Textile Research, 2014,35(5):132-136.
[8] 马颜雪, 李毓陵, 刘梦佳, 等. 整体褶裥机织面料的织造新方法[J]. 纺织学报, 2018,39(4):42-46.
MA Yanxue, LI Yuling, LIU Mengjia, et al. Innovative weaving for integral pleated woven fabrics[J]. Journal of Textile Research, 2018,39(4):42-46.
[9] 孙莉, 杨莉, 赵保民, 等. 基于保暖性能的羽绒服绗缝因素的研究[J]. 中原工学院学报, 2016,27(1):44-47.
SUN Li, YANG Li, ZHAO Baomin, et al. Research on the quilting of down filling clothing based on the warmth retention property[J]. Journal of Zhongyuan University of Technology, 2016,27(1):44-47.
[10] 宇井直树. 湿洗与羽绒服的洗涤[J]. 中国洗涤用品工业, 2017(3):72-77.
NAOKI Ui. Wet cleaning and washing of down jacket[J]. China Cleaning Industry, 2017 (3):72-77.
