Influence of physical property of reactive ink fluid on jetting behavior

HOU Xueni1, CHEN Guoqiang1,2(), XING Tieling1,2

  1. 1. College of Textile and Clothing Engineering, Soochow University, Suzhou, Jiangsu 215006, China
    2. National Engineering Laboratory for Modern Silk, Soochow University, Suzhou, Jiangsu 215123, China
  • Received:2019-05-09 Revised:2019-11-12 Online:2020-03-15 Published:2020-03-27
  • Contact: CHEN Guoqiang E-mail:chenguojiang@suda.edu.cn

RichHTML

11

PDF (PC)

150

Abstract:

In order to study the effect of reactive ink fluid properties, polymer and surfactant on the ink jet formation process and the ink drops parameters, reactive red inks with different levels of viscosity, different surface tension, different molecular weight polyvinylpyrrolidone (PVP) and different surfactants were prepared. The formation process and flight trajectory of ink jet was observed and the parameters such as the length of ligament, breaking time of ink droplets, oblique angle, ink drop velocity and volume were calculated and analyzed using the drop observation system. The results show that with the increased the ink viscosity, the breaking time of the ink droplet demonstrated an obvious increase, and decreases in the velocity and volume of the ink droplet. The increase of viscosity is beneficial to inhibit the formation of ink droplets, but viscosity greater than 4.56 mPa·s will affect the smoothness of injection. Surface tension greater than 49.1 mN/m is not beneficial to the formation of ink droplets leading to oblique spray. Compared to the use of PVP-K15 and PVP-K30, the addition of PVP-K60 causes the droplet to retract in the jet and fail to form a droplet.

Key words: inject printing, jetting behavior, reactive ink, fluid physical properties, surfactant

CLC Number:

  • TS194.4

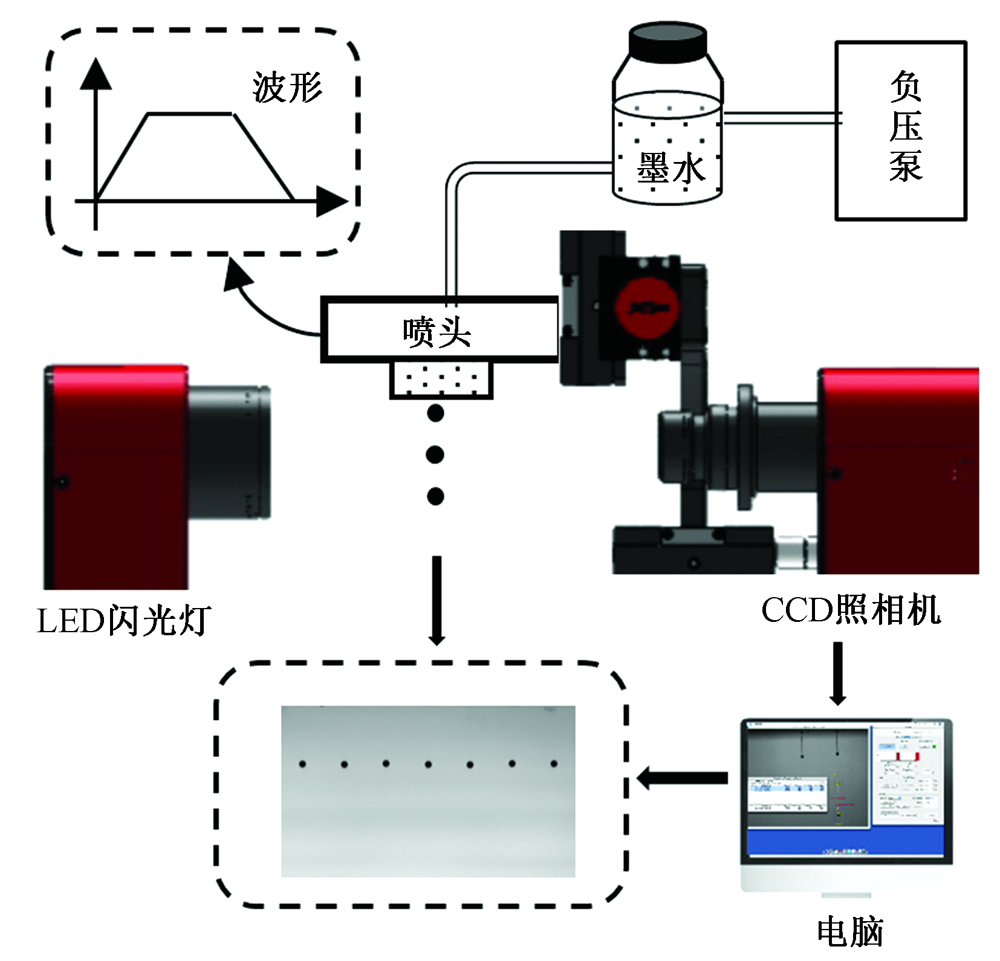

Fig.1

Experimental setup for visualizing droplet formation"

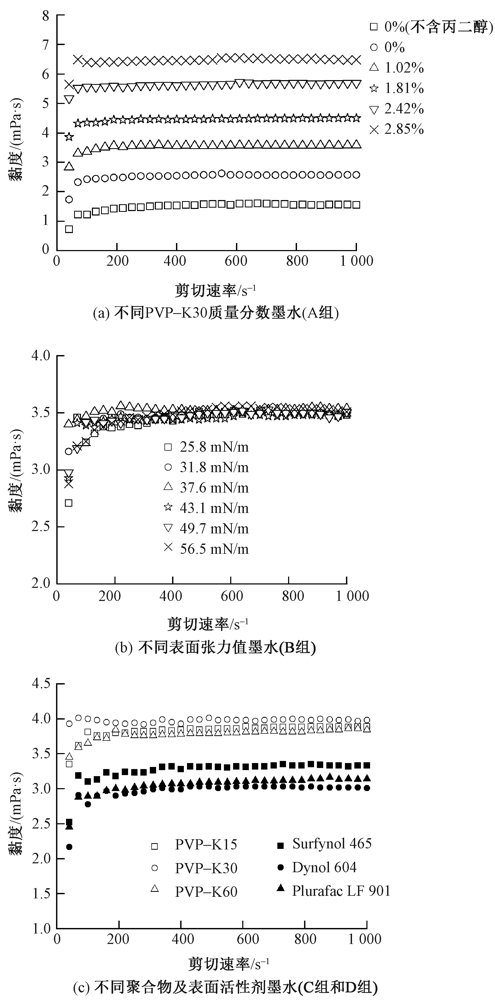

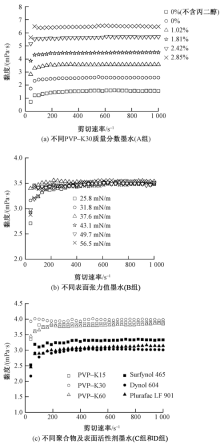

Fig.2

Plots of viscosity variation as a function of shear rate. (a) Ink with different PVP-K30 mass fraction (Group A); (b) Ink with different Surface tension (Group B); (c) Ink with different PVP and surfactant (Group C,D)"

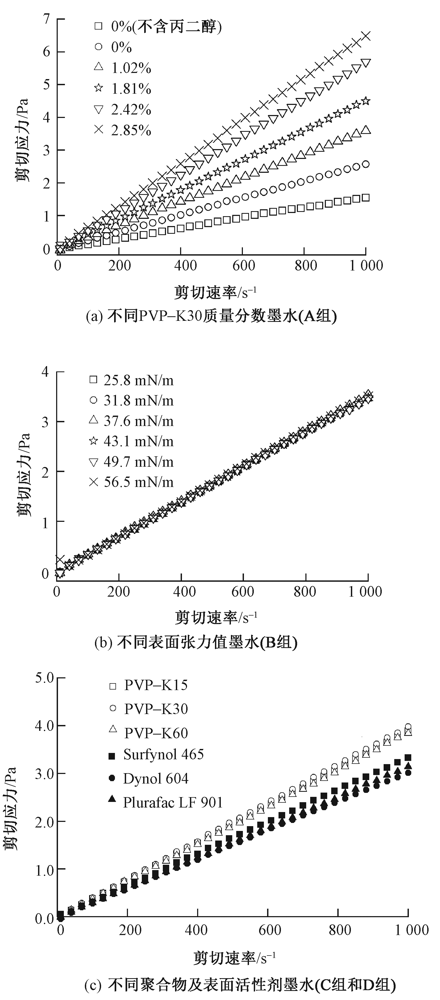

Fig.3

Plots of shear stress variation as a function of shear rate. (a) Ink with different PVP-K30 mass fraction (Group A); (b) Ink with different Surface tension (Group B); (c) Ink with different PVP and surfactant (Group C, D)"

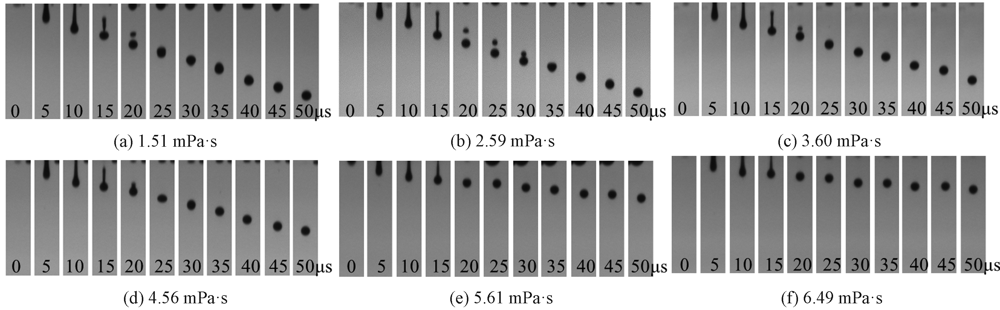

Fig.4

Influence of viscosity on droplet drop formation"

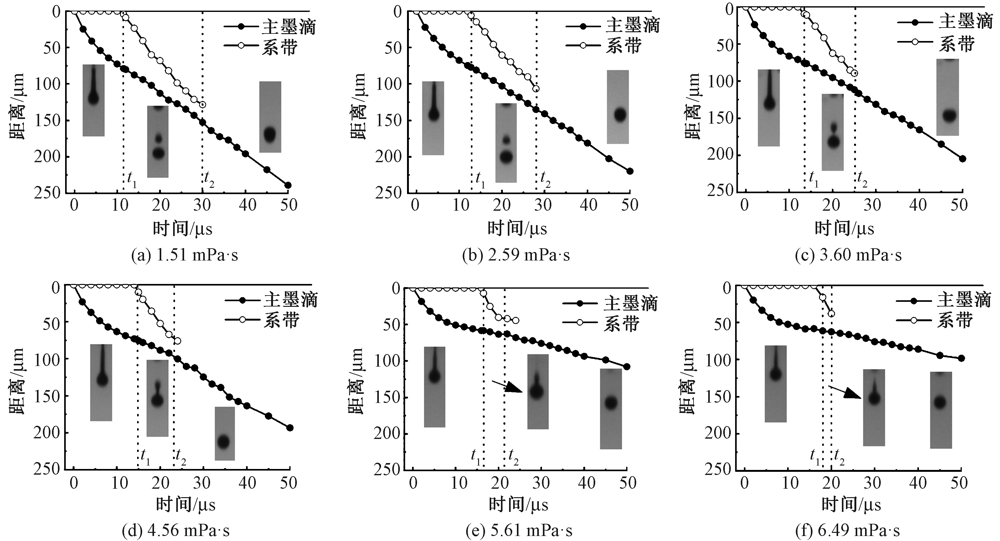

Fig.5

Flight trajectory of drop formation for reactive inks with various values of viscosity"

Tab.1

Effect of viscosity on parameters of droplet"

编
号		 黏度/
(mPa·s)		 表面张力/
(mN·m-1)		 t1/
μs		 t2/
μs		 ν/
(m·s-1)		 V/
pL		 θ/
(°)
1 1.51 33.6 12.00 30 4.17 6.52 0.871
2 2.59 34.3 12.75 28 3.73 5.93 0.356
3 3.60 34.6 13.75 25 3.32 5.42 0.031
4 4.56 34.5 15.00 23 2.73 5.17 0.410
5 5.61 34.2 16.50 21 2.45 4.93 0.116
6 6.49 33.7 18.00 20 1.52 4.45 0.707

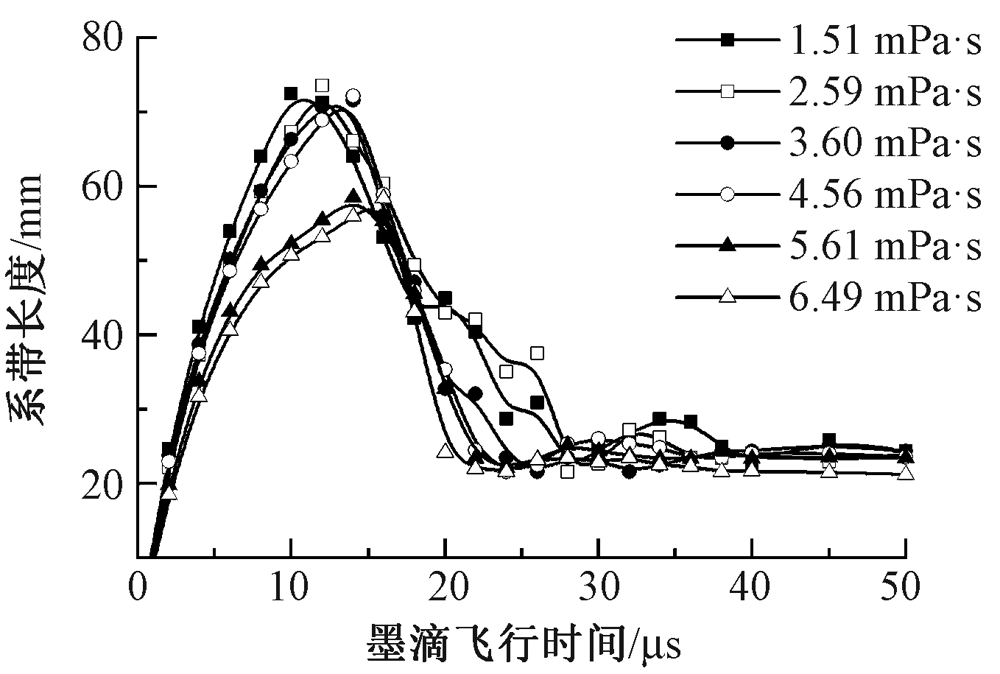

Fig.6

Effect of viscosity on filament length of drop"

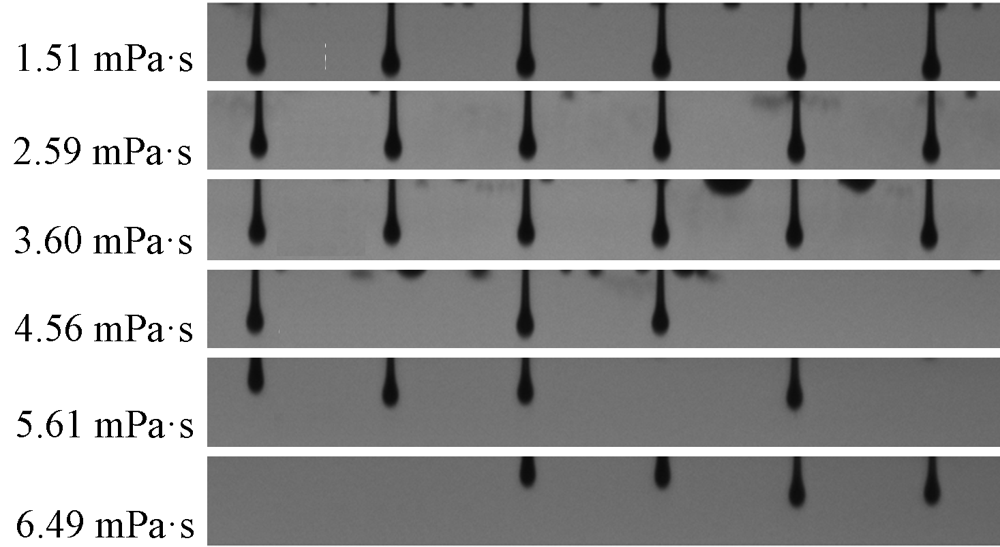

Fig.7

Effect of viscosity on droplet injection fluency"

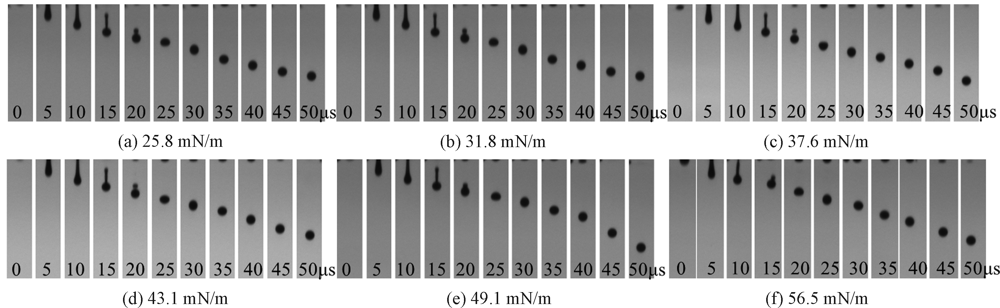

Fig.8

Influence of surface tension as droplet drop formation"

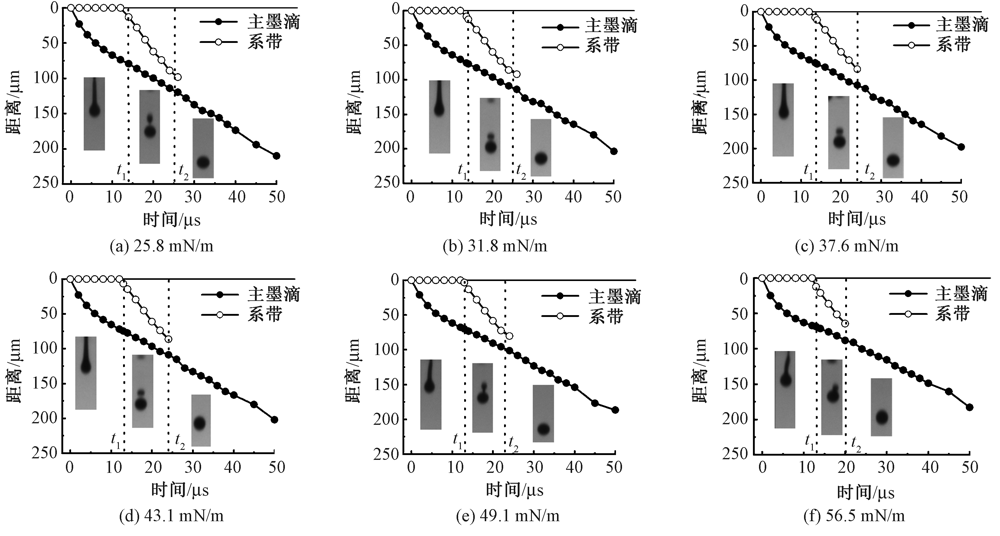

Fig.9

Flight trajectory of drop formation for reactive inks with various values of surface tension"

Tab.2

Effect of surface tension on parameters of droplet"

编
号		 黏度/
(mPa·s)		 表面张力/
(mN·m-1)		 t1/
μs		 t2/
μs		 ν/
(m·s-1)		 V/
pL		 θ/
(°)
1 3.43 25.8 14.00 25 3.34 5.43 0.467
2 3.36 31.8 13.25 25 3.32 5.47 0.090
3 3.44 37.6 13.50 24 3.37 5.45 0.170
4 3.38 43.1 13.25 24 3.30 5.45 0.297
5 3.47 49.1 13.00 23 2.99 5.42 2.885
6 3.49 56.5 13.00 18 2.85 5.59 4.615

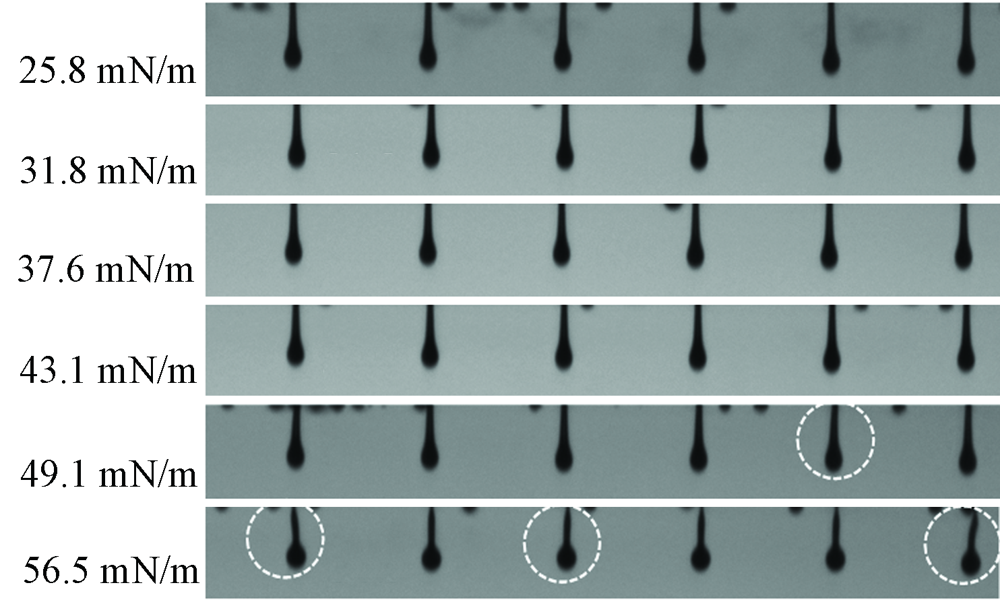

Fig.10

Effect of surface tension on droplet injection fluency"

Tab.3

Effect of PVP and surfactant on parameters of droplet"

种类 黏度/
(mPa·s)		 表面张力/
(mN·m-1)		 t1/
μs		 t2/
μs		 ν/
(m·s-1)		 V/
pL		 θ/
(°)
PVP-K15 3.85 33.3 13.5 25 5.17 3.07 0.122
PVP-K30 3.89 33.9 14.0 24 5.15 2.86 0.041
PVP-K60 3.78 34.4 — — — — —
Surfynol 465 3.31 33.9 13.5 28 5.42 3.30 0.092
Dynol 604 3.14 33.7 12.5 23 5.46 3.29 0.382
Plurafac LF 901 2.99 33.1 13.0 24 5.48 3.38 0.341

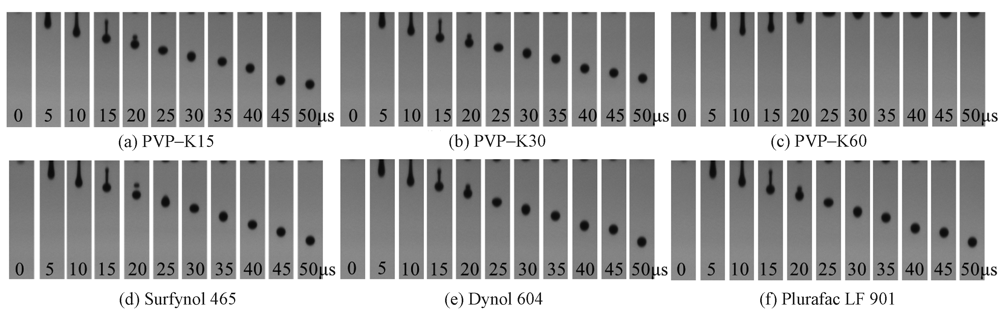

Fig.11

Infuence of PVP and surfa ctant on droplet drop formation"

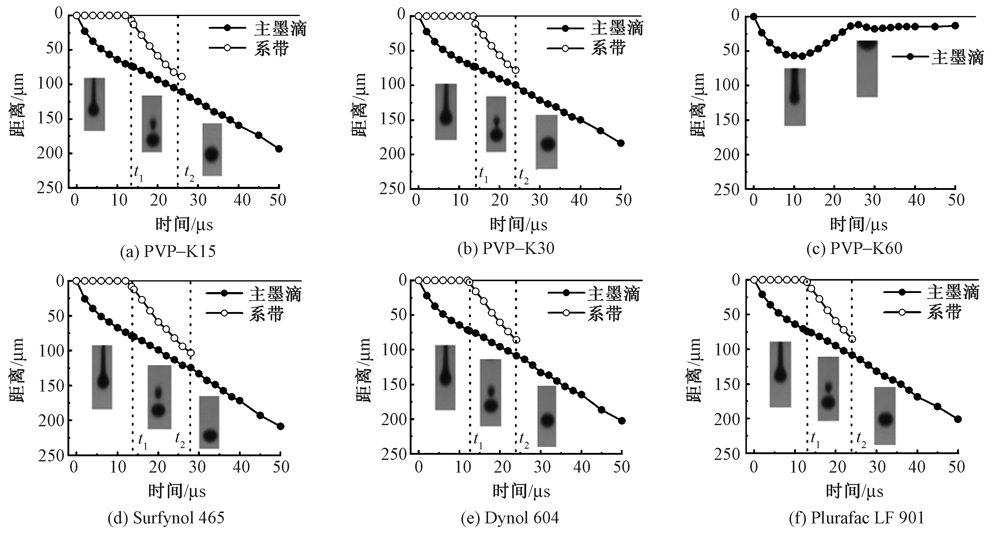

Fig.12

Flight trajectory of drop formation for reactive inks with various PVP and surfactant"

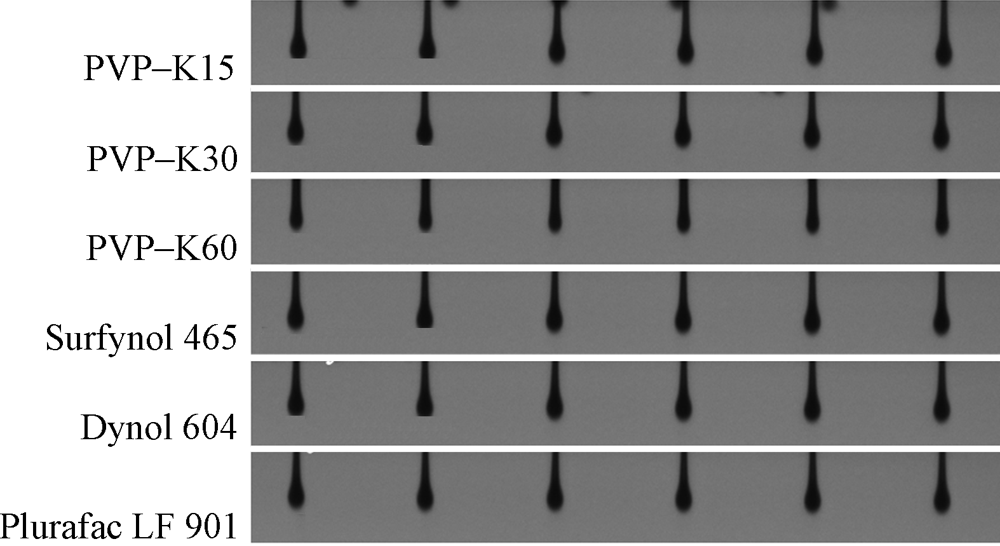

Fig.13

Effect of PVP and surfactant on droplet injection fluency"

[1] 宋亚伟, 房宽峻, 张建波, 等. 喷墨技术及其在纺织品印花中的应用进展[J]. 纺织学报, 2015,36(8):165-172.
SONG Yawei, FANG Kuanjun, ZHANG Jianbo, et al. Inkjet technology and its application in textile print-ing[J]. Journal of Textile Research, 2015,36(8):165-172.
[2] SINGHM, HAVERINEN H M, DHAGAT P, et al. Inkjet printing:process and its applications[J]. Advanced Materials, 2010,22:673-685.
[3] DERBY B. Inkjet printing of functional and structural materials: fluid property requirements, feature stability, and resolution[J]. Annual Review of Materials Research, 2010,40(1):395-414.
[4] TSAI M H, HWANG W S, CHOU H H, et al. Effects of pulse voltage on inkjet printing of a silver nanopowder suspension[J]. Nanotechnology, 2008,19(33):335304.
pmid: 21730623
[5] WANG X, CARR W W, BUCKNALL D G, et al. Drop-on-demand drop formation of colloidal suspensions[J]. International Journal of Multiphase Flow, 2012,38(1):17-26.
[6] GANS B J D, KAZANCIOGLU E, MEYER W, et al. Ink-jet printing polymers and polymer libraries using micropipettes[J]. Macromolecular Rapid Communications, 2004,25(1):292-296.
[7] NALLAN H C, SADIE J A, KITSOMBOONLOHA R, et al. Systematic design of jettable nanoparticle-based inkjet inks: rheology, acoustics, and jettability[J]. Langmuir the Acs Journal of Surfaces & Colloids, 2014,30(44):13470-13477.
doi: 10.1021/la502903y pmid: 25310729
[8] JANG D, KIM D, MOON J. Influence of fluid physical properties on ink-jet printability[J]. Langmuir, 2009,25:2629-2635.
doi: 10.1021/la900059m pmid: 19437746
[9] LIU Zundong, FANG Kuanjun, GAO Hongguo, et al. Effect of cotton fabric pretreatment on drop spreading and colour performance of reactive dye inks[J]. Coloration Technology, 2016,132:407-413.
[10] WOO K, JANG D, KIM Y, et al. Relationship between printability and rheological behavior of ink-jet conductive inks[J]. Ceramics International, 2013,39:7015-7021.
[11] ZHONG Yonghong, FANG Haisheng, MA Qianli, et al. Analysis of droplet stability after ejection from an inkjet nozzle[J]. Journal of Fluid Mechanics, 2018,845:378-391.
[12] LI Min, ZHANG Liping, WANG Datong, et al. Influence of nano-coated pigment ink formulation on ink-jet printability and printing accuracy[J]. Coloration Technology, 2017,133:476-484.
[13] 王大同, 张丽平, 田安丽, 等. 纳米包覆颜料多相流体的喷墨行为[J]. 纺织学报, 2015,36(10):67-72.
WANG Datong, ZHANG Liping, TIAN Anli, et al. Ink-jetting properties of nano coated pigment multiphase fluid[J]. Journal of Textile Research, 2015,36(10):67-72.
[14] PARK J Y, HIRATA Y, HAMADA K. Relationship between the dye/additive interaction and inkjet ink droplet formation[J]. Dyes and Pigments, 2012,95(3):502-511.
[15] DU Zhonghui, YU Xinhong, HAN Yanchun. Inkjet printing of viscoelastic polymer inks[J]. Chinese Chemical Letters, 2018,29:399-404.
[16] DU Zhonghui, LIN Yangming, XING Rubo, et al. Controlling the polymer ink's rheological properties and viscoelasticity to suppress satellite droplets[J]. Polymer, 2018: 138, 75-82.
[17] 张桂芳, 付少海, 田安丽, 等. 添加剂/超细包覆分散染料液滴形成的影响因素[J]. 纺织学报, 2012,33(6):48-52.
ZHANG Guifang, FU Shaohai, TIAN Anli, et al. Study on droplets formation process of additives/capsulated super-fine disperse dye[J]. Journal of Textile Research, 2012,33(6):48-52.
[18] HOATH S D, JUNG S, HSIAO W K, et al. How PEDOT: PSS solutions produce satellite-free inkjets[J]. Organic Electronics, 2012 (13):3259-3262.
[19] DONG Hongming, CARR W W. An experimental study of drop-on-demand drop formation[J]. Physics of Fluids 2006,18:072102.
[20] 刘春格, 唐正宁. 基于压电喷墨印刷的墨滴速度大小的理论研究[J]. 包装工程, 2010,31(15):36-38.
LIU Chunge, TANG Zhengning. Theoretical research of the nk doplet vlocity based on piezoelectric inkjet print-ing[J]. Packing Engineering, 2010,31(15):36-38.
[21] FILLMORE G L. Drop velocity from an ink-jet nozzle[J]. IEEE Transactions on Industry Applications, 1983,19(6):1098-1103.
[22] 安亚洁, 李敏, 杜长森, 等. 微量墨滴在蚕丝机织物上的扩散行为[J]. 纺织学报, 2018,39(4):88-92.
AN Yajie, LI Min, DU Changsen, et al. Diffusion behavior of micro droplet on silk woven fabrics[J]. Journal of Textile Research, 2018,39(4):88-92.
[23] 石利琴. 影响喷墨印刷质量的关键因素分析[J]. 包装工程, 2005,26(4):45-47.
SHI Liqin. Analysis of the key factors influencing on the ink-jet printing quality[J]. Packaging Engineering, 2005,26(4):45-47.
[24] XU Changxue, ZHANG Meng, HUANG Yong, et al. Study of droplet formation process during drop-on-demand ink jetting of living cell-laden bioink[J]. Langmuir, 2014,30:9130-9138
doi: 10.1021/la501430x pmid: 25005170
[25] HOATH S D, HUTCHINGS I M, MARTIN G D. Links between ink rheology, drop-on-demand jet formation, and printability[J]. Journal of Imaging Science and Technology, 2009,53(4):041208.
