Process design and knitting principle of one-piece casual suits based on four-needle-bed flat knitting machine

LIU Bo, CONG Honglian()

  1. Research Center For Knitting Technology, Ministry of Education, Jiangnan University, Wuxi, Jiangsu 214122, China
  • Received:2019-05-15 Revised:2020-01-12 Online:2020-04-15 Published:2020-04-27
  • Contact: CONG Honglian E-mail:cong-wkrc@163.com

RichHTML

4

PDF (PC)

222

Abstract:

In order to achieve one-piece knitting of casual suits, the formation of one-piece suits was studied on the basis of the four-needle-bed computerized Shima Seiki flat knitting machine. According to the difference between one-piece suits and ordinary sweaters, the body and collar were selected as research objects, and their process design methods and forming principles were investigated. In the conversion process from tailored suits to one-piece suits, rectangular slip transformation is adopted to transform the process, the body is knitted with partial knitting to form a curved hem, and the retractable stitches are used to form the dividing line. The lapel is knitted with the rear collar strip knitting method that mobilizes the needles while knitting and connecting with the back collar, and the area where the splice exceeds the centerline of the placket is transformed into the interior by a rectangular sliding method. Under the premise of keeping the balance of the front and rear stitches, the precise size control of the front and rear of suit can be realized by means of unequal length and unequal width knitting.

Key words: one-piece casual suit, four-needle-bed computerized flat knitting machine, forming process, rectangular slip transformation

CLC Number:

  • TS184.5

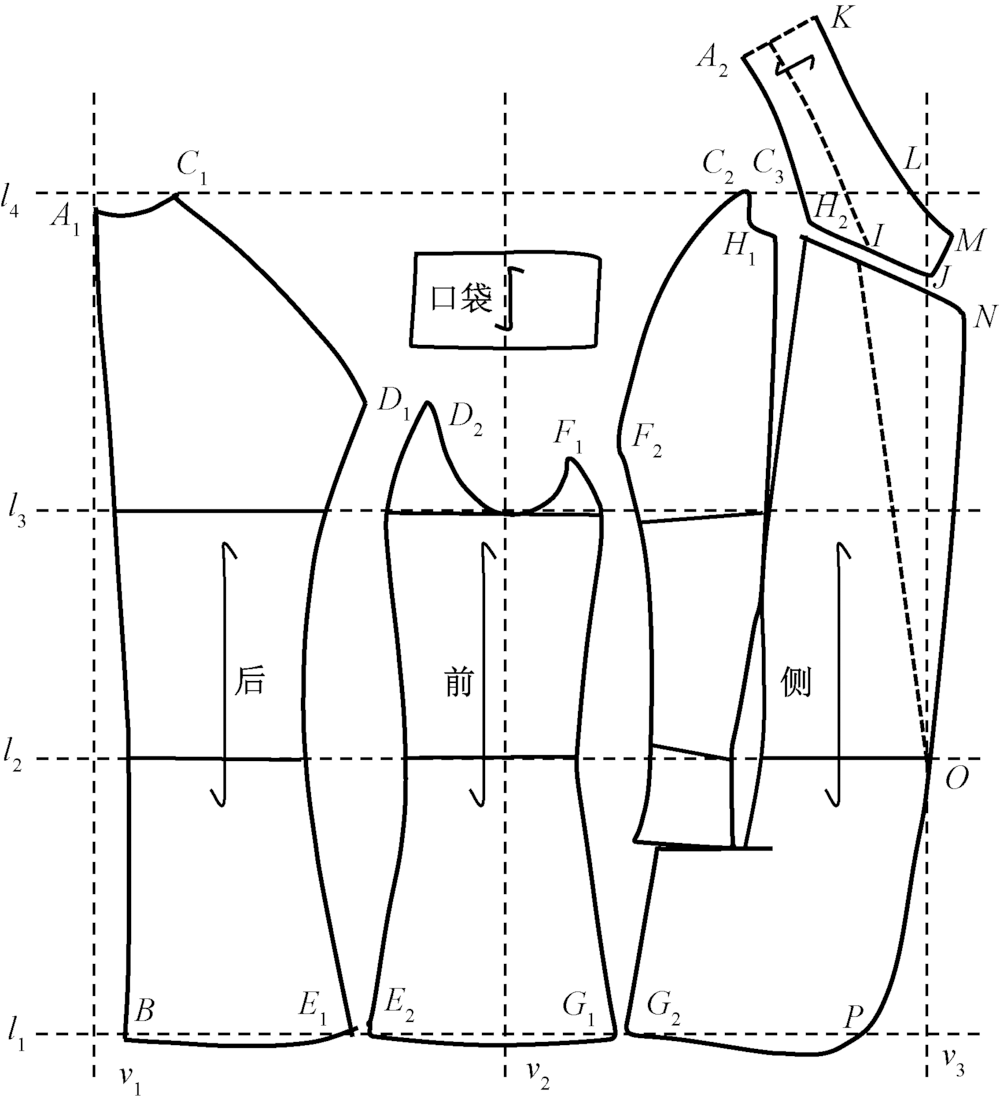

Fig.1

Decomposition diagram of six-body suit pattern"

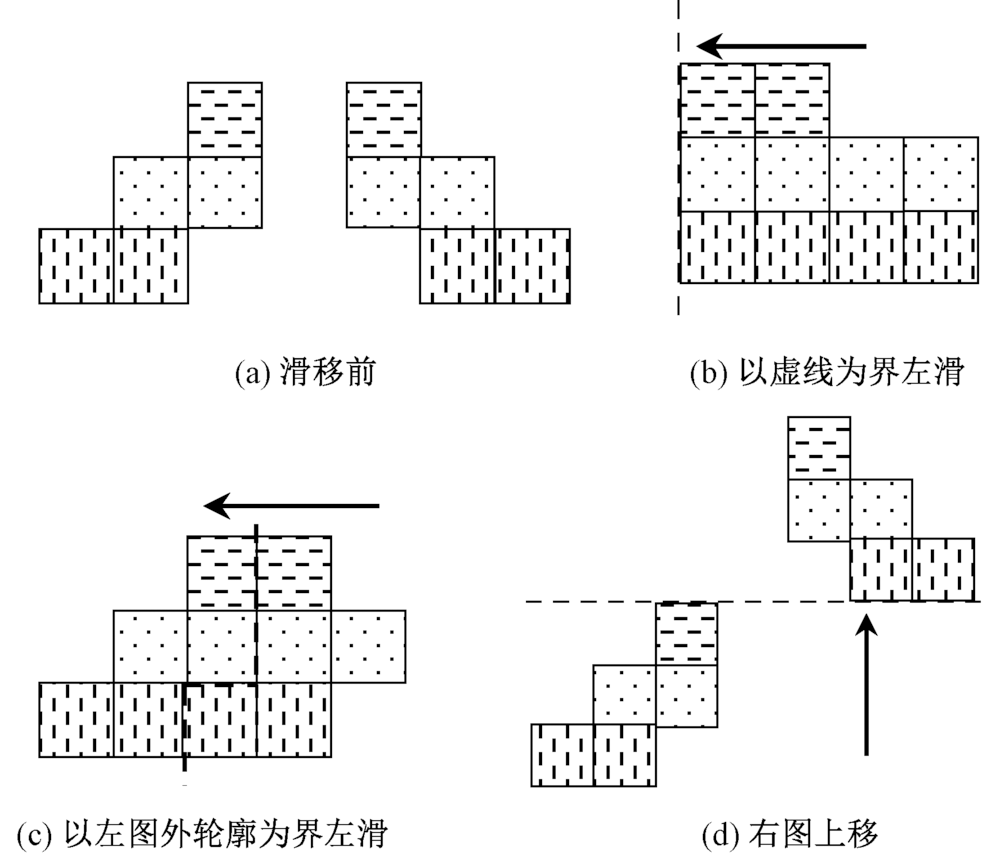

Fig.2

Diagram of rectangular slid transform principle. (a) Pre-slip; (b) Slide left with dashed line as boundary;(c) Slide to left with outer contour of left image as boundary; (d) Graph on right slides up"

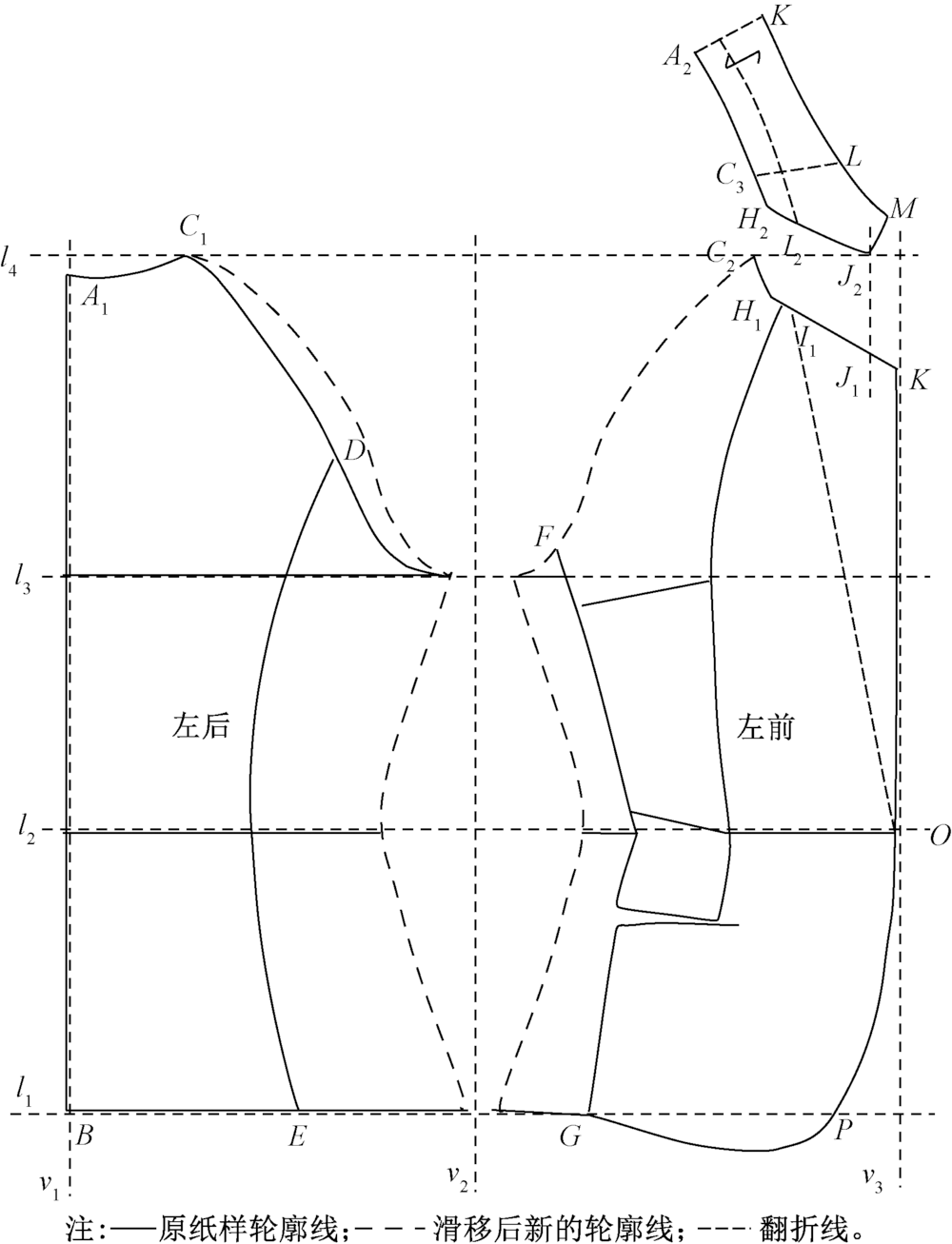

Fig.3

Process diagram of one-piece suit after rectangular sliding"

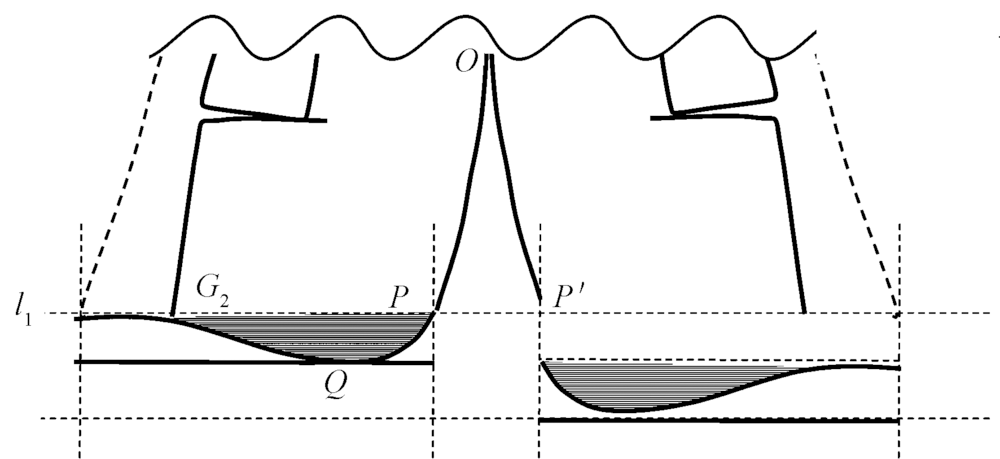

Fig.4

Process drawing of hem of one-piece suit"

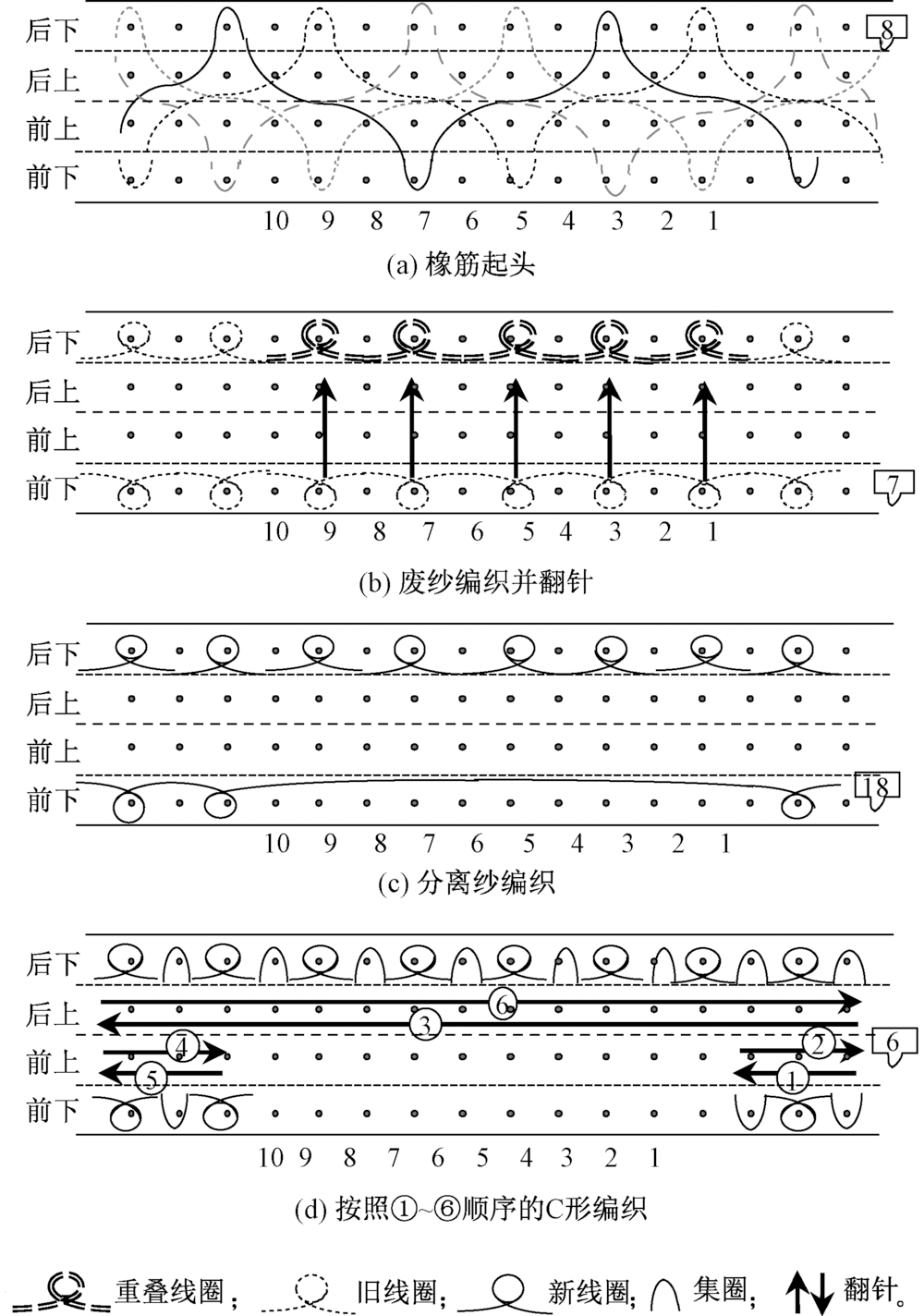

Fig.5

Start knitting diagram of hem of one-piece suit. (a) Elastic yarn knitting; (b) Waste yarn knitting and transferring; (c) Separation yarn knitting;(d) C-shaped knitting according to order from ① to ⑥"

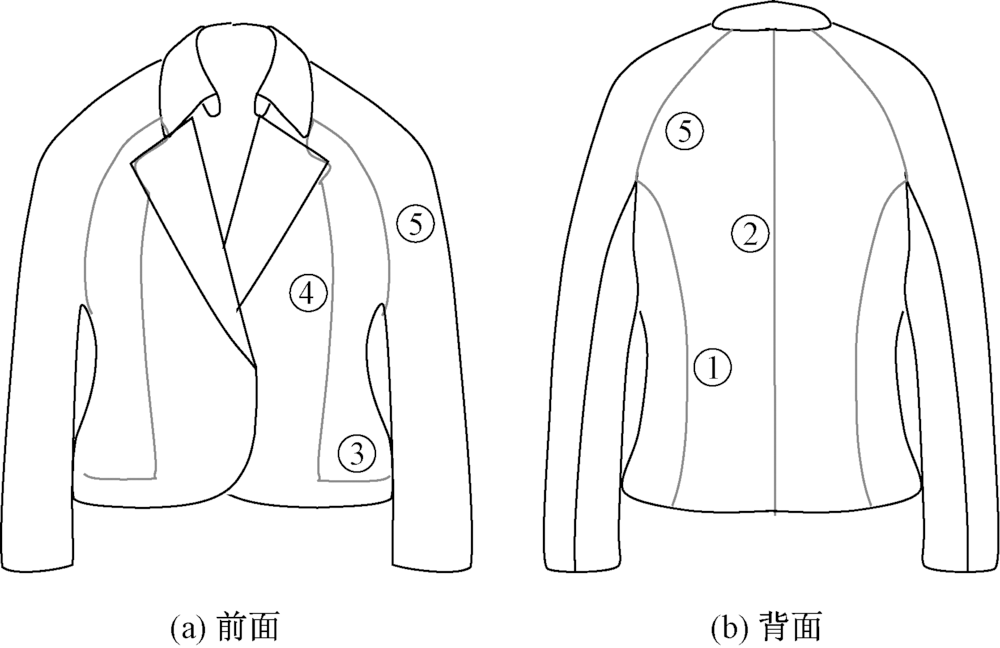

Fig.6

Diagram of suit dividing line. (a)Front; (b) Back"

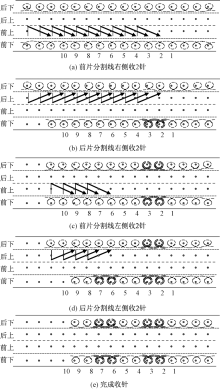

Fig.7

Knitting diagram of narrowing to form one-piece suit secant line. (a) Narrowing two knit in right side of front panel; (b) Narrowing two knit in right side of back panel; (c) Narrowing two knit in left side of front panel; (d) Narrowing two knit in left side of back panel;(e) Finished narrowing"

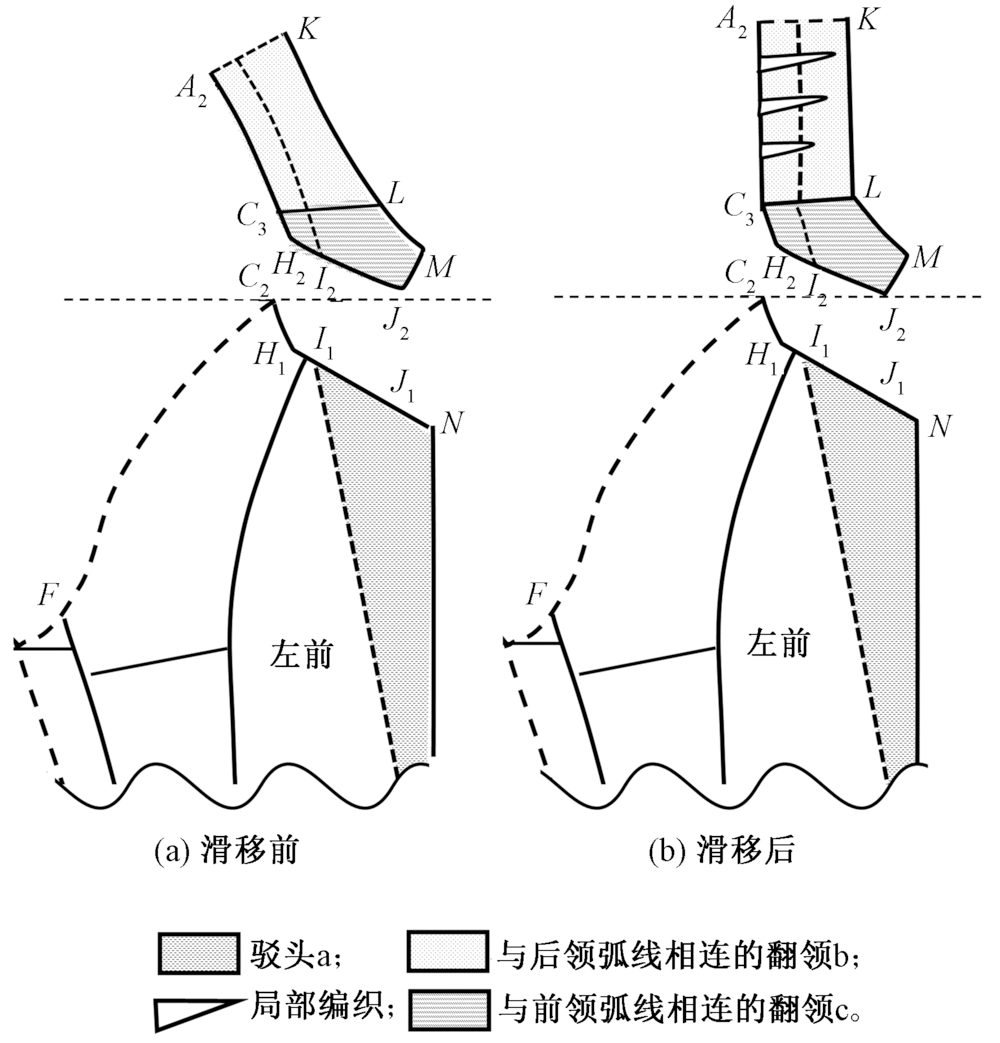

Fig.8

Process drawing of lapel of one-piece suit. (a) Lapel before sliding; (b) Lapel after sliding"

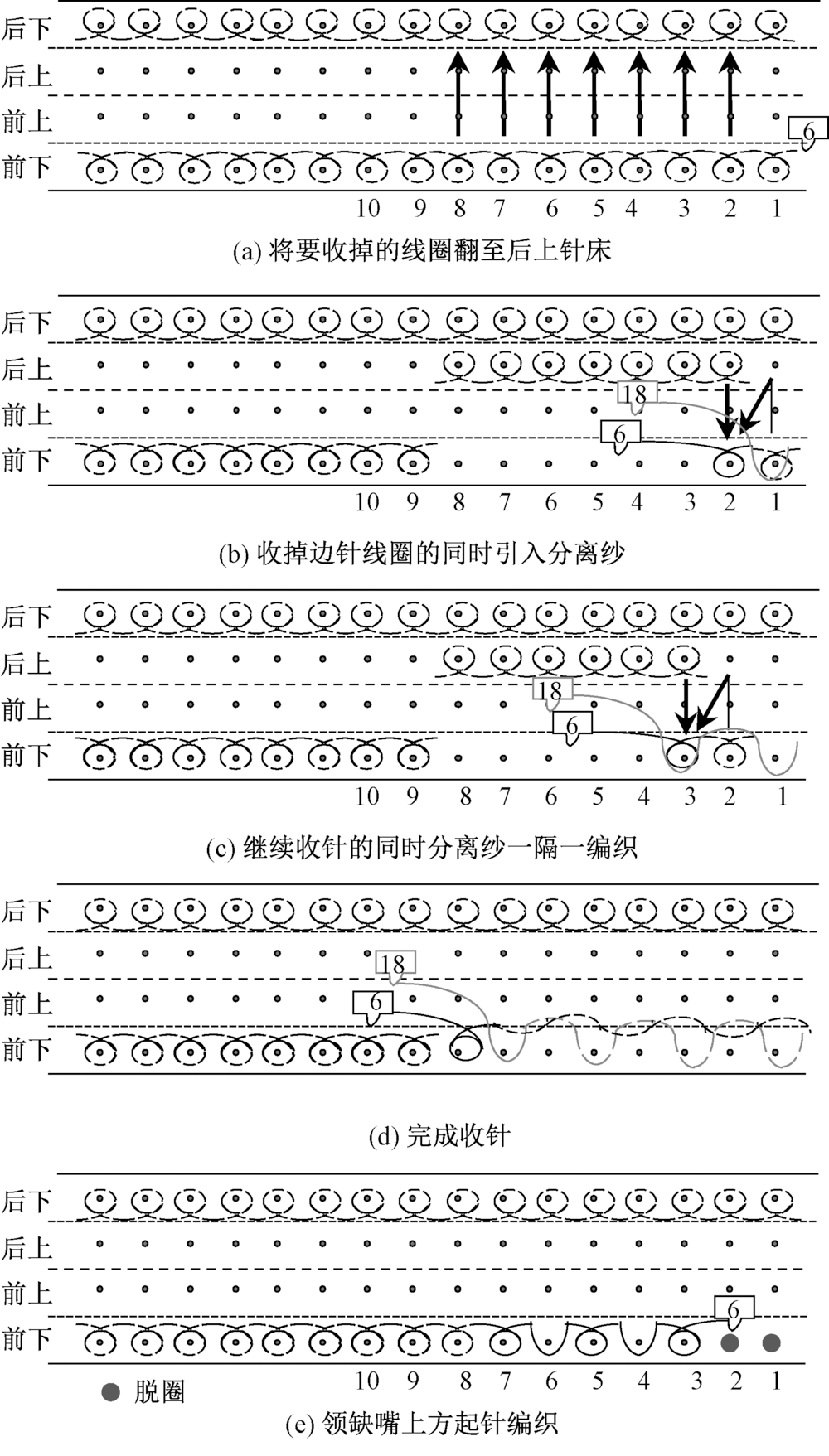

Fig.9

Knitting diagram of neck gap of one-piece suit. (a) Turn loop to back needle bed; (b) Separation yarn knitting while narrowing; (c) Keep narrowing and separation yarn knitting one by one; (d) Finished narrowings; (e) Restart knitting above neck gap"

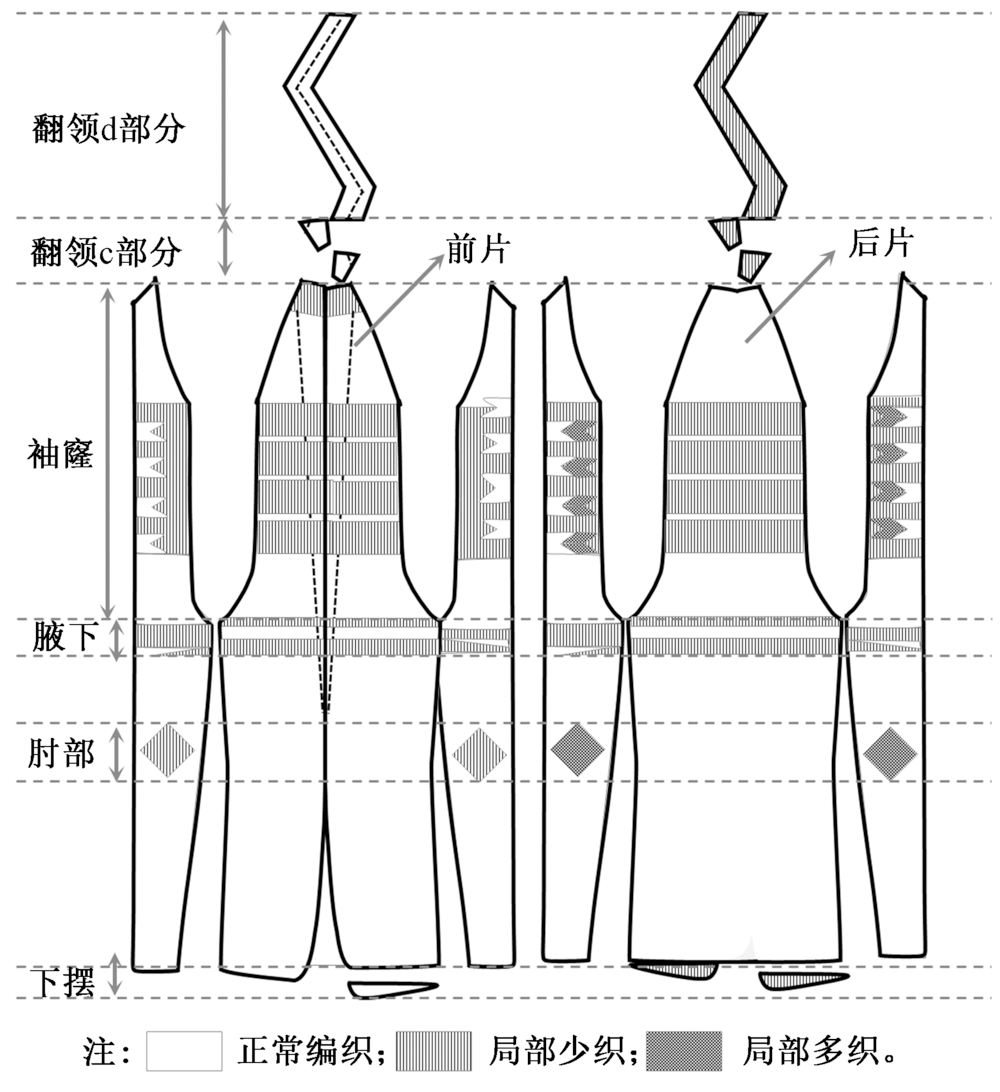

Fig.10

Process diagram of one-piece suit"

[1] 李晶晶. 休闲西服的发展历程及设计特征[J]. 辽宁丝绸, 2014(4):49-50.
LI Jingjing. Development and design features of leisure suits[J]. Liaoning Silk, 2014(4):49-50.
[2] 李军, 陈耕. “无框”男西服衣身结构设计技术创新研究[J]. 纺织科学研究, 2018(3):76-79.
LI Jun, CHEN Geng. Technological innovation research on the body structure design of "frameless" men's suit[J]. Textile Science Research, 2018(3):76-79.
[3] 陈明艳, 赵芹. 现代男西服风格演变及工艺特点[J]. 纺织学报, 2015,36(10):120-127.
CHEN Mingyan, ZHAO Qin. Characteristic and innovation on the style of modern men's suits[J]. Journal of Textile Research, 2015,36(10):120-127.
[4] 王敏, 丛洪莲.四针床电脑横机全成形技术研究进展[J]. 纺织导报, 2016(9): 96, 98-100.
WANG Min, CONG Honglian.Technology of four-needle bed computerized flat knitting machine[J]. China Textile Leader, 2016(9): 96, 98-100.
[5] 王敏, 丛洪莲, 蒋高明, 等. 四针床电脑横机的全成形工艺[J]. 纺织学报, 2017,38(4):61-67.
WANG Min, CONG Honglian, JIANG Gaoming, et al. Whole garment knitting process on four-bed computerized flat knitting machine[J]. Journal of Textile Research, 2017,38(4):61-67.
[6] 彭佳佳, 蒋高明, 丛洪莲, 等. 全成形毛衫的结构与编织原理[J]. 纺织学报, 2017,38(11):48-55.
PENG Jiajia, JIANG Gaoming, CONG Honglian, et al. Structure and knitting principle of whole garment[J]. Journal of Textile Research, 2017,38(11):48-55.
[7] 邱庄岩, 花芬, 吴志明. 四针床全成形编织工艺及其应用[J]. 纺织学报, 2018,39(8):63-70.
QIU Zhuangyan, HUA Fen, WU Zhiming. Process and application of full-forming knitting with four-needle bed[J]. Journal of Textile Research, 2018,39(8):63-70.
[8] 罗璇, 彭佳佳, 蒋高明, 等. 全成形毛衫样板设计及成形方法[J]. 纺织学报, 2018,39(7):105-110.
LUO Xuan, PENG Jiajia, JIANG Gaoming, et al. Design and knitting shaping method of fully-fashioned knit-wear[J]. Journal of Textile Research, 2018,39(7):105-110.
[9] 王迪, 丛洪莲. 纬编无缝内衣的原型设计方法[J]. 纺织学报, 2013,34(5):95-99.
WANG Di, CONG Honglian. Prototype design method of weft knitted seamless underwear[J]. Journal of Textile Research, 2013,34(5):95-99.
[10] 李珂, 吴志明. 全成形毛衫C形编织工艺与应用[J]. 上海纺织科技, 2018,46(4):12-16.
LI Ke, WU Zhiming. Knitting process and application of whole garment sweater of C-knitting[J]. Shanghai Textile Science & Technology, 2018,46(4):12-16.
[1] WANG Pan, WU Zhiming. Transverse knitting method and forming process of fully formed sweater [J]. Journal of Textile Research, 2019, 40(10): 73-78.
[2] . Forming process of shoulder and sleeves of whole garment [J]. JOURNAL OF TEXTILE RESEARCH, 2018, 39(03): 56-60.
