Journal of Textile Research ›› 2020, Vol. 41 ›› Issue (06): 161-167.doi: 10.13475/j.fzxb.20190505707

• Machinery & Accessories • Previous Articles     Next Articles

Control technology for density motor used in seamless underwear machines

DAI Ning, HU Xudong, PENG Laihu(), ZHONG Yaosen

  1. Key Laboratory of Modern Textile Machinery & Technology of Zhejiang Province, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
  • Received:2019-05-23 Revised:2020-03-06 Online:2020-06-15 Published:2020-06-28
  • Contact: PENG Laihu E-mail:laihup@zstu.edu.cn

RichHTML

7

PDF (PC)

94

Abstract:

Facing the problem that the control of the density motor used in current seamless underwear machines is unstable, this research was carried out to investigate the performance characteristics of the density motor, proposing a density motor control scheme based on CAN bus. According to the processing characteristics of the density motor control stitch cam, the overall implementation of the control technology was expounded. The key circuit design and program algorithm was studied, and the protocol for controlling the action characteristics of the density motor was established. In order to avoid the long-term operation of density motor appearing the horizontal stripes caused by the lost step phenomenon, detecting error mode by zero-return was proposed. The test results indicate that the control technology facilitate the position control of the density motor and improve the stability of the seamless underwear machine density motor control, with cost savings compared to density motors with encoders, meeting the control requirements of the seamless underwear machine for the density motor.

Key words: seamless underwear machine, CAN bus, circuit design, program algorithm, density motor, detecting error mode by zero-return

CLC Number:

  • TS103.7

Fig.1

Figure of triangle arrangement of seamless underwear machine(a)and structure of density motor and circle forming triangle(b)"

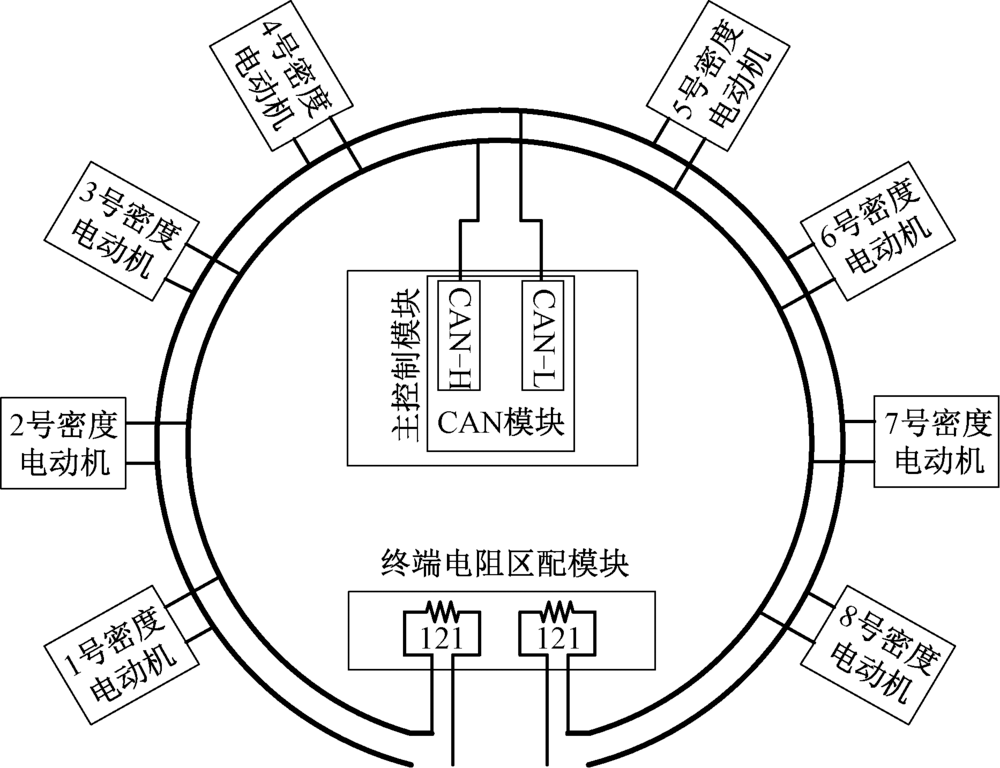

Fig.2

Overall structure of seamless underwear machine density motor control technology"

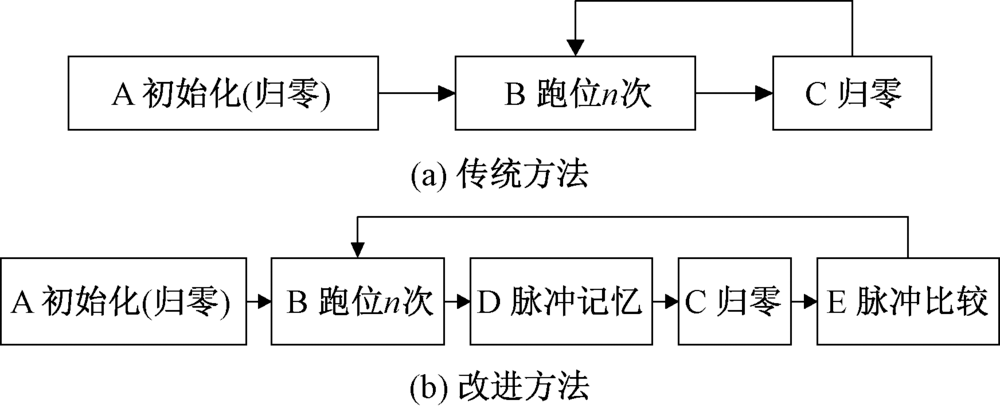

Fig.3

Schematic diagram of two control methods. (a)Traditional method;(b)Improved method"

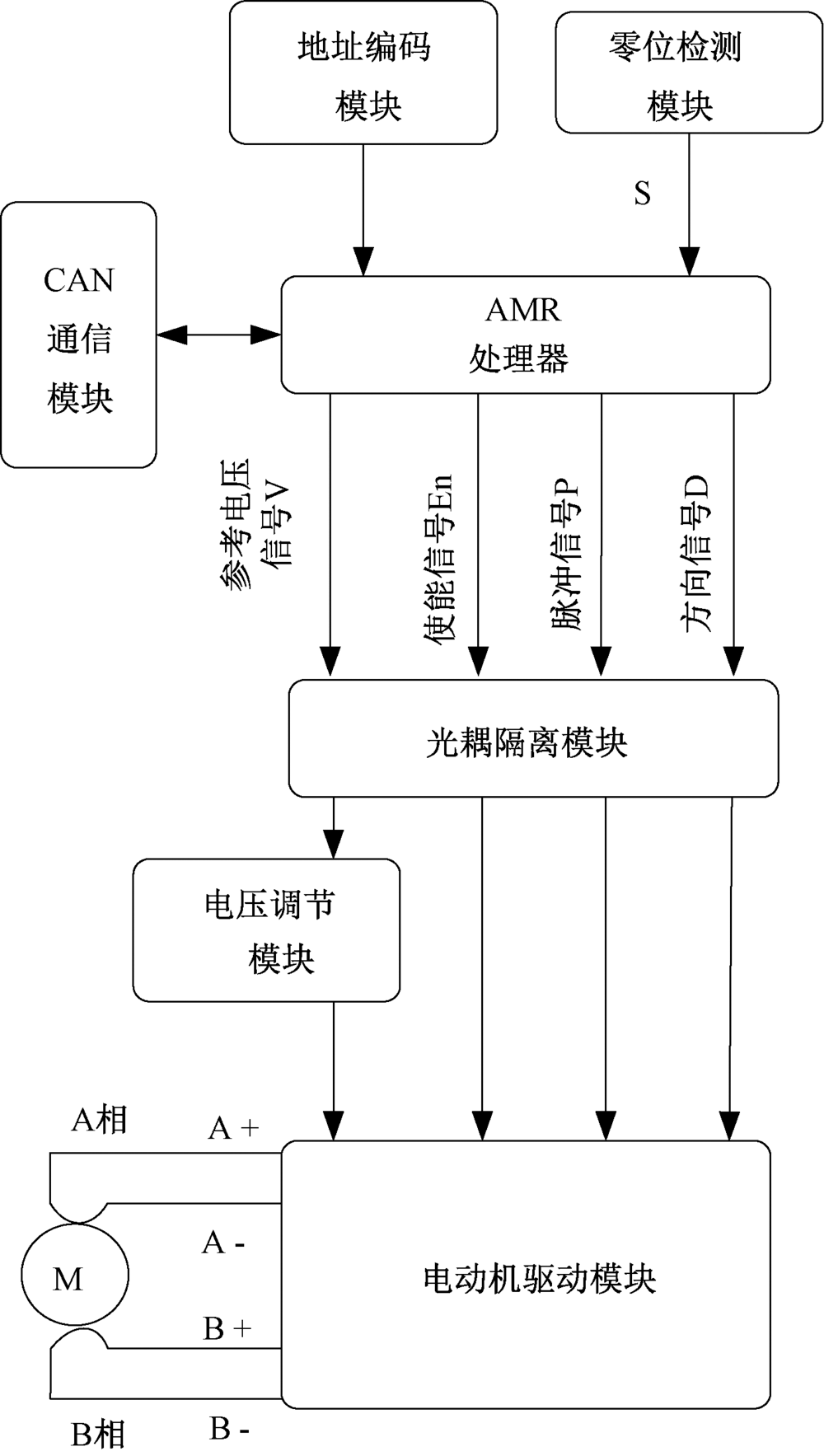

Fig.4

Control circuit diagram of density motor drive board"

Tab.1

Protocol of density motor action"

29位扩展帧 数据段
9~29位 Data[0] Data[1] … Data[8]
预留 状态 密度电动机1 … 密度电动机8

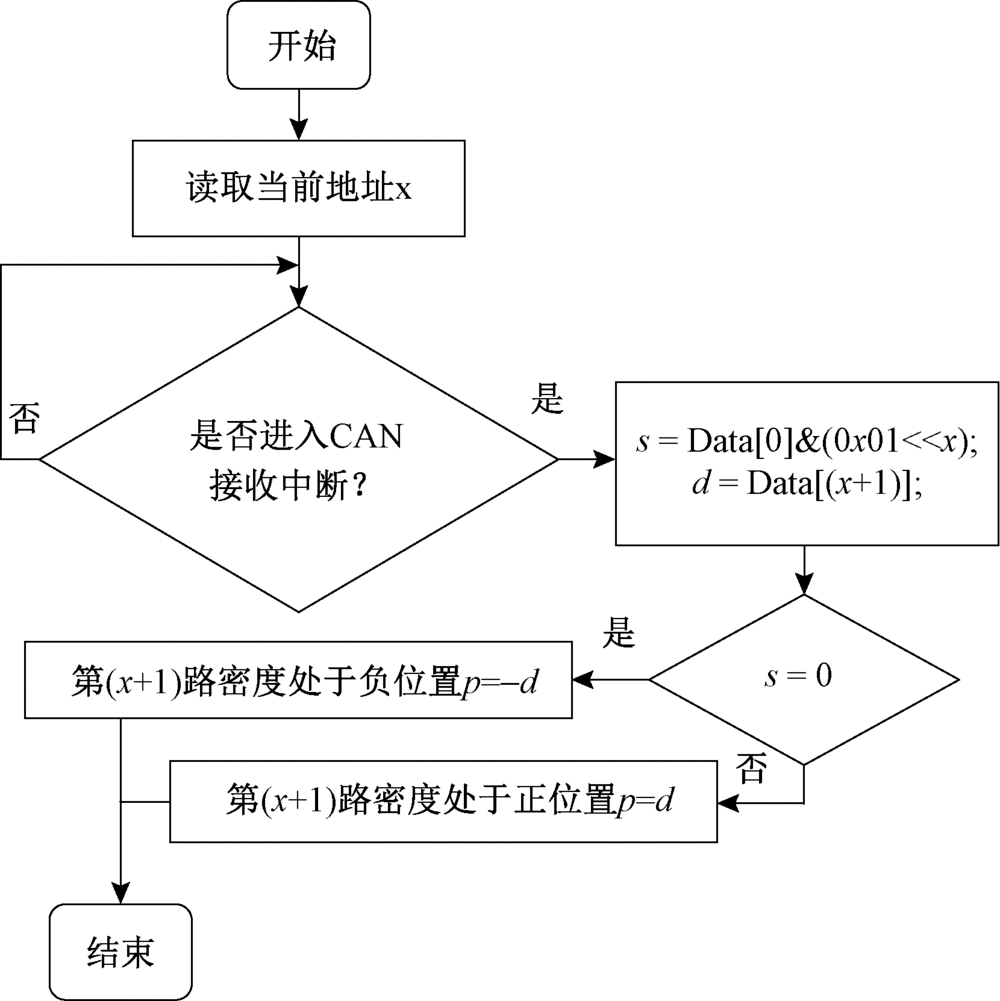

Fig.5

Flow chart of density motor action protocol analysis algorithm"

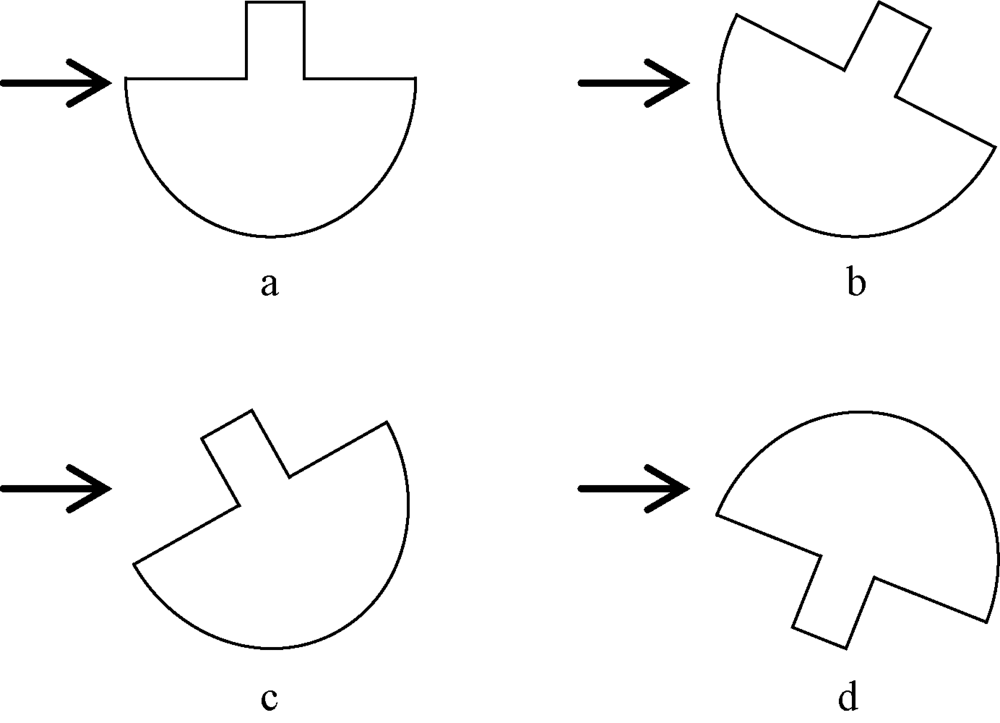

Fig.6

Diagram of density motor position"

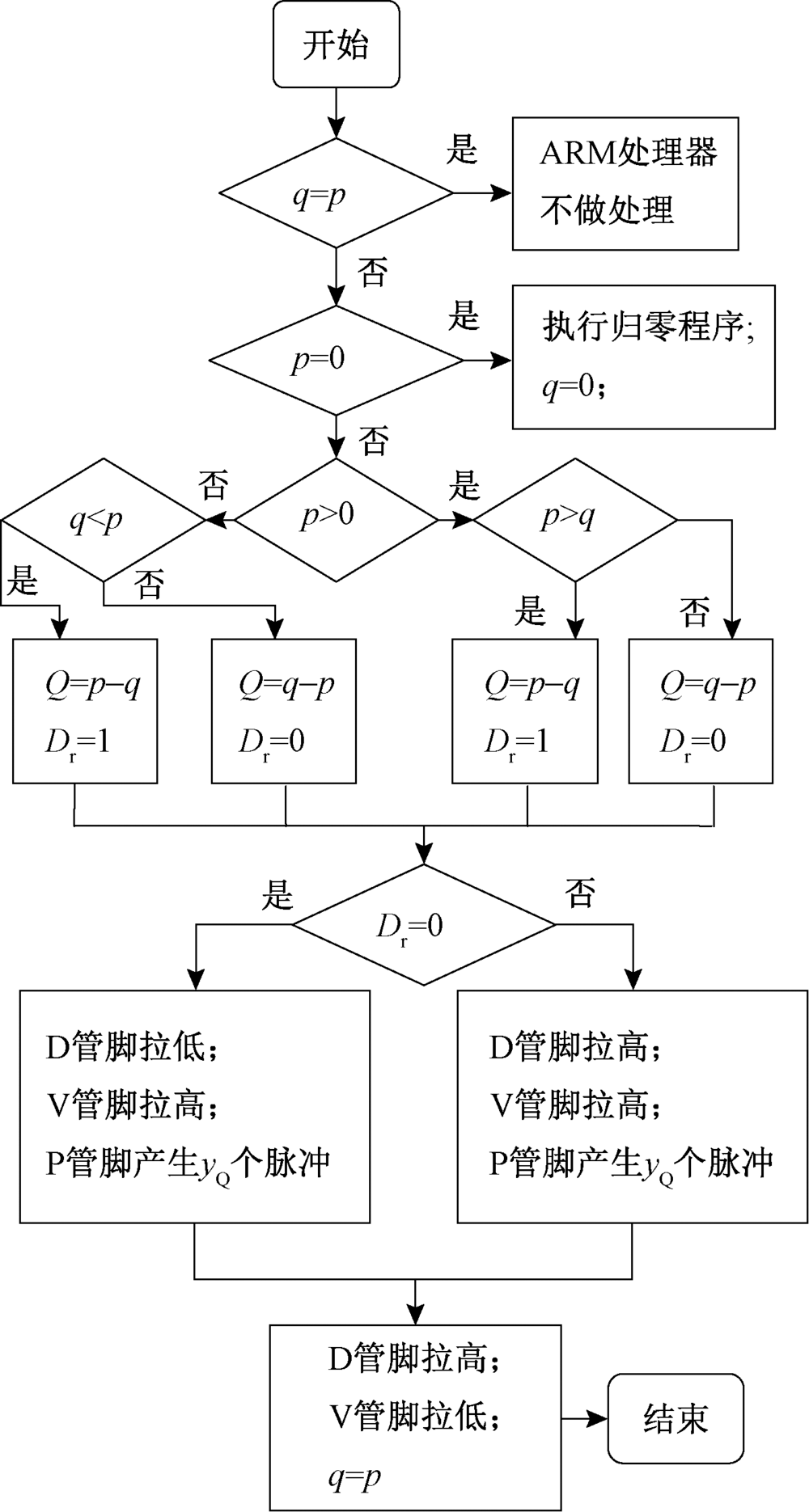

Fig.7

Flow chart of density motor action execution program algorithm"

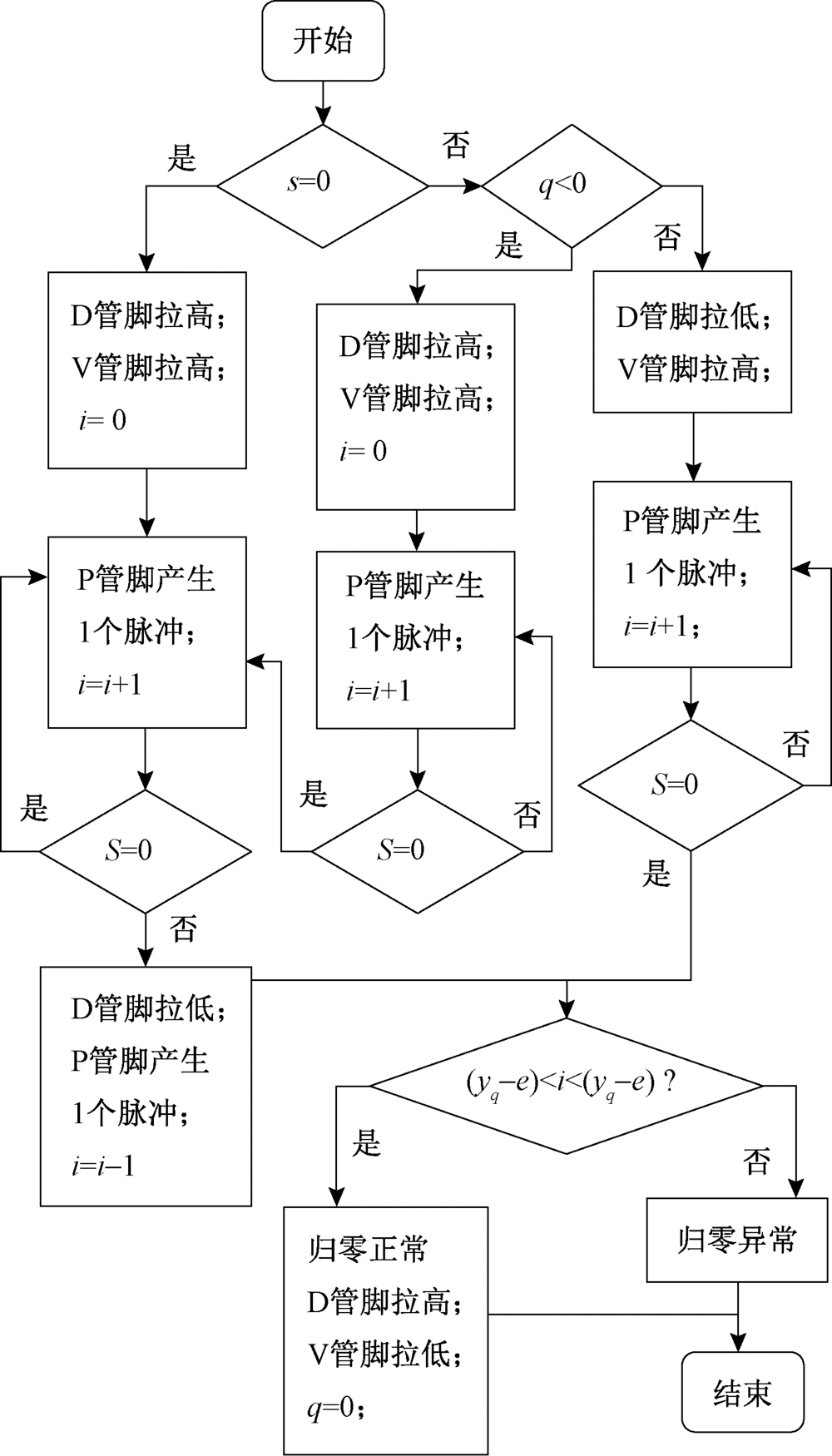

Fig.8

Flow chart of density motor zeroing and debugging algorithm"

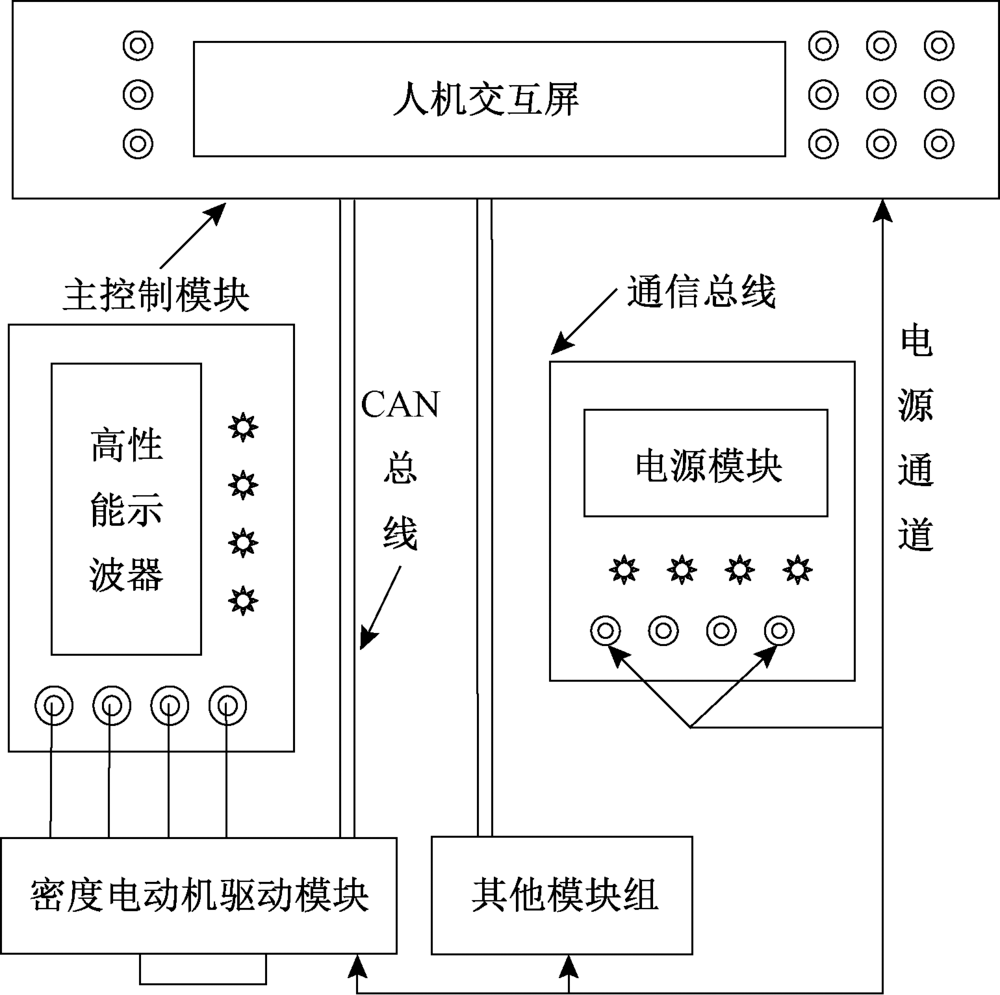

Fig.9

Diagram of experimental platform construction"

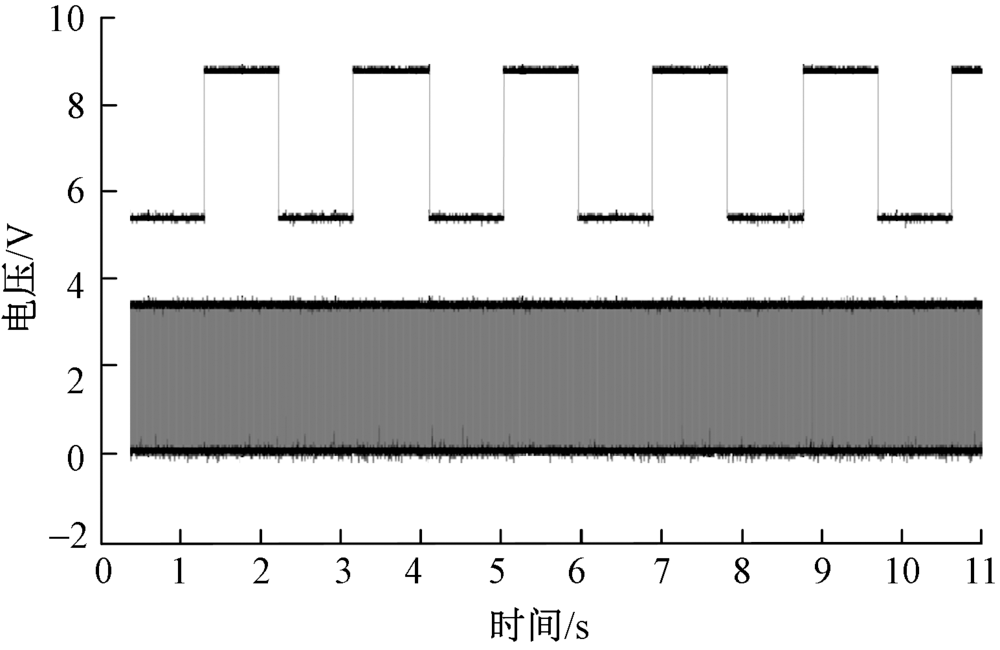

Fig.10

Diagram of waveform about P pin and S pin of ARM processor"

Tab.2

Statistics of lost step test"

测试次数 报警时间 报警类型
第1次 2019-2-28-14∶33∶17 8号密度电动机异常
第2次 2019-2-28-14∶33∶27 8号密度电动机异常
? ? ?
第8 639次 2019-2-29-14∶32∶57 8号密度电动机异常
第8 640次 2019-2-29-14∶33∶07 8号密度电动机异常
[1] 汝欣, 史伟民, 彭来湖, 等. 无缝针织内衣机的花型准备系统及数据安全[J]. 纺织学报, 2016,37(11):130-131.
RU Xin, SHI Weimin, PENG Laihu, et al. Pattern preparation system of seamless underwear knitting machine and data security[J]. Journal of Textile Research, 2016,37(11):130-131.
[2] 张玉红, 陈绍芳. 应用母型法的无缝内衣工艺样板设计[J]. 纺织学报, 2015,36(7):100-101.
ZHANG Yuhong, CHEN Shaotang. Design on technological pattern for seamless underwear by mother type method[J]. Journal of Textile Research, 2015,36(7):100-101.
[3] 丛洪莲, 张新杰, 王迪. 基于结构参数的纬编无缝塑身内衣设计模型[J]. 纺织学报, 2014,35(11):123-124.
CONG Honglian, ZHANG Xinjie, WANG Di. Model design of weft seamless underwear based on structure parameters[J]. Journal of Textile Research, 2014,35(11):123-124.
[4] 邓淑芳. 2014中国国际纺织机械展览会暨ITMA亚洲展览会无缝内衣圆机述评[J]. 针织工业, 2014(7):10-11.
DENG Shufang. Review of the seamless underwear circular machiney on the 2014 China International Textile Machinery Exhibition-ITMA Asia[J]. Knitting Industries, 2014(7):10-11.
[5] 宋广礼. 2012中国国际纺织机械展览会暨ITMA亚洲展览会无缝内衣圆机述评[J]. 针织工业, 2012(7):8-9.
SONG Guangli. Review of the seamless underwear circular machiney on the 2012 China international textile machinery exhibition-ITMA Asia[J]. Knitting Industries, 2012(7):8-9.
[6] 岑凌. 2018中国国际纺织机械展览会暨ITMA亚洲展览会无缝内衣圆机述评[J]. 针织工业, 2018(11):9-10.
CEN Ling. Review of the circular seamless underwear knitting machines on china international textile machinery exhibition-2018 ITMA Asia[J]. Knitting Industries, 2018(11):9-10.
[7] 彭来湖, 万中魁, 胡旭东, 等. 无缝内衣机分布式气阀组驱动控制单元设计[J]. 纺织学报, 2016,36(10):126-129.
PENG Laihu, WAN Zhongkui, HU Xudong, et al. Distributed drive control unit design of air valve group on underwear machine[J]. Journal of Textile Research, 2016,36(10):126-129.
[8] 查锦, 史伟明, 彭来湖, 等. 电脑调线机实时控制系统设计[J]. 机电工程, 2016,33(1):78-83.
ZHA Jin, SHI Weiming, PENG Laihu, et al. Real-time control system of auto-ray machine[J]. Journal of Mechanical & Electrical Engineer, 2016,33(1):78-83.
[9] 彭来湖, 杨敏, 史伟民, 等. 双总线架构圆纬机编织机构控制单元设计[J]. 机电工程, 2012,29(6):669-673.
PENG Laihu, YANG Min, SHI Weimin, et al. Knitting mechanism controller design of circular knitting machine based on double bus architecture[J]. Journal of Mechanical & Electrical Engineering, 2012,29(6):669-673.
[10] 旷成, 史伟民, 彭来湖, 等. 无缝内衣机密度电动机的精确控制研究[J]. 工业控制计算机, 2018,31(9):58-59.
KUANG Cheng, SHI Weimin, PENG Laihu, et al. Research on precision control of density motor of seamless underwear[J]. Industrial Control Computer, 2018,31(9):58-59.
