Influence factors of color stability in finishing of natural colored cotton

ZENG Yuhui1, ZHANG Tingting1, WANG Kezuo2, HE Li2, CHEN Yiren1,3()

  1. 1. School of Textile Science and Engineering, Wuhan Textile University, Wuhan, Hubei 430200, China
    2. Hubei Province Fibre Inspection Bureau, Wuhan, Hubei 430061,China
    3. State Key Laboratory for Hubei New Textile Materials and Advanced Processing Technology, Wuhan Textile University, Wuhan, Hubei 430200, China
  • Received:2019-06-17 Revised:2020-05-09 Online:2020-08-15 Published:2020-08-21
  • Contact: CHEN Yiren E-mail:yiren.chen@wtu.edu.cn

Abstract:

The color of the natural colored cotton has been found to change to a certain extent during the finishing treatment. The color changes of natural colored cotton under different temperatures, solutions with different pH values, petroleum ether pretreatment and metal ion treatment solution were studied in order to formulate a reasonable processing technology. The results show that when the temperature is lower than 80 ℃, the color of natural colored cotton keeps better. When the temperature is higher than 80 ℃, the color of natural colored cotton changes obviously with the increase of temperature. When the pH value is less than 7, the color of natural colored cotton becomes paler with the pH value decreases, and when the pH value is greater than 7, the color of natural colored cotton becomes more intensive with the pH value increases. The color of natural colored cotton treated with petroleum ether appears to be more stable than that of colored cotton treated without petroleum ether. Fe2+, Fe3+, Cu2+ and other metal ions all have influence on the color of colored cotton, among which Fe3+ has the greatest influence on the color of colored cotton.

Key words: natural colored cotton, color stability, finishing processing, temperature, metal ion

CLC Number:

  • TS111.9

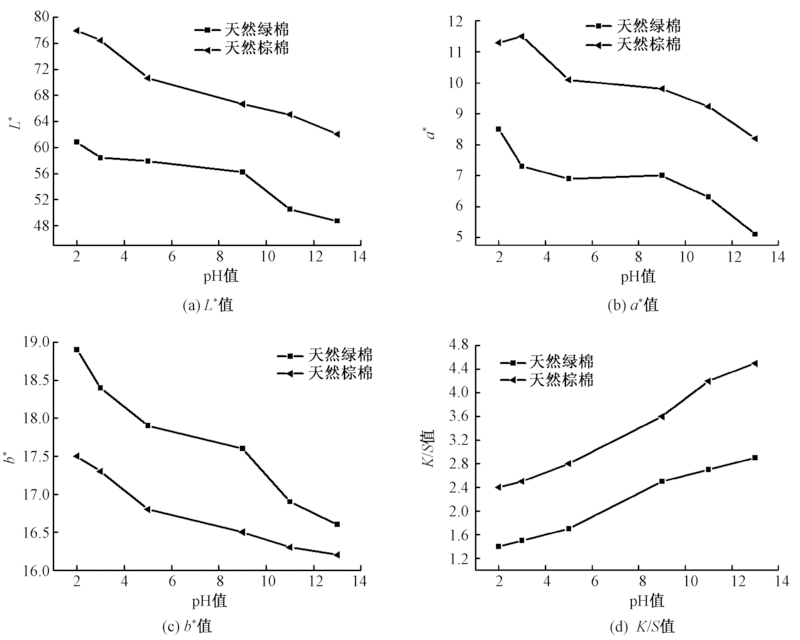

Fig.1

L*(a), a*(b), b*(c) and K/S(d) values of natural colored cotton at different pH values"

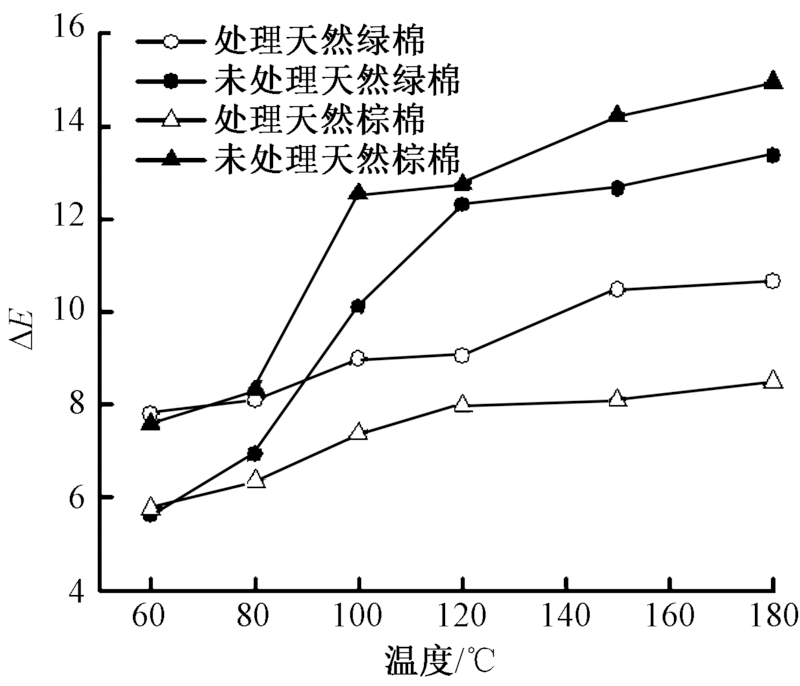

Fig.2

Change of ΔE value of natural colored cotton fiber before and after petroleum ether pretreatment at different temperature"

Tab.1

Effect of different metal ions on color difference of natural colored cotton"

金属离子 天然绿棉 天然棕棉
ΔL* Δa* Δb* ΔE ΔL* Δa* Δb* ΔE
Fe2+ -0.296 -0.294 -1.306 5.726 -2.038 -0.230 -0.654 6.500
Cu2+ -3.432 -2.031 -4.738 3.195 -2.730 -0.576 -1.846 3.692
Ca2+ -3.886 -2.985 -5.209 3.740 -3.846 -1.654 -2.270 4.654
Na+ -0.704 -0.593 -2.293 2.462 -3.154 -0.086 -0.384 3.038
Al3+ -3.301 -0.044 -1.306 4.547 -5.616 -0.462 -1.154 5.884
Fe3+ -1.642 -0.135 -0.602 7.152 -7.076 -0.270 -2.154 7.616
[1] 杨明, 顾莉琴, 钱和生, 等. 天然彩棉与普通白棉中微量元素的比较研究[J]. 光谱学与光谱分析, 2008(1):203-205.
pmid: 12940010
YANG Ming, GU Liqin, QIAN Hesheng, et al. Comparative study on trace elements in natural colored cotton and white cotton[J]. Spectroscopy and Spectral Analysis, 2008(1):203-205.
pmid: 12940010
[2] 徐秋燕. 天然彩色棉和染色棉的鉴别[D]. 武汉: 武汉纺织大学, 2016: 6-11.
XU Qiuyan. Identification method of naturally colored cotton and dyed cotton[D]. Wuhan: Wuhan Textile University, 2016: 6-11.
[3] 周旭玲, 吴世华, 陈彩惠, 等. 棉/彩棉/绢丝混纺纱线的研制[J]. 纺织学报, 2010,31(1):32-35,67.
ZHOU Xuling, WU Shihua, CHEN Caihui, et al. Development of cotton/colored cotton/spun silk blended yarn[J]. Journal of Textile Research, 2010,31(1):32-35,67.
[4] 鲁庚. 天然彩色棉纤维在[BMIM]Cl离子液体中的溶解及色素辅助提取[D]. 杭州: 浙江理工大学, 2015: 1-5.
LU Geng. Dissolution of naturally colored cotton in [BMIM]Cl ionic liquid and its assistant extraction of the pigment[D]. Hangzhou: Zhejiang Sci-Tech University, 2015: 1-5.
[5] 李康. 彩棉纤维的成分和结构分析[J]. 江苏农业科学, 2015 (1):313-314.
LI Kang. Analysis of composition and structure of colored cotton fiber[J]. Jiangsu Agricultural Sciences, 2015(1):313-314.
[6] 胡志华. 天然绿色棉及其色素组分的抗氧化活性[D]. 杭州: 浙江理工大学, 2015: 2-7.
HU Zhihua. Antioxidant activity of natural green cotton and its pigment components [D]. Hangzhou: Zhejiang Sci-Tech University, 2015: 2-7.
[7] 赵酒泉. 天然彩色棉的色素不稳定性与染整前处理[J]. 染料与染色, 2005,42(2):35-38.
ZHAO Jiuquan. Unstability of coloring materially on naturally colored cotton and dyeing and finishing pretreatment[J]. Dyestuffs and Coloration, 2005,42(2):35-38.
[8] DEMIR A ÖZDOĞAN E ÖZDIL N, et al. Ecological materials and methods in the textile industry: atmospheric-plasma treatments of naturally colored cotton [J]. Journal of Applied Polymer Science, 2011,119(3):1410-1416.
[9] TSALIKI E, KECHAGIA U, ELEFTHERIADIS I, et al. Effect of wet treatments on color fastness of naturally colored cotton[J]. Journal of Natural Fibers, 2016,13(4):502-505.
[10] 程田田, 徐英莲. 绿棉织物颜色耐碱稳定性的研究[J]. 现代纺织技术, 2018,26(5):62-65.
CHENG Tiantian, XU Yinglian. Study on stability of color alkali resistance of green cotton fabrics[J]. Advanced Textile Technology, 2018,26(5):62-65.
[11] 顾艳. 天然彩色棉的色变特性及色素结构的分析研究[D]. 杭州: 浙江理工大学, 2008: 62-63.
GU Yan. Study on color change properties and pigment structure of naturally colored cotton[D]. Hangzhou: Zhejiang Sci-Tech University, 2008: 62-63.
[12] ZHOU X L, SHI Z Q, TANG Z R, et al. Effect of laundering temperature on the color of brown naturally colored cotton[J]. Advanced Materials Research, 2012, 535-537:1577-1581.
[13] PARK J, CHANG Y, HONG W, et al. Effects of color, scouring method, and age on the visual sensibility of naturally colored organic cotton (NaCOC)[J]. Human Factors and Ergonomics in Manufacturing & Service Industries, 2014,24(3):318-327.
[14] 郑春玲, 姜会钰. 改进的LM-BP算法预测染色K/S值[J]. 纺织学报, 2010,31(8):82-85.
ZHENG Chunling, JIANG Huiyu. K/S value prediction of reactive dyes with improved LM-BP algorithm[J]. Journal of Textile Research, 2010,31(8):82-85.
[15] 蒋耀兴, 姚桂芬. 纺织品检验学[M]. 北京: 中国纺织出版社, 2008: 91-92.
JIANG Yaoxing, YAO Guifen. Textile inspection[M]. Beijing: China Textile & Apparel Press, 2008: 91-92.
[16] 陆永良, 袁裕禄, 李云飞. 基于国际颜色模型(CIELAB)的棉花颜色级测试方法研究[J]. 中国纤检, 2016(3):90-93.
LU Yongliang, YUAN Yulu, LI Yunfei. A study on the cotton color grade test method based on international color model (CIELAB)[J]. China Fiber Inspection, 2016(3):90-93.
[17] 梁光雁, 顾肇文. 天然彩色棉色素变化机理探讨及其应用研究[J]. 纺织学报, 2004,25(3):11-13.
LIANG Guangyan, GU Zhaowen. Inquiry and apply the mechanism of coloring matter transformation in natural colored cotton[J]. Journal of Textile Research, 2004,25(3):11-13.
[18] 顾艳, 符正中, 周文龙. 干热处理温度对天然彩色棉色泽性能的影响[J]. 纺织学报, 2009,30(1):60-63.
GU Yan, FU Zhengzhong, ZHOU Wenlong. Effect of dry heat treatment on shade of naturally colored cotton[J]. Journal of Textile Research, 2009,30(1):60-63.
[19] 唐志荣. 天然彩色棉色素组分、结构及其相关性能研究[D]. 杭州:浙江理工大学, 2013: 4-12.
TANG Zhirong. Study on the ingredient and structural identification of pigment and related performance of naturally colored cotton fiber[D]. Hangzhou: Zhejiang Sci-Tech University, 2013: 4-12.
