Preparation and sizing properties of caproylated starch

LI Wei1(), JING Yuanwei1, ZHANG Zhengqiao1, NI Qingqing2, XU Zhenzhen1, LIU Xinhua1

  1. 1. College of Textiles and Garments, Anhui Polytechnic University, Wuhu, Anhui 241000, China
    2. Faculty of Textile Science and Technology, Shinshu University, Nagano 3868567, Japan
  • Received:2019-09-17 Revised:2020-02-28 Online:2020-06-15 Published:2020-06-28

RichHTML

4

PDF (PC)

100

Abstract:

In order to provide a suitable modified starch for warp sizing of hydrophobic fibers especially for polylactic acid (PLA) fibers, caproylated starch (CS) samples with different degrees of substitution were prepared by using caproic anhydride as esterifying agent. The structure of CS was characterized by Fourier transform infrared analysis. The influence of the caproylation on paste and film properties was investigated. The results show that the caproylation could enhance viscosity stability of gelatinized starch paste, its adhesion to polylactic acid and polyester fibers, and breaking elongation of starch film. In addition, the modification causes decrease in tensile strength of starch film. When the degrees of substitution are below 0.025, the adhesion demonstrats a gradual increase, and it reaches the highest value at 0.025 and then gradually decreases. The elongation of CS film rose gradually but the strength reduced. The stabilities of the CS pastes are worsened as the degree of substitution is increased, but are higher than that of acid-converted corn starch paste.

Key words: starch, sizing agent, caproylation, adhesion, film property, sizing property

CLC Number:

  • TS103.846

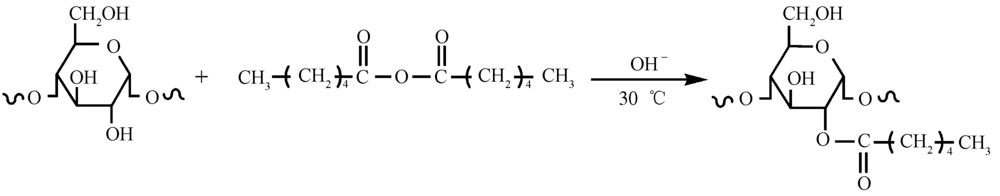

Fig.1

Reaction equation of starch caproylation for synthesis of CS"

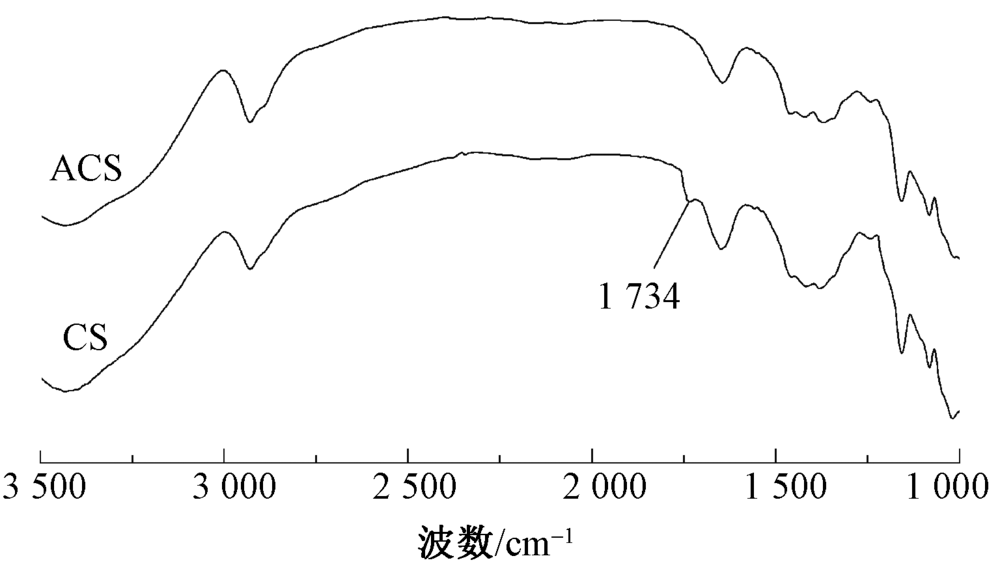

Fig.2

FT-IR spectra of ACS and CS"

Fig.3

SEM image of CS sample(×2 000)"

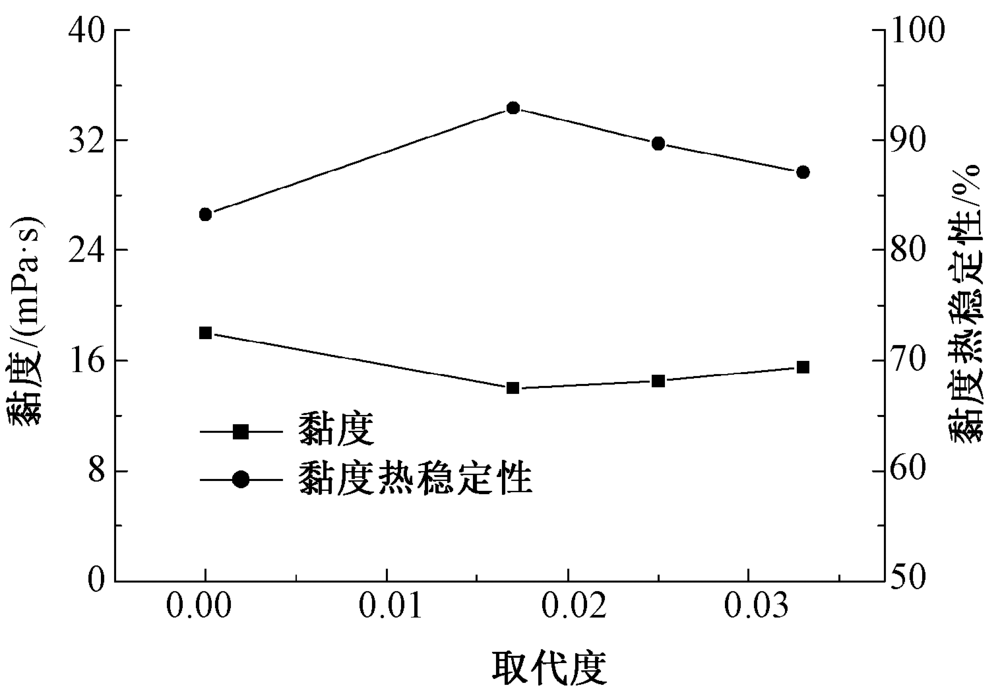

Fig.4

Viscosity and its stability of gelatinized CS paste"

Fig.5

Effect of caproylation on adhesion of starch"

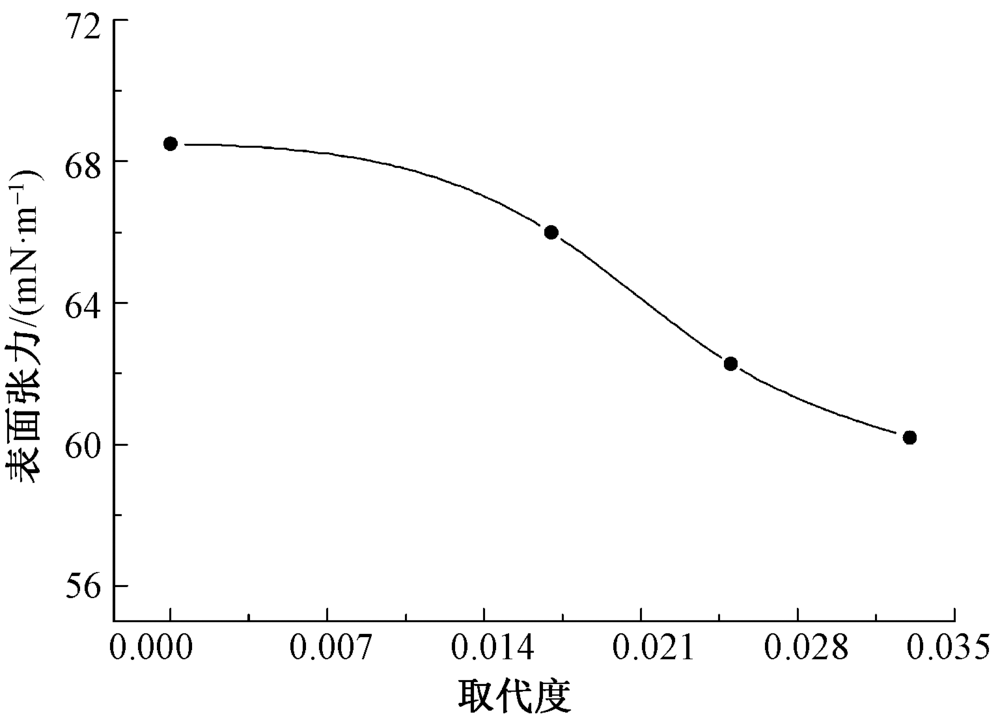

Fig.6

Effect of caproylation on surface tension of cooked starch paste"

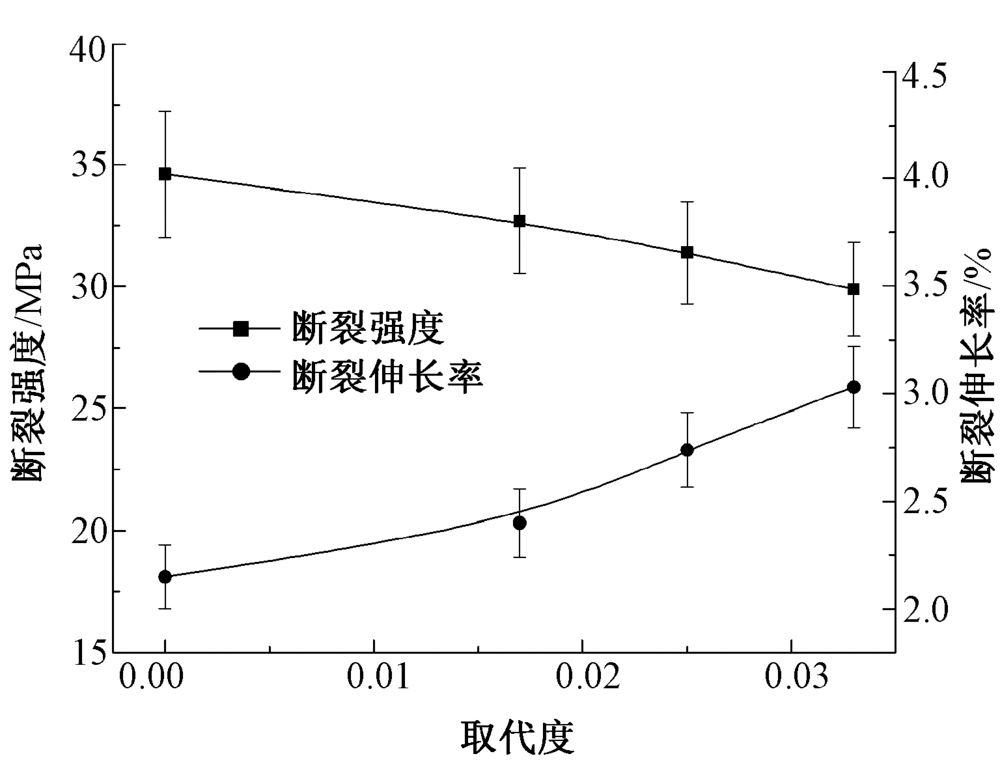

Fig.7

Effect of caproylation on tensile properties of starch film"

[1] MARAN J P, SIVAKUMAR V, SRIDHAR R, et al. Development of model for mechanical properties of tapioca starch based edible films[J]. Industrial Crops and Products, 2013,42(1):159-168.
[2] 周永元. 纺织浆料学[M]. 北京: 中国纺织出版社, 2004: 1-12.
ZHOU Yongyuan. Theory of textile warp sizes[M]. Beijing: China Textile and Apparel Press, 2004: 1-12.
[3] 张朝辉, 徐珍珍, 刘新华, 等. 乙酰乙酸酯化淀粉浆料的制备及其性能[J]. 纺织学报, 2017,38(11):68-72.
ZHANG Chaohui, XU Zhenzhen, LIU Xinhua, et al. Preparation and properties of acetoacetylated starch used as sizing agent[J]. Journal of Textile Research, 2017,38(11):68-72.
[4] 张朝辉, 徐珍珍, 李伟, 等. 季铵阳离子醚化-十二烯基琥珀酸酯化淀粉浆料的黏附性能[J]. 纺织学报, 2018,39(12):67-71, 77.
ZHANG Chaohui, XU Zhenzhen, LI Wei, et al. Adhesion properties of quaternary ammonium cation-esterified dodecenylsuccinic anhydride-etherified starch size[J]. Journal of Textile Research, 2018,39(12):67-71, 77.
[5] 李伟, 刘新华, 徐珍珍, 等. 电中性双重醚化淀粉浆料的制备及其浆膜性能[J]. 纺织学报, 2017,38(12):81-86.
LI Wei, LIU Xinhua, XU Zhenzhen, et al. Preparation and film properties of electroneutral double-etherified corn starch[J]. Journal of Textile Research, 2017,38(12):81-86.
[6] JOHN M J, ANANDJIWALA R, OKSMAN K, et al. Melt-spun polylactic acid fibers: effect of cellulose nanowhiskers on processing and properties[J]. Journal of Applied Polymer Science, 2013,127(1):274-281.
[7] SINGH J, KAUR L, MCCARTHY O J. Factors influencing the physico-chemical, morphological, thermal and rheological properties of some chemically modified starches for food applications-a review[J]. Food Hydrocolloids, 2007,21(1):1-22.
[8] LI W, XU Z Z, WANG Z Q, et al. Double etherification of corn starch to improve its adhesion to cotton and polyester fibers[J]. International Journal of Adhesion and Adhesives, 2018,84:101-107.
[9] 郭蕉兰, 张燕萍. 羧甲基淀粉钠-脂肪酸淀粉酯性质的研究[J]. 食品科技, 2014,39(7):272-276.
GUO Jiaolan, ZHANG Yanping. Property of carboxymethyl starch fatty acid esters[J]. Food Science and Technology, 2014,39(7):272-276.
[10] 汪源浩, 具本植, 张淑芬. 高黏度、高热稳定性羧甲基淀粉己酸酯的溶液性质[J]. 化工学报, 2013,64(1):275-282.
WANG Yuanhao, JU Benzhi, ZHANG Shufen. Aqueous solution properties of carboxymethyl starch hexanoate with high viscosity and thermal stability[J]. CIESC Journal, 2013,64(1):275-282.
[11] ZHU Z F, CHEN P H. Carbamoyl ethylation of starch for enhancing the adhesion capacity to fibers[J]. Journal of Applied Polymer Science, 2007,106(4):2763-2768.
[12] BISMARK S, ZHU Z F. Amphipathic starch with phosphate and octenylsuccinate substituents for strong adhesion to cotton in warp sizing[J]. Fibers and Polymers, 2018,19(7):1850-1860.
[13] LI W, XU Z Z, WANG Z Q, et al. Tertiary amination/hydroxypropylsulfonation of cornstarch to improve the adhesion-to-fibers and film properties for warp sizing[J]. Fibers and Polymers, 2018,19(7):1386-1394.
[14] LI W, XU Z Z, WANG Z Q, et al. One-step quaternization/hydroxypropylsulfonation to improve paste stability, adhesion and film properties of oxidized starch[J]. Polymers, 2018,10(10):1110.
[15] ZHU Z F, XU D S, GUO J S, et al. Comparative study on sizing properties of amphoteric starch and phosphorylated starch for warp sizing[J]. Fibers and polymers, 2012,13(2):177-184.
[16] WANG Y B, XIE W L. Synjournal of cationic starch with a high degree of substitution in an ionic liquid[J]. Carbohydrate Polymers, 2010,80(4):1172-1177.
doi: 10.1016/j.carbpol.2010.01.042
[17] ALISHAHI A, FARAHNAKY A, MAJZOOBI M, et al. Physicochemical and textural properties of corn starch gels: effect of mixing speed and time[J]. Food Hydrocolloids, 2015,45:55-62.
doi: 10.1016/j.foodhyd.2014.11.005
[18] LI W, ZHU Z F. Electroneutral maize starch by quaterization and sulfosuccination for strong adhesion-to-viscose fibers and easy removal[J]. Journal of Adhesion, 2016,92(4):257-272.
doi: 10.1080/00218464.2015.1025953
[19] WU S H. Polymer interface and adhesion[M]. New York: Marcel Dekker, 1982: 359-448.
