Journal of Textile Research ›› 2020, Vol. 41 ›› Issue (09): 114-118.doi: 10.13475/j.fzxb.20191004405

• Apparel Engineering • Previous Articles     Next Articles

Application of tangram principles in fashion design

LI Qian(), QIANG Kexin, PENG Jiayu

  1. Apparel & Art Design College, Xi'an Polytechnic University, Xi'an, Shaanxi 710048, China
  • Received:2019-10-21 Revised:2020-06-12 Online:2020-09-15 Published:2020-09-25

RichHTML

39

PDF (PC)

230

Abstract:

This paper explores innovative ideas using tangram principles for broadening clothing design, based on the analysis of the basic styles of the clothing outline, by linearizing and deconstructing the contour line of clothing into geometric figures. Firstly, we determine the control part and design part, find the tangram block matching the size of the control part, and then ″position and form″ the main structure of clothing. Secondly, we set the symmetry axis from the front center line or side seam line. The design part is creating new combination groups based on the block of control part and the geometric figures of clothing after deconstruction to achieve the variety of the garment silhouette through the experiment of three mini dress of grey cloth and one garment product. The results show that the combination and interaction of tangram are able to achieve different shapes of clothing and meet the basic functions of the human body, and it is especially of indictive significance in the fashion-forward loose and creative clothing design.

Key words: tangram, geometric figure, position and form, shape by shadow, creating new combination groups, garment modeling

CLC Number:

  • TS941

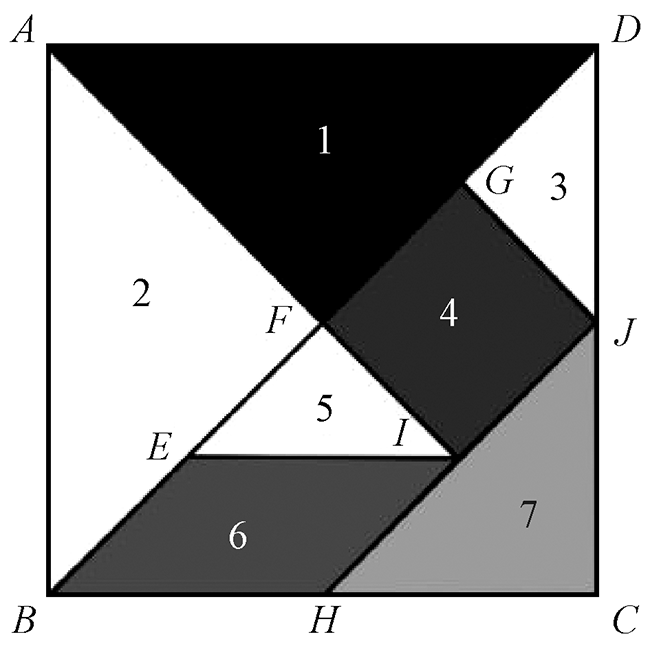

Fig.1

Basic graphics of tangram"

Tab.1

Area relation between board plates of tangram"

图块编号 1 2 3 4 5 6 7
面积 S4 S4 S16 S8 S16 S8 S8

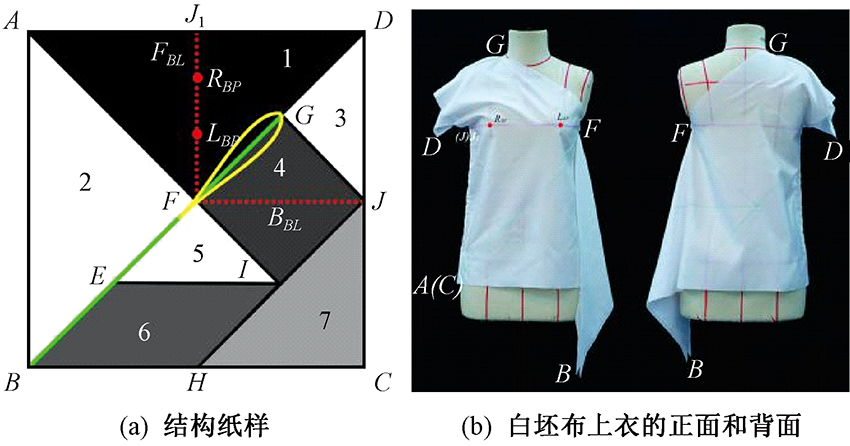

Fig.2

Clothing 1. (a) Structural pattern; (b) Front and back of grey blouse"

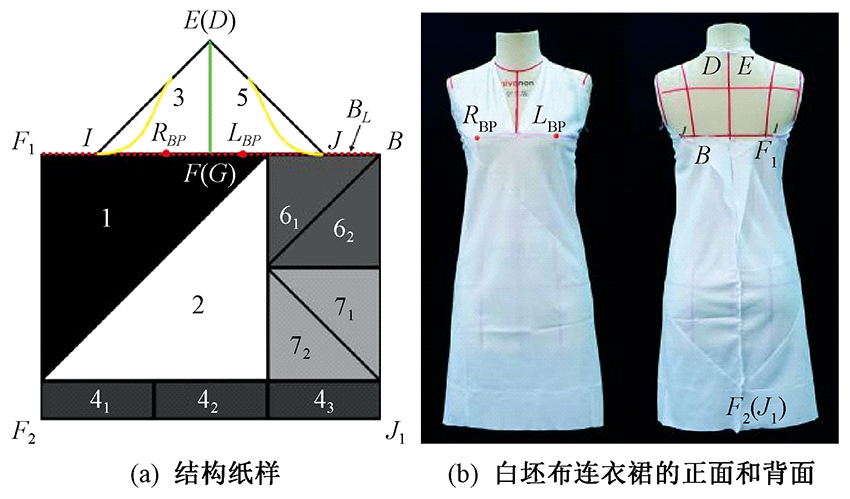

Fig.3

Clothing 2. (a) Structural pattern; (b) Front and back of grey dress"

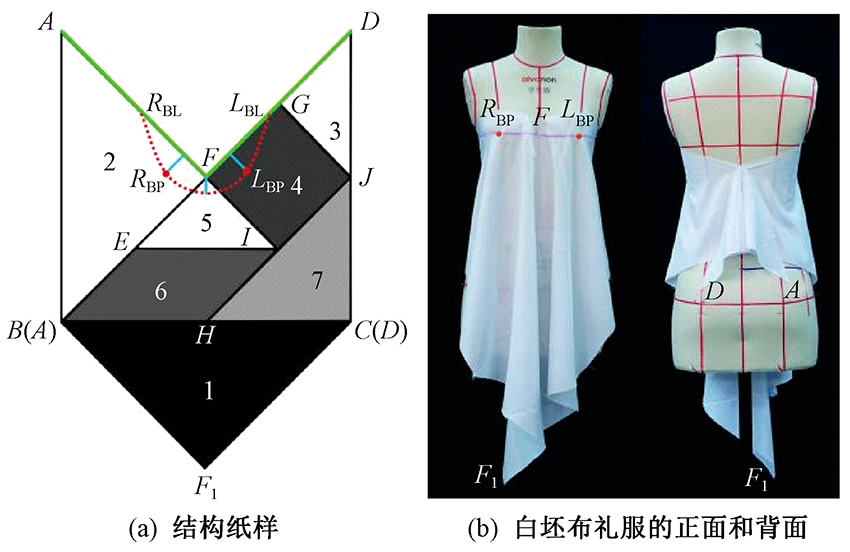

Fig.4

Clothing 3. (a) Structural pattern; (b) Front and back of a grey skirt"

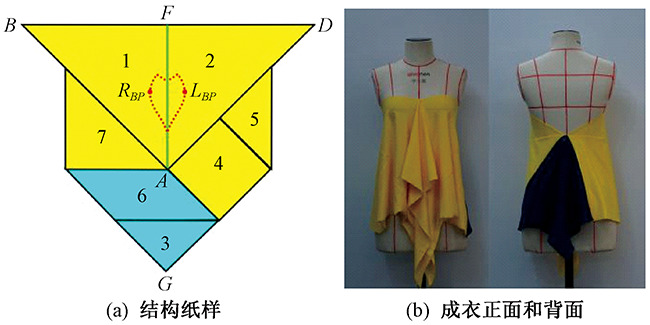

Fig.5

Clothing. (a) Structural pattern; (b) Front and back of clothing"
