Thermal aging and life prediction of silk fabrics

GUO Lang1,2, WANG Liqin1,2(), ZHAO Xing1,2

  1. 1. School of Cultural Heritage, Northwest University, Xi'an, Shaanxi 710069, China
    2. Key Laboratory of Cultural Heritage Research and Protection Technology, Ministry of Education, Northwest University, Xi'an, Shaanxi 710069, China
  • Received:2019-10-28 Revised:2020-04-13 Online:2020-07-15 Published:2020-07-23
  • Contact: WANG Liqin E-mail:wangliqin@nwu.edu.cn

RichHTML

5

PDF (PC)

401

Abstract:

In order to investigate the influence of wet and thermal environments on the preservation of silk cultural relics, silk (Bombyx mori) samples were aged by dry heat and damp heat at 110 ℃ and 130 ℃, respectively. Material testing machine, colorimeter, scanning electron microscope and Fourier transform infrared spectrometer were used to measure and analyze the tensile strength, color, micro-morphology and structure of simulated silk samples before and after aging. The life prediction equation of silk fabrics was proposed. The results show that the tensile strength of the samples decrease linearly with the aging time, while the color turned yellow. After dry heat and damp heat aging, the fiber surfaces show different degrees of damage, and in the latter condition pores formed by fiber bundle interlacing are more significantly corroded than other parts. The content of β-sheet in the secondary structure is significantly reduced, consistent with the trend of strength change. The work reveals that the low temperature and dry condition are suitable for the preservation of silk cultural relics.

Key words: silk fabric, dry heat aging, damp heat aging, life prediction, preservation of cultural relics

CLC Number:

  • TS146

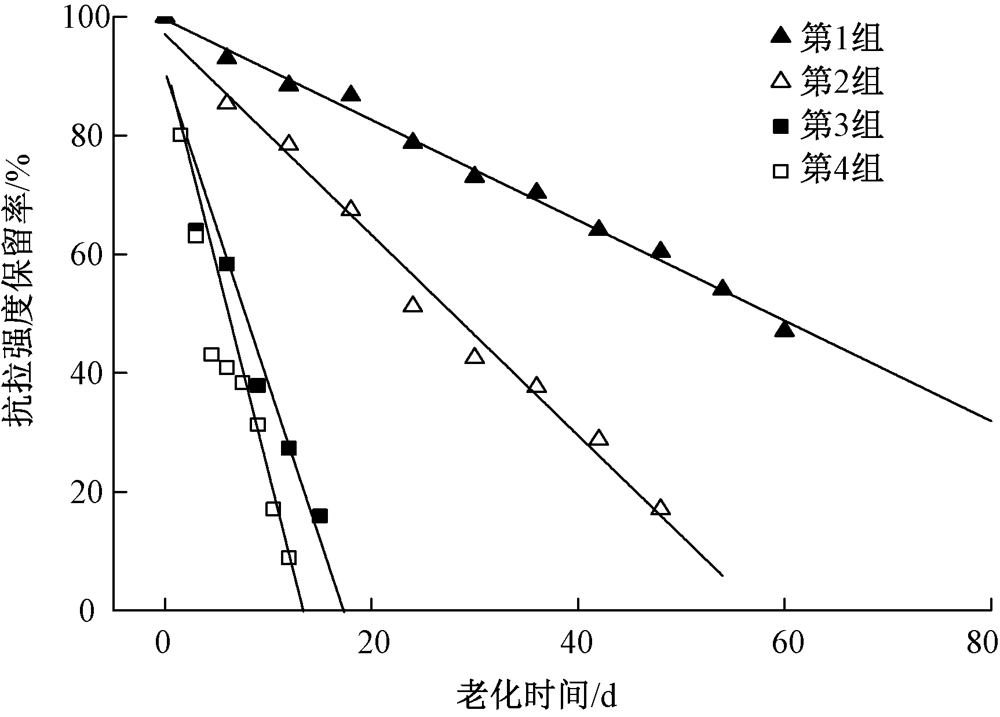

Fig.1

Tensile strength retention rate of silk samples at different aging time"

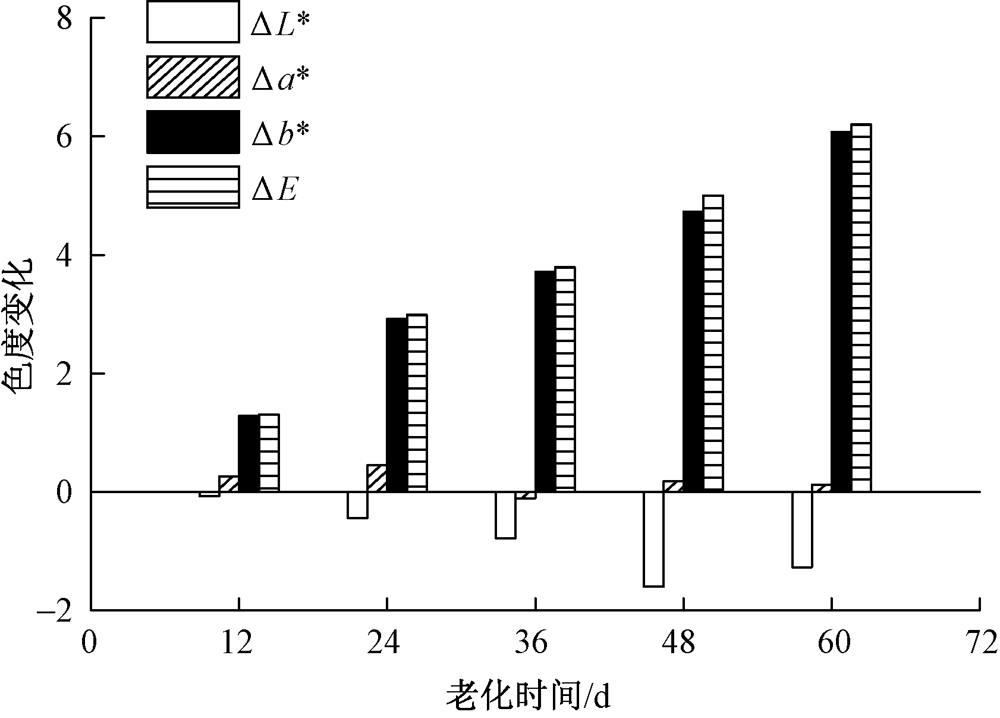

Fig.2

Chromaticity changes of silk samples at 110 ℃ dry heat aging conditions"

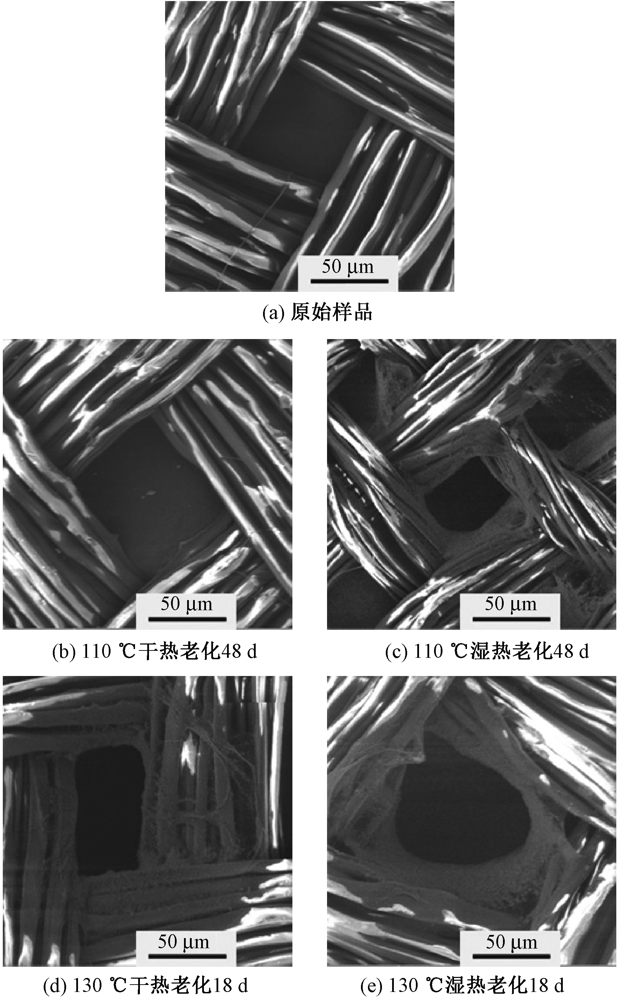

Fig.3

SEM images of silk samples before and after aging. (a) Original samples;(b) Dry heat aging at 110 ℃ for 48 d;(c) Damp heat aging at 110 ℃ for 48 d;(d) Dry heat aging at 130 ℃ for 18 d;(e) Damp heat aging at 130 ℃ for 18 d"

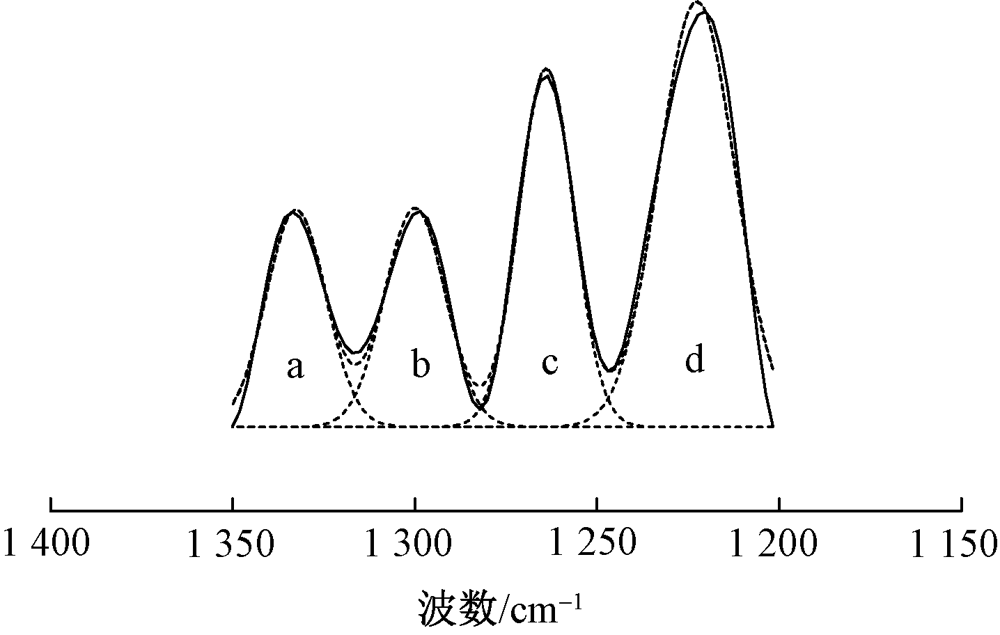

Fig.4

Gaussian fitting results of original samples of 1 350-1 205 cm-1 at amide III band"

Tab.1

Correspondence between four sub-peaks and secondary structures"

子峰 波数范围/cm-1 二级结构
a 1 350~1 327 α-螺旋
b 1 327~1 282 α-螺旋
c 1 282~1 245 无规卷曲
d 1 245~1 205 β-折叠

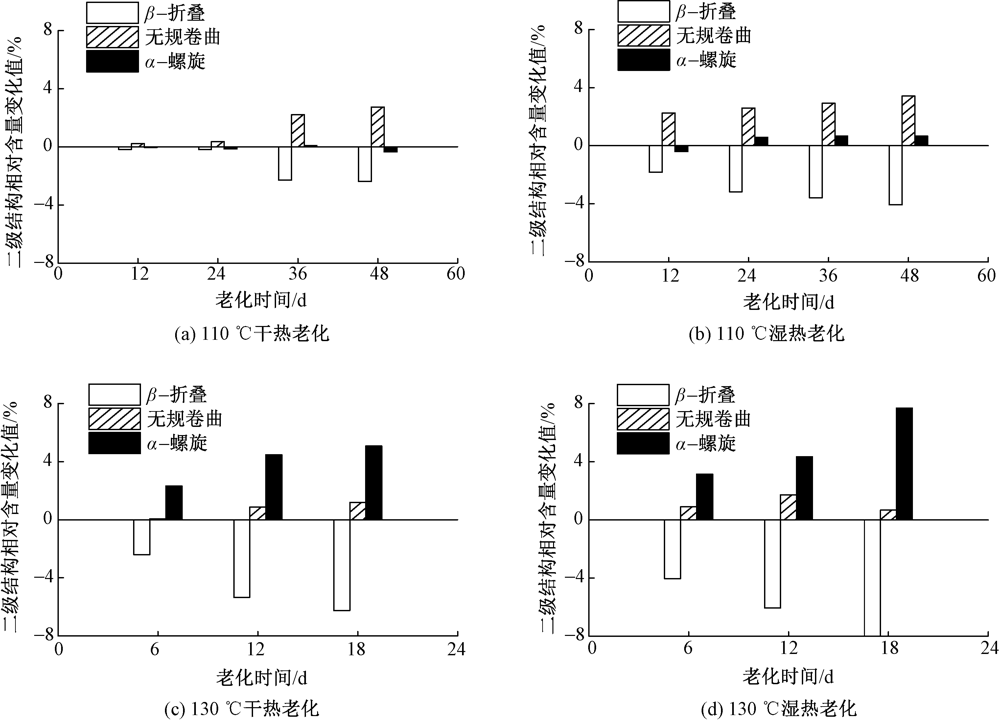

Fig.5

Variation of relative contents of secondary structures of samples under different aging conditions. (a) Dry heat aging at 110 ℃; (b) Damp heat aging at 110 ℃;(c) Dry heat aging at 130 ℃;(d) Damp heat aging at 130 ℃"

Tab.2

Life of silk fabrics under different aging conditions"

实验组 老化条件 寿命/d
1 110 ℃干热老化 58.61
2 110 ℃湿热老化 27.86
3 130 ℃干热老化 7.61
4 130 ℃湿热老化 5.56

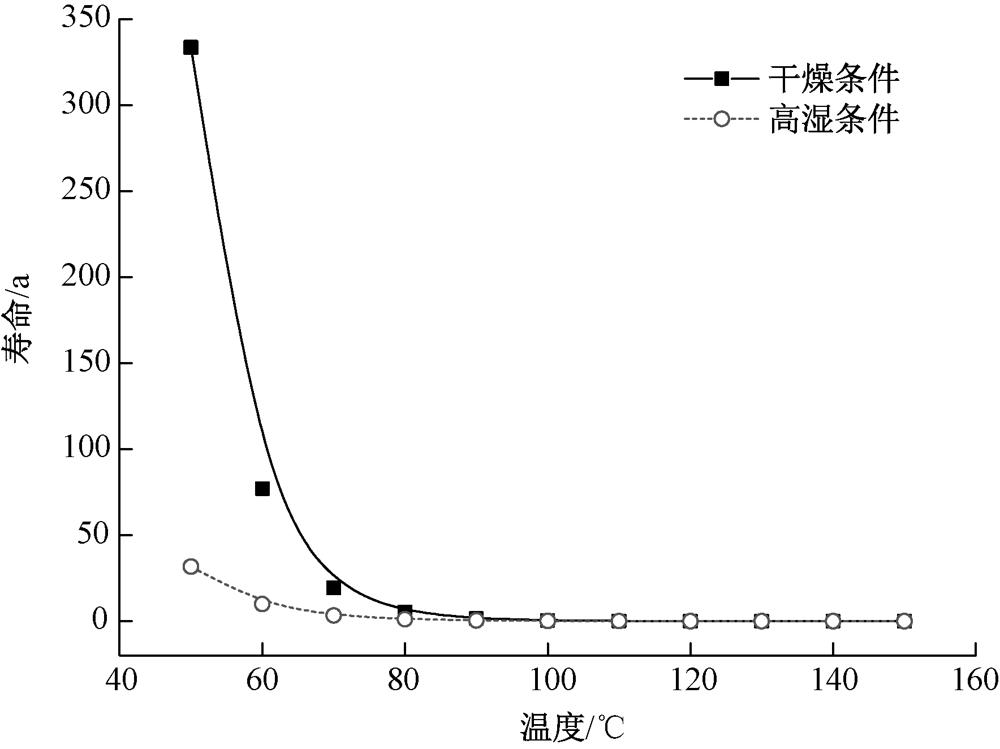

Fig.6

Curves of silk fabrics life with different temperatures"

[1] HOLLAND C, NUMATA K, RNJAK-KOVACINA J, et al. The biomedical use of silk: past, present, future[J]. Advanced Healthcare Materials, 2019,8(1):133-177.
[2] 孔祥东, 朱良均, 沈东风. 蚕丝非服饰功能的开发研究[J]. 纺织学报, 2002,23(5):423-427.
KONG Xiangdong, ZHU Liangjun, SHEN Dongfeng. Development of non-garment function of silk[J]. Journal of Textile Research, 2002,23(5):423-427.
[3] LI M Y, ZHAO Y, TONG T, et al. Study of the degradation mechanism of Chinese historic silk (Bombyx mori) for the purpose of conservation[J]. Polymer Degradation and Stability, 2013,98(3):727-735.
doi: 10.1016/j.polymdegradstab.2012.12.021
[4] LUO X, WU J, INTISAR A, et al. Study on light aging of silk fabric by Fourier transform infrared spectroscopy and principal component analysis[J]. Analytical Letters, 2012,45(10):1286-1296.
doi: 10.1080/00032719.2012.673098
[5] TSUBOI Y, IKEJIRI T, SHIGA S, et al. Light can transform the secondary structure of silk protein[J]. Applied Physics A, 2001,73(5):637-640.
[6] 贾丽玲, 郑海玲, 周旸, 等. 酪氨酸与天门冬氨酸含量对蚕丝织物水解老化程度的表征效果[J]. 蚕业科学, 2014,40(6):1084-1091.
JIA Liling, ZHENG Hailing, ZHOU Yang, et al. Aging degree of silk fabrics under hydrolytic condition characterized by tyrosine and aspartic acid contents[J]. Science of Sericulture, 2014,40(6):1084-1091.
[7] 赵宏业, 吴子婴, 周旸, 等. 高温干燥和高温高湿处理蚕丝织物的老化状况分析[J]. 蚕业科学, 2014,40(5):895-901.
ZHAO Hongye, WU Ziying, ZHOU Yang, et al. An analysis on aging of silk fabrics treated under high temperature low humidity and high temperature high humidity conditions[J]. Science of Sericulture, 2014,40(5):895-901.
[8] KOPERSKA M A, PAWCENIS D, BAGNIUK J, et al. Degradation markers of fibroin in silk through infrared spectroscopy[J]. Polymer Degradation and Stability, 2014,105:185-196.
[9] 谢孟峡, 刘媛. 红外光谱酰胺Ⅲ带用于蛋白质二级结构的测定研究[J]. 高等学校化学学报, 2003,24(2):226-231.
XIE Mengxia, LIU Yuan. Determination of secondary structure of protein by infrared spectrum amide III band[J]. Chemical Journal of Chinese Universities, 2003,24(2):226-231.
[10] NUMATA K, SATO R, YAZAWA K, et al. Crystal structure and physical properties of Antheraea yamamai silk fibers: long poly(alanine) sequences are partially in the crystalline region[J]. Polymer, 2015,77:87-94.
[11] KOH L D, CHENG Y, TENG C P, et al. Structures, mechanical properties and applications of silk fibroin materials[J]. Progress in Polymer Science, 2015,46:86-110.
[12] 袁兆奎, 李玲丽, 陈涛, 等. 天然橡胶老化过程中的结构和性能变化及储存寿命预测[J]. 橡胶工业, 2019,66(7):0495-0498.
YUAN Zhaokui, LI Lingli, CHEN Tao, et al. Change in structure and property of NR during aging and its storage life prediction[J]. China Rubber Industry, 2019,66(7):0495-0498.
