Journal of Textile Research ›› 2021, Vol. 42 ›› Issue (04): 127-131.doi: 10.13475/j.fzxb.20200401905

• Dyeing and Finishing & Chemicals • Previous Articles     Next Articles

Preparation of self-healing double-layer microcapsules and its application for basalt fabrics

LIU Shuqiang1,2(), JING Yifan1, YANG Yaru3, WU Gaihong1, YU Juanjuan1, WANG Kaiwen1, LI Huimin1, LI Fu1,2, ZHANG Man1,2

  1. 1. College of Textile Engineering, Taiyuan University of Technology, Taiyuan, Shanxi 030024, China
    2. Functional and Smart Textile Laboratory, Taiyuan University of Technology, Jinzhong, Shanxi 030600, China
    3. College of Materials and Textile Engineering, Jiaxing University, Jiaxing, Zhejiang 314001, China
  • Received:2020-04-07 Revised:2021-02-06 Online:2021-04-15 Published:2021-04-20

RichHTML

11

PDF (PC)

118

Abstract:

In order to improve the bending resistance of basalt fabric, a monolayer microcapsules were prepared by in-situ polymerization.The wall of the monolayer microcapsule was melamine urea formaldehyde copolymer (MUF), and the core was epoxy resin. Then the curing agent diaminodiphenyl sulfone was adsorbed on the surface of the monolayer microcapsules, and then coated with MUF to make double microcapsules.Finally, the double microcapsules were coated on the surface of basalt fabric. The micromorphology and chemical structure of the microcapsules were tested, and the self-healing properties of the microcapsule self-healing basalt fabric were analyzed.The results show that the prepared microcapsules has a compact structure and a smooth surface. When the basalt fiber was damaged, the microcapsules releases the repair agent and curing agent to generate a network of macromolecules for repairing the cracks.After 7 d repair, the maximum breaking strength and the wrinkle recovery performance of the basalt fabric is basically restored, with the elongation and the flexural performance effectively improved.

Key words: basalt fabric, microcapsule, water-based polyurethane, in-situ polymerization, smart self-healing, bending resistance

CLC Number:

  • TB332

Fig.1

SEM image (a) and optic microscope photograph (b) of single-layer microcapsules"

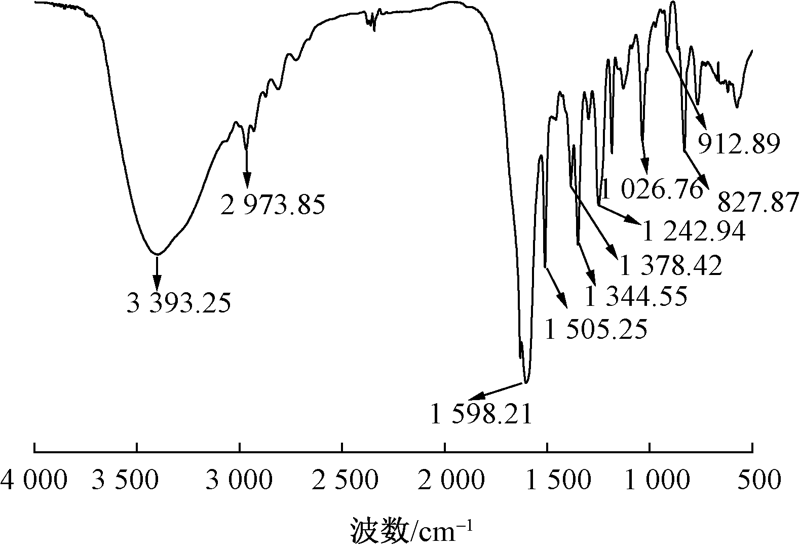

Fig.2

Infrared spectra of single-layer microcapsules"

Fig.3

SEM image (a) and optic microscope photographs (b) of double-layer microcapsules"

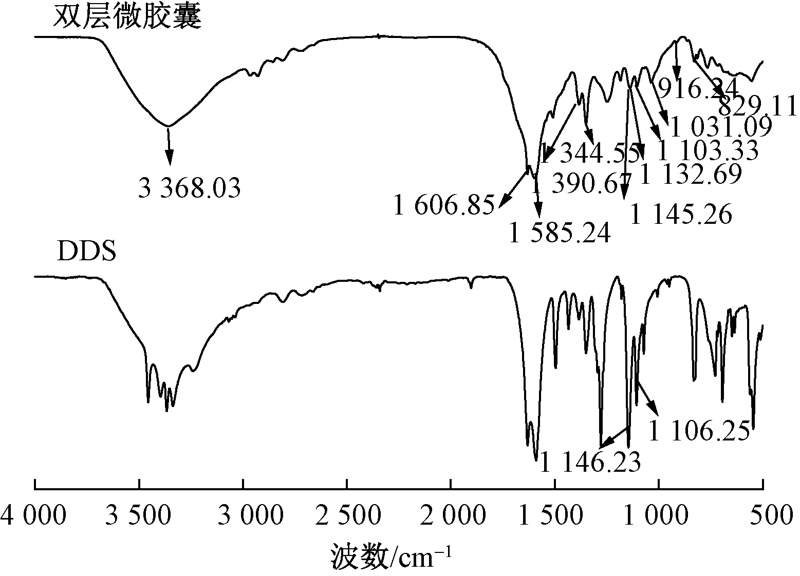

Fig.4

Infrared spectra of double layer microcapsule and DDS"

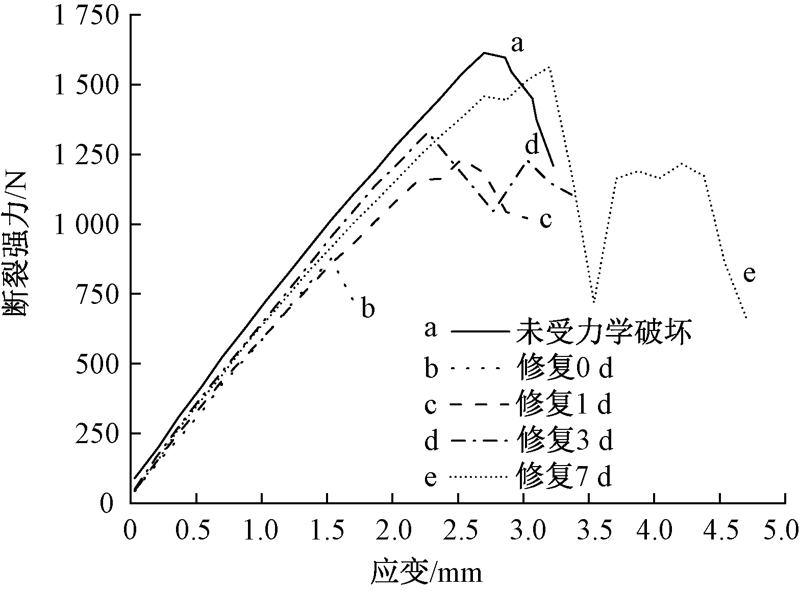

Fig.5

Tensile curve of microcapsule self-healing basalt fabric"

Fig.6

SEM images after tensile fracture of fabric. (a) Without damage; (b)Repaired for 7 d"

Tab.1

Wrinkle recovery angle of basalt fabric under different repair time"

试样名称 初始折皱
回复角/(°)		 不同修复时间下的折皱回复角/(°)
0 d 1 d 3 d 7 d
未处理玄武岩织物 147.45 110.89 119.45 113.57 115.23
微胶囊自修复玄武岩织物 166.02 144.36 152.80 155.34 160.34
[1] 徐艳华, 袁新林. 玄武岩纤维机织针织复合织物增强复合材料的弯曲性能[J]. 纺织学报, 2013,34(1):42-45.
XU Yanhua, YUAN Xinlin. Flexural properties of basalt fiber woven knitted composite fabric reinforced composites[J]. Journal of Textile Research, 2013,34(1):42-45.
[2] 张晓青, 冯静, 王仁舒, 等. 玄武岩纤维的研究进展及应用[J]. 山东化工, 2019,48(4):46-47.
ZHANG Xiaoqing, FENG Jing, WANG Renshu, et al. Research progress and application of basalt fiber[J]. Shandong Chemical Industry, 2019,48(4):46-47.
[3] 吴佳林. 连续玄武岩纤维的研究进展及应用[J]. 化纤与纺织技术, 2012,41(3):38-41.
WU Jialin. Research progress and application of continuous basalt fibers[J]. Chemical Fibers and Textile Technology, 2012,41(3):38-41.
[4] 苟万, 周绿山, 邓远方, 等. 玄武岩纤维在建筑材料领域的应用研究进展[J]. 当代化工, 2019,48(5):1083-1086.
GOU Wan, ZHOU Lushan, DENG Yuanfang, et al. Research progress of basalt fiber application in the field of building materials[J]. Contemporary Chemical Industry, 2019,48(5):1083-1086.
[5] ZHAO H, GUAN B W, XIONG R, et al. Investigation of the performance of basalt fiber reinforced asphalt mixture[J]. Applied Sciences, 2020,10(5):1561-1568.
[6] GALITSEYSKII K B, TIMANTSEV Y A, MATSEEVICH T A, et al. Preparation and investigation of mechanical properties of composites based on secondary polypropylene and modified basalt fibers[J]. Materials Science Forum, 2019,974:350-355.
[7] 吴智深, 汪昕, 史健喆. 玄武岩纤维复合材料性能提升及其新型结构[J]. 工程力学, 2020,37(5):1-14.
WU Zhishen, WANG Xin, SHI Jianzhe. Performance improvement of basalt fiber composite material and its new structure[J]. Engineering Mechanics, 2020,37(5):1-14.
[8] 张勇, 樊伟杰, 张泰峰, 等. 涂层自修复技术研究进展[J]. 中国腐蚀与防护学报, 2019,39(4):299-305.
ZHANG Yong, FAN Weijie, ZHANG Taifeng, et al. Research progress of coating self-healing technology[J]. Journal of Chinese Society for Corrosion and Protection, 2019,39(4):299-305.
[9] 李海燕, 张丽冰, 李杰, 等. 外援型自修复聚合物材料研究进展[J]. 化工进展, 2014,33(1):133-139.
LI Haiyan, ZHANG Libing, LI Jie, et al. Research progress on foreign aid self-repairing polymer materials[J]. Chemical Industry and Engineering Progress, 2014,33(1):133-139.
[10] 李忠伦, 戢菁, 肖静. 自修复高分子复合材料专利技术研究进展分析[J]. 科技创新与应用, 2019(14):21-22,25.
LI Zhonglun, JIAN Jing, XIAO Jing. Analysis on the research progress of self-repairing polymer composite patenttechnology[J]. Science and Technology Innovation and Application, 2019 (14):21-22,25.
[11] 倪卓, 林煜豪, 郭震, 等. 自修复环氧树脂微胶囊合成及其应用机理[J]. 深圳大学学报(理工版), 2019,36(3):339-346.
NI Zhuo, LIN Yuhao, GUO Zhen, et al. Synjournal and reaction mechanism of self-repairing epoxy resin microcapsules[J]. Journal of Shenzhen University (Science and Technology Edition), 2019,36(3):339-346.
[12] WANG Y Y, LI Y, ZHANG Z, et al. Repair performance of self-healing microcapsule/epoxy resin insulating composite to physical damage[J]. Applied Sciences, 2019,9(19):4098.
[13] SATO K, NAKAJINA T, ANAZI J I. Preparation of poly(methylmethacrylate) microcapsules by in situ polymerization on the surface of calcium carbonate particles[J]. Journal of Colloid and Interface Science, 2012,387(1):123-126.
doi: 10.1016/j.jcis.2012.07.090 pmid: 22967350
