Journal of Textile Research ›› 2021, Vol. 42 ›› Issue (01): 35-39.doi: 10.13475/j.fzxb.20200405405

• Fiber Materials • Previous Articles     Next Articles

Dissolution and regeneration of wool keratin in choline thioglycolate

YUAN Jiugang(), JI Ji, XUE Qi, JIANG Zhe, FAN Xuerong, GAO Weidong

  1. Key Laboratory of Eco-Textiles (Jiangnan University), Ministry of Education, Wuxi, Jiangsu 214122, China
  • Received:2020-04-10 Revised:2020-09-28 Online:2021-01-15 Published:2021-01-21

RichHTML

15

PDF (PC)

79

Abstract:

In order to improve the solubility and utilization of waste wool fiber, a new type of reducing ionic liquid-choline thioglycolate, was employed for wool dissolution in the reported research. The dissolution process of a single wool fibre in choline thioglycolate was carefully observed using polarizing optical microscope. The wool keratin extracted at different temperatures was characterized through fourier transform infrared spectrometer,X-ray diffraction,differential scanning calorimetry and SDS-PAGE in detail. The results show that choline thioglycolate is able to effectively destroy the disulfide bonds in wool keratin, thus achieving efficient dissolution of the wool cortex and scales. At 120 ℃, the dissolution of wool in choline thioglycolate reached up to 16%, and the regenerated wool keratin retained the main body structure. However, compared with raw wool fibers, the α-helix content in the regenerated keratin and the molecular weight decreased, and the keratin macromolecules degraded seriously under higher temperature.

Key words: wool, keratin, choline thioglycolate, ionic liquid, disulfide bond

CLC Number:

  • TS195.5

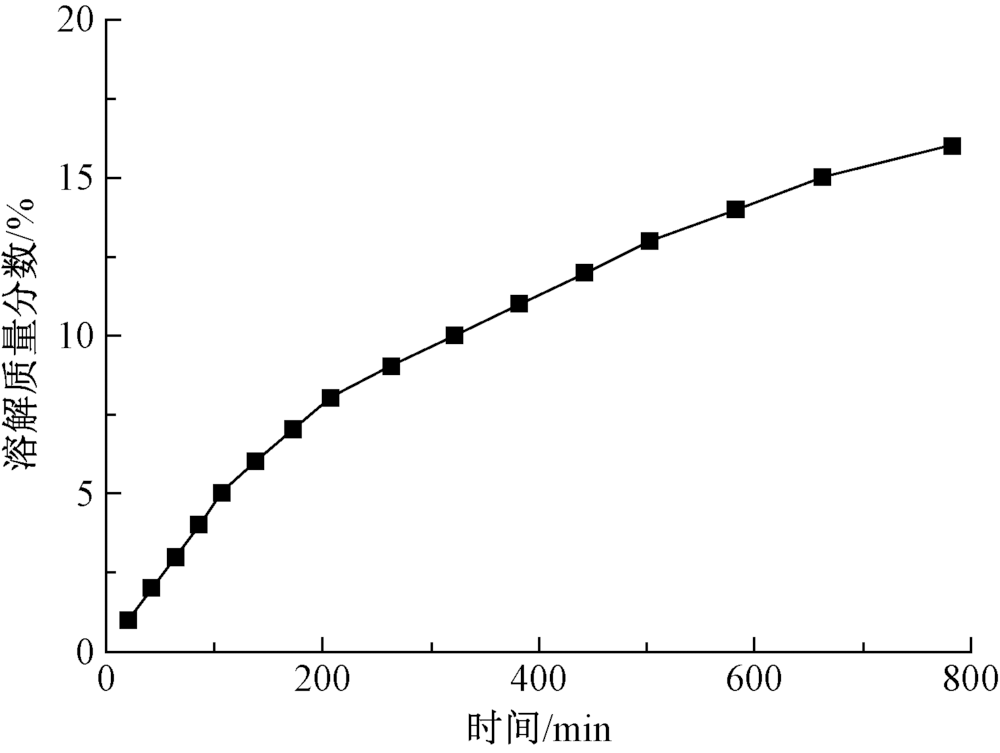

Fig.1

Dissolution rate curve of wool in choline thioglycolate"

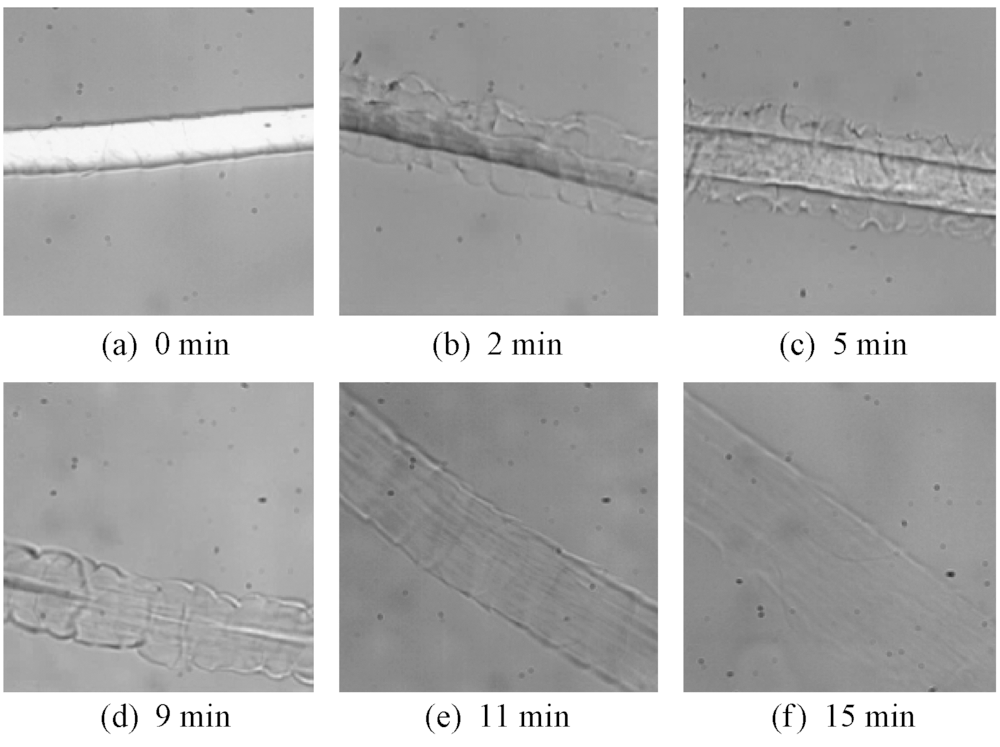

Fig.2

Polarizing optical microscope images of wool fiber in choline thioglycolate"

Fig.3

Polarizing optical microscope images of cortical layer in choline thioglycolate"

Fig.4

Polarizing optical microscope images of scales in choline thioglycolate"

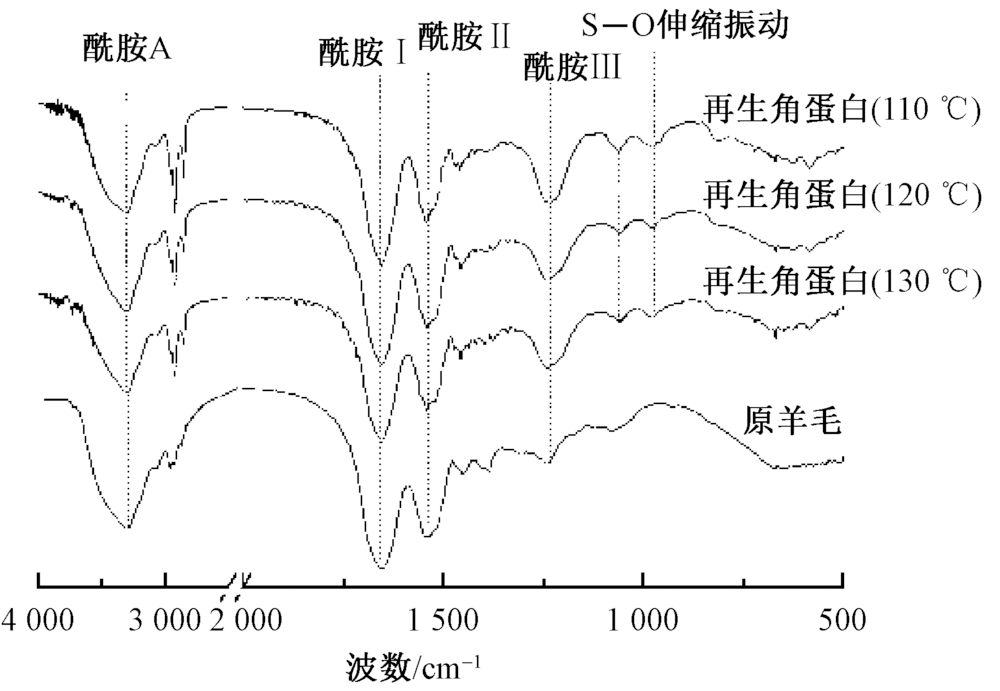

Fig.5

FTIR spectra of wool and regenerated keratin"

Fig.6

XRD pattern of wool and regenerated keratin"

Tab.1

CI of wool and regenerated keratin"

样品 溶解温度/℃ I9/a.u. I14/a.u. CI
原毛 592 278 0.53
再生角蛋白 110 340 224 0.34
再生角蛋白 120 380 266 0.30
再生角蛋白 130 388 291 0.25

Fig.7

DSC pattern of wool and regenerated keratin"

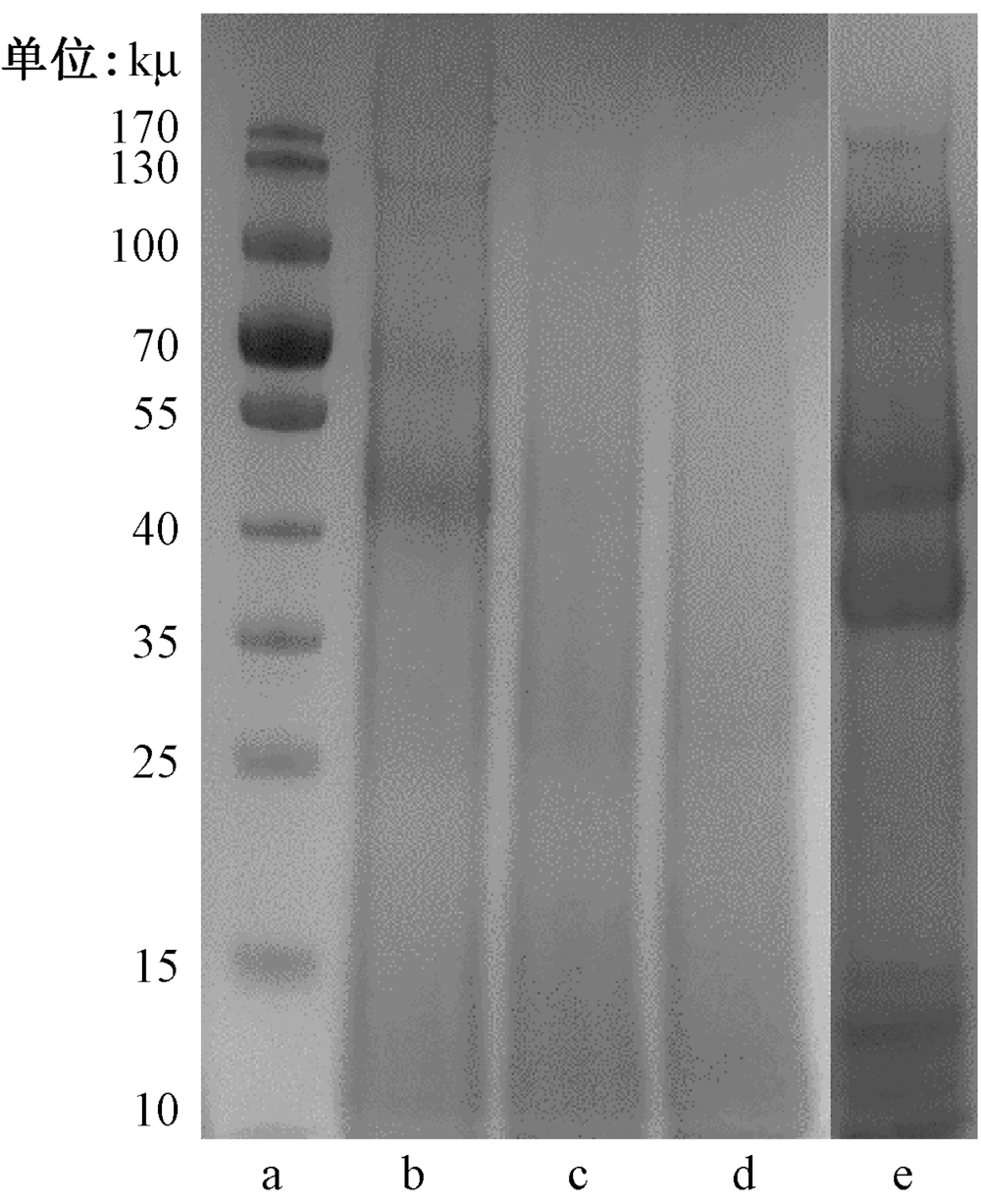

Fig.8

SDS-PAGE patterns of wool and regenerated keratin"

[1] ANNALISA A, CLAUDIO T, MARINA Z. Characterization of keratin biomass from butchery and wool industry wastes[J]. Journal of Molecular Structure, 2009,938(1):35-40.
[2] LI R, WANG D. Preparation of regenerated wool keratin films from wool keratin-ionic liquid solu-tions[J]. Journal of Applied Polymer Science, 2013,127(4):2648-2653.
[3] 翟培羽. 高角蛋白含量的角蛋白/PEO纳米纤维的制备与表征[D]. 天津:天津工业大学, 2017: 9-10.
ZHAI Peiyu. Preparation and characterization of high keratin content keratin/PEO nanofibers[D]. Tianjin: Tiangong University, 2017: 9-10.
[4] SEDDON K R. Ionic liquids: fact and fiction[J]. Chemistry Today, 2006,24(2):16-23.
[5] HOLBREY J D, SEDDON K R. Ionic liquids[J]. Clean Products and Processes, 1999,1(4):223-236.
[6] XIE H B, ZHANG S B, LI S H. Ionic liquids as novel solvents for the dissolution and blending of wool keratin fibers[J]. Green Chemistry, 2005,7(8):606-608.
[7] SUN P, LIU Z T, LIU Z W. Particles from bird feather: a novel application of an ionic liquid and waste resource[J].Journal of Hazardous Materials, 2009(170):786-790.
[8] 袁久刚. 离子液体-蛋白酶处理对羊毛表面性能的影响[D]. 无锡:江南大学, 2010: 95.
YUAN Jiugang. Effects of ionic liquid-protease treatment on the surface properties of wool[D]. Wuxi: Jiangnan University, 2010: 95.
[9] 孙艳丽, 姚金波, 李博, 等. 羊毛角蛋白溶液的离子液体法制备[J]. 纺织学报, 2015,36(5):59-62.
SUN Yanli, YAO Jinbo, LI Bo, et al. Preparation of wool keratin solution by ionic liquid method[J]. Journal of Textile Research, 2015,36(5):59-62.
[10] STEWART K, SPEDDING P L, OTTERBURN M S, et al. Isolating the cuticle layer of wool: a comparison of methods[J]. Journal of the Society of Dyers and Colourists, 1997,113(1):32-34.
[11] 张振雷. 离子液体溶解角蛋白过程及机理研究[D]. 北京:中国科学院大学, 2016: 25-26.
ZHANG Zhenlei. Research on the process and mechanism of dissolving keratin by ionic liquis[D]. Beijing: University of Chinese Academy of Science, 2016: 25-26.
[12] MICHAEL J, HENRY H M. The use and misuse of ftir spectroscopy in the determination of protein struc-ture[J]. Critical Reviews in Biochemistry and Molecular Biology, 1995,30(2):95-120.
doi: 10.3109/10409239509085140 pmid: 7656562
[13] SEGAL L, CREELY J J, MARTIN A E, et al. An empirical method for estimating the degree of crystallinity of native cellulose using the X-ray diffreactometer[J]. Textile Research Journal, 1959,29(10):786-794
[14] KHOSA M A, ULLAH A. In-situ modification, regeneration, and application of keratin biopolymer for arsenic removal[J]. Journal of Hazardous Materials, 2014,278:360-371.
pmid: 24996154
[15] ZHANG J, LI Y, LI J S, et al. Isolation and characterization of bio-functional keratin particles extracted from wool wastes[J]. Powder Technology, 2013,246:356-362.
[16] CAO J N, BHOYRO A Y. Structural characterization of wool by thermal mechanical analysis of yarns[J]. Textile Research Journal, 2001,71(1):63-66.
[17] VASCONCELOS A, FREDDI G, CAVACOPAULO A, et al. Biodegradable materials based on silk fibroin and keratin[J]. Biomacromolecules, 2008,9(4):1299-1305.
pmid: 18355027
[18] SPEI M, HOLZEM R. Thermoanalytical determination of the relative helix content of keratins[J]. Colloid & Polymer Science, 1989,267(6):549-551.
