Journal of Textile Research ›› 2021, Vol. 42 ›› Issue (04): 80-84.doi: 10.13475/j.fzxb.20200705605

• Textile Engineering • Previous Articles     Next Articles

Modeling and loop length reverse design for reducing diameter tubular weft knitted fabrics

HU Xudong1,2, SONG Yanfeng1,2, RU Xin1,2(), PENG Laihu1,2

  1. 1. Faculty of Mechanical Engineering & Automation, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
    2. Key Laboratory of Modern Textile Machinery & Technology of Zhejiang Province, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
  • Received:2020-07-22 Revised:2020-12-09 Online:2021-04-15 Published:2021-04-20
  • Contact: RU Xin E-mail:ruxin@zstu.edu.cn

RichHTML

11

PDF (PC)

116

Abstract:

In order to address the big difference between the process design goal and the formed fabric, a design method of loop length based on the target fabric was proposed. According to the characteristics of circular weft knitting machine and weft knitted fabrics, the fabrics were divided into units in the circumferential and axial directions, an improved trapezoidal loop model based on Peirce model was proposed, and the diameter reducing tubular weft knitted fabrics were modelled. On this basis, the relationship between the length of each loop and the parameters of the target fabric was studied, and the design of the fabric loop length carried out based on the target fabric. The experimental results show that the theoretical and actual results are basically the same for the change of loop length in the reducing diameter tubular weft knitted fabrics. According to the proposed modeling method based on trapezoidal loop model, it is possible to get loop length from parameters of reducing diameter tubular weft knitted fabrics, and this research exercise demonstrated loop length reverse design process.

Key words: reducing diameter tubular weft knitted fabric, geometric modeling, trapezoidal loop model, linear division, loop length

CLC Number:

  • TS186.2

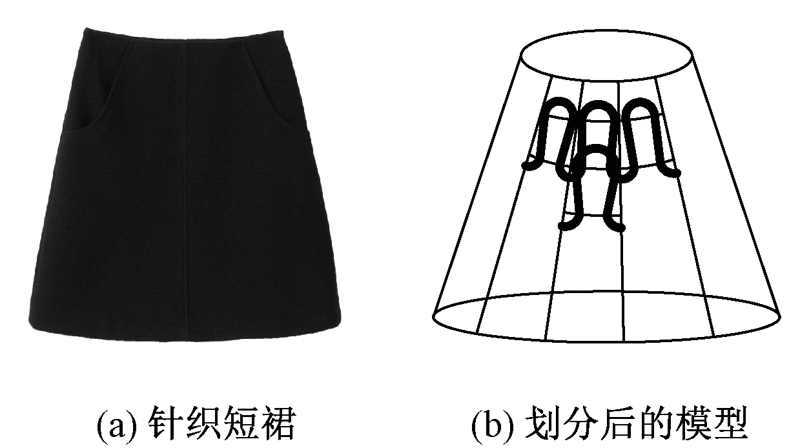

Fig.1

Hollow round table fabric. (a) Knitted skirt; (b) Divided model"

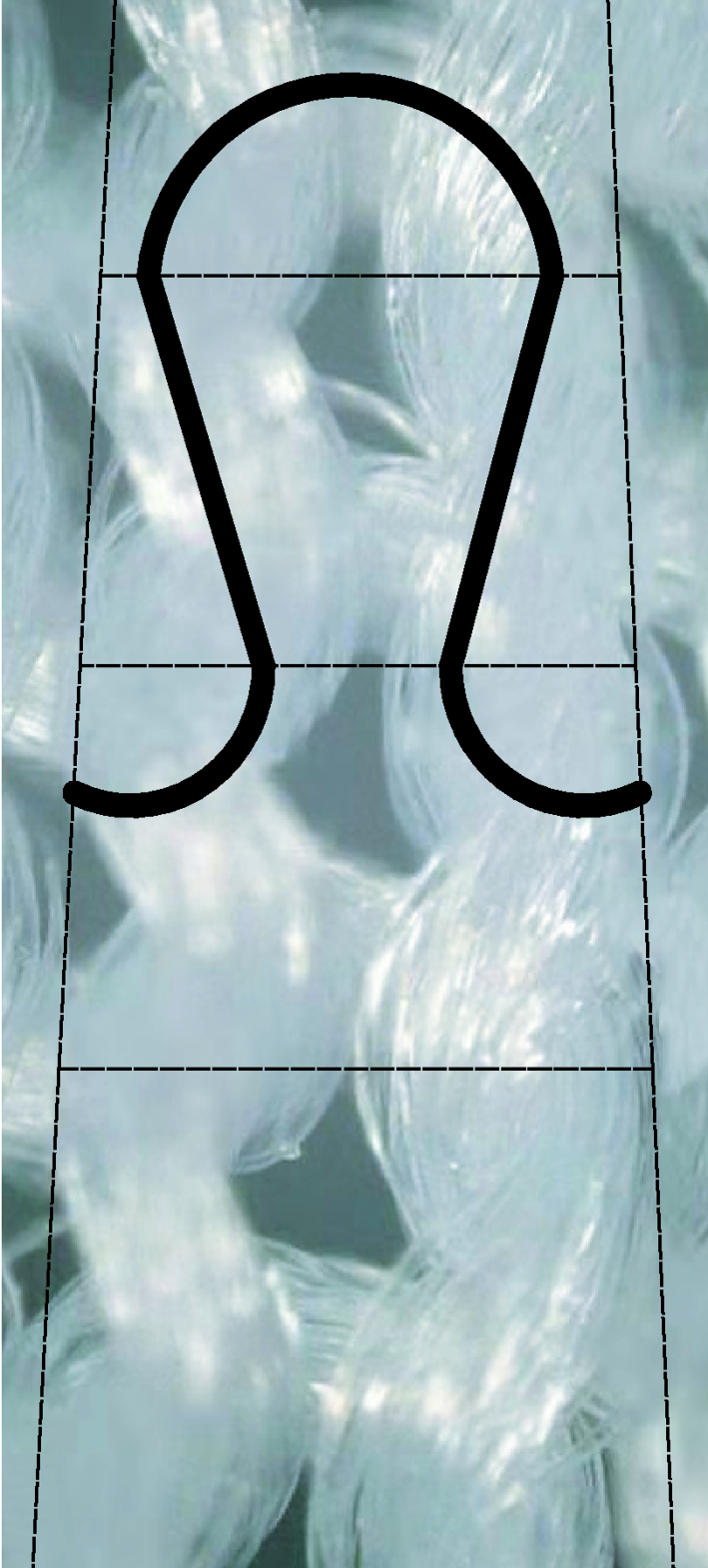

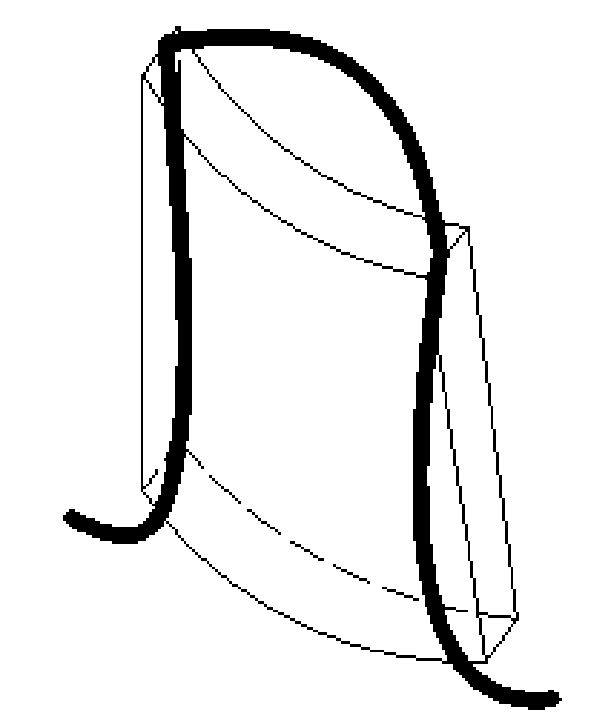

Fig.2

Hexahedron with loop"

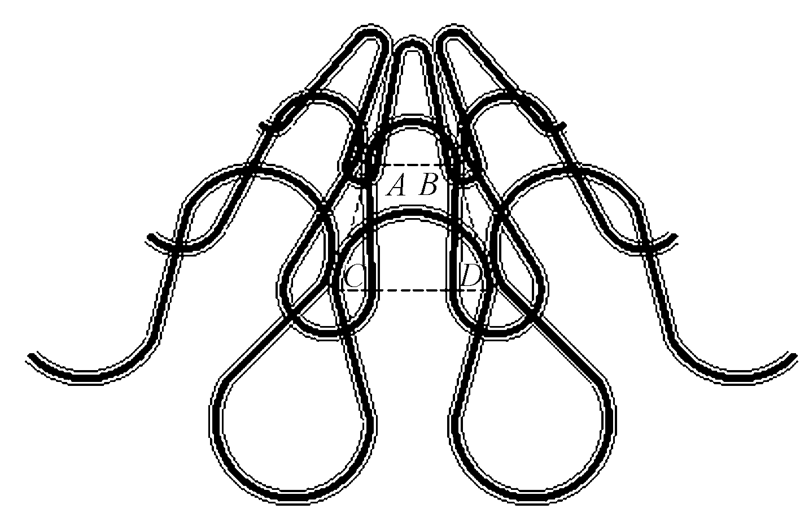

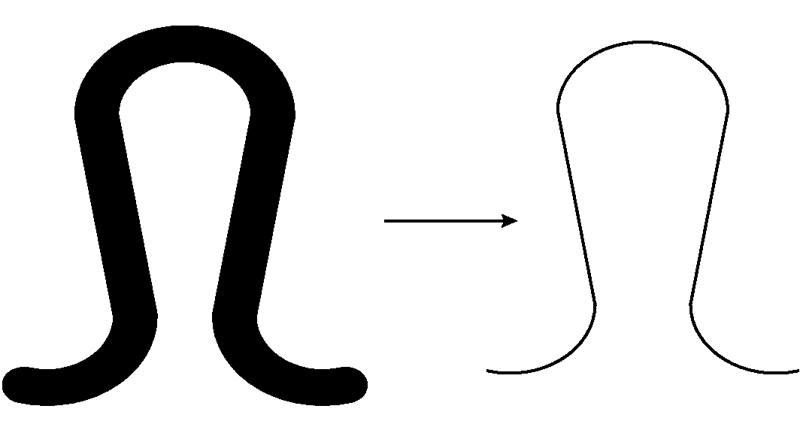

Fig.3

Yarn loop pattern"

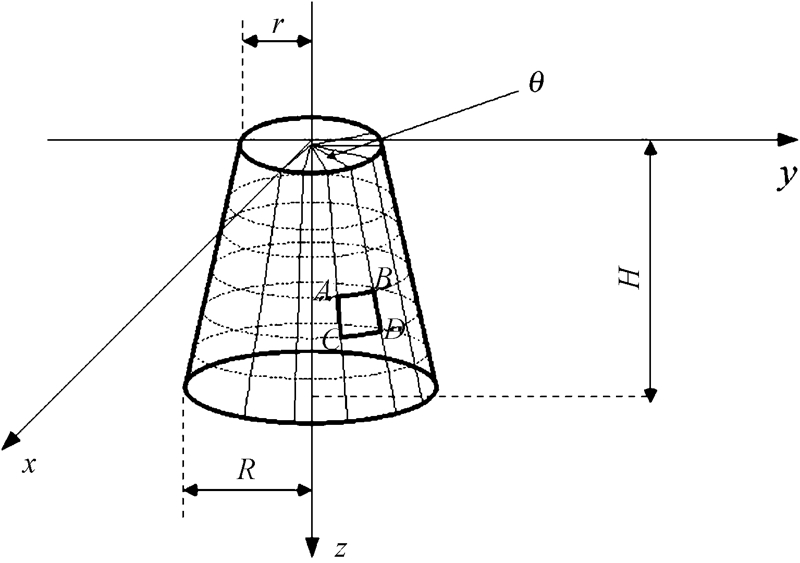

Fig.4

Round table model of tubular weft knitted fabric in cylindrical coordinate system"

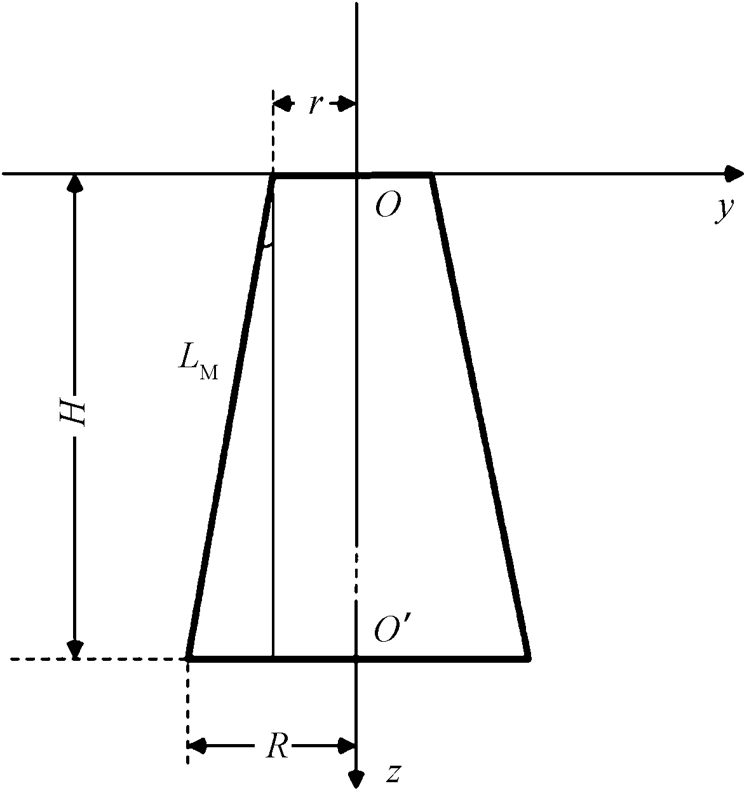

Fig.5

Projection of fabric model"

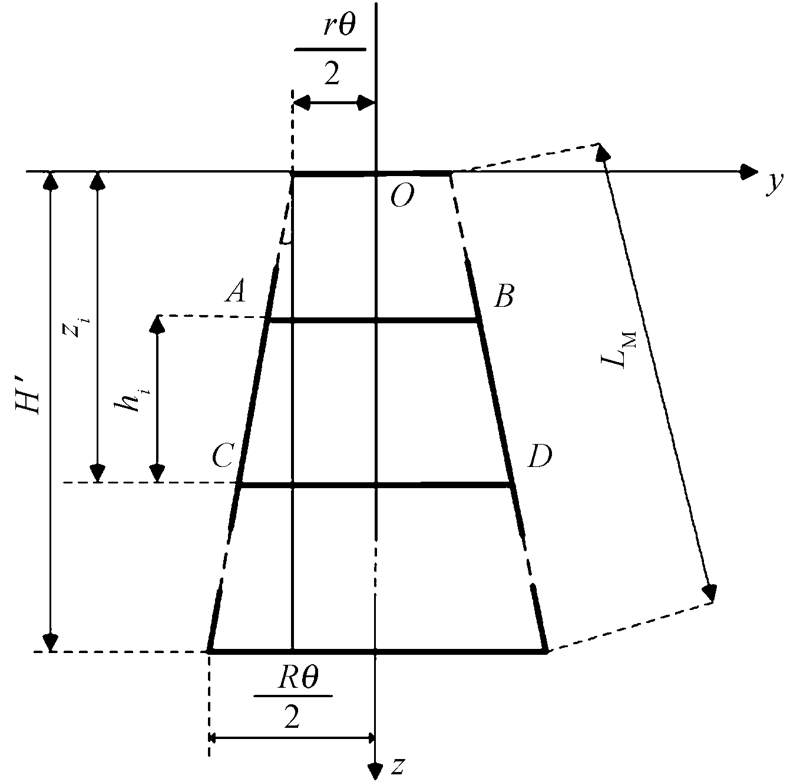

Fig.6

Partially expanded view of fabric model"

Fig.7

Single axial unfolded view of fabric model"

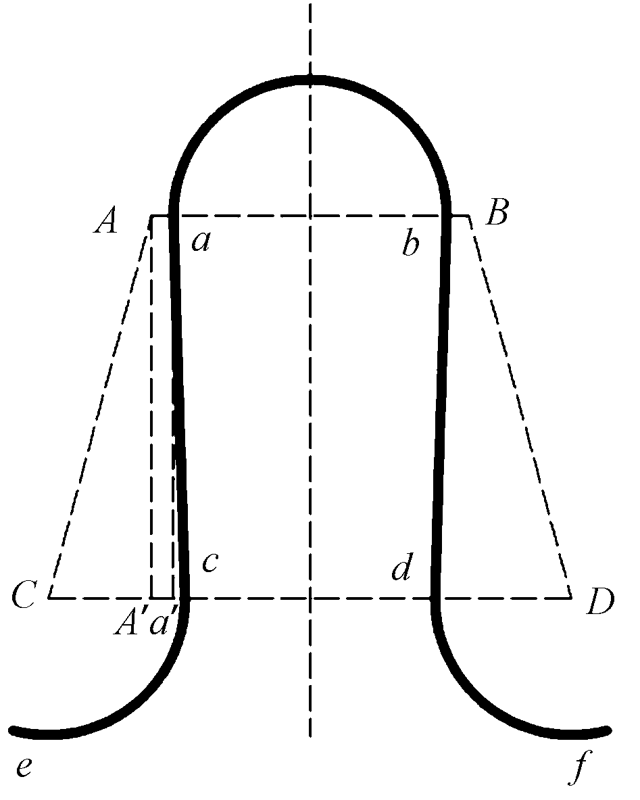

Fig.8

Improved yarn loop model"

Fig.9

Change of longitudinal loop"

Tab.1

Length of loop height of longitudinal coil"

线圈序号 线圈长度/mm 误差/%
理论长度 实际长度
2# 2.645 2.690 1.7
10# 2.717 2.748 1.1
18# 2.792 2.796 0.1
26# 2.867 2.830 1.3
34# 2.944 2.874 2.3
42# 3.023 2.998 0.8
50# 3.103 3.040 2.0
58# 3.184 3.196 0.4
66# 3.264 3.224 1.2
[1] NARAYANAN V, ALBAUGH L, HODGINS J, et al. Automatic machina knitting of 3D meshes[J]. ACM Transactions on Graphics, 2018,37(3):1-15.
[2] WU K, GAO X, FERGUSON Z, et al. Stitch meshing[J]. ACM Transactions on Graphics, 2018,37(4):1-14.
[3] 罗冰洋, 莫易敏, 郭艳. 电脑横机花型准备系统的设计[J]. 纺织学报, 2007,28(7):116-120.
LUO Bingyang, MO Yimin, GUO Yan. Design of pattern preparation system of computerized flat knitting machine[J]. Journal of Textile Research, 2007,28(7):116-120.
[4] 蔡立挺, 傅建中, 姚鑫骅. 嵌入式电脑横机花型数据的编译处理[J]. 纺织学报, 2008,29(6):113-116.
CAI Liting, FU Jianzhong, YAO Xinhua. Compilation of pattern data in embedded computerized flat knitting machine[J]. Journal of Textile Research, 2008,29(6):113-116.
[5] PEIRCE F T. Geometrical principles applicable to the design of functional fabrics[J]. General Information, 1947,17(3):123-147.
[6] 邓逸飞, 邓中民, 柯薇. 应用线圈模型的羊毛衫组织搭配与变形模拟[J]. 纺织学报, 2018,39(4):151-157.
DENG Yifei, DENG Zhongmin, KE Wei. Stitch design and deformation simulation of cardigan based on loop model[J]. Journal of Textile Research, 2018,39(4):151-157.
[7] 吴周镜. 无缝针织物的织物外观模拟技术的研究与实现[D]. 上海: 东华大学, 2011: 25.
WU Zhoujing. Research and implement of appearance simulation technology[D]. Shanghai: Donghua University, 2011: 25.
[8] 朱生群, 袁嫣红, 李跃珍. 基于TexGen的筒状纬编针织物的三维仿真[J]. 现代纺织技术, 2019,27(6):57-61.
ZHU Shengqun, YUAN Yanhong, LI Yuezhen. Three-dimensional simulation of tubular weft knitted structure based on TexGen[J]. Advanced Textile Technology, 2019,27(6):57-61.
[9] 杨恩惠, 邱华, 代文杰. 基于六边形网格结构的针织物三维建模[J]. 纺织学报, 2019,40(11):69-74.
YANG Enhui, QIU Hua, DAI Wenjie. Three-dimensional modeling and analysis of knitted fabric based on hexagonal mesh structure[J]. Journal of Textile Research, 2019,40(11):69-74.
[10] 汝欣, 彭来湖, 吕明来, 等. 纬编针织物几何建模及其算法[J]. 纺织学报, 2018,39(9):44-49.
RU Xin, PENG Laihu, LÜ Minglai, et al. Modelling and algorithm of weft knitted fabric[J]. Journal of Textile Research, 2018,39(9):44-49.
[11] 蒙冉菊, 方园. NURBS样条曲线纬编针织物线圈结构的建模分析[J]. 浙江理工大学学报, 2007,24(3):219-224.
MENG Ranju, FANG Yuan. The modeling analysis of knitting fabric loop construction using NURBS curve[J]. Journal of Zhejiang Sci-Tech University, 2007,24(3):219-224.
[12] 张爱军, 蒋高明, 李欣欣, 等. 应用弹簧-质点模型的双贾卡提花织物形变仿真[J]. 纺织学报, 2017,38(1):146-151.
ZHANG Aijun, JIANG Gaoming, LI Xinxin, et al. Deformation simulation of double jacquard fabric using mass-spring model[J]. Journal of Textile Research, 2017,38(1):146-151.
[13] 沙莎, 蒋高明, 张爱军, 等. 纬编针织物线圈建模与变形三维模拟[J]. 纺织学报, 2017,38(2):177-183.
SHA Sha, JIANG Gaoming, ZHANG Aijun, et al. Three-dimensional modeling and deformation for weft knitted fabric loops[J]. Journal of Textile Research, 2017,38(2):177-183.
[1] DAI Zhenxing, CHEN Guangfeng, CHEN Ge. Three-dimensional simulation of multiple high-low loop tufting carpet based on Rhino-Python [J]. Journal of Textile Research, 2020, 41(06): 69-75.
