Transverse vibration characteristics of knitting needles in seamless underwear machines based on axial movement cantilever beam theory

DAI Ning1,2, PENG Laihu1(), HU Xudong1, ZHONG Yaosen1, QI Dongming2

  1. 1. Key Laboratory of Modern Textile Machinery & Technology of Zhejiang Province, Zhejiang Sci-Tech University,Hangzhou, Zhejiang 310018, China
    2. College of Textile Science and Engineering(International Institute of Silk),Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
  • Received:2020-08-07 Revised:2020-11-04 Online:2021-02-15 Published:2021-02-23
  • Contact: PENG Laihu E-mail:laihup@zstu.edu.cn

RichHTML

10

PDF (PC)

121

Abstract:

During the axial movement of the knitting needle in seamless underwear machines, the transverse vibration characteristics of the knitting needle are closely related to the performance of the knitting mechanism. However, there are few studies on the transverse vibration of knitting needles at this stage during the knitting process, hindering the improvement of stability of the seamless underwear machine in terms of vibration. In this paper, the vibration characteristics were theoretically studied with the knitting needle as an equivalence to an axially moving cantilever beam and the finite element calculation was carried out using ANSYS simulation software. The transverse vibration characteristics of the knitting needles were examined using a high-speed camera. The transverse vibration curve and dynamic frequency value calculated theoretically and by simulation demonstrates high level of resemblance with each other for the transverse vibration curve, and the maximum deviation of the dynamic frequency value is below 3.84%, The experimental results prove the existence of transverse vibration during the knitting process, and the frequency value obtained is consistent with the theoretical and simulation results, which implies the correctness of the theoretical and simulation modeling.

Key words: seamless underwear machine, knitting needle, axial movement cantilever beam, transverse vibration, ANSYS simulation software, high-speed camera

CLC Number:

  • TS103.7

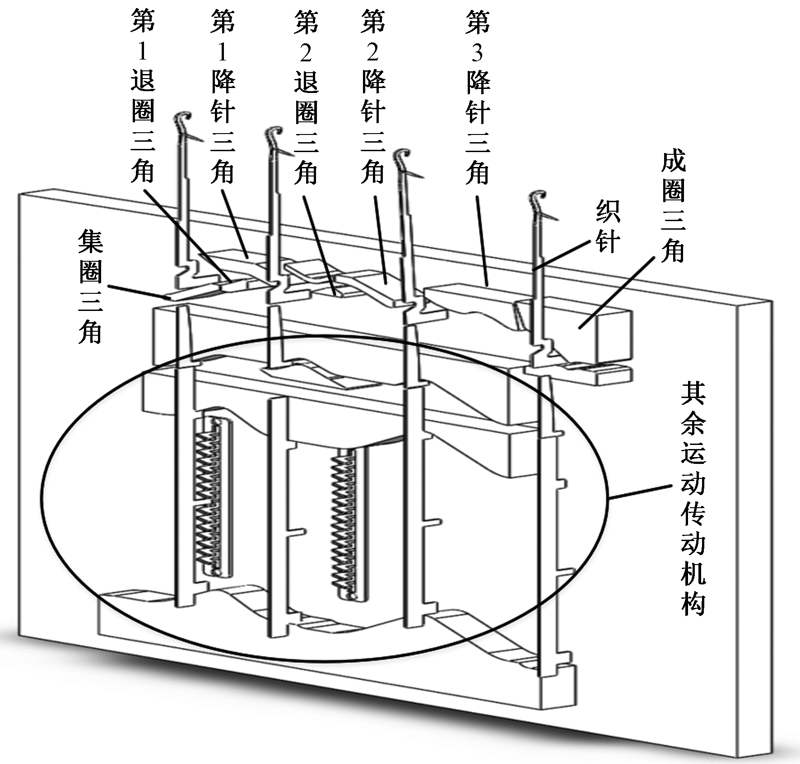

Fig.1

Three-dimensional model of knitting mechanism of seamless underwear machine"

Fig.2

Schematic diagram of cantilever beam model for knitting needle axial movement"

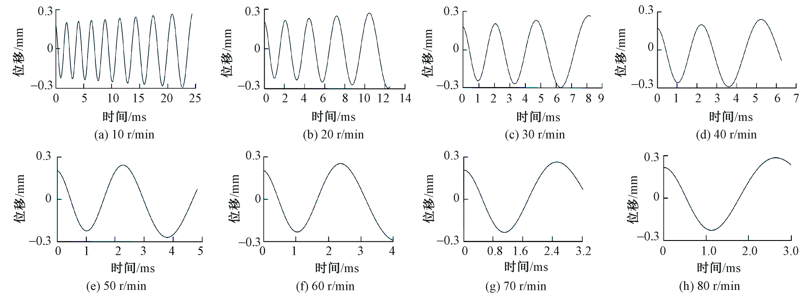

Fig.3

Transverse vibration curve of knitting needle rises along cam"

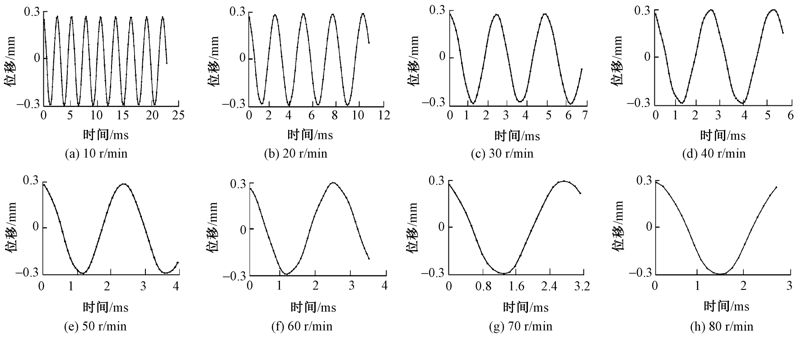

Fig.4

Transverse vibration curve of knitting needle descends along cam"

Fig.5

ANSYS simulation flowchart"

Fig.6

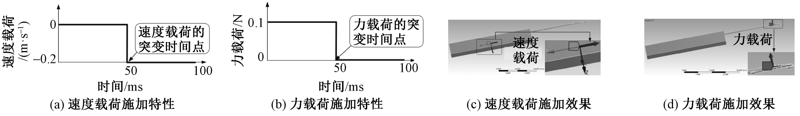

Diagram of load application characteristics and effect. (a) Speed load application characteristics; (b) Force load application characteristics; (c) Velocity load application effect; (d) Force load application effect"

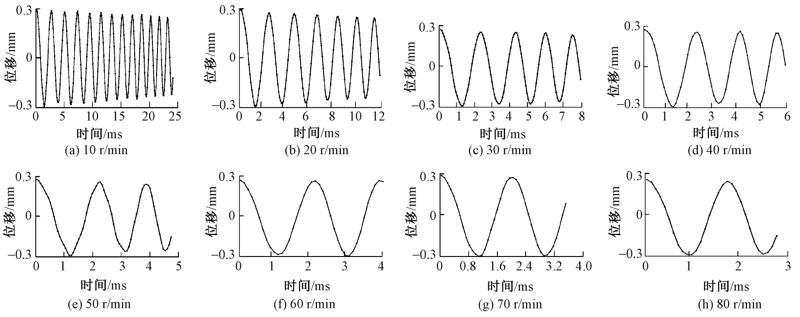

Fig.7

Transverse vibration simulation curve of knitting needle during ascending along cam"

Fig.8

Transverse vibration simulation curve of knitting needle during descending along cam"

Tab.1

Transverse vibration frequency during ascending of knitting needle"

波峰位置 理论值/Hz 仿真值/Hz 相对偏差/%
1 496 482 2.82
2 481 470 2.29
3 466 456 2.15
4 450 441 2.00
5 434 419 3.46
6 417 401 3.84
7 401 388 3.24
8 384 370 3.65

Tab.2

Transverse vibration frequency during descending of knitting needle"

波峰位置 理论值/Hz 仿真值/Hz 相对偏差/%
1 380 370 2.63
2 388 382 1.55
3 402 390 2.99
4 414 402 2.90
5 425 413 2.82
6 436 424 2.75
7 448 436 2.68
8 458 444 3.06
9 470 456 2.98
10 481 468 2.70
11 492 480 2.44
12 503 490 2.58

Fig.9

Schematic diagram of vibration measurement platform (a)and vibration measurement process (b)"

Fig.10

Time domain (a) and frequency domain(b) characteristics of transverse vibration"

[1] 丛洪莲, 张新杰, 王迪. 基于结构参数的纬编无缝塑身内衣设计模型[J]. 纺织学报, 2014,35(11):123-128.
CONG Honglian, ZHANG Xinjie, WANG Di. Model design of weft seamless underwear based on structure parameters[J]. Journal of Textile Research, 2014,35(11):123-128.
[2] 戴宁, 胡旭东, 彭来湖, 等. 无缝内衣机密度电动机的控制技术[J]. 纺织学报, 2020,41(6):161-167.
DAI Ning, HU Xudong, PENG Laihu, et al. Control technology for density motor used in seamless underwear machines[J]. Journal of Textile Research, 2020,41(6):161-167.
[3] 张华. 纬编针织机编织动力学分析及控制策略研究[D]. 杭州:浙江理工大学, 2013: 60-76.
ZHANG Hua. Dynamic analysis of knitting process and its control strategy study of weft knitting machine[D]. Hangzhou: Zhejiang Sci-Tech University, 2013: 60-76.
[4] 沈伟平. 横机编织系统建模及动力学研究[D]. 杭州:浙江理工大学, 2012: 40-48.
SHEN Weiping. Research on modeling and dynamics of knitting system of flat knitting machine[D]. Hangzhou: Zhejiang Sci-Tech University, 2012: 40-48.
[5] 徐英莲, 齐素梅. SM8-TOP2无缝内衣圆机织针的运动参数分析[J]. 纺织学报, 2011,32(2):58-63.
XU Yinglian, QI Sumei. Analyzing needle track of SM8-TOP2 seamless-wear circular knitting machine[J]. Journal of Textile Research, 2011,32(2):58-63.
[6] 吴晓光, 张弛, 朱里, 等. 磁悬浮式驱动织针的关键技术与试验模型[J]. 纺织学报, 2014,35(10):129-135.
WU Xiaoguang, ZHANG Chi, ZHU Li, et al. Key technologies of magnetic suspension driving knitting needles and experimental model[J]. Journal of Textile Research, 2014,35(10):129-135.
[7] 吴晓光, 孔令学, 朱里, 等. 磁悬浮式针织提花驱动方式理论研究与探讨[J]. 纺织学报, 2012,33(10):128-133.
WU Xiaoguang, KONG Lingxue, ZHU Li, et al. Theoretical research on propulsion mode of magnetic suspension needles for jacquard knitting[J]. Journal of Textile Research, 2012,33(10):128-133.
[8] 王亮, 陈怀海, 贺旭东, 等. 轴向运动悬臂梁横向振动的磁力控制[J]. 南京航空航天大学学报, 2010,42(5):568-573.
WANG Liang, CHEN Huaihai, HE Xudong, et al. Active vibration control of axially moving cantilever beam by magnetic force[J]. Journal of Nanjing University of Aeronautics & Astronautics, 2010,42(5):568-573.
[9] 王亮. 轴向运动梁动力学及控制研究[D]. 南京:南京航空航天大学, 2012: 68-108.
WANG Liang. Study on the dynamics and control of axially moving beams[D]. Nanjing: Nanjing University of Aeronautics and Astronautics, 2012: 68-108.
[10] 谭霞, 丁虎, 陈立群. 超临界轴向运动Timoshenko梁横向受迫振动[J]. 振动与冲击, 2017,36(22):1-5.
TAN Xia, DING Hu, CHEN Liqun. Transverse forced vibration of an axially moving Timoshenko beam at a supercritical speed[J]. Journal of Vibration and Shock, 2017,36(22):1-5.
[11] 黄肖华. 全自动扎口单面无缝内衣机控制系统[D]. 杭州:浙江理工大学, 2015: 6-20.
HUANG Xiaohua. Automatic control system of single side seamless underwear machine[D]. Hangzhou: Zhejiang Sci-Tech University, 2015: 6-20.
[12] 曹斌. 无缝针织内衣机成圈机构原理与工艺的研究与分析[D]. 杭州:浙江理工大学, 2011: 7-34.
CAO Bin. Research and analysis on the looping principle and technology of the seamless underwear knitting machine[D]. Hangzhou: Zhejiang Sci-Tech University, 2011: 7-34.
[1] DAI Ning, PENG Laihu, HU Xudong, CUI Ying, ZHONG Yaosen, WANG Yuefeng. Natural frequency characterization based on Euler-Bernoulli beam theory on knitting seamless underwear [J]. Journal of Textile Research, 2020, 41(12): 144-150.
[2] DAI Ning, PENG Laihu, HU Xudong, CUI Ying, ZHONG Yaosen, WANG Yuefeng. Method for testing natural frequency of weft knitting needles in free state [J]. Journal of Textile Research, 2020, 41(11): 150-155.
[3] DAI Ning, HU Xudong, PENG Laihu, ZHONG Yaosen. Control technology for density motor used in seamless underwear machines [J]. Journal of Textile Research, 2020, 41(06): 161-167.
[4] . Transverse nonlinear-vibration of axially moving yarn strand [J]. JOURNAL OF TEXTILE RESEARCH, 2013, 34(12): 37-0.
[5] BAO Zhenghong;ZHU Shigen;DING Hao;DI Ping. Effect of tempering process on elasticity and hardness of knitting needles [J]. JOURNAL OF TEXTILE RESEARCH, 2008, 29(4): 119-122.
[6] CHEN Hai-yan;ZHU Shi-gen;DING Hao;JI Cheng-chang;SHEN Jian;YUAN Yi-gao;GU Wei-sheng. Temperature field simulation of the needle quenching process based on the ANSYS [J]. JOURNAL OF TEXTILE RESEARCH, 2006, 27(4): 44-47.
