Development of electric-heating protective gloves and ergonomic experiments under extreme cold environment

WANG Lu1, HAN Xue1, LOU Lin2, HE Linghua3, ZHOU Xiaohong1()

  1. 1. College of Textile Science and Engineering (International Institute of Silk), Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
    2. School of Fashion Design & Engineering, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
    3. Zhejiang Weisong Cold Chain Technology Co., Ltd., Hangzhou, Zhejiang 311100, China
  • Received:2020-08-11 Revised:2021-01-25 Online:2021-05-15 Published:2021-05-20
  • Contact: ZHOU Xiaohong E-mail:zhouxh314@163.com

RichHTML

11

PDF (PC)

117

Abstract:

In order to study the function of electrically heated gloves in extremely cold environments, electric-heating protective gloves were developed for resisting extreme cold. The electric-heating material was fabricated with metal fiber and carbon nanotube film. Infrared thermal imaging camera was used to conduct experiments of the electric-heating protective gloves, and a human ergonomic experiment was carried out through screw-and-nut assembly operations in an extremely cold environment of -30 ℃. At the same time, the subjective evaluation of heat and pain was recorded. The results show that electric-heating protective gloves made from both metal fiber and carbon nanotube film demonstrate good heating performance, and can both be heated up to the highest designed temperature in 60 s at room temperature. In the extremely cold environment of -30 ℃, both electric-heating protective gloves can increase the number of screws to be screwed within the specified time, indicating work efficiency improvement. Based on the subjective evaluation of heat and pain, electric-heating protective gloves have a significant effect on resisting cold.

Key words: electric-heating protective glove, metal fiber, carbon nanotube film, ergonomic experiment, thermal imaging experiment

CLC Number:

  • TS101.8

Fig.1

Gloves in kind. (a)Back of hand;(b)Palm"

Fig.2

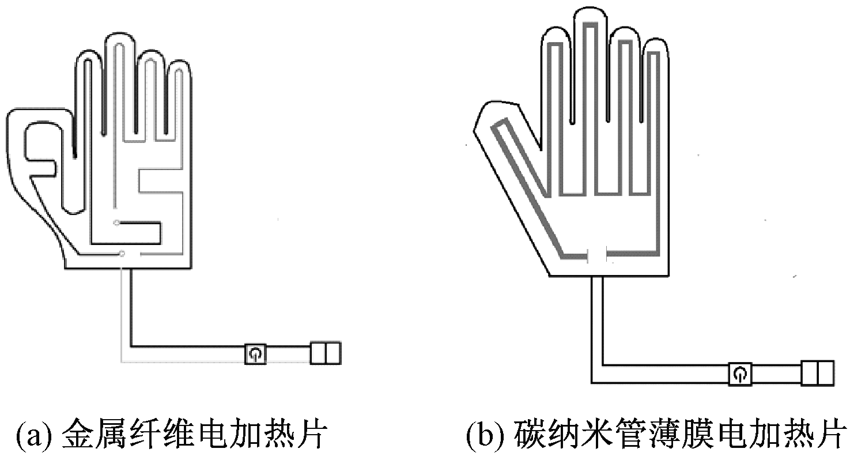

Structure diagram of heating element. (a) Metal fiber electric heating sheet; (b) Carbon nanotube film electric heating sheet"

Fig.3

Experimental platform structure"

Fig.4

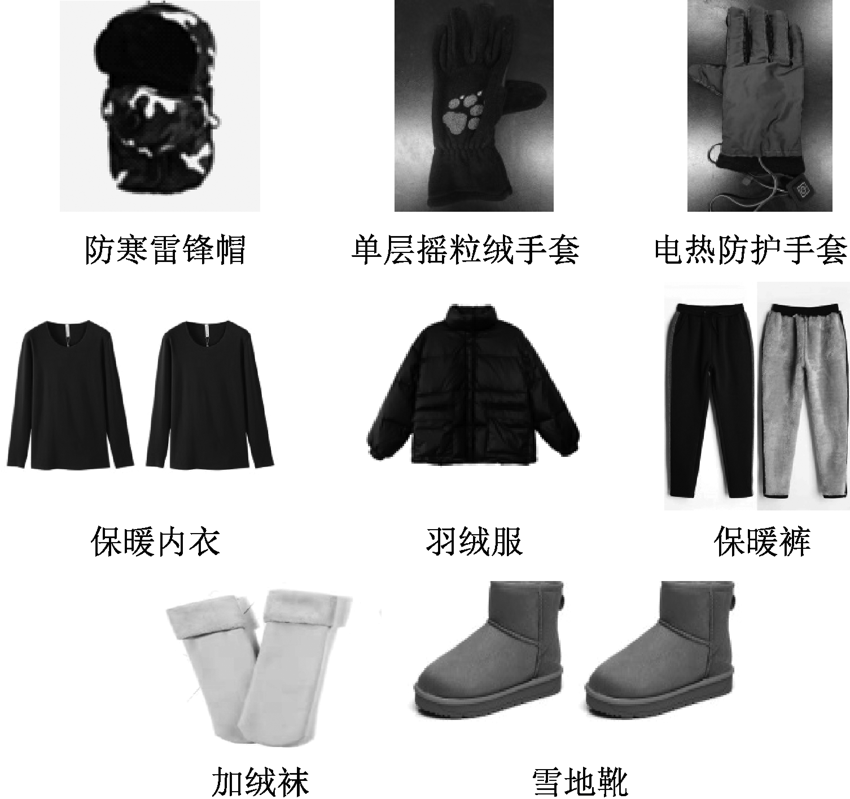

Schematic diagram of subject's dress"

Fig.5

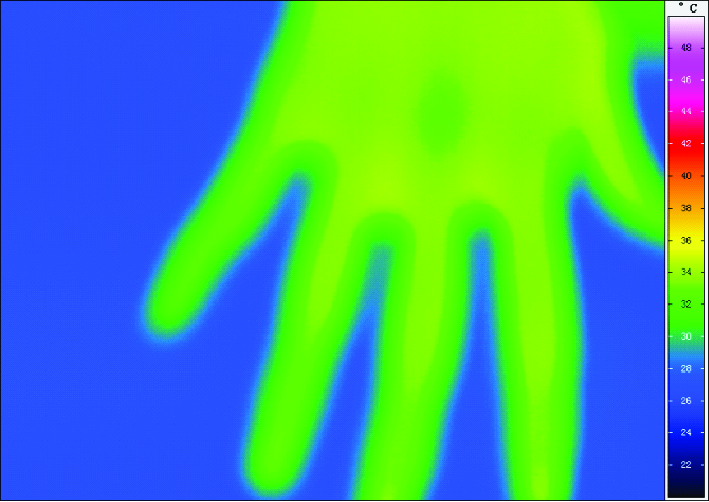

Thermal imaging of human hand"

Fig.6

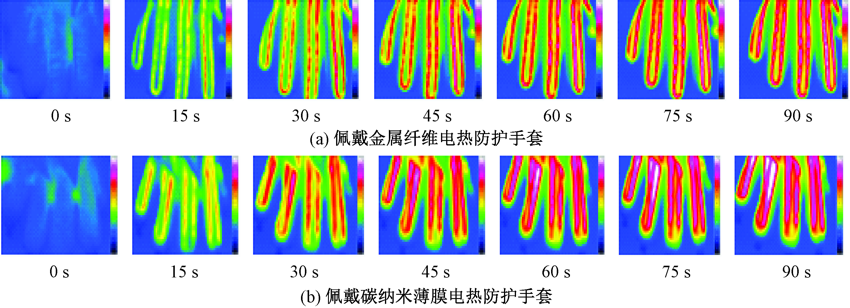

Thermal imaging of electric-heating protective gloves. (a) Metal fiber thread electric-heating protective gloves; (b) Carbon nanotube film electric-heating protective gloves。。"

Fig.7

Thermal imaging of electric-heating protective gloves with hand at the highest heat. (a) Metal fiber electric-heating protective gloves with hand; (b) Carbon nanotube film electric-heating protective gloves with hand"

Tab.1

Screwing record"

实验组编号 螺母装配速度/(个·(5 min)-1)
第1次 第2次
M0 8.0 11.0
M1 11.0 14.5
C0 7.5 10.0
C1 9.5 10.0

Tab.2

Records of subjective cold feelings of left and right hands"

时间/min 左右手 热感受等级/疼痛感受等级
M0 M1 C0 C1
0 左手 1/0 1/0 1/0 1/0
右手 2/0 3/0 2/0 3/0
1~5 左手 -1/0 0/0 -1/0 0/0
右手 1/0 3/0 1/0 2/0
6~10 左手 -2/2 0/0 -1/2 -1/1
右手 -1/1 2/0 -1/1 1/0
11~15 左手 -3/2 -1/1 -3/2 -2/2
右手 -2/2 1/0 -3/2 -1/1
16~20 左手 -4/3 -1/1 -4/3 -2/2
右手 -2/2 1/0 -2/2 -2/2
