Journal of Textile Research ›› 2021, Vol. 42 ›› Issue (05): 155-161.doi: 10.13475/j.fzxb.20200901507

• Apparel Engineering • Previous Articles     Next Articles

Perceptual evaluation of men's suit style elements based on Quantitative Theory I

LI Qianwen1,2, WANG Jianping1,2,3(), YANG Yalan1,2, ZHANG Bingjie1,2, LI Zhilin1,2

  1. 1. College of Fashion and Design, Donghua University, Shanghai 200051, China
    2. Key Laboratory of Clothing Design and Technology, Ministry of Education, Donghua University, Shanghai 200051, China
    3. Shanghai International Institute of Design & Innovation, Tongji University, Shanghai 200092, China
  • Received:2020-09-04 Revised:2021-02-18 Online:2021-05-15 Published:2021-05-20
  • Contact: WANG Jianping E-mail:wangjp@dhu.edu.cn

Abstract:

In order to obtain clothing products that are more in line with people's emotional needs and help companies better understand the perceptual psychology of consumers, a clothing style perceptual evaluation program based on quantitative theory I is proposed taking the classic category of clothing-men's suits as an example. The semantic difference method was used to obtain the user's perceptual evaluation of the male suit samples, and a two-dimensional space of the male suit perceptual image was established. By analyzing the style characteristics of the male suit samples, the style details and design elements were extracted, that have a key influence on the perceptual image. Finally, qua.pngication theory I was applied to construct a correlation model between perceptual factors and style design elements. The verification shows that the regression model has high prediction accuracy and conforms to the normal distribution. Further case verification shows that the model can transform people's perceptual needs with the design elements of men's suit styles, and can be effectively used for the perceptual evaluation of men's suit styles.

Key words: men's suits, perceptual image, clothing style, design element, Quantitation Theory I, emotional needs

CLC Number:

  • TS941.12

Tab.1

Men's suit style elements"

廓形 内部细节
领子B 串口C 扣子D 驳头E 门襟F 胸袋G 腰袋H 装饰I
H型A1 平驳领B1 高串口C1 1~2粒扣D1 宽驳头E1 方角F1 胸贴袋G1 腰贴袋H1 仿手工线迹I1
X型A2 戗驳领B2 普通串口C2 3粒扣D2 普通驳头E2 圆角F2 胸挖袋G2 腰挖袋H2 缉线装饰I2
V型A3 青果领B3 低串口C3 4粒扣D3 窄驳头E3 抹角F3 无/对称袋G3 无腰袋H3 滚嵌镶宕I3
无装饰I4

Fig.1

Part of pattern of men's suit sample. (a) Sample 1; (b) Sample 2; (c) Sample 3"

Tab.2

Total variance explained"

成分
编号
初始特征值 提取载荷平方和
总计 方差百
分比/%
累积/% 总计 方差百
分比/%
累积/%
1 3.740 62.340 62.340 3.740 62.340 62.340
2 1.644 27.401 89.741 1.644 27.401 89.741
3 0.235 3.911 93.652
4 0.204 3.396 97.048
5 0.101 1.677 98.725
6 0.077 1.275 100.000

Tab.3

Rotated component matrix"

因子编号 因子命名 感性词对 成分
1 2
1 气质因子 正式的-休闲的 0.228 -0.242
古典的-现代的 0.253 -0.118
华贵的-朴素的 0.207 0.350
儒雅的-粗犷的 0.242 0.101
庄重的-活泼的 0.192 -0.372
2 潮流因子 个性的-大众的 0.116 0.514

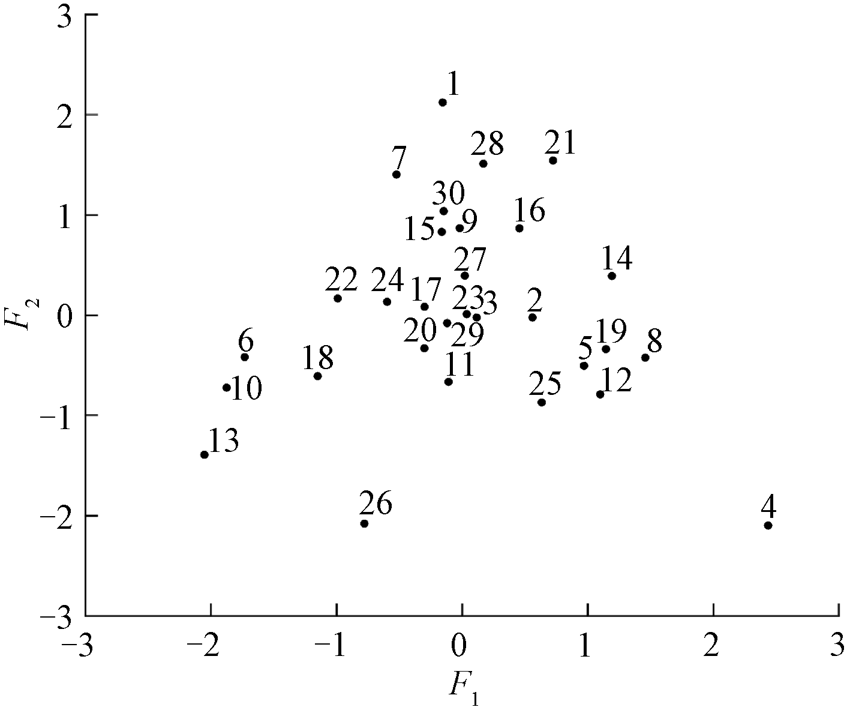

Fig.2

Sample perceptual image spatial distribution map"

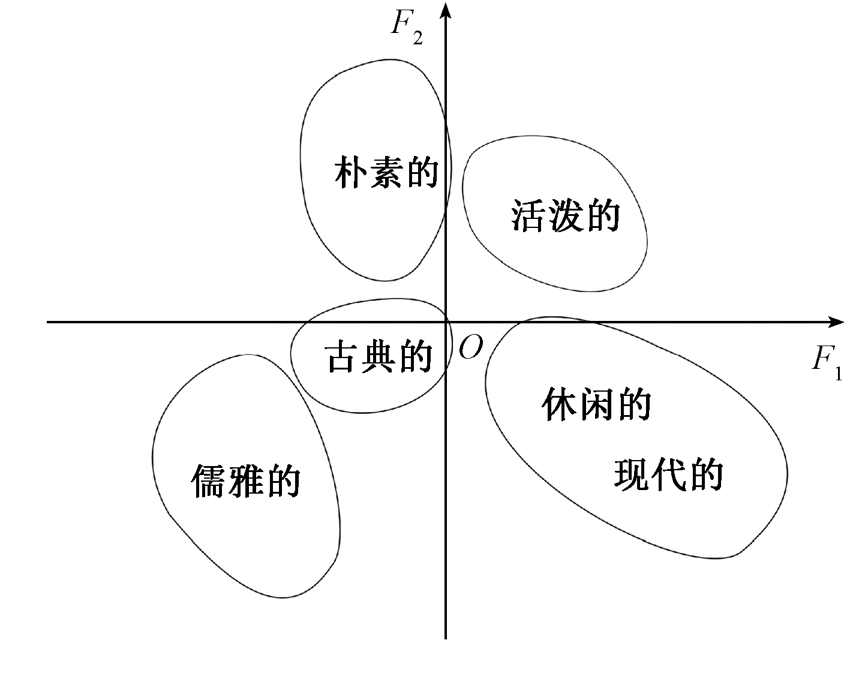

Fig.3

Style elements correspond to perceptual images"

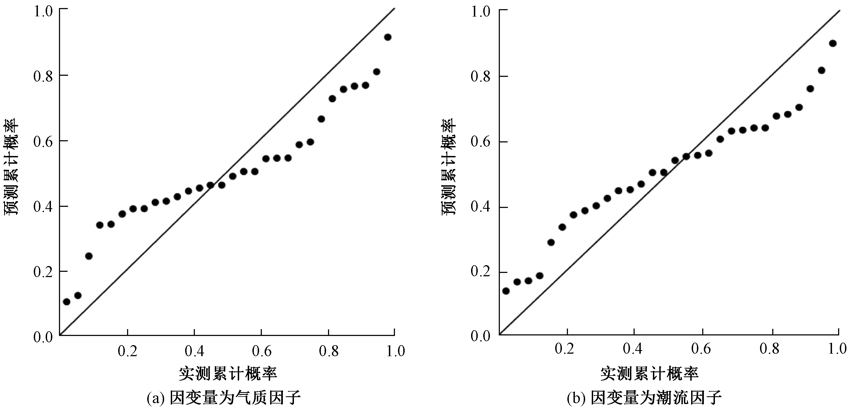

Fig.4

Histogram of normalized residuals of each style factor."

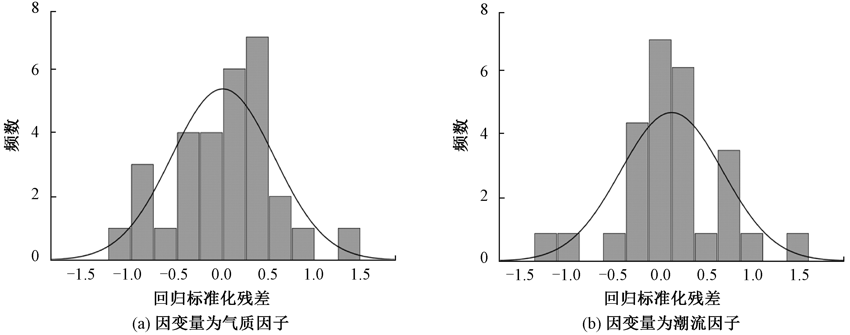

Fig.5

Histogram of normalized residuals of each style factor. (a)Dependent variable is temperament factor;(b)Dependent variable is power flow factor"

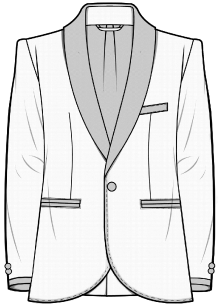

Fig.6

Recommended style for men's suits"

[1] 高维, 肖军. 基于女大学生的服装设计感性评价个体差异[J]. 纺织学报, 2014,35(5):137-141.
GAO Wei, XIAO Jun. Individual differences in perceptual evaluation for fashion design: taking female students as research subjects[J]. Journal of Textile Research, 2014,35(5):137-141.
[2] HARTONO M. The modified Kansei engineering-based application for sustainable service design[J]. International Journal of Industrial Ergonomics, 2020,79:102985.
doi: 10.1016/j.ergon.2020.102985
[3] LI Y, SHIEH M D, YANG C C. A posterior preference articulation approach to kansei engineering system for product form design[J]. Research in Engineering Design, 2019,30(1):3-19.
doi: 10.1007/s00163-018-0297-4
[4] 于娜, 张聪. 古典坐墩造型设计的感知意象研究[J]. 包装工程, 2017,38(12):104-109.
YU Na, ZHANG Cong. Sit pier perceptual image based on the modeling design[J]. Packaging Engineering, 2017,38(12):104-109.
[5] 于小利. 基于感性意象的服装网店设计研究[J]. 丝绸, 2016,53(7):43-48.
YU Xiaoli. Research on online clothing store design based on kansei image[J]. Journal of Silk, 2016,53(7):43-48.
[6] WU F G, YU C Z. Parametric design and kansei engineering in goblet styling design[J]. Mathematical Problems in Engineering, 2020(10):1-8.
[7] 刘婕羽, 江影. 运动内衣后背款式设计的感性评价[J]. 针织工业, 2019(7):64-68.
LIU Jieyu, JIANG Ying. Perceptual evaluation of back style design of sports under wear[J]. Knitting Industries, 2019(7):64-68.
[8] XUE L, YI X, ZHANG Y. Research on optimized product image design integrated decision system based on kansei engineering[J]. Applied Sciences, 2020,10(4):90-98.
doi: 10.3390/app10010090
[9] 于娜, 张聪, 杜游, 等. 基于数量化理论的家具造型意象设计[J]. 包装工程, 2018,39(22):183-188.
YU Na, ZHANG Cong, DU You, et al. Furniture modeling image design based on quantitative theory[J]. Packaging Engineering, 2018,39(22):183-188.
[10] 陈伟伟. 基于感性匹配的服装协同设计原理及应用[D]. 苏州:苏州大学, 2018: 9-10.
CHEN Weiwei. The principle and application of garment collaborative design based on perceptual matching[D]. Suzhou:Soochow University, 2018: 9-10.
[11] 王莹, 陈雁. 冬季女外套款式感性研究和应用[J]. 纺织学报, 2007,28(11):97-100.
WANG Ying, CHEN Yan. Relationship between perception and designing elements of woman's overcoats[J]. Journal of Textile Research, 2007,28(11):97-100.
[12] HSIAO S W, KO Y C. A Study on bicycle appearance preference by using FCE and FAHP[J]. International Journal of Industrial Ergonomics, 2013,43(4):264-273.
doi: 10.1016/j.ergon.2013.04.003
[13] VOGEL E H, CASTRO M E, SAAVEDRA M A. Quantitative models of pavlovian conditioning[J]. Brain Research Bulletin, 2004,63(3):173-202.
doi: 10.1016/j.brainresbull.2004.01.005
[14] 苏建宁, 李鹤歧. 应用数量化一类理论的感性意象与造型设计要素关系的研究[J]. 兰州理工大学学报, 2005(2):36-39.
SU Jianning, LI Heqi. Investigation of relationship of form design elements to kansei image by means of qua.pngication-I theory[J]. Journal of Lanzhou University of Technology, 2005(2):36-39.
[15] 林丽, 薛澄岐, 王海燕, 等. 优化KE模型的产品形态解构方法[J]. 东南大学学报(自然科学版), 2010,40(6):1353-1357.
LIN Li, XUE Chengqi, WANG Haiyan, et al. Product form deconstruction method to optimize KE model[J]. Journal of Southeast University(Natural Science Edition), 2010,40(6):1353-1357.
[16] 李明珠, 何灿群, 卢章平, 等. 基于数量化理论Ⅰ类的汽车意象造型设计研究[J]. 机械设计, 2016,33(4):105-108.
LI Mingzhu, HE Canqun, LU Zhangping, et al. Research on automobile image modeling design based on Quantitative Theory I[J]. Journal of Machine Design, 2016,33(4):105-108.
