Preparation and characterization of high fibrillation Lyocell fiber

HUANG Wei, CHENG Chunzu(), ZHANG Jiayu, ZHANG Chenxi, CHENG Min, XU Jigang, LIU Yunchong

  1. State Key Laboratory for Bio-based Fiber Manufacturing Technology, China Textile Academy, Beijing 100025, China
  • Received:2020-09-08 Revised:2021-03-08 Online:2021-06-15 Published:2021-06-25
  • Contact: CHENG Chunzu E-mail:chunzuc@163.com

Abstract:

In order to explore the forming conditions for Lyocell fiber fibrillation, a sufficient theoretical basis was provided for expanding the application of high-fibrillation Lyocell fiber in filter fabrics, covering fabrics and absorbent lined pad. In this paper, sodium hypochlorite (NaClO) solution was used as oxidant and Lyocell fibers with different degrees of fibrillation were prepared by steaming treatment. The influence of NaClO solution concentration and heat treatment time on Lyocell fiber structure and properties were analyzed. The results show that within the scope of this experiment, the fibrillation degree of Lyocell fiber gradually increases and the polymerization degree gradually decreases, as the concentration of NaClO solution increases. When the concentration of NaClO solution (effective Cl- concentration) is 1.5% and the heat treatment time is 180 s, the degree of fiber fibrillation is quite obvious and uniform. The treated fibers achieve a strong moisture absorption capacity, which is 135.8% higher than before. The fiber breaking strength is 3.69 cN/dtex, elongation at break 11.3%, maintaining high mechanical properties required by the intended applications. The process is proved to be less difficult and more efficient, beneficial to the application and industrialization of high-fibrillation Lyocell fibers in the fields of spunlace fabrics and blended manufacturing textile products.

Key words: Lyocell fiber, steam treatment, fibrillation, wet friction, water retention value

CLC Number:

  • TS109.9

Tab.1

Treatment conditions of Lyocell fiber"

试样编号 有效Cl-质量分数/% 热处理时间/s
1# 0.00 0
2# 0.75 180
3# 1.50 60
4# 1.50 180
5# 1.50 300
6# 2.25 180

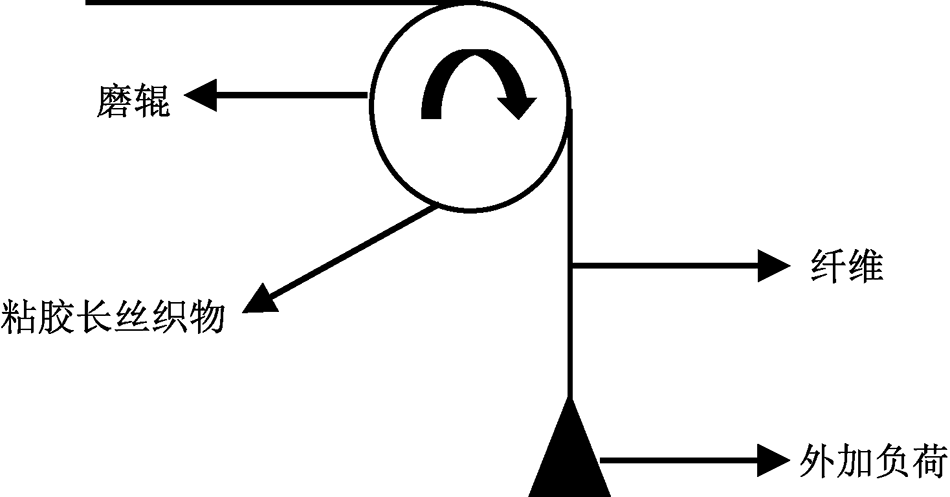

Fig.1

Schematic diagram of Lyocell fiber wet wear tester"

Fig.2

SEM images of Lyocell fibers treated with different concentrations of NaClO(×1 000)"

Fig.3

Microstructure of Lyocell fibers after different heat treatment time(×1 000)"

Tab.2

Properties of Lyocell fibers before and after NaClO treatment"

试样编号 保水值/% 磨损时间/s 聚合度
1# 164.5 8.67 614
3# 251.3 5.96 573
4# 387.9 3.73 531
5# 320.2 1.97 445

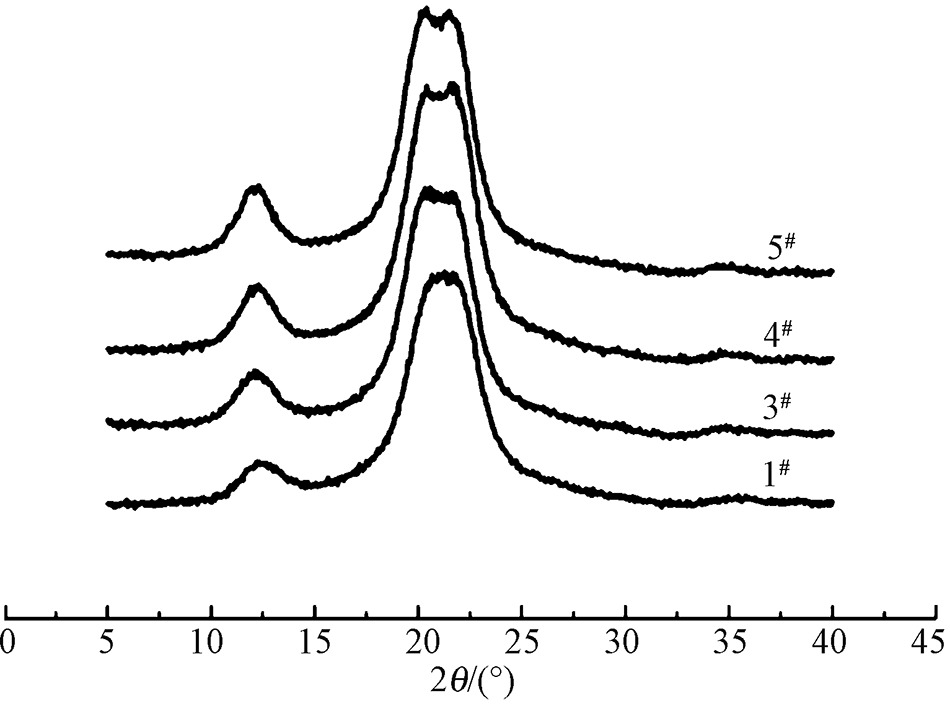

Fig.4

XRD patterns of Lyocell fibers before and after NaClO treatment"

Tab.3

Changes of breaking strength and elongation at break of Lyocell fibers before and after NaClO treatment"

试样编号 断裂强度/(cN·dtex-1) 断裂伸长率/%
1# 3.39 13.50
3# 3.88 11.89
4# 3.69 11.32
5# 3.02 8.16
[1] KWON Seong-ok, KIM Jooyoun, MOON Myoung-woon, et al. Nanostructured superhydrophobic Lyocell fabrics with asymmetric moisture absorbency: moisture managing properties[J]. Textile Research Journal, 2017, 87(7):807-815.
doi: 10.1177/0040517516639832
[2] CARRILLO F, COLOM X, CANAVATE X. Properties of regenerated cellulose Lyocell fiber-reinforced compo-sites[J]. Journal of Reinforced Plastics & Composites, 2010, 29(3):359-371.
[3] PRASKALO-MILANOVIC J Z, KOSTIC M M, DIMITRIJEVIC-BRANKOVIC S I, et al. Silver-loaded Lyocell fibers modified by tempo-mediated oxidation[J]. Journal of Applied Polymer Science, 2010, 117(3):1772-1779.
[4] KAYODE A. Impact and flexural properties of flax fabrics and Lyocell fiber-reinforced bio-based therm-oset[J]. Journal of Reinforced Plastics and Composites, 2011, 30(8):685-697.
doi: 10.1177/0731684411405874
[5] 周立明. Lyocell纤维的原纤化[J]. 广西纺织科技, 1998(4):45-48.
ZHOU Liming. Fibrillation of Lyocell fiber[J]. Light and Textile Industry and Technology, 1998(4):45-48.
[6] 梁高勇, 张宏. Lyocell纤维原纤化问题的探讨[J]. 上海纺织科技, 1999, 27(2):57-59.
LIANG Gaoyong, ZHANG Hong. Discussion on fibrillation of Lyocell fiber[J]. Shanghai Textile Science & Technology, 1999, 27(2):57-59.
[7] 王铁晗, 靳宏, 元伟, 等. 改性Lyocell纤维的研究开发进展[J]. 纺织导报, 2020(7):38-44.
WANG Tiehan, JIN Hong, YUAN Wei, et al. Progress of the modified Lyocell fibers[J]. China Textile Leader, 2020(7):38-44.
[8] LI Qiao, JIANG Chen, YANG Gesheng, et al. Effect of different factors on the fibrillation degree of Lyocell fiber based on homogenization treatment[J]. Materials Science Forum, 2017, 898:2309-2317.
doi: 10.4028/www.scientific.net/MSF.898
[9] ZHANG Wangsun, SATOKO Okubayashi, THOMAS Bechtold. Fibrillation tendency of cellulosic fibers:part 3: effects of alkali pretreatment of Lyocell fiber[J]. Carbohydrate Polymers, 2005, 59(2):173-179.
doi: 10.1016/j.carbpol.2004.09.007
[10] 孟志芬, 胡学超, 章潭莉. 高原纤化Lyocell纤维的制造[J]. 产业用纺织品, 1998(10):30-31.
MENG Zhifen, HU Xuechao, ZHANG Tanli. Manufacture of high fibrillated lyocell fibers[J]. Technical Textiles, 1998(10):30-31.
[11] JOVANA Milanovic, SONJA Schiehser, PREDRAG Milanovic, et al. Molecular weight distribution and functional group profiles of TEMPO-oxidized Lyocell fibers[J]. Carbohydr Polym, 2013, 98(1):444-450.
doi: 10.1016/j.carbpol.2013.06.033 pmid: 23987366
[12] HERMANP H S, WEIDINGER A. Quantitative investigation of the X-Ray diffraction picture of some typical rayon specimens[J]. Textile Research of Journal, 1961, 31(6):559-570.
