Journal of Textile Research ›› 2021, Vol. 42 ›› Issue (09): 112-119.doi: 10.13475/j.fzxb.20201001208

• Dyeing and Finishing & Chemicals • Previous Articles     Next Articles

Effect of cationic modification in hydrophobic system on ink droplet spreading on cotton/polyamide fabrics

LI Chang1, FANG Kuanjun1,2,3,4(), LIU Xiuming1,4, AN Fangfang1, LIANG Yingchao1, LIU Hao1

  1. 1. School of Textile Science and Engineering, Tiangong University, Tianjin 300387, China
    2. College of Textiles & Clothing, Qingdao University, Qingdao, Shandong 266071, China
    3. State Key Laboratory for Biofibers and Eco-Textiles, Qingdao, Shandong 266071, China
    4. Collaborative Innovation Center for Eco-Textiles of Shandong Province, Qingdao, Shandong 266071, China
  • Received:2020-10-07 Revised:2021-05-08 Online:2021-09-15 Published:2021-09-27
  • Contact: FANG Kuanjun E-mail:13808980221@163.com

RichHTML

12

PDF (PC)

62

Abstract:

In order to improve the homo-chromaticity, color performance and fixation rate of ink droplets on the surface of cotton/polyamide fabrics, cationic modification of cotton/polyamide fabric was carried out in hydrophobic system using surfactant N,N-bis(2-hydroxyethyl)-dodecanamide (LDEA) to construct. The effect of the mass fraction of the cationic modifier 3-chloro-2-hydroxypropyl trimethylammonium chloride (CHPTAC) and LDEA in the modification system on the modification result of the fabric was explored. The spread area, color performance and fixation rate of the ink droplets on the surface of the modified fabric under different processes were tested. The surface morphology, chemical structure and electrical changes of the modified fabric were analyzed. Results show that cationic modification reduced the spread area of ink droplets on the fabric surface by 30%. Compared with aqueous system, the homo-chromaticity and color performance of the ink droplets on the surface of the fabric after modification in the hydrophobic system are significantly improved. The apparent color strength upgraded to 2.7 and the difference decreased by 41% between cotton and polyamide fibers. The white spot phenomenon on the surface of the ink droplet was eliminated. The modifier were grafted successfully on the surface of cotton and polyamide fibers, and furthermore the distribution could be made more uniform between two fibers in the hydrophobic system compared with aqueous system.

Key words: cotton/polyamide fabric, cationic modification, hydrophobic system, ink drop spread, color performance, ink-jet printing

CLC Number:

  • TS194.4

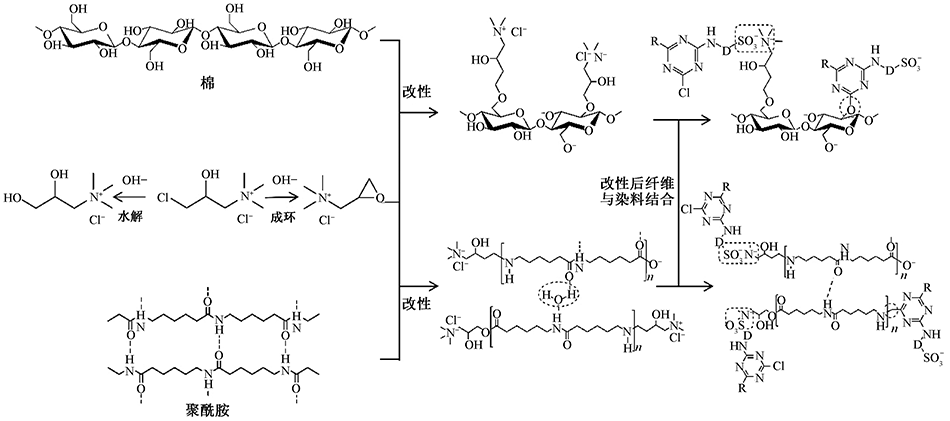

Fig.1

Schematic diagram of cationic modification of cotton and polyamide fiber and its chemical reaction with dyes"

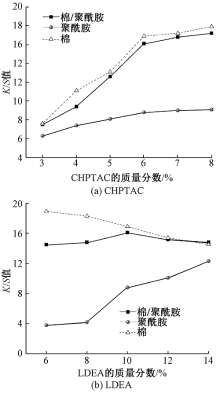

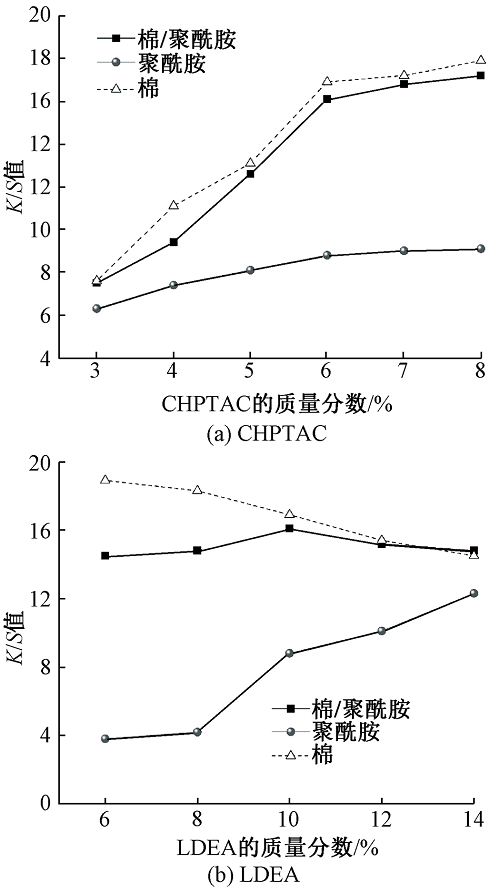

Fig.2

Effect of concentration of CHPTAC (a)and LDEA (b)on K/S value of ink droplets on surface of fabric"

Fig.3

Spread of ink droplets on different modified fabrics. (a)Unmodified;(b)GTA modified; (c)GTA/LDEA modified"

Tab.1

Color parameters and dye fixation rates of ink droplets of modified fabrics"

改性体系 织物 颜色参数 K/S值 固色率/%
L* a* b* C* h°
未改性 棉/聚酰胺 70.6 30.9 -7.4 31.8 346.6 0.8 2.2±0.1
聚酰胺 41.3 56.1 -2.9 56.2 357.0 12.2 46.5±0.5
棉 79.2 15.6 -3.9 16.1 345.9 0.3 1.2±0.1
GTA改性 棉/聚酰胺 39.7 55.4 1.5 55.4 1.5 13.4 43.3±0.6
聚酰胺 83.9 8.3 0.5 8.4 3.3 0.1 4.0±0.2
棉 35.4 55.0 2.6 55.0 2.7 19.8 78.7±1.0
GTA/LDEA改性 棉/聚酰胺 39.3 57.7 -0.1 57.7 359.9 16.1 60.5±0.8
聚酰胺 47.9 56.9 -10.4 57.9 349.7 8.8 38.7±0.3
棉 39.0 57.8 -0.9 57.8 359.1 16.9 64.0±1.4

Fig.4

Surface morphology of cotton and polyamide fiber (×5 000). (a)Unmodified cotton fiber; (b)GTA modified cotton fiber; (c)GTA/LDEA modified cotton fiber;(d)Unmodified polyamide fiber; (e)GTA modified polyamide fiber; (f)GTA/LDEA modified polyamide fiber"

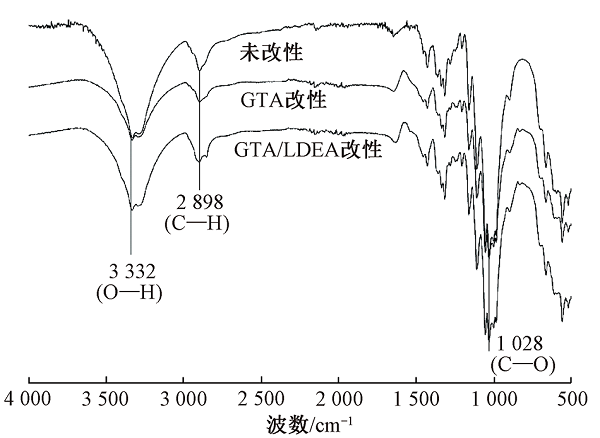

Fig.5

FT-IR spectra of cotton fiber"

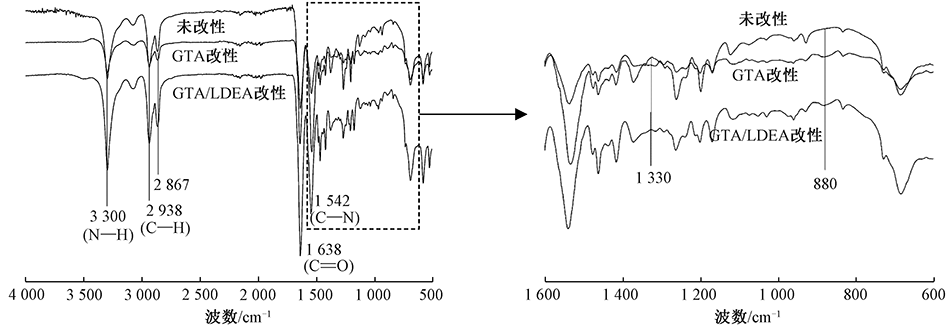

Fig.6

FT-IR spectra of the polyamide fiber"

Tab.2

Zeta potential on fabric surface"

CHPTAC
质量分数/%		 棉纤维Zeta电位/mV 聚酰胺纤维Zeta电位/mV
GTA改性 GTA/LDEA
改性		 GTA改性 GTA/LDEA
改性
0 -13.2 -13.2 -43.1 -43.1
2 -10.1 -12.3 -39.3 -31.8
4 -4.2 -7.1 -36.8 -22.6
6 4.1 1.4 -29.2 -14.3
8 8.3 4.2 -26.8 -8.6

Tab.3

Color fastnesses of cotton/polyamide fabrics 级"

织物改性体系 耐水洗色牢度 耐摩擦色牢度 耐日晒
色牢度
SC SP CC 干 湿
未改性 4~5 4~5 4~5 4~5 4 3~4
GTA改性 4~5 4~5 4~5 3~4 3 4~5
GTA/LDEA改性 4 4~5 4 4 2~3 4
[1] NALLATHAMBI A, RENGASWAMI G D V. Salt-free reactive dyeing of cotton hosiery fabrics by exhaust application of cationic agent[J]. Carbohydrate Polymers, 2016, 152:1-11.
doi: 10.1016/j.carbpol.2016.06.087
[2] FANG K J, SHU D W, LIU X M, et al. Reactive pad-steam dyeing of cotton fabric modified with cationic P(St-BA-VBT) nanospheres[J]. Polymers, 2018, 10(6):564.
doi: 10.3390/polym10060564
[3] 吴文胜, 黄泽铃, 陈涌, 等. 阳离子改性棉织物的活性染色[J]. 印染, 2018, 44(11):20-24.
WU Wensheng, HUANG Zeling, CHEN Yong, et al. Reactive dyeing of cotton fabric modified with cationic agents[J]. China Dyeing & Finishing, 2018, 44(11):20-24.
[4] 徐锦锦, 管永华, 王海峰, 等. 超支化有机硅阳离子接枝改性[J]. 印染, 2018, 44(11):25-28.
XU Jinjin, GUAN Yonghua, WANG Haifeng, et al. Grafted cationic modification of hyperbranched organic silicon[J]. China Dyeing & Finishing, 2018, 44(11):25-28.
[5] YANG H Z, FANG K J, LIU X M, et al. High-quality images inkjetted on different woven cotton fabrics cationized with P(St-BA-VBT) copolymer nanospheres[J]. ACS Applied Materials & Interfaces, 2019, 11(32):29218-29230.
[6] MEHMET K, PETER J H. Printing of cationised cotton with reactive dyes[J]. Coloration Technology, 2002, 118(6):300-306.
doi: 10.1111/cte.2002.118.issue-6
[7] MEHMET K, PETER J H. Ink-jet printing of cationised cotton using reactive inks[J]. Coloration Technology, 2003, 119(4):230-234.
doi: 10.1111/cte.2003.119.issue-4
[8] MA W, SHEN K Z, LI S, et al. One-bath pretreatment for enhanced color yield of ink-jet prints using reactive inks[J]. Molecules, 2017, 22(11):1959.
doi: 10.3390/molecules22111959
[9] WANG L, MA W, ZHANG S F, et al. Preparation of cationic cotton with two-bath pad-bake process and its application in salt-free dyeing[J]. Carbohydrate Polymers, 2009, 78(3):602-608.
doi: 10.1016/j.carbpol.2009.05.022
[10] ACHARYA S, ABIDI N, RAJBHANDARI R, et al. Chemical cationization of cotton fabric for improved dye uptake[J]. Cellulose, 2014, 21(6):4693-4706.
doi: 10.1007/s10570-014-0457-2
[11] BU G J, WANG C X, FU S H, et al. Water-soluble cationic chitosan derivative to improve pigment-based inkjet printing and antibacterial properties for cellulose substrates[J]. Journal of Applied Polymer Science, 2012, 125(3):1674-1680.
doi: 10.1002/app.34916
[12] FANG K, ZHANG L B, XU Y, et al. Pigment dyeing of polyamide-epichlorohydrin cationized cotton fabrics[J]. Journal of Applied Polymer Science, 2010, 118(5):2736-2742.
doi: 10.1002/app.32665
[13] 韩双, 房宽峻, 刘秀明, 等. 天丝织物表面改性对墨滴铺展形状及颜色性能影响[J]. 染整技术, 2019, 41(1):27-30,36.
HAN Shuang, FANG Kuanjun, LIU Xiuming, et al. Effect of Tencel fabric surface modification on the shape and colorperformance of ink droplet spread[J]. Textile Dyeing and Finishing Journal, 2019, 41(1):27-30,36.
[14] 丁梦阳, 管永华, 王海峰. 阳离子改性棉织物的染色性能[J]. 纺织学报, 2016, 37(9):84-89.
DING Mengyang, GUAN Yonghua, WANG Haifeng. Dyeing properties of cationic modified cotton fabrics[J]. Journal of Textile Research, 2016, 37(9):84-89.
[15] 周岚, 邵建中, 柴丽琴. 阳离子改性剂在棉纤维天然染料染色中的应用[J]. 纺织学报, 2009, 30(10):95-100,105.
ZHOU Lan, SHAO Jianzhong, CHAI Liqin. Application of cationic modification agent todyeing of cotton with natural dyes[J]. Journal of Textile Research, 2009, 30(10):95-100,105.
[16] LEWIS D M. Developments in the chemistry of reactive dyes and their application processes[J]. Coloration Technology, 2014, 130(6):382-412.
doi: 10.1111/cote.12114
[17] 刘添涛, 廉志军, 王建明. 聚酯/聚酰胺及其棉混纺织物的染色性能[J]. 纺织学报, 2013, 34(10):90-95.
LIU Tiantao, LIAN Zhijun, WANG Jianming. Dyeing properties of polyester/polyamide and its cotton blended fabrics[J]. Journal of Textile Research, 2013, 34(10):90-95.
[18] SHU D. Cleaner pad-steam dyeing technology for cotton fabrics with excellent utilization of reactive dye[J]. Journal of Cleaner Production, 2019, 241:118370.
doi: 10.1016/j.jclepro.2019.118370
[19] 安芳芳, 房宽峻, 刘秀明, 等. 羊毛织物的蛋白酶改性对墨滴铺展及颜色性能的影响[J]. 纺织学报, 2019, 40(6):58-63.
AN Fangfang, FANG Kuanjun, LIU Xiuming, et al. Effect of wool fabric protease modification on dropletspreading and color performance[J]. Journal of Textile Research, 2019, 40(6):58-63.
[20] 韩双, 房宽峻, 刘秀明, 等. 表面处理对天丝织物活性染料喷墨印花的影响[J]. 印染, 2019, 45(4):28-31.
HAN Shuang, FANG Kuanjun, LIU Xiuming, et al. Effect of surface treatment of Tencel fabric on its inkjet printing with reactive dyes[J]. China Dyeing & Finishing, 2019, 45(4):28-31.
[21] 杨海贞, 房宽峻, 刘秀明, 等. 棉织物组织结构对墨滴铺展及颜色性能的影响[J]. 纺织学报, 2019, 40(7):78-84.
YANG Haizhen, FANG Kuanjun, LIU Xiuming, et al. Influence of cotton fabric structure on ink droplet spreading andcolor performance[J]. Journal of Textile Research, 2019, 40(7):78-84.
[22] 肖进新, 赵振国. 表面活性剂应用原理[M]. 北京: 化学工业出版社, 2003: 116-148.
XIAO Jinxin, ZHAO Zhenguo. Application principle of surfactant[M]. Beijing: Chemical Industry Press, 2003: 116-148.
[23] KALEKAR M S, BHAGWAT S S. Effect of additives on the dynamic behavior of surfactants in solution[J]. Journal of Dispersion Science and Technology, 2007, 28(6):907-911.
doi: 10.1080/01932690701462805
[24] SAR P, GHOSH A, SCARSO A, et al. Surfactant for better tomorrow: applied aspect of surfactant aggregates from laboratory to industry[J]. Research on Cemical Intermediates, 2019, 45(12):6021-6041.
[25] SOMASUNDARAN P, HUANG L. Adsorption/ aggregation of surfactants and their mixtures at solid-liquid interfaces[J]. Advances in Colloid and Interface Science, 2000, 88(1):179-208.
doi: 10.1016/S0001-8686(00)00044-0
[26] HSIEH Y. Liquid transport in fabric structures[J]. Textile Research Journal, 2016, 65(5):299-307.
doi: 10.1177/004051759506500508
[27] YANG W, XU J. Drop spreading and penetrating on micro/nano particle sintering porous with multiscale structure[J]. Colloids and Surfaces A: Physicochemical and Engineering Aspects, 2017, 516:9-22.
doi: 10.1016/j.colsurfa.2016.12.005
