Journal of Textile Research ›› 2021, Vol. 42 ›› Issue (10): 47-52.doi: 10.13475/j.fzxb.20201103205

• Fiber Materials • Previous Articles     Next Articles

Preparation and properties of polytetrafluoroethylene/phenylene sulfide needled felt modified by aramid nanofiber

LIU Qiangfei1,2,3, WU Shaohua1,2, YANG Jizhen1,2,3, ZHOU Rong1,2,3(), DONG Xianglin4, SONG Chuanbo4, SHEN Zhaoxu4

  1. 1. College of Textile & Clothing, Qingdao University, Qingdao, Shandong 266071, China
    2. Industrial Research Institute of Nonwovens & Technical Textiles, Qingdao University, Qingdao, Shandong 266071, China
    3. Shangdong Center for Engineered Nonwovens, Qingdao, Shandong 266071, China
    3. Shandong Xingguo Xinli Environmental Protection Co.,Ltd., Zibo, Shandong 255000, China
  • Received:2020-11-13 Revised:2021-06-05 Online:2021-10-15 Published:2021-10-29
  • Contact: ZHOU Rong E-mail:rzhouqdu@126.com

RichHTML

17

PDF (PC)

81

Abstract:

Novel aramid nanofiber dispersion with different mass fractions was utilized to coat and process traditional high temperature polytetrafluoroethylene/phenylene(PTFE/PPS) needle-punched filter felts to improve their filtration efficiency. The micro-structure, element composition, thermalstability, mechanical properties, pore size distribution, air permeability as well as filtration properties of as-prepared composite filter materials (PTFE/PPS/ANF) were systemically explored and investigated. The results showed that the as-processed needle-punched felts exhibit a micro-nano structure when the aramid nanofiber dispersion was poured onto the needle-punched felts. It was found that the thermal stability and mechanical properties of as-obtained micro-nano composite felts were comparable to the untreated needle-punched felts. Most importantly, the micro-nano composite felts PTFE/PPS/ANF presented obviously enhanced filtration efficiency but slightly increased filtration resistance in comparison with the untreated felts. For instance, the filtration efficiency of the micro-nano composite felts is increased by 37.9% when the particulate maters with the diameter of 1.25 μm were utilized for filtration test. This study demonstrated that the nano-micro structure of composite felts played a major role in the improvement of filtration efficiency, and novel high temperature filter felts with high efficiency and low resistance were successfully achieved.

Key words: aramid nanofibers dispersion, needle-punched filter felt, membrane effect, high filtering efficiency and low filtering resistance, filtration efficiency, polyterafluoroethylene, phenylene sulfide

CLC Number:

  • TS174

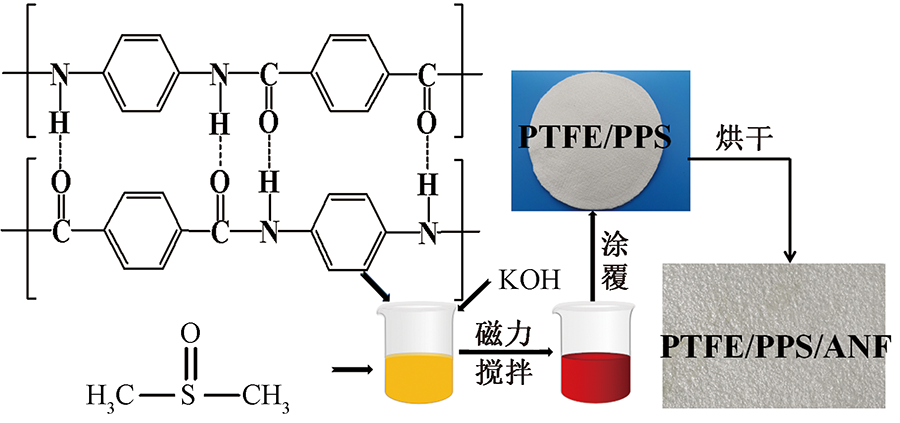

Fig.1

Flow chart of preparation process of PTFE/PPS/ANF composite felt"

Fig.2

SEM images of PTFE/PPS/ANF needle-punched composite felt with different ANFs mass fractions"

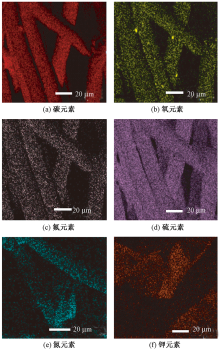

Fig.3

Element distribution of needle felt before and after treatment with aramid nanofibers dispersion. (a)Carbon;(b)Oxygen;(c)Fluorine;(d)Sulfur; (e)Nitrogen;(f)Potassium"

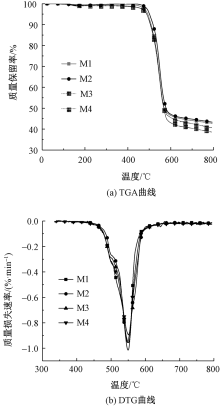

Fig.4

TGA (a) and DTG (b) curves of PTFE/PPS/ANF needle-punched composite felt with different ANFs mass fractions"

Tab.1

Mechanical properties of different samples"

样品编号 弹性模量/MPa 拉伸应变/% 拉伸强度/MPa
M1 69.06±7 43.85±6.0 11.41±1.2
M2 67.15±4.0 42.15±4 11.52±1.5
M3 53.09±5 45.48±3.5 12.36±1.4
M4 51.77±8 38.17±4.8 14.66±2.1

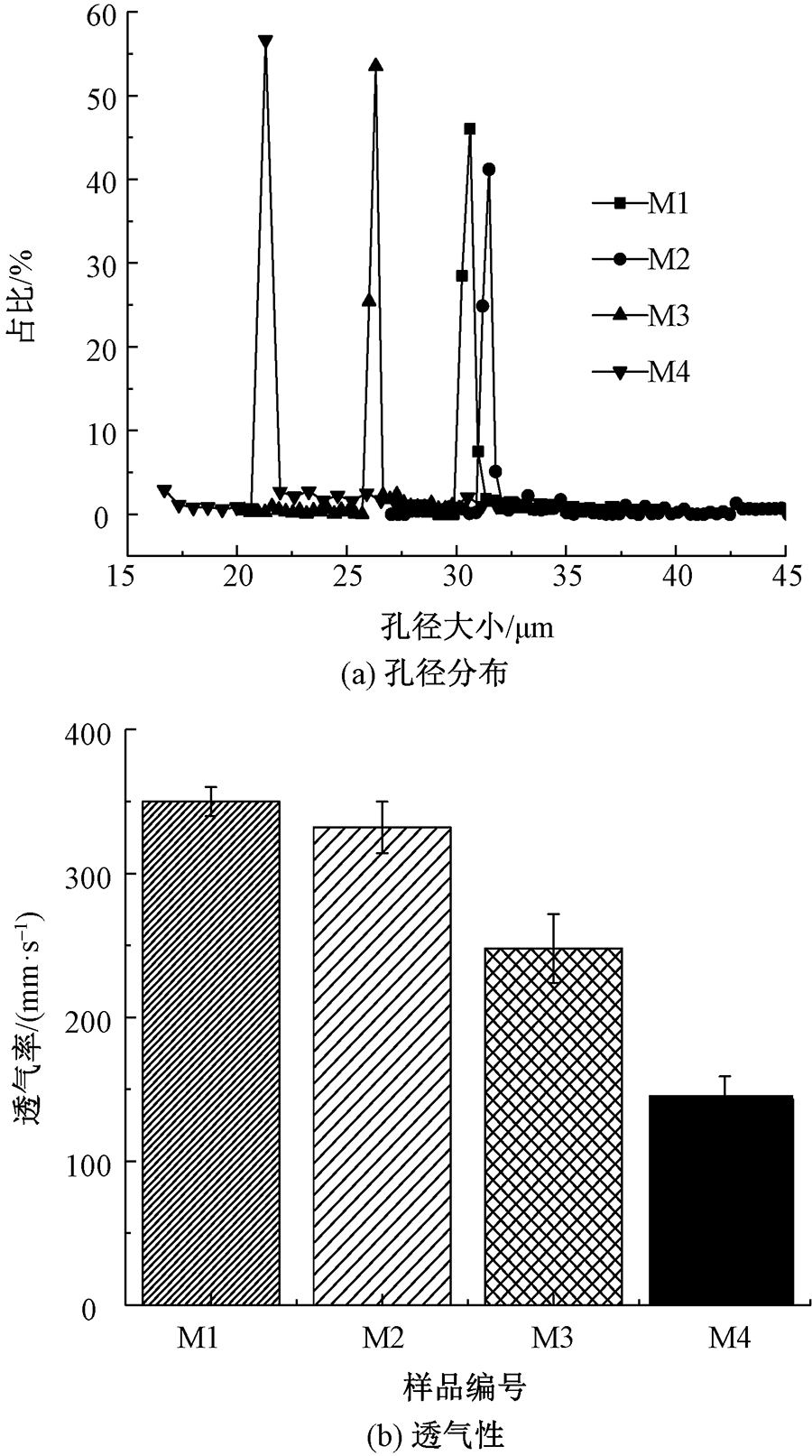

Fig.5

Pore size distribution (a) and air permeability (b) of PTFE/PPS/ANF needle-punched composite felt with different ANFs mass fractions"

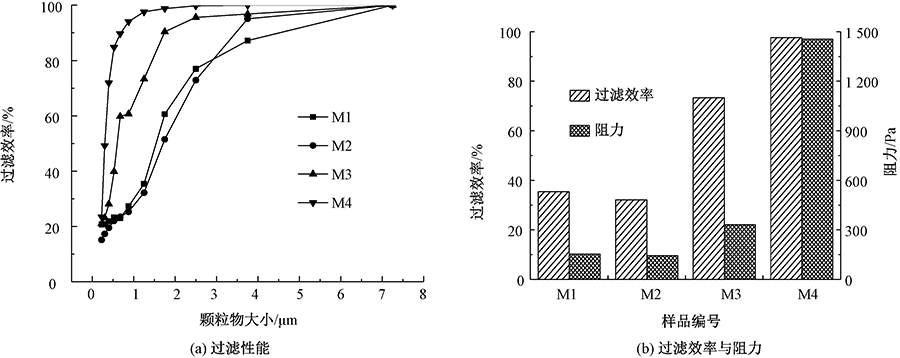

Fig.6

Filtration performance and evaluation of PTFE/PPS/ANF needle-punched composite felt with different ANFs mass fractions. (a)Overall filtration performance;(b)Partial filtration efficiency and resistance"

Fig.7

Quality factor of needle-punched composite felt"

Fig.8

SEM photos of PTFE/PPS/ANF needle-punched composite felt with different ANFs mass fractions"

[1] 黄学亮. 高效低阻空气过滤材料的制备及性能研究[D]. 杭州:浙江理工大学, 2012:2-7.
HUANG Xueliang. The preparation and properties of air filter materials with high filtering efficiency and low filtering resistance [D]. Hangzhou: Zhejiang Sci-Tech University, 2012: 2-7.
[2] 聂雪丽. 基于含尘烟气超低排放用袋式除尘滤料织物构造特性研究及应用[D]. 上海:东华大学, 2018:2-6.
NIE Xueli. Research and application on characteristics of filter media with bag filter based on ultra low emission of dust-laden flue gas[D]. Shanghai:Donghua University, 2018:2-6.
[3] ALMEWALLY A A, EL-SAKHAWY M, ELSHAKANKE-RY M, et al. Technology of nano-fibers: production techniques and properties-critical review[J]. J Text Assoc, 2017, 78:5-14.
[4] LIM C T. Nanofiber technology: current status and emerging developments [J]. Progress in Polymer Science, 2017, 70: l-17.
[5] GUO Yinghe, HE Weidong, LIU Jingxian. Electrospinning polyethylene terephthalate/SiO2nanofiber composite needle felt for enhanced filtration performance[J]. Journal of Applied Polymer Science, 2020, 137(2):11.
[6] WANG Qiannan BAI Yuying, XIE Jianfei, et al. Synjournal and filtration properties of polyimide nanofiber membrane/carbon woven fabric sandwiched hot gas filters for removal of PM2.5 particles[J]. Powder Technology, 2016, 292:54-63.
doi: 10.1016/j.powtec.2016.01.008
[7] CAO Keqin, SIEPERMANN C P, YANG Ming, et al. Reactive aramid nanostructures as high-performance polymeric building blocks for advanced composites[J]. Advanced Functional Materials, 2013, 23(16):2072-2080.
doi: 10.1002/adfm.v23.16
[8] ZHU Jiaqi, CAO Wenxin, YUE Mingli, et al. Strong and stiff aramid nanofiber/carbon nanotube nanocomposites[J]. Acs Nano, 2015, 9(3):2489-2501.
doi: 10.1021/nn504927e pmid: 25712334
[9] YANG Ming, CAO Keqin, YEOM Bongjun, et al. Aramid nanofiber-reinforced transparent nano-composites[J]. Journal of Composite Materials, 2015, 49(15):1873-1879.
doi: 10.1177/0021998315579230
[10] LYU Jing, WANG Xinzhi, LIU Lehao, et al. High strength conductive composites with plasmonic nanoparticles aligned on aramid nanofibers[J]. Advanced Functional Materials, 2016, 26(46):8435-8445.
doi: 10.1002/adfm.v26.46
[11] LU Zhaoqing, SI Lianmeng, DANG Wanbin, et al. Transparent and mechanically robust poly (para-phenylene terephthamide) PPTA nanopaper toward electrical insulation based on nanoscale fibrillated aramid-fibers[J]. Composites Part A: Applied Science and Manufacturing, 2018, 115:321-330.
doi: 10.1016/j.compositesa.2018.10.009
[12] 刘培杰. 芳纶纳米纤维涂覆非织造滤材在高温过滤领域的应用[D]. 上海:东华大学, 2018:16-39.
LIU Peijie. Application of aramid nanofiber coated nonwovens for high temperature filtration[D]. Shanghai:Donghua University, 2018:16-39.
[13] 燕芮. 对位芳纶纳米纤维/熔喷非织造复合过滤材料的制备及性能研究[D]. 上海:东华大学, 2020:28-47.
YAN Rui. Fabrication and characterization of aramid nanofiber/meltblown nonwoven composites for air filtration[D]. Shanghai:Donghua University, 2020:28-47.
[14] YANG Xue, PU Yi, ZHANG Yifei, et al. Multifunctional composite membrane based on BaTiO3@PU/PSA nanofibers for high-efficiency PM2.5 removal[J]. Journal of Hazardous Materials, 2020, 391:11.
[15] 罗峻, 姜逊, 胡剑灿, 等. PPS/PTFE高温过滤材料的DSC定量分析方法研究[J]. 上海纺织科技, 2016, 44(11):45-49.
LUO Jun, JIANG Xun, HU Jiancan et al. Quantitative analysis method of PPS/PTFE heat-resistant filter material by DSC[J]. Shanghai Textile Science & Technology, 2016, 44(11):45-49.
[16] 张洪亭. 芳纶纤维的热降解过程分析[J]. 上海纺织科技, 2012, 40(7):8-10.
ZHANG Hongting. Analysis of thermal degradation process of aramid fibers[J]. Shanghai Textile Science & Technology, 2012, 40(7):8-10.
