Journal of Textile Research ›› 2022, Vol. 43 ›› Issue (03): 116-122.doi: 10.13475/j.fzxb.20201202108

• Dyeing and Finishing & Chemicals • Previous Articles     Next Articles

One-bath dyeing of polyester/cotton blended fabrics in supercritical CO2 with Reactive Disperse Yellow dye

ZHOU Tianbo1, ZHENG Huanda1, CAI Tao2, YU Zuojun1, WANG Licheng3, ZHENG Laijiu1()

  1. 1. Liaoning Provincial Key Laboratory of Supercritical CO2 Dyeing, Dalian Polytechnic University, Dalian, Liaoning 116034, China
    2. Shishi CTES Research Institute of Apparel and Accessories Industry, Shishi, Fujian 362700, China
    3. Dalian Suplor Information and Materials Co., Ltd., Dalian, Liaoning 116023, China
  • Received:2020-12-09 Revised:2021-09-07 Online:2022-03-15 Published:2022-03-29
  • Contact: ZHENG Laijiu E-mail:fztrxw@dlpu.edu.cn

RichHTML

14

PDF (PC)

162

Abstract:

In order to solve the technical problems of energy consumption and serious water pollution in polyester/cotton blended fabric water dyeing, dyeing properties of polyester/cotton blended fabrics in the supercritical CO2 was investigated by using Reactive Disperse Yellow dye in order to expand the application range of supercritical CO2 dyeing technology. The effect of dyeing temperature, pressure, time, dosage of co-solvent and CO2 flow rate on the dyeing properties of polyester/cotton blended fabrics was analyzed. The optimized process condition was obtained to be dyeing temperature 100 ℃, pressure 20 MPa, dyeing time 80 min, CO2 flow 20 g/min and dimethyl sulfoxide (DMSO) dosage 80%. Reactive Disperse Yellow dye could significantly improve color depth and color fastness of polyester/cotton fabrics in comparison with natural dyes. Compared with "ethanol+N-methylpyrrolidone(NMP)" pretreatment, the K/S value of DMSO treatment was increased by more than two times, and the color fastness reached grade 4-5, presenting excellent dyeing effect.

Key words: supercritical CO2, one-bath dyeing, dyeing property, Reactive Disperse Yellow dye, polyester/cotton blended fabrics, pretreatment

CLC Number:

  • TS193.634

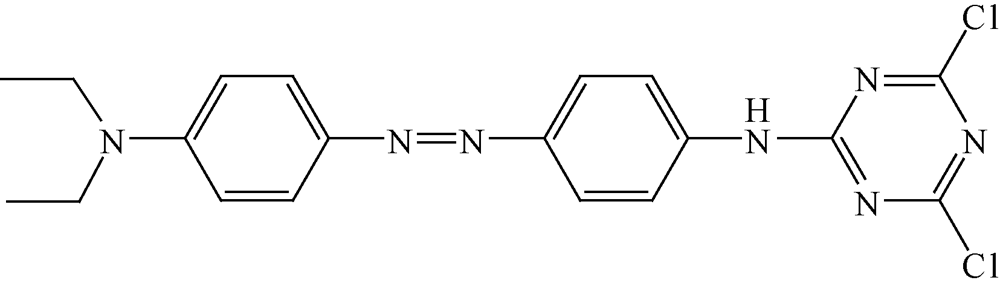

Fig.1

Chemical structure of Reactive Disperse Yellow dye"

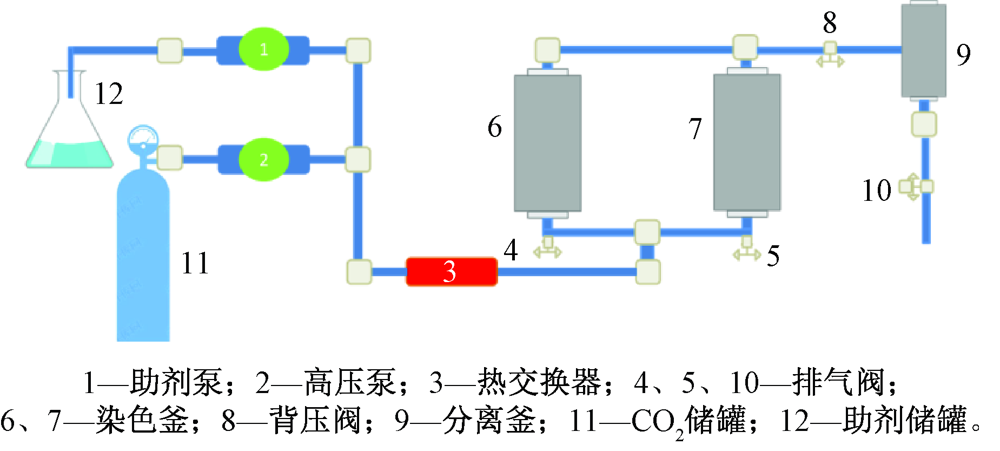

Fig.2

Supercritical CO2 fluid dyeing apparatus"

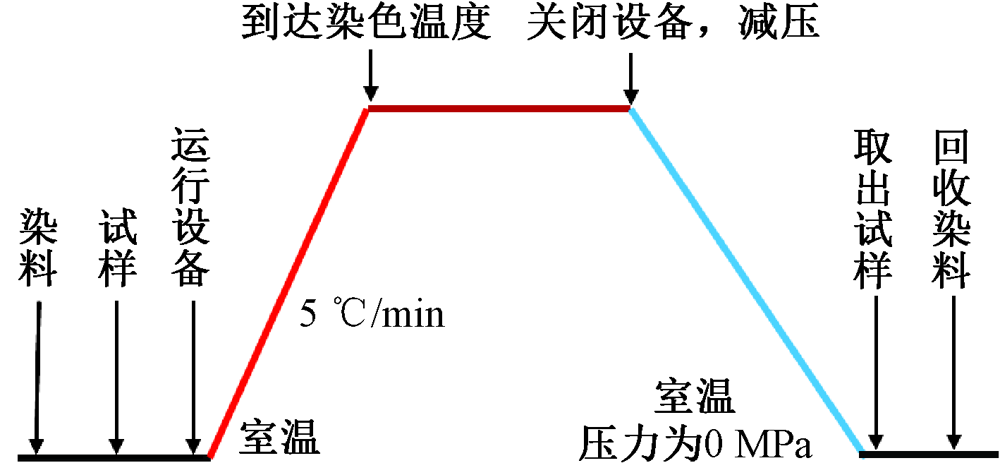

Fig.3

Dyeing process of polyester/cotton fabric"

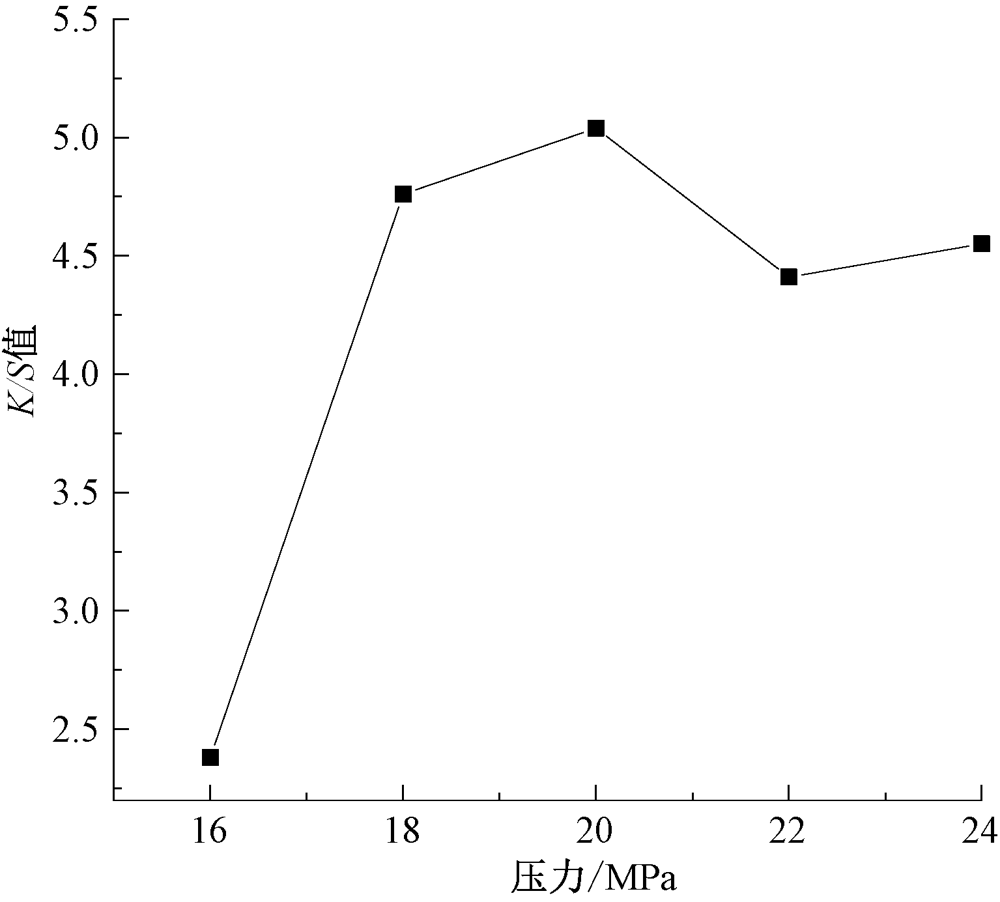

Fig.4

Effect of pressure on K/S value of polyester/cotton blended fabric"

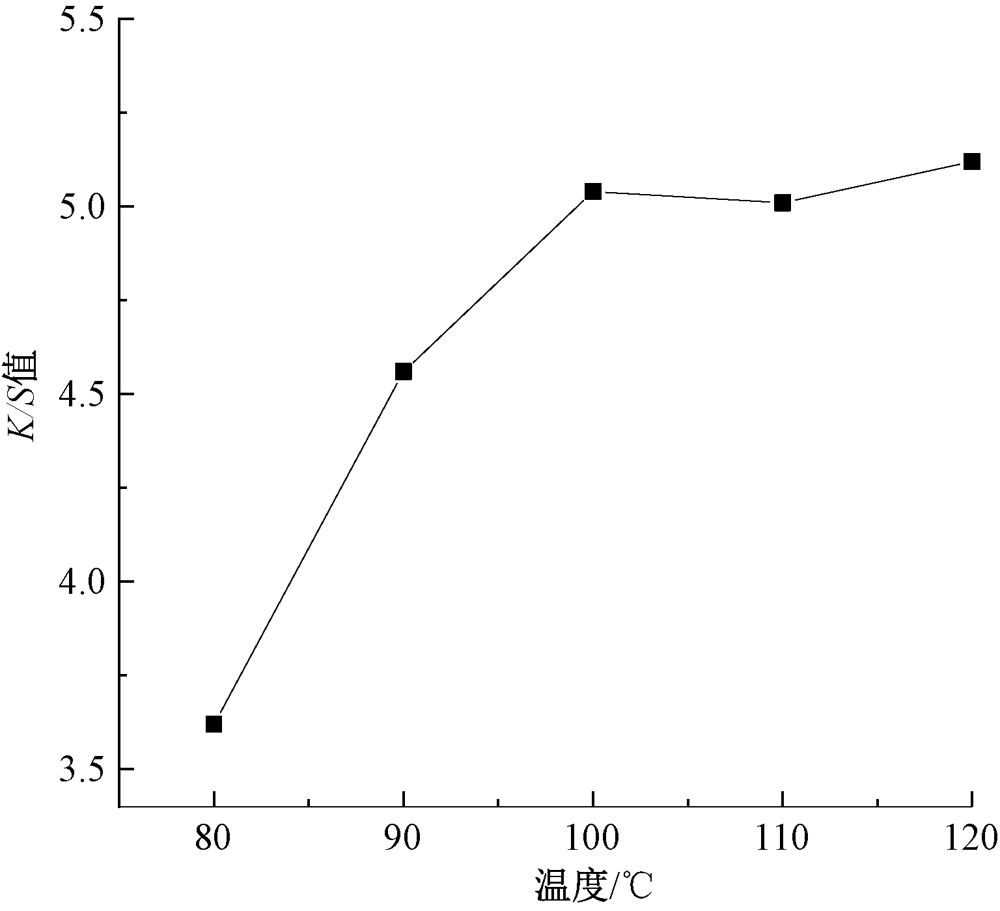

Fig.5

Effect of temperature on K/S value of polyester/cotton fabric"

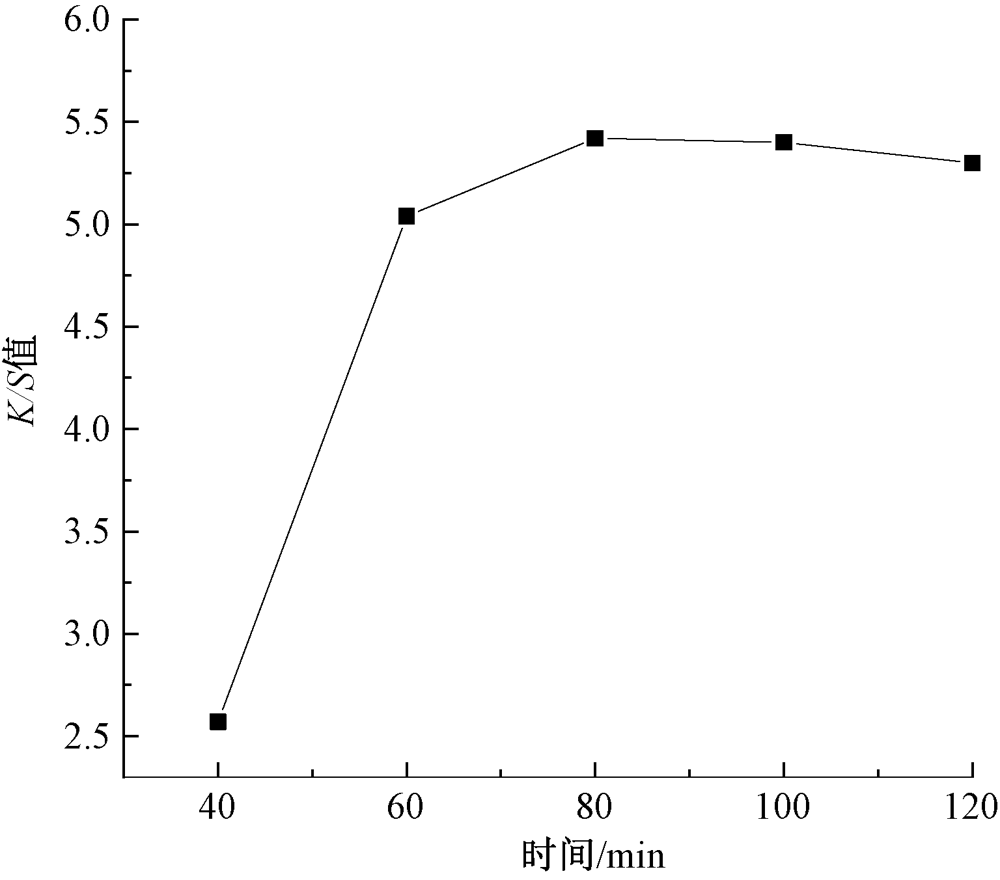

Fig.6

Effect of dyeing time on K/S value of polyester/cotton fabric"

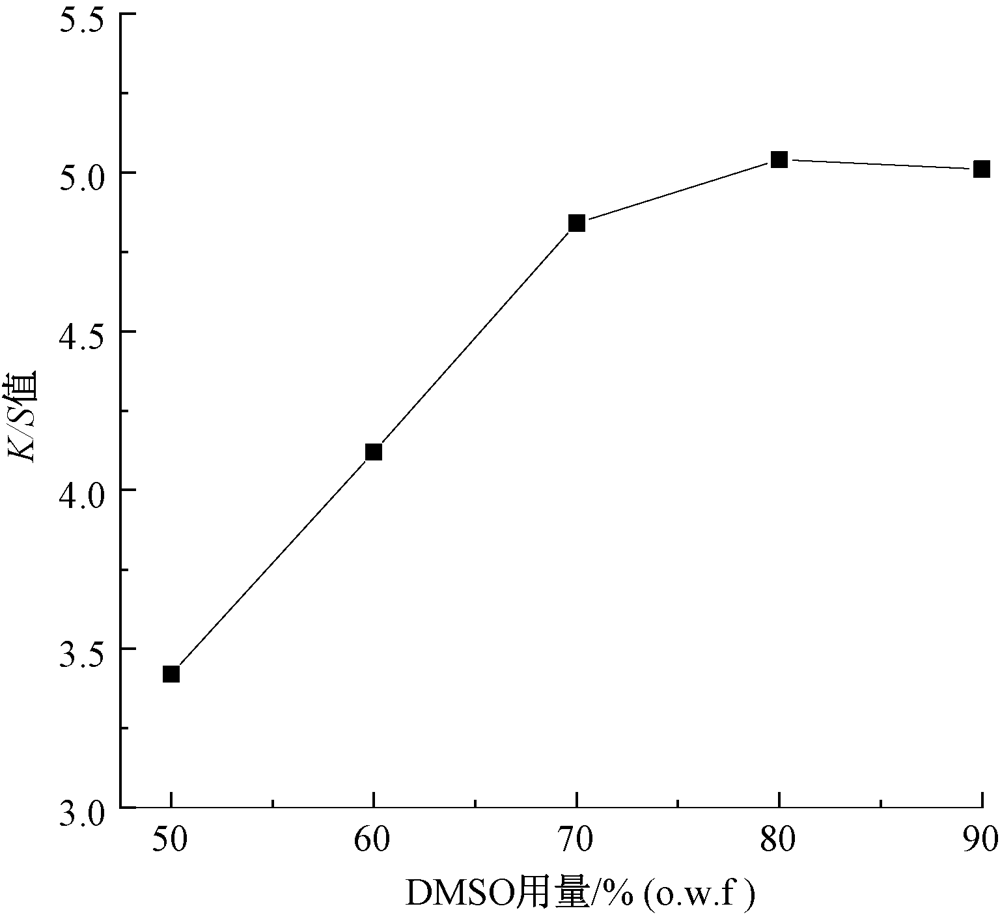

Fig.7

Effect of DMSO dosage on K/S value of polyester/cotton fabric"

Tab.1

K/S value comparison of polyester/cotton blended fabric"

染色温度/℃ 染料种类 助剂种类 K/S值
100 活性分散黄 无 0.90
DMSO 4.80
活性分散蓝[32] 无 0.83
乙醇+NMP 1.325
110 活性分散黄 无 1.22
DMSO 5.04
活性分散蓝[32] 无 1.15
乙醇+NMP 1.89
120 活性分散黄 无 1.68
DMSO 5.12
活性分散蓝[32] 无 1.72
乙醇+NMP 2.80

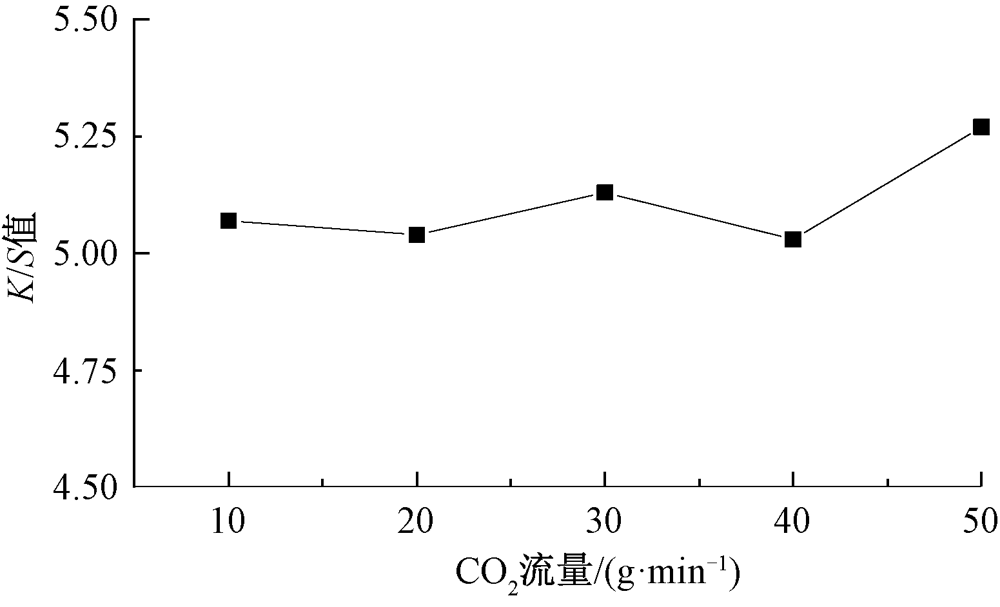

Fig.8

Effect of CO2 flow on K/S value of polyester/cotton fabric"

Fig.9

Images of dyed fabrics before and after stripping"

Tab.2

Leveling property of polyester/cotton blended fabric with different dyeing temperature"

染色温度/℃ 样品点个数 $\overline{K/S}$ Sλ ΔE
80 8 3.72 0.052 0.412
90 8 4.58 0.082 0.513
100 8 5.12 0.140 0.620
110 8 4.95 0.190 0.911
120 8 5.11 0.039 0.382

Tab.3

Color fastness of dyed polyester/cotton blended fabric with different dyeing temperature"

温度/
℃		 数据来源 耐摩擦色牢度/级 耐水洗色牢度/级
干 湿 棉沾色 涤沾色 褪色
80 本文 4~5 4 4 4 4
90 本文 4~5 4 4 4 4
100 本文 4~5 4 4 4~5 4
110 本文 4~5 4~5 4 4 4~5
120 本文 4~5 4 4~5 4~5 4~5
文献[8] 3~4 3 3 3 3~4
文献[25] 4~5 4 4 4 4
[1] 王晓文, 郑昊, 罗艳, 等. 分散染料微胶囊/活性染料涤棉一浴法染色工艺初探[J]. 东华大学学报(自然科学版), 2007,33(4):468-471.
WANG Xiaowen, ZHENG Hao, LUO Yan, et al. Improving the dyeing process of polyester/cotton blends by disperse dyes microcapsules/reactive dyes in one bath[J]. Journal of Donghua University(Natural Science), 2007,33(4):468-471.
[2] MOHAMED F A, MOHAREB R M. Synjournal and application of novel reactive disperse dye based on tetrahydrobenzo[b] thiophene moiety[J]. Research Journal of Textile and Apparel, 2016,18(3):28-34.
doi: 10.1108/RJTA-18-03-2014-B004
[3] LI S N, ZHENG H D, ZHENG L J, et al. Effect of fluid field on the eco-friendly utilization and recycling of CO2 and dyes in the waterless dyeing[J]. Journal of CO2 Utilization, 2020,42:101311.
[4] ZHENG H D, SU Y H, ZHENG L J, et al. Numerical simulation of CO2 and dye separation for supercritical fluid in separator[J]. Separation and Purification Technology, 2020,236(1):116246.
doi: 10.1016/j.seppur.2019.116246
[5] YE F, ZHAO Y P, ZHENG H D, et al. Prediction of acid red 138 solubility in supercritical CO2 with water co-solvent[J]. RSC Advances, 2019,9:41511-41517.
doi: 10.1039/C9RA06749C
[6] 郑环达, 郑禹忠, 岳成君, 等. 超临界二氧化碳流体染色工程化研究进展[J]. 精细化工, 2018,35(9):1449-1456.
ZHENG Huanda, ZHENG Yuzhong, YUE Chengjun, et al. Research progress on engineering technology of supercritical carbon dioxide fluid dyeing[J]. Fine Chemicals, 2018,35(9):1449-1456.
[7] YE F, LIU G H, IBRAHIM K, et al. Inspection for supercritical CO2 dyeing of polyester (m-phenylene isophthalamide) by kinetics and thermodynamics analysis[J]. Journal of Engineered Fibers and Fabrics, 2019,14:1-8.
[8] BANCHERO M. Supercritical fluid dyeing of synthetic and natural textiles:a review[J]. Coloration Technology, 2013,129(1):2-17.
doi: 10.1111/cote.2013.129.issue-1
[9] LONG J J, RAN L R, DE W, et al. Solubility of a reactive disperse dye in supercritical carbon dioxide[J]. Coloration Technology, 2012,128(1):127-128.
doi: 10.1111/cote.2012.128.issue-2
[10] GAO D, YANG D F, CUI H S, et al. Synjournal and measurement of solubilities of reactive disperse dyes for dyeing cotton fabrics in supercritical carbon dioxide[J]. Industrial and Engineering Chemistry Research, 2014,53(36):13862-13870.
doi: 10.1021/ie5025497
[11] 朱昭宇. 涤棉针织内衣超临界CO2染色技术研究[D]. 大连: 大连工业大学, 2014: 7-23.
ZHU Zhaoyu. Supercritical CO2 dyeing on cotton-polyester knitted underwear[D]. Dalian: Dalian Polytechnic University, 2014: 7-23.
[12] 杨锦宗. 染料的分析与剖析[M]. 北京: 化工工业出版社, 1987: 371-379.
YANG Jinzong. Analysis of dyes[M]. Beijing: Chemical Industry Press, 1987: 371-379.
[13] TISA C C, LIN H M, LEE M J. Solubility of disperse yellow 54 in supercritical carbon dioxide with or without cosolvent[J]. Fluid Phase Equilibria, 2007,260:287-294.
doi: 10.1016/j.fluid.2007.07.070
[14] ANDREATTA A E, FLORUSSE L J, BOTTINI S B, et al. Phase equilibria of sulfoxide (DMSO) + carbon dioxide, and DMSO + carbon dioxide + water mixtures[J]. The Journal of Supercritical Fluids, 2007,42(1):60-68.
doi: 10.1016/j.supflu.2006.12.015
[15] BACH E, CLEVE E, SCHOLLMEYER E. Past present and future of supercritical fluid dyeing technology and overview[J]. Coloration Technology, 2010,32(1):88-102.
[16] ELLINGTON B J, PARK M K, BRENNECKE F J. Effect of local composition enhancements on the esterification of phthalic anhydride with methanol in supercritical carbon dioxide[J]. Industrial and Engineering Chemistry Research, 1994,33:965-974.
doi: 10.1021/ie00028a026
[17] BANCHERO M, FERRI A, MANNA L, et al. Solubility of disperse dyes in supercritical carbon dioxide and ethanol[J]. Fluid Phase Equilibria, 2006,243:107-114.
doi: 10.1016/j.fluid.2006.02.010
[18] ZHENG H D, ZHONG Y, ZHENG L J, et al. CO2 utilization for the waterless dyeing: characterization and properties of disperse red 167 in supercritical fluid[J]. Journal of CO2 Utilization, 2018,24:266-273.
[19] 郑环达, 郑来久. 超临界流体染整技术研究进展[J]. 纺织学报, 2015,36(9):141-148.
ZHENG Huanda, ZHENG Laijiu. Research development of supercritical fluid dyeing and finishing technology[J]. Journal of Textile Research, 2015,36(9):141-148.
[20] HUANG T T, KONG X J, CUI H S, et al. Waterless dyeing of zipper tape using pilot-scale horizontal supercritical carbon dioxide equipment and its green and efficient production[J]. Journal of Cleaner Production, 2019,233:1097-1105.
doi: 10.1016/j.jclepro.2019.06.189
[21] 李胜男, 赵玉萍, 郑环达, 等. 超临界CO2流体中分散染料溶解度研究进展[J]. 精细化工, 2020,37(8):1-6.
LI Shengnan, ZHAO Yuping, ZHENG Huanda, et al. Research progress on disperse dyes solubility in supercritical carbon dioxide fluid[J]. Fine Chemicals, 2020,37(8):1-6.
[22] 张娟, 郑环达, 郑来久. 超临界二氧化碳染色工艺技术研究进展[J]. 染料与染色, 2015,52(4):22-29.
ZHANG Juan, ZHENG Huanda, ZHENG Laijiu. Review on dying process in supercritical carbon dioxide fluid[J]. Dyestuffs and Coloration, 2015,52(4):22-29.
[23] WANG Y X, JING X D, ZHAO Y P, et al. Waterless beam dyeing in supercritical CO2: establishment of clean and efficient color matching system[J]. Journal of CO2 Utilization, 2020,43:1-9.
[24] YAN K, ZHANG Y Q, XIAO H, et al. Development of a special SCFX-AnB3L dye and its application in ecological dyeing of silk with supercritical carbon dioxide[J]. Journal of CO2 Utilization, 2019,35:67-68.
[25] ZHANG Y Q, WEI X C, LONG J J. Ecofriendly synjournal and application of special disperse reactive dyes in waterless coloration of wool with supercritical carbon dioxide[J]. Journal of Cleaner Production, 2016,133(1):746-756.
doi: 10.1016/j.jclepro.2016.05.187
[26] FERNENDEZ C, SPRONSEN J, KRAAN M, et al. A significant approach to dye cotton in supercritical carbon dioxide with fluorotriazine reactive dyes[J]. The Journal of Supercritical Fluids, 2007,40(3):477-484.
doi: 10.1016/j.supflu.2006.07.011
[27] FAN Y, ZHANG Y Q, YAN K, et al. Synjournal of a novel disperse reactive dye involving a versatile bridge group for the sustainable coloration of natural fibers in supercritical carbon dioxide[J]. Advanced Science, 2018,6:1-14.
[28] LONG J J, MA Y Q, ZHAO J P. Investigations on the level dyeing of fabrics in supercritical carbon dioxide[J]. Journal of Supercritical Fluids, 2011,57(1):80-86.
doi: 10.1016/j.supflu.2011.02.007
[29] GAO D, CUI H S, LIN J X, et al. Synjournal of reactive disperse dyes containing halogenated acetamide group for dyeing cotton fabric in supercritical carbon dioxide[J]. Journal of Supercritical Fluids, 2014,86:108-114.
doi: 10.1016/j.supflu.2013.12.006
[30] YANG D F, KONG X J, GAO D, et al. Dyeing of cotton fabric with reactive disperse dye contain acyl fluoride group in supercritical carbon dioxide[J]. Dyes and Pigments, 2017,139:566-574.
doi: 10.1016/j.dyepig.2016.12.050
[31] LONG J J, XIAO G D, XU H M, et al. Dyeing of cotton fabric with a reactive disperse dye in supercritical carbon dioxide[J]. Journal of Supercritical Fluids, 2012,69:13-20.
doi: 10.1016/j.supflu.2012.05.002
[32] MAEDA S, KUNINOU K, HIHARA T, et al. One-bath dyeing of polyester/cotton blends with reactive disperse dyes in supercritical carbon dioxide[J]. Textile Research Journal, 2004,74(11):989-994.
doi: 10.1177/004051750407401109
[33] ELLINGTON J B, PARK K M, BRENNECKE J F. Effect of local composition enhancements on the esterification of phthalic anhydride with methanol in supercritical carbon dioxide[J]. Industrial and Engineering Chemistry Research, 1994,33(4):965-974.
doi: 10.1021/ie00028a026
[34] ABATE T, FERRI A, GUAN J P, et al. Colouration and bio-activation of polyester fabric with curcumin in supercritical CO2: part I: investigating colouration properties[J]. The Journal of Supercritical Fluids, 2019,152:104548.
doi: 10.1016/j.supflu.2019.104548
[35] YANG M Y, LIU J, ZHANG Y Q, et al. Rope dyeing of fabric in supercritical carbon dioxide for commercial purposes[J]. Coloration Technology, 2014,130(2):102-111.
doi: 10.1111/cote.2014.130.issue-2
[36] 郑环达, 钟毅, 郑来久, 等. 超临界CO2微乳液及其在纺织中的研究进展[J]. 精细化工, 2019,36(1):1-6.
ZHENG Huanda, ZHONG Yi, ZHENG Laijiu, et al. Research progress on supercritical CO2 microemulsions and their application in textiles[J]. Fine Chemicals, 2019,36(1):1-6.
