Journal of Textile Research ›› 2021, Vol. 42 ›› Issue (11): 137-142.doi: 10.13475/j.fzxb.20210100207

• Apparel Engineering • Previous Articles     Next Articles

Color parsing of female brand clothing based on nexus network modeling

XU Minghui1, XU Pinghua1,2(), WEI Qiuju1, DING Xuemei3, MAO Hailin4

  1. 1. School of Fashion Design and Engineering, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
    2. National Virtual Simulation Experimental Teaching Center of Clothing Design (Zhejiang Sci-Tech University), Hangzhou, Zhejiang 310018, China
    3. Key Laboratory of Clothing Design and Technology, Ministry of Education, Shanghai 200051, China
    4. Jiangsu Yihai Clothing Co., Ltd., Nantong, Jiangsu 226007, China
  • Received:2021-01-04 Revised:2021-07-28 Online:2021-11-15 Published:2021-11-29
  • Contact: XU Pinghua E-mail:shutexph@163.com

RichHTML

31

PDF (PC)

125

Abstract:

Targeting at lacks of the deep level parsing on rules and mechanisms of clothing color, a nexus network model for clothing color relations and internal connection using imaging processing technology was established. The dominant colors and color ratios of female brand clothing were detected using two-step clustering before an innovative nexus network model was constructed and composed multi-features such as diff-color frequency, dual color matching intimacy and color distances. 500 female clothing images of three representative brands were chosen and analyzed in terms of main color distribution, matching relationship and mechanisms. The developed software efficiently displays each brand color pattern for different years and quarters with a visualized model. Results show that the main colors, spatial distance and co-occurrence rules are different, the cumulative proportion of the first three colors is more than 50%, and the time cost of a single image is less than 0.3 s.The visualized color nexus network model is able to display objectively clothing color rules,assisting the fashion merchandising and design decision-making.

Key words: women's clothing color matching, nexus network, color matching mechanism, color clustering, visualized model, spatial distance

CLC Number:

  • TS941.2

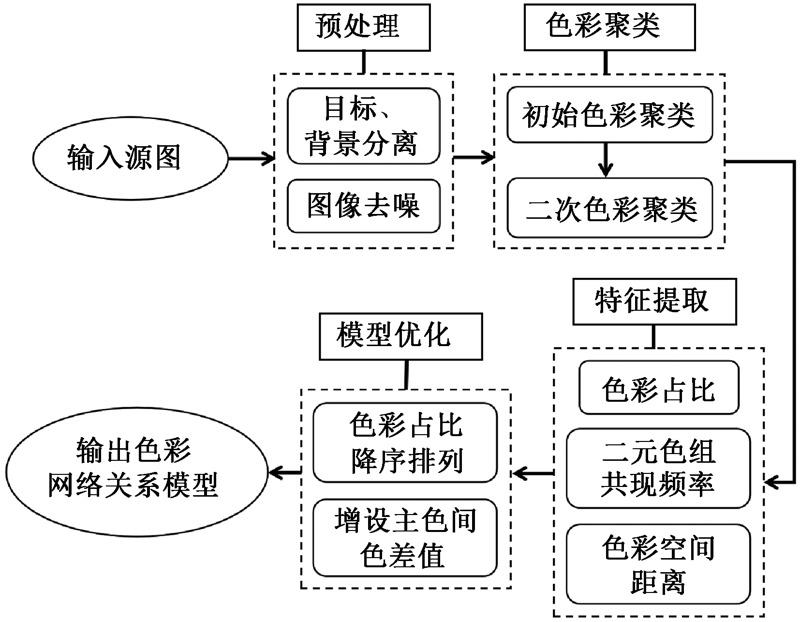

Fig.1

Construction process of color nexus network model"

Fig.2

Process of clothing image color clustering"

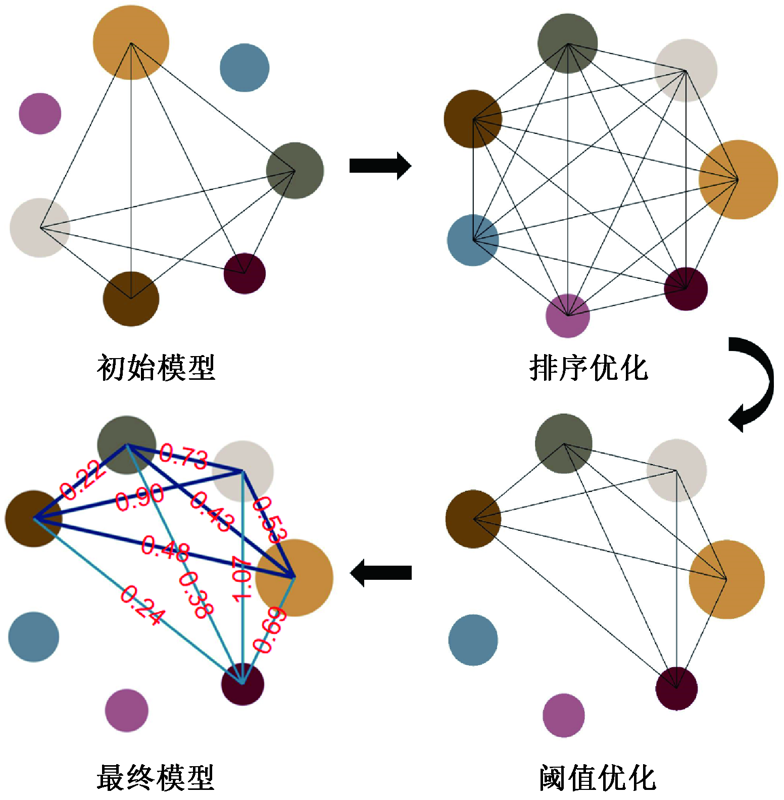

Fig.3

Color nexus network model optimization process"

Fig.4

Interface of color analysis software"

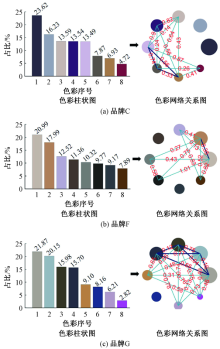

Fig.5

Color analysis of three female brand clothing in 2000. (a) Brand C; (b) Brand F; (c) Brand G"

Tab.1

Three brands clothing color value in 2020"

类别 色彩序号 品牌C 品牌F 品牌G
主色颜色值 1 #3C3847 #CAB8A9 #ACA193
2 #9D9EAB #BE8C5D #A1B1B8
3 #CCBAAE #BAAAC2 #4E4435
辅助色颜色值 4 #452F5E #58443A #363A46
5 #D3BBD2 #807A74 #C58D4B
6 #6C5C52 #272624 #2E4172
7 #B68452 #3E4448 #BBA0B2
8 #8D273D #683D21 #CA3CC6

Fig.6

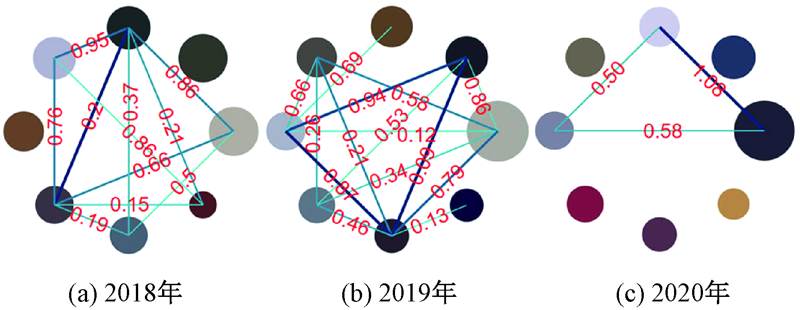

Spring and summer color nexus network model during three years. (a) In 2018; (b) In 2019; (c) In 2020"

Fig.7

Autumn and winter color nexus network model during three years. (a) In 2018; (b) In 2019; (c) In 2020"

Fig.8

Comprehensive quarterly color nexus network model. (a) Sping and summer; (b) Autumn and winter"

Fig.9

Annual color nexus network model. (a) In 2018; (2)In 2019; (c)In 2020"

Tab.2

Brand C color value in 2020"

时尚季 色彩序号 2018年度 2019年度 2020年度 3年综合
春夏 1 #B1A698 #A9A296 #2A2938 #A6A1AF
2 #3D3933 #1D2127 #2D3E5B #2D313B
3 #24292A #684731 #CDC5D5 #AEA498
秋冬 1 #29282E #292A2F #CCBAAF #30303A
2 #252422 #3E363B #AFB5BD #B1A398
3 #423025 #2B2725 #D0B3C0 #B4AEBE
年度综合 1 #31343B #A69D93 #3C3847 #A49388
2 #A3978C #9D9CA7 #9D9EAB #504944
3 #312F2B #262830 #CCBAAE #363B46
[1] 王忆雯, 梁惠娥, 崔荣荣. 传统荷包南北地域色彩差异化比较[J]. 纺织学报, 2017, 38(1):121-125.
WANG Yiwen, LIANG Hui'e, CUI Rongrong. Comparative research on traditional pouch difference between north and south regions[J]. Journal of Textile Research, 2017, 38(1):121-125.
[2] 陈丽丽, 王立川, 陈雁. 色彩感觉特性的评价[J]. 纺织学报, 2017, 38(9):127-130.
CHEN Lili, WANG Lichuan, CHEN Yan. Evaluation of color perception characteristics[J]. Journal of Textile Research, 2017, 38(9):127-130.
[3] 徐平华, 冒海琳, 黄琴琴. 服饰场景视觉共性认知评价方法[J]. 纺织学报, 2019, 40(9):198-202.
XU Pinghua, MAO Hailin, HUANG Qinqin. Common cognitive evaluation method for fashion visual scenes[J]. Journal of Textile Research, 2019, 40(9):198-202.
[4] 孙菲菲, 徐平华, 丁雪梅, 等. 服饰设计视觉显著性检测[J]. 纺织学报, 2018, 39(3):126-131.
SUN Feifei, XU Pinghua, DING Xuemei, et al. Visual saliency detection of clothing and accessory design[J]. Journal of Textile Research, 2018, 39(3):126-131.
[5] 张苏道, 薛文良, 魏孟媛, 等. 眼动仪在服装面料色彩视觉评价中的应用[J]. 纺织学报, 2019, 40(3):139-145.
ZHANG Sudao, XUE Wenliang, WEI Mengyuan, et al. Application of eye tracker in visual evaluation of apparel fabric colors[J]. Journal of Textile Research, 2019, 40(3):139-145.
[6] JIANG Q L, CHEN L C, ZHANG J. Perception and preference analysis of fashion colors: solid color shirts[J]. Sustainability, 2019, 11(8):2405.
doi: 10.3390/su11082405
[7] XING X, GU W, LIU X G. Apparel color preferences for different regions in China: the connection to personal values[J]. Color Research & Application, 2018, 43(3):423-435.
[8] STEWARD D V. The design structure system: a method for managing the design of complex system [C]//Proceedings of IEEE Transactions on Engineering Management. Washington: IEEE, 1981:152-161.
[9] 刘肖健, 曹愉静, 赵露唏. 传统纹样的色彩网络模型及配色设计辅助技术[J]. 计算机集成制造系统, 2016, 22(4):899-907.
LIU Xiaojian, CAO Yujing, ZHAO Luxi. Color networks of traditional cultural patterns and color design aiding technology[J]. Computer Integrated Manufacturing Systems, 2016, 22(4):899-907.
[10] 李愚, 刘肖健, 孙艳, 等. 产品配色设计的色彩邻接网络模型[J]. 计算机集成制造系统, 2019, 25(9):2355-2364.
LI Yu, LIU Xiaojian, SUN Yan, et al. Color adjacent network model of product color matching design[J]. Computer Integrated Manufacturing Systems, 2019, 25(9):2355-2364.
[11] XU B, LIU X, LU C, et al. Transferring the color imagery from an image: a color network model for assisting color combination[J]. Color Research & Application, 2019, 44(2):205-220.
[12] XU N, PRICE B, COHEN S, et al. Deep image matting [C]// 2017 IEEE Conference on Computer Vision & Pattern Recognition.Hawaii:IEEE Computer Society, 2017:311-320.
[13] SALHI K, JAARA E M, ALAOUI M T, et al. Color-texture image clustering based on neuro-morphological approach[J]. IAENG Internaitonal Journal of Computer Science, 2019, 46(1):134-140.
[14] 徐平华, 冒海琳, 张玉杰, 等. 民族服饰色彩构成分析方法研究[J]. 丝绸, 2019, 56(3):24-29.
XU Pinghua, MAO Hailin, ZHANG Yujie, et al. Study on analysis method for color composition of ethnic costumes[J]. Journal of Silk, 2019, 56(3):24-29.
