Journal of Textile Research ›› 2021, Vol. 42 ›› Issue (12): 15-20.doi: 10.13475/j.fzxb.20210204706

• Fiber Materials • Previous Articles     Next Articles

Preparation and properties of cellulose/calcium alginate blend fiber

CHEN Zihan1, YAO Yongbo2(), SHENG Junlu2, YAN Zhiyong2, ZHANG Yumei3, WANG Huaping3

  1. 1. Fashion Design Academy, Jiaxing Nanhu University, Jiaxing, Zhejiang 314001, China
    2. Key Laboratory of Yarn Materials Forming and Composite Processing Technology of Zhejiang Province, Jiaxing University, Jiaxing, Zhejiang 314001, China
    3. State Key Laboratory of Chemical Fibers and Polymer Materials, Donghua University, Shanghai 201620, China
  • Received:2021-02-20 Revised:2021-09-13 Online:2021-12-15 Published:2021-12-29
  • Contact: YAO Yongbo E-mail:yaoyongbo@foxmail.com

RichHTML

34

PDF (PC)

268

Abstract:

In order to reduce the flammability of cellulose fibers, ionic liquid 1-allyl-3-methylimidazole chloride ([AMIM]Cl) was used as co-solvent for cellulose and alginic acid. Then, the cellulose/calcium alginate blend fiber was prepared with calcium chloride solution as the coagulation bath by dry-jet wet spinning. The effect of cellulose/calcium alginate blend ratio on the structure and properties of the fibers were studied. The results show that the cross-section of the blend fibers is dense, and the hydrogen bond interactions exist between cellulose and calcium alginate molecules. Despite the fact of the mechanical strength of the blend fibers decreases with the increase of calcium alginate content, the tensile strength reaches 123 MPa when the content of calcium alginate is 30%, and the self-extinguishing time from fire of this fiber is only 1.1 s, indicating excellent self-extinguishing property. In addition, the moisture regain of cellulose/calcium alginate blend fibers is 7.33%-7.75%, representing good hygrophilic property and wearability for regenerated cellulose fibers.

Key words: cellulose, calcium alginate, dry-jet wet spinning, flame retardant fiber, ionic liquid

CLC Number:

  • TQ341.5

Tab.1

Spinning conditions for cellulose/calcium alginate blend fibers"

样品
编号		 海藻酸钙质量
分数/%		 凝固浴组成 牵伸
倍数
1# 0 水 4
2# 10 5%氯化钙溶液 4
3# 20 5%氯化钙溶液 4
4# 30 5%氯化钙溶液 4

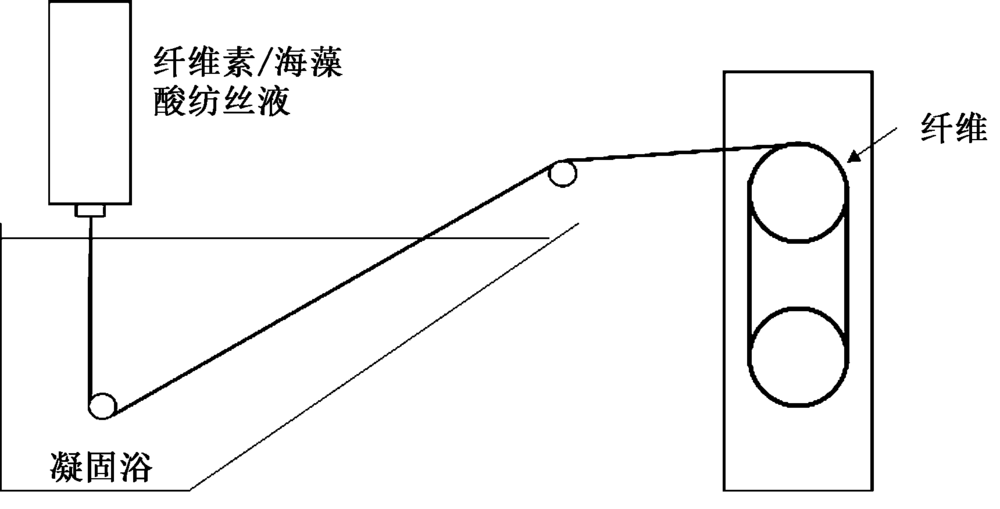

Fig.1

Spinning schematic diagram of cellulose/calcium alginate blend fibers"

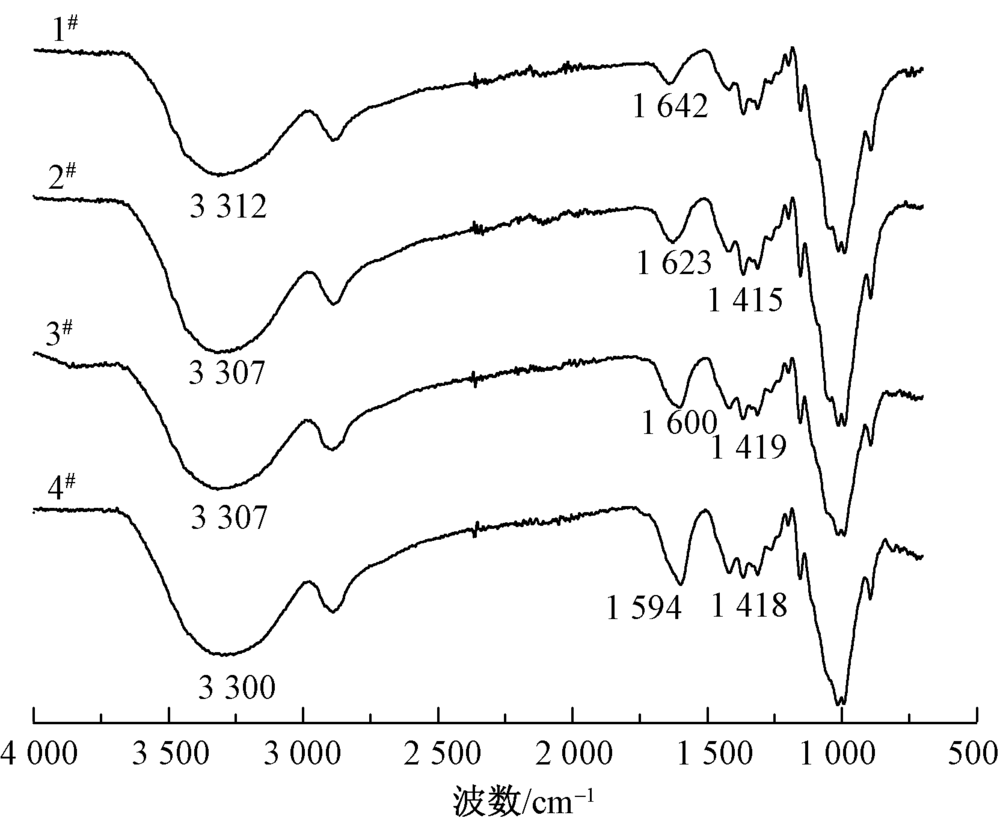

Fig.2

FT-IR spectra of cellulose/calcium alginate blend fiber fibers"

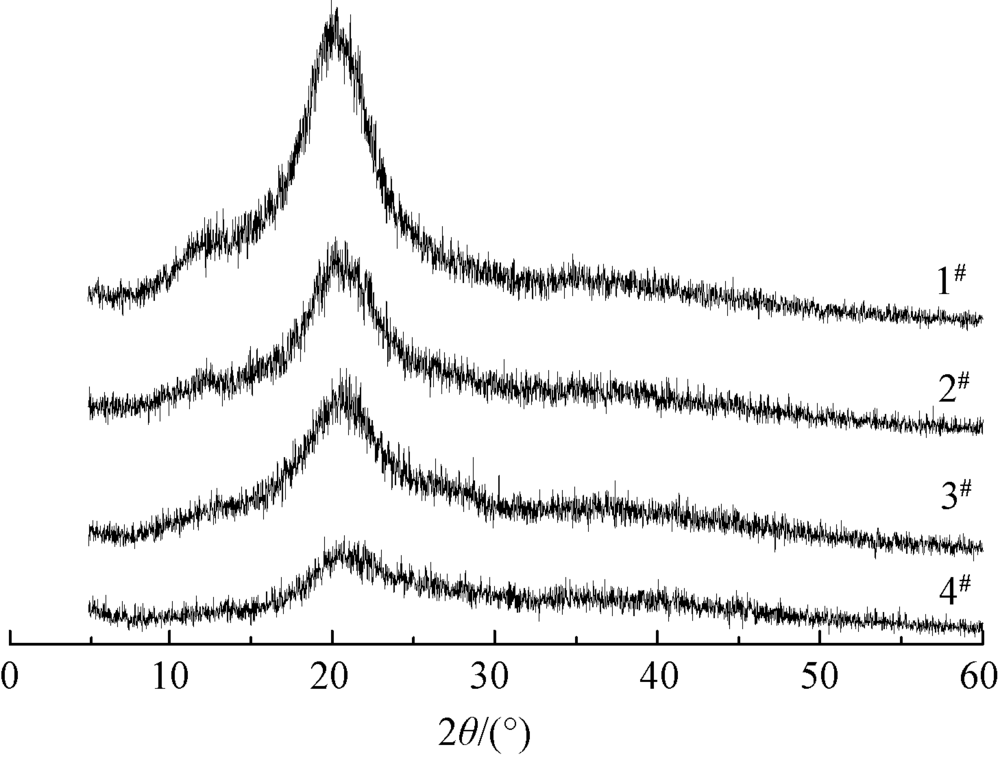

Fig.3

XRD pattern of cellulose/calcium alginate blend fibers"

Fig.4

Cross-section SEM images of cellulose/calcium alginate blend fibers"

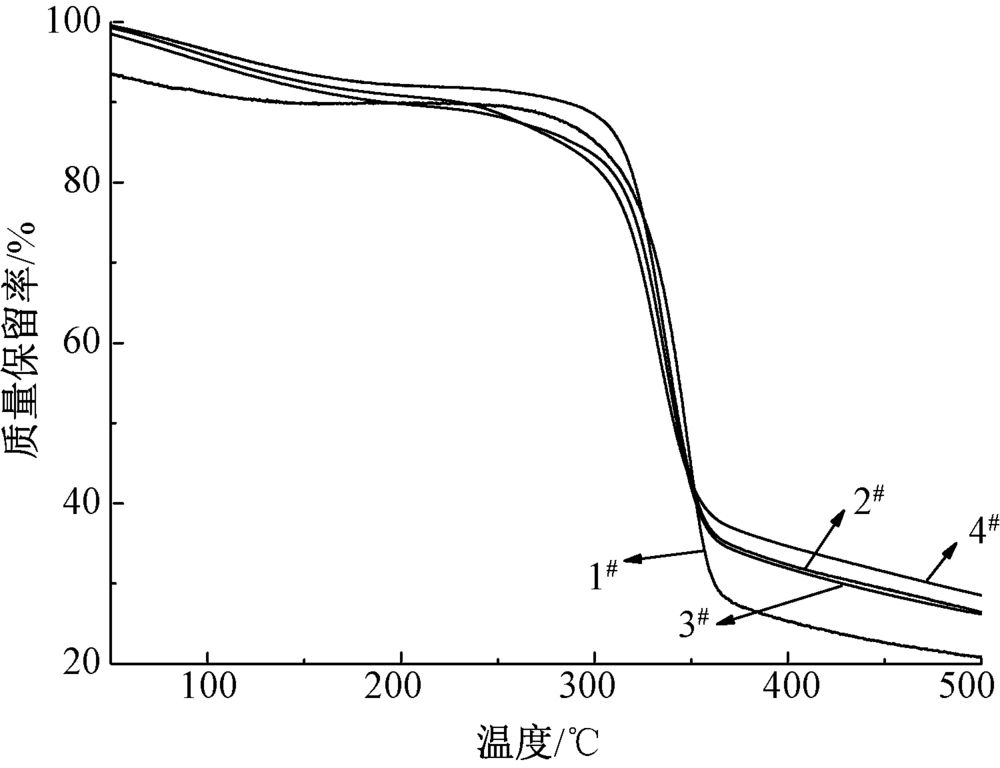

Fig.5

Thermogravimetric curves of cellulose/calcium alginate blend fibers"

Tab.2

Mechanical properties of cellulose/calcium alginate blend fibers"

样品
编号		 直径/
μm		 断裂强
度/MPa		 初始模
量/GPa		 断裂伸
长率/%
1# 73.2±4.3 195±22.9 3.41±0.48 14.7±2.3
2# 69.1±5.2 189±31.8 3.14±0.68 15.9±3.1
3# 63.4±6.7 139±34.7 3.01±0.54 10.4±1.9
4# 65.9±4.9 123±35.9 2.58±0.73 8.7±1.1

Fig.6

Combustion properties of cellulose/calcium alginate blend fibers. (a)1# before combustion; (b)1# after combustion;(c)2# before combustion; (d)2# after combustion;(e)3# before combustion; (f)3# after combustion;(g)4# before combustion; (h)4# after combustion"

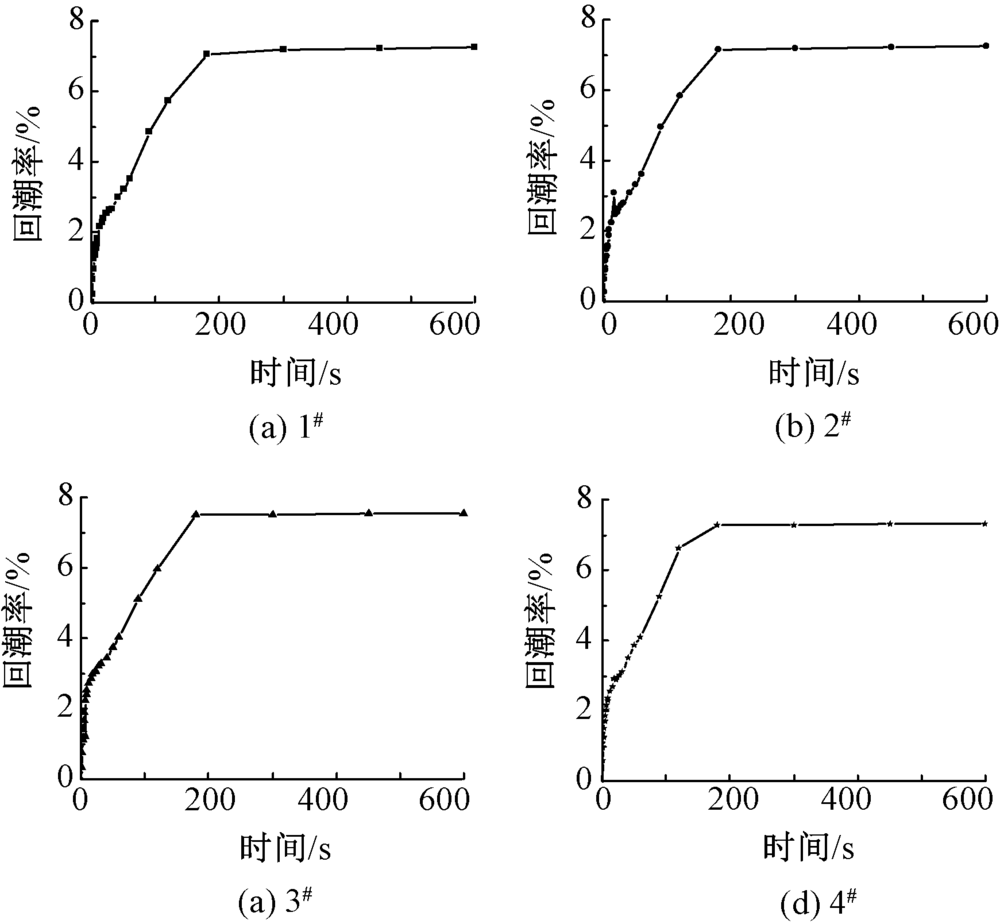

Fig.7

Hygroscopic properties of cellulose/calcium alginate blend fibers"

[1] 胡学超, 宋丽贞. 二十一世纪的宠儿:纤维素纤维[J]. 纺织学报, 1998, 19(1):63-64,26.
HU Xuechao, SONG Lizhen. The darling of the 21st century:cellulose fiber[J]. Journal of Textile Research, 1998, 19(1):63-64,26.
[2] 韩海云. 中欧消防员灭火防护服标准比较[J]. 消防科学与技术, 2010, 29(8):718-722.
HAN Haiyun. Comparative study on fire fighting protective clothing standards between China and European Union[J]. Fire Science and Technology, 2010, 29(8):718-722.
[3] 李振辉, 李霞, 于捍江, 等. 阻燃粘胶纤维研究进展[J]. 高分子通报, 2019(4):33-39.
LI Zhenhui, LI Xia, YU Hanjiang, et al. Research and advancement of flame-retardant fiber of regenerated cellulose[J]. Chinese Polymer Bulletin, 2019(4):33-39.
[4] 李树锋, 程博闻, 孙坤松, 等. 接枝改性阻燃高湿模量粘胶纤维的性能研究[J]. 纺织学报, 2006, 27(4):60-62.
LI Shufeng, CHENG Bowen, SUN Kunsong, et al. Study on the flame retardant HWM viscose fibers modified by grafting[J]. Journal of Textile Research, 2006, 27(4):60-62.
[5] 程博闻. 环境友好型阻燃纤维素纤维的阻燃性能及机理研究[J]. 天津工业大学学报, 2005, 24(1):1-3.
CHENG Bowen. Study on properties and mechanism of eco-friendly fire-retardant cellulose[J]. Journal of Tiangong University, 2005, 24(1):1-3.
[6] WU Kaijian, YAO Yongbo, YU Jinchao, et al. Cellulose/aromatic polysulfonamide blended fibers with improved properties[J]. Cellulose, 2017, 24(8):3377-3386.
doi: 10.1007/s10570-017-1351-5
[7] 程筒, 姚勇波, 陈忠丽, 等. 基于N-甲基吗啉-N-氧化物溶剂制备聚芳砜酰胺/纤维素阻燃纤维[J]. 纺织学报, 2019, 40(7):1-7.
CHENG Tong, YAO Yongbo, CHEN Zhongli, et al. Preparation of flame retardant aromatic polysulfonamide/cellulose fibers with N-methylmorpholine-N-oxide monohydrate as solvent[J]. Journal of Textile Research, 2019, 40(7):1-7.
[8] LEE Kuenyong, MOONEY David J. Alginate: properties and biomedical applications[J]. Progress in Polymer Science, 2012, 37(1):106-126.
pmid: 22125349
[9] ZHANG Chuanjie, LIU Yun, CUI Li, et al. Bio-based calcium alginate nonwoven fabrics: flame retardant and thermal degradation properties[J]. Journal of Analy-tical & Applied Pyrolysis, 2016, 122(11):13-23.
[10] KIM Yoojoo, YOON Keejong, KO Sohkwon. Preparation and properties of alginate superabsorbent filament fibers crosslinked with glutaraldehyde[J]. Journal of Applied Polymer Science, 2000, 78(10):1797-1804.
doi: 10.1002/(ISSN)1097-4628
[11] MUENDUEN Phisalaphong, SUWANMAJO Thapanar, TAMMARATE Pramote. Synjournal and characterization of bacterial cellulose/alginate blend membranes[J]. Journal of Applied Polymer Science, 2010, 107(5):3419-3424.
doi: 10.1002/(ISSN)1097-4628
[12] MAXIM M L, WHITE J F, BLOAK L E, et al. Advance biopolymer composite materials from ionic liquid solutions[M]. Ionic Liquids: Science and Applications, 2012:29-36.
[13] YANG G, ZHANG L, TAO P, et al. Effects of Ca2+ bridge cross-linking on structure and pervaporation of cellulose/alginate blend membranes[J]. Journal of Membrane Science, 2000, 175(1):53-60.
doi: 10.1016/S0376-7388(00)00407-5
[14] SHAMSHINA J L, GURAU G, BLOCK L E, et al. Chitin-calcium alginate composite fibers for wound care dressings spun from ionic liquid solution[J]. Journal of Materials Chemistry B, 2014, 2(25):3924-3936.
doi: 10.1039/C4TB00329B
[15] ZUGENMAIER P. Order in cellulosics: historical review of crystal structure research on cellulose[J]. Carbohydrate Polymers, 2021, 254:117417.
doi: 10.1016/j.carbpol.2020.117417
[16] XU Z, YAO Y, SHENG J, et al. Rheology of cellulose/alginic acid blends with 1-allyl-3-methylimidazolium chloride as solvent[J]. Polymer Engineering & Science, 2020, 60(2):243-249.
[17] PAWEL Sikorski, FRODE Mo, GUDMUND Skjak Braek, et al. Evidence for egg-box-compatible interactions in calcium-alginate gels from fiber X-ray diffraction[J]. Biomacromolecules, 2007, 8(7):2098-2103.
pmid: 17530892
[18] ZHANG X S, XIA Y Z, SHI M W, et al. The flame retardancy of alginate/flame retardant viscose fibers investigated by vertical burning test and cone calorimeter[J]. Chinese Chemical Letters, 2018, 29(3):489-492.
doi: 10.1016/j.cclet.2017.07.023
[19] WANG B, LI P, XU Y J, et al. Bio-based, nontoxic and flame-retardant cotton/alginate blended fibres as filling materials: thermal degradation properties, flammability and flame-retardant mechanism[J]. Composites Part B: Engineering, 2020, 194:108038.
doi: 10.1016/j.compositesb.2020.108038
[20] SIROKA B, NOISTERNIG M, GRIESSER U J, et al. Characterization of cellulosic fibers and fabrics by sorption/desorption[J]. Carbohydrate Research, 2008, 343(12):2194-2199.
doi: 10.1016/j.carres.2008.01.037
[21] YAO Y, ZHANG E, XIA X, et al. Morphology and properties of cellulose/silk fibroin blend fiber preparedwith 1-butyl-3-methylimidazolium chloride as solvent[J]. Cellulose, 2015, 22(1):625-635.
doi: 10.1007/s10570-014-0520-z
