Design principle and method of double-layer full-color structure with central weft stitching

ZHANG Meng, ZHOU Jiu()

  1. Silk and Fashion Culture Research Center of Zhejiang Province, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
  • Received:2021-03-11 Revised:2021-09-11 Online:2022-03-15 Published:2022-03-29
  • Contact: ZHOU Jiu E-mail:zhoujiu34@126.com

RichHTML

5

PDF (PC)

56

Abstract:

In order to solve the problems of complicated weave structure, simple weave pattern and color, and low design efficiency on double-face jacquard fabrics with central weft stitching, a double-layer full-color structure with central weft stitching was presented based on layer-combination design principle. The research concentrates on methods for coverable weave design, coverable full-color weave design for surface and inner structures, and in particular the central weft stitch weave design. The design method of double-layer full-color structure with central weft stitching was established. The surface and inner structures were designed in the form of single jacquard fabric, and the double-layer structure was accomplished by using particular central weft stitch weaves. The results show that the layer-combination design method simplifies the design process, improves the structural stability, reduces the repair rate of structural design, enhances the design efficiency, and intensifies the color on both sides.

Key words: digital jacquard, double-face fabric, jacquard fabric, double-layer structure, central weft stitching, full-color weave

CLC Number:

  • TS105.1

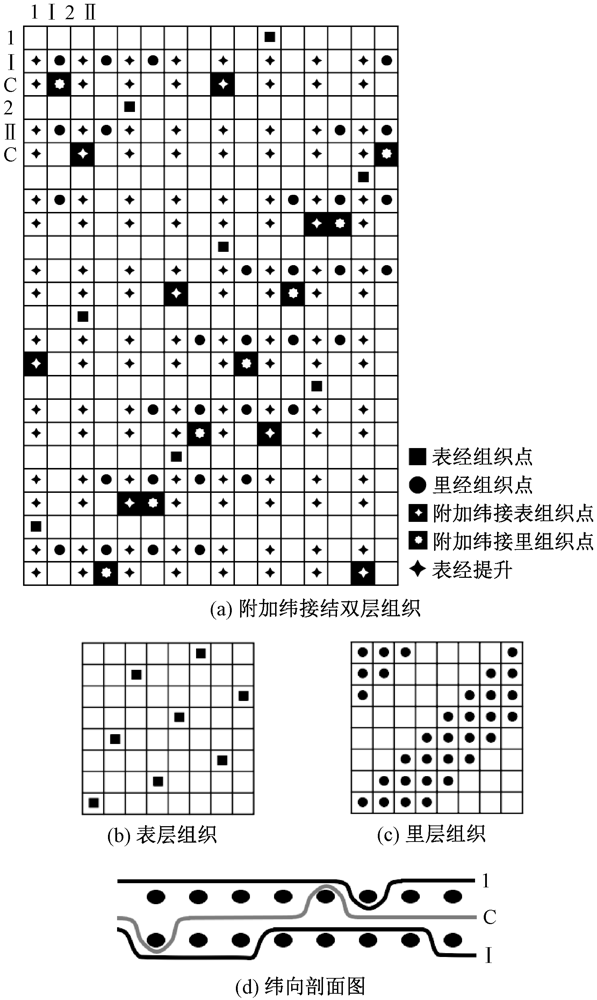

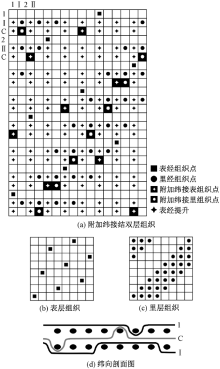

Fig.1

Double-layer weave with central weft stitching. (a) Weave diagram with central weft stitching; (b) Upper layer weave; (c) Lower layer weave; (d) Weft profile"

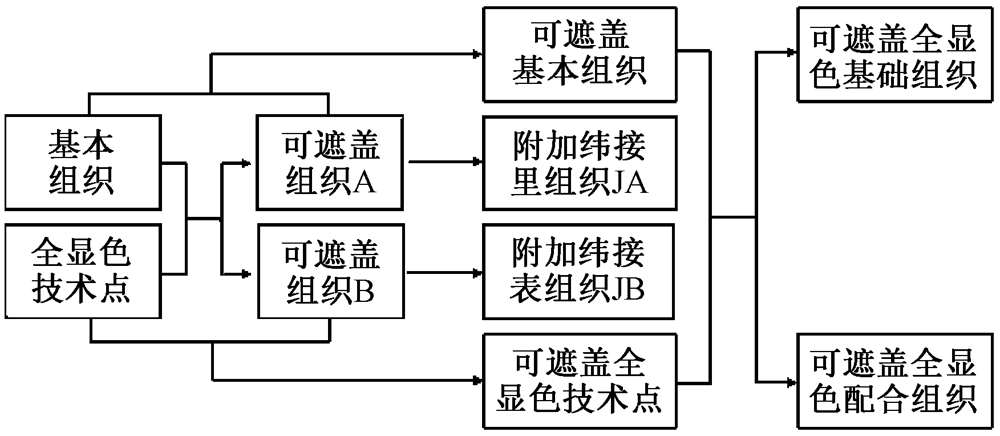

Fig.2

Design process of covered full-color weave"

Fig.3

Primary weave and full-color technical points. (a) Primary weave; (b) Full-color technical points"

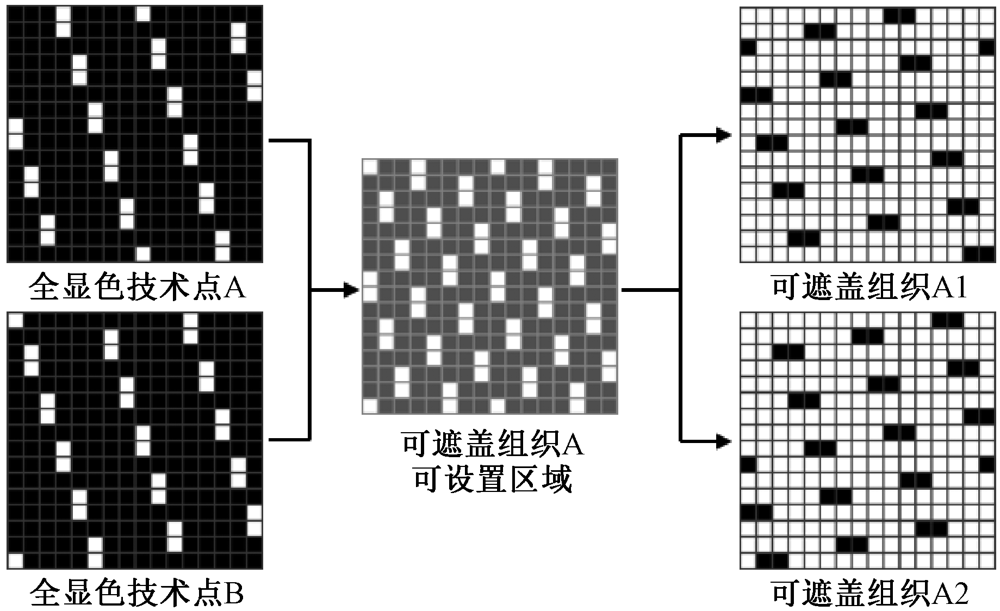

Fig.4

Design of covered weave A"

Fig.5

Design of covered weave B"

Tab.1

Number of covered weave based on 16-thread primary weave"

基本组织B起始点 可遮盖组织数量
(1,3) 10
(1,4) 9
(1,5)…(1,11) 8
(1,12) 9
(1,13) 10
(1,14) 9
(1,15) 10
(1,16) 12

Fig.6

First group of covered primary weaves and covered full-color technical points. (a) Covered primary weaves; (b) Covered full-color technical points"

Fig.7

Second group of covered primary weaves and covered full-color technical points. (a) Covered primary weaves; (b) Covered full-color technical points"

Tab.2

Interweave times of CPW and CFTW"

组织 第1组 第2组
CPW CFTW CPW CFTW
经 纬 经 纬 经 纬 经 纬
组织A 6 2 6 4 6 2 6 4
组织B 6 2 6 4 4 4 4 6

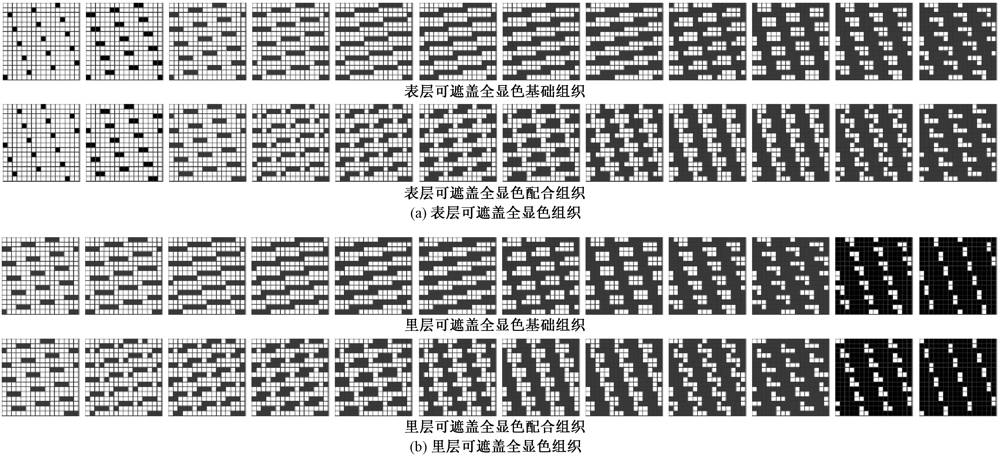

Fig.8

16-thread covered full-color weave (enhancement number is 16). (a) Covered full-color weave for surface layer; (b) Covered full-color weave for inner layer"

Fig.9

Design of central weft stitch weaves"

Tab.3

Technical specification of double-face jacquard fabric with central weft stitching"

纱线 线密度 材料 颜色 密度/
(根·cm-1)		 组织
经纱 22.2/24.4 dtex×2 桑蚕丝 黑 114 16枚可遮盖全显色组织
纬纱 100 dtex 棉 蓝/红/绿/
淡蓝/黄/绿		 180

Fig.10

Double-face jacquard fabric with central weft stitching. (a) Fabric effect; (b) Profile detail"

[1] 陈业彤, 邹曙光. 接结双层织物“接结纬法”设计[J]. 上海纺织科技, 2000,28(4):28-29.
CHEN Yetong, ZOU Shuguang. Weft stitching design for double-layer fabric[J]. Shanghai Textile Science & Technology, 2000,28(4):28-29.
[2] 罗炳金. 多层组织及其在提花装饰纹织物中的应用[J]. 上海纺织科技, 2010,38(9):43-46.
LUO Bingjin. Multi-layer texture and its application in jacquard decorative fabric[J]. Shanghai Textile Science & Technology, 2010,38(9):43-46.
[3] 王泉, 祝成炎. 绗缝效果提花织物组织结构设计原理及方法[J]. 丝绸, 2016,53(2):51-55.
WANG Quan, ZHU Chengyan. Design principle and method of weaving structure of jacquard fabrics with quilting seam effect[J]. Journal of Silk, 2016,53(2):51-55.
[4] ALALI M, DREAN J Y. CAD/CAM for double woven fabric: center warp stitching[J]. Sage Open, 2014,4(1):1-15.
[5] 周赳, 吴文正, 沈干. 提花织物结构设计的一一对应原则[J]. 纺织学报, 2006,27(7):4-7.
ZHOU Jiu, NG Frankie, SHEN Gan. One to one corresponding principle on structure design of jacquard fabric[J]. Journal of Textile Research, 2006,27(7):4-7.
[6] 徐俊青. 附加纬接结的双面异效保暖提花围巾的设计研究[D]. 杭州:浙江理工大学, 2015: 8-15.
XU Junqing. Property research and design of the double face thermal jacquard scarf with pattern effect based on extra weft stitching [D]. Hangzhou: Zhejiang Sci-Tech University, 2015: 8-15.
[7] 金子敏, 吴建华, 王小丁, 等. 一种附加纬接结的双面异效保暖提花织物:201510756317.2[P]. 2017-04-05.
JIN Zimin, WU Jianhua, WANG Xiaoding, et al. Extra weft stitching warm double-face jacquard fabric with different patterns: 201510756317.2[P]. 2017-04-05.
[8] 周赳, 张萌. 一种附加纬接结双面全显色提花织物结构设计方法:201810261230 [P]. 2018-10-23.
ZHOU Jiu, ZHANG Meng. Design method of double-face full-color jacquard fabric with center weft stitching: 201810261230 [P]. 2018-10-23.
[9] NG M C F, ZHOU Jiu. Full-colour compound structure for digital jacquard fabric design[J]. Journal of The Textile Institute, 2010,101(1):52-57.
doi: 10.1080/00405000802231291
[10] NG M C F, ZHOU Jiu. A study on figured double-face jacquard fabric with full-color effect[J]. Textile Research Journal, 2009,79(10):930-936.
doi: 10.1177/0040517508095603
