Typical model for recycling of used clothes and analysis of environmental impact

JIANG Tao1(), ZHOU Li1, WANG Lin2, CHENG Weizhao3, ZHOU Anzhan1

  1. 1. Environment and Green Development Center, The Fifth Electronics Research Institute of Ministry of Industry and Information Technology of the P.R. of China, Guangzhou, Guangdong 510610, China
    2. China National Textile and Apparel Council, Beijing 100020, China
    3. Brock University, Niagara Region L2S 3A1, Canada
  • Received:2021-04-12 Revised:2021-09-30 Online:2022-01-15 Published:2022-01-28

RichHTML

23

PDF (PC)

186

Abstract:

In order to promote the recycling of domestic used clothing and quantify its environmental impact, this study introduces and analyzes a typical model for used clothing recycling and resource reutilization led by brand companies, employing the life cycle assessment method. By delineating the system boundary, a calculation method for the environmental impact was constructed, and the environmental impact was calculated through data collection and quantitative analysis. Studies have shown that the recycling of used clothing has obvious impact on environment. Brand companies have an active role in driving and promoting the recycling and utilization of waste clothing. While extending the life cycle of fiber resources, it can also promote the development of green design of industrial products. In addition, the calculation method proposed in this study can not only provide guidance for evaluating the environmental impact of the recycling process of used clothing, but also provide a reference for the environmental behavior evaluation of multi-life cycle products in the process of comprehensive utilization of fiber resources.

Key words: used clothing recycling, resource utilization, recycling mode, environmental impact, brand company

CLC Number:

  • X791

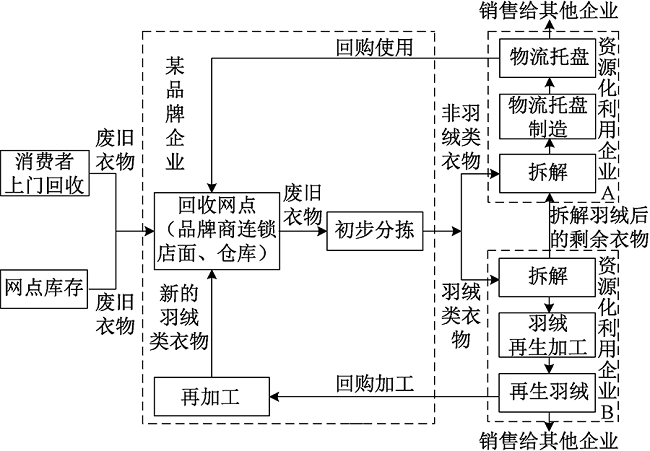

Fig.1

Model diagram of waste clothing recycling and resource utilization guided by brand enterprises"

Fig.2

Schematic diagram of typical waste clothing recycling and resource utilization model"

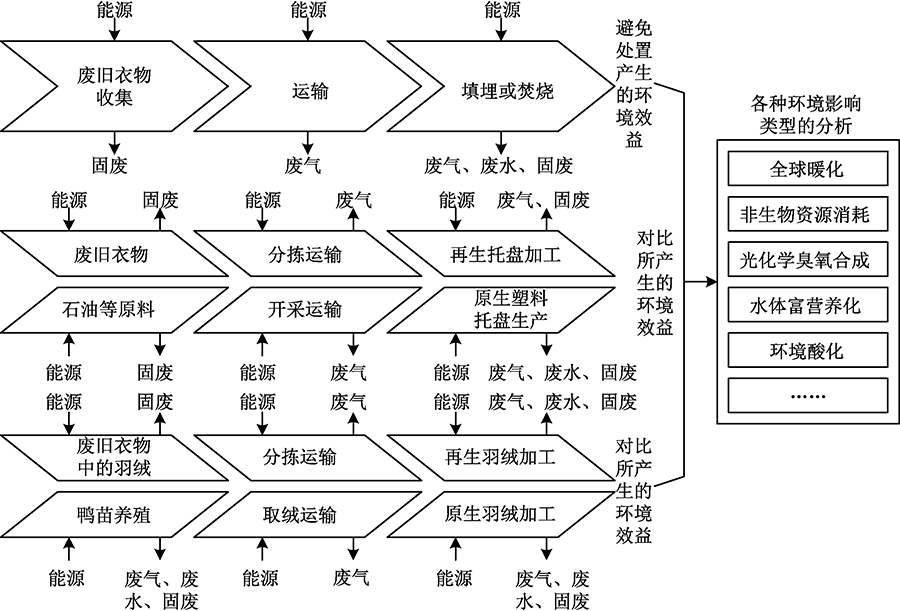

Fig.3

Conceptual diagram of environmental performance calculation and analysis of typical waste clothing recycling and resource utilization model"

Fig.4

Schematic diagram of boundary of environmental performance calculation and analysis system produced in recycling process of waste clothes"

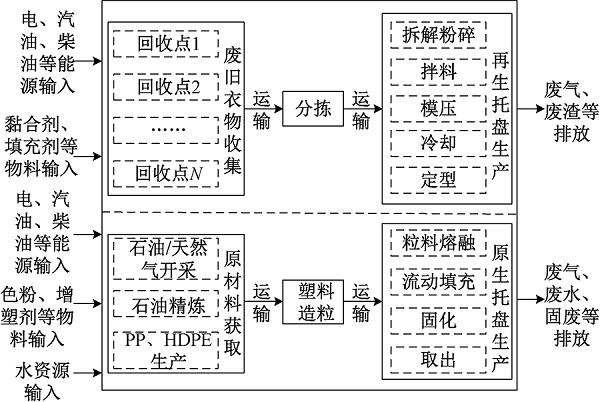

Fig.5

Schematic diagram of boundary of environmental performance calculation and analysis system for recycled pallet production"

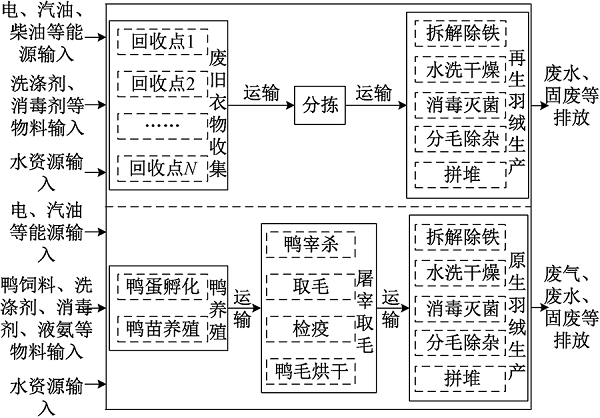

Fig.6

Schematic diagram of the boundary of environmental performance calculation and analysis system for recycled down processing"

Tab.1

Environmental impact type indicators and inventory factors"

环境影响类型 简写 单位 主要清单因子
非生物资源消耗
(化石燃料)		 ADPF MJ 硬煤,原油,天然气
全球变暖 GWP kgCO2eq CO2,CH4,N2O
光化学臭氧合成 POCP kgC2H4eq C2H4、NOx、非甲烷总烃
酸化 AP kgSO2eq N、S、P等酸性气体
富营养化 EP kg PO 4 3 -eq NO 3 -、总N、总P、 PO 4 3 -

Tab.2

Characterization results of environmental impact of waste clothing disposal"

处置方式 ADPF/
MJ		 GWP/
kgCO2eq		 POCP/
kgC2H4eq		 AP/
kgSO2eq		 EP/
kg PO 4 3 -eq
填埋处置 0.12 1.01 2.17×10-4 1.38×10-4 2.85×10-5
焚烧处置 0.21 0.16 6.37×10-6 2.19×10-4 4.07×10-5
合计 0.33 1.17 2.24×10-4 3.57×10-4 6.92×10-5

Tab.3

Environmental impact characterization results of recycled pallets and virgin plastic pallets"

影响类别 ADPF/
MJ		 GWP/
kgCO2eq		 POCP/
kgC2H4eq		 AP/
kgSO2eq		 EP/
kg PO 4 3 -eq
再生托盘 163 11.8 2.57×10-3 0.041 9.17×10-3
原生塑
料托盘		 630 21.5 5.37×10-3 0.073 8.43×10-3
对比结果 467 9.7 2.80×10-3 0.032 -7.40×10-4

Tab.4

Comparison of environmental impacts of recycled pallets and virgin plastic pallets in main life cycle stages"

生命周期 产品 负荷对比 合计
ADPF GWP POCP AP EP
原材料的获取和生产 再生托盘 7.47×10-15 2.20×10-15 1.25×10-15 3.67×10-16 3.18×10-16 1.16×10-14
原生托盘 7.03×10-13 1.31×10-13 1.12×10-14 1.83×10-14 4.52×10-15 8.68×10-13
原材料运输 再生托盘 1.57×10-13 6.55×10-14 3.70×10-15 8.83×10-15 5.01×10-15 2.40×10-13
原生托盘 1.66×10-14 6.79×10-15 3.69×10-16 9.23×10-16 5.04×10-16 2.52×10-14
产品的生产 再生托盘 2.54×10-14 1.41×10-14 9.47×10-16 2.96×10-15 1.12×10-15 4.45×10-14
原生托盘 1.51×10-14 1.11×10-14 7.12×10-16 2.36×10-15 9.05×10-16 3.03×10-14
总体环境影响负荷 再生托盘 1.90×10-13 8.18×10-14 5.90×10-15 1.22×10-14 6.45×10-15 2.96×10-13
原生托盘 7.35×10-13 1.49×10-13 1.23×10-14 2.16×10-14 5.93×10-15 9.23×10-13

Tab.5

Environmental impact of recycled down and original down"

产品 ADPF/
MJ		 GWP/
kgCO2eq		 POCP/
kgC2H4eq		 AP/
kgSO2eq		 EP/
kg PO 4 3 -eq
再生羽绒 10.6 0.93 1.68×10-4 3.33×10-3 6.28×10-4
原生羽绒 1150 179 0.025 0.54 0.35
对比结果 1139.4 178.07 0.025 0.54 0.35

Tab.6

Comparison of environmental impact of recycled down and original down in the main life cycle stages"

生命周期 产品 负荷对比 合计
ADPF GWP POCP AP EP
原材料的获取和生产 再生羽绒 8.00×10-17 1.28×10-16 2.49×10-17 1.41×10-17 3.54×10-17 2.82×10-16
原生羽绒 1.32×10-12 1.23×10-12 5.74×10-14 1.59×10-13 2.48×10-13 3.02×10-12
原材料运输 再生羽绒 1.16×10-15 4.85×10-16 2.74×10-17 6.53×10-17 3.71×10-17 1.78×10-15
原生羽绒 4.61×10-15 1.92×10-15 1.08×10-16 2.59×10-16 1.47×10-16 7.04×10-15
产品的生产 再生羽绒 1.11×10-14 5.81×10-15 3.34×10-16 9.10×10-16 3.70×10-16 1.85×10-14
原生羽绒 1.21×10-14 7.94×10-15 4.83×10-16 1.06×10-15 4.40×10-16 2.20×10-14
总体环境影响负荷 再生羽绒 1.24×10-14 6.42×10-15 3.86×10-16 9.89×10-16 4.42×10-16 2.06×10-14
原生羽绒 1.34×10-12 1.24×10-12 5.79×10-14 1.60×10-13 2.49×10-13 3.05×10-12

Tab.7

Overall environmental benefits of typical models of waste clothing recycling and resource utilization"

典型模式 ADPF/MJ GWP/kgCO2eq POCP/kgC2H4eq AP/kgSO2eq EP/kg PO 4 3 -eq
回收1 kg废旧衣物环境效益 0.33 1.17 2.24×10-4 3.57×10-4 6.92×10-5
1 kg废旧衣物资源
化利用效益		 (0.966 kg非羽绒类) 34.7 0.72 2.08×10-4 2.36×10-3 -5.50×10-5
(0.034 kg羽绒类) 4.59 0.72 1.01×10-4 2.15×10-3 1.42×10-3
合计 39.62 2.61 5.33×10-4 4.87×10-3 1.43×10-3
[1] 兰斌莉. 废旧衣物回收模式的评价分析[D]. 天津:天津财经大学, 2018:1-2.
LAN Binli. Evaluation and analysis of the recycling mode of used clothes[D]. Tianjin: Tianjin University of Finance and Economics, 2018:1-2.
[2] 郭燕. 我国主要城市旧衣物回收现状调查报告[M]. 北京: 人民出版社, 2018:2-10.
GUO Yan. Status investigation report to used clothing recycling in major cities of China[M]. Beijing: People's Publishing House, 2018:2-10.
[3] 宗刚, 魏素豪. 基于回收意识的废旧衣物回收模式对比分析[J]. 系统工程理论与实践, 2016, 36(10): 2583-2589.
ZONG Gang, WEI Suhao. The comparative study of waste recycling pattern based on recycling consciousness[J]. System Engineering Theory and Practice, 2016, 36(10): 2583-2589.
[4] 王昭昭. 废旧衣物回收再利用管理问题研究:以福建省为例[D]. 福州:福建师范大学, 2016:1-5.
WANG Zhaozhao. Research on the managament of recycling of waste textiles:a case study base on fujian province[D]. Fuzhou: Fujian Normal University, 2016:1-5.
[5] 盛伟, 王安, 蒋红, 等. 废旧纺织品处理的探讨:二[J]. 国际纺织导报, 2012, 40(1): 78-79,82.
SHENG Wei, WANG An, JIANG Hong, et al. Discussion on the disposal of used textiles:Ⅱ[J]. Melliand-China, 2012, 40(1): 78-79,82.
[6] 郭燕. 废旧服装处置方式碳足迹比较[J]. 棉纺织技术, 2014, 42(1): 78-81.
GUO Yan. Carbon footprint comparison of waste clothing disposal method[J]. Cotton Textile Technology, 2014, 42(1): 78-81.
[7] 王倩, 任美琪, 陈容. 我国废旧服装回收再利用现状及发展趋势分析[J]. 山东纺织科技, 2018, 59(6): 43-47.
WANG Qian, REN Meiqi, CHEN Rong. Analysis of current situation and trend of waste clothing recycling in China[J]. Shandong Textile Technology, 2018, 59(6): 43-47.
[8] 郝淑丽. 我国旧衣回收企业废旧衣物回收再利用体系研究[J]. 毛纺科技, 2017, 45(2): 73-76.
HAO Shuli. Study on the recycling system of waste and old clothing about old clothes recycling enterprises of China[J]. Wool Textile Journal, 2017, 45(2): 73-76.
[9] 郭焱, 刘红超, 郭彬. 产品生命周期评价关键问题研究评述[J]. 计算机集成制造系统, 2014, 20(5): 1141-1148.
GUO Yan, LIU Hongchao, GUO Bin. Review of key issuse on product life cycle assessment[J]. Computer Integrated Manufacturing Systems, 2014, 20(5): 1141-1148.
[10] 操家顺, 赵嘉楠, 操乾, 等. 基于生命周期评价的两种城市生活垃圾处理模式对比[J]. 环境保护科学, 2019, 45(6): 92-100.
CAO Jiashun, ZHAO Jianan, CAO Qian, et al. Comparison of two disposal modes of municipal solid waste based on life cycle assessment[J]. Environmental Protection Science, 2019, 45(6): 92-100.
[11] 全国能源信息平台. 2020年中国生活垃圾焚烧行业市场现状及竞争格局分析[EB/OL].(2021-02-20). http://163.com/dy/article/FTJ3NV6D05509P99.html.
National Energy Information Platform. Analysis of the market status and competitive landscape of China's domestic waste incineration industry in 2020[EB/OL]. (2021-02-20). http://163.com/dy/article/FTJ3NV6D05509P99.html.
[12] 郭颖杰. 城市生活垃圾处理系统生命周期评价[D]. 大连:大连理工大学, 2003:22-38.
GUO Yingjie. Life cycle assessment of municipal solid waste treatment system[D]. Dalian: Dalian University of Technology, 2003: 22-38.
[13] 龚大国, 孙冬, 谢明, 等. 城市生活垃圾焚烧和综合处理模式的LCA比较[J]. 环境卫生工程, 2008(4): 52-55.
GONG Daguo, SUN Dong, XIE Ming, et al. LCA comparison between incineration and integrated treatment patterns of municipal domestic waste[J]. Environmental Sanitation Engineering, 2008(4): 52-55.
[14] 施乐荣, 刘荣杰, 观梦韵, 等. 基于垃圾分类的废旧纺织品的单独回收对深圳市生活垃圾处理的碳足迹影响分析[J]. 环境卫生工程, 2018, 26(2): 4-8.
SHI Lerong, LIU Rongjie, GUAN Mengyun, et al. Effects of separate recycling of household waste textile on carbon footprint of domestic waste treatment in shenzhen based on garbage classification[J]. Environmental Sanitation Engineering, 2018, 26(2): 4-8.
