Electromagnetic wave absorption performance of loofah-based carbon materials

YE Wei1,2, YU Jin1,2, LONG Xiaoyun1,2(), SUN Qilong1,2, MA Yan1,2

  1. 1. National & Local Joint Engineering Research Center of Technical Fiber Composites for Safety and Protection, Nantong University, Nantong, Jiangsu 226019, China
    2. School of Textiles and Clothing, Nantong University, Nantong, Jiangsu 226019, China
  • Received:2021-05-06 Revised:2021-09-27 Online:2022-04-15 Published:2022-04-20
  • Contact: LONG Xiaoyun E-mail:lxy1988@ntu.edu.cn

RichHTML

12

PDF (PC)

63

Abstract:

In order to develop a novel fibrous electromagnetic wave absorbing material, natural loofah was used as the base material of a carbon mesh, with Fe3O4 loaded onto the surface and internal pores of the loofah fiber through in-situ hybridization. The material properties were characterized and analyzed by scanning electron microscope, X-ray photoelectron spectrometer, vibrating sample magnetometer hysteresis loop analysis and electromagnetic parameter analysis. Results show that loofah-based carbon material preserves the special hollow structure, Fe3O4 particles are uniformly distributed on the fiber surface and internal pores, and the synergy between dielectric loss, magnetic loss and fiber structure enhances the electromagnetic wave loss of the material. When the solubility of FeCl3 is 2 mol/L and the processing temperature is 700 ℃, in the range of 2-18 GHz, and the sample has a thickness of 3 mm, the electromagnetic wave loss reaches -24.37 dB at 9.97 GHz, and at 7.33-10.33 GHz the electromagnetic wave loss in the frequency band is less than -10 dB. The loofah fiber can be prepared into electromagnetic wave absorbing material with excellent performance through suitable carbonization and Fe3O4 loading process.

Key words: composite material, loofah fiber, Fe3O4, dielectric loss, magnetic loss, electromagnetic wave absorption, in-situ hybridization technology

CLC Number:

  • TS101

Fig.1

Surface and cross-section SEM images and EDS spectra of loofah fiber. (a) Surface of S0(×1 000); (b) Surface of S2 (×1 000); (c) Cross-section of S2(×3 000); (d) EDS spectra of S0; (e) EDS spectra of S2"

Fig.2

XPS spectra of S0 (a), S2(b) samples and O element (c), Fe element(d) binding energy analysis of S2 sample"

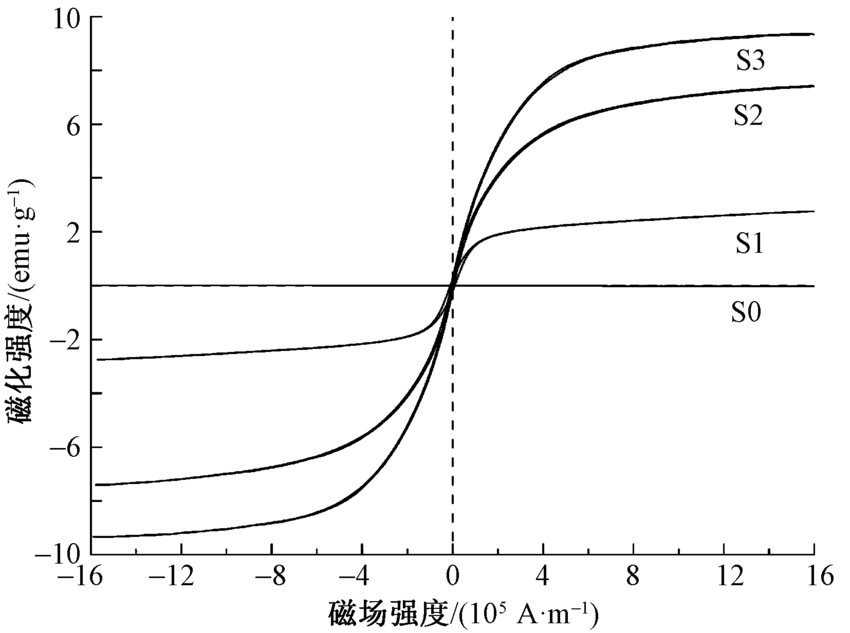

Fig.3

Magnetic hysteresis loop of samples at room temperature"

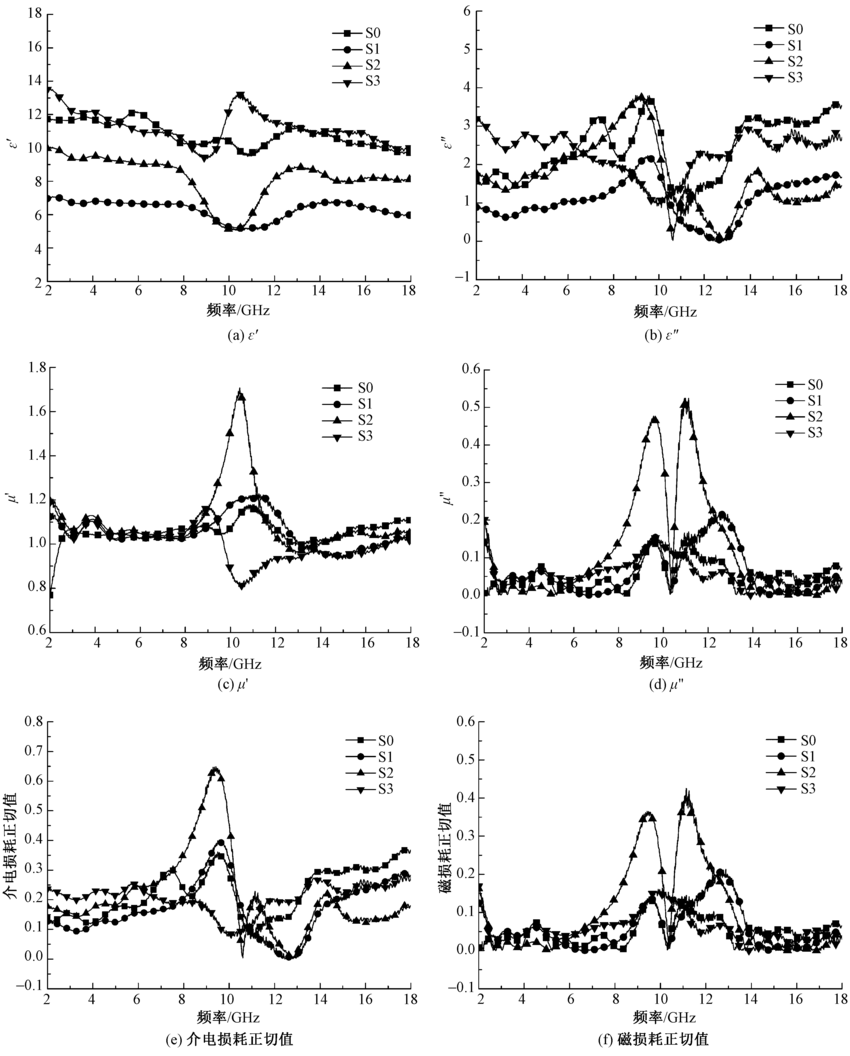

Fig.4

Electromagnetic parameters of sample at different treatment conditions. (a) ε'; (b) ε″; (c) μ'; (d) μ″; (e) Dielectric loss tangent; (f) Magnetic loss tangent"

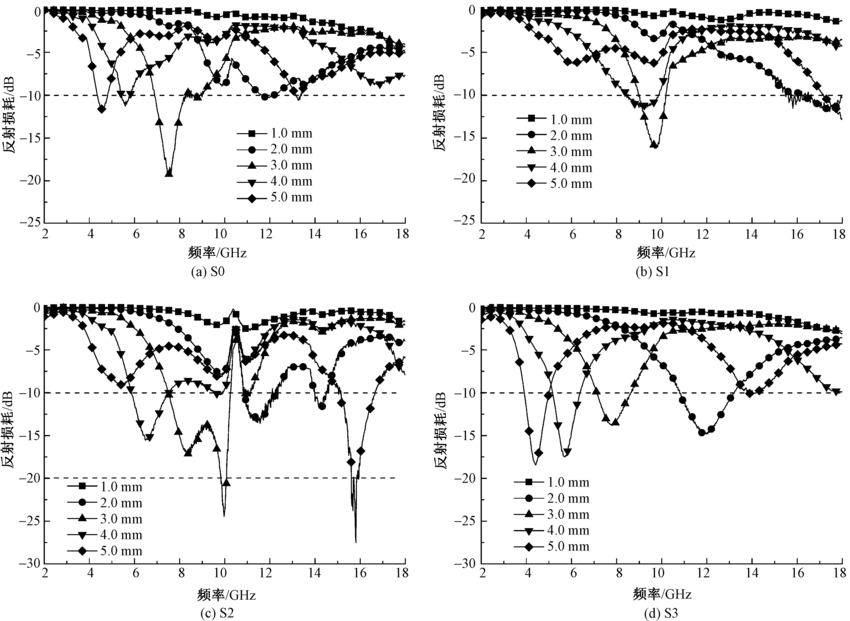

Fig.5

Electromagnetic wave loss curve of sample in range of 2-18 GHz"

[1] CHEN W, LI S, CHEN C, et al. Self-assembly and embedding of nanoparticles by in situ reduced graphene for preparation of a 3D graphene/nanoparticle aerogel[J]. Advanced Materials, 2011, 23(47): 5679-5683.
doi: 10.1002/adma.201102838
[2] BAO C, SONG L, XING W, et al. Preparation of graphene by pressurized oxidation and multiplex reduction and its polymer nanocomposites by masterbatch-based melt blending[J]. Journal of Materials Chemistry, 2012, 22(13): 6088-6096.
doi: 10.1039/c2jm16203b
[3] BAI X, ZHAI Y, ZHANG Y. Green approach to prepare graphene-based composites with high microwave absorption capacity[J]. Journal of Physical Chemistry C, 2011, 115(23): 11673-11677.
doi: 10.1021/jp202475m
[4] PENG F, MENG F, GUO Y, et al. Intercalating hybrids of sandwich-like Fe3O4-graphite: synthesis and their synergistic enhancement of microwave absorption[J]. ACS Sustainable Chemistry & Engineering, 2018, 6(12): 16744-16753.
[5] PRASAD J, SINGH A K, TOMAR M, et al. Strong electromagnetic wave absorption and microwave shielding in the Ni-Cu@MoS2/rGO composite[J]. Journal of Materials Science: Materials in Electronics, 2019, 30(20): 18666-18677.
doi: 10.1007/s10854-019-02219-7
[6] HE P, HOU Z L, ZHANG K L, et al. Lightweight ferroferric oxide nanotubes with natural resonance property and design for broadband microwave absorption[J]. Journal of Materials Science, 2017, 52: 8258-8267.
doi: 10.1007/s10853-017-1041-6
[7] WAN Y, JIAN X, LI C, et al. Microwave absorption properties of FeCo-coated carbon fibers with varying morphologies[J]. Journal of Magnetism & Magnetic Materials, 2016, 399(1): 252-259.
[8] CHEN C, XI J, YIN H, et al. Ultralight graphene micro-popcorns for multifunctional composite applications[J]. Carbon, 2018, 139: 545-555.
doi: 10.1016/j.carbon.2018.07.020
[9] YAN C, CAO J, LV H, et al. In situ regulating aspect ratio of bamboo-like CNTs via CoxNi1-x-catalyzed growth to pursue superior microwave attenuation in X-band[J]. Inorganic Chemistry Frontiers, 2019, 6(1): 309-316.
doi: 10.1039/C8QI01102H
[10] TONG G, LIU F, WU W, et al. Rambutan-like Ni/MWCNT heterostructures: easy synthesis, formation mechanism, and controlled static magnetic and microwave electromagnetic characteristics[J]. Journal of Materials Chemistry A, 2014, 2(20): 7373-7382.
doi: 10.1039/c4ta00117f
[11] NAZIR A, YU H, WANG L, et al. Recent progress in the modification of carbon materials and their application in composites for electromagnetic interference shielding[J]. Journal of Materials Science, 2018, 53: 8699-8719.
doi: 10.1007/s10853-018-2122-x
[12] LUO Chunjia, TANG Yusheng, JIAO Tian. High-temperature stable and metal-free electromagnetic wave-absorbing SiBCN ceramics derived from carbon-rich hyperbranched polyborosilazanes[J]. ACS Applied Materials & Interfaces, 2018, 10(33): 28051-28061.
[13] YAN X, JI T, YE W. Surface modification of activated carbon fibers with Fe3O4 for enhancing their electromagnetic wave absorption property[J]. Journal of Nanomaterials, 2020(1): 1-14.
[14] QIU J, QIU T. Fabrication and microwave absorption properties of magnetite nanoparticle-carbon nanotube-hollow carbon fiber composites[J]. Carbon, 2015, 81: 20-28.
doi: 10.1016/j.carbon.2014.09.011
[15] SHAO Y, LU W, CHEN H, et al. Flexible ultra-thin Fe3O4/MnO2 core-shell decorated CNT composite with enhanced electromagnetic wave absorption perfor-mance[J]. Composites Part B: Engineering, 2018, 144: 111-117.
doi: 10.1016/j.compositesb.2018.02.015
[16] YAN L, HONG C, SUN B, et al. In situ growth of core-sheath heterostructural SiC nanowire arrays on carbon fibers and enhanced electromagnetic wave absorption performance[J]. ACS Applied Materials & Interfaces, 2017, 9(7): 6320-6331.
[17] ZHOU Z P, LAI C L, ZHANG L F, et al. Development of carbon nanofibers from aligned electrospun polyacrylonitrile nanofiber bundles and characterization of their microstructural, electrical, and mechanical properties[J]. Polymer, 2009, 50 (13): 2999-3006.
doi: 10.1016/j.polymer.2009.04.058
[18] YCA B, QSA B, LEI S, et al. Effect of preparation conditions on structure and electromagnetic wave absorption properties of sandwich-like Fe3O4-rGO nanocomposites-science direct[J]. Journal of Magnetism and Magnetic Materials, 2020, 503: 166656.
doi: 10.1016/j.jmmm.2020.166656
[19] ZHANG X, ZHU W, ZHANG W, et al. Preparation of TiO2/Fe3O4/CF composites for enhanced microwave absorbing performance[J]. Journal of Materials Science: Materials in Electronics, 2018, 29(9): 7194-7202.
doi: 10.1007/s10854-018-8707-y
[20] LO C K, XIAO D, CHOI M. Homocysteine-protected gold-coated magnetic nanoparticles: synthesis and characterisation[J]. Journal of Materials Chemistry, 2007, 17(23): 2418-2427.
doi: 10.1039/b617500g
[21] HO C H, TSAI C P, CHUNG C C, et al. Shape-controlled growth and shape-dependent cation site occupancy of monodisperse Fe3O4 nanoparticles[J]. Chemistry of Materials, 2011, 23(7): 1753-1760.
doi: 10.1021/cm102758u
[22] TURU Y, PETER H. Analysis of XPS spectra of Fe2+ and Fe3+ ions in oxide materials[J]. Applied Surface Science, 2008, 254: 2441-2449.
doi: 10.1016/j.apsusc.2007.09.063
[23] RITTER M, WEISS W. Fe3O4(III) surface structure determined by LEED crystallography[J]. Surface Science, 1999, 432(1/2): 81-94.
doi: 10.1016/S0039-6028(99)00518-X
[24] XIANG J, LI J, ZHANG X, et al. Magnetic carbon nanofibers containing uniformly dispersed Fe/Co/Ni nanoparticles as stable and high-performance electromagnetic wave absorbers[J]. Journal of Materials Chemistry A, 2014, 2(40): 16905-16914.
doi: 10.1039/C4TA03732D
[25] 叶伟, 孙雷, 余进, 等. 磁性颗粒/碳纤维轻质柔软复合材料制备及其吸波性能[J]. 纺织学报, 2019, 40(1): 97-102.
YE Wei, SUN Lei, YU Jin, et al. Preparation and microwave absorption property of flexible lightweight magnetic particles-carbon fiber composites[J]. Journal of Textile Research, 2019, 40 (1): 97-102.
[26] HAN Z, LI D, WANG H, et al. Broadband electromagnetic-wave absorption by FeCo/C nanocapsules[J]. Applied Physics Letters, 2009, 95(2): 1-3.
