Journal of Textile Research ›› 2022, Vol. 43 ›› Issue (05): 124-129.doi: 10.13475/j.fzxb.20210500806

• Dyeing and Finishing & Chemicals • Previous Articles     Next Articles

Preparation of functional spunlaced viscose fiber membrane and its application for laccase immobilization

LIU Suo1, WANG Yaqian2, WEI Anfang1, ZHAO Lei1, FENG Quan1()

  1. 1. School of Textiles and Garment, Anhui Polytechnic University, Wuhu, Anhui 241000, China
    2. Engineering Research Center for Knitting Technology, Ministry of Education, Jiangnan University, Wuxi, Jiangsu 214122, China
  • Received:2021-05-05 Revised:2022-01-13 Online:2022-05-15 Published:2022-05-30
  • Contact: FENG Quan E-mail:fengquan@ahpu.edu.cn

RichHTML

8

PDF (PC)

52

Abstract:

Aiming at the shortcomings of low loading rate of laccase with the existing materials and poor cyclic use performance after loading laccase, spunlaced viscose fiber membrane were surfaced modified for improved bonding of polymer chains adopting the atom transfer radical polymerization method, using hydroxyethyl methacrylate (HEMA) as the monomer (SV-poly(HEMA)) followed by coordination with Fe3+ions(SV-poly(HEMA)-Fe(Ⅲ)), which, as a carrier, was explored for immobilization performance of laccase. Meanwhile, the morphology and structure were analyzed. The results show that the immobilized content of laccase by SV-poly(HEMA)-Fe(Ⅲ) reached 132.9 mg/g and the immobilized laccase demonstrates stronger thermal stability(20-70 ℃) and lower sensitivity to pH value(2.0-7.0) compared with free laccase. Immobilized laccase maintains its initial activity more than 55% after 10 repeated uses.

Key words: spunlaced viscose fiber membrane, atom transfer radical polymerization, coordination method, immobilizing enzyme, laccase

CLC Number:

  • TQ342

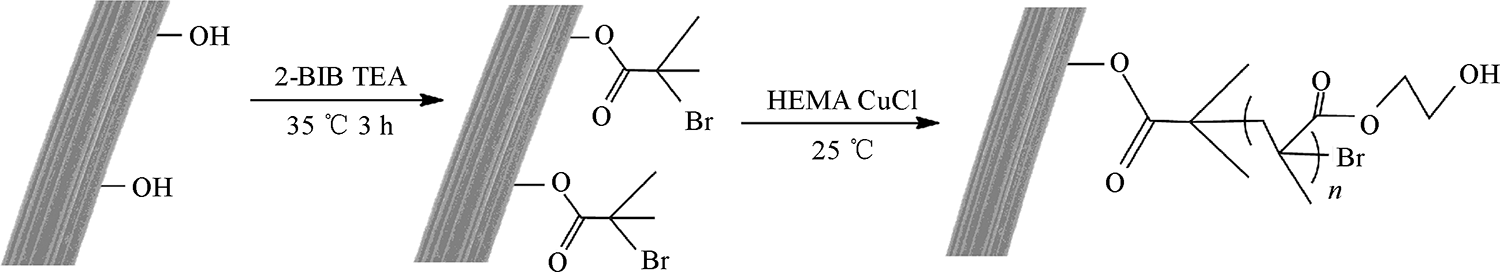

Fig.1

Schematic diagram of ATRP grafting process of spunlaced viscose fiber membrane"

Fig.2

SEM images of spunlaced viscose fiber membrane(a), SV-poly(HEMA) (b) and SV-poly(HEMA)-Fe(Ⅲ) (c) (×400)"

Tab.1

Element types and its weight percentages"

样品名称 质量分数/%
C O Br
水刺粘胶纤维膜 44.98 55.02 0.00
引发反应后的水刺粘胶纤维膜 48.48 51.54 0.39

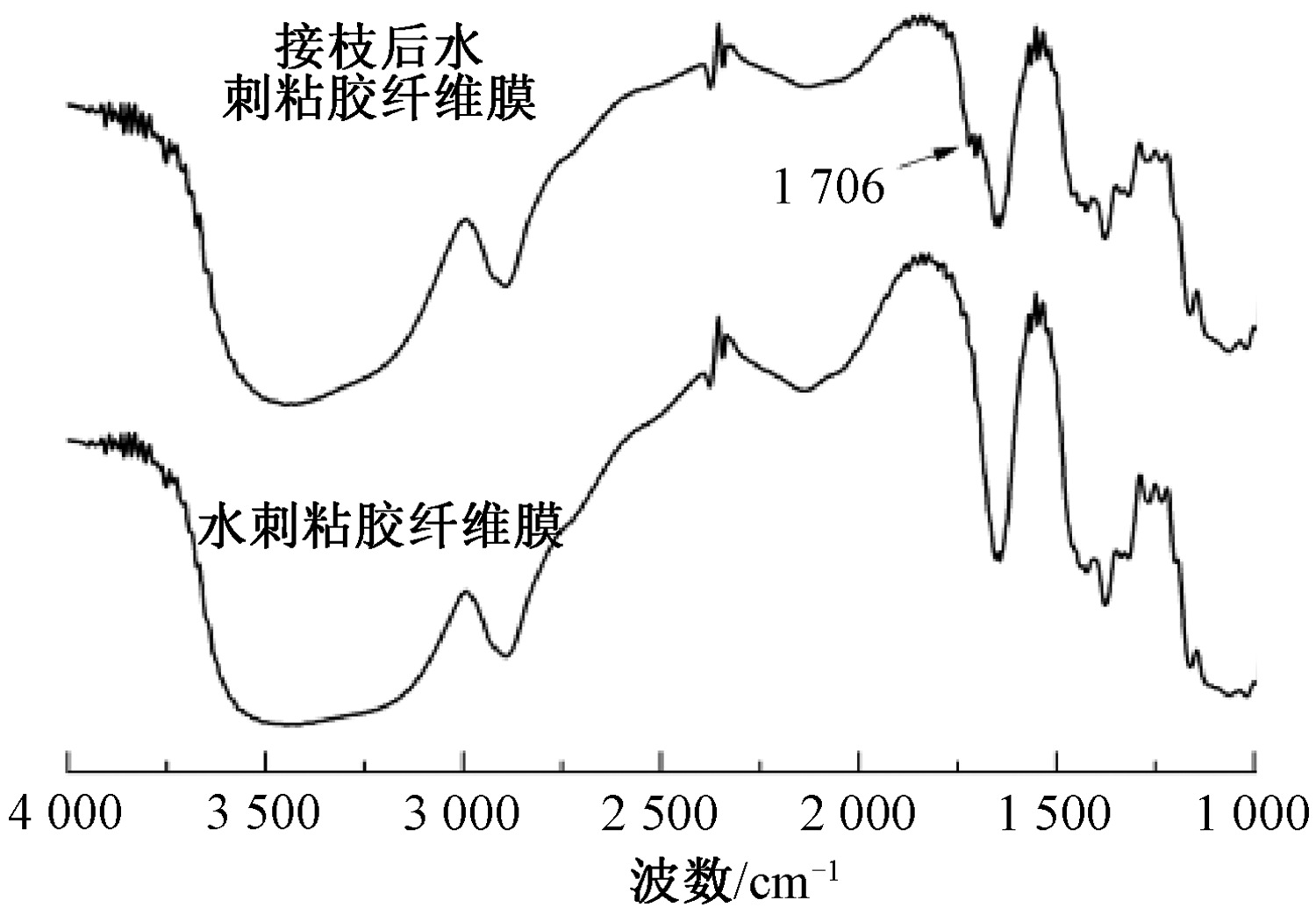

Fig.3

Infrared spectrum of spunlaced viscose fiber membrane and SV-poly(HEMA)"

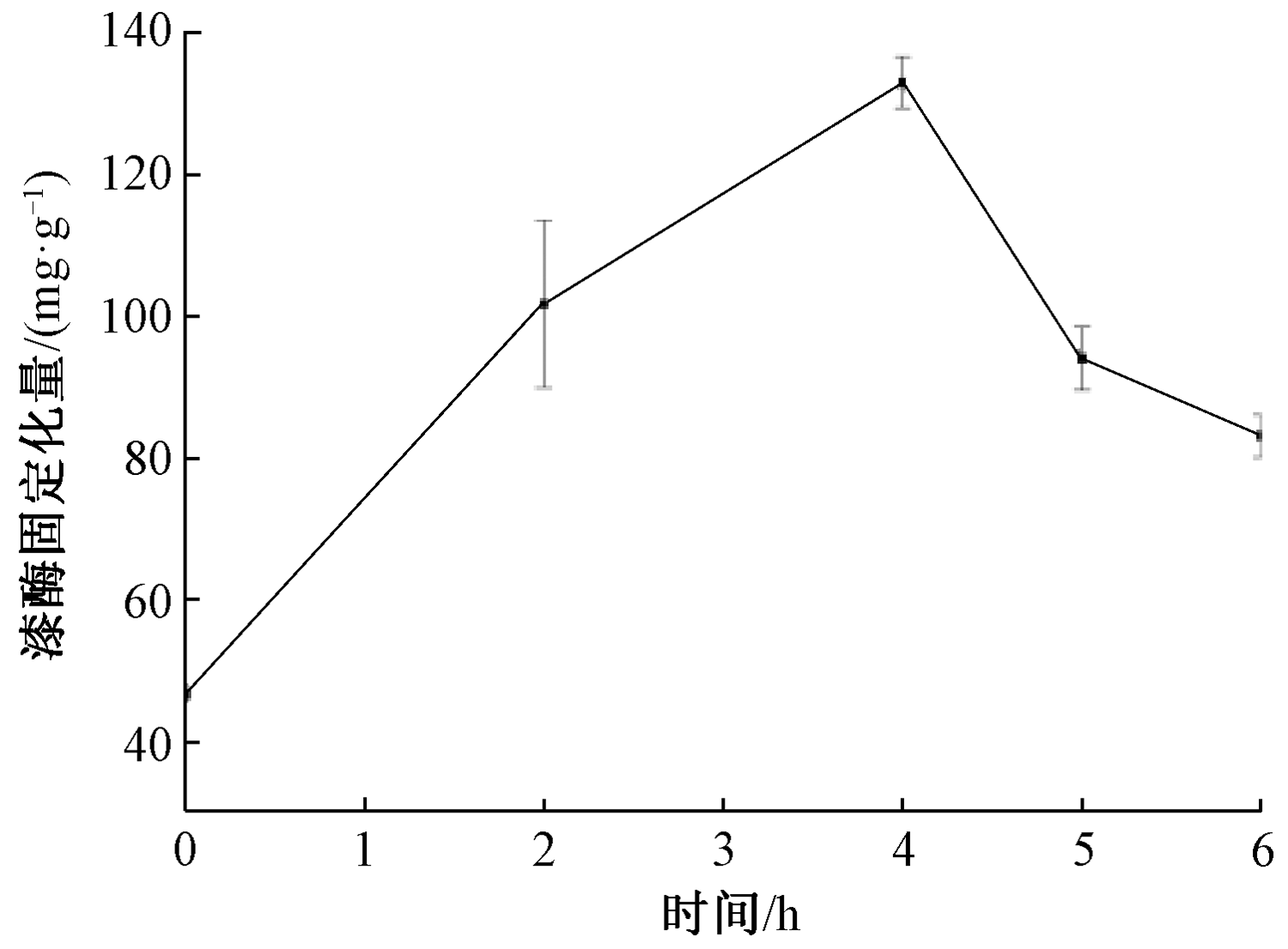

Fig.4

Immobilization laccase of spunlaced viscose fiber membrane with different modification time"

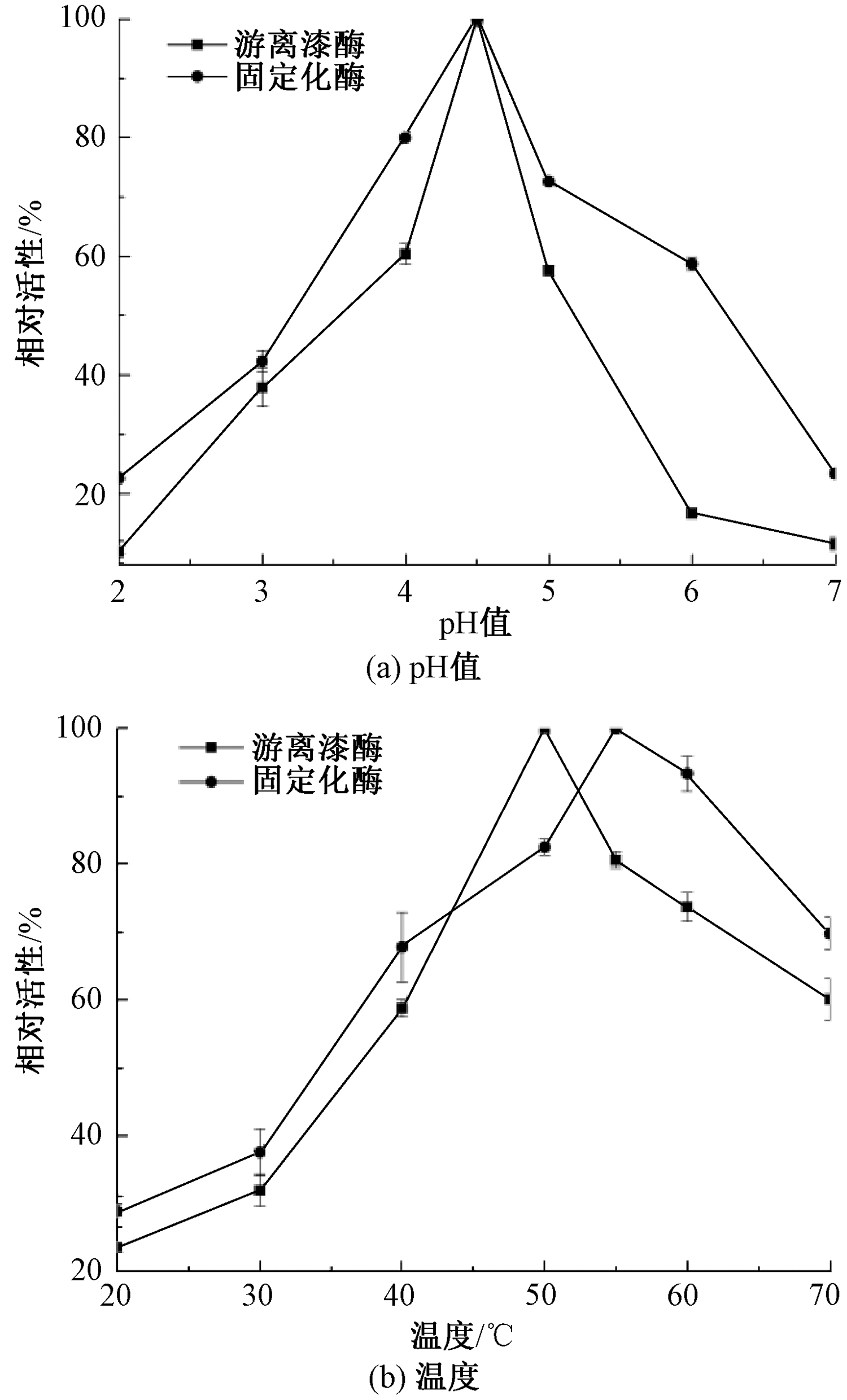

Fig.5

Relationship of pH (a) and temperature (b) on free and immobilized laccase"

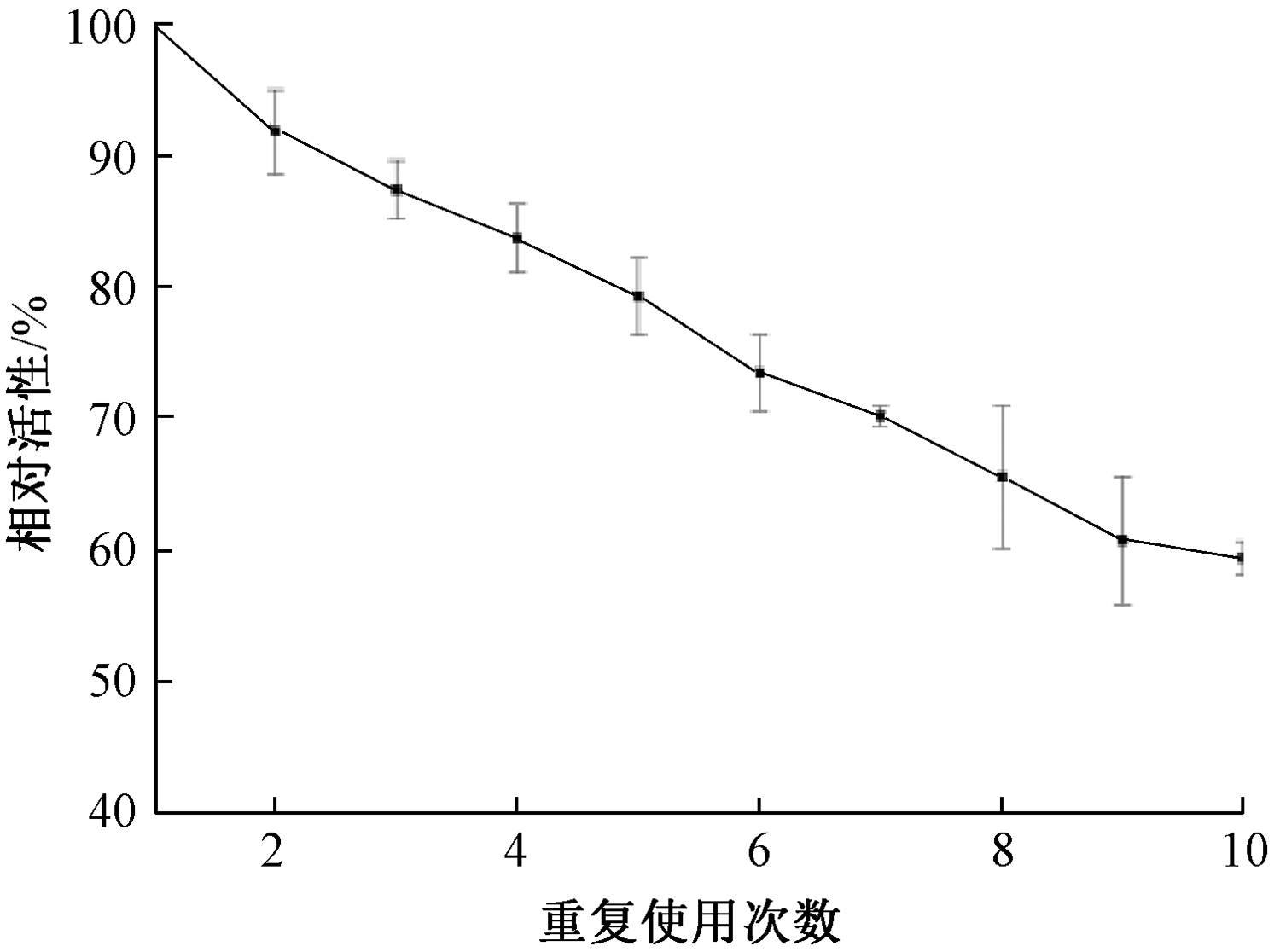

Fig.6

Reusability of immobilized laccase"

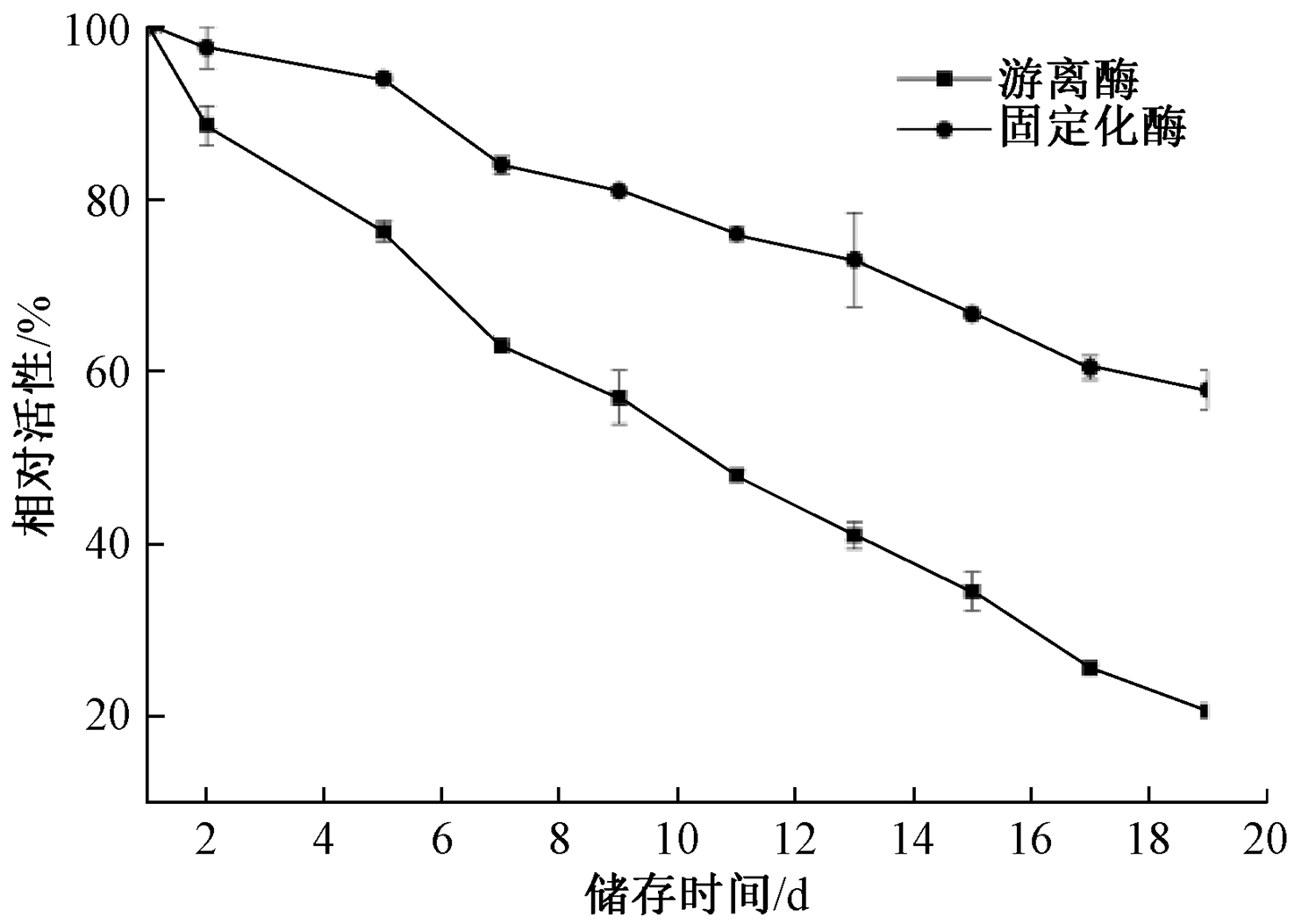

Fig.7

Storage stability of free and immobilized laccase"

[1] 陈荣圻. 漆酶在棉织物漂白和印染废水脱色的应用[J]. 染料与染色, 2020, 57(6):34-41.
CHEN Rongyin. The application of laccase in cotton fabric bleaching and printing and dyeing wastewater decolorization[J]. Dyestuffs & Coloration, 2020, 57(6):34-41.
[2] 马慧婕, 沈忱思, 章耀鹏, 等. 纺织工业产排污特征与水污染治理技术进展[J]. 环境科学研究, 2020, 33(11):2529-2539.
MA Huijie, SHEN Chensi, ZHANG Yaopeng, et al. Characteristics of textile industry pollution discharge and water pollution control technology progress[J]. Environmental Science Research, 2020, 33(11):2529-2539.
[3] CHEN X H, ZHOU Q Z, LIU F M, et al. Removal of nine pesticide residues from water and soil by biosorption coupled with degradation on biosorbent immobilized laccase[J]. Chemosphere, 2019, 233:49-56.
doi: 10.1016/j.chemosphere.2019.05.144
[4] ASIF M B, VAN DE MERWE J P, LEUSCH F D, et al. Elucidating the performance of an integrated laccase-and persulfate-assisted process for degradation of trace organic contaminants (TrOCs)[J]. Environmental Science: Water Research & Technology, 2020, 6(4):1069-1082.
[5] FENG Q, LI X, WU D S, et al. Preparation of the AOPAN-poly(HEMA) nanofibers via the atom transfer radical polymerization method and their application for laccase immobilization[J]. Journal of Industrial Textiles, 2018, 48(1):25-37.
doi: 10.1177/1528083717721921
[6] TUNCAY D, YAGAR H. Decolorization of reactive Blue-19 textile dye by boletus edulis laccase immobilized onto rice husks[J]. International Journal of Environmental Science and Technology, 2020, 17(6):3177-3188.
doi: 10.1007/s13762-020-02641-z
[7] RAZA S, YONG X Y, DENG J P. Immobilizing cellulase on multi-layered magnetic hollow particles: preparation, bio-catalysis and adsorption performances[J]. Microporous and Mesoporous Materials, 2019, 28:112-119.
[8] ULU Ahmet, BIRHANLI Emre, BORAN Filiz, et al. Laccase-conjugated thiolated chitosan-Fe3O4 hybrid composite for biocatalytic degradation of organic dyes[J]. International Journal of Biological Macromolecules, 2020, 150:871-884.
doi: S0141-8130(19)40057-3 pmid: 32027899
[9] FENG Q, WU D S, ZHAO Y, et al. Electrospun AOPAN/RC blend nanofiber membrane for efficient removal of heavy metal ions from water[J]. Journal of Hazardous Materials, 2018, 344:819-828.
doi: 10.1016/j.jhazmat.2017.11.035
[10] CHEN H Y, CHENG K C, HSU R J, et al. Enzymatic degradation of ginkgolic acid by laccase immobilized on novel electrospun nanofiber mat[J]. Journal of the Science of Food and Agriculture, 2020, 100(6):2705-2712.
doi: 10.1002/jsfa.10301
[11] WANG Q Q, CUI J, LI G H, et al. Laccase immobilization by chelated metal ion coordination chemistry[J]. Polymers, 2014, 6(9):2357-2370.
doi: 10.3390/polym6092357
[12] FENG Q, ZHAO Y, WEI A F, et al. Immobilization of catalase on electrospun PVA/PA6-Cu(Ⅱ) nanofibrous membrane for the development of efficient and reusable enzyme membrane reactor[J]. Environmental Science & Technology, 2014, 48(17): 10390-10397.
doi: 10.1021/es501845u
[13] NETI V S, DAS S, BROWN S, et al. Efficient functionalization of polyethylene fibers for the uranium extraction from seawater through atom transfer radical polymerization[J]. Industrial & Engineering Chemistry Research, 2017, 56 (38):10826-10832.
doi: 10.1021/acs.iecr.7b00482
[14] 刘新华, 李永, 储兆洋, 等. 细菌纤维素气凝胶接枝甲基丙烯酸二甲氨乙酯的制备[J]. 纺织学报, 2018, 39(3):1-6,13.
LIU Xinhua, LI Yong, CHU Zhaoyang, et al. Preparation of dimethyl methacrylate grafted by aerogel from bacterial cellulose[J]. Journal of Textile Research, 2018, 39(3):1-6,13.
doi: 10.1177/004051756903900101
[15] RUSEN Edina, RALUCA Somoghi, BUSUIOC Cristina, et al. Hydrophilic modification of polyvinyl chloride with polyacrylic acid using ATRP[J]. RSC Advances, 2020, 10(59):35692-35700.
doi: 10.1039/D0RA05936F
