Journal of Textile Research ›› 2022, Vol. 43 ›› Issue (08): 88-94.doi: 10.13475/j.fzxb.20210506307

• Dyeing and Finishing & Chemicals • Previous Articles     Next Articles

Construction of highly stable photonic crystals on textile substrates with asymmetric wetting characteristics

ZHANG Xingyue1, HAN Pengshuai1, WANG Yimeng2, ZHANG Yunxiao2, ZHOU Lan1,3, LIU Guojin1,2()

  1. 1. Key Laboratory of Advanced Textile Materials and Manufacturing Technology, Ministry of Education, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
    2. Zhejiang Provincial Key Laboratory of Fiber Materials and Manufacturing Technology, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
    3. Zhejiang Provincial Key Laboratory of Green Cleaning Technology and Washing Products, Lishui, Zhejiang 323000, China
  • Received:2021-05-24 Revised:2022-05-17 Online:2022-08-15 Published:2022-08-24
  • Contact: LIU Guojin E-mail:guojin900618@163.com

RichHTML

16

PDF (PC)

36

Abstract:

In order to improve the durability of structural colors produced from photonic crystals on textile substrates, a printing paste was prepared considering printing paste performance and substrate wettability, with self-crosslinking poly(styrene–N–hydroxymethylacrylamide) (P(St-NMA)) colloidal microspheres as the main component. Screen printing method was used to construct the highly stable photonic crystals on textile substrates with asymmetric wetting characteristics. The stability of photonic crystal chromogenic structure on textile substrate was tested. The results show that when the concentration of microspheres in printing paste is 80％ and the concentration of self-crosslinking accelerator hydrochloric acid is 5％–10％, photonic crystals with bright color and stable structure are obtained. The asymmetric wetting characteristics of the substrate can be achieved by plasma technology. When the treatment time is 3 min, the textile substrates with face and back contact angles of 56° and 110° can be obtained respectively, and photonic crystals with both structural color effect and structural stability can be constructed on the substrate face.

Key words: asymmetric wetting, textile substrate, screen printing, photonic crystal, structural color

CLC Number:

  • TS193.2

Fig.1

Typical FESEM image (a) and TEM image (b) of P (St-NMA) colloidal microspheres"

Fig.2

Digital camera photos, 3-D microscope images and FESEM images of printing patterns of photonic crystals structure prepared by self-assembly of P(St-NMA) microspheres with different concentrations on surface of cotton fabrics"

Fig.3

Digital camera photos, 3-D microscope images and FESEM images of printing patterns produced from photonic crystals on surface of cotton fabrics with printing paste containing different concentrations of hydrochloric acid"

Fig.4

Digital camera photos and 3-D microscope images of structural color printed fabric before and after friction. (a) P(St-NMA) microspheres; (b) P(St-NMA) microspheres added with HCl"

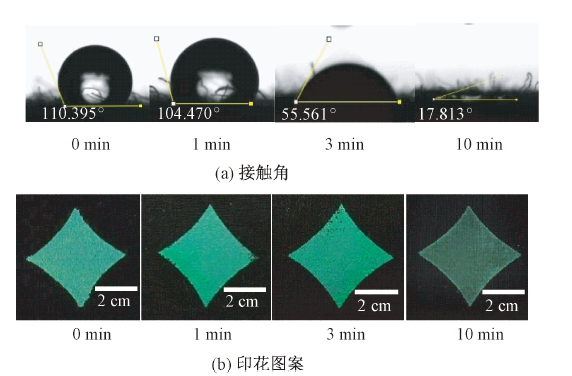

Fig.5

Contact angles (a)and printing patterns (b) of fabrics after plasma treatment at different time"

Fig.6

3-D microscope images and FESEM images of printing pattern photos after plasma treatment at different time"

Fig.7

FESEM images of printed pattern on fabric after plasma treatment at different time after stripping"

Fig.8

Bending test process (a) and 3-D microscope images before and after bending (b)of structural color printed fabrics (microsphere size 254 nm)"

Fig.9

Digital camera photos and 3-D microscope images of structural color printed fabrics before (a) and after (b) ultrasonic washing(microsphere size 254 nm)"

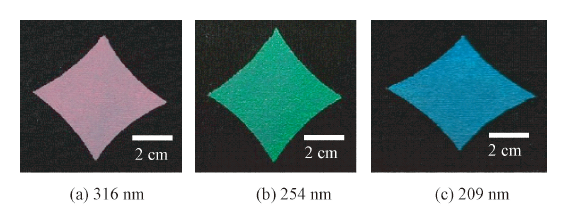

Fig.10

Photos of structural color printed fabric samples obtained from printing pastes with different particle sizes"

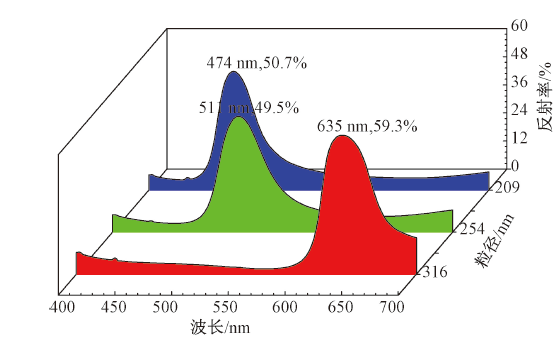

Fig.11

Reflectance curves of structural color printed fabric samples obtained by colloidal microspheres with different particle sizes"

[1] 张克勤, 袁伟, 张骜. 光子晶体的结构色[J]. 功能材料信息, 2011, 7(5): 39-44.
ZHANG Keqin, YUAN Wei, ZHANG Qian. Structural colors of the photonic crystal[J]. Functional Materials Information, 2011, 7(5): 39-44.
[2] 田媛. 博物馆古陶瓷陈列之比较研究[D]. 景德镇: 景德镇陶瓷学院, 2012:19-25.
TIAN Yuan. A comparative study on the display of ancient ceramics in museums[D]. Jingdezhen: Jingdezhen Ceramic College, 2012:19-25.
[3] 陈佳颖, 辛斌杰, 辛三法, 等. 基于光子晶体的结构色织物研究进展[J]. 纺织学报, 2020, 41(4):181-187.
CHEN Jiaying, XIN Binjie, XIN Sanfa, et al. Research progress of structured colored fabrics based on photonic crystals[J]. Journal of Textile Research, 2020, 41(4): 181-187.
[4] LI S, JIA L, DONG P, et al. Construction of photonic crystal structural colors on white polyester fabrics[J]. Optical Materials, 2021, 116: 111115-111122.
doi: 10.1016/j.optmat.2021.111115
[5] 刘国金, 蒋少宸, 周俭, 等. 基材的浸润性能对喷印光子晶体结构色的影响[J]. 浙江理工大学学报(自然科学版), 2018, 39(6):659-665.
LIU Guojin, JIANG Shaochen, ZHOU Jian, et al. The effect of wettability of substrates on structural color of photonic crystals by inkjet printing[J]. Journal of Zhejiang Sci-Tech University (Natural Sciences Edition), 2018, 39(6):659-665.
[6] LIU G J, ZHOU L, ZHANG G Q, et al. Study on the binding strength of polystyrene photonic crystals on polyester fabrics[J]. Journal of Materials Science, 2016, 51(19):8953-8964.
doi: 10.1007/s10853-016-0146-7
[7] 刘国金, 韩朋帅, 柴丽琴, 等. 涤纶织物上自交联型P(St-NMA)光子晶体的构筑及其结构稳固性[J]. 纺织学报, 2020, 41(5):99-104.
LIU Guojin, HAN Pengshuai, CHAI Liqin, et al. Construction and structural stability of self crosslinked P (St-NMA) photonic crystals on polyester fabric[J] Journal of Textile Research, 2020, 41 (5): 99-104.
[8] 赖伟根, 郭勇, 吴钰, 等. 光固化P(St-HEA)胶体微球喷印液的制备及其应用[J]. 现代纺织技术, 2020, 28(3):62-65.
LAI Weigen, GUO Yong, WU Yu, et al. Preparation and application of UV curable P(St-HEA) colloidal microsphere printing solution[J]. Advanced Textile Technology, 2020, 28 (3): 62-65.
[9] 李壮, 金梦婷, 须秋洁, 等. SiO2 溶胶对 P(St-MAA) 光子晶体生色结构的稳固性增强作用研究[J]. 复合材料学报, 2022, 39(2): 645-653.
LI Zhuang, JIN Mengting, XU Qiujie, et al. Study on the stability enhancement effect of SiO2 sol on the chromogenic structure of P(St-MAA) photonic crystals[J]. Journal of Composite Materials, 2022, 39(2): 645-653.
[10] 韩朋帅. 非对称润湿特性纺织基材上自交联型光子晶体的制备及应用[D]. 杭州: 浙江理工大学, 2021:53-57.
HAN Pengshuai. Preparation and application of self crosslinking photonic crystals on textile substrate with asymmetric wetting characteristics[D]. Hangzhou: Zhejiang Sci-Tech University, 2021:53-57.
[11] AMIN A, HOSSEIN R M, MEHDI S M. Morphology evolution of functionalized styrene and methyl methacrylate copolymer latex nanoparticles by one-step emulsifier-free emulsion polymerization[J]. European Polymer Journal, 2020, 133: 109790-109837.
doi: 10.1016/j.eurpolymj.2020.109790
[12] 陈彩云. 常压等离子体处理对棉织物毛细效应的影响[J]. 上海纺织科技, 2018, 46(11):10-12.
CHEN Caiyun. Influence of atmospheric pressure plasma treatment on capillary effect of cotton fabric[J]. Shanghai Textile Science & Technology, 2018, 46 (11): 10-12.
[13] AGUIRRE C I, REGUERA E, STEIN A. Tunable colors in opals and inverse opal photonic crystals[J]. Advanced Functional Materials, 2010, 20(16): 2565-2578.
doi: 10.1002/adfm.201000143
[14] WATERHOUSE G I N, WATERLAND M R. Opal and inverse opal photonic crystals: fabrication and characterization[J]. Polyhedron, 2007, 26(2): 356-368.
doi: 10.1016/j.poly.2006.06.024
