Journal of Textile Research ›› 2022, Vol. 43 ›› Issue (08): 132-139.doi: 10.13475/j.fzxb.20210600808

• Dyeing and Finishing & Chemicals • Previous Articles     Next Articles

Adsorption and decolorization of Reactive Blue 4 by polyurethane foam-immobilized biosystem

YANG Wenbo, ZHANG Aojie, LIU Youyan, LI Qingyun()

  1. School of Chemistry and Chemical Engineering, Guangxi University, Nanning, Guangxi 530004, China
  • Received:2021-06-01 Revised:2022-05-27 Online:2022-08-15 Published:2022-08-24
  • Contact: LI Qingyun E-mail:qyli@gxu.edu.cn

RichHTML

4

PDF (PC)

145

Abstract:

In order to construct a long-time effect of decolorization system, the biological adsorbent of Aspergillus flavus A5p1 was immobilized on the polyurethane foam (PUF) to decolorize the anthraquinone dye of Reactive Blue 4 (RB4). The adsorption kinetics, different concentrations of RB4, different concentrations of NaCl and repeated batches decolorization by Aspergillus flavus A5p1 before and after immobilization were investigated and compared. Results showed that the decolorization of RB4 was significantly enhanced after Aspergillus flavus A5p1 immobilization. Approximately 77.8％ adsorption of the 200 mg/L RB4 was achieved by the PUF–immobilized biological system within 20 min, while 62.8％ was achieved by the free cell system within 90 min. The biological decolorization process of RB4 could be described by the kinetics model of intraparticle diffusion. It was found that the PUF–immobilized biosystem adsorbed around 2.5 times more RB4 than that of the free cell system when RB4 concentration was 2 000 mg/L. Moreover, the PUF–immobilized biosystem exhibited good tolerance to the salinity of 50 g/L NaCl. In the repeated batches experiment, the decolorization efficiency of PUF–immobilized biological system could be maintained at 89％ after 7 batches, whereas the free cell system was decreased to 74.3％. These results show the effectiveness and reliability of the PUF–immobilized biosystem.

Key words: biological decolorization, Aspergillus flavus, anthraquinone dye, reactive dye, polyurethane, adsorption

CLC Number:

  • TQ610.9

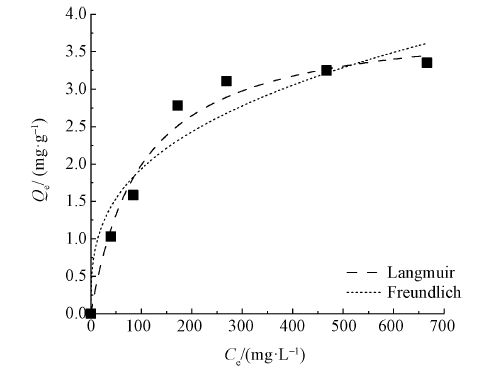

Fig.1

Adsorption isotherm of RB4 by PUF"

Tab.1

Fitting parameters of adsorption isotherm model"

Langmuir Freundlich
KL/(L·mg–1) Qm/(mg·g–1) R2 KF/(L·g–1) n R2
0.010 3.96 0.973 0.425 3.03 0.912

Fig.2

Adsorption time curve of RB4"

Fig.3

Intraparticle diffusion model of RB4"

Tab.2

Fitting parameters of intraparticle diffusion model for RB4 adsorption"

细胞种类 第1阶段 第2阶段 第3阶段
Ki1/
(mg·(g·min1/2)–1)		 Ci1 R2 Ki2/
(mg·(g·min1/2)–1)		 Ci2 R2 Ki3/
(mg·(g·min1/2)–1)		 Ci3 R2
PUF–固定化细胞 60.7 –132.1 0.994 0.901 61.5 0.867 0.041 68.1 0.336
游离细胞 15.3 –30.7 0.995 5.094 6.66 0.975 0.070 48.6 0.724

Fig.4

Decolorization of RB4 at different concentrations by biological systems"

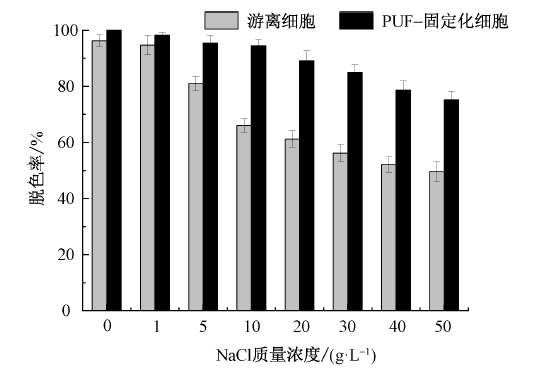

Fig.5

Decolorization of RB4 by biological systems at different concentrations of NaCl"

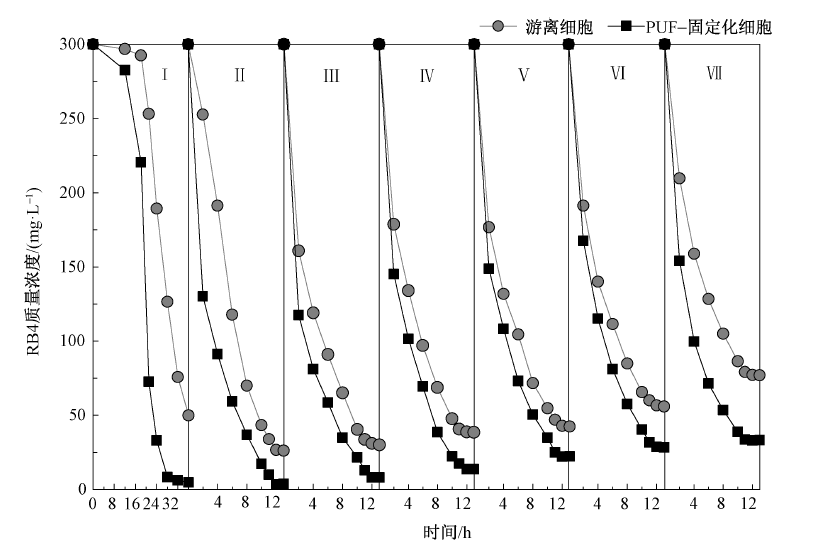

Fig.6

Repeated batches decolorization of RB4 by biological systems"

[1] VARJANI S, RAKHOLIYA P, NG H Y, et al. Microbial degradation of dyes: an overview[J]. Bioresource Technology, 2020. DOI: org/10.1016/j.biortech.2020.123728.
doi: org/10.1016/j.biortech.2020.123728
[2] 王大全. 精细化工辞典[M]. 北京: 化学工业出版社, 1998: 105.
WANG Daquan. Dictionary of fine chemicals[M]. Beijing: Chemical Industry Press, 1998:105.
[3] 阎其成. 蒽醌染料显现汗潜指纹的初步实验[J]. 刑事技术, 2014 (3): 50-51,72.
YAN Qicheng. Study on the appearance of sweat latent fingerprint by anthraquinone[J]. Forensic Science and Technology, 2014 (3): 50-51,72.
[4] ROUTOULA E, PATWARDHAN S V. Degradation of anthraquinone dyes from effluents: a review focusing on enzymatic dye degradation with industrial potential[J]. Environmental Science & Technology, 2020, 54(2): 647-664.
doi: 10.1021/acs.est.9b03737
[5] CHAUDHARI A U, PAUL D, DHOTRE D, et al. Effective biotransformation and detoxification of anthraquinone dye Reactive Blue 4 by using aerobic bacterial granules[J]. Water Research, 2017, 122: 603-613.
doi: 10.1016/j.watres.2017.06.005
[6] COLLIVIGNARELLI M C, ABBA A, MIINO M C, et al. Treatments for color removal from wastewater: state of the art[J]. Journal of Environmental Management, 2019, 236: 727-745.
doi: 10.1016/j.jenvman.2018.11.094
[7] LEDAKOWICZ S, PAZDZIOR K. Recent achievements in dyes removal focused on advanced oxidation processes integrated with biological methods[J]. Molecules, 2021. DOI: org/10.3390/molecules26040870.
doi: org/10.3390/molecules26040870
[8] WANG Y, WANG H, WANG X, et al. Resuscitation, isolation and immobilization of bacterial species for efficient textile wastewater treatment: a critical review and update[J]. Science of the Total Environment, 2020. DOI: org/10.1016/j.scitotenv.2020.139034.
doi: org/10.1016/j.scitotenv.2020.139034
[9] SEN S K, RAUT S, BANDYOPADHYAY P, et al. Fungal decolouration and degradation of azo dyes: a review[J]. Fungal Biology Reviews, 2016, 30(3): 112-133.
doi: 10.1016/j.fbr.2016.06.003
[10] SIMOES M F, MAIORANO A E, SANTOS J G, et al. Microbial fuel cell-induced production of fungal laccase to degrade the anthraquinone dye Remazol Brilliant Blue R[J]. Environmental Chemistry Letters, 2019, 17(3): 1413-1420.
doi: 10.1007/s10311-019-00876-y
[11] RYBCZYNSKA-TKACZYK K, KORNILLOWICZ-KOWALSKA T, SZYCHOWSKI K, et al. Biotransformation and toxicity effect of monoanthraquinone dyes during Bjerkandera adusta CCBAS 930 cultures[J]. Ecotoxicology and Environmental Safety, 2020. DOI: org/10.1016/j.ecoenv.2020.110203.
doi: org/10.1016/j.ecoenv.2020.110203
[12] POZDNYAKOVA N N, VARESE G C, PRIGIONE V, et al. Degradative properties of two newly isolated strains of the ascomycetes Fusarium oxysporum and Lecanicillium aphanocladii[J]. International Microbiology, 2019, 22(1): 103-110.
doi: 10.1007/s10123-018-0032-z
[13] 程绿竹, 王宗乾, 王邓峰, 等. 高中空生物质活性碳纤维制备及其对亚甲基蓝的吸附性能[J]. 纺织学报, 2021, 42(2): 129-134.
CHENG Lüzhu, WANG Zongqian, WANG Dengfeng, et al. Preparation of highly hollow biomass-based activated carbon fiber and its adsorption property to methylene blue[J]. Journal of Textile Research, 2021, 42(2): 129-134.
[14] AKAR T, KURSUNLU G, CELIK S, et al. Immobilized mucor plumbeus on sepiolite support: a potential decolorization agent suitable for batch and continuous mode water treatment[J]. Journal of Cleaner Production, 2021. DOI: org/10.1016/j.jclepro.2021.126283.
doi: org/10.1016/j.jclepro.2021.126283
[15] 夏卓英, 郭春缘, 林亚楠, 等. 丝瓜络固定脱色菌对活性艳红X3B的脱色性能研究[J]. 中国资源综合利用, 2020, 38(3): 1-6.
XIA Zhuoying, GUO Chunyuan, LIN Ya'nan, et al. Study on the decolorization of Reactive Birlliant Red X3B by decolorizing strain immobilized on Luffa Cylindrica(L.)Roem[J]. China Resources Comprehensive Utilization, 2020, 38(3): 1-6.
[16] Al-AMSHAWEE S, YUNUS M Y B, VO D V N, et al. Biocarriers for biofilm immobilization in wastewater treatments: a review[J]. Environmental Chemistry Letters, 2020, 18(6): 1925-1945.
doi: 10.1007/s10311-020-01049-y
[17] PRABHAVATHI P, RAJENDRAN R, KARTHIKSUNDARAM S, et al. Enhanced bioremediation efficiency of denim industrial effluent using bacterial biofilm onto polyurethane matrix[J]. Applied Biochemistry and Microbiology, 2014, 50(6): 554-562.
doi: 10.1134/S0003683814060131
[18] DE I, CABRERA G, RAMIREZ M, et al. Immobilization of cells on polyurethane foam[M]//GUISAN J M. Immobilization of enzymes and cells. 2nd ed. New York: Humana Press, 2006: 357.
[19] WANG L, WU D, TANG P, et al. Xylitol production from corncob hydrolysate using polyurethane foam with immobilized Candida tropicalis[J]. Carbohydrate Polymers, 2012, 90(2): 1106-1113.
doi: 10.1016/j.carbpol.2012.06.050
[20] HAMA S, ONODERA K, YOSHIDA A, et al. Improved production of phospholipase A1 by recombinant Aspergillus oryzae through immobilization to control the fungal morphology under nutrient-limited conditions[J]. Biochemical Engineering Journal, 2015, 96: 1-6.
doi: 10.1016/j.bej.2014.12.013
[21] CHENG N, LI Q Y, TANG A X, et al. Decolorization of a variety of dyes by Aspergillus flavus A5p1[J]. Bioprocess and Biosystems Engineering, 2018, 41: 511-518.
doi: 10.1007/s00449-017-1885-9
[22] YUAN T, ZHANG S, CHEN Y, et al. Enhanced Reactive Blue 4 biodegradation performance of newly isolated white rot fungus Antrodia P5 by the synergistic effect of herbal extraction residue[J]. Frontiers in Microbiology, 2021. DOI: org/10.3389/fmicb.2021.644679.
doi: org/10.3389/fmicb.2021.644679
[23] WEBER J, MORRIS J C. Kinetics of adsorption on carbon from solution[J]. Journal of the Sanitary Engineering Division, 1963, 89(2): 31-59.
doi: 10.1061/JSEDAI.0000430
[24] SILVEIRA N J D J, MOREIRA G C, DA SILVA C J, et al. Use of polyurethane foams for the removal of the Direct Red 80 and Reactive Blue 21 dyes in aqueous medium[J]. Desalination, 2011, 281: 55-60.
doi: 10.1016/j.desal.2011.07.041
[25] GOES M M, KELLER M, OLIVEIRA V M, et al. Polyurethane foams synthesized from cellulose-based wastes: kinetics studies of dye adsorption[J]. Industrial Crops and Products, 2016, 85: 149-158.
doi: 10.1016/j.indcrop.2016.02.051
[26] SAEED A, IQBAL M, ZAFAR S I. Immobilization of trichoderma viride for enhanced methylene blue biosorption: batch and column studies[J]. Journal of Hazardous Materials, 2009, 168(1): 406-415.
doi: 10.1016/j.jhazmat.2009.02.058
[27] GAN L, ZHOU F, OWENS G, et al. Burkholderia cepacia immobilized on eucalyptus leaves used to simultaneously remove malachite green (MG) and Cr (VI)[J]. Colloids and Surfaces B: Biointerfaces, 2018, 172: 526-531.
doi: 10.1016/j.colsurfb.2018.09.008
[28] YOUSSEF M, SHATOURY E H, ALI S S, et al. Enhancement of phenol degradation by free and immobilized mixed culture of Providencia stuartii PL4 and Pseudomonas aeruginosa PDM isolated from activated sludge[J]. Bioremediation Journal, 2019, 23(2): 53-71.
doi: 10.1080/10889868.2019.1602106
[29] FONTENOT E J, LEE Y H, MATTHEWS R D, et al. Reductive decolorization of a textile reactive dyebath under methanogenic conditions[J]. Applied Biochemistry and Biotechnology, 2003, 109: 207-225.
doi: 10.1385/ABAB:109:1-3:207
[30] 杨蕴哲. 原位电生成活性氯氧化降解脱色蒽醌染料[D]. 大连: 大连理工大学, 2005: 8-20.
YANG Yunzhe. Electrochemical treatment of anthraquinone dye with in suit electrogenerated active chlorine[D]. Dalian: Dalian University of Technology, 2005: 8-20.
[31] LI H, MENG F, DUAN W, et al. Biodegradation of phenol in saline or hypersaline environments by bacteria: a review[J]. Ecotoxicology and Environmental Safety, 2019. DOI: org/10.1016/j.ecoenv.2019.109658.
doi: org/10.1016/j.ecoenv.2019.109658
[32] SHAHEEN R, ASGHER M, HUSSAIN F, et al. Immobilized lignin peroxidase from Ganoderma lucidum IBL-05 with improved dye decolorization and cytotoxicity reduction properties[J]. International Journal of Biological Macromolecules, 2017, 103: 57-64.
doi: 10.1016/j.ijbiomac.2017.04.040
[33] YUAN S Z, LU H, WANG J, et al. Enhanced bio-decolorization of azo dyes by quinone-functionalized ceramsites under saline conditions[J]. Process Biochemistry, 2012, 47(2): 312-318.
doi: 10.1016/j.procbio.2011.11.015
[34] PADMANABAN V C, GEED S R R, ACHARY A, et al. Kinetic studies on degradation of Reactive Red 120 dye in immobilized packed bed reactor by Bacillus cohnii RAPT1[J]. Bioresource Technology, 2016, 213: 39-43.
doi: 10.1016/j.biortech.2016.02.126
[35] WANG J F, HUANG J Q, GUO H Y, et al. Optimization of immobilization conditions for Lactobacillus pentosus cells[J]. Bioprocess and Biosystems Engineering, 2020, 43: 1071-1079.
doi: 10.1007/s00449-020-02305-9
[36] MULLA S I, TALWAR M P, BAGEWADI Z K, et al. Enhanced degradation of 2-nitrotoluene by immobilized cells of Micrococcus sp. strain SMN-1[J]. Chemosphere, 2013, 90(6): 1920-1924.
doi: 10.1016/j.chemosphere.2012.10.030
