Cocoon image fusion method based on ellipse overlapping area

SUN Weihong1,2(), LI Yu1,2, LIANG Man1,2, SHAO Tiefeng1,2, GAO Minghui3

  1. 1. College of Mechanical and Electrical Engineering, China Jiliang University, Hangzhou, Zhejiang 310018, China
    2. Cocoon and Silk Quality Inspection Technology Institute, China Jiliang University, Hangzhou, Zhejiang 310018, China
    3. Taian Textile Fiber Inspection Institute, Taian, Shandong 217000, China
  • Received:2021-06-07 Revised:2022-04-25 Online:2022-09-15 Published:2022-09-26

RichHTML

5

PDF (PC)

40

Abstract:

Aiming at the appearance of boundary lines of the cocoon in the high latitude area when using the existing linear weight assignment method to fuse cocoon images, a cocoon image fusion method based on elliptical overlapping area was proposed. The equivalent ellipse of the cocoon surface in the image to be spliced was obtained by using the least squares fitting algorithm, and its position equation in the image coordinates was output. A mathematical model of cocoon image fusion was then established according to the displacement along the horizontal and vertical axes obtained in the image registration process, and the point set of the overlapping area of the equivalent ellipse was obtained. An improved trigonometric function weight algorithm was established through the maximum width of the ellipse overlapping area to fuse the ellipse overlapping area. The experimental results show that the fusion effect of this method is better than the fading in and out algorithms and trigonometric function weight algorithms, which can effectively eliminate the boundary line of the cocoon, and obtain a cocoon fusion image with good visual effect and more information.

Key words: image registration, equivalent ellipse, overlapping area, trigonometric function weight, fusion processing, cocoon image, cocoon quality

CLC Number:

  • TP391

Fig.1

Schematic diagram of acquisition device"

Fig.2

Ellipse fitting of cocoon image. (a) Cocoon image;(b) Ellipse fitting results"

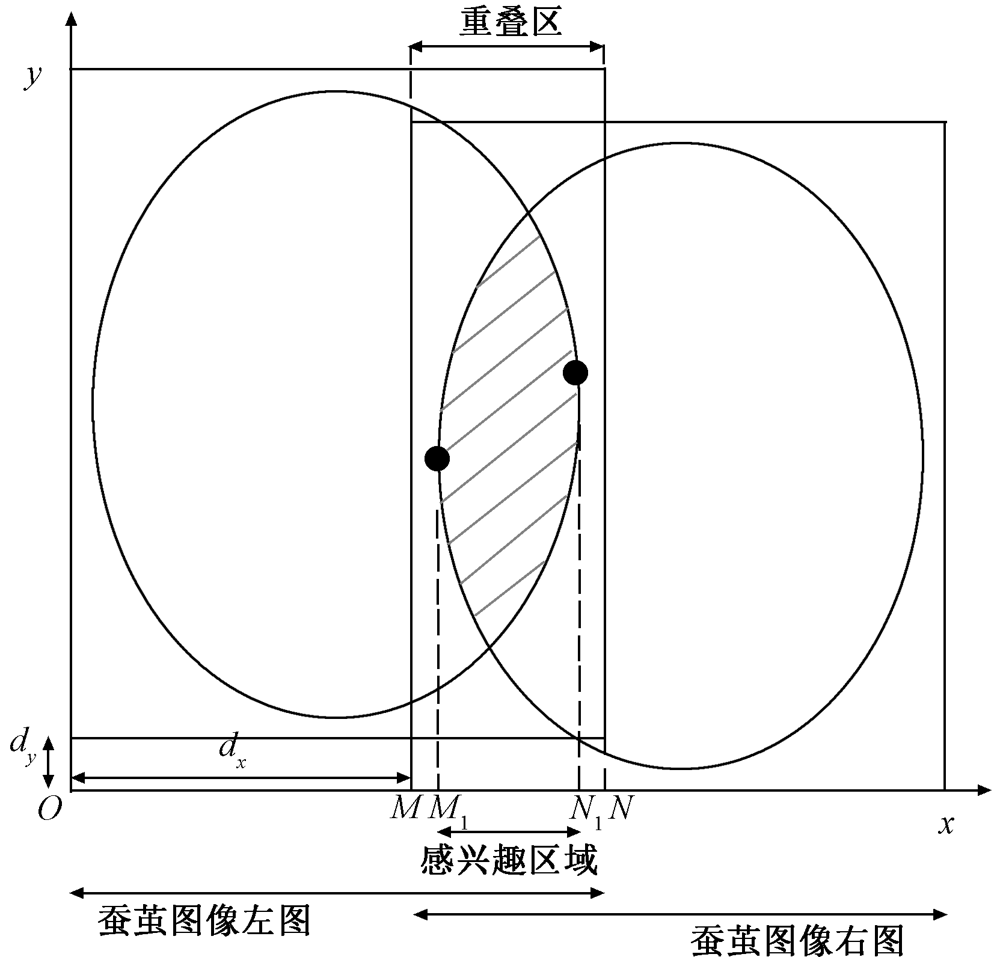

Fig.3

Mathematical model of cocoon image fusion"

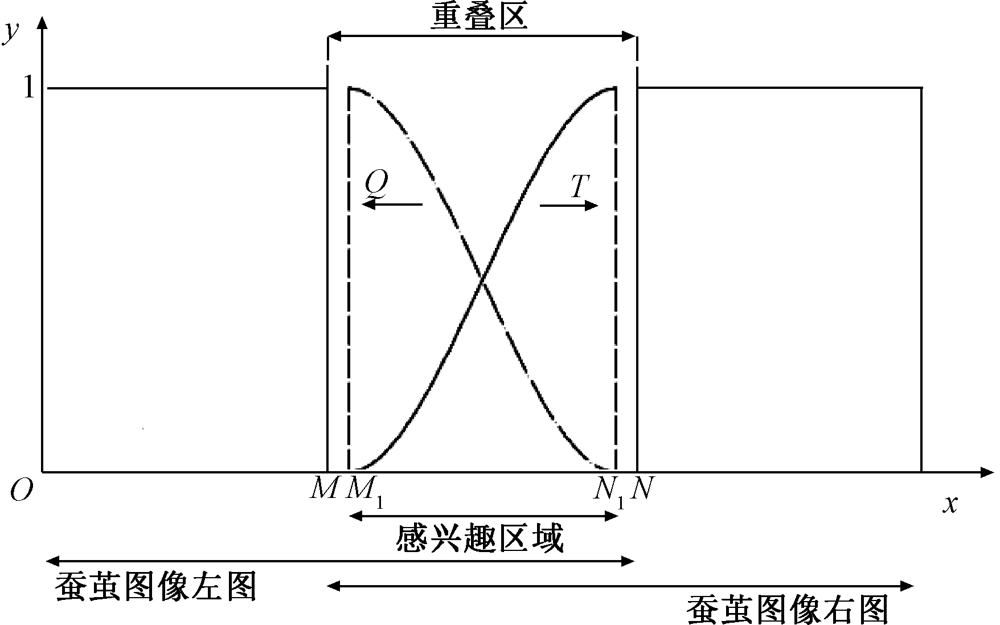

Fig.4

Weight change diagram of modified trigonometric function"

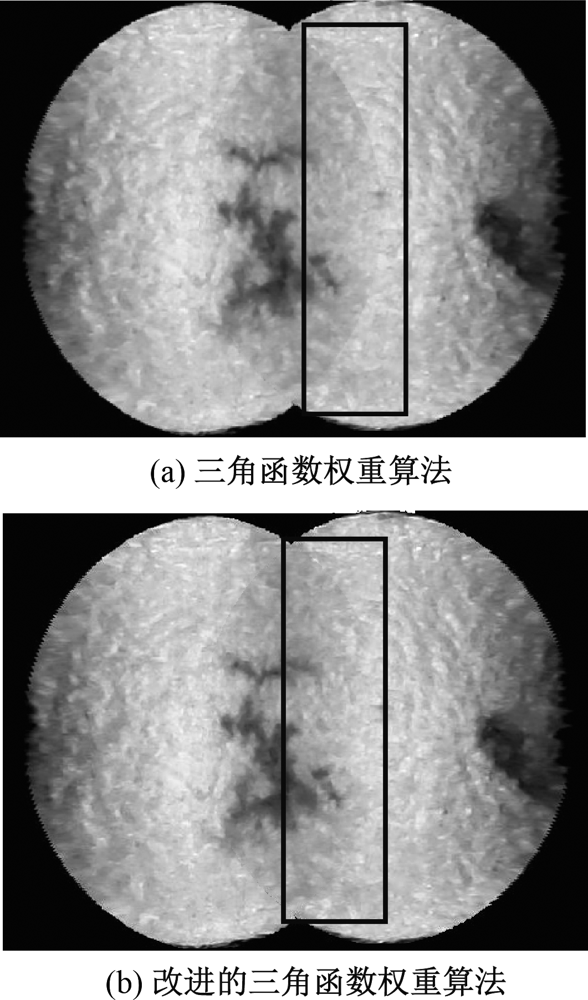

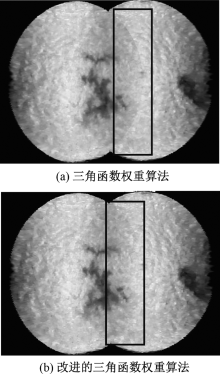

Fig.5

Comparison of fusion results of trigonometric function weight algorithm before (a) and after (b) improved"

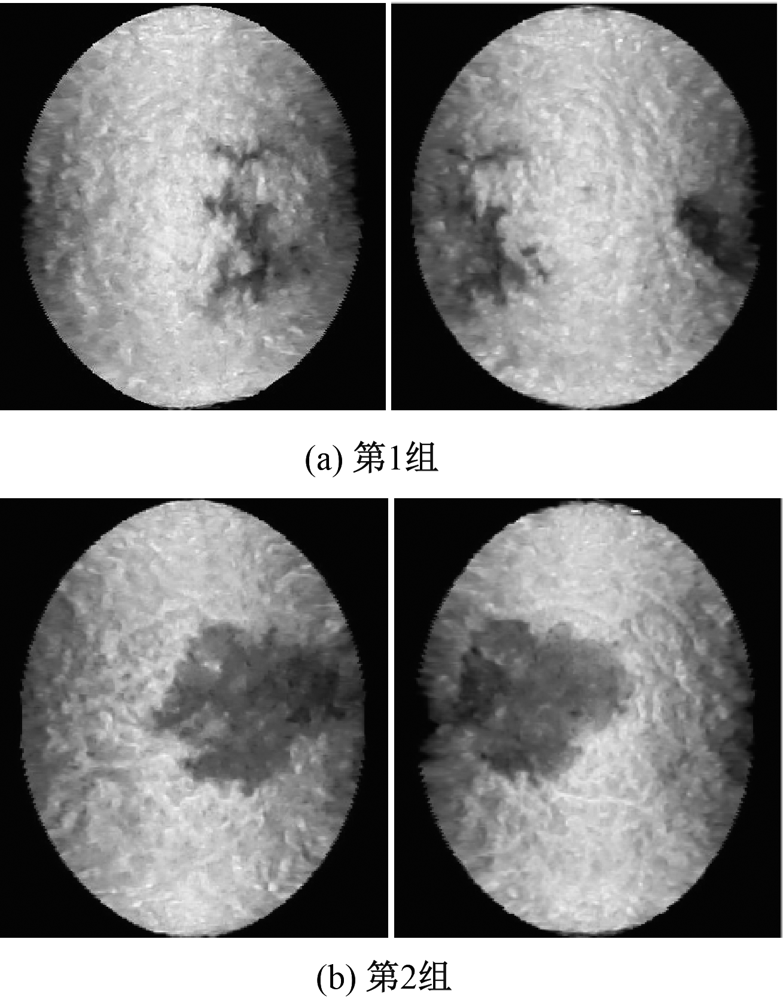

Fig.6

Cocoon unfolding image before fusion. (a) First group; (b) Second group"

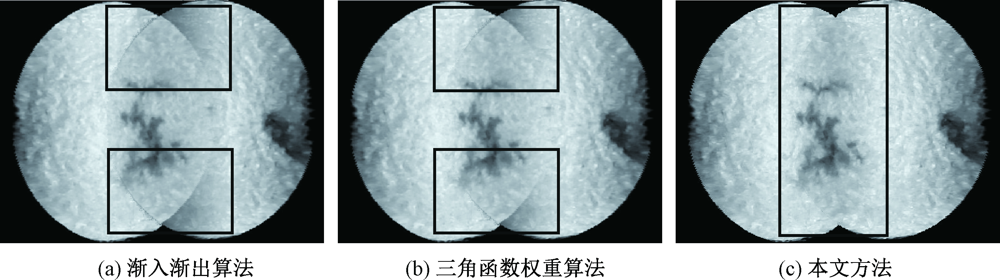

Fig.7

Fusion results of first group of cocoon images. (a) Fading in and out algorithm; (b) Trigonometric function weight algorithm;(c) Algorithm in this paper"

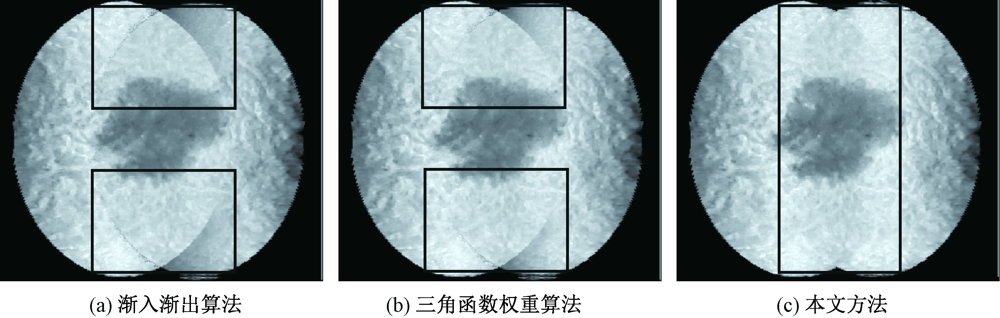

Fig.8

Fusion results of second group of cocoon images. (a) Fading in and out algorithm; (b) Trigonometric function weight algorithm;(c) Algorithm in this paper"

Tab.1

Comparison of objective indexes mean value of cocoon fusion images under three methods"

蚕茧图像组别 算法名称 信息熵 平均梯度 空间频率 标准差 互信息
1 渐入渐出算法 6.07 3.97 18.94 72.82 4.400 6
三角函数权重算法 6.10 4.12 20.37 74.11 4.454 3
本文方法 6.12 3.99 19.58 75.30 4.482 8
2 渐入渐出算法 5.95 4.05 19.30 71.11 3.883 4
三角函数权重算法 5.93 4.16 20.01 72.63 3.887 6
本文方法 5.96 4.21 19.72 74.25 3.894 5
相比渐入渐出算法提高百分比/% 0.50 2.23 2.78 3.92 2.15
相比三角函数权重算法提高百分比/% 0.42 -0.98 -2.67 1.92 0.82
