Journal of Textile Research ›› 2022, Vol. 43 ›› Issue (06): 100-106.doi: 10.13475/j.fzxb.20210604907

• Dyeing and Finishing & Chemicals • Previous Articles     Next Articles

Preparation and property of reduced graphene oxide/viscose-based BiVO4 photocatalyst

QIAN Jiaqi1, QU Jian'gang1(), HU Xiaolin1, MAO Qinghui1,2

  1. 1. School of Textile and Clothing, Nantong University, Nantong, Jiangsu 226019, China
    2. National Advanced Printing and Dyeing Technology Innovation Center, Taian, Shandong 271000, China
  • Received:2021-06-21 Revised:2022-03-24 Online:2022-06-15 Published:2022-07-15
  • Contact: QU Jian'gang E-mail:qujiangang@ntu.edu.cn

RichHTML

5

PDF (PC)

101

Abstract:

In order to overcome the disadvantages of low photocatalytic efficiency and recyclability of BiVO4, silane coupling agent KH-560 and graphene oxide (GO) were used to modify the viscose nonwoven fabrics, then BiVO4 was grown on its surface by stirring hydrothermal method to prepare reduced graphene oxide (RGO)/viscose-based BiVO4 photocatalyst. The materials as prepared were characterized by scanning electron microscopy, X-ray diffraction, X-ray photoelectron spectroscopy and ultraviolet visible absorption spectroscopy. The photocatalytic activity, reusability and photocatalytic mechanism of RGO/viscose based BiVO4 photocatalyst for C.I. Reactive Black 5 decolorization were studied. The results show that BiVO4 is successfully loaded on RGO/viscose nonwovens and consequently RGO/viscose-based BiVO4 photocatalytic materials are obtained. Under the irradiation of 1 kW xenon lamp, the decolorization rate can reach up to 95% in 90 min, and over 92% is preserved even after five recycles. Furthermore, free radical capture experiments show that photogenerated hole, superoxide radical and hydroxyl radical participate in the photocatalytic reaction, and among which the hydroxyl radical is the most important.

Key words: graphene, viscose, BiVO4, photocatalysis, C.I. Reactive Black 5, waste water treatment

CLC Number:

  • TS190.3

Fig.1

SEM images of different fabrics. (a) GO;(b) Viscos; (c) GO/V-K; (d) BiVO4/RGO/V-K"

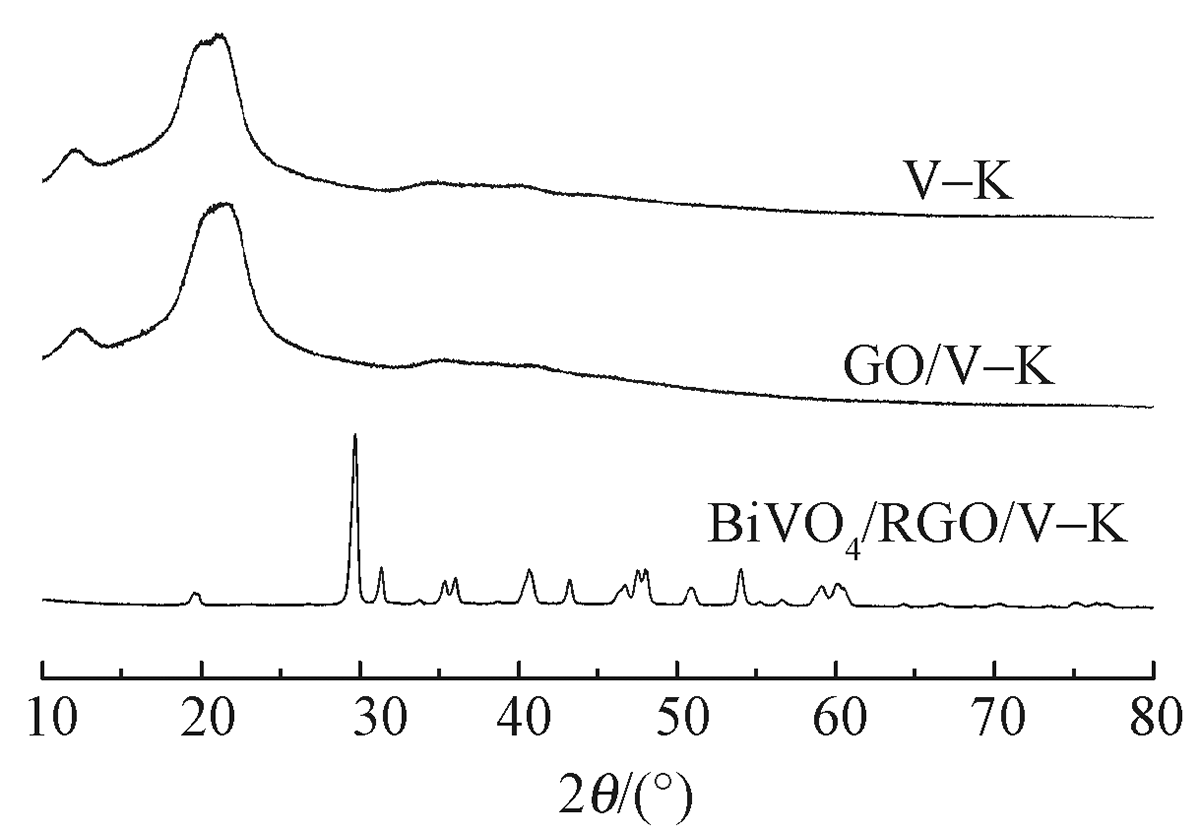

Fig.2

XRD patterns of V-K, GO/V-K and BiVO4/RGO/V-K"

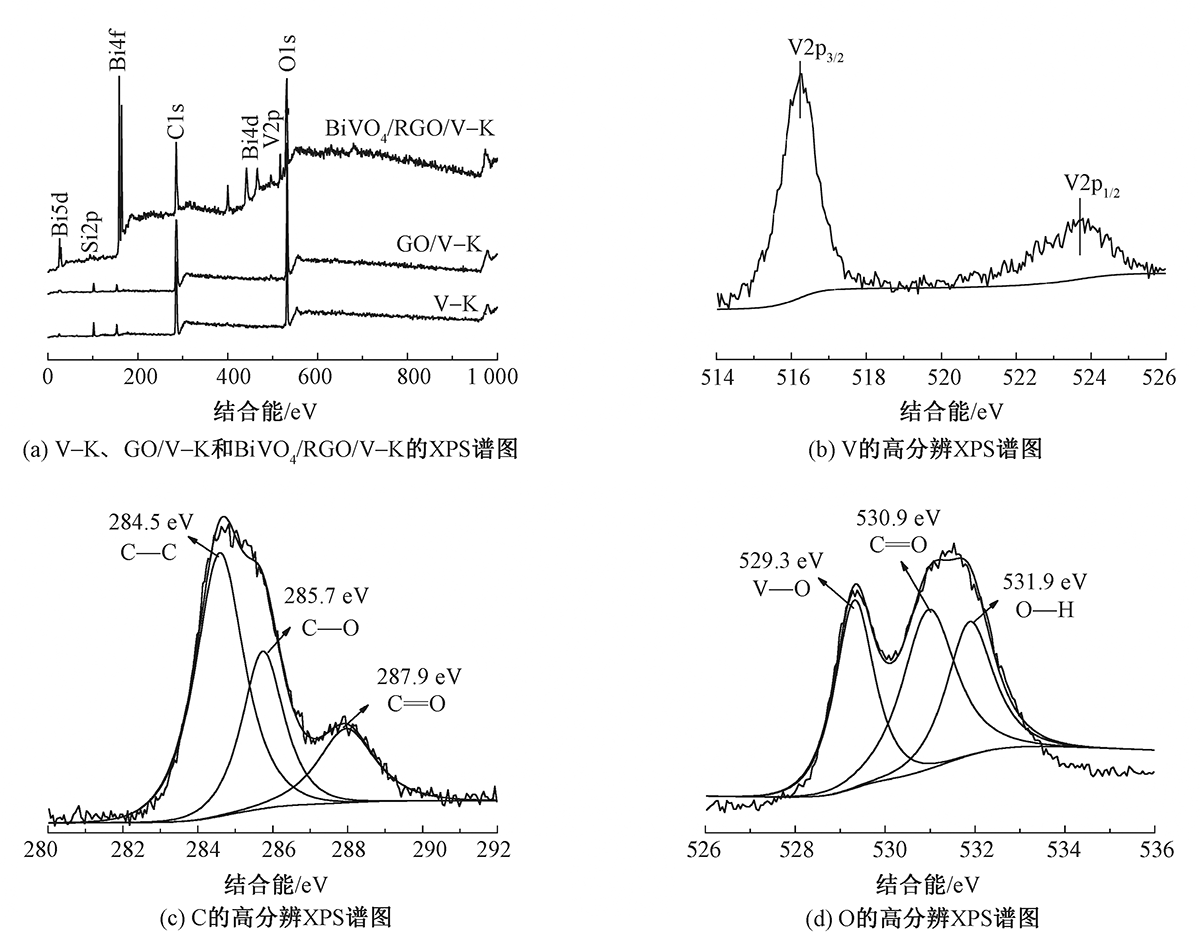

Fig.3

XPS survey spectra of V-K, GO/V-K and BiVO4/RGO/V-K(a) and high resolution spectra of V(b), C(c) and O(d) of BiVO4/RGO/V-K"

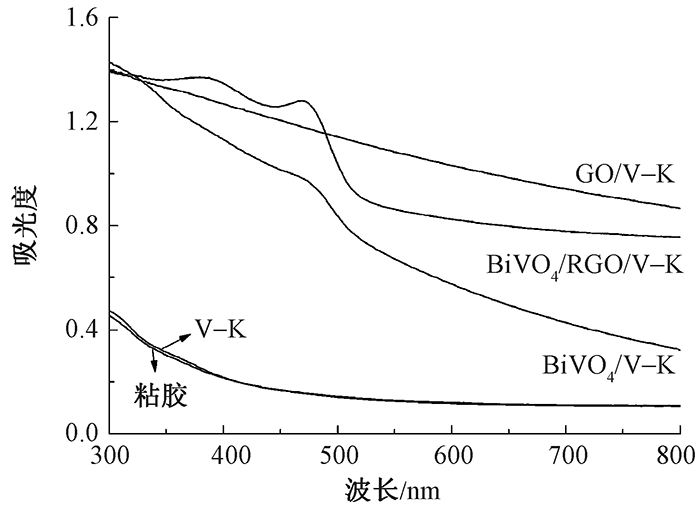

Fig.4

UV-Vis absorption spectra of viscose, V-K, GO/V-K, BiVO4/V-K and BiVO4/RGO/V-K"

Fig.5

Band gap energy of BiVO4/V-K and BiVO4/RGO/V-K"

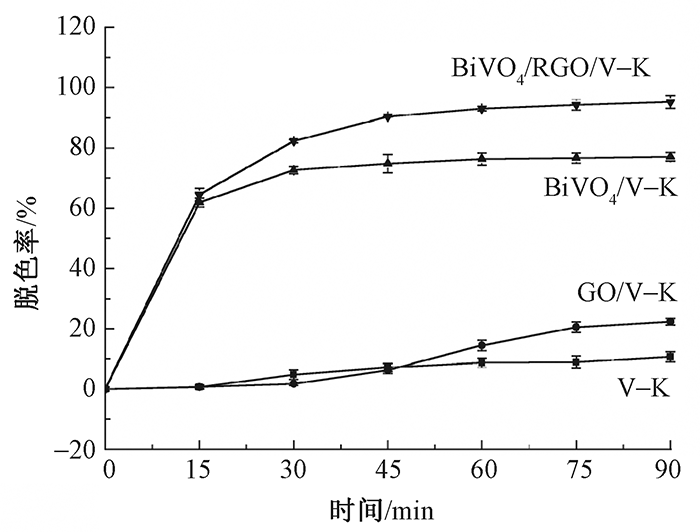

Fig.6

Photocatalytic activity of V-K, GO/V-K, BiVO4/V-K and BiVO4/RGO/V-K for RB5"

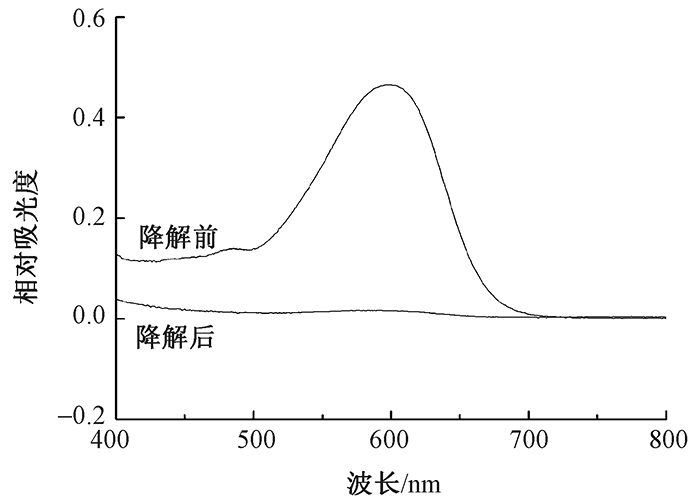

Fig.7

Visible spectra of RB5 before and after degradation"

Fig.8

Recyclability of BiVO4/RGO/V-K"

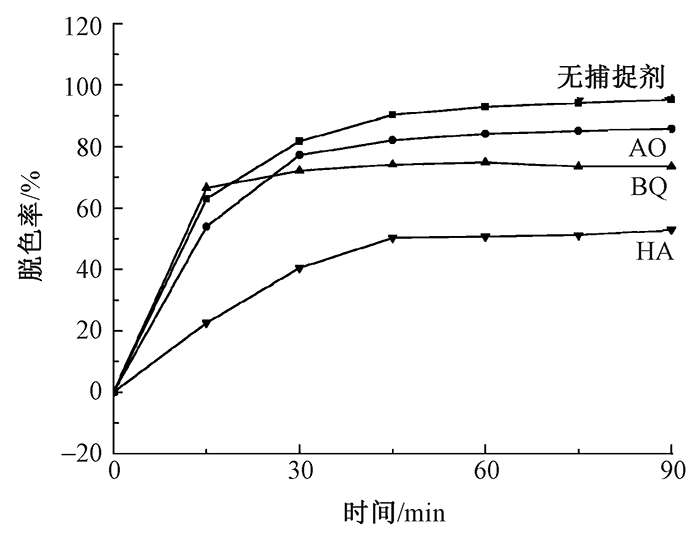

Fig.9

Effect of different trappers on the photocatalytic activity of BiVO4/RGO/V-K"

[1] 钱怡帆, 周堂, 张礼颖, 等. 聚丙烯腈/醋酸纤维素/TiO2复合纳米纤维膜的制备及其光催化降解性能[J]. 纺织学报, 2020, 41(5): 8-14.
QIAN Yifan, ZHOU Tang, ZHANG Liying, et al. Preparation of polyacrylonitrile/cellulose acetate/TiO2 composite nanofiber membrane and its photocatalytic degradation performance[J]. Journal of Textile Research, 2020, 41(5): 8-14.
[2] 张婷婷, 许可欣, 金梦甜, 等. 纤维素基有机-无机纳米光催化复合材料制备及其水处理应用的研究进展[J]. 纺织学报, 2021, 42(7): 175-183.
ZHANG Tingting, XU Kexin, JIN Mengtian, et al. Recent progress in preparation of cellulose-based organic-inorganic photocatalysts nanohybrids and it's application in water treatment[J]. Journal of Textile Research, 2021, 42(7): 175-183.
doi: 10.1177/004051757204200309
[3] 陈瑞芳, 曲雯雯, 王一均, 等. 溶剂对钨酸铋/石墨烯形貌结构和光催化性能的影响[J]. 材料导报, 2021, 35(6):6008-6014.
CHEN Ruifang, QU Wenwen, WANG Yijun, et al. Effect of solvents on morphology and photocatalytic performance of Bi2WO6/RGO[J]. Materials Reports, 2021, 35(6): 6008-6014.
[4] 朱鸣凡, 卢泽强, 廖春鑫, 等. 花球状Bi2S3/BiOI复合光催化剂去除空气中甲醛的应用[J]. 无机化学学报, 2021, 37(3): 437-442.
ZHU Mingfan, LU Zeqiang, LIAO Chunxin, et al. Application in removal of formaldehyde in air by fliwe spherical Bi2S3/BiOI composite photocatalyst[J]. Chinese Journal of Inorganic Chemistry, 2021, 37(3): 437-442.
[5] 倪鑫, 周扬, 谭瑞琴, 等. 光电化学水扽姐中铁酸盐光阴极的制备与改性[J]. 化学进展, 2020, 32(10): 1515-1534.
doi: 10.7536/PC200334
NI Xin, ZHOU Yang, TAN Ruiqin, et al. Fabrication and modification of ferrite photocathodes for photoelectrochemical water splitting[J]. Progress in Chemistry, 2020, 32(10): 1515-1534.
doi: 10.7536/PC200334
[6] KOUTAVARAPU R, TAMTAM M R, MYLA C R, et al. Enhanced solar-light-driven photocatalytic properties of novel Z-scheme binary BiPO4 nanorods anchored onto NiFe2O4 nanoplates: efficient removal of toxic organic pollutants[J]. Journal of Environmental Sciences, 2021, 102: 326-340.
doi: 10.1016/j.jes.2020.09.021
[7] 蓝舟, 瞿建刚, 王春梅, 等. 纤维基钒酸铋的制备及其光催化性能[J]. 纺织学报, 2018, 39(6): 89-95.
LAN Zhou, QU Jiangang, WANG Chunmei, et al. Preparation and photocatalytic properties of BiVO4 loaded fiber[J]. Journal of Textile Research, 2018, 39(6): 89-95.
[8] LAI C, ZHANG M M, LI B S, et al. Fabrication of CuS/BiVO4 (040) binary heterojunction photocatalysts with enhanced photocatalytic activity for ciprofloxacin degradation andmechanism insight[J]. Chemical Engineering Journal, 2019, 358: 891-902.
doi: 10.1016/j.cej.2018.10.072
[9] 刘巍, 田永胜, 崔佳伟, 等. 铜修饰钒酸铋/膨润土复合材料的制备及可见光催化脱硫性能研究[J]. 化工新型材料, 2021, 49(2): 200-203.
LIU Wei, TIAN Yongsheng, CUI Jiawei, et al. Preparation and characterization of Cu-BiVO4/BTT nanocomposite for visible light photocatalytic desulfurization[J]. New Chemical Materials, 2021, 49(2): 200-203.
[10] FAN Y Y, YANG R J, ZHU R S, et al. CdS decorated artificial leaf BiVO4/InVO4 for photocatalytic hydrogen production and simultaneous degradation of biological hydrogen production wastewater[J]. Catalysis Today, 2021, 364: 190-195.
doi: 10.1016/j.cattod.2020.04.012
[11] 罗佳妮, 李丽君, 张晓思, 等. 氧化石墨烯掺杂TiO2改性活性炭纤维[J]. 纺织学报, 2020, 41(1): 8-14.
LUO Jiani, LI Lijun, ZHANG Xiaosi, et al. Modification of activated carbon fiber using graphene oxide doped titanium dioxide[J]. Journal of Textile Research, 2020, 41(1): 8-14.
[12] 刘稀, 王冬, 张丽平, 等. 醋酸处理对原液着色粘胶纤维黑度的影响研究[J]. 化工新型材料, 2020, 48(11): 188-191.
LIU Xi, WANG Dong, ZHANG Liping, et al. Influence of acetic acid treatment on blackness of spun-dyed viscose fiber[J]. New Chemical Materials, 2020, 48(11): 188-191.
[13] WANG Y L, DING K, XU R, et al. Fabrication of BiVO4/BiPO4/GO composite photocatalytic material for the visible light-driven degradation[J]. Journal of Cleaner Production, 2019, 247: 119108.
doi: 10.1016/j.jclepro.2019.119108
[14] ZHANG H S, YU D, WANG W, et al. Recyclable and highly efficient photocatalytic fabric of Fe (III)@BiVO4/cotton via thiolene click reaction with visible-light response in water[J]. Advanced Powder Technology, 2019, 30(12): 3182-3192.
doi: 10.1016/j.apt.2019.09.027
[15] 娄娅娅, 王静, 董燕超, 等. 粘胶基沸石咪唑骨架材料的制备及其对染料的脱色[J]. 纺织学报, 2021, 42(2): 142-147.
LOU Yaya, WANG Jing, DONG Yanchao, et al. Preparation and decolorization of rayon based zeoliticimidazolate framework functional material[J]. Journal of Textile Research, 2021, 42(2): 142-147.
