2020 version of continuous structural modification on Donghua young women's garment basic block

LIU Yongmei1,2, XUE Huixin1, XU Danniang1, ZHANG Xianghui1,2()

  1. 1. College of Fashion Design, Donghua University, Shanghai 200051, China
    2. Key Laboratory of Clothing Design and Technology, Ministry of Education, Shanghai 200051, China
  • Received:2021-06-22 Revised:2022-03-23 Online:2022-07-15 Published:2022-07-29
  • Contact: ZHANG Xianghui E-mail:zhangxianghui@dhu.edu.cn

RichHTML

13

PDF (PC)

112

Abstract:

To adapt to the changes in the body shape characteristics of young women and improve the fitness and applicability of the garment basic block, the 2020 version of Donghua young women's garment basic block was established. Based on the structure of the 2008 version of Donghua young women's garment basic block, a hypothetical prototype for sample modification experiments was established. 56 young women aged 18-29 were tested to modify the hypothetical prototype sample of real life dress. The difference test was performed on the modified data, the regression relationship between the control parts of the prototype was adjusted, and the relaxation distribution rule of the hip part of the prototype was explored. Through the sample clothing correction experiment, trends were observed on young female's neck root circumference increase, shoulder inclination, and slight humpback. The adjustment of the prototype on the basis of the 2008 version of Donghua women's garment basic block is as follows: the regression formula changes at the front horizontal collar, back horizontal collar, back straight collar, chest width, back width and scapula dart, and the angle of the back shoulder oblique decreases. The distribution of hip circumference looseness in front, side and back parts was 19.0%, 60.4% and 20.6%, respectively. Based on these changes, the 2020 version of Donghua young women's garment basic block would improve the applicability of clothing prototype to different styles of clothing.

Key words: garment basic block, body characteristics, dressing experiment, sample modification

CLC Number:

  • TS941.2

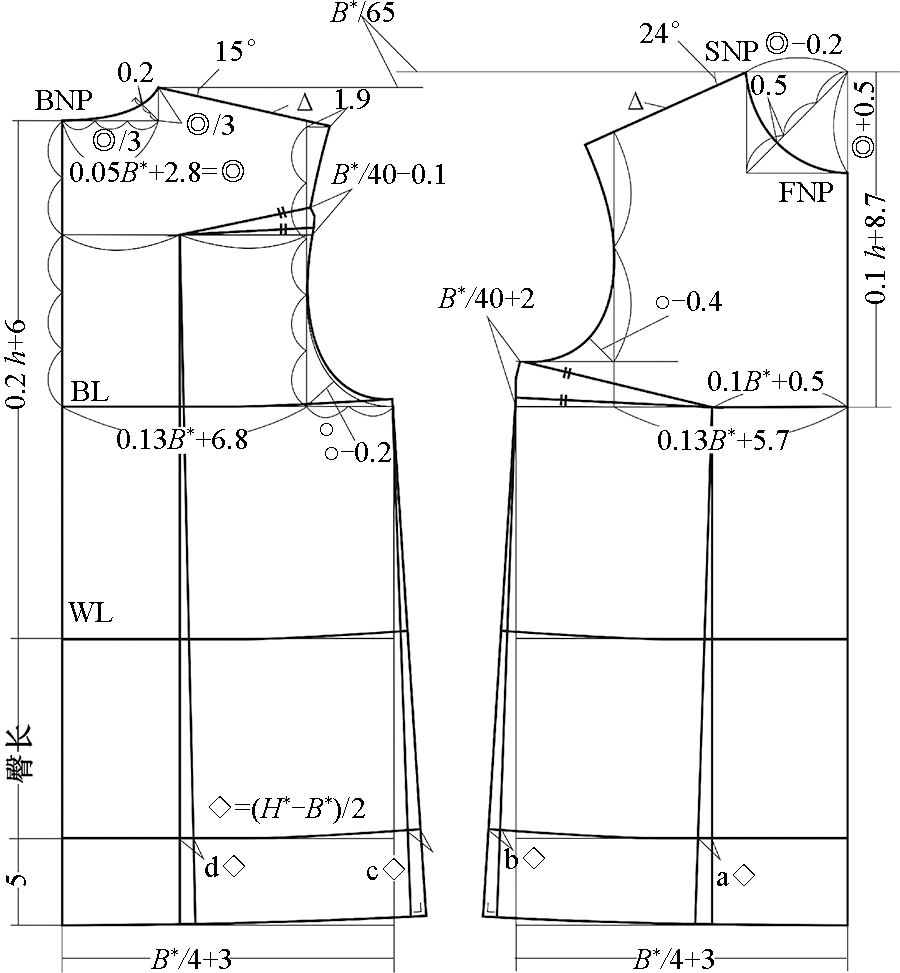

Fig.1

Hypothetical prototype"

Tab.1

Structure related data above waistline"

项目 均值 标准差
身高/cm 163.29 5.03
胸围/cm 84.47 4.94
前横开领/cm 6.92 0.28
前直开领/cm 7.49 0.26
后横开领/cm 7.08 0.26
后直开领/cm 2.32 0.10
前肩斜角/(°) 23.94 0.64
后肩斜角/(°) 11.41 1.50
冲肩量/cm 1.94 0.13
前胸宽/cm 16.68 0.64
后背宽/cm 17.78 0.64
前胸省/cm 4.02 0.45
后背省/cm 2.26 0.34

Tab.2

T-test for paired samples of front collar depth and back collar depth"

项目 差值平均值/cm t值 显著性(双尾)
前直开领 -0.10 -4.46 0
后直开领 -0.04 -4.65 0

Tab.3

Single sample T-test for shoulder oblique angle"

项目 比较
值/(°)		 平均
值/(°)		 显著性
(双尾)		 平均值
差值/(°)
前肩斜角 24 23.9 0.46 -0.1
后肩斜角 15 11.4 0 -3.6

Tab.4

T-test for paired samples of front chest width and back width"

项目 差值平均值/cm t值 显著性(双尾)
前胸宽 -0.09 -6.54 0
后背宽 0.05 4.01 0

Tab.5

Dart width paired sample T-test"

项目 差值平均值/cm t值 显著性(双尾)
前胸省 -0.11 -1.73 0.09
后背省 0.24 5.25 0

Tab.6

Formula of garment basic block"

项目 原公式 现公式 调整量
前横开领 后横开领-0.2 cm 后横开领-0.2 cm 0 cm
前直开领 后横开领+0.5 cm 后横开领+0.4 cm -0.1 cm
后横开领 0.05B*+2.8 cm 0.05B*+2.9 cm 0.1 cm
后直开领 后横开领/3 后横开领/3 0 cm
前肩斜角/(°) 24 24 0
后肩斜角/(°) 15 11 -4
冲肩量/cm 1.9 1.9 0
前胸宽 0.13B*+5.7 cm 0.13B*+5.6 cm -0.1 cm
后背宽 0.13B*+6.8 cm 0.13B*+6.9 cm 0.1 cm
前胸省 B*/40+2 cm B*/40+2 cm 0 cm
后背省 B*/40-0.1 cm B*/40+0.1 cm 0.2 cm

Fig.2

Prototype structure above waistline"

Tab.7

Distribution of front and back chest buttock difference"

部位 均值/% 中位数/% 偏度系数 峰度系数
前片(a+b) 49.2 49.1 0.33 2.2
后片(c+d) 50.8 50.9 -0.33 2.2

Tab.8

Distribution of front, side and back chest buttock difference"

部位 均值/% 中位数/% 偏度系数 峰度系数
前(a) 19.0 19.5 -1.0 1.2
侧(b+c) 60.4 60.5 -0.2 -0.7
后(d) 20.6 20.4 -0.1 -0.1

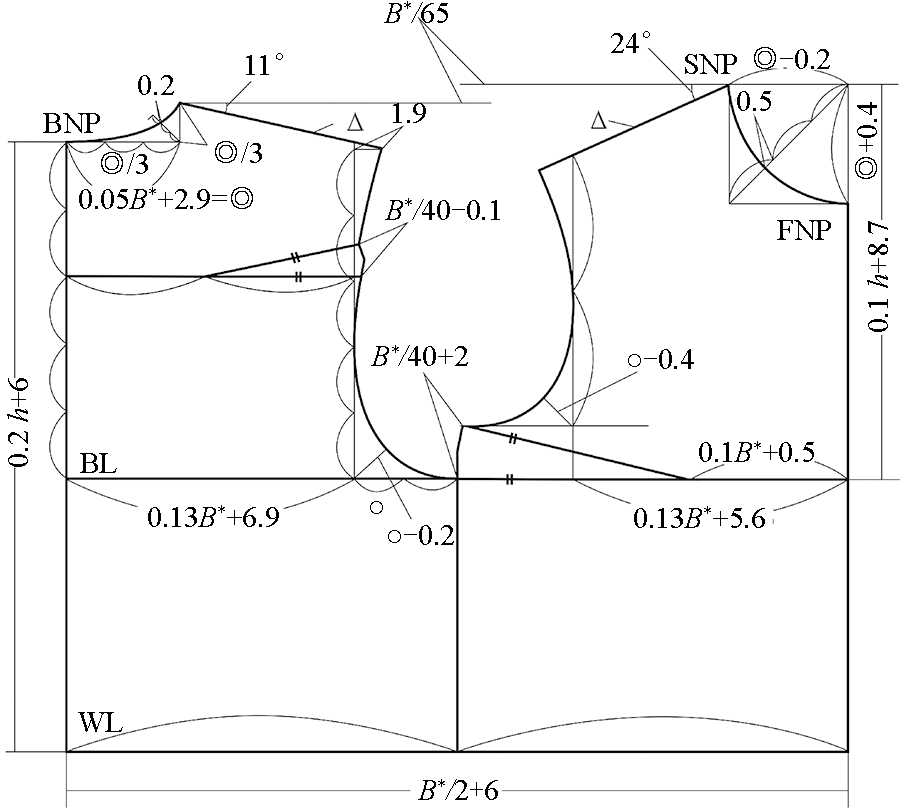

Fig.3

2020 verson of Donghua women's garment basic block"

[1] 张文斌. 服装结构设计[M]. 北京: 中国纺织出版社, 2006:36-37.
ZHANG Wenbin. Clothing structure design[M]. Beijing: China Textile & Apparel Press, 2006: 36-37.
[2] 张文斌, 张渭源. 中国服装原型:东华女装原型结构设计原理和技术[J]. 东华大学学报(自然科学版), 2002(3): 44-50.
ZHANG Wenbin, ZHANG Weiyuan. Chinese clothing prototype: Donghua prototype structure design principle and technology[J]. Journal of Donghua University (Natural Science), 2002(3): 44-50.
[3] 刘博飞. 东华女装原型的持续性研究[D]. 上海: 东华大学, 2010:15-18.
LIU Bofei. The continuous study of Donghua prototype[D]. Shanghai: Donghua University, 2010: 15-18.
[4] 刘咏梅, 徐丹娘, 张向辉. 中国服装原型制版现况调查和分析[J]. 浙江纺织服装职业技术学院学报, 2021, 20(2):23-30.
LIU Yongmei, XU Danniang, ZHANG Xianghui. Investigation and analysis of the current situation of Chinese clothing prototype plate making[J]. Journal of Zhejiang Textile and Clothing Vocational and Technical College, 2021, 20(2): 23-30.
[5] 刘咏梅, 刘博飞, 张文斌, 等. 基于体型变化的东华女装原型修正[J]. 纺织学报, 2009, 30(11): 110-114.
LIU Yongmei, LIU Bofei, ZHANG Wenbin, et al. Correction of Donghua prototype based on body shape changes[J]. Journal of Textile Research, 2009, 30(11): 110-114.
[6] 姚怡. 基于小波系数的青年女性体型分类及原型生成研究[D]. 杭州: 浙江理工大学, 2018: 41-42.
YAO Yi. Research on body type classification and prototype generation of young women based on wavelet coefficients[D]. Hangzhou: Zhejiang Sci-Tech University, 2018: 41-42.
[7] 姚怡, 马静, 吴欢, 等. 基于小波系数的青年女性体型分类及原型纸样[J]. 纺织学报, 2017, 38(12):119-123.
YAO Yi, MA Jing, WU Huan, et al. Young female body type classification and prototype pattern based on wavelet coefficients[J]. Journal of Textile Research, 2017, 38(12): 119-123.
[8] 刘玉娜. 天津地区女上装原型的研究与开发[D]. 天津: 天津工业大学,2019.
LIU Yuna. Research and development of women's upper garment prototype in Tianjin area[D]. Tianjin: Tiangong University, 2019.
[9] 吴琳红. 东华女装原型的持续性研究[D]. 上海: 东华大学, 2012: 94-96.
WU Linhong. The continuous study of Donghua prototype[D]. Shanghai: Donghua University, 2012: 94-96.
[10] 张丽静. 东华女装原型的持续性研究[D]. 上海: 东华大学, 2010: 72-74.
ZHANG Lijing. The continuous study of Donghua prototype[D]. Shanghai: Donghua University, 2010: 72-74.
[11] 李钊, 占玥, 张文斌. 基于东华女装原型袖窿曲线变化的相关因子分析[J]. 天津工业大学学报, 2011, 30(5): 30-34.
LI Zhao, ZHAN Yue, ZHANG Wenbin. Correlation factor analysis based on the change of the armhole curve of the Donghua prototype[J]. Journal of Tiangong University, 2011, 30(5): 30-34.
[12] 李学慧. 东华女装原型绘制方法的简化及其应用分析[J]. 国际纺织导报, 2017, 45(7):56-60.
LI Xuehui. Simplification of Donghua prototype drawing method and its application analysis[J]. Melliand China, 2017, 45(7): 56-60.
[13] 严美婷. 基于人体测量的不同国家女装原型制版方法及合体度的对比研究[D]. 武汉: 武汉纺织大学, 2017: 22-30.
YAN Meiting. A comparative study on the pattern-making methods and fit of women's clothing prototypes in different countries based on anthropometric measurements[D]. Wuhan: Wuhan Textile University, 2017:22-30.
[14] 朱健华. 服装基本原型比较研究[J]. 西部皮革, 2016, 38(10):56-57.
ZHU Jianhua. Comparative study on basic prototypes of clothing[J]. Western Leather, 2016, 38(10): 56-57.
[15] 牟旭, 成恬恬, 钟安华, 等. 三种基本服装原型的结构分析与比较[J]. 纺织科技进展, 2017(1):46-47,51.
MOU Xu, CHENG Tiantian, ZHONG Anhua, et al. Structural analysis and comparison of three basic clothing prototypes[J]. Progress in Textile Science & Technology, 2017(1): 46-47,51.
[16] 三吉满智子. 服装造型学:理论篇[M]. 郑嵘, 张浩, 韩浩羽,译. 北京: 中国纺织出版社, 2006: 112-131.
MIYOSHI MATSUMOTO. Clothing modeling: theory[M]. ZHENG Rong, ZHANG Hao, HAN Jieyu, Translating. Beijing: China Textile & Apparel Press, 2006: 112-131.
[17] 阎玉秀, 金子敏. 日本文化式女装原型的演变[J]. 浙江工程学院学报, 2003(1): 57-61.
YAN Yuxiu, JIN Zimin. The evolution of the prototype of Japanese cultural women's clothing[J]. Journal of Zhejiang Institute of Technology, 2003(1): 57-61.
[18] 赵馨, 钟安华. 1940-2000年日本女性体型特征及原型特点分析[J]. 纺织科技进展, 2017(1): 8-10.
ZHAO Xin, ZHONG Anhua. Analysis of Japanese women's body characteristics and prototype characteristics from 1940 to 2000[J]. Textile Science and Technology Progress, 2017(1): 8-10.
[19] 张文斌, 方方. 服装人体工效学[M]. 上海: 东华大学出版社, 2015:120-145.
ZHANG Wenbin, FANG Fang. Ergonomics of clothing[M]. Shanghai: Donghua University Press, 2015:120-145.
