Preparation of self-dispersing Phthalocyanine Blue 15:3 particles and its application in spun-dyed viscose fiber

SONG Weiguang1,2, WANG Dong1, DU Changsen2, LIANG Dong2, FU Shaohai1()

  1. 1. Jiangsu Engineering Research Center for Digital Textile Inkjet Printing (Jiangnan University), Wuxi,Jiangsu 214122, China
    2. Suzhou Sunmun Technology Co., Ltd., Suzhou, Jiangsu 215337, China
  • Received:2021-06-30 Revised:2021-07-15 Online:2021-10-15 Published:2021-10-29
  • Contact: FU Shaohai E-mail:shaohaifu@hotmail.com

RichHTML

1

PDF (PC)

300

Abstract:

Aiming at short storage time and high transportation cost of the color paste for spun-dyed viscose fibers, the self-dispersing Phthalocyanine Blue 15:3 pigment powder were prepared by the spray drying method. The effects of the spray drying parameters including air inlet temperature, feeding rate, pressure and air flow rate on the properties of self-dispersing pigment were discussed. In addition, transmission electron microscope (TEM) and scanning electron microscope (SEM) were employed to study the apparent morphology, and the dispersion state of self-dispersing pigments in viscose fiber was investigated. The results show that when the inlet air temperature is 165 ℃, the feeding rate is 10 mL/min, the pressure is 0.2 MPa, and the air flow rate is 2.95 m3/min, particle size of the self-dispersing Phthalocyanine Blue 15:3 pigment powder is 171 nm, and the water contact angle is 13°. The pigments show excellent self-dispersing properties, and the centrifugal, acid and alkali resistance, heat resistance and salt resistance stability are all above 80%. The self-dispersing Phthalocyanine Blue 15:3 deminstrates a good interface compatibility with the viscose spinning solution and is homogeneously dispersed in the spun-dyed viscose fiber. The color fastness against rubbing and washing reach grade 4.

Key words: self-dispersing pigment, Phthalocyanine Blue 15:3, spun-liquid dyed, viscose fiber, spray drying method

CLC Number:

  • TS193

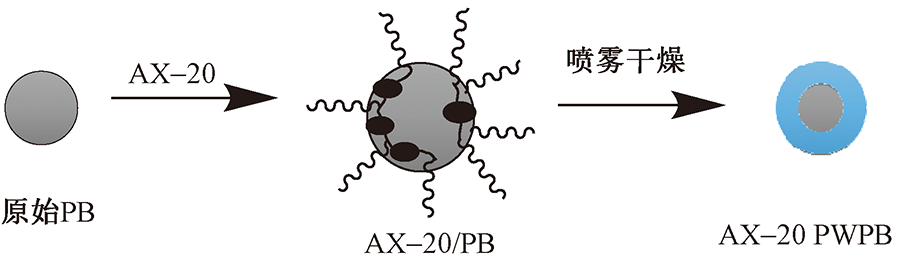

Fig.1

Preparation process of AX-20 PWPB"

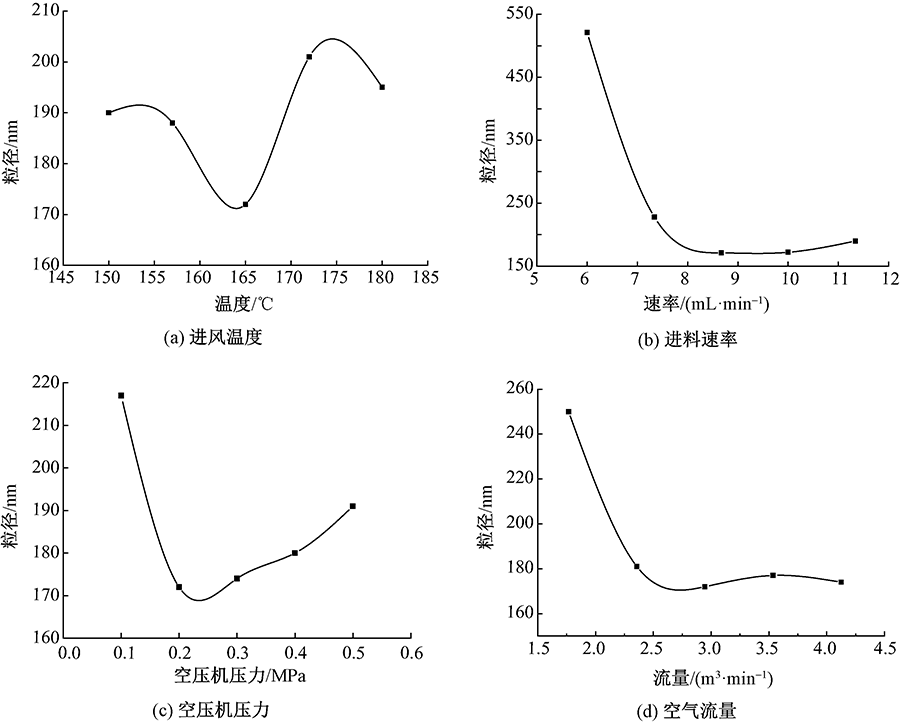

Fig.2

Influence of inlet temperature(a), feed rate(b), air compressor pressure(c) and air flow rate(d) on AX-20 PWPB particle size of spray dryer"

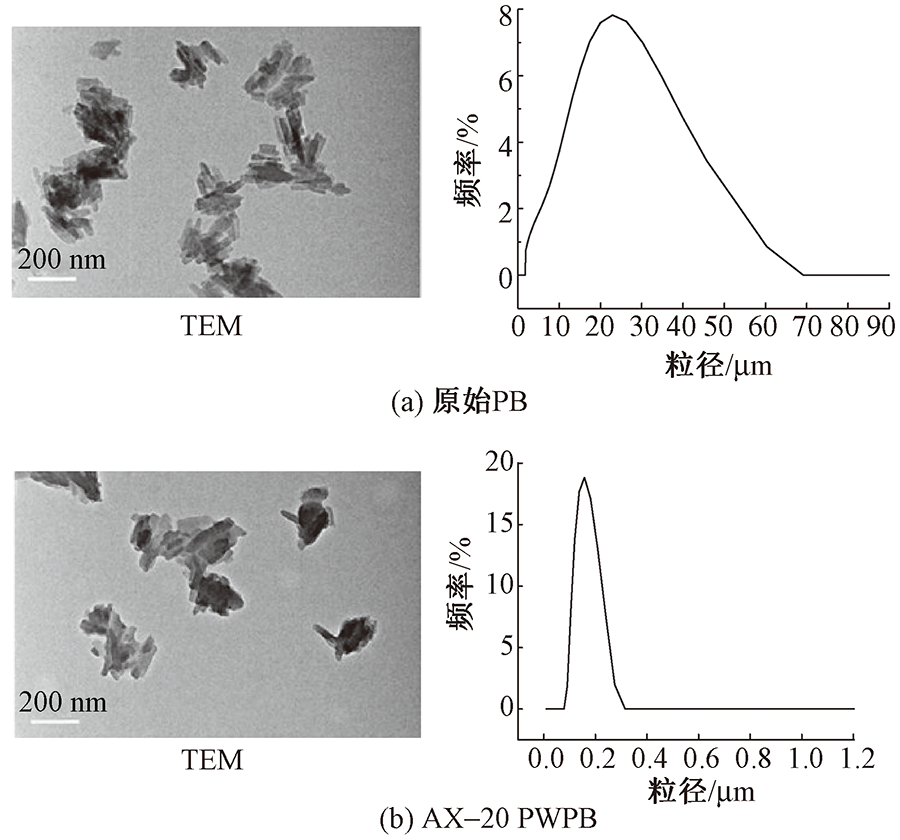

Fig.3

Original PB (a) and AX-20 PWPB(b) TEM photos and particle size distribution"

Fig.4

Water contact angles of original PB and AX-20 PWPB"

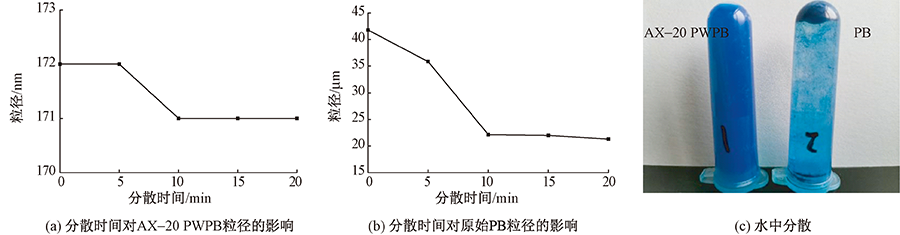

Fig.5

Effect of ultrasound on particle size of AX-20 PWPB(a) and original PB(b) and their dispersion in water(c)"

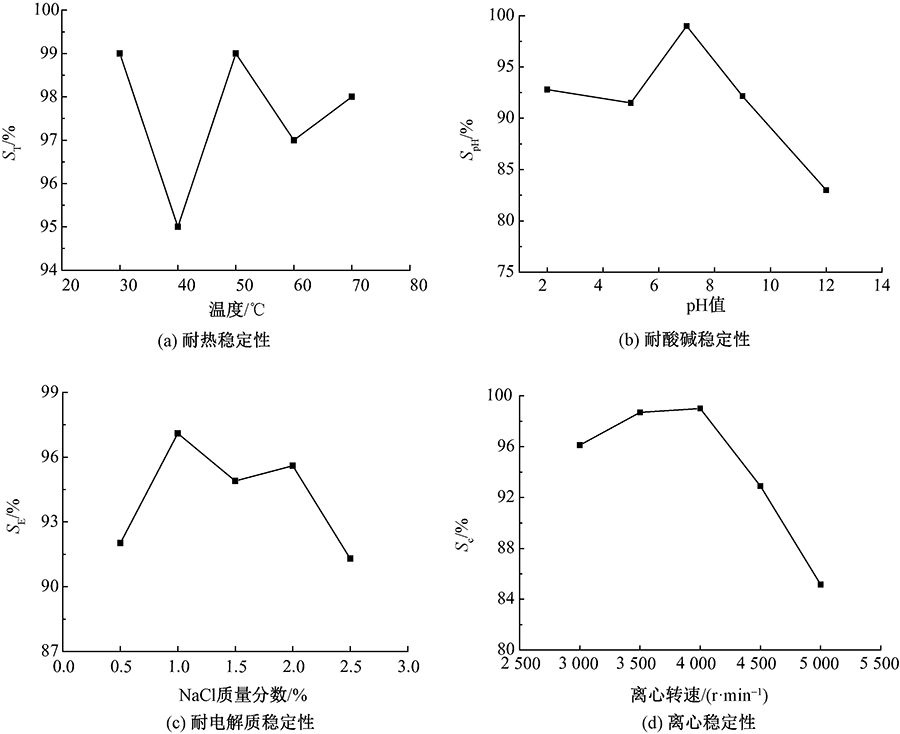

Fig.6

Heat resistance stability(a), acid and alkali resistance stability(b), salt resistance(c), and centrifugal stability(d) of AX-20 PWPB pigment"

Fig.7

Distribution of AX-20 PWPB in viscose spinning solution"

Fig.8

SEM images of section of the spun-dyed viscose fiber with different AX-20 PWPB mass fraction"

"

质量分数/
%		 b值 耐摩擦色牢度 耐水洗色牢度
干 湿 沾色 变色
1 -30.20 4~5 4~5 4~5 4~5
2 -33.75 4~5 4~5 4~5 4~5
3 -36.86 4~5 4~5 4~5 4
4 -36.96 4~5 4 4~5 4
5 -37.32 4~5 4 4~5 4
[1] 付少海, 张凯, 孙贵生, 等. 纤维素纤维原液着色技术的研究进展[J]. 纺织导报, 2010(5):73-75.
FU Shaohai, ZHANG Kai, SUN Guisheng, et al. Development of dope dyeing technology for cellulose fiber[J]. China Textile Leader, 2010 (5):73-75.
[2] 万雷, 李德利, 吴文静, 等. 我国化纤母粒行业发展现状及趋势[J]. 纺织导报, 2019(1):59-62.
WAN Lei, LI Deli, WU Wenjing, et al. Development status and trend of China's chemical fiber masterbatch industry[J]. China Textile Leader, 2019(1):59-62.
[3] 杜长森, 刘烯, 宋文强, 等. 粘胶纤维原液着色用超细炭黑的制备及应用[J]. 人造纤维, 2019, 49(5):2-8.
DU Changsen, LIU Xi, SONG Wenqiang, et al. Preparation and application of ultrafine carbon black for dyeing viscose fiber stock solution[J]. Artificial Fibre, 2019, 49(5):2-8.
[4] 张凯. Lyocell纤维原液着色用超细颜料的制备及其性能研究[D]. 无锡:江南大学, 2012:1-46.
ZHANG Kai. Preparation and properties of ultrafine pigment for dope dyeing of Lyocell fibers[D]. Wuxi: Jiangnan University, 2012:1-46.
[5] 张连松, 张丽平, 王冬, 等. 水基自分散纳米酞菁蓝15:3的制备及其性能[J]. 印染, 2018, 44(19):6-10,15.
ZHANG Liansong, ZHANG Liping, WANG Dong, et al. Preparation and characterization of water phase self-dispersd phthalocyanine blue 15:3 nanoparticles[J]. China Dyeing & Finishing, 2018, 44(19):6-10, 15.
[6] 刘怡宁, 张连松, 朱若斐, 等. 氧化法制备Lyocell纤维原液着色用自分散纳米酞菁蓝15:3[J]. 人造纤维, 2019, 49(2):2-7.
LIU Yining, ZHANG Liansong, ZHU Ruofei, et al. Preparation of Lyocell fiber stock solution by oxidation methodself-dispersd phthalocyanine blue 15:3 nanoparticles[J]. Artificial Fibre, 2019, 49(2):2-7.
[7] 安振华. 喷雾干燥技术的应用综述[J]. 中国粉体工业, 2020(4):1-3.
AN Zhenhua. Application of spray drying tech-nology[J]. China Powder Industry, 2020 (4):1-3.
[8] HENDRI W, HOGAN C J J, YUN K M, et al. Production of narrow-size-distribution polymer-pigment-nanoparticles composites via electro-hydrodynamic atomization[J]. Macromolecular Materials & Engineering, 2008, 292(4):495-502.
[9] YUN K M, SURYAMAS A B, HIRAKAWA C, et al. A new physical route to produce monodispersed microsphere nanoparticle-polymer composites[J]. Langmuir the Acs Journal of Surfaces&Colloids, 2009, 25(18):11038-11042.
[10] 刘旭恒, 赵中伟, 黄少波, 等. 喷雾干燥法合成球形LiFePO4/C材料研究[J]. 电源技术, 2012(7):937-941.
LIU Xuheng, ZHAO Zhongwei, HUANG Shaobo, et al. Synjournal of spherical LiFePO4/C materials by spray drying[J]. Power Sources, 2012 (7):937-941.
[11] 石晓峰. 喷雾干燥法制备纳米复合含能微球及性能表征[D]. 太原:中北大学, 2015:1-50.
SHI Xiaofeng. Preparation and properties of micro-spherical energetic nanocomposites by spray drying[D]. Taiyuan: North University of China, 2015:1-50.
[12] 张慧慧, 郭利伟, 邵惠丽, 等. 纳米炭黑填充Lyocell基碳纤维的结构与性能[J]. 合成纤维工业, 2007, 30(2):4-6.
ZHANG Huihui, GUO Liwei, SHAO Huili, et al. Structure and properties of Lyocell based carbon fibers filled with nano-carbon black[J]. China Synthetic Fiber Industry, 2007, 30(2):4-6.
[13] 曹俊友, 邢善静, 谢跃亭. 原液着色粘胶纤维的开发生产及应用[J]. 纺织服装科技, 2014, 35(3):18-20.
CAO Junyou, XING Shanjing, XIE Yueting. Development, production and application of spun-dyed viscose fiber[J]. Textile and Garment Technology, 2014, 35(3):18-20.
[14] 孙伟泽, 张丽平, 李敏, 等. 炭黑/Lyocell纤维素膜的制备及其性能[J]. 纺织学报, 2017, 38(3):28-32.
SUN Weize, ZHANG Liping, LI Min, et al. Preparation and properties of carbon black/Lyocell cellulose membrane[J]. Journal of Textile Research, 2017, 38(3):28-32.
