Journal of Textile Research ›› 2022, Vol. 43 ›› Issue (08): 60-66.doi: 10.13475/j.fzxb.20210702607

• Textile Engineering • Previous Articles     Next Articles

Preparation and properties of silk fibroin/poly(l-lactic acid) nanofiber yarns-based tendon patches

LIU Jiao, CHEN Shaojuan, WU Shaohua()

  1. College of Textiles & Clothing, Qingdao University, Qingdao, Shandong 266071, China
  • Received:2021-07-07 Revised:2022-02-11 Online:2022-08-15 Published:2022-08-24
  • Contact: WU Shaohua E-mail:shaohua.wu@qdu.edu.cn

RichHTML

20

PDF (PC)

100

Abstract:

Textile tendon patches made of pure micro yarn structure has low biological activity, high immunogenicity and is non-biodegradable. Several nano-structured tendon patches with great bioabsorbability were fabricated by weaving with optimized patch material and structure. The weft yarn was constructed with the several different types of silk fibroin (SF)/poly(l-lactic acid) (PLLA) nanofiber yarns, the warp yarn was all composed of traditional PLLA microfiber yarns, and the two sets of yarns were interweaved into patches through the weaving process. The effects of the SF and PLLA mass ratio of nanofiber yarns on the morphology, physicochemical and biological properties of such patches were systematically investigated. The results showed that the crystal diffraction appeared at about 16.4°, and crystallinity and mechanical properties of the patches decreased gradually with the increase of SF content. The breaking loads of all tendon patches were found to be higher than 100 N, meeting the requirement of practical application. The biological tests showed that cell adhesion and proliferation ability of the patches gradually improved with the increase of SF content.

Key words: medical textiles, tendon patch, nanofiber yarn, silk fibroin, poly(l-lactic acid)

CLC Number:

  • TS101.4

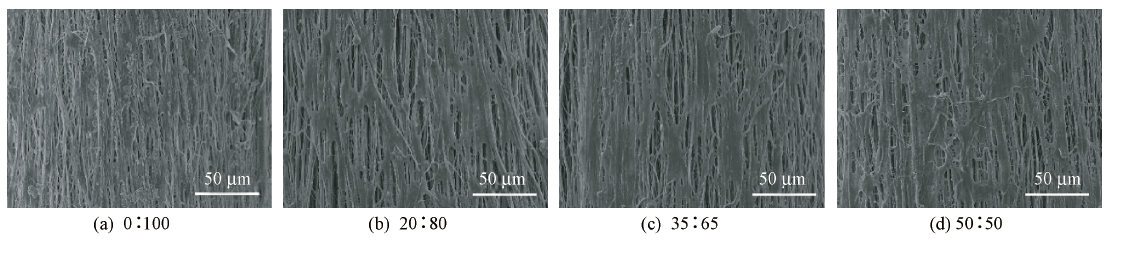

Fig.1

SEM images of nanofiber yarns-based tendon patches with different SF/PLLA mass ratios"

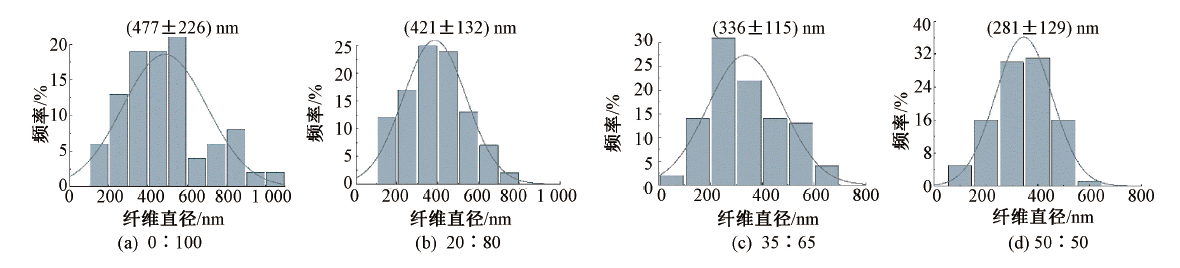

Fig.2

Nanofiber diameter of nanofiber yarns-based tendon patches with diverse SF/PLLA mass ratios"

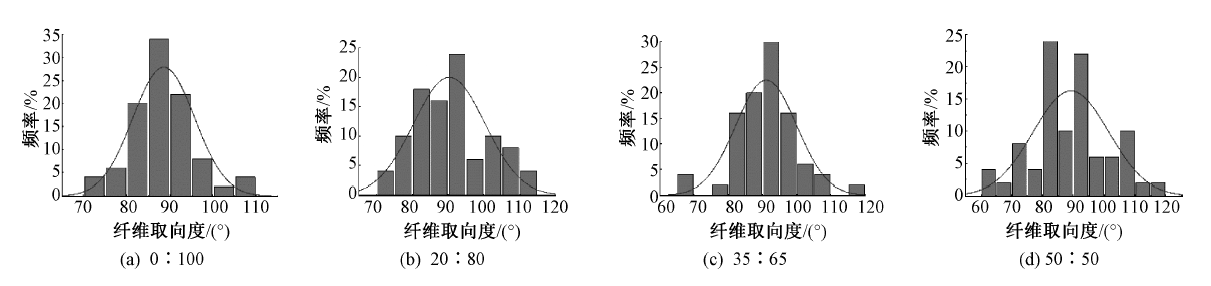

Fig.3

Orientation distribution of nanofiber yarns-based tendon patches with diverse SF/PLLA mass ratios"

Fig.4

FT-IR (a) and XRD (b) curves of nanofiber yarns-based tendon patches with diverse SF/PLLA mass ratios"

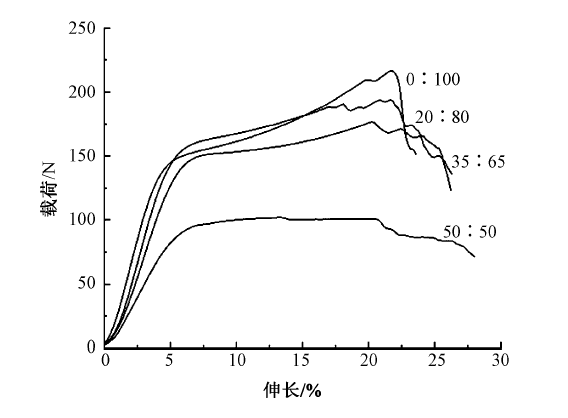

Fig.5

Load-elongation curves of nanofiber yarns- based tendon patches with diverse SF/PLLA mass ratios"

Tab.1

Mechanical properties of SF/PLLA nanofiber yarns-based tendon patches with diverse SF/PLLA mass ratios"

SF与PLLA
质量比		 断裂载
荷/N		 断裂伸
长率/％		 断裂强
度/MPa		 初始模
量/MPa
0∶100 220.03±4.01 23.83±1.62 26.82±1.96 460.72±18.77
20∶80 213.45±7.07 23.84±1.06 25.59±1.17 421.46±36.23
35∶65 177.81±5.23 23.86±0.69 22.23±0.66 394.82±35.49
50∶50 113.38±1.78 24.44±0.37 14.14±0.28 303.66±40.13

Fig.6

Phalloidin staining images of nanofiber yarns-based tendon patches with diverse SF/PLLA mass ratios"

Fig.7

Cell adhesion SEM images of nanofiber yarns-based tendon patches with diverse SF/PLLA mass ratios"

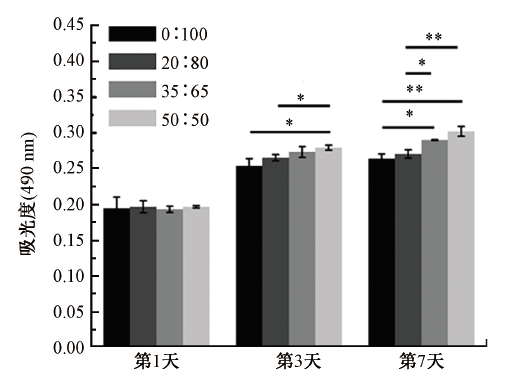

Fig.8

Absorbance values of nanofiber yarns-based tendon patches with diverse SF/PLLA mass ratios"

[1] VASILIADIS Angelo V, KATAKASLOS Konstantinos. The role of scaffolds in tendon tissue engineering[J]. J Funct Biomater, 2020. DOI: 10.3390/jfb11040078.
doi: 10.3390/jfb11040078
[2] XU Tianpeng, BAI Jiaxiang, XU Menglei, et al. Relaxin inhibits patellar tendon healing in rats: a histological and biochemical evaluation[J]. BMC Musculoskelet Disord, 2019. DOI: 10.1186/s12891-019-2729-3.
doi: 10.1186/s12891-019-2729-3
[3] GAUT Ludovic, DUPREZ Delphine. Tendon development and diseases[J]. Wiley Interdiscip Rev Dev Biol, 2016, 5(1): 5-23.
doi: 10.1002/wdev.201
[4] SNEDEKER Jess G, FOOLEN Jasper. Tendon injury and repair: a perspective on the basic mechanisms of tendon disease and future clinical therapy[J]. Acta Biomater, 2017, 63: 18-36.
doi: 10.1016/j.actbio.2017.08.032
[5] WU Shaohua, PENG Hao, LI Xiehong, et al. Effect of scaffold morphology and cell co-culture on tenogenic differentiation of HADMSC on centrifugal melt electrospun poly (L-lactic acid) fibrous meshes[J]. Biofabrication, 2017. DOI: 10.1088/1758-5090/aa8fb8.
doi: 10.1088/1758-5090/aa8fb8
[6] JIAO Yongjie, LI Chaojing, LIU Laijun, et al. Construction and application of textile-based tissue engineering scaffolds: a review[J]. Biomater Sci, 2020, 8(13): 3574-3600.
doi: 10.1039/D0BM00157K
[7] ALMEIDA L R, MARTINS A R, FERNANDES E M, et al. New biotextiles for tissue engineering: development, characterization and in vitro cellular viability[J]. Acta Biomater, 2013, 9(9): 8167-8181.
doi: 10.1016/j.actbio.2013.05.019
[8] WU Shaohua, WANG Ying, STREUBEL Philipp N, et al. Living nanofiber yarn-based woven biotextiles for tendon tissue engineering using cell tri-culture and mechanical stimulation[J]. Acta Biomater, 2017, 62: 102-115.
doi: S1742-7061(17)30557-3 pmid: 28864251
[9] WU Shaohua, DUAN Bin, LIU Penghong, et al. Fabrication of aligned nanofiber polymer yarn networks for anisotropic soft tissue scaffolds[J]. ACS Appl Mater Interfaces, 2016, 8(26): 16950-16960.
doi: 10.1021/acsami.6b05199
[10] WU Shaohua, ZHOU Rong, ZHOU Fang, et al. Electrospun thymosin Beta-4 loaded PLGA/PLA nanofiber/microfiber hybrid yarns for tendon tissue engineering application[J]. Mater Sci Eng C Mater Biol Appl, 2020. DOI: 10.1016/j.msec.2019.110268.
doi: 10.1016/j.msec.2019.110268
[11] WU Shaohua, LIU Jiao, QI Ye, et al. Tendon-bioinspired wavy nanofibrous scaffolds provide tunable anisotropy and promote tenogenesis for tendon tissue engineering[J]. Mater Sci Eng C Mater Biol Appl, 2021. DOI: 10.1016/j.msec.2021.112181.
doi: 10.1016/j.msec.2021.112181
[12] MIRANDA Catarina S, RIBEIRO Ana R M, HOMEM Natalia C, et al. Spun biotextiles in tissue engineering and biomolecules delivery systems[J]. Antibiotics (Basel), 2020. DOI: 10.3390/antibiotics9040174.
doi: 10.3390/antibiotics9040174
[13] LIU Jiao, ZHAI Huiyuan, SUN Yaning, et al. Developing high strength poly(L-lactic acid) nanofiber yarns for biomedical textile materials: a comparative study of novel nanofiber yarns and traditional microfiber yarns[J]. Materials Letters, 2021. DOI: 0.1016/j.matlet.2021.130229.
doi: 0.1016/j.matlet.2021.130229
[14] MALEKI H, GHAREHAGHAJI A A, TOLIYAT T, et al. Drug release behavior of electrospun twisted yarns as implantable medical devices[J]. Biofabrication, 2016. DOI: 10.1088/1758-5090/8/3/035019.
doi: 10.1088/1758-5090/8/3/035019
[15] PARK Koeun, JUNG Sungyoun, LEE Seungjin J, et al. Biomimetic nanofibrous scaffolds: preparation and characterization of chitin/silk fibroin blend nanofibers[J]. Int J Biol Macromol, 2006, 38(3-5): 165-173.
doi: 10.1016/j.ijbiomac.2006.03.003
[16] LIU Weiwei, LI Zhengqiang, ZHENG Lu, et al. Electrospun fibrous silk fibroin/poly(L-lactic acid) scaffold for cartilage tissue engineering[J]. Tissue Eng Regen Med, 2016, 13(5): 516-526.
doi: 10.1007/s13770-016-9099-9 pmid: 30603432
[17] LI Jingqing, XIAO Peitao, LI Hongfei, et al. Crystalline structures and crystallization behaviors of poly(L-lactide) in poly(L-lactide)/graphene nanosheet composites[J]. Polymer Chemistry, 2015, 6(21): 3988-4002.
doi: 10.1039/C5PY00254K
[18] ANDROSCH R, SCHICK C, DILORENZO M L. Melting of conformationally disordered crystals (α'-Phase) of poly(L-lactic acid)[J]. Macromolecular Chemistry and Physics, 2014, 215(11): 1134-1139.
doi: 10.1002/macp.201400126
[19] WANG Fang, LI Yingying, GOUGH Christopher R, et al. Dual-crystallizable silk fibroin/poly(L-lactic acid) biocomposite films: effect of polymer phases on protein structures in protein-polymer blends[J]. Int J Mol Sci, 2021. DOI: 10.3390/ijms22041871.
doi: 10.3390/ijms22041871
