Simulation analysis of filtration characteristics of fiber materials based on random algorithm

ZHU Wenni1, XU Runnan1, HU Diefei1, YAO Juming2,3,4, MILITKY Jiri5, KREMENAKOVA Dana5, ZHU Guocheng1,3()

  1. 1. College of Textiles Science and Engineering(International Institute of Silk), Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
    2. School of Materials Science & Engineering, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
    3. Zhejiang-Czech Joint Laboratory of Advanced Fiber Materials, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
    4. School of Material Science and Chemical Engineering, Ningbo University, Ningbo, Zhejiang 315201, China
    5. Faculty of Textile Engineering, Technical University of Liberec, Liberec 46117, The Czech Republic
  • Received:2021-07-16 Revised:2022-03-09 Online:2022-09-15 Published:2022-09-26
  • Contact: ZHU Guocheng E-mail:zgc100100@hotmail.com

RichHTML

12

PDF (PC)

106

Abstract:

In order to understand flow field evolution of fiber-based air filter, a three-dimensional model, integrated filtration efficiency and particle flow path, was established based on the random algorithm fiber air filter material. The computational hydro dynamics following the Euler-Lagrange discrete phase model was studied in gas-solid flow characteristics based on the Reynolds similarity criterion in micron fiber medium. The results show that the change in inlet velocity has a significant effect on the flow field pressure and velocity field distribution. With the increase in inlet velocity, the blocked area increases, and high-speed flow and velocity vortices are more likely to be formed in the flow field voids, and the overall velocity difference increases at the same time. The pressure loss is positively correlated with the inlet velocity. The filtration efficiency of the fiber model is relatively stable for particles with average particle size of 8-18 mm, which is 80.4%-84%, and the relationship between filtration efficiency and particle size is close to direct proportion when the inlet velocity is 2 m/s.

Key words: air filter, numerical simulation, similarity criterion, filtration characteristic, discrete phase model, fiber material

CLC Number:

  • TS151

Fig.1

Fiber assembly model"

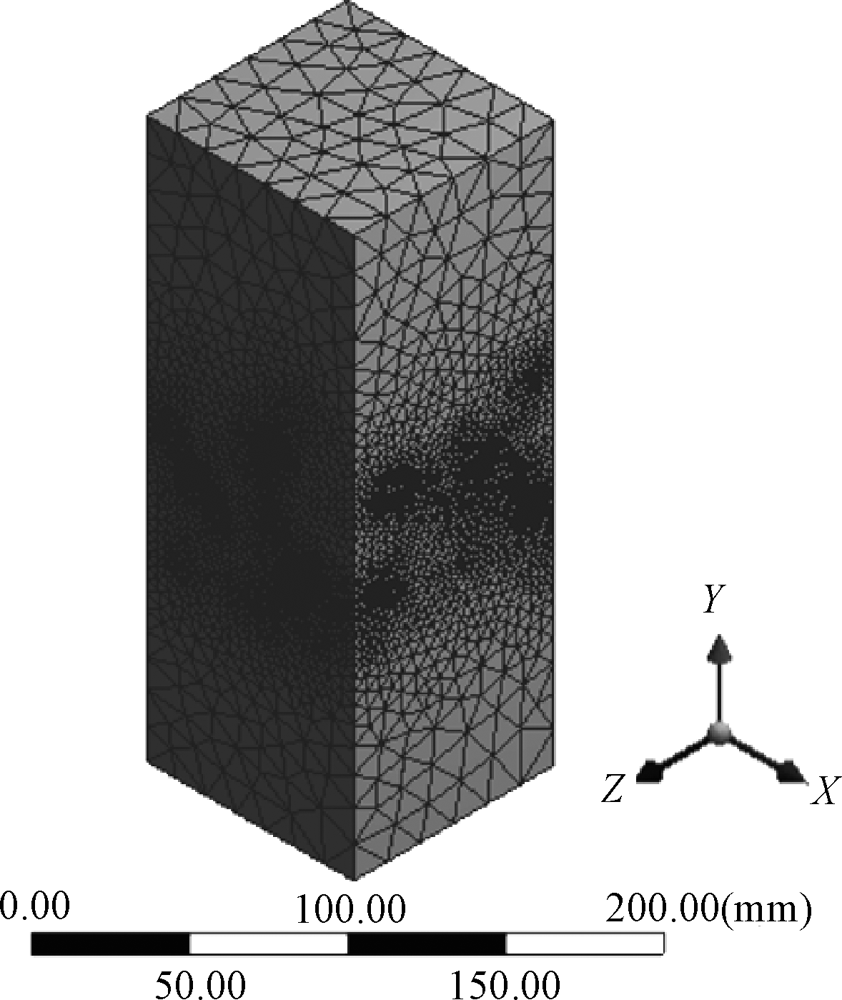

Fig.2

Meshing"

Fig.3

Boundary conditions"

Fig.4

Velocity distribution of flow field under different inlet velocities"

Fig.5

Pressure distribution of flow field under different inlet velocities"

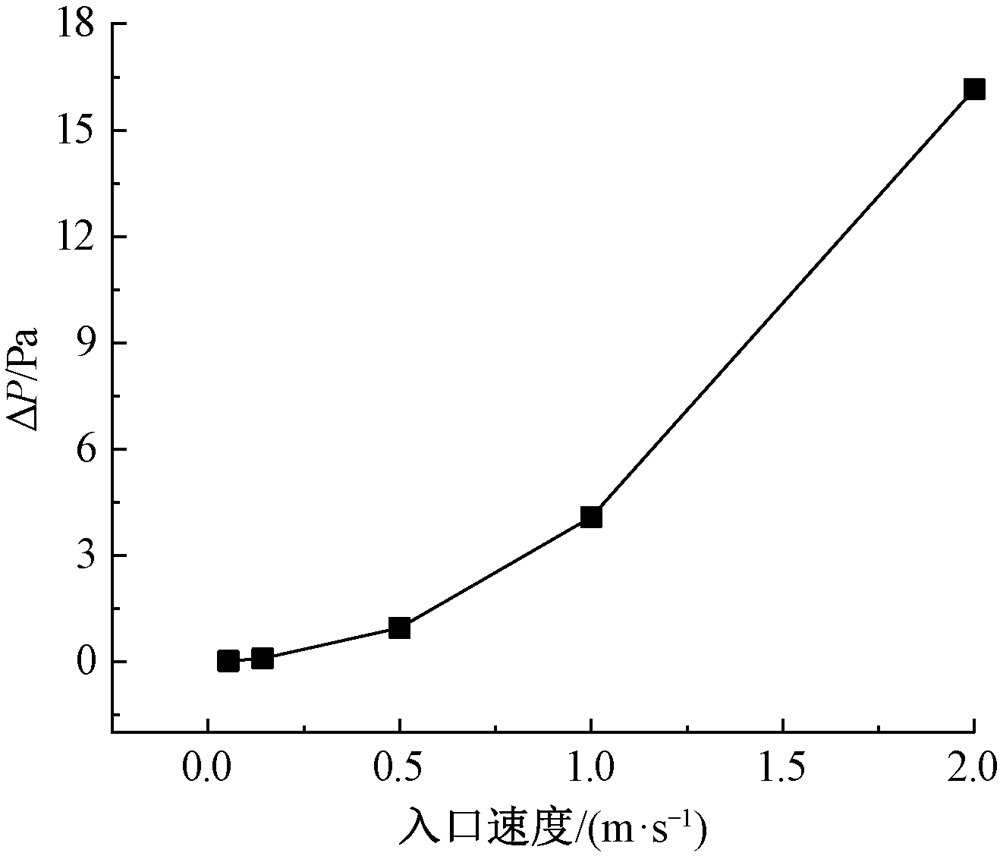

Fig.6

Pressure drop of fiber assembly model"

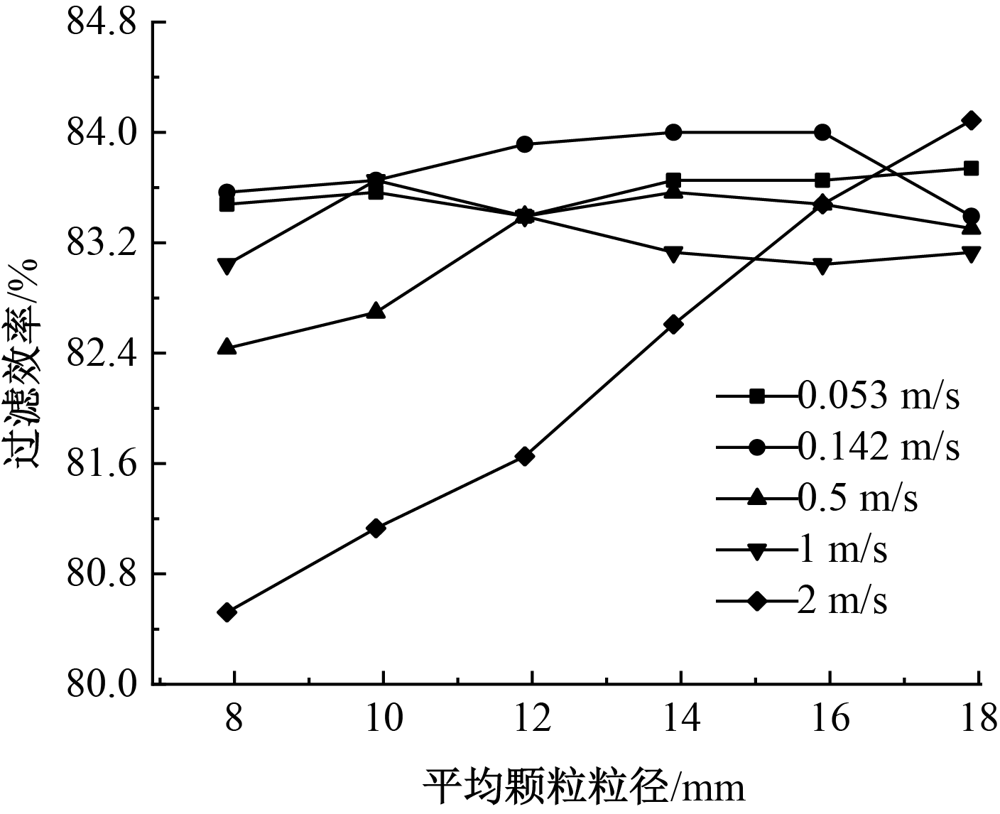

Fig.7

Filtration efficiency of fiber assembly model for particulate matter with different particle sizes"

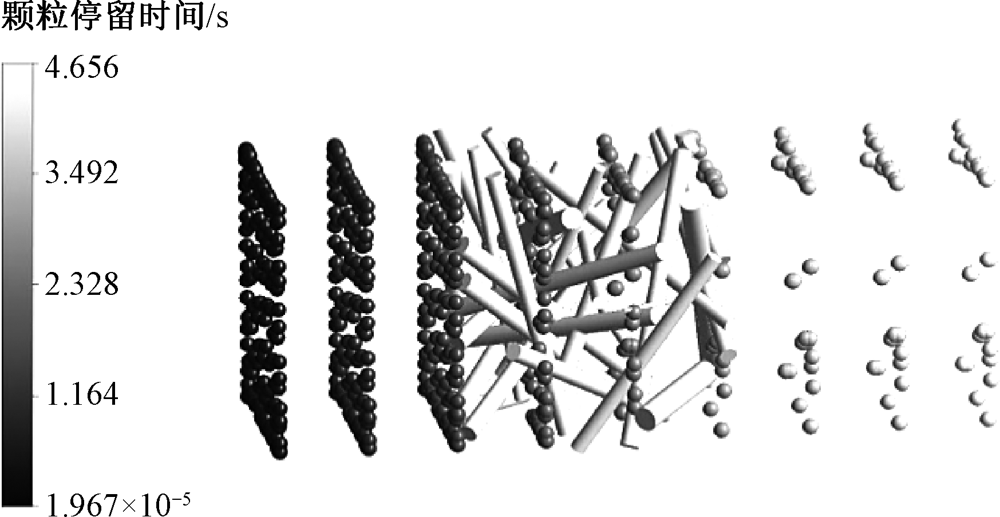

Fig.8

Particle trajectory tracking chart"

[1] HUTTEN I. Handbook of nonwoven filter media[M]. London: Butterworth-Heinemann, 2016: 53-58.
[2] 陈斌, 项深泽. 纤维过滤材料过滤气体机理及其应用[J]. 化学工程与装备, 2009, 31(10): 140-141.
CHEN Bin, XIANG Shenze. The air filtering mechanism and application of fiber filter material[J]. Chemical Engineering and Equipment, 2009, 31(10): 140-141.
[3] 覃小红, 王善元. 静电纺纳米纤维的过滤机理及性能[J]. 东华大学学报(自然科学版), 2007, 33(1): 52-56.
QIN Xiaohong, WANG Shanyuan. Filtration properties of electrospinning nanofibers[J]. Journal of Donghua Uuiversity(Natural Science), 2007, 33(1): 52-56.
[4] ICHITSUBO H, HASHIMOTO T, ALONSO M, et al. Penetration of ultrafine particles and ion clusters through wire screens[J]. Aerosol Science and Technology, 1996, 24: 119-127.
doi: 10.1080/02786829608965357
[5] THOMAS D, PENICOT P, CONTAL P, et al. Clogging of fibrous filters by solid aerosol particles experimental[J]. Chemical Engineering Science, 2001, 56(11): 3549-3561.
doi: 10.1016/S0009-2509(01)00041-0
[6] WANG J, CHEN D R, PUI D. Modeling of filtration efficiency of nanoparticles in standard filter media[J]. Journal of Nanoparticle Research, 2006, 9(1): 109-115.
doi: 10.1007/s11051-006-9155-9
[7] TAFRESHI H V, RAHMAN M, JAGANATHAN S, et al. Analytical expressions for predicting permeability of bimodal fibrous porous media[J]. Chemical Engineering Science, 2009, 64: 1154-1159.
doi: 10.1016/j.ces.2008.11.013
[8] HOSSEINI S, TAFRESHI H V. 3-D simulation of particle filtration in electrospun nanofibrous filters[J]. Powder Technology, 2010, 201: 153-160.
doi: 10.1016/j.powtec.2010.03.020
[9] SAMBAER W, ZATLOUKAL M, KIMMER D. 3D modeling of filtration process via polyurethane nanofiber based nonwoven filters prepared by electrospinning process[J]. Chemical Engineering Science, 2011, 66(4): 613-623.
doi: 10.1016/j.ces.2010.10.035
[10] WANG H, ZHAO H, WANG K, et al. Simulation of filtration process for multi-fiber filter using the Lattice-Boltzmann two-phase flow model[J]. Journal of Aerosol Science, 2013, 66: 164-178.
doi: 10.1016/j.jaerosci.2013.08.016
[11] QIAN F, HUANG N, LU J, et al. CFD-DEM simulation of the filtration performance for fibrous media based on the mimic structure[J]. Computers & Chemical Engineering, 2014, 71: 478-488.
doi: 10.1016/j.compchemeng.2014.09.018
[12] 杨俊杰. 相似理论与结构模型试验[M]. 武汉: 武汉理工大学出版社, 2005:9-35.
YANG Junjie. Similarity theory and structural model test[M]. Wuhan: Wuhan University of Technology Press, 2005: 9-35.
[13] 张春秀. 流体力学实验研究中的相似原理及应用[J]. 四川电力技术, 1996, 19(6): 13-18.
ZHANG Chunxiu. Similarity principle and its application in fluid mechanics experimental research[J]. Sichuan Electric Power Technology, 1996, 19(6): 13-18.
[14] 王福军. 计算流体动力学分析:CFD软件原理与应用[M]. 北京: 清华大学出版社, 2004: 63-65.
WANG Fujun. Computational fluid dynamics analysis: principles and applications of CFD software[M]. Beijing: Tsinghua University Press, 2004: 63-65.
