Female leg shape classification based on frontal and lateral morphological characteristics

WANG Fenfen1, WANG Gehui1,2, HUANG Tianyi1, ZHANG Xianghui1,2, WANG Yongrong1,2()

  1. 1. College of Fashion and Design, Donghua University, Shanghai 200051, China
    2. Key Laboratory of Clothing Design and Technology, Ministry of Education, Donghua University, Shanghai 200051, China
  • Received:2021-07-26 Revised:2022-05-31 Online:2022-09-15 Published:2022-09-26
  • Contact: WANG Yongrong E-mail:yrwang@dhu.edu.com

RichHTML

12

PDF (PC)

100

Abstract:

In order to improve fitting legs with the shaping products in women's leg compression treatment, 64 subjects were scanned using the [TC]2 non-contact three-dimensional digital body scanner, each with 160 data. The overall leg collimation was classified into 3 categories by interpolation simulation and cluster analysis, before the thigh and calve were classified according to the difference in frontal and lateral thigh morphologies and the different lateral projection points of the calves. A classification system of leg shapes was established based on the factor analysis method. Based on the above study, the relationship between female leg circumference and corresponding height was obtained, and the female leg shapes were divided into 6 categories and the corresponding leg classification specification table was summarized. This study provides a new method for categorization of leg shape for females, and offers basic data for the design of compression treatment and shaping products in different parts of legs of female.

Key words: three-dimensional digital body scanner, female leg shape, cluster analysis, factor analysis, leg shaping product

CLC Number:

  • TS941.09

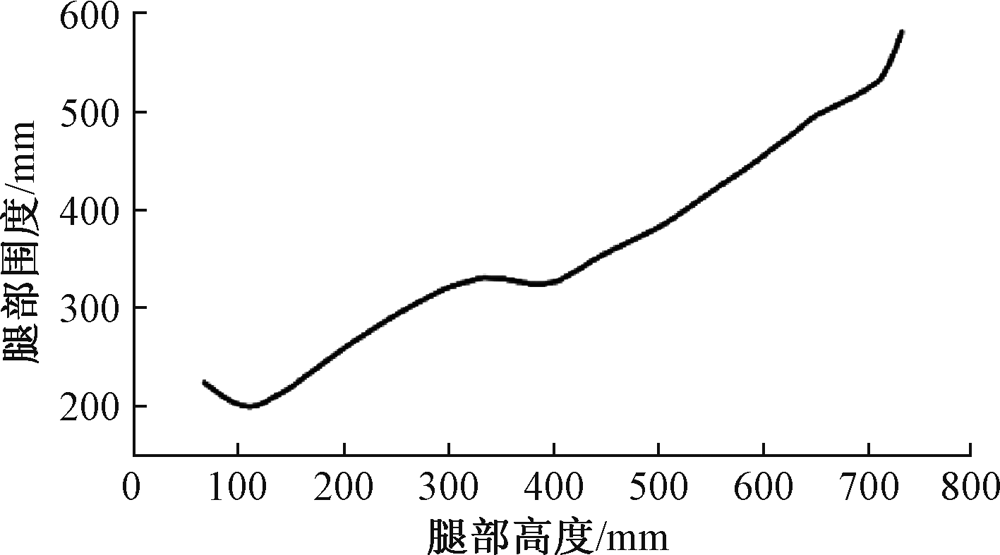

Fig.1

Simulation curve of leg girth-height for female"

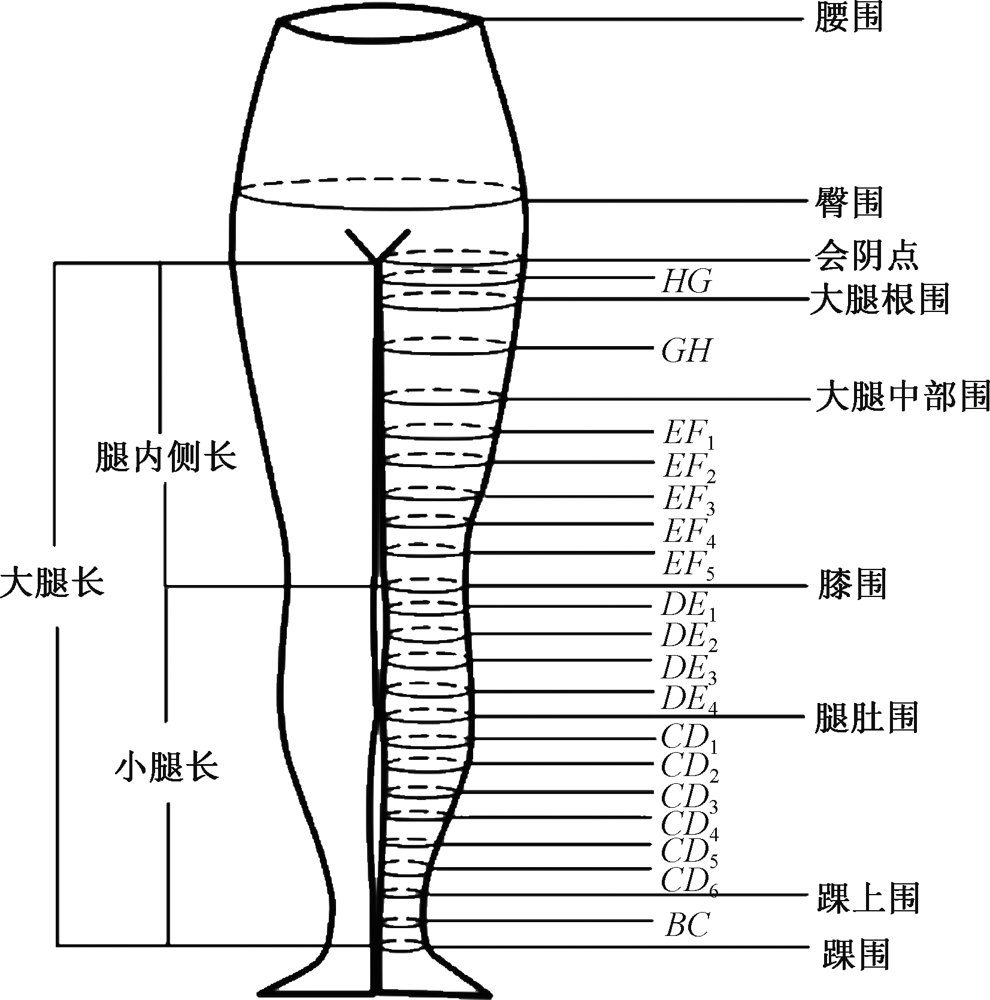

Fig.2

Key anthropometric position for human leg"

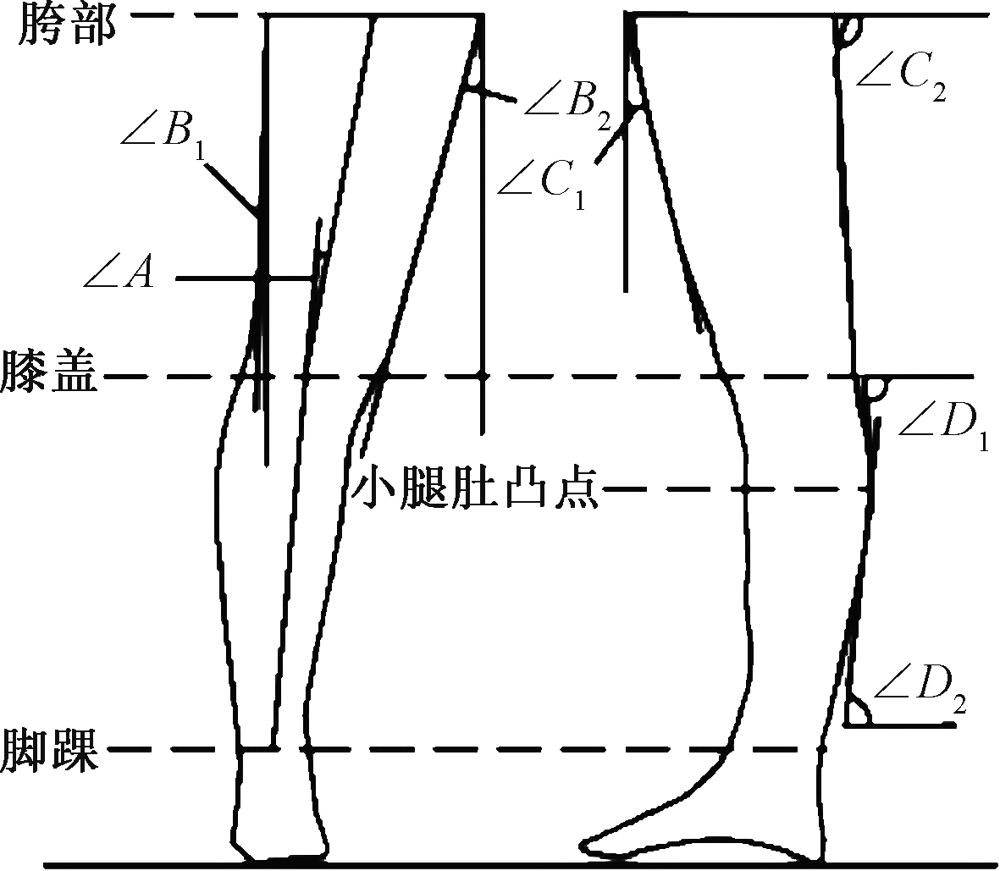

Fig.3

Schematic diagram of angle composition"

Tab.1

Result of leg clustering"

聚类项目 聚类类目 人数占比/% 聚类中心
腿型
准直度		 1 34.4 ∠A=6.18°
2 56.3 ∠A =0.32°
3 9.3 ∠A =4.30°
大腿正面
形态		 1 20.3 ∠B1=1.24°、∠B2=8.29°
2 42.2 ∠B1=2.59°、∠B2=12.83°
3 37.5 ∠B1=1.90°、∠B2=14.12°
大腿侧面
形态		 1 37.5 ∠C1=13.73°、∠C2=1.26°
2 62.5 ∠C1=9.26°、∠C2=4.73°
小腿侧面
形态		 1 19.7 ∠D1=77.94°、∠D2=85.87°
2 80.3 ∠D1=68.27°、∠D2=85.14°

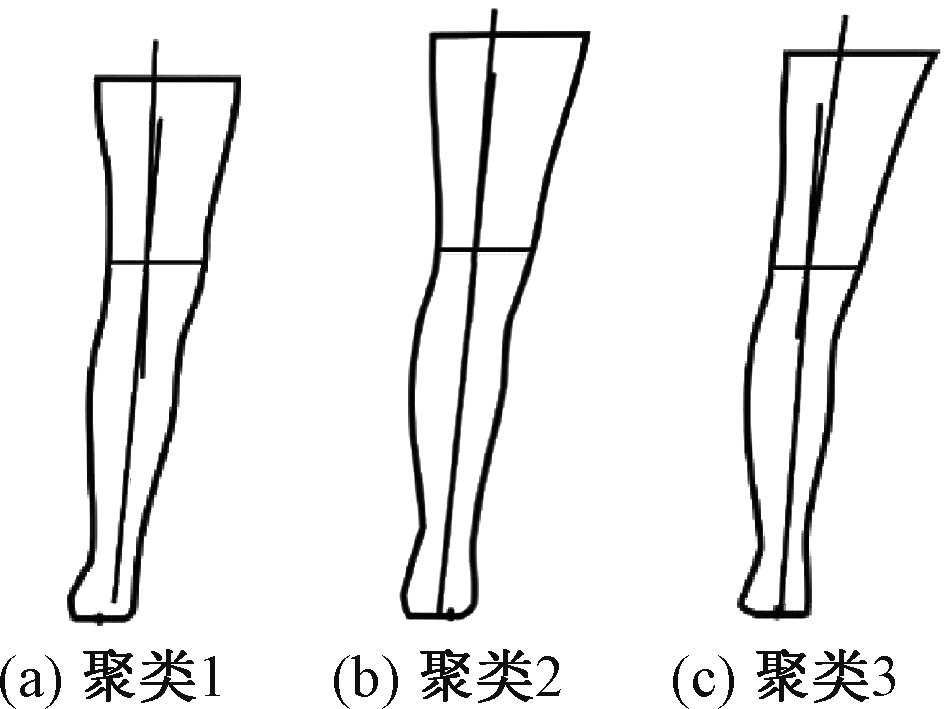

Fig.4

Comparison of leg collimation classification samples. (a) Cluster 1;(b) Cluster 2;(c) Cluster 3"

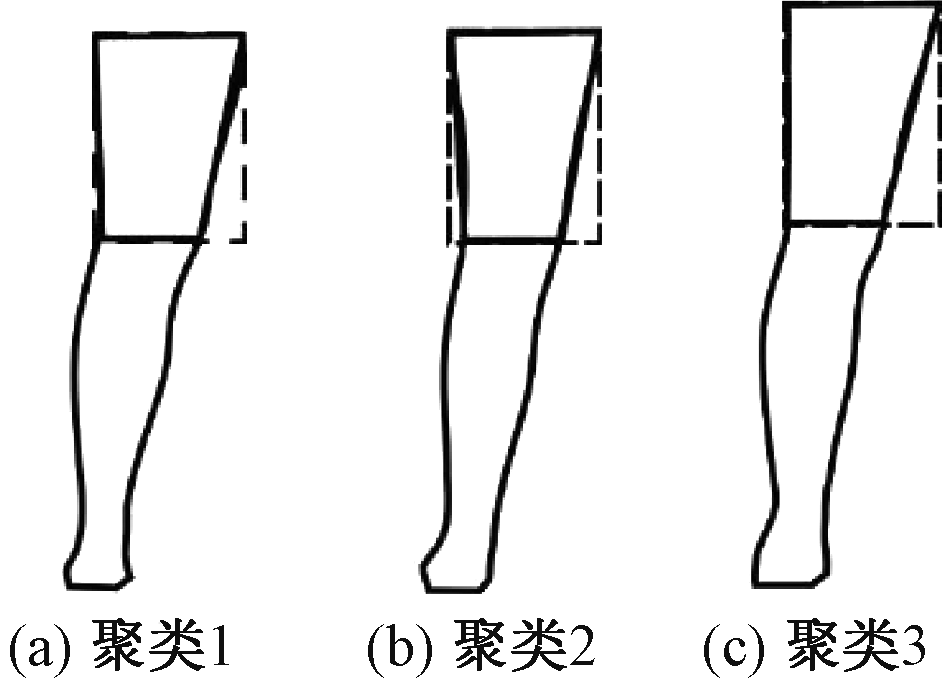

Fig.5

Comparison of thigh frontal classification samples. (a) Cluster 1;(b) Cluster 2;(c) Cluster 3"

Fig.6

Comparison of thigh lateral classification samples. (a) Cluster 1;(b) Cluster 2"

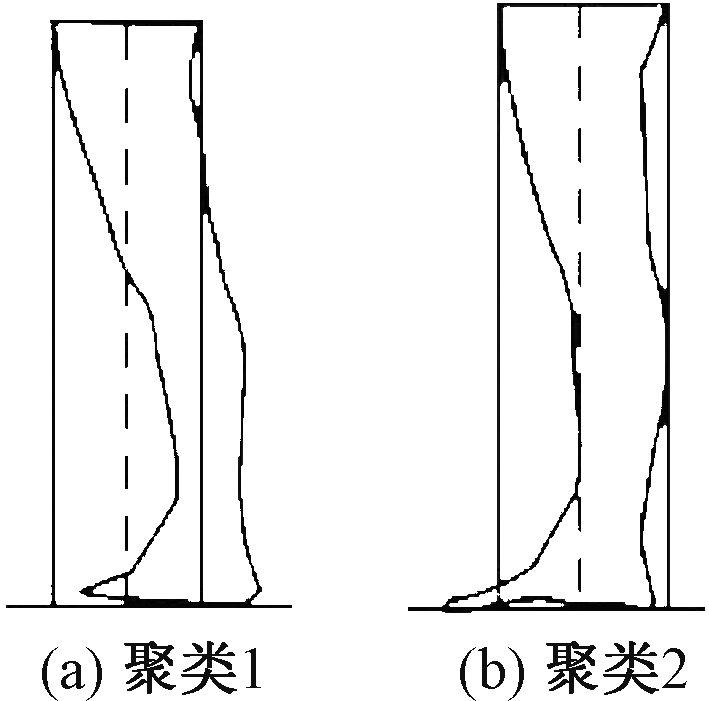

Fig.7

Comparison of calves classification samples. (a) Cluster 1;(b) Cluster 2"

Tab.2

Clustering of leg base data"

类别 踝上围/mm 会阴点宽厚比 大腿中部宽厚比 踝围宽厚比 ∠B2/(°) ∠C1/(°) 腿内侧长/mm 人数
聚类1 199.08 0.97 0.99 0.62 10.41 11.99 628.81 24
聚类2 193.59 0.56 0.93 0.59 9.72 12.48 688.19 40

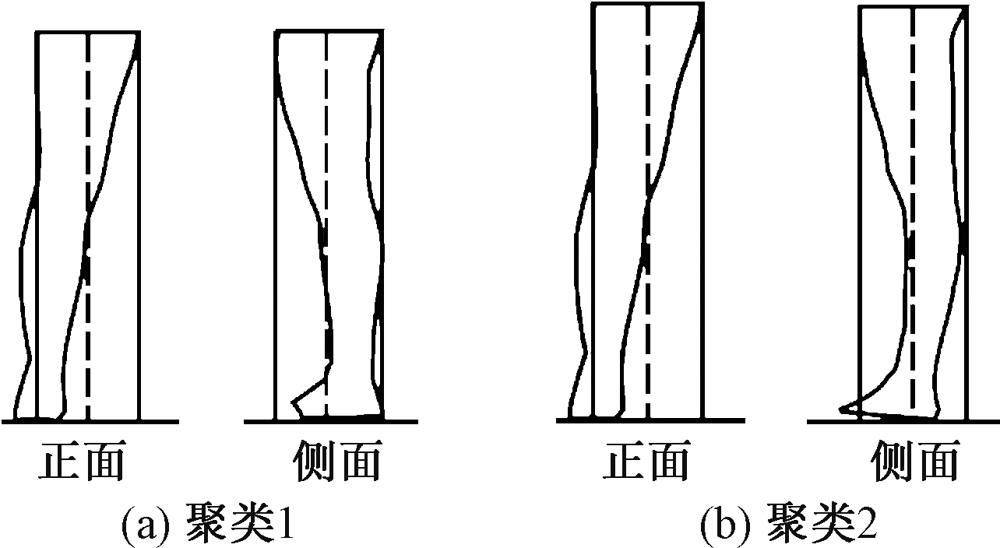

Fig.8

Comparison of frontal and lateral of cluster 1(a) and cluster 2(b)"

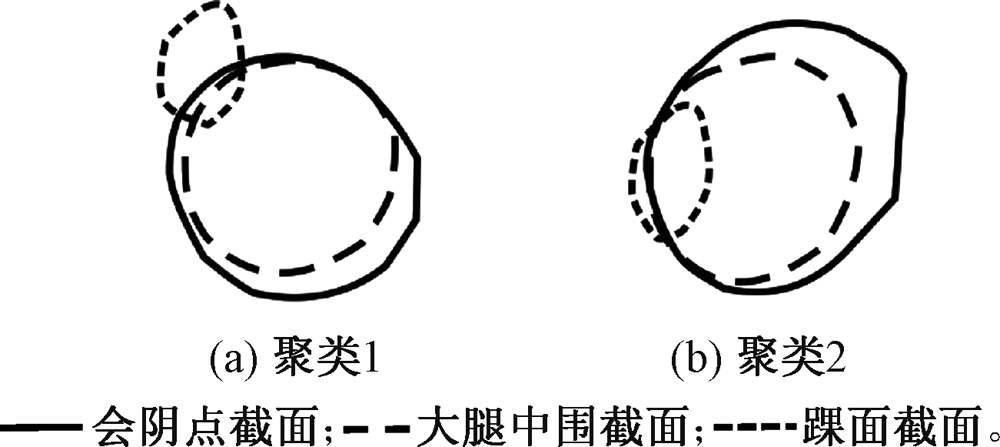

Fig.9

Comparison of cluster 1(a) and cluster 2(b) sections"

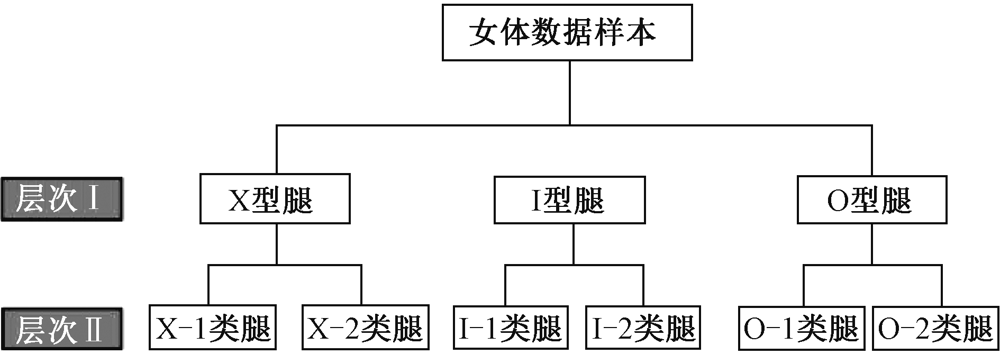

Fig.10

Work-flow of leg shape classification system"

Tab.3

Average girth of key position of legs"

类别 BC位置
围度/mm		 腿肚位置
围度/mm		 DE4位置
围度/mm		 EF3位置
围度/mm
X-1类 203.73 316.91 312.77 377.40
X-2类 207.94 323.27 326.70 397.76
I-1类 206.45 329.60 333.30 400.81
I-2类 203.65 324.20 323.97 391.68
O-1类 209.22 334.36 338.67 401.36
O-2类 207.85 322.26 327.13 403.84

Tab.4

Average length of key position of legs"

类别 腿内侧长/mm 大腿长/mm 小腿长/mm
X-1类 687.96 319.90 368.06
X-2类 617.21 280.32 336.89
I-1类 692.78 319.99 372.79
I-2类 628.73 282.21 346.52
O-1类 685.53 309.16 376.38
O-2类 650.44 294.69 355.75

Tab.5

Classification of leg in different BMI"

BMI 整体腿型分类/% 大腿形态分类/% 小腿形态分类/%
X型 I型 O型 正面 侧面 高凸型 低凸型
低斜度型 平衡型 高斜度型 前倾型 中立型
≤18.4 33.0 50.0 17.0 20.0 56.0 24.0 42.8 57.2 50.0 50.0
18.5~23.9 47.6 47.6 4.8 33.3 56.7 10.0 33.3 66.7 42.9 57.1

Tab.6

Leg type classification rule table"

类别 会阴点宽厚比 大腿中部宽厚比 踝围宽厚比 踝上围/mm ∠B2/(°) ∠C1/(°) 腿内侧长/mm
X-1类 0.87~1.01 0.95~1.00 0.61~0.88 197.33~205.81 4.12~19.78 11.33~15.76 563.00~693.69
X-2类 0.81~1.09 0.96~1.04 0.55~0.74 177.07~228.88 9.37~17.75 6.45~17.18 588.06~689.06
I-1类 0.75~1.00 0.93~1.04 0.59~0.73 188.87~213.53 9.15~15.47 7.11~14.03 588.51~755.50
I-2类 0.74~1.08 0.92~1.05 0.60~0.78 174.69~222.39 4.69~14.76 6.03~17.98 578.75~749.25
O-1类 0.91~1.06 0.93~0.99 0.52~0.73 186.88~209.05 10.62~14.83 8.63~16.28 606.94~680.00
O-2类 0.93~1.03 0.96~0.99 0.60~0.61 190.16~216.97 8.62~14.40 9.00~9.48 683.13~685.32
[1] 唐纳德·A. 诺伊曼. 骨骼肌肉功能解剖学[M]. 2版.刘颖,师玉涛,闫琪,译. 北京: 人民军医出版社, 2014: 37-99.
DONALD A. Neumann. Functional anatomy of skeletal muscles[M]. 2nd ed. LIU Ying, SHI Yutao, YAN Qi, Translating. Translating. Beijing: People's Military Medical Press, 2014: 37-99.
[2] 黄英, 崔志英, 夏明. 华东地区成年女性下体体型研究[J]. 东华大学学报(自然科学版), 2012, 38(3): 297-302.
HUANG Ying, CUI Zhiying, XIA Ming. Lower body shape of adult women in east China[J]. Journal of Donghua University (Natural Science), 2012, 38 (3): 297-302.
[3] 余佳佳, 李健. 中国东部地区青年女性人体体型分类[J]. 纺织学报, 2020, 41(5): 134-139.
YU Jiajia, LI Jian. Classification of body shape of young women in eastern China[J]. Journal of Textile Research, 2020, 41 (5): 134-139.
doi: 10.1177/004051757104100208
[4] 侯莉莉, 王红歌, 张文斌. 三地区成年男子下体体型探讨[J]. 纺织学报, 2008, 29 (10): 95-97.
HOU Lili, WANG Hongge, ZHANG Wenbin. Discussion on lower body shape of adult men in three areas[J]. Journal of Textile Research, 2008, 29(10): 95-97.
[5] 蔡晓裕, 钟泽君, 顾冰菲. 正侧面形态特征驱动的青年女性腰腹臀体型分类[J]. 丝绸, 2020, 57(10): 48-53.
CAI Xiaoyu, ZHONG Zejun, GU Bingfei. Waist, abdomen and buttock shape classification of young women driven by frontal and lateral morphological characteristics[J]. Journal of Silk, 2020, 57 (10): 48-53.
[6] 汪东升, 袁惠芬, 王虹, 等. 基于三维人体数据的青年男性下肢体型分类[J]. 服装学报, 2020, 5(5): 398-404.
WANG Dongsheng, YUAN Huifen, WANG Hong, et al. Classification of lower limb somatotypes of young men based on three-dimensional human body data[J]. Journal of Clothing Research, 2020, 5 (5): 398-404.
[7] 姚怡, 马静, 吴欢, 等. 基于小波系数的青年女性体型分类及原型纸样[J]. 纺织学报, 2017, 38(12): 119-123.
YAO Yi, MA Jing, WU Huan, et al. Body shape classification and prototype pattern of young women based on wavelet coefficients[J]. Journal of Textile Research, 2017, 38 (12): 119-123.
[8] FAUST M E. A proposal for a new size label to assist consumers in finding well-fitting women's clothing, especially pants: an analysis of size USA female data and women's ready-to-wear pants for north American companies[J]. Textile Research Journal, 2009, 79(16):1446-1458.
doi: 10.1177/0040517508099394
[9] LEE K S, SONG H K, KIM S. Categorization of lower body shapes of abdominal obese men using a script-based 3D body measurement software[J]. Fashion and Textiles, 2020, 7(9): 1306-1314.
[10] SONG H K. Categorization of lower body shapes for adult females based on multiple view analysis[J]. Textile Research Journal, 2011, 81(9): 914-931.
doi: 10.1177/0040517510392448
[11] 张益洁, 刘雪林. 女性腿部尺寸回归分析[J]. 丝绸, 2017, 54(9): 31-35.
ZHANG Yijie, LIU Xuelin. Regression analysis of female leg size[J]. Journal of Silk, 2017, 54 (9): 31-35.
[12] 丁中娟. 基于平面投影轮廓获取人体尺寸的研究[D]. 上海: 东华大学, 2017:1-57.
DING Zhongjuan. Research on obtaining human body size based on planar projection contour[D]. Shanghai: Donghua University, 2017:1-57.
[13] LIU R. Stratified body shape-driven sizing system via three dimensional digital anthropometry for compression textiles of lower extremities[J]. Textile Research Journal, 2018, 88(18): 2055-2075.
doi: 10.1177/0040517517715094
