Rapid preparation and properties of structural colored calcium alginate fibers triggered by magnetic field

YANG Chunli1,2, ZHOU Weixian2, LIANG Jinglong2, LIN Guizhen2, LIU Jie1,2,3, NI Yanpeng1,2,3, LIU Yun1,2,3, SHANG Shenglong1,2,3(), ZHU Ping1,2,3

  1. 1. Institute of Functional Textiles and Advanced Materials, Qingdao University, Qingdao, Shandong 266071, China
    2. College of Textile & Clothing, Qingdao University, Qingdao, Shandong 266071, China
    3. State Key Laboratory of Bio-Fibers and Eco-Textiles, Qingdao University, Qingdao, Shandong 266071, China
  • Received:2021-08-02 Revised:2022-05-02 Online:2022-09-15 Published:2022-09-26
  • Contact: SHANG Shenglong E-mail:shangsl@yeah.net

RichHTML

18

PDF (PC)

327

Abstract:

To prepare structural colored calcium alginate fibers with high color saturation and satisfactory mechanical properties, magnetic particles were prepared by solvothermal method before dispersing them in the polyethylene glycol diacrylate. A structural color coating was constructed on the surface of calcium alginate fibers by self-assembly of magnetic particles, and factors affecting the color rendering and mechanical properties of the fiber were analyzed. The results show that when the diameters of the magnetic particle are 125, 145 and 190 nm, blue, green and red structural colors were obtained after curing on the surface of calcium alginate fibers, respectively. The coatings of magnetic particles structure color can better achieved on calcium alginate fiber, and the main component is cubic Fe3O4. The mechanical properties of the structural colored calcium alginate fibers have been significantly improved, and the breaking strength has been increased from 78 cN to 158, 162 and 169 cN, respectively, along with the improved elongation at break.

Key words: calcium alginate fiber, structural color, magnetic field triggered, magnetic particle, ultraviolet curing, wet spinning

CLC Number:

  • TS102.6

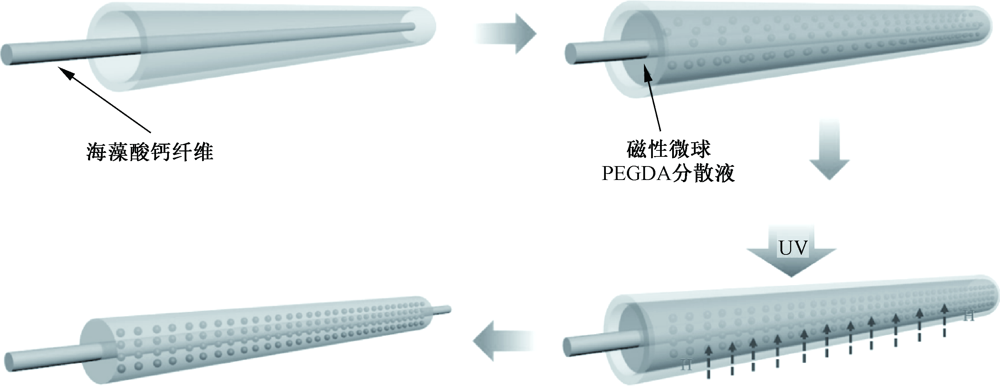

Fig.1

Schematic illustration of preparation of structural colored calcium alginate fiber"

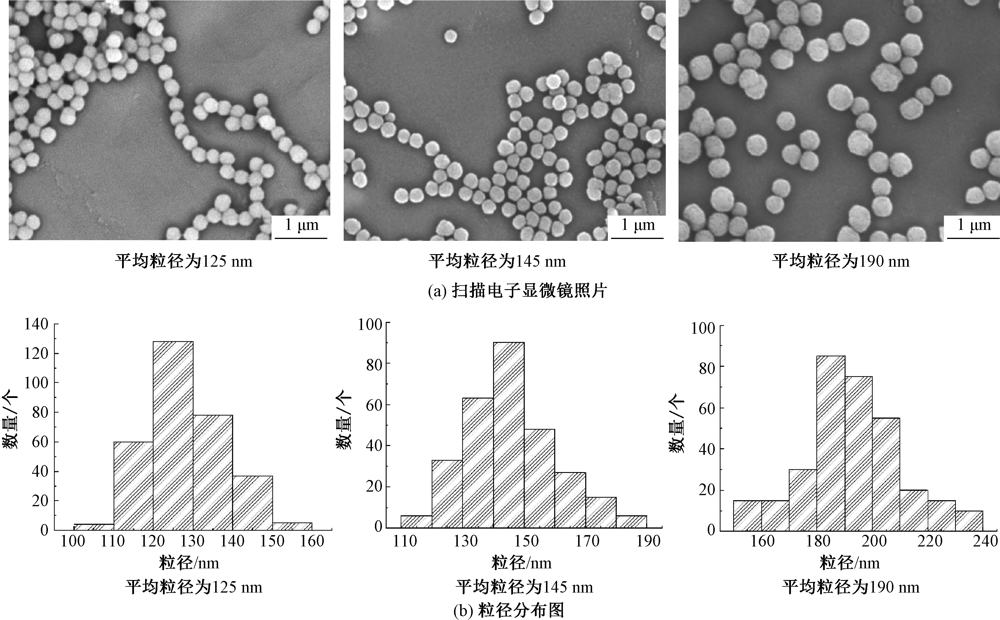

Fig.2

SEM images (a) and size distributions (b) of magnetic microspheres with different particle sizes"

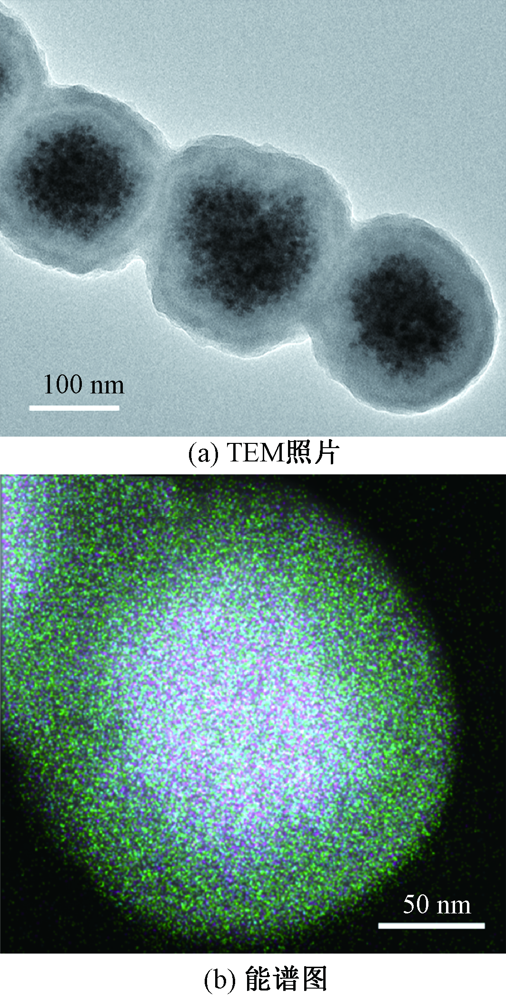

Fig.3

TEM image(a)and energy spectrum(b) of magnetic microspheres with average size of 190 nm"

Fig.4

Representative digital photos of different sizes magnetic particles PEGDA suspensions under magnet. (a)Blue(125 nm);(b)Green(145 nm);(c)Red(190 nm)"

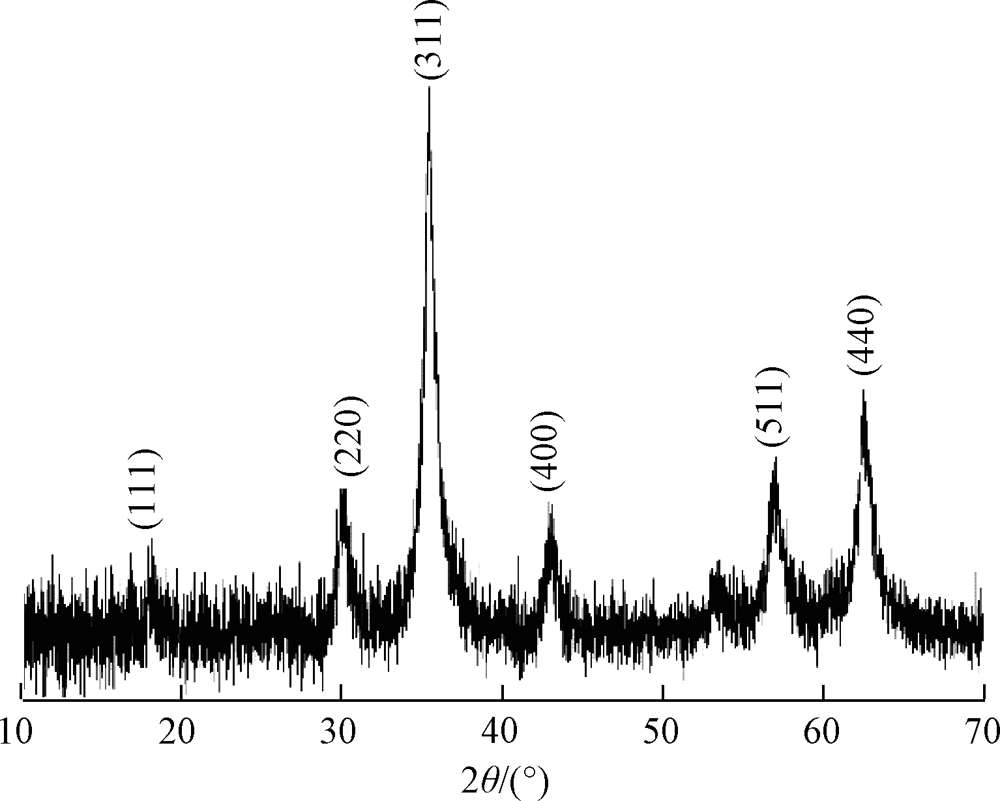

Fig.5

XRD pattern of magnetic particle"

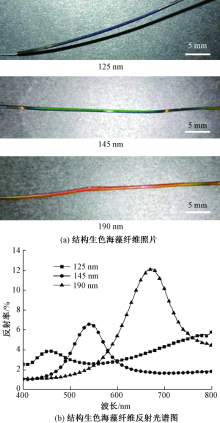

Fig.6

Digital photos (a) and spectrum (b) of structural colored calcium alginate fibers prepared by magnetic microspheres with different paticle sizes"

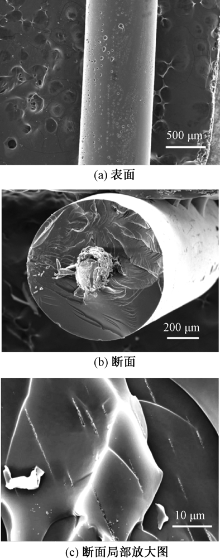

Fig.7

SEM images of structural colord calcium alginate fibers with red color. (a)Surface;(b)Cross section; (c)Enlarged cross section"

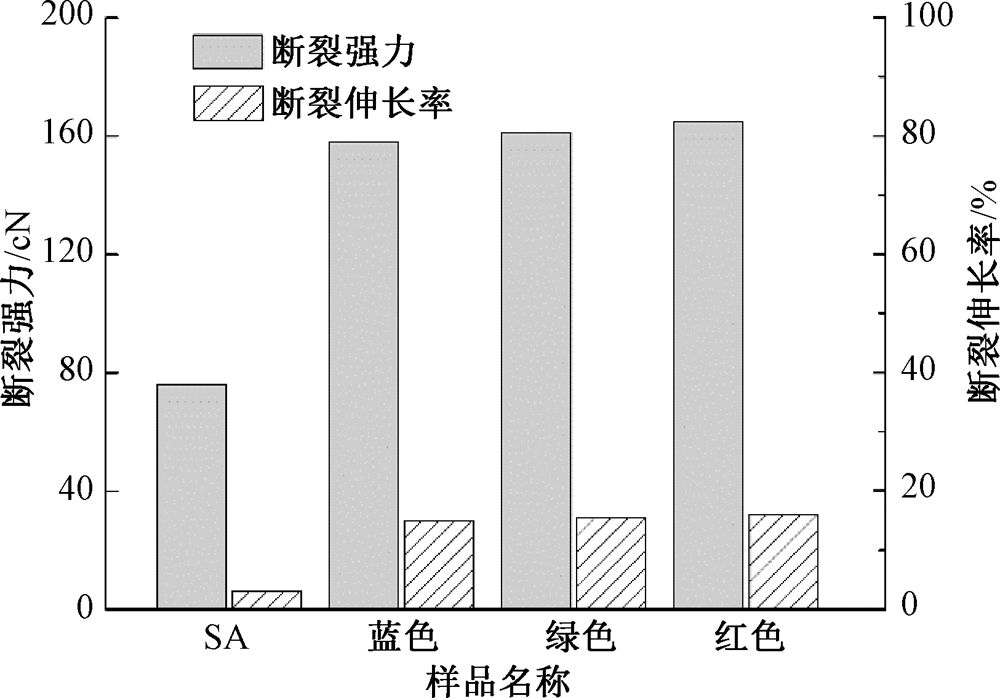

Fig.8

Mechanical properties of structural colored calcium alginate fibers"

[1] 赵洪. 海藻酸纤维/棉混纺面料整理工艺研究[J]. 纺织导报, 2020 (5): 62-64.
ZHAO Hong. Study on finishing technology of alginate fiber/cotton blended fabric[J]. China Textile Leader, 2020 (5): 62-64.
[2] CI Meiyu, LIU Jie, LIN Li, et al. Preparation and characterization of hydroxypropyl methylcellulose modified alginate fiber[J]. Journal of Physics: Conference Series, 2021. DOI: 10.1088/1742-659611742-6596/179011/012073.
doi: 10.1088/1742-659611742-6596/179011/012073
[3] CHEN Hao, GAO Yang, REN Xiuyan, et al. Alginate fibertoughened gels similar to skin intelligence as ionic sensors[J]. Carbohydrate Polymers, 2020. DOI: 10.1016/j.carbpol.2020.116018.
doi: 10.1016/j.carbpol.2020.116018
[4] ZHANG Miao, ZHAO Xia. Alginate hydrogel dressings for advanced wound management[J]. International Journal of Biological Macromolecules, 2020(162): 1414-1428.
[5] ZOU Xiaolong, SHANG Shenglong, LIU Jie, et al. Facile fabrication of temperature triggered thermochromic core-sheath alginate microfibers from microfluidic spinning[J]. Fibers and Polymers, 2021, 22(6): 1535-1542.
doi: 10.1007/s12221-021-0778-3
[6] LIU Jie, LIU Yun, MIAO Dagang, et al. Gelation modification of alginate nonwoven fabrics[J]. Fibers and Polymers, 2018, 19(8): 1605-1610.
doi: 10.1007/s12221-018-8287-8
[7] LI Zhaoyi, SUN Liang, FU Zhongjun, et al. Coloration of calcium alginate fiber with dye and auxiliary derived from polyvinylamine (PVAm): I: complex dyeing with polymeric dyes containing PVAm[J]. Fibers and Polymers, 2021, 22(3): 720-727.
doi: 10.1007/s12221-021-0213-9
[8] SHI Xiaodi, HE Jialei, XIE Xinhui, et al. Photonic crystals with vivid structure color and robust mechanical strength[J]. Dyes and Pigments, 2019, 165: 137-143.
doi: 10.1016/j.dyepig.2019.02.023
[9] ZENG Qi, DING Chen, LI Qingsong, et al. Rapid fabrication of robust, washable, self-healing superhydrophobic fabrics with non-iridescent structural color by facile spray coating[J]. RSC Advances, 2017(7): 8443-8452.
[10] LIU Guojin, ZHOU Lan, WU Yujiang, et al. Optical properties of three-dimensional P(St-MAA) photonic crystals on polyester fabrics[J]. Optical Materials, 2015(42): 72-79.
[11] LIU Guojin, ZHOU Lan, ZHANG Guoqing, et al. Fabrication of patterned photonic crystals with brilliant structural colors on fabric substrates using ink-jet printing technology[J]. Materials & Design, 2017(114): 10-17.
[12] LI Qingsong, ZHANG Yafeng, SHI Lei, et al. Additive mixing and conformal coating of noniridescent structural colors with robust mechanical properties fabricated by atomization deposition[J]. ACS Nano, 2018(12): 3095-3102.
[13] LIU Guojin, HAN Pengshuai, WU Yu, et al. The preparation of monodisperse P(St-BA-MAA)@disperse dye microspheres and fabrication of patterned photonic crystals with brilliant structural colors on white substrates[J]. Optical Materials, 2019. DOI: 10.1016/j.optmat.2019.109503.
doi: 10.1016/j.optmat.2019.109503
[14] LI Yichen, FAN Qingsong, WANG Xiaohui, et al. Shear-induced assembly of liquid colloidal crystals for large-scale structural coloration of textiles[J]. Advanced Functional Materials, 2021. DOI: 10.1002/adfm.20.2010746.
doi: 10.1002/adfm.20.2010746
[15] WANG Xiaohui, LI Yichen, ZHAO Qian, et al. High structural stability of photonic crystals on textile substrates, prepared via a surface-supported curing strategy[J]. ACS Appllied Materials & Interfaces, 2021, 13: 19221-19229.
[16] SHANG Shenglong, ZHANG Qinghong, WANG Hongzhi, et al. Fabrication of magnetic field induced structural colored films with tunable colors and its application on security materials[J]. Journal of Colloid and Interface Science, 2017 (485): 18-24.
[17] LIU Zhifu, ZHANG Qinghong, WANG Hongzhi, et al. Magnetic field induced formation of visually structural colored fiber in micro-space[J]. Journal of Colloid and Interface Science, 2013 (406): 18-23.
[18] CALDERON F L, STORA T, MONVAL O M, et al. Direct measurement of colloidal forces[J]. Physical Review Letters, 1994, 72(18): 2959-2962.
doi: 10.1103/PhysRevLett.72.2959
[19] WANG Hui, CHEN Qianwang, YU Yifei, et al. Size-and solvent-dependent magnetically responsive optical diffraction of carbon-encapsulated superparamagnetic colloidal photonic crystals[J]. The Journal of Physical Chemistry C, 2011(115): 11427-11434.
