New measurement method for fabric multi-directional bending performance

LIU Chengxia1,2,3(), ZHANG Yaqi2

  1. 1. Zhejiang Province Engineering Laboratory of Clothing Digital Technology, Zhejiang Sci-Tech University, Hangzhou,Zhejiang 310018, China
    2. School of Fashion Design & Engineering, Zhejiang Sci-Tech University, Hangzhou,Zhejiang 310018, China
    3. Key Laboratory of Silk Culture Heritage and Products Design Digital Technology,Ministry of Culture and Tourism, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
  • Received:2021-08-19 Revised:2022-06-28 Online:2022-10-15 Published:2022-10-28

RichHTML

19

PDF (PC)

107

Abstract:

Under the widely used testing method for fabric bending performance, only one result for one direction can be obtained by using one fabric. To investigate a testing method that can characterize fabric multi-directional bending performance simultaneously, 20 common fabrics were chosen and tested with the conventional method to obtain the bending length in the directions of 0°、90°、45°和135° by cutting the fabric sample into stripes along these four directions for testing. Correlation analysis was conducted between projection length and projection area with bending length. It was concluded that both the projection length and projection area have good correlation with bending length of the conventional method, with the coefficient about 0.95, which proves the new method can be used to characterize the bending properties of 0°、90°、45° and 135°. Two reading can be obtained in each direction, and therefore, it is more efficient and accurate than the conventional method. Besides, it can visualize fabric anisotropy in bending performance and display the testing stability of bending in one direction.

Key words: fabric, measurement for multi-directional bending performance, projection length, projection area, bending length

CLC Number:

  • TS941.2

Tab.1

Fabric specification parameters"

织物
编号		 组织 成分
(含量)		 密度/(根·(10 cm)-1) 面密度/
(g·m-2)		 厚度/
mm
经向 纬向
1# 平纹 棉 580 290 128 0.16
2# 平纹 涤纶 560 320 109 0.22
3# 平纹 羊毛 420 380 101 0.18
4# 缎纹 涤纶 560 440 176 0.27
5# 平纹 亚麻/棉
(50/50)		 480 460 125 0.19
6# 平纹 粘胶 260 240 121 0.16
7# 斜纹 棉 380 270 182 0.34
8# 平纹 棉 600 500 104 0.11
9# 斜纹 粘胶 230 130 166 0.37
10# 斜纹 棉 510 290 218 0.39
11# 斜纹 涤纶/棉
(50/50)		 460 290 142 0.26
12# 缎纹 羊毛/涤纶
(65/35)		 450 280 118 0.18
13# 斜纹 羊毛/棉
(65/35)		 600 330 116 0.19
14# 缎纹 蚕丝/粘胶
(50/50)		 510 440 96 0.16
15# 斜纹 涤纶 420 390 136 0.26
16# 斜纹 亚麻/涤纶
(65/35)		 240 110 168 0.38
17# 斜纹 羊毛 270 220 132 0.24
18# 平纹 羊毛/粘胶
(70/30)		 470 260 92 0.22
19# 平纹 棉/粘胶
(80/20)		 640 270 124 0.18
20# 缎纹 涤纶 560 370 92 0.15

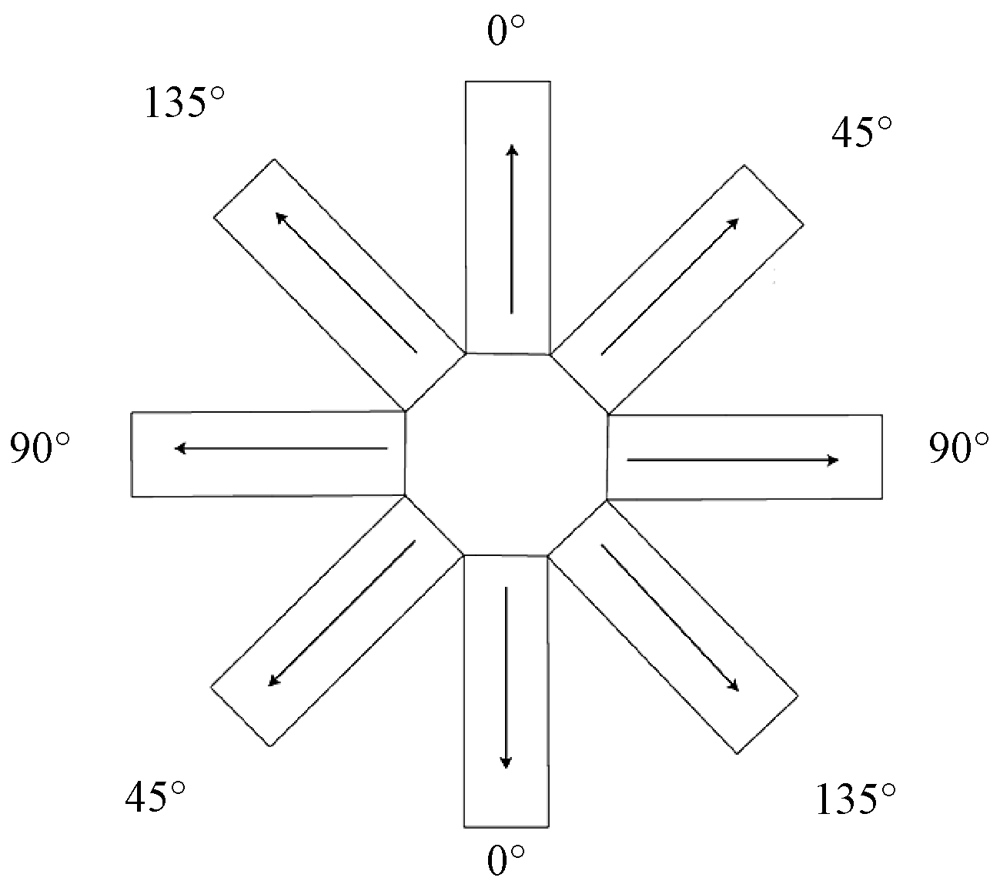

Fig.1

Shape of fabric sample"

Fig.2

Testing instrument"

Fig.3

Morphology of sagging fabric sample before(a) and after (b) pre-processing"

Tab.2

Testing results of fabric bending properties"

试样
编号		 投影面积/cm2 投影长度/cm 弯曲长度/mm
0° 90° 45° 135° 0° 90° 45° 135° 0° 90° 45° 135°
1# 2.91 1.29 2.35 1.59 2.63 1.17 2.15 1.52 23.47 16.57 20.60 18.57
2# 3.37 1.76 2.91 2.08 2.89 1.54 2.56 1.77 26.80 19.23 25.23 22.40
3# 2.08 1.23 1.75 1.25 1.93 1.11 1.62 1.13 18.07 16.63 17.40 15.50
4# 2.41 2.46 1.44 2.42 2.17 2.29 1.32 2.14 20.13 22.03 19.50 21.60
5# 3.52 1.46 2.55 1.96 3.17 1.37 2.47 1.75 26.77 17.90 21.97 18.67
6# 2.32 1.22 1.01 1.38 2.07 1.10 0.89 1.35 21.73 18.03 15.47 18.63
7# 2.87 1.08 2.06 1.39 3.06 1.06 2.13 1.29 28.80 17.87 22.70 19.53
8# 2.21 1.28 1.40 1.25 2.02 1.16 1.42 1.13 20.87 15.67 17.77 16.43
9 1.66 0.96 1.20 0.97 1.52 0.87 1.09 0.84 18.20 15.20 16.97 15.90
10# 2.99 3.01 2.64 2.49 2.30 2.94 2.50 2.22 23.77 24.63 24.50 25.23
11# 1.74 0.82 0.79 0.98 1.68 0.78 0.81 0.95 18.23 14.53 13.80 15.53
12# 1.94 0.96 1.64 1.13 1.78 0.90 1.51 0.99 18.77 16.10 18.53 15.07
13# 1.38 0.72 0.78 0.92 1.22 0.67 0.68 0.84 18.77 13.90 15.00 17.10
14# 2.14 1.20 1.47 1.26 1.96 1.09 1.41 1.15 20.00 16.67 19.07 17.03
15# 2.73 0.92 1.02 1.05 2.49 0.75 0.88 0.87 22.43 14.03 16.37 14.83
16# 3.43 1.46 2.78 2.47 3.05 1.45 2.72 2.38 27.83 20.23 25.43 21.40
17# 1.57 2.67 2.10 1.41 1.42 2.38 1.93 1.23 17.97 24.60 20.90 18.00
18# 3.86 0.61 0.82 1.09 3.54 0.49 0.60 0.94 31.10 12.13 13.73 17.07
19# 2.01 2.50 1.17 1.14 1.78 2.25 1.01 0.98 19.90 20.57 16.47 17.50
20# 2.61 1.52 1.36 1.27 2.32 1.33 1.25 1.12 20.03 20.50 18.93 17.73

Tab.3

Results of fabrics bending performance"

丝缕角度/
(°)		 投影长度相关性 投影面积相关性
0° 90° 45° 135° 0° 90° 45° 135°
0 0.972** 0.026 0.483* 0.538* 0.917** 0.035 0.474* 0.494*
90 0.113 0.995** 0.435 0.568** 0.107 0.931** 0.509* 0.656**
45 0.442 0.487* 0.991** 0.755** 0.430 0.564** 0.954** 0.677**
135 0.440 0.656** 0.756** 0.991** 0.416 0.668** 0.803** 0.892**

Fig.4

Relationship between projection length and bending length"

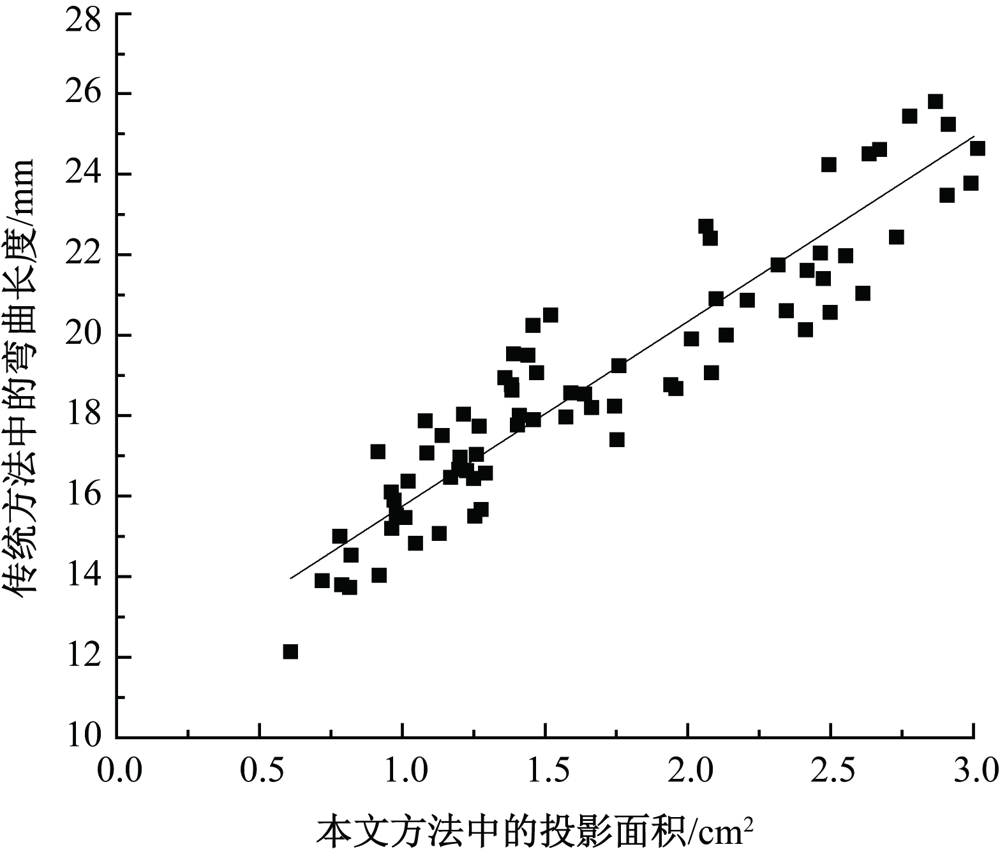

Fig.5

Relationship between projection area and bending length"

Fig.6

Projection shape of different fabrics"

[1] 倪红, 潘永惠. 基于BP神经网络的织物斜向弯曲性能的预测[J]. 纺织学报, 2009, 30(2):48-51.
NI Hong, PAN Yonghui. Prediction of fabric diagonal bending rigidity by BP neural network[J]. Journal of Textile Research, 2009, 30(2):48-51.
[2] 石风俊, 胡金莲. 织物的弯曲性能[J]. 纺织学报, 2005, 26(3):15-18.
SHI Fengjun, HU Jinlian. Bending behavior of fabric[J]. Journal of Textile Research, 2005, 26(3):15-18.
[3] PEIRCE F T. The handle of cloth as a measurable quantity[J]. Journal of The Textile Institute, 1930, 21:377-416.
[4] GROSBER P. The mechanical properties of woven fabrics:partⅡ:the bending of woven fabrics[J]. Textile Research Journal, 1966, 36(3):205-211.
doi: 10.1177/004051756603600301
[5] GROSBERG P, SWANI M. The mechanical properties of woven fabrics:part Ⅲ: the bucking of woven fabrics[J]. Textile Research Journal, 1966, 36(4):332- 338.
doi: 10.1177/004051756603600405
[6] 余芳, 刘成霞. 用蝴蝶结法测试毛织物弯曲性[J]. 纺织学报, 2019, 40(8):35-39,47.
YU Fang, LIU Chengxia. Measurement for bending behavior of wool fabric by bowknot method[J]. Journal of Textile Research, 2019, 40(8):35-39,47.
doi: 10.1177/004051757004000106
[7] STRAZDIENE E, MARTISIUE G, GUTUASKAS M, et al. Textile hand: a new method for textile objective evaluation[J]. Textile Research Journal, 2003, 94(1): 245-255.
[8] 刘成霞, 韩永华, 张才前. 基于图像处理的织物弯曲性能测试方法[J]. 纺织学报, 2013, 34(7):53-57.
LIU Chengxia, HAN Yonghua, ZHANG Caiqian. Study on the measurement of multi-directional fabric stiffness[J]. Journal of Textile Research, 2013, 34(7):53- 57.
[9] 刘成霞, 周澳. 利用十字交叉法测试织物弯曲悬垂性[J]. 纺织学报, 2018, 39(6):42-46.
LIU Chengxia, ZHOU Ao. Test method for fabric bending behavior based on image processing[J]. Journal of Textile Research, 2018, 39(6): 42-46.
[10] SUN M N. A new tester and method for measuring fabric stiffness and drape[J]. Textile Research Journal, 2008, 78(9):761-770.
doi: 10.1177/0040517507084284
