Nondestructive testing on damage of carbon fiber composites using ultrasonic C-scanning

FANG Zhouqian1, MIAO Peiyuan1, JIN Xiaoke1, ZHU Chengyan1,2, TIAN Wei1,2()

  1. 1. College of Textile Science and Engineering(International Institute of Silk), Zhejiang Sci-Tech University,Hangzhou, Zhejiang 310018, China
    2. Key Laboratory of Advanced Textile Materials and Manufacturing Technology, Ministry of Education, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
  • Received:2021-09-09 Revised:2022-03-29 Online:2022-10-15 Published:2022-10-28
  • Contact: TIAN Wei E-mail:tianwei_zstu@126.com

RichHTML

16

PDF (PC)

142

Abstract:

With respect to the hole defects of the carbon fiber composites, the ultrasonic C-scan imaging detection technology was used to scan the specimens with holes, and the position of the defects obtained C-scan were analyze. The holed specimens were scanned, and the appearance of the scanned image was analyzed for causing reasons. Cluster analysis was performed to establish the relationship between the actual area of the defect and the detection area, and reflection scanning and scanning electron microscopy were carried out for the holed specimens and the composite delamination was analyzed according to the scanning waveform and electron microscopy. The research results show that there is a one-to-one correspondence between the C-scan image and the position of the composite material defect, and that when the hole diameter is larger than the beam width of the focusing probe, the edge of the hole does not affect the beam penetration and energy loss. The work indicated that the ultrasonic C-scan imaging detection technology can further verify holes and delamination defects.

Key words: ultrasonic testing, C-scan, carbon fiber composite material, hole defect, delamination defect

CLC Number:

  • TB553

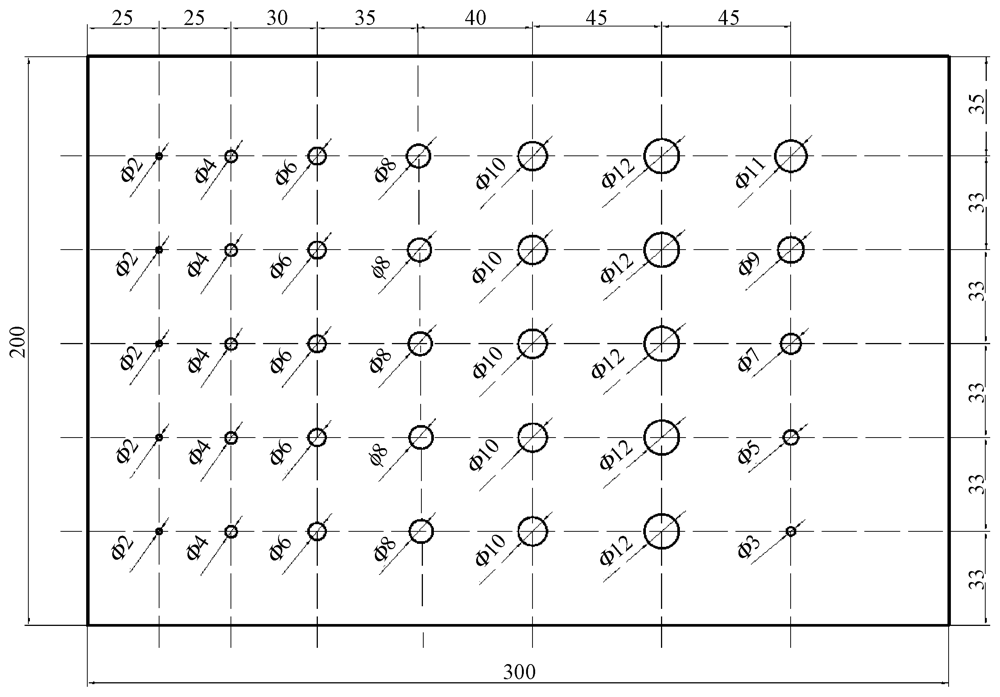

Fig.1

Distribution of holes"

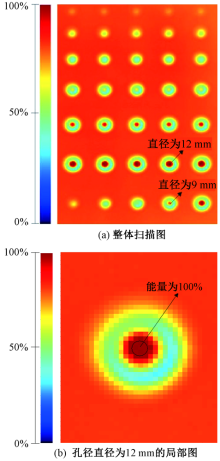

Fig.2

Scanning image of CFRP hole specimen. (a)Overall scan picture;(b)Partial view with a hole diameter of 12 mm"

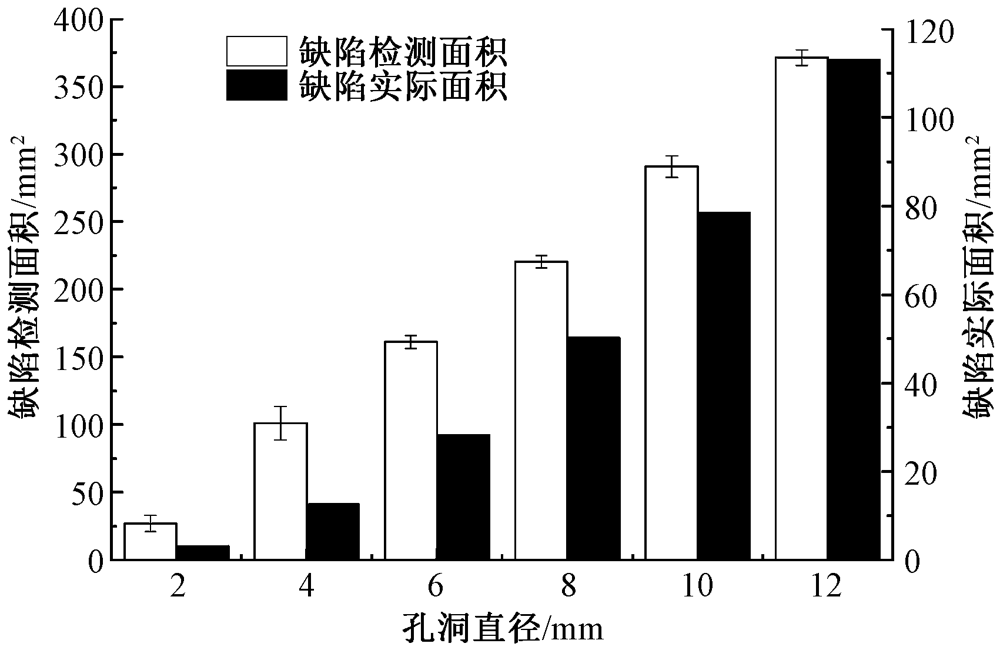

Fig.3

CFRP hole defect detection area and actual area statistics chart"

Fig.4

Waveform diagram in absence of defect. (a)Sampling point at no defect;(b)Waveformdiagram at defect-free sampling point"

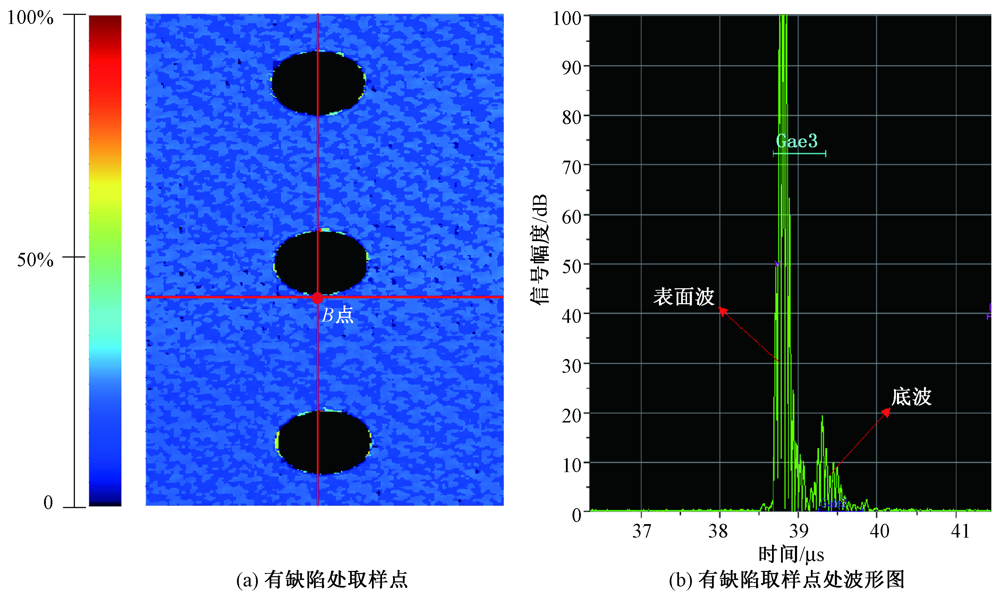

Fig.5

Waveform diagram of defect. (a)Defective sampling point;(b)Waveform diagram at defective sampling point"

Fig.6

Scanning electron microscope images of CFRP hole section. (a)Hole section overall view;(b)Stratified and unstratified comparison chart; (c)Hierarchical graph; (d)Layered detail map"

[1] 陈燕, 葛恩德, 傅玉灿, 等. 碳纤维增强树脂基复合材料制孔技术研究现状与展望[J]. 复合材料学报, 2015, 32(2): 301-316.
CHEN Yan, GE Ende, FU Yucan, et al. Review and prospect of drilling technologies for carbon fiber reinforced polymer[J]. Acta Materiae Compositae Sinica, 2015, 32(2): 301-316.
[2] MUTUA N F. Preparation and properties of polyox-amides and their carbon fiber reinforced composites[D]. Shanghai: Donghua University, 2019: 18-25.
[3] 鄢国洪. 碳纤维复合材料的特性及其切削加工刀具研究[J]. 制造技术与机床, 2015(8): 93-97.
YAN Guohong. Research on machining features and cutting tools of carbon fiberreinforced plastics[J]. Manufacturing Technology & Machine Tool, 2015(8): 93-97.
[4] CHENG Pengfei. Fatigue characteristics of T300 composite laminates with impact damage[J]. Material Sciences, 2020, 10(5): 391-398.
doi: 10.12677/MS.2020.105049
[5] 喻星星, 曹艳, 朱颖, 等. 碳纤维复合材料常见缺陷涡流检测试验分析[J]. 无损探伤, 2020, 44(4): 24-27.
YU Xingxing, CAO Yan, ZHU Ying, et al. Eddy current testing analysis of common defects in carbon fiber composites[J]. Nondestructive Testing Technology, 2020, 44(4): 24-27.
[6] ZHANG Xiaoyu, XU Fei, ZANG Yuyan, et al. Experimental and numerical investigation on damage behavior of honeycomb sandwich panel subjected to low-velocity impact[J]. Composite Structures, 2020, 236: 1-18.
[7] 周正干, 孙广开. 先进超声检测技术的研究应用进展[J]. 机械工程学报, 2017, 53(22): 1-10.
doi: 10.3901/JME.2017.22.001
ZHOU Zhenggan, SUN Guangkai. New progress of the study and application of advanced ultrasonic testing technology[J]. Journal of Mechanical Engineering, 2017, 53(22): 1-10.
doi: 10.3901/JME.2017.22.001
[8] 陈振华, 史耀武, 赵海燕. 薄镀锌钢板点焊超声成像分析[J]. 机械工程学报, 2009, 45(12): 274-278.
CHEN Zhenhua, SHI Yaowu, ZHAO Haiyan. Ultrasonic imaging analyses of spot welds on galvanized steel sheet[J]. Journal of Mechanical Engineering, 2009, 45(12): 274-278.
[9] 宋日生, 喻建胜, 何莎, 等. 超声C扫描技术在油气管道检测中的应用[J]. 无损检测, 2018, 40(10): 45-48.
SONG Risheng, YU Jiansheng, HE Sha, et al. Application of ultrasonic C-scan technology in detection of oil and gas pipe-lines[J]. Nondestructive Testing, 2018, 40(10): 45-48.
[10] 周正干, 孙广开, 李征, 等. 复合材料层压板钻孔分层激光超声检测方法[J]. 机械工程学报, 2013, 49(22): 29-33.
ZHOU Zhenggan, SUN Guangkai, LI Zheng, et al. Laser ultrasonic testing method for drilling and delamination of composite lam-inates[J]. Journal of Mechanical Engineering, 2013, 49(22): 29-33.
[11] 魏莹莹, 安庆龙, 蔡晓江, 等. 碳纤维复合材料超声扫描分层检测及评价方法[J]. 航空学报, 2016, 37(11): 3512-3519.
doi: 10.7527/S1000-6893.2015.0324
WEI Yingying, AN Qinglong, CAI Xiaojiang, et al. Ultrasonic scanning delamination detection and evaluation method of carbon fiber composite materials[J]. Acta Aeronautica et Astronautica Sinica, 2016, 37(11): 3512-3519.
doi: 10.7527/S1000-6893.2015.0324
[12] 程志义, 林雨廷, 周广浩, 等. 铝合金蜂窝板钎焊接头的超声波C扫描检测[J]. 城市轨道交通研究, 2020, 23(4): 65-68.
CHENG Zhiyi, LIN Yuting, ZHOU Guanghao, et al. Ultrasonic C-scan detection of aluminum honeycomb plate brazing joint[J]. Urban Mass Transit, 2020, 23(4): 65-68.
[13] SANTOS M J, SANTOS J B, REIS P, et al. Ultrasonic C-scan techniques for damage evaluation of carbon fiber reinforced polymers submitted to low energy impacts[C]// Proceedings of Meetings on Acoustics ICU. New York: Acoustical Society of America, 2019: 1-5.
[14] 吕明, 黄善伦, 梁鑫, 等. 自动化水浸式超声波检测系统在铝合金铸造组织缺陷分析上的应用[J]. 热加工工艺, 2017, 46(11): 93-95. <br
LÜ Ming, HUANG Shanlun, LIANG Xin, et al. Application of automatic water immersion ultrasonic testing system in the analy-sis of microstructure defects of aluminum alloy casting[J]. Hot Working Technology, 2017, 46(11): 93-95.
[15] KISHORE M B, LEE H G, ABERA A G, et al. Quantitative evaluation of partial delamination in thermal barrier coatings using ultrasonic C-scan imaging[J]. International Journal of Precision Engineering and Manufacturing, 2020, 21(1): 157-165.
doi: 10.1007/s12541-019-00143-8
[16] 刘松平, 郭恩明, 谢凯文, 等. 钛合金扩散焊中紧贴型缺陷的超声波检测[J]. 无损检测, 2004(2): 62-65.
LIU Songping, GUO Enming, XIE Kaiwen, et al. Evaluation of kiss defect in diffusion welding of titan by ultrasonic pulse-echoes[J]. Nondestructive Testing, 2004(2): 62-65.
