Biomass-derived magnetic carbon composites towards microwave absorption

QIANG Rong1,2(), FENG Shuaibo1, LI Wanying1, YIN Linzhi1, MA Qian1, CHEN Bowen1, CHEN Yi1

  1. 1. College of Textiles, Zhongyuan University of Technology, Zhengzhou, Henan 450007, China
    2. Henan Collaborative Innovation Center of Textile and Garment Industry, Zhengzhou, Henan 450007, China
  • Received:2021-09-27 Revised:2021-11-04 Online:2022-01-15 Published:2022-01-28

RichHTML

13

PDF (PC)

117

Abstract:

In response to the national carbon neutrality and carbon emission peak target and in order to solve the potential preparation problem of magnetic carbon composite, it proposed a new biomass-derived strategy for the preparation of carbon-based microwave absorption composites. The iron/mushroom precursor was obtained by absorbing iron ions, where mushrooms acted as the raw material and iron salt severed as metal source. The Fe/Fe4N/C composites were acquired by controlled high-temperature pyrolysis, and the phase structure, morphology, thermal stability, magnetic stability, physiochemical properties and microwave absorption performance of composites were analyzed and discussed. It was proved that the increased pyrolysis temperature would improve the crystallinity of magnetic nanoparticles, and that the increases in Fe4N content would induce the decrease of coercivity and saturation magnetization simultaneously. The high pyrolysis temperature was conductive to the transformation from amorphous carbon to microcrystalline graphite,inducing the increased degree of graphitization degree of carbon components. The Fe/Fe4N/C composite pyrolyzed at 700 ℃ was regarded as the best microwave absorber. With a composite thickness being 4 mm, the effective bandwidth of microwave that could be absorbed reached to 6.64 GHz, from 4.00 to 10.64 GHz. The appropriate impedance matching and synergistic enhancement of dielectric loss and magnetic loss were considered to be responsible for the intensified microwave absorption. It is believed that the research provides a reference for the preparation of magnetic carbon microwave absorbers, and promotes the popularization and application of biomass-derived method.

Key words: biomass-derived method, carbon composites, magnetic, microwave absorption performance

CLC Number:

  • O613.71

Fig.1

Schematic diagram for preparation of Fe/Fe4N/C composites"

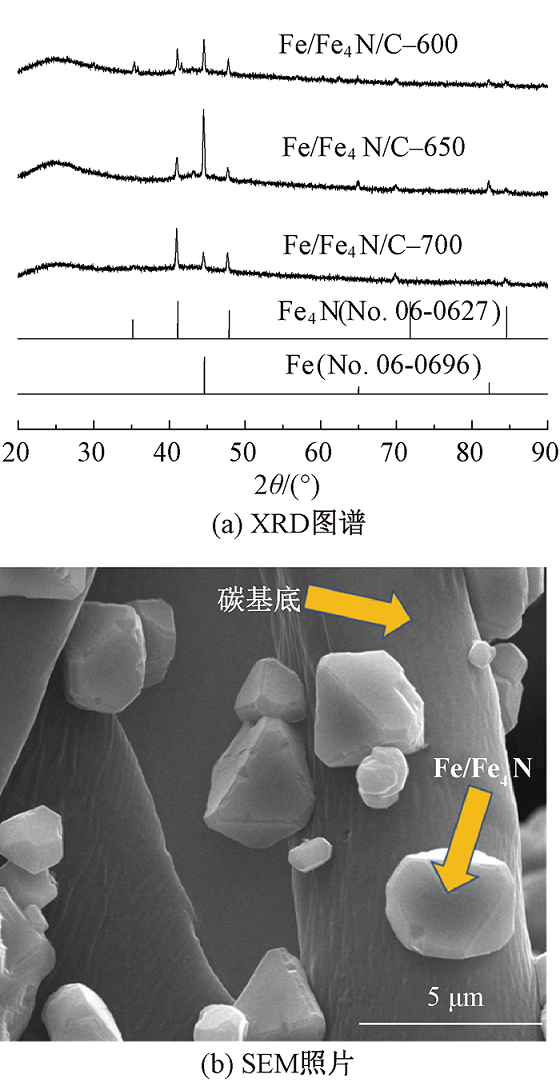

Fig.2

Phase and morphology of Fe/Fe4N/C composites. (a) XRD pattern; (b) SEM image"

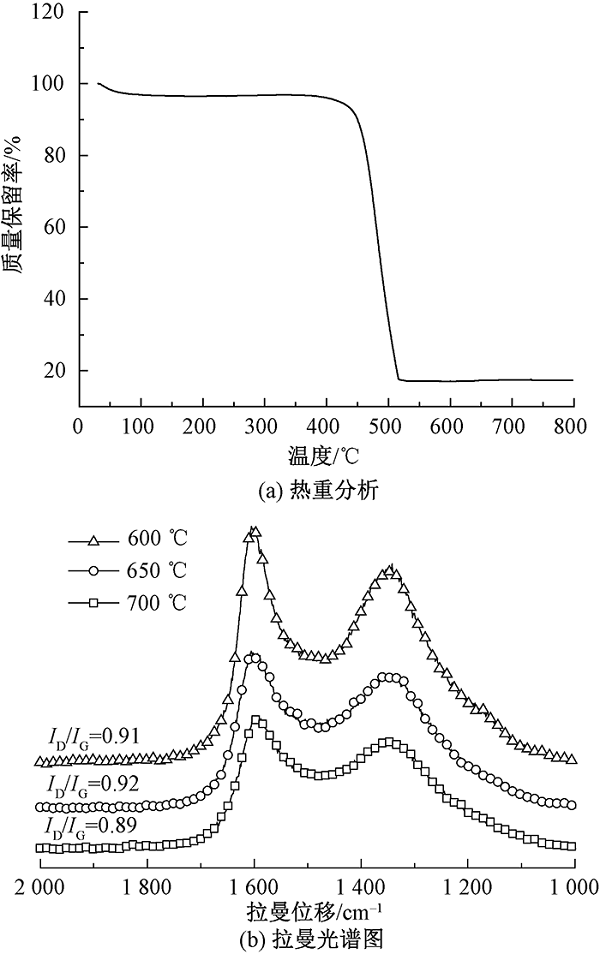

Fig.3

Analysis diagram of Fe/Fe4N/C composite. (a) Thermogravimetric analysis; (b) Raman spectra analysis"

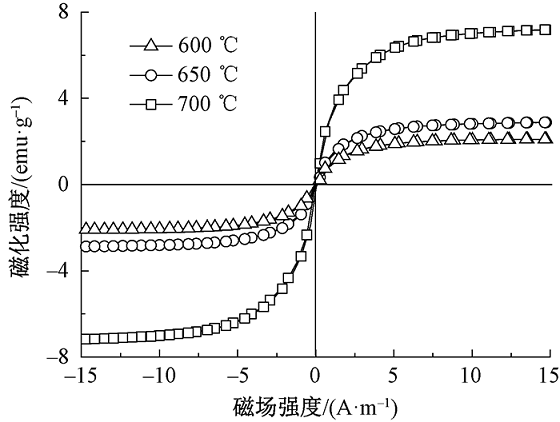

Fig.4

Hysteresis curves of Fe/Fe4N/C composites"

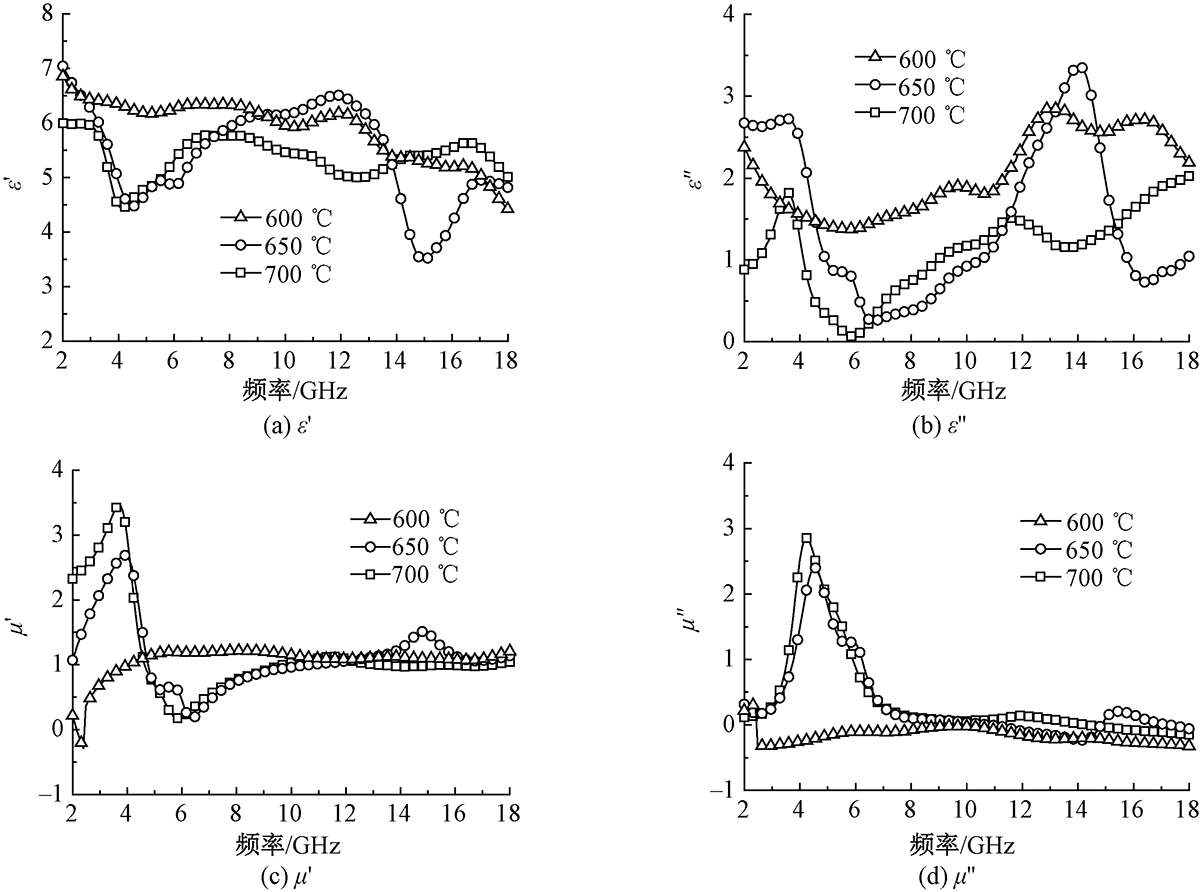

Fig.5

Dielectric constant and complex permeability of Fe/Fe4N/C composites"

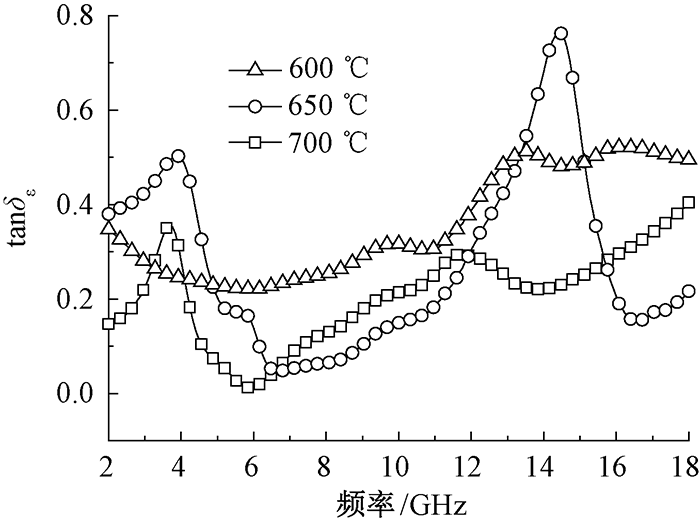

Fig.6

Dielectric loss tangent of Fe/Fe4N/C composites"

Fig.7

Magnetic loss tangent of Fe/Fe4N/C composites"

Fig.8

2-D reflection loss diagrams of Fe/Fe4N/C composites"

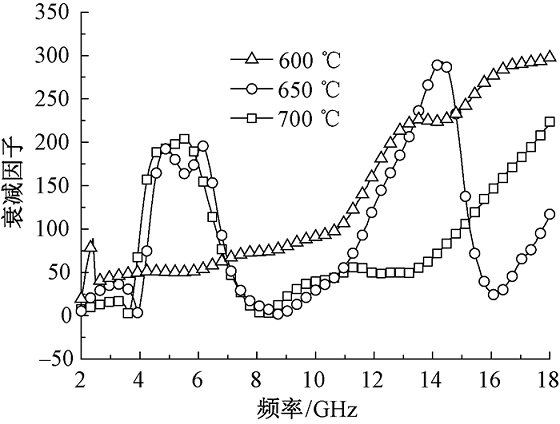

Fig.9

Attenuation factor curves of Fe/Fe4N/C composites"

Fig.10

Impedance matching diagram of Fe/Fe4N/C composites"

[1] GU W, SHENG J, HUANG Q, et al. Environmentally friendly and multifunctional shaddock peel-based carbon aerogel for thermal-insulation and microwave absorption[J]. Nano-Micro Letters, 2021, 13, 102:1-4.
[2] LIU P, GAO S, LIU X, et al. Rational construction of hierarchical hollow CuS@CoS2 nanoboxes with heterogeneous interfaces for high-efficiency microwave absorption materials[J]. Composites Part B: Engineering, 2020, 192:107992.
doi: 10.1016/j.compositesb.2020.107992
[3] WU N, HU Q, WEI R, et al. Review on the electromagnetic interference shielding properties of carbon based materials and their novel composites: recent progress, challenges and prospects[J]. Carbon, 2021, 176:88-105.
doi: 10.1016/j.carbon.2021.01.124
[4] LI T, ZHI D, CHEN Y, et al. Multiaxial electrospun generation of hollow graphene aerogel spheres for broadband high-performance microwave absorption[J]. Nano Research, 2020, 13(2): 477-484.
doi: 10.1007/s12274-020-2632-0
[5] QIANG R, DU Y, WANG Y, et al. Rational design of yolk-shell C@C microspheres for the effective enhancement in microwave absorption[J]. Carbon, 2016, 98:599-606.
doi: 10.1016/j.carbon.2015.11.054
[6] YANG M, YUAN Y, LI Y, et al. Dramatically enhanced electromagnetic wave absorption of hierarchical CNT/Co/C fiber derived from cotton and metal-organic-framework[J]. Carbon, 2020, 161:517-527.
doi: 10.1016/j.carbon.2020.01.073
[7] LIU P, GAO S, WANG Y, et al. Magnetic porous N-doped carbon composites with adjusted composition and porous microstructure for lightweight microwave absorbers[J]. Carbon, 2021, 173:655-666.
doi: 10.1016/j.carbon.2020.11.043
[8] QAING R, DU Y, ZHAO H, et al. Metal organic framework-derived Fe/C nanocubes toward efficient microwave absorption[J]. Journal of Materials Chemistry A, 2015, 3:13426-13434.
doi: 10.1039/C5TA01457C
[9] LIU D, QIANG R, DU Y, et al. Prussian blue analogues derived magnetic FeCo alloy/carbon composites with tunable chemical composition and enhanced microwave absorption[J]. Journal of Colloid and Interface Science, 2018, 514:10-20.
doi: 10.1016/j.jcis.2017.12.013
[10] QIANG R, DU Y, CHEN D, et al. Electromagnetic functionalized Co/C composites by in situ pyrolysis of metal-organic frameworks (ZIF-67)[J]. Journal of Alloys and Compounds, 2016, 681:384-393.
doi: 10.1016/j.jallcom.2016.04.225
[11] GUAN H, WANG Q, WU X, et al. Biomass derived porous carbon (BPC) and their composites as lightweight and efficient microwave absorption materials[J]. Composites Part B: Engineering, 2021, 207:108562.
[12] LEI L, WANG Y, ZHANG Z, et al. Transformations of biomass, its derivatives, and downstream chemicals over ceria catalysts[J]. ACS Catalysis, 2020, 10(15): 8788-8814.
doi: 10.1021/acscatal.0c01900
[13] WANG H, MENG F, LI J, et al. Carbonized design of hierarchical porous carbon/Fe3O4@Fe derived from loofah sponge to achieve tunable high-performance microwave absorption[J]. ACS Sustain Chem Eng, 2018, 6(9): 11801-11810.
doi: 10.1021/acssuschemeng.8b02089
[14] GOU G, MENG F, WANG H, et al. Wheat straw-derived magnetic carbon foams: in-situ preparation and tunable high-performance microwave absorption[J]. Nano Res, 2019, 12(6): 1423-1429.
doi: 10.1007/s12274-019-2376-x
[15] QIANG R, FENG S, CHEN Y, et al. Recent progress in biomass-derived carbonaceous composites for enhanced microwave absorption[J]. Journal of Colloid and Interface science, 2021, 606:406-423.
doi: 10.1016/j.jcis.2021.07.144
[16] QIANG R, FENG S, CHEN Y, et al. Porous and flake-like gamma-Fe4N@iron oxides with enhanced microwave absorption performance[J]. Ceramics International 2021, 47:8315-8321.
doi: 10.1016/j.ceramint.2020.11.193
[17] BHATTACHARYYA S. Iron nitride family at reduced dimensions: a review of their synjournal protocols and structural and magnetic properties[J]. Journal of Physical Chemistry C, 2015, 119:1601-1622.
doi: 10.1021/jp510606z
