Journal of Textile Research ›› 2022, Vol. 43 ›› Issue (11): 179-187.doi: 10.13475/j.fzxb.20210911709

• Machinery & Accessories • Previous Articles     Next Articles

Construction and experiment of intelligent chemicals distribution system for dyeing machine

ZHANG Fumu1, LIU Duanwu2, HU Yueming1()

  1. 1. College of Automation Science and Engineering, South China University of Technology, Guangzhou, Guangdong 510640, China
    2. Foshan Nanhai Tianfu Technology Co., Ltd., Foshan, Guangdong 528222, China
  • Received:2021-09-29 Revised:2022-07-15 Online:2022-11-15 Published:2022-12-26
  • Contact: HU Yueming E-mail:auymhu@scut.edu.cn

RichHTML

7

PDF (PC)

42

Abstract:

Aiming at the large distribution errors in traditional chemicals distribution systems for dyeing machines, a multi-layer fully connected neural network model was proposed based on the prediction of recommended pre-stop value and predicted time. The network model was firstly trained using data recorded in the distribution process, and the data to be distributed was fed into the trained network model for calculation so as to obtain the recommended pre-stop value and predicted time. The recommended pre-stop value and empirical pre-stop value were used to obtain the final pre-stop value according to the variable ratio algorithm. The system worked to determine the closing time of the distribution valve according to the final pre-stop value. The predicted time was used to evaluate whether the distribution process was timed out. Four pre-stop modes were used for chemicals distribution experiments over 1 000 times, and the results show that the standard deviation of distribution error predicted by network model is 23.8 g, the mean absolute error is 16.1 g. It is superior to the other three pre-stop modes with better chemical distribution accuracy.

Key words: chemicals distribution, pre-stop value, neural networks, variable radio, distribution accuracy, dyeing machine

CLC Number:

  • TP23

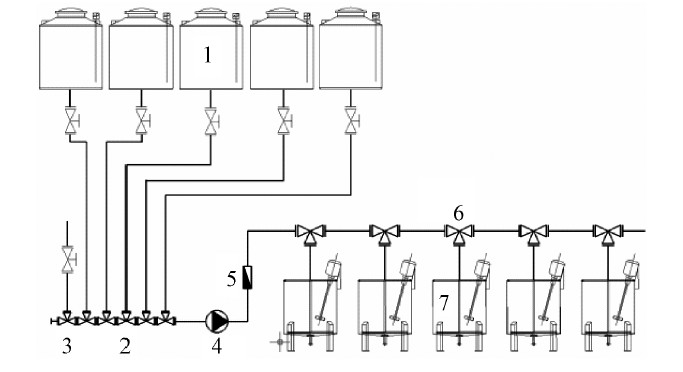

Fig.1

Structure diagram of chemical distribution system of dyeing machine"

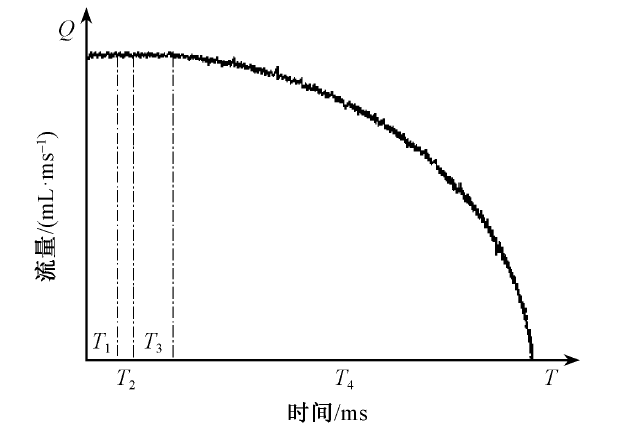

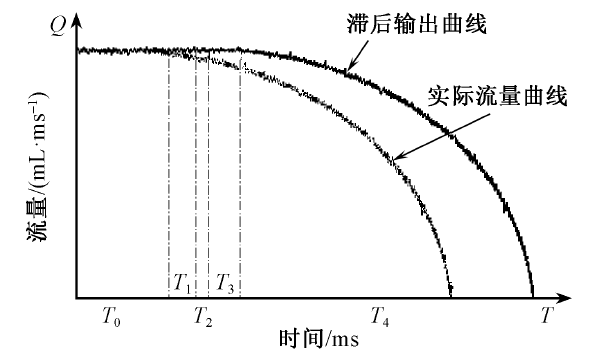

Fig.2

Relationship between flow rate and time when closing distribution valve"

Fig.3

Graph of delay output flow of flowmeter"

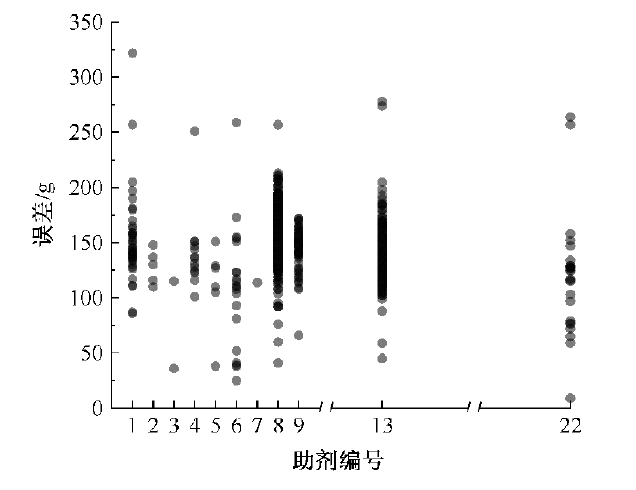

Fig.4

Relationship between chemicals ID and distribution error"

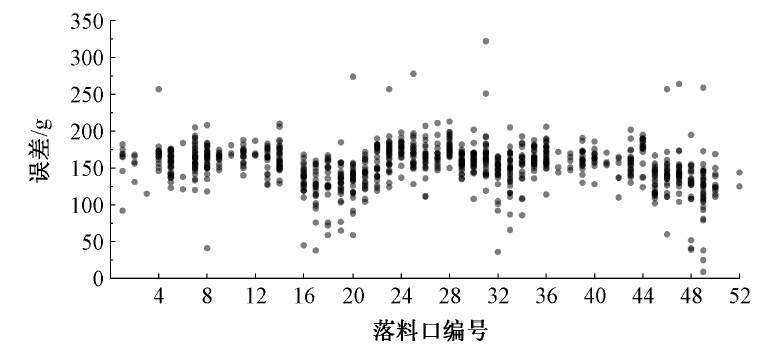

Fig.5

Relationship between tank ID and distribution error"

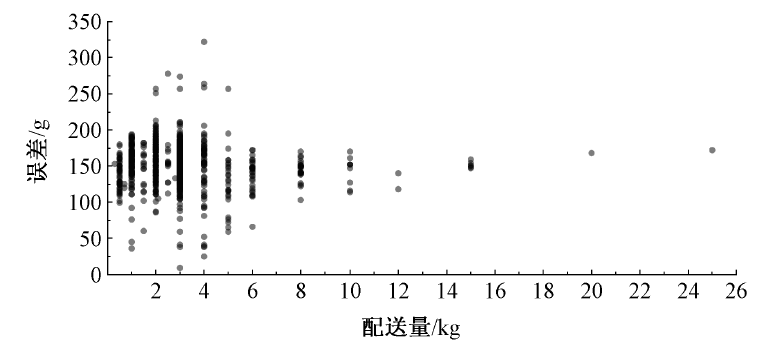

Fig.6

Relationship between volume and distribution error"

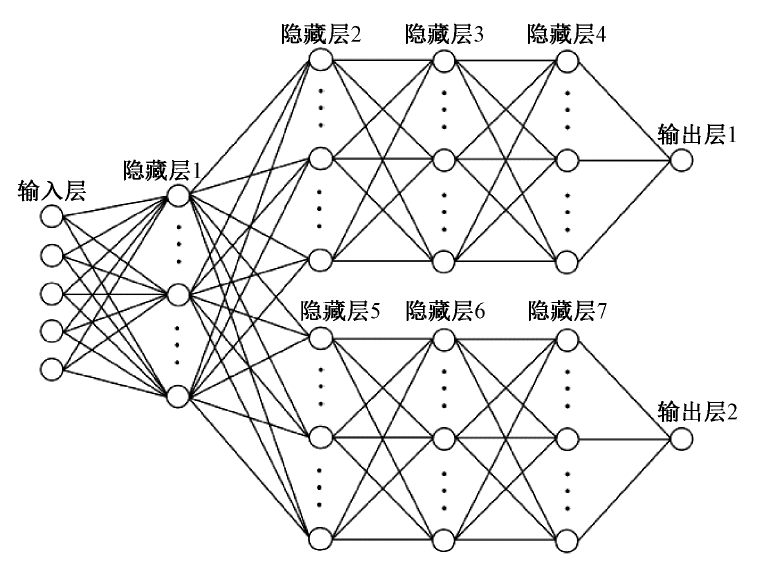

Fig.7

Fully connected neural network structure of pre-stop value and predict time"

Tab.1

Comparison of model training results"

数据集 预停值
损失值/g		 预停值平均
绝对误差/g		 预计用时
损失值/s		 预计用时
平均绝对
误差/s
训练集 564.10 15.23 2.24 1.02
校验集 588.86 15.40 2.11 1.00

Fig.8

Curves of pre-stop value and training epochs. (a) Loss curves of pre-stop value;(b) MAE curves of pre-stop value"

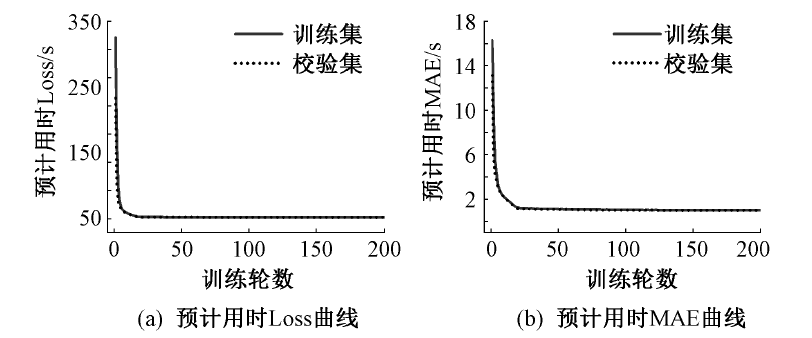

Fig.9

Curves of predict time and training epochs. (a) Loss curves of predict time value;(b) MAE curves of predict time value"

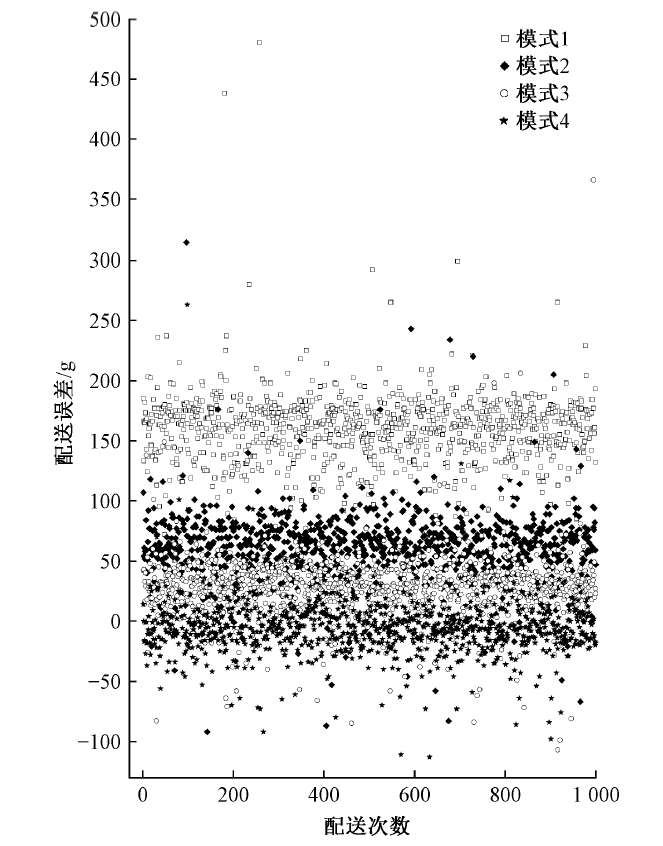

Fig.10

Graph of distribution error and distribution times of mode1 to mode 4"

Tab.2

Comparison of distribution error results of four modes"

模式 方差/g 标准差/g 平均绝对误差/g
模式1 1 022.0 32.0 158.4
模式2 907.4 30.1 61.4
模式3 746.1 27.3 32.8
模式4 564.1 23.8 16.1

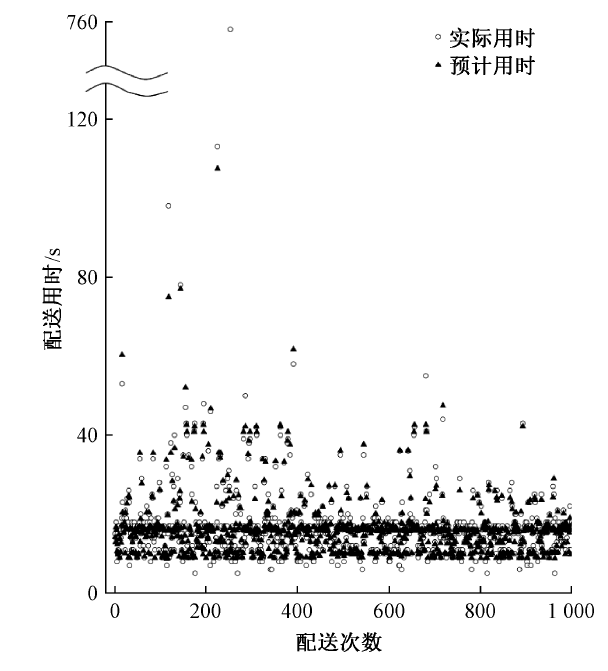

Fig.11

Graph of actual time, predict time and distribution times"

Tab.3

Error statistics between actual and predict distribution time"

统计方法 方差/s 标准差/s 平均绝对误差/s
模式4(包含1次配送异常) 551.3 23.5 1.8
模式4(剔除1次配送异常) 2.5 1.6 1.0
[1] 何颖婷, 李敏, 王瑞丰, 等. 涤纶织物的连续式轧染工艺[J]. 纺织学报, 2022, 43(3): 110-115.
HE Yingting, LI Min, WANG Ruifeng, et al. Dyeing process for polyester fabrics with continuous pad dyeing method[J]. Journal of Textile Research, 2022, 43(3): 110-115.
doi: 10.1177/004051757304300208
[2] 刘江坚, 万捷. 第17届上海国际纺织工业展览会针织染色机械述评[J]. 针织工业, 2015, 318(7): 28-37.
LIU Jiangjian, WANG Jie. Review of knitting dyeing machines on the 17th shanghai international textile industry exhibition[J]. Knitting Industries, 2015, 318(7): 28-37.
[3] 李亮. 基于流量计量的助剂自动配重系统[D]. 杭州: 浙江理工大学, 2013:16-63.
LI Liang. Automatic counterweight system for chemicals based on flow metering[D]. Hangzhou: Zhejiang Sci-Tech University, 2013:16-63.
[4] 付贺檀. 基于PLC的助剂自动配送控制系统[D]. 杭州: 浙江理工大学, 2012:35-36.
FU Hetan. Automatic distribution control system of chemicals based on PLC[D]. Hangzhou: Zhejiang Sci-Tech University, 2012:35-36.
[5] LI Z, HUANG Q, DUAN Y, et al. Research on electromagnetic flowmeter based on double-frequency trapezoidal wave excitation[J]. Journal of Physics: Conference Series, 2020. DOI: 10.1088/1742-6596/1549/5/052086.
doi: 10.1088/1742-6596/1549/5/052086
[6] 胡梦蝶. 高抗干扰性能的电磁流量计研究与设计[D]. 武汉: 湖北工业大学, 2018:10-15.
HU Mengdie. Research and design of electromagnetic flowmeter with high anti-interference performance[D]. Wuhan: Hubei University of Technology, 2018:10-15.
[7] LAPEDES A, FARBER R. Nonlinear signal processing using neural networks: prediction and system model-ing[J]. Los Alamos National Laboratory Report, 1987, 87: 2662.
[8] LECUN Y, BENGIO Y, HINTON G. Deep learning[J]. Nature, 2015, 521(7553): 436-444.
doi: 10.1038/nature14539
[9] AL-MAQALEH B M, AL-MANSOUB A A, AL-BADANI F N. Forecasting using artificial neural network and statistics models[J]. International Journal of Education and Management Engineering, 2016, 6(3):20-32.
[10] 金守峰, 林强强, 马秋瑞, 等. 基于BP神经网络的织物表面绒毛质量的检测方法[J]. 纺织学报, 2020, 41(2): 69-76.
JING Shoufeng, LIN Qiangqiang, MA Qiurui, et al. Detection method of fabric surface fluff quality based on BP neural network[J]. Journal of Textile Research, 2020, 41(2):69-76.
[11] 夏明, 李沛儒, 丁蓉. 基于要素匹配的连衣裙成本快速核算方法[J]. 纺织学报, 2022, 43(3): 146-152.
XIA Ming, LI Peiru, DING Rong. Cost rapid accounting technology of dress based on element matching[J]. Journal of Textile Research, 2022, 43(3): 146-152.
doi: 10.1177/004051757304300305
[12] 杨恒, 岳建平, 邢尹, 等. 基于深度全连接神经网络的大坝变形预测研究[J]. 大地测量与地球动力学, 2021, 41(2):162-166.
YANG Heng, YUE Jianping, XING Yin, et al. Research on dam deformation prediction based on deep fully connected neural network[J]. Journal of Geodesy and Geodymics, 2021, 41(2): 162-166.
[13] AMARI S I. Backpropagation and stochastic gradient descent method[J]. Neurocomputing, 1993, 5(4-5): 185-196.
doi: 10.1016/0925-2312(93)90006-O
