低辐射热条件下附加相变材料织物的蓄放热双重特性

doi:10.13475/j.fzxb.20211201501

Abstract

Abstract:

Objective Phase change materials (PCM) are a type of energy storage material, and the phase change layer attached to the thermal protective clothing fabric is able release heat when it solidifies. The release of heat under these two mechanisms may increase the potential danger of skin burns as a result of the heat exposure. Therefore, it is necessary to consider its thermal storage protective effect in the heat exposure stage and the hazardous effect in the cooling stage when exploring the comprehensive thermal protective performance of the thermal protective fabric assemblies incorporated with PCM on human skin.
Method Temperature-regulating fabrics with phase-change materials that can absorb or release heat through phase transition were prepared by using a coating method and were then applied to a multilayer thermal protective fabric system. The heat storage protective performance of thermal protective clothing with PCM and the natural heat release performance and the compressed heat release properties in the cooling stage are quantitatively evaluated through parametric design, the parameters including the thickness of the air layer under the clothes, the intensity of the heat source, and whether the fabric is compressed after the heat exposure.
Results In the stage of thermal exposure, the use of the PCM significantly reduced the skin heat gain during the heat exposure stage. At the same time, the phase change fabric systems significantly reduced the temperature inside the fabric system compared to the uncoated fabric system. In addition, the air layer had a more positive effect on reducing skin heat gain when it was incorporated with PCM. The skin heat gain decreased the most when the thickness of the air layer was increased from 0 mm to 6 mm, and the improvement in the thermal protection effect was not significant when the thickness of the air layer was continuously increased to 18 mm. In the process of natural thermal discharge, with the increase in air layer thickness, the CAE value (energy discharge amount or energy absorption during cooling) of the fabric system decreased. On the whole, the CAE value of PCM fabric system was smaller than that of the coated fabric system, but the heat release efficiency was slightly higher. Therefore, although the PCM fabric system could reduce skin heat gain in the natural heat release stage, more attention was paid to the influence of its heat release in the whole heat transfer process. It was noted that the CAE difference between the PCM fabric system and uncoated fabric system tended to decrease with the increase in the air layer thickness, which indicated that when the air layer thickness was larger, it played a leading role in the heat release of the fabric system, leading to the weakening of the positive role of PCM in the natural cooling process. In the process of forced thermal discharge, the skin heat absorption of the fabric systems increased significantly compared with the natural heat release stage. In particular, the application of compress aggravated the heat release in the PCM fabric systems if the fabric systems had an air layer in the heat exposure stage. When the thickness of air layer was 6 mm and 12 mm, the skin heat gain of the PCM fabric system was increased by 129 % compared with that without pressure.
Conclusion In the heat exposure stage, the comprehensive effect of the PCM fabric system and air layer plays a more positive role in reducing the heat reaching the skin surface. However, in the cooling stage, attention should also be paid to the complex effect of the combination of PCM fabric system and air layer on human skin, especially in the practical application of PCM, the air layer under clothing should be avoided squeezing and destroying as much as possible after the heat exposure stage to avoid causing accelerated release of heat storage and causing more serious heat damage to the skin. This significance of the research lies in the development of new clothing materials, the design of scientific thermal protective clothing systems, and the guidance of high-temperature operators to reduce skin burns by conducting basic research on the dual heat storage and release performance of PCM fabrics.

Key words: phase change material, coated fabric, thermal protection, thermal hazard, low-level radiant heat

CLC Number:

TS941.73

ZHU Xiaorong, XIANG Youhui, HE Jiazhen, ZHAI Li'na. Thermal storage and discharge performance of fabrics with phase change material under low-level radiant heat exposure[J].Journal of Textile Research, 2023, 44(06): 152-160.

Figures/Tables 8

Tab. 1

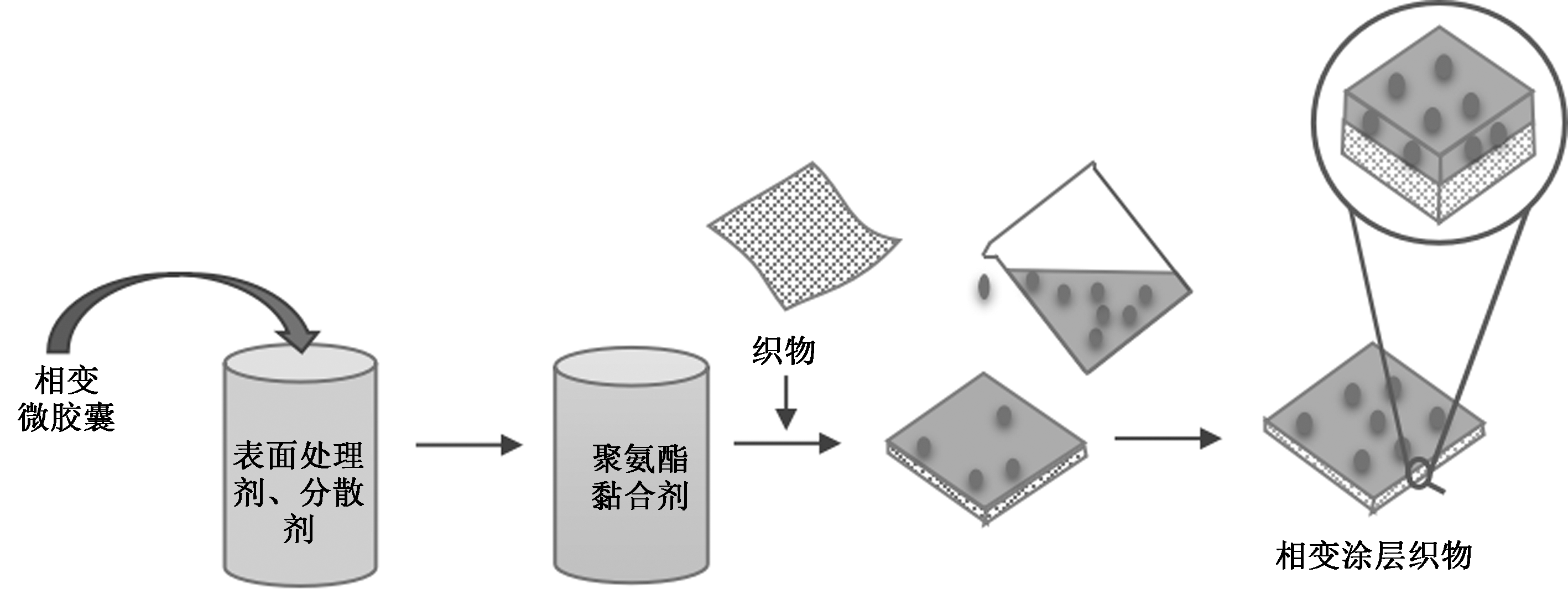

Fig. 1

Fig. 2

Tab. 2

Tab. 3

Tab. 4

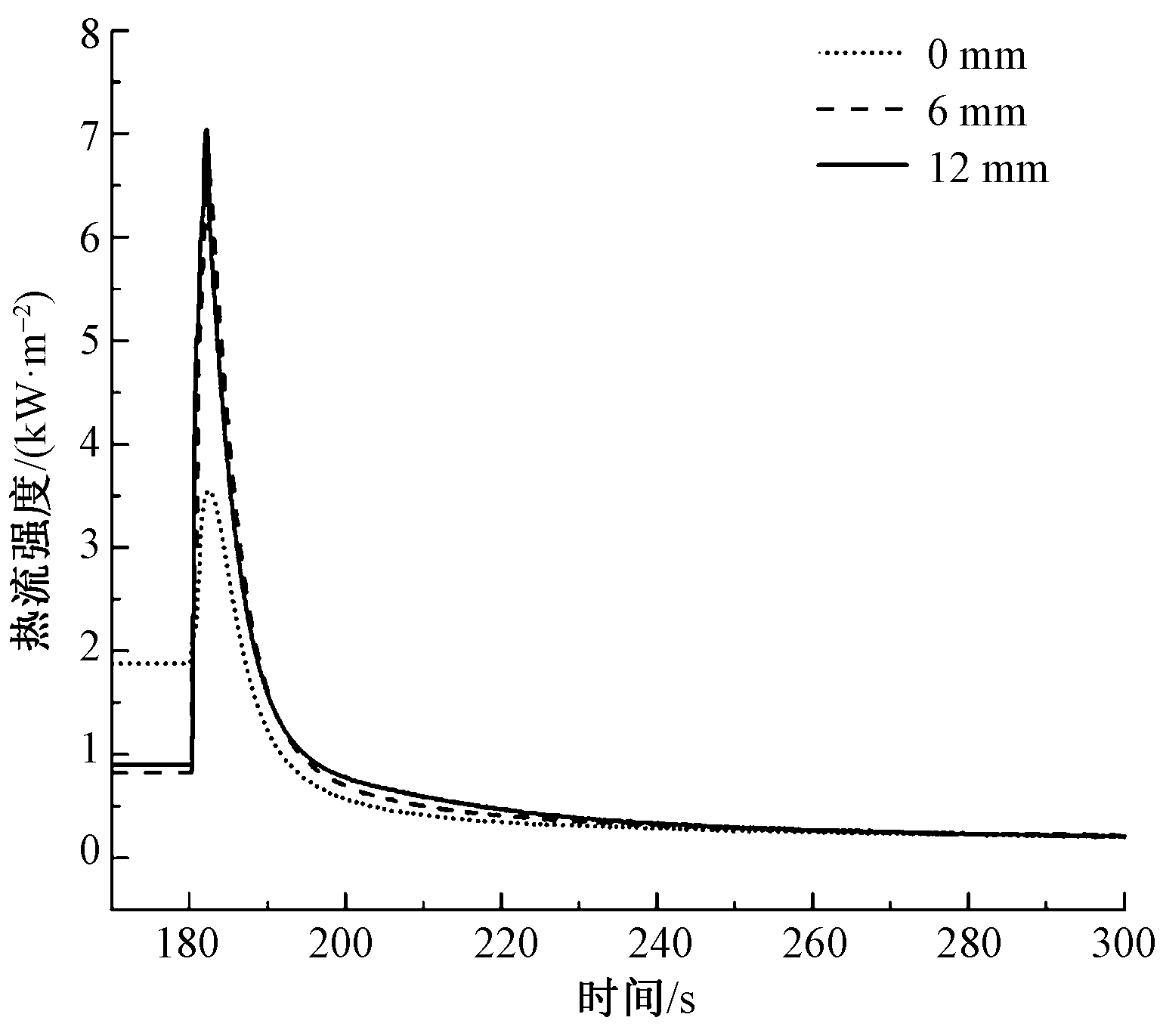

Fig. 3

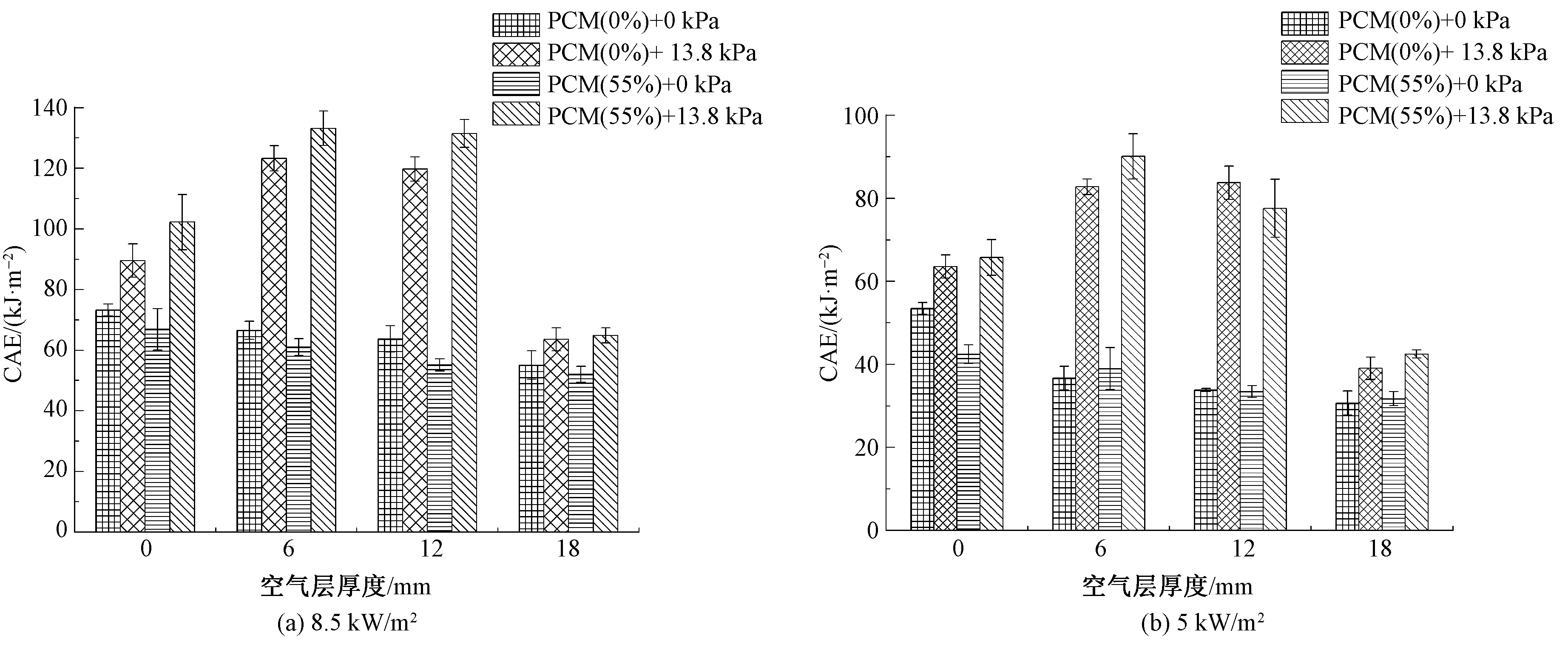

Fig. 4

References 36

[1]	MONDAL S. Thermo-regulating textiles with phase-change materials[J]. Functional Textiles for Improved Performance, Protection and Health, 2011. DOI:10.1533/9780857092878.163. doi: 10.1533/9780857092878.163
[2]	BRUNO J S, VIGO T L. Thermal properties of insolubilized polyacetals derived from non-formaldehyde crosslinking agents[J]. Thermochimica Acta, 1994, 243(2): 155-159. doi: 10.1016/0040-6031(94)85050-X
[3]	PHELPS H, SIDHU H. A mathematical model for heat transfer in fire fighting suits containing phase change materials[J]. Fire Safety Journal, 2015, 74:43-47. doi: 10.1016/j.firesaf.2015.04.007
[4]	GAO C, KUKLANE K, INGVAR HOLMÉR. Cooling vests with phase change materials: the effects of melting temperature on heat strain alleviation in an extremely hot environment[J]. European Journal of Applied Physiology, 2011, 111(6):1207-1216. doi: 10.1007/s00421-010-1748-4 pmid: 21127896
[5]	赵蒙蒙. 可调温织物与服装吸热效应评价研究[D]. 上海: 东华大学, 2013:33-63.
	ZHAO Mengmeng. Study on the heat absorption effect of fabrics and clothing technologies with thermal regulatory features[D]. Shanghai: Donghua University, 2013:33-63.
[6]	ZHANG H, SONG G W, SU H, et al. An exploration of enhancing thermal protective clothing performance by incorporating aerogel and phase change materials[J]. Fire & Materials, 2017, 41(8):953-963.
[7]	MCCARTHY L K, MARZO M. The application of phase change material in fire fighter protective clothing[J]. Fire Technology, 2012, 48(4): 841-864. doi: 10.1007/s10694-011-0248-3
[8]	MERCER G N, SIDHU H S. Mathematical modelling of the effect of fire exposure on a new type of protective clothing[J]. Australian & New Zealand Industrial & Applied Mathematics Journal, 2008, 49:289-305.
[9]	HU Y, HUANG D M, QI Z K, et al. Modeling thermal insulation of firefighting protective clothing embedded with phase change material[J]. Heat and Mass Transfer, 2013, 49:567-573. doi: 10.1007/s00231-012-1103-x
[10]	朱方龙, 樊建彬, 冯倩倩, 等. 相变材料在消防服中的应用及可行性分析[J]. 纺织学报, 2014, 35(8):124-132.
	ZHU Fanglong, FAN Jianbin, FENG Qianqian, et al. Application and feasibility analysis of phase change materials for fire-fighting suit[J]. Journal of Textile Research, 2014, 35(8):124-132. doi: 10.1177/004051756503500205
[11]	SONG G W. Analyzing stored thermal energy and thermal protective performance of clothing[J]. Textile Research Journal, 2011, 81(11): 1124-1138. doi: 10.1177/0040517511398943
[12]	SHALEV I, BARKER R L. Protective fabrics: a comparison of laboratory methods for evaluating thermal protective performance in convective/radiant exposures[J]. Textile Research Journal, 1984, 54(10): 648-654. doi: 10.1177/004051758405401003
[13]	LI J, LU Y H, LI X H. Effect of relative humidity coupled with air gap on heat transfer of flame-resistant fabrics exposed to flash fires[J]. Textile Research Journal, 2012, 82(12): 1235-1243. doi: 10.1177/0040517512436830
[14]	LU Y H, SONG G W, LI J. A novel approach for fit analysis of thermal protective clothing using three-dimensional body scanning[J]. Applied Ergonomics, 2014, 45(6): 1439-1446. doi: 10.1016/j.apergo.2014.04.007 pmid: 24793820
[15]	PHELPS H L, WATT S D, SIDHU H S, et al. Using phase change materials and air gaps in designing fire fighting suits: a mathematical investigation[J]. Fire Technology, 2019, 55(1): 363-381. doi: 10.1007/s10694-018-0794-z
[16]	BARKER R L, DEATON A S, ROSS K A. Heat transmission and thermal energy storage in firefighter turnout suit materials[J]. Fire Technology, 2011, 47(3): 549-563. doi: 10.1007/s10694-010-0151-3
[17]	SONG G W, BARKER R L. Analyzing thermal stored energy and clothing thermal protective performance[C]//Proceedings of 4th International Conference on Safety & Protective Fabrics. Pittsburgh PA: Industrial Fabrics Association International, 2004: 26-27.
[18]	SU Y, ZHU W, TIAN M, et al. Intelligent bidirectional thermal regulation of phase change material incorporated in thermal protective clothing[J]. Applied Thermal Engineering, 2020. 101016/j. applthermal.eng.2020.115340.
[19]	GHAZY A, BERGSTORM D J. Numerical simulation of transient heat transfer in a protective clothing system during a flash fire exposure[J]. Numerical Heat Transfer, 2010, 58(9): 702-724.
[20]	SONG G W. Thermal protective performance of protective clothing used for low radiant heat protection[J]. Textile Research Journal, 2010, 81(3): 311-323. doi: 10.1177/0040517510380108
[21]	邓梦, 王云仪. 低辐射热暴露下消防服热防护性能测评方法研究进展[J]. 纺织学报, 2017, 38(12): 162-168, 176.
	DENG Meng, WANG Yunyi. Analysis of evaluation method of thermal protective performance of firefighter protective clothing exposure to low level radiation[J]. Journal of Textile Research, 2017, 38(12): 162-168,176.
[22]	朱方龙. 服装的热防护功能[M]. 北京: 中国纺织出版社, 2015:181-186.
	ZHU Fanglong. Thermal protection function of cloth-ing[M]. Beijing: China Textile & Apparel Press, 2015:181-186.
[23]	朱方龙. 附加相变材料层的热防护服装传热数值模拟[J]. 应用基础与工程科学学报, 2011, 19(4):635-643.
	ZHU Fanglong. Numerical simulation of heat transfer for thermal protective clothing incorporating phase change material layer[J]. Journal of Basic Science and Engineering, 2011, 19(4):635-643.
[24]	李正雄. 浅谈织物涂层剂[J]. 印染助剂, 2003, 20(1): 7-10.
	LI Zhengxiong. An overview of textile coating agents[J]. Textile Auxiliaries, 2003, 20(1): 7-10.
[25]	陈云博, 朱翔宇, 李祥, 等. 相变调温纺织品制备方法的研究进展[J]. 纺织学报, 2021, 42(1): 167-174.
	CHEN Yunbo, ZHU Xiangyu, LI Xiang, et al. Recent advance in preparation of thermo-regulating textiles based on phase change materials[J]. Journal of Textile Research, 2021, 42(1): 167-174. doi: 10.1177/004051757204200307
[26]	付明, 翁文国, 袁宏永. 低热辐射强度下防护服热防护性能的实验研究[J]. 清华大学学报(自然科学版), 2014, 54(6):719-723.
	FU Ming, WENG Wenguo, YUANG Hongyong. Bench scale test of the thermal protective performance of protective clothing for low intensity thermal radia-tion[J]. Journal of Tsinghua University(Science and Technology), 2014, 54(6):719-723.
[27]	HE J Z, LU Y H, CHEN S, et al. On dual performance of protective clothing composites with different air gaps under hot steam exposure[J]. Case Studies in Thermal Engineering, 2021.DOI:10.1016/j.csite.201.101128. doi: 10.1016/j.csite.201.101128
[28]	VETTORI R L, TWILLEY W H, STROUP D W. Measurement techniques for low heat flux exposures to fire fighters protective clothing[M]. Gaithersburg:US Department of Commerce, National Institute of Standards and Technology, 2001:4-52.
[29]	HE J, LU Y, YANG J. Quantification of the energy storage caused dual performance of thermal protective clothing containing with moisture exposed to hot steam[J]. Energy Science & Engineering, 2019, 7(6): 2585-2595.
[30]	HE J Z, LU Y H, CHEN Y, et al. Investigation of the thermal hazardous effect of protective clothing caused by stored energy discharge[J]. Journal of Hazardous Materials, 2017, 338: 76-84. doi: S0304-3894(17)30355-2 pmid: 28531661
[31]	SUN G, YOO H S, ZHANG X S, et al. Radiant protective and transport properties of fabrics used by wildland firefighters[J]. Textile Research Journal, 2000, 70(7):567-573. doi: 10.1177/004051750007000702
[32]	FU M, WENG W, YUAN H. Effects of multiple air gaps on the thermal performance of firefighter protective clothing under low-level heat exposure[J]. Textile Research Journal, 2014, 84(9): 968-978. doi: 10.1177/0040517513512403
[33]	张昭华, 王云仪, 李俊. 衣下空气层厚度对着装人体热传递的影响[J]. 纺织学报, 2010, 31(12): 103-107.
	ZHANG Zhaohua, WANG Yunyi, LI Jun. Effect of thickness of air layer under clothing on heat transmission of wearer[J]. Journal of Textile Research, 2010, 31(12): 103-107.
[34]	ENI E U. Developing test procedures for measuring stored thermal energy in firefighter protective clothing[D]. North Carolina: North Carolina State University, 2005:1-53.
[35]	BARKER R L. A review of gaps and limitations in test methods for first responder protective clothing and equipment[R]. North Carolina: National Personal Protection Technology Laboratory, 2005:8-13.
[36]	TORVI D A, DALE J D. Heat transfer in thin fibrous materials under high heat flux[J]. Fire Technology, 1999, 35(3): 210-231. doi: 10.1023/A:1015484426361

Metrics

Viewed

Full text

Abstract

Cited

Shared

Discussed

Comments

Recommended 0

No Suggested Reading articles found!

面料层	面料成分	结构	颜色	厚度/mm	面密度/(g·m^-2)
外层	98%芳纶、2%抗静电纤维	方格组织	藏青色	0.51	198.03
防水透气层	80%Nomex^?、20% Kevla^?	水刺毡+PTFE覆膜	黄色	0.63	104.75
隔热层	80%Nomex^?、20% Kevlar^?	水刺毡	黄色	1.38	70.40
舒适层	50%芳纶、50%粘胶	平纹组织	深灰色	0.34	120.47

热源强度/ (kW·m^-2)	PCM涂层量/%	不同空气层厚度时的EAE值
热源强度/ (kW·m^-2)	PCM涂层量/%	0 mm	6 mm	12 mm	18 mm
8.5	0	413.93 (3.40)	273.87 (3.90)	237.25 (1.58)	166.74 (9.49)
8.5	55	371.87 (11.01)	201.55 (18.49)	174.71 (4.11)^a	166.12 (5.06)^a
5	0	283.50 (4.46)	176.82 (1.54)	127.38 (9.87)^b	120.86 (9.45)^b
5	55	204.52 (10.12)	124.58 (10.29)	107.30 (7.81)^c	92.93 (3.99)^c

热源强度/ (kW·m^-2)	PCM涂层量/%	不同空气层厚度下的CAE值/(kJ·m^-2)				不同空气层厚度下的α值/%
热源强度/ (kW·m^-2)	PCM涂层量/%	0 mm	6 mm	12 mm	18 mm	0 mm	6 mm	12 mm	18 mm
8.5	0	73.23 (1.96)^a	66.59 (2.99)^ab	63.72 (4.39)^b	55.08 (4.67)	15.03 (0.43)	19.56 (0.85)	21.10 (1.15)	24.81 (0.55)
8.5	55	66.89 (6.85)^c	60.99 (2.82)^cd	55.14 (2.01)^de	52.09 (2.64)^e	15.22 (0.97)	23.29 (1.47)^f	23.98 (0.29)^f	23.87 (1.12)^f
5	0	53.47 (1.44)	36.70 (2.84)^g	33.83 (0.36)^gh	30.68 (2.90)^h	15.78 (0.30)ⁱ	17.18 (1.00)ⁱ	21.04 (1.15)^j	20.26 (1.57)^j
5	55	42.50 (2.24)^k	38.97 (5.05)^kl	33.46 (1.41)^lm	31.74 (1.73)^m	17.22 (1.01)	23.79 (1.36)ⁿ	23.82 (1.66)ⁿ	25.46 (0.70)ⁿ

热源强度/ (kW·m^-2)	PCM涂层量/%	不同空气层厚度下的CAE值/(kJ·m^-2)				不同空气层厚度下的α值/%
热源强度/ (kW·m^-2)	PCM涂层量/%	0 mm	6 mm	12 mm	18 mm	0 mm	6 mm	12 mm	18 mm
8.5	0	89.57 (5.55)	123.28 (4.20)^a	119.77 (4.00)^a	63.58 (3.78)	17.58 (1.93)	32.80 (0.58)	36.41 (1.64)	23.33 (1.76)
8.5	55	102.26 (9.14)	133.22 (5.62)^b	131.46 (5.57)^b	64.87 (2.46)	21.51 (2.23)	40.07 (2.67)	44.94 (1.88)	28.73 (0.39)
5	0	63.55 (2.79)	82.82 (1.87)^c	83.76 (4.02)^c	39.06 (2.69)	20.31 (0.77)	39.58 (1.17)^d	41.61 (0.64)^d	24.55 (1.78)
5	55	65.74 (4.30)	90.13 (5.45)	77.59 (6.99)	42.49 (0.97)	32.34 (5.52)	76.04 (2.39)	81.99 (2.99)	45.52 (1.02)
