Preparation and printing properties of castor oil-based UV-curable water-based coating ink

QI Dongming1, FAN Gaoqing1, YU Yihao2, FU Ye2, ZHANG Yan1, CHEN Zhijie3()

  1. 1. Zhejiang Provincial Engineering Center for Green and Low-Carbon Dyeing & Finishing, Zhejiang Sci-Tech University, Hangzhou, Zhejiang 310018, China
    2. Zhejiang King Label Technology Co., Ltd., Huzhou, Zhejiang 313100, China
    3. Key Laboratory of Surface Modification Technology for Polymer Materials and Electromechanical Products, Wenzhou Polytechnic, Wenzhou, Zhejiang 325035, China
  • Received:2021-12-18 Revised:2022-02-11 Online:2022-05-15 Published:2022-05-30
  • Contact: CHEN Zhijie E-mail:chenzhijie5262@163.com

RichHTML

15

PDF (PC)

85

Abstract:

Waterborne polyurethane emulsions were prepared aiming at difficulty in achieve good handle and fastness through the traditional coat printing. This emulsion was produced by condensing castor oil, isophorone diisocyanate, and 2,2-bis(hydroxymethyl)butyric acid, using pentaerythritol triacrylate as a capping agent, for improved dispersibility, water resistance, and bonding fastness. Castor oil-based ultraviolet (UV)-curable waterborne coating inks were obtained by adding nano-pigments to the waterborne polyurethane emulsions. The effect and mechanism of castor oil content on the emulsion particle size, cured film performance, and water resistance were studied and analyzed. Subsequently, the castor oil-based UV-curable water-based coating ink was sprayed on polyester plain fabrics, and the surface morphology, stiffness and wet and dry friction fastness of the printed fabrics were comparatively characterized. The results obtained showed that the ink-jet printed fabric has good flexibility and color fastness under the optimum amount of castor oil 42.1%.

Key words: castor oil, polyurethane, pigment printing, ultraviolet curing, ink-jet printed fabric

CLC Number:

  • TQ325

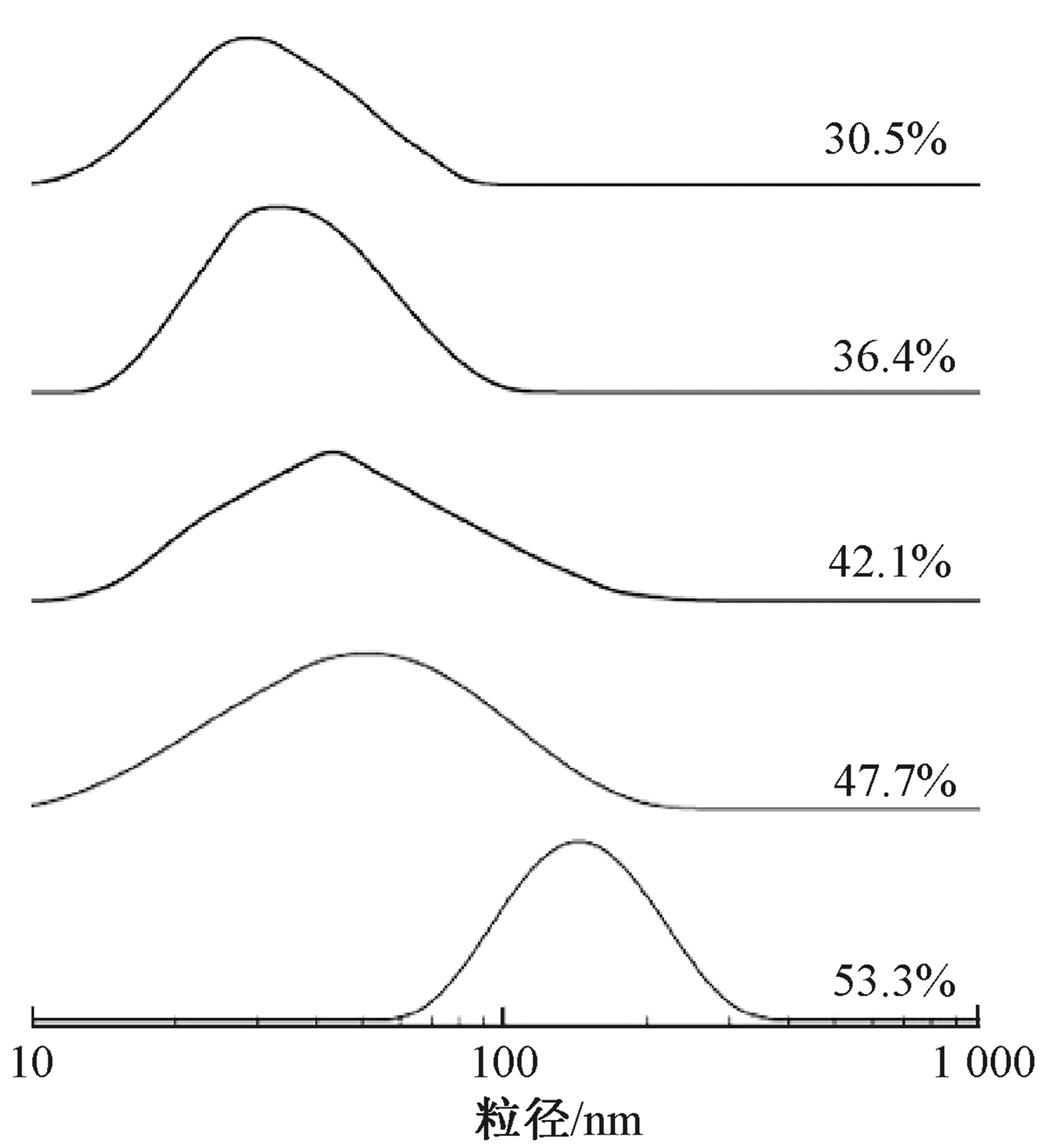

Fig.1

Effect of castor oil mass fraction on the particle size of polyurethane emulsion"

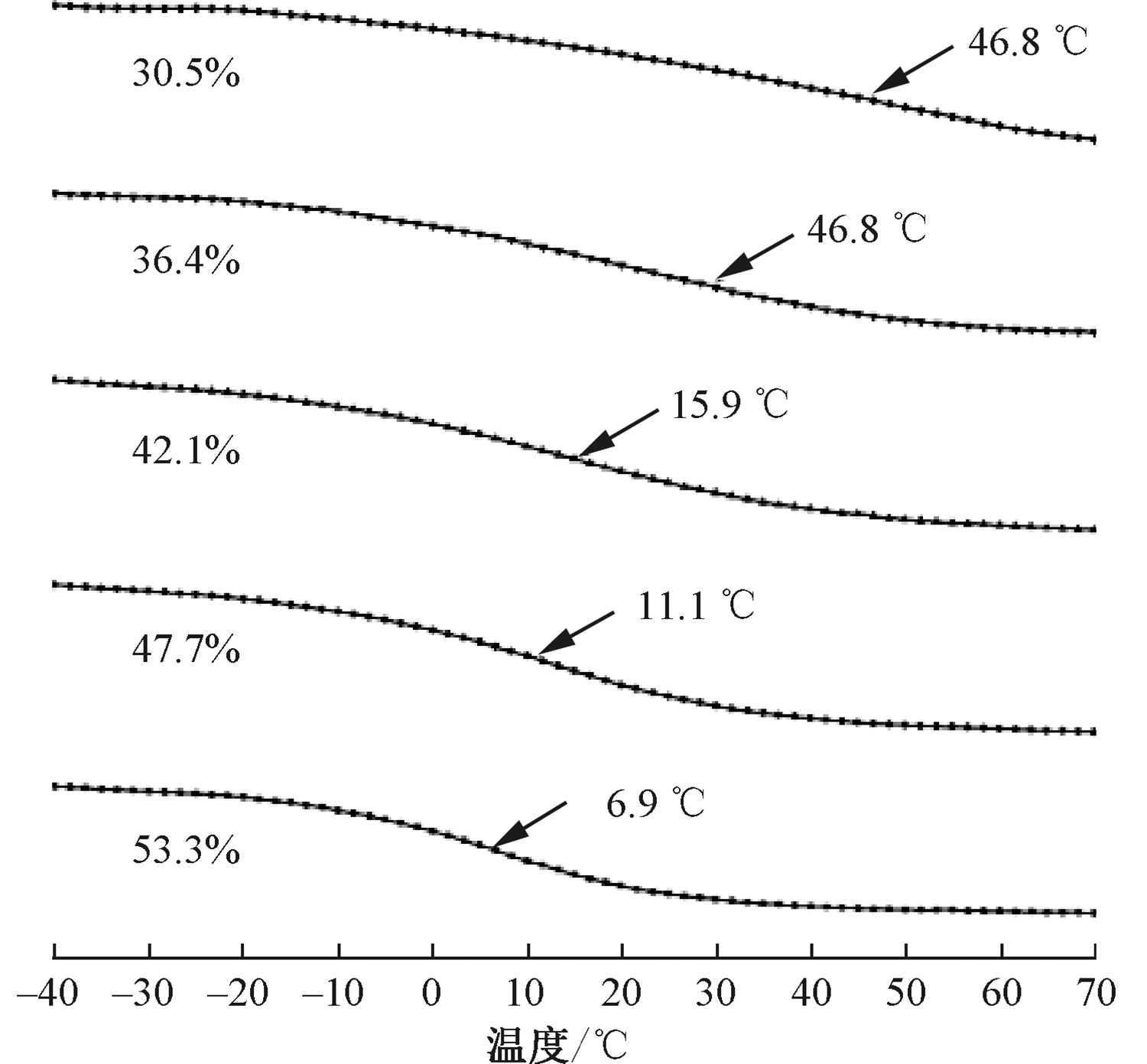

Fig.2

DSC curves of polyurethane film with different mass fractions of castor oil"

Tab.1

Influence of castor oil mass fraction on water absorption of polyurethane film"

蓖麻油质量分数/% 吸水率/%
30.5 8.64
36.4 6.85
42.1 3.23
47.7 3.12
53.3 3.10

Fig.3

Scanning electron micrographs of printed fabrics made of polyurethane with different mass fractions of castor oil (×2 000)"

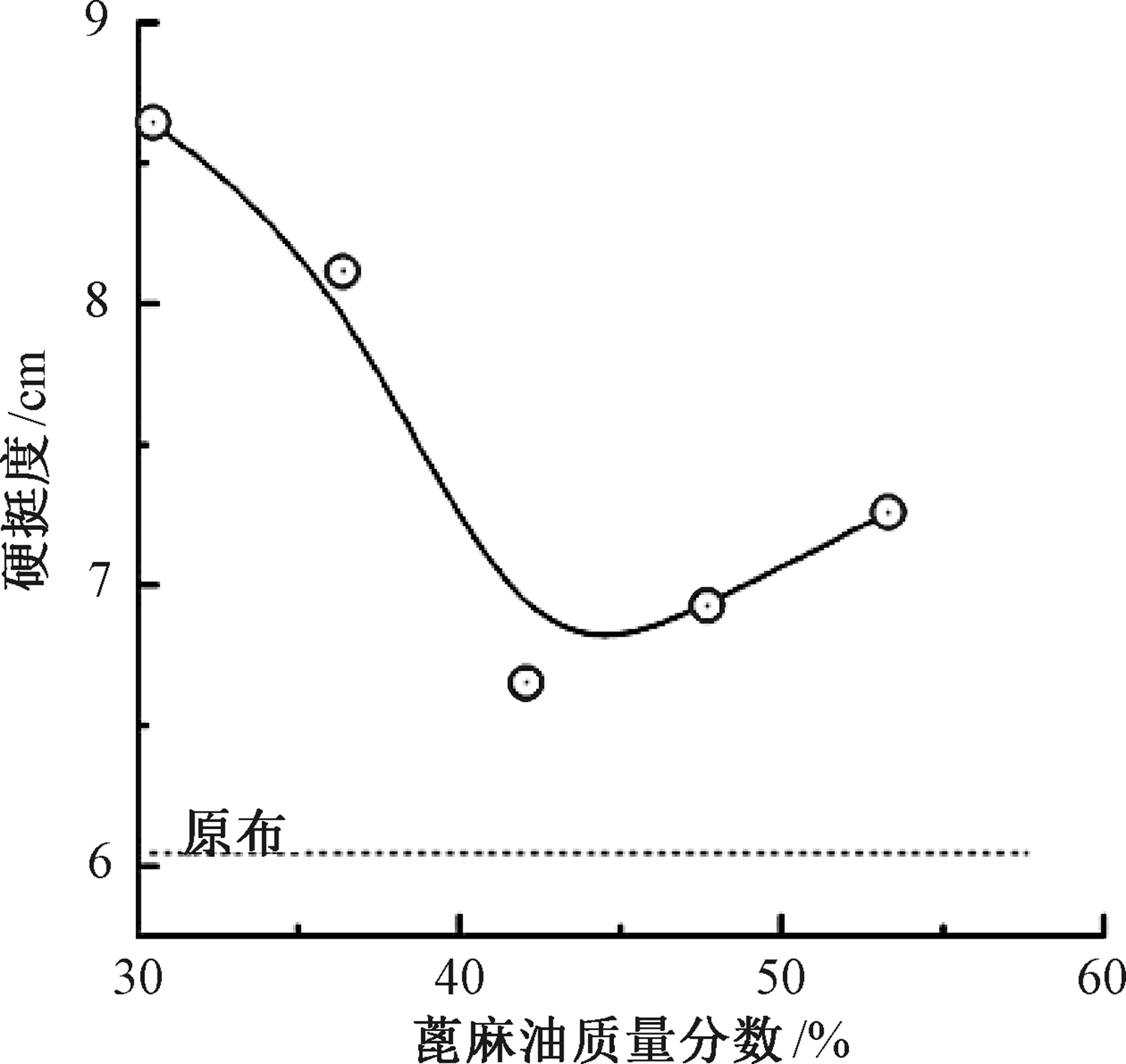

Fig.4

Effect of CO content on stiffness of printed fabric"

Tab.2

Effect of castor oil mass fraction on dry and wet rubbing fastness of printed fabrics"

蓖麻油质量分数/% 耐摩擦色牢度/级
干 湿
30.5 2 2
36.4 4 2
42.1 4~5 4~5
47.7 4 4
53.3 4 4
[1] HAROUN A A, DIAB H A, HAKEIM O A. Cellulosic fabrics printing with multifunctional encapsulated phthalocyanine pigment blue using phase separation method[J]. Carbohydrate Polymers, 2016, 146: 102-108.
doi: 10.1016/j.carbpol.2016.03.039
[2] 付少海, 王大同, 杜长森, 等. 提高喷墨印花颜料墨水印花牢度的方法[J]. 纺织学报, 2015, 36(2): 141-147.
FU Shaohai, WANG Datong, DU Changsen, et al. Improve color fastness of inkjet printing textiles using pigment ink[J]. Journal of Textile Research, 2015, 36(2): 141-147.
[3] 汪芬萍, 李家炜, 黄骅隽, 等. 纺织品着色用有机颜料改性技术的研究进展[J]. 纺织学报, 2021, 42(7): 192-200.
WANG Fenping, LI Jiawei, HUANG Huajuan, et al. Research progress of organic pigment modification technology for textiles coloration[J]. Journal of Textile Research, 2021, 42(7): 192-200.
[4] 关玉, 王大同, 杜长森, 等. 细乳液聚合炭黑/乳胶粒纳米复合粒子的制备及其性能[J]. 纺织学报, 2014, 35(9): 73-78.
GUAN Yu, WANG Datong, DU Changsen, et al. Preparation and printing behavior of carbon black/latex nanocomposite particles by miniemulsion polymeriza-tion[J]. Journal of Textile Research, 2014, 35(9): 73-78.
doi: 10.1177/004051756503500108
[5] 张凯, 王春霞, 田安丽, 等. 基于细乳液聚合法的超细包覆炭黑制备及其性能[J]. 纺织学报, 2013, 34(1): 79-83.
ZHANG Kai, WANG Chunxia, TIAN Anli, et al. Preparation and properties of encapsulated ultrafine carbon black by miniemulsion polymerization[J]. Journal of Textile Research, 2013, 34(1): 79-83.
doi: 10.1177/004051756403400113
[6] 陈智杰, 胡旭东, 黄卓, 等. 基于细乳液法含硅颜料胶囊的制备及其对涤纶的印花性能[J]. 纺织学报, 2019, 40(8): 69-75.
CHEN Zhijie, HU Xudong, HUANG Zhuo, et al. Preparation of silicone-containing pigment capsules by miniemulsion polymerization and printing performance thereof on polyester fabric[J]. Journal of Textile Research, 2019, 40(8): 69-75.
[7] LEELAJARIYAKUL S, NOGUCHI H, KIATKAMJORNWONG S. Surface-modified and micro-encapsulated pigmented inks for ink jet printing on textile fabrics[J]. Progress in Organic Coatings, 2008, 62(2): 145-161.
doi: 10.1016/j.porgcoat.2007.10.005
[8] 冯艳荣, 袁剑民, 王文力, 等. 水性聚丙烯酸酯涂料染色黏合剂的合成及其性能[J]. 纺织学报, 2017, 38(4): 90-96.
FENG Yanrong, YUAN Jianmin, WANG Wenli, et al. Synthesis and properties of waterborne polyacrylate coating dyeing binder[J]. Journal of Textile Research, 2017, 38(4): 90-96.
[9] 杨帆, 陈远辉, 顾晨成, 等. 紫外光固化水性聚氨酯丙烯酸酯黏合剂的印花性能[J]. 纺织学报, 2016, 37(3): 82-86.
YANG Fan, CHEN Yuanhui, GU Chencheng, et al. Printing performance of UV curable waterborne polyurethane acrylate adhesive[J]. Journal of Textile Research, 2016, 37(3): 82-86.
[10] SONG Y, FANG K, BUKHARI M N, et al. Green and efficient inkjet printing of cotton fabrics using reactive dye@copolymer nanospheres[J]. ACS Applied Materials & Interfaces, 2020, 12(40): 45281-45295.
[11] 宋亚伟, 房宽峻, 张建波, 等. 喷墨技术及其在纺织品印花中的应用进展[J]. 纺织学报, 2015, 36(8): 165-172.
SONG Yawei, FANG Kuanjun, ZHANG Jianbo, et al. Inkjet technology and its application in textile printing[J]. Journal of Textile Research, 2015, 36(8): 165-172.
[12] 李敏, 赵影, 张丽平, 等. 涤纶针织物数码印花清晰度的影响因素[J]. 纺织学报, 2018, 39(5): 62-66.
LI Min, ZHAO Ying, ZHANG Liping, et al. Factors influencing printing accuracy of digital printing for knitted polyester fabric[J]. Journal of Textile Research, 2018, 39(5): 62-66.
[13] 孟一丁, 邵建中, 黄益, 等. 一体化聚氨酯丙烯酸酯的合成及其在光固化数码印花中的应用[J]. 纺织学报, 2018, 39(2): 97-105.
MENG Yiding, SHAO Jianzhong, HUANG Yi, et al. Synthesis of integrated polyurethane acrylate and application thereof in photo-curable ink-jet printing[J]. Journal of Textile Research, 2018, 39(2): 97-105.
doi: 10.1177/004051756903900116
[14] 张思, 吴敏. 紫外光固化密胺树脂的合成及涂层织物性能测试[J]. 纺织学报, 2019, 40(6): 65-68.
ZHANG Si, WU Min. Synthesis of UV curing melamine resin and performance testing of its coating fabric[J]. Journal of Textile Research, 2019, 40(6): 65-68.
[15] AHN B U, LEE S K, LEE S K, et al. High performance UV curable polyurethane dispersions by incorporating multifunctional extender[J]. Progress in Organic Coatings, 2007, 60(1): 17-23.
doi: 10.1016/j.porgcoat.2007.06.001
[16] DEFLORIAN F, FEDEL M, DIGIANNI A, et al. Corrosion protection properties of new UV curable waterborne urethane acrylic coatings[J]. Corrosion Engineering, Science and Technology, 2008, 43(1): 81-86.
doi: 10.1179/174327808X286194
[17] CHEN S, ZHANG S, LI Y, et al. Synthesis and properties of novel UV-curable hyperbranched waterborne polyurethane/Fe3O4 nanocomposite films with excellent magnetic properties[J]. RSC Advances, 2015, 5(6): 4355-4363.
doi: 10.1039/C4RA13683G
[18] BOTON L, PUGUAN J M, LATIF M, et al. Synthesis and properties of quick-drying UV-curable hyperbranched waterborne polyurethane coating[J]. Progress in Organic Coatings, 2018, 125: 201-206.
doi: 10.1016/j.porgcoat.2018.09.017
[19] ZHANG Y, ZHANG W, WANG X, et al. Waterborne polyurethanes from castor oil-based polyols for next generation of environmentally-friendly hair-styling agents[J]. Progress in Organic Coatings, 2020, 142: 105588.
doi: 10.1016/j.porgcoat.2020.105588
[20] ZHANG C, LIANG H, LIANG D, et al. Renewable castor-oil-based waterborne polyurethane networks: simultaneously showing high strength, self-healing, processability and tunable multishape memory[J]. Angewandte Chemie International Edition, 2021, 60(8): 4289-4299.
doi: 10.1002/anie.202014299
[21] LIANG H, LIU L, LU J, et al. Castor oil-based cationic waterborne polyurethane dispersions: storage stability, thermo-physical properties and antibacterial properties[J]. Industrial Crops and Products, 2018, 117: 169-178.
doi: 10.1016/j.indcrop.2018.02.084
[22] LU J, ZHANG Y, TAO Y, et al. Self-healable castor oil-based waterborne polyurethane/MXene film with outstanding electromagnetic interference shielding effectiveness and excellent shape memory performance[J]. Journal of Colloid and Interface Science, 2021, 588: 164-174.
doi: 10.1016/j.jcis.2020.12.076
[23] AN X P, CHEN J H, LI Y D, et al. Rational design of sustainable polyurethanes from castor oil: towards simultaneous reinforcement and toughening[J]. Science China Materials, 2018, 61(7): 993-1000.
doi: 10.1007/s40843-017-9192-8
[24] LIANG H, WANG S, HE H, et al. Aqueous anionic polyurethane dispersions from castor oil[J]. Industrial Crops and Products, 2018, 122: 182-189.
doi: 10.1016/j.indcrop.2018.05.079
[25] ZHANG J, WU Y, ZHANG H, et al. Castor oil-glycerol-based waterborne polyurethane dispersions[J]. Progress in Organic Coatings, 2021, 157: 106333.
doi: 10.1016/j.porgcoat.2021.106333
