On-line detection and pattern analysis of separation drafting force in comber

CHEN Yuheng1,2, GAO Weidong1(), REN Jiazhi2

  1. 1. Key Laboratory of Eco-Textiles ( Jiangnan University), Ministry of Education, Wuxi, Jiangsu 214122, China
    2. College of Textiles, Zhongyuan University of Technology, Zhengzhou, Henan 450007, China
  • Received:2022-04-06 Revised:2022-05-20 Online:2022-08-15 Published:2022-08-24
  • Contact: GAO Weidong E-mail:gaowd3@163.com

RichHTML

40

PDF (PC)

119

Abstract:

In order to study the variation law of separation drafting force in the combing process and to explore the separation drafting mechanism of comber, an on-line detection device of separation drafting force of comber was designed by torque sensor, and the numerical variation of drafting force in a separation cycle was obtained. Remaining other process parameters unchanged, the effects of comber speed and top combing process parameters on separation drafting force were analyzed. The results show that the separation drafting force of comber increases first and then decreases in a "mountain" pattern, and the peak value appears at 24 degrees. The separation drafting force and its increment increase as comber speed increases, and the top comb has a great influence on the separation drafting force. When the top comb was removed, the peak tensile force was decreased by 24.67％–34.81％. It is also found that the separation drafting force increases with the increase of top comb tooth density and insertion depth, but the influence of the insertion depth of the top comb on the drafting force is greater than that of the top comb tooth density.

Key words: comber, separation drafting force, on-line detection, speed, top comb

CLC Number:

  • TS104.1

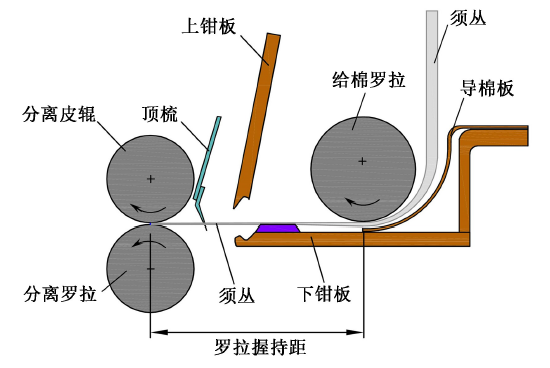

Fig.1

Separation and drafting device of comber"

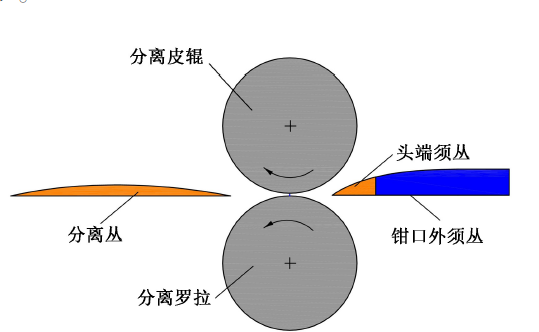

Fig.2

Schematic diagram of whisker cluster separation and drafting outside jaw"

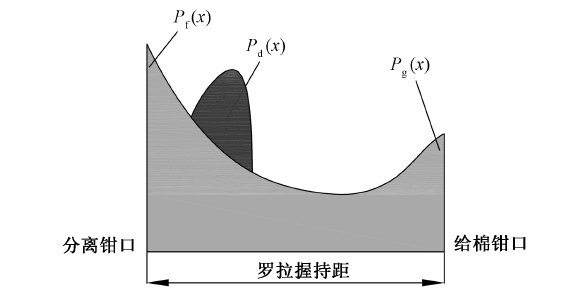

Fig.3

Friction field of draft zone in comber"

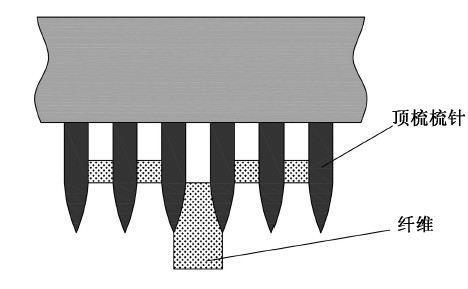

Fig.4

Schematic diagram of extrusion of top comb for fiber"

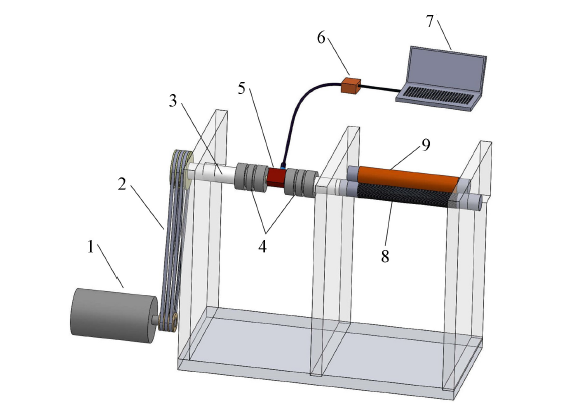

Fig.5

Schematic diagram of on-line detection device for separation drafting force of comber"

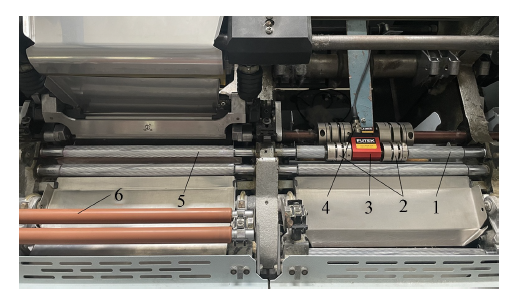

Fig.6

Physical drawing of on-line detection device for separation drafting force of comber"

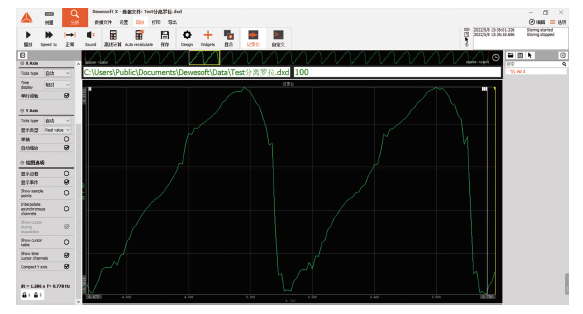

Fig.7

Test interface of separating draft torque of comber"

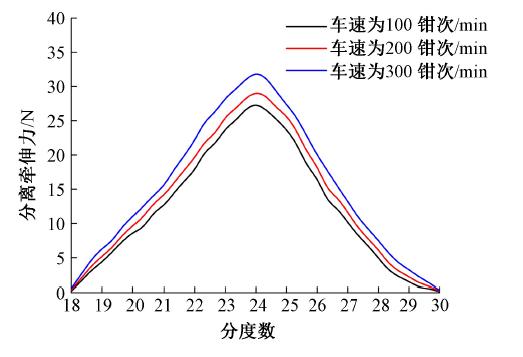

Fig.8

Effect of comber speed on separation drafting force"

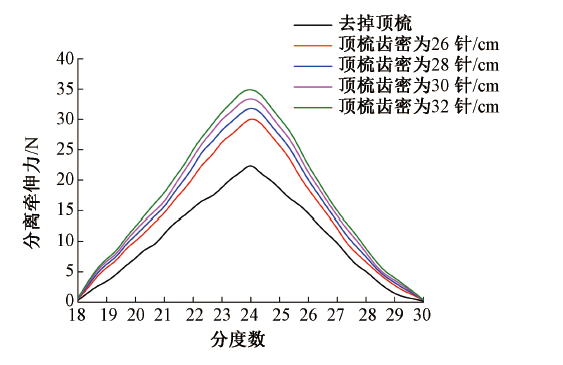

Fig.9

Effect of top comb tooth density on separation drafting force"

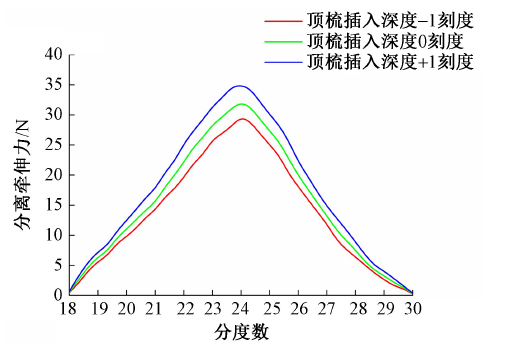

Fig.10

Influence of insertion depth of top comb on separation drafting force"

[1] LI Xinrong, JIANG Xiuming, YANG Jiancheng, et al. Study on flock detaching motion of a cotton comber[J]. Journal of The Textile Institute, 2014, 105(8):789-793.
doi: 10.1080/00405000.2013.861150
[2] 任家智, 高卫东, 谢春萍, 等. 棉精梳机分离罗拉顺转定时对棉网均匀度的影响[J]. 纺织学报, 2014, 35(3):127-131.
REN Jiazhi, GAO Weidong, XIE Chunping, et al. Influence of forward motion timing of comber detaching roller on evenness of cotton web[J]. Journal of Textile Research, 2014, 35(3):127-131.
[3] 任家智, 巫鳌飞, 贾国欣, 等. 棉纺精梳机分离罗拉动力学分析[J]. 棉纺织技术, 2020, 48(4):18-24.
REN Jiazhi, WU Aofei, JIA Guoxin, et al. Analyses on dynamics of detaching roller in cotton spinning comber[J]. Cotton Textile Technology, 2020, 48(4):18-24.
[4] 贾国欣, 任家智. 天丝短纤棉纺精梳工艺研究[J]. 现代纺织技术, 2021, 29(1):27-30.
JIA Guoxin, REN Jiazhi. Study on combing process of Tencel staple fiber[J]. Advanced Textile Technology, 2021, 29(1):27-30.
[5] 陈宇恒. 涤棉精梳混纺工艺研究[D]. 郑州: 中原工学院, 2016:35-36.
CHEN Yuheng. Research on combed blended process of polyester-cotton[J]. Research on combed blended process of polyester-cotton[D]. Zhengzhou: Zhongyuan University of Technology, 2016:35-36.
[6] YASEMIN A K, HASSAN M B. Relationship between fiber fineness,break draft,and drafting force in roller drafting[J]. Textile Research Journal, 2004, 74(5):405-408.
doi: 10.1177/004051750407400506
[7] 高志娟, 郁崇文. 并条机后区牵伸倍数的模拟设计[J]. 纺织学报, 2017, 38(4):39-45.
GAO Zhijuan, YU Chongwen. Simulating design for draft ratio of back drafting zone on drawing frame[J]. Journal of Textile Research, 2017, 38(4):39-45.
[8] ZHANG Zhiliang, YU Chongwen. Study on drafting force and sliver irregularity on drawing frame[J]. Journal of The Textile Institute, 2012, 103(3):341-347.
[9] SIDDIQUI Qasim, ABRO Zamir, YU Chongwen. Study of drafting force variability and sliver irregularity at the break draft zone of a draw frame[J]. Textile Research Journal, 2015, 85(14):1465-1473.
doi: 10.1177/0040517514563724
[10] SIDDIQUI Qasim, YU Chongwen. Drafting force measurement and its relation with break draft and short term sliver irregularity[J]. Indian Journal of Fibre & Textile Research, 2014, 39(4):358-363.
[11] LIN Qian, OXENHAM William, YU Chongwen. A study of the drafting force in roller drafting and its influence on sliver irregularity[J]. Journal of the Textile Institute, 2011, 102(11):994-1001.
doi: 10.1080/00405000.2010.529284
[12] 冯清国, 任家智, 贾国欣, 等. 棉纺细纱机后区牵伸力的在线检测[J]. 纺织学报, 2014, 35(10):36-39.
FENG Qingguo, REN Jiazhi, JIA Guoxin, et al. On-line detection on drafting force of back zone with cotton spinning frame[J]. Journal of Textile Research, 2014, 35(10):36-39.
[13] 魏艳红, 谢春萍, 刘新金, 等. 棉纺细纱机后区牵伸力的在线检测[J]. 纺织学报, 2019, 40(10):62-67.
WEI Yanhong, XIE Chunping, LIU Xinjin, et al. Drafting mechanism and application of spun yarn produced by large diameter soft rubber-covered roll[J]. Journal of Textile Research, 2019, 40(10):62-67.
[14] 英迪, 汪军, 田承泰, 等. 牵伸力与并条条子质量的关系[J]. 纺织学报, 2010, 31(3):111-114.
NIBKORA Ildephonse, WANG Jun, TIAN Chengtai, et al. Relationship between drafting force and sliver quality on drawing frame[J]. Journal of Textile Research, 2010, 31(3):111-114.
