Garment group customization sizing mechanism based on simulated size data

NIE Zimeng1, DU Jinsong1,2(), ZHU Jianlong3, YUE Chunming3, GE Xuguang4

  1. 1. College of Fashion and Design, Donghua University, Shanghai 200051, China
    2. Key Laboratory of Clothing Design and Technology, Ministry of Education, Donghua University, Shanghai 200051, China
    3. Hta Group Co., Ltd., Jiangyin, Jiangsu 214426, China
    4. Fujian Xiling Clothing Co., Ltd., Quanzhou, Fujian 362201, China
  • Received:2022-04-14 Revised:2022-12-26 Online:2023-05-15 Published:2023-06-09

Abstract:

Objective In the context of the rapid development of group customization of garment, this paper aims to solve the current problem of regional size system establishment of group customization, optimize the group customization number sizing process, and improve the style unity of group orders.

Method The Monte Carlo method was adopted to simulate the regional group size measurement data, and the regional group size system (RGS) was established based on the K-means clustering analysis results of the simulation data and the size proportion coefficient of the enterprise initial size system (EIS) and the sizing process of the group order was realized by using RGS. The sizing results were evaluated by comprehensive fit and aggregate loss.

Results The scatter diagram of chest grith/garment length of 10 000 sets of data was simulated by Monte Carlo method. The scatter diagram distribution and frequency distribution statistics of simulation data and real data were consistent (Fig.4), suggesting that the simulated data from the simulation model could be used as the target data of the next experiment. The clustering center of the simulation data clustering analysis results was tested (Tab.2). Based on the clustering center and EIS, the regional group size system RGS was established through the size system establishment process. 19 Types of RGS were involved in the research (Tab.4). Each size contained 4 important primary dimensions, i.e. chest grith, garment length, across shoulder and sleeve length. It was found that 4 sizes determining the style of garment were mid waist, hipline, sleeve bicep, and cuff. The same circumference or width transverse parameter has 3 length index values to match, and there were more size combination. Compared with EIS, RGS established on the basis of simulation data demonstrated a significant effect on the overall coverage of regional population. The comprehensive fit results showed that RGS can cover most target groups (Fig.5). The size data of the orders containing 218 people of the enterprise were matched by EIS and RGS, respectively. The sizing process and the sizing results were suggested 1 person cut individually for special body type. When using EIS for matching sizes, the evaluation result of the fit degree was as follows: 108 people fedback with excellent fitting (48%), 102 people good, 1 person general, and 6 people not ideal. When RGS was adopted to match the size of the order, and the fit degree evaluation results showed that 211 people returned excellent feedback, 4 people good, and 2 people general, with the proportion of excellent of 97.2%. The excellent conversion rate of RGS is 47.4% (Tab.5).

Conclusion The Monte Carlo method was adopted to simulate the regional size data accumulated by enterprise orders, and the enterprise size database was established. The simulation data reached the expected simulation goal, and the regional group size system could be optimized by using the simulation data. RGS establishment is shown to increase the coverage of target population, increase the fit degree of clothing, effectively improve the uniformity and consistency of garment customization, and thus reduce the probability of garment repair. The sizing mechanism considers the multidimensional size proportion of human body, changes the method of relying on a single dimension for the sizing process, and carries on the size matching through the proportion of different dimensions. The sizing process can effectively distinguish and classify the body size, and match the individual size with the size system. The sizing mechanism can provide theoretical basis for enterprise digital sizing process.

Key words: garment group customization, data simulation, K-means clustering algorithm, Monte Carlo method, garment sizing process

CLC Number:

  • TS941

Tab.1

Comparative analysis of different customization modes"

定制模式 应用模式 尺寸测量方案 号型标准制定 纸样生成方式 号型标准应用 版型变体方法 裁剪方案
大规模
定制生产
C2M 控制尺寸、特征尺寸 国家标准、企业标准 企业版型、独立生成 服装通用号型标准 单独生成、批量修正 单件剪裁、粗裁+精裁
个性化定制 高级定制、C2M 控制尺寸、特征尺寸、其他尺寸 无标准、企业标准 独立生成 单独生成 单件剪裁
团体定制 制服、校服、团订 控制尺寸、特征尺寸 国家标准、企业标准、区域标准 企业版型,批量生成 区域性号型标准 批量修正 单件剪裁、粗裁+精裁

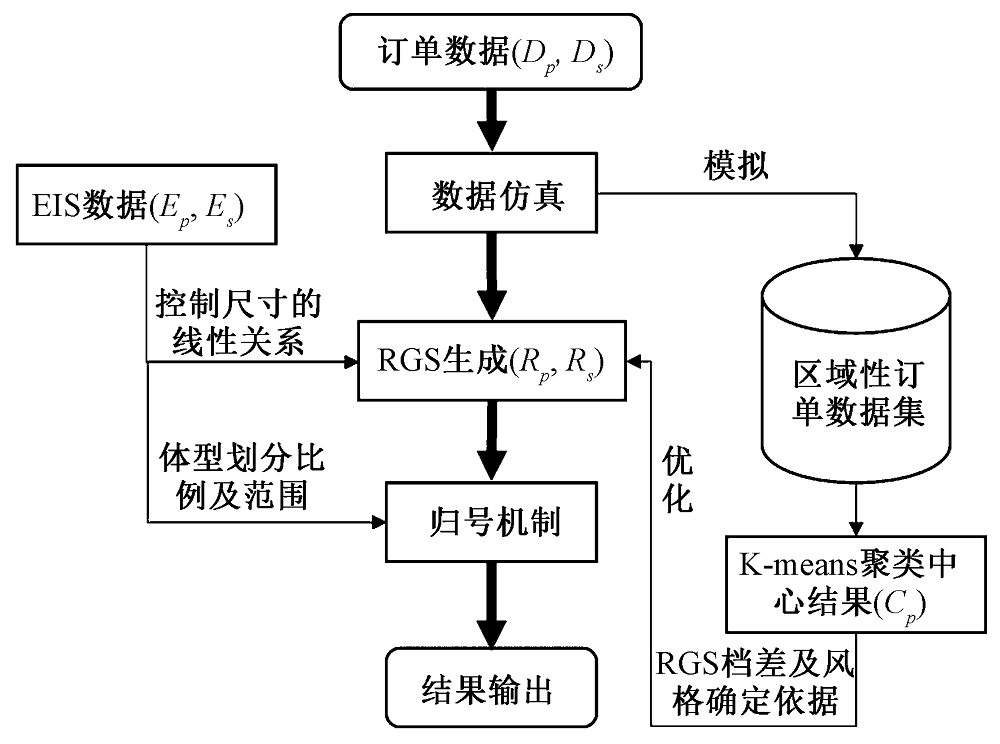

Fig.1

Size categorization process"

Fig.2

Simulate regional human data flow"

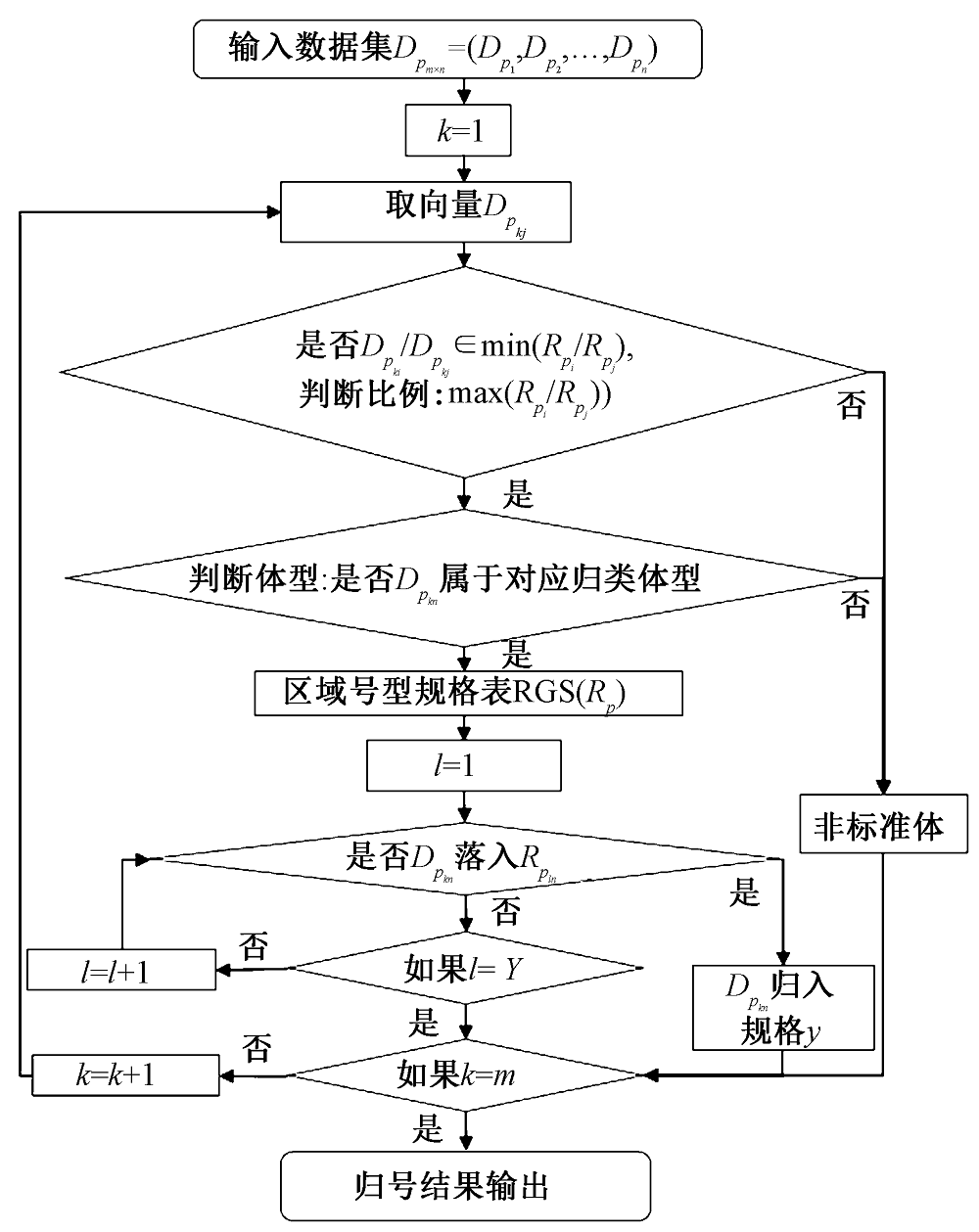

Fig.3

Mechanism model of group size categorization process"

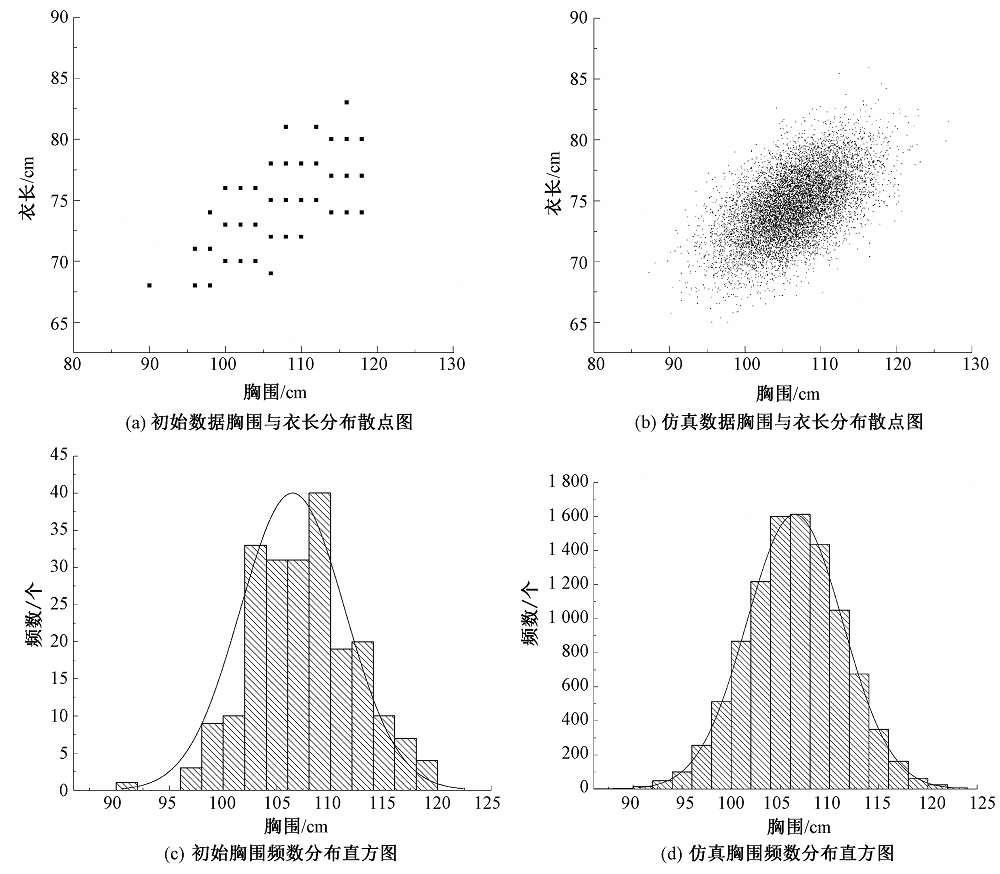

Fig.4

Statistical distribution comparison between real data and simulated data. (a)Scatter diagram of initial data chest circumference and length distribution; (b)Scatter diagram of chest circumference and garment length distribution of simulated data;(c)Histogram of frequency distribution of initial chest circumference;(d)Histogram of frequency distribution of simulated chest circumference"

Tab.2

Cluster centercm"

聚类中心序号 胸围 C p 1 衣长 C p 2 肩宽 C p 3 袖长 C p 4
1 95.51 69.79 42.77 57.86
2 97.97 73.37 43.81 61.04
3 100.08 70.27 44.10 57.92
4 101.44 73.13 44.72 60.19
5 102.59 75.83 45.27 62.58
6 104.03 71.19 45.19 58.23
7 104.44 73.64 45.57 60.50
8 106.42 77.88 46.45 63.82
9 106.49 75.25 46.24 61.43
10 107.18 72.53 46.17 58.95
11 109.28 76.34 47.13 62.33
12 109.81 74.26 47.04 60.06
13 110.85 78.95 47.81 64.24
14 112.65 76.14 48.02 61.40
15 115.22 78.74 48.94 63.52

Tab.3

Y Patten enterprise initial size system of HLcm"

号型 胸围
E p 1
衣长
E p 2
肩宽
E p 3
袖长
E p 4
中腰围
E s 1
臀围
E s 2
袖肥
E s 3
袖口
E s 4
90/71 90 71 40.8 56.5 79 90 17.4 12.5
92/71 92 71 41.4 56.5 81 92 17.7 12.7
94/71 94 71 42.0 56.5 83 94 18.0 12.9
96/71 96 71 42.6 56.5 85 96 18.3 13.1
98/71 98 71 43.2 56.5 87 98 18.6 13.3
100/73 100 73 43.8 58.0 89 100 18.9 13.5
102/73 102 73 44.4 58.0 91 102 19.2 13.7
104/73 104 73 45.0 58.0 93 104 19.5 13.9
106/75 106 75 45.6 59.5 95 106 19.8 14.1
108/75 108 75 46.2 59.5 97 108 20.1 14.3
110/75 110 75 46.8 59.5 99 110 20.4 14.5
112/75 112 75 47.4 59.5 101 112 20.7 14.7
114/77 114 77 48.0 61.0 103 114 21.0 14.9
116/77 116 77 48.6 61.0 105 116 21.3 15.1
118/77 118 77 49.2 61.0 107 118 21.6 15.3

Tab.4

Y Pattern regional group size systemcm"

RGS号型序号 胸围 R p 1 衣长 R p 2 肩宽 R p 3 袖长 R p 4 中腰围 R s 1 臀围 R s 2 袖肥 R s 3 袖口 R s 4 归号结果
1 91.0 69/71/73 40.9 57/58/59 80.0 91.0 17.6 12.6 1
2 92.5 69/71/73 41.4 57/58/59 81.5 92.5 17.8 12.8 0
3 94.0 69/71/73 41.8 57/58/59 83.0 94.0 18.0 12.9 0
4 95.5 71/73/75 42.3 58/59/60 84.5 95.5 18.2 13.1 0
5 97.0 71/73/75 427 58/59/60 86.0 97.0 18.5 13.2 3
6 98.5 71/73/75 43.2 58/59/60 87.5 98.5 18.7 13.4 9
7 100.0 71/73/75 43.6 58/59/60 89.0 100.0 18.9 13.5 10
8 101.5 71/73/75 44.1 58/59/60 90.5 101.5 19.1 13.7 0
9 103.0 71/73/75/77 44.5 58/59/60/61 92.0 103.0 19.4 13.8 33
10 104.5 71/73/75/77 45.0 58/59/60/61 93.5 104.5 19.6 14.0 31
11 106.0 7173/75/77 45.4 58/59/60/61 95.0 106.0 19.8 14.1 31
12 107.5 71/73/75/77 45.9 58/59/60/61 96.5 107.5 20.0 14.3 0
13 109.0 71/73/75/77 46.3 58/59/60/61 98.0 109.0 20.3 14.4 40
14 110.5 75/77/79 46.8 60/61/62 99.5 110.5 20.5 14.6 19
15 112.0 75/77/79 47.2 60/61/62 101.0 112.0 20.7 14.7 20
16 113.5 75/77/79 47.7 60/61/62 102.5 113.5 20.9 14.9 0
17 115.0 75/77/79 48.1 60/61/62 104.0 115.0 21.2 15.0 10
18 116.5 75/77/79 48.6 60/61/62 105.5 116.5 21.4 15.2 7
19 118.0 75/77/79 49.0 60/61/62 107.0 118.0 21.6 15.3 3

Tab.5

Evaluation grade of results"

合体等级评价
范围/cm
评价等级 统一性 EIS
(优化前)
RGS
(优化后)
0~1 一级 优秀 108 211
1~2 二级 良好 102 4
2~3 三级 一般 1 2
3~4 四级 不理想 6 0

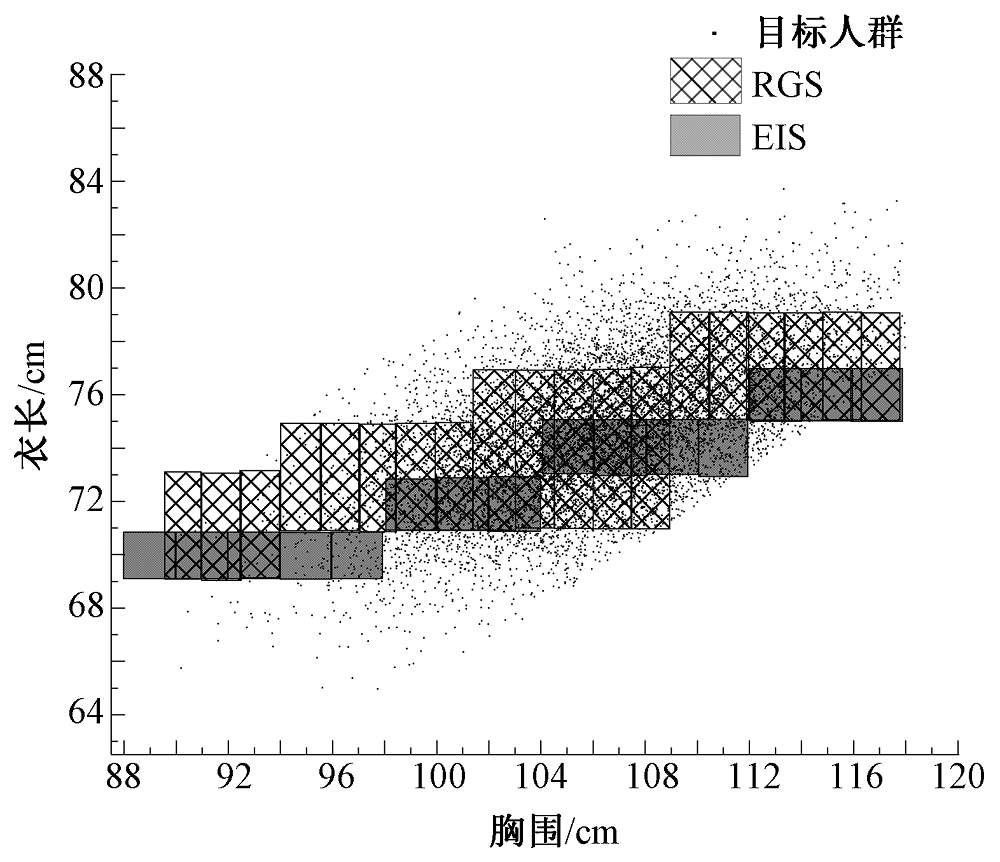

Fig.5

Comparative analysis of coverage"

[1] 邓椿山, 李琴, 周莉, 等. 体型分析在观测服装号型适应性上的应用[J]. 纺织学报, 2017, 38(1):111-115.
DENG Chunshan, LI Qin, ZHOU Li, et al. Application of body shape analysis in observation of clothing size adaptability[J]. Journal of Textile Research, 2017, 38(1):111-115.
[2] XIA S B, ISTOOK C. A method to create body sizing systems[J]. Clothing and Textiles Research Journal, 2017, 35(4): 235-248.
doi: 10.1177/0887302X17713298
[3] 余佳佳, 李健. 中国东部地区青年女性人体体型分类[J]. 纺织学报, 2020, 41(5):134-139.
YU Jiajia, LI Jian. Classification of young women's somatotypes in Eastern China[J]. Journal of Textile Research, 2020, 41(5):134-139.
doi: 10.1177/004051757104100208
[4] XU Y, THOMASSEY S, ZENG X. Garment mass customization methods for the cutting-related processes[J]. Textile Research Journal, 2021, 91(7/8): 802-819.
doi: 10.1177/0040517520957399
[5] 文德智, 卓仁鸿, 丁大杰, 等. 蒙特卡罗模拟中相关变量随机数序列的产生方法[J]. 物理学报, 2012, 61(22):26-33.
WEN Zhide, ZHUO Renhong, DING Dajie, et al. Generation of correlated pseudorandom variables in Monte Carlo simulation[J]. Acta Physica Sinica, 2012, 61(22):26-33.
[6] 胡娟. 基于仿真人体大数据的高粒度服装号型重构及实践[D]. 北京: 北京服装学院, 2019:22-24.
HU Juan. A high-granularity sizing system for apparel customization based on large-scale simulated data of human body measurements[D]. Beijing: Beijing Institute of Fashion Technology, 2019:22-24.
[7] 王建萍, 李月丽, 喻芳. 基于择近原则的服装号型数字化归档方法[J]. 纺织学报, 2007, 28(11):106-110.
WANG Jianping, LI Yueli, YU Fang. Digitized categorization for garment size designation based on the approaching principle[J]. Journal of Textile Research, 2007, 28(11):106-110.
[8] 张恒, 张欣. 基于批量定制的服装号型归档方法[J]. 东华大学学报(自然科学版), 2009, 35(4):436-440.
ZHANG Heng, ZHANG Xin. The type filing for garment size type based on the lot custom-made[J]. Journal of Donghua University (Natural Science), 2009, 35(4):436-440.
[9] 呼慧敏, 晁储芝, 赵朝义, 等. 中国成年人人体尺寸数据相关性研究[J]. 人类工效学, 2014, 20(3):49-53.
HU Huimin, CHAO Chuzhi, ZHAO Chaoyi, et al. A study on the correlation of human body size data among Chinese adults[J]. Chinese Journal of Ergonomics, 2014, 20(3):49-53.
[10] XU Y, THOMASSEY S, ZENG X. Optimization of garment sizing and cutting order planning in the context of mass customization[J]. International Journal of Advanced Manufacturing Technology, 2020, 106(7/8): 3485-3503.
doi: 10.1007/s00170-019-04866-w
