基于深度强化学习的服装缝制过程实时动态调度

doi:10.13475/j.fzxb.20220407908

Abstract

Abstract:

The garment sewing process is prone to interference caused by dynamic events. With the objective of minimizing the completion cycle, a deep reinforcement learning-based real-time dynamic scheduling method for the garment sewing process was proposed for the dynamic events of real-time order arrival. A scheduling optimization model of garment sewing process was established, and the problem was transformed into a sequential decision problem based on Markov decision process. By defining state features, action set, reward function, exploration and exploitation strategy, combined with the DDQN algorithm to train a deep neural network to describe the state-action value, the most appropriate scheduling rule was selected at the decision node. Experiments show that for the sewing process of the front panel of jeans, the proposed method is 2.3% inferior to the genetic algorithm in achieving the scheduling goal, but the decision-making time is greatly reduced by 91.4%. The method is useful to achieve effective real-time response and ensure the efficiency and continuity of sewing production for the scheduling problem of dynamic order arrival.

Key words: garment sewing production, dynamic scheduling method, reinforcement learning method, deep neural network, smart manufacturing

CLC Number:

TS941

LIU Feng, XU Jie, KE Wenbo. Real-time dynamic scheduling for garment sewing process based on deep reinforcement learning[J].Journal of Textile Research, 2022, 43(09): 41-48.

Figures/Tables 7

Tab.1

Fig.1

Tab.2

Candidate actions set"

序号	动作代码	具体描述
1	SFPT	选择第1道工序加工时间最短的工件
2	LFPT	选择第1道工序加工时间最长的工件
3	SFPT/APT	选择第1道工序加工时间与所有工序总时间比值最小的工件
4	LFPT/APT	选择第1道工序加工时间与所有工序总时间比值最大的工件
5	SLPT	选择最后1道工序加工时间最短的工件
6	LLPT	选择最后1道工序加工时间最长的工件
7	SLPT/APT	选择最后1道工序加工时间与所有工序总时间比值最小的工件
8	LLPT/APT	选择最后1道工序加工时间与所有工序总时间比值最大的工件
9	SHPT	前一半工序时间最短
10	LHPT	前一半工序时间最长
11	SHPT/APT	前一半工序时间与所有工序总时间比值最小的工件
12	LHPT/APT	前一半工序时间与所有工序总时间比值最大的工件
13	SAPT	所有工序总时间最短
14	LAPT	所有工序总时间最长
15	Gupta	对每个工件计算斜度参数,即s_i= $C m i n j ∈ {1,2, 3, …, m - 1} (t i, j + t i, j + 1)$ ,按照s_i的非减顺序排列各工件,选择s_i最小的工件。其中C= $1, 若 t i, m ≤ t i, 1 - 1, 其他$ ,i=1,2,…,n
16	NEH_KK1	计算a_i= $∑ j = 1 m$ ((m-1)(m-2)/2+m-j)t_i_,_j b_i= $∑ j = 1 m$ ((m-1)(m-2)/2+j-1)t_i_,_j i=1,2,…,n 按照min(a_i,b_i)非增顺序排列各工件,选择min(a_i,b_i)最大的工件

Tab.2

Tab.3

Framework of DDQN based training algorithm"

步骤	算法描述
1	初始化回放缓存记忆体D并设定其最大容量为M
2	初始化在线评估网络Q及其参数θ
3	初始化目标网络 $Q^$ 并设定其参数 $θ^$ =θ
4	for e_iter=1∶M:
5	建立初始状态s₀(按本文3.1节所述方法)
6	更新ε值(按式(14))
7	设置done=False(done==False表示还有待加工服装未进入加工过程;done==True表示所有服装均进入加工过程)
8	while(done==False):
9	以1-ε的概率随机选择一个动作或者依据网络Q评估出各动作q值,并选择当前最优动作a(按式(13))
10	执行动作a_t得到新的状态s_t₊₁和回报r_t,以及更新done_t
11	将(s_t,a_t,r_t,s_t₊₁,done_t)存入D
12	从D中以批量形式采样(s_i,a_i,r_i,s_i₊₁,done_i)
13	更新目标值 y= $r i d o n e i = = T r u e r i + γ · Q^(s i + 1, a r g m a x a Q (s i + 1, a; θ); θ^) d o n e i = = F a l s e$
14	更新Q的参数θ,使Q(s_i,a_i)的值更接近y
15	每隔C步将参数θ赋予 $θ^$

Tab.3

Tab.4

Fig.2

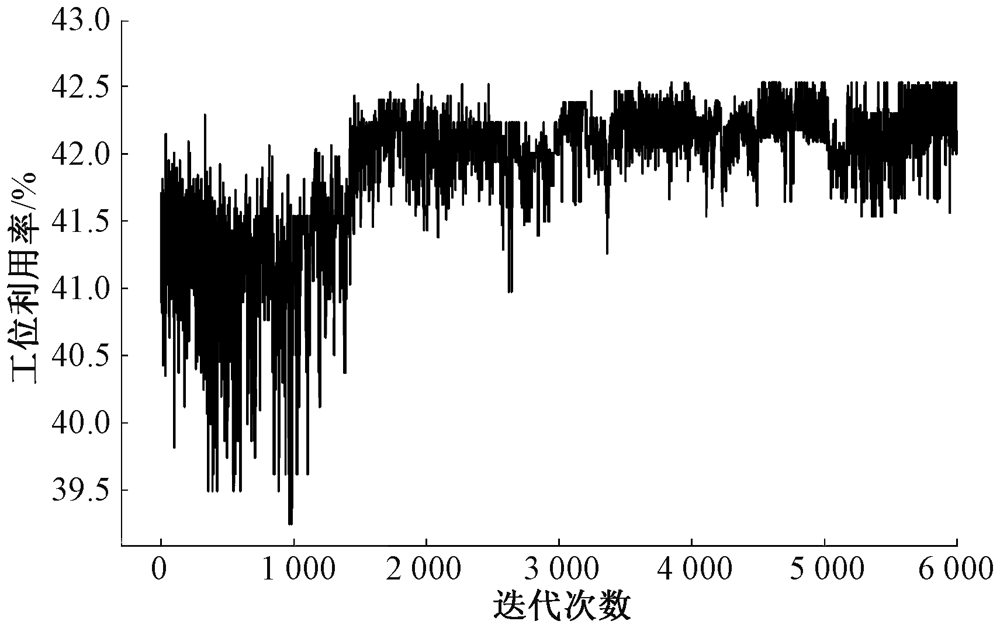

Fig.3
